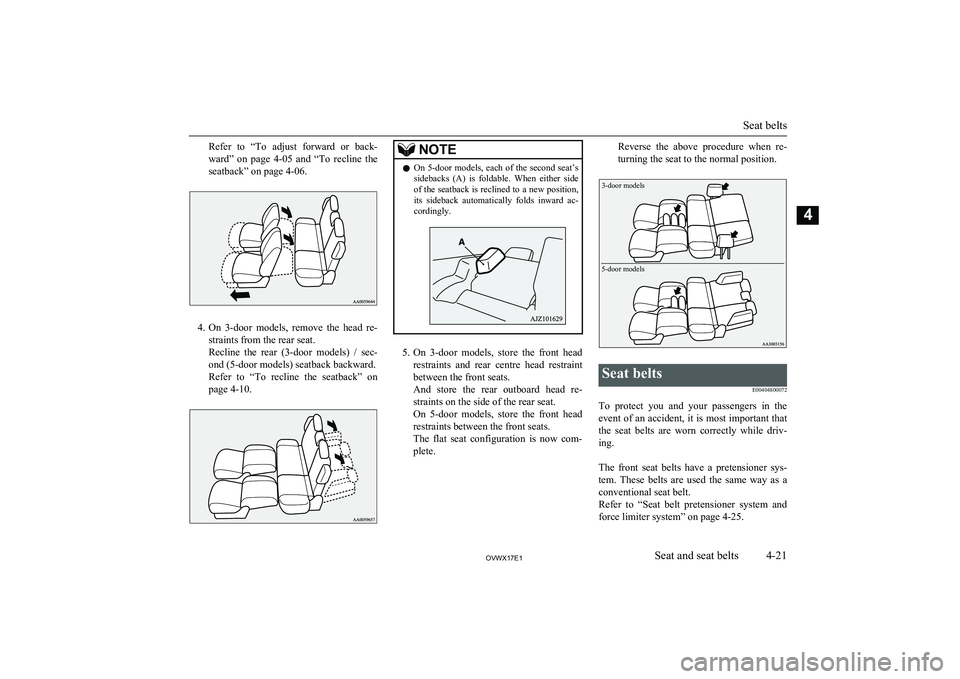

Refer to “To adjust forward or back-
ward” on page 4-05 and “To recline the
seatback” on page 4-06.
4. On 3-door models, remove the head re-
straints from the rear seat.
Recline the rear (3-door models) / sec-
ond (5-door models) seatback backward.
Refer to “To recline the seatback” on page 4-10.
NOTEl On 5-door models, each of the second seat’s
sidebacks (A) is foldable. When either side
of the seatback is reclined to a new position, its sideback automatically folds inward ac-
cordingly.
5. On 3-door models, store the front head
restraints and rear centre head restraint
between the front seats.
And store the rear outboard head re- straints on the side of the rear seat.
On 5-door models, store the front head restraints between the front seats.
The flat seat configuration is now com-
plete.
Reverse the above procedure when re-
turning the seat to the normal position.5-door models3-door models
Seat belts
E00404800072
To protect you and your passengers in theevent of an accident, it is most important thatthe seat belts are worn correctly while driv-
ing.

The front seat belts have a pretensioner sys- tem. These belts are used the same way as a
conventional seat belt.
Refer to “Seat belt pretensioner system and force limiter system” on page 4-25.
Seat belts
4-21OVWX17E1Seat and seat belts4

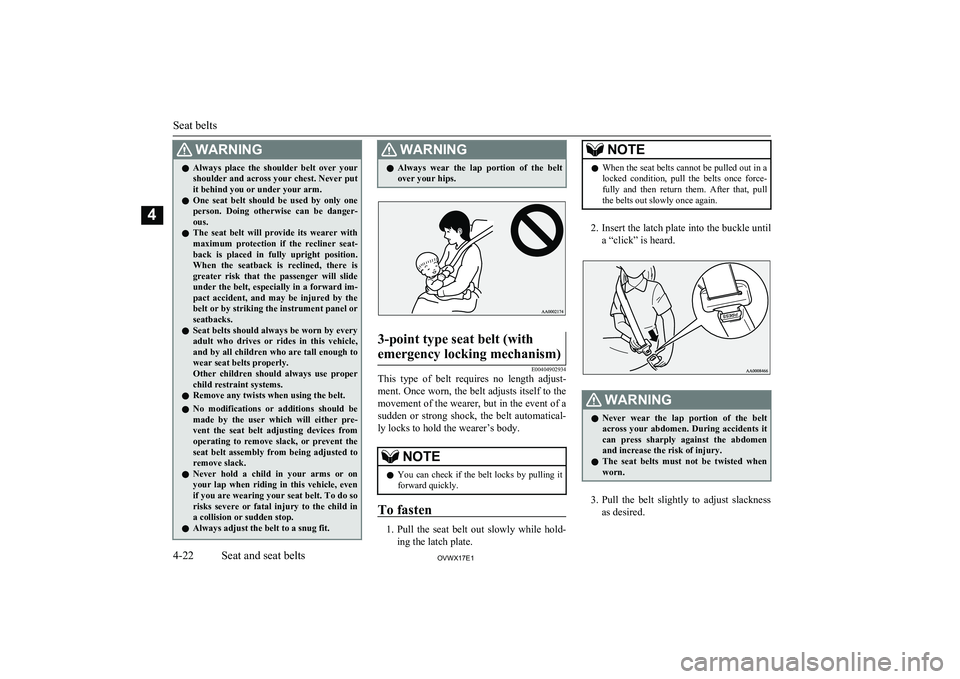

WARNINGlAlways place the shoulder belt over your
shoulder and across your chest. Never put it behind you or under your arm.
l One seat belt should be used by only one
person. Doing otherwise can be danger-
ous.
l The seat belt will provide its wearer with
maximum protection if the recliner seat- back is placed in fully upright position.
When the seatback is reclined, there is
greater risk that the passenger will slide under the belt, especially in a forward im-
pact accident, and may be injured by the
belt or by striking the instrument panel or seatbacks.
l Seat belts should always be worn by every
adult who drives or rides in this vehicle, and by all children who are tall enough towear seat belts properly.
Other children should always use proper child restraint systems.
l Remove any twists when using the belt.
l No modifications or additions should be
made by the user which will either pre- vent the seat belt adjusting devices fromoperating to remove slack, or prevent the
seat belt assembly from being adjusted to
remove slack.
l Never hold a child in your arms or on
your lap when riding in this vehicle, even
if you are wearing your seat belt. To do so risks severe or fatal injury to the child in
a collision or sudden stop.
l Always adjust the belt to a snug fit.WARNINGlAlways wear the lap portion of the belt
over your hips.3-point type seat belt (with
emergency locking mechanism)
E00404902934
This type of belt requires no length adjust- ment. Once worn, the belt adjusts itself to the
movement of the wearer, but in the event of a sudden or strong shock, the belt automatical-
ly locks to hold the wearer’s body.
NOTEl You can check if the belt locks by pulling it
forward quickly.
To fasten
1. Pull the seat belt out slowly while hold-
ing the latch plate.
NOTEl When the seat belts cannot be pulled out in a
locked condition, pull the belts once force-
fully and then return them. After that, pull
the belts out slowly once again.
2. Insert the latch plate into the buckle until
a “click” is heard.
WARNINGl Never wear the lap portion of the belt
across your abdomen. During accidents it
can press sharply against the abdomen and increase the risk of injury.
l The seat belts must not be twisted when
worn.
3. Pull the belt slightly to adjust slackness
as desired.
Seat belts
4-22OVWX17E1Seat and seat belts4

To unfasten
Hold the latch plate and push the button on
the buckle.
NOTEl As the belt retracts automatically, keep hold-
ing the latch plate while retracting so that the
belt stows slowly. Failure to do this could damage the vehicle.
l If the seat belt (A) or ring (B) becomes dirty,
the belt may not retract smoothly. If the seat belt and ring are dirty, clean them with a
mild soap or detergent solution.NOTESeat belt reminder/warning
lamp
E00409800338
The seat belt warning lamp is located on the instrument panel. A tone and warning lamp
are used to remind the driver to fasten the seat belt.
When the ignition key is turned to the “ON”
position, the warning lamp will come on and
a tone will sound for about 6 seconds. If the
driver’s seat belt remains unfastened for ap-
proximately 1 minute later, the warning lamp will flash and the tone sound intermittently
(each 12 times) when the vehicle is driven. If the driver subsequently unfastens the seat belt while driving, the warning lamp and tone
will issue further warnings. And if the seat
belt remains unfastened, the warning lamp and tone will issue further warnings each time the vehicle starts moving from a stop.
When the seat belt is fastened, the warnings
will stop.Adjustable seat belt anchor
(front seats)
E00405000286
The seat belt anchor height can be adjusted.
Seat belts
4-23OVWX17E1Seat and seat belts4

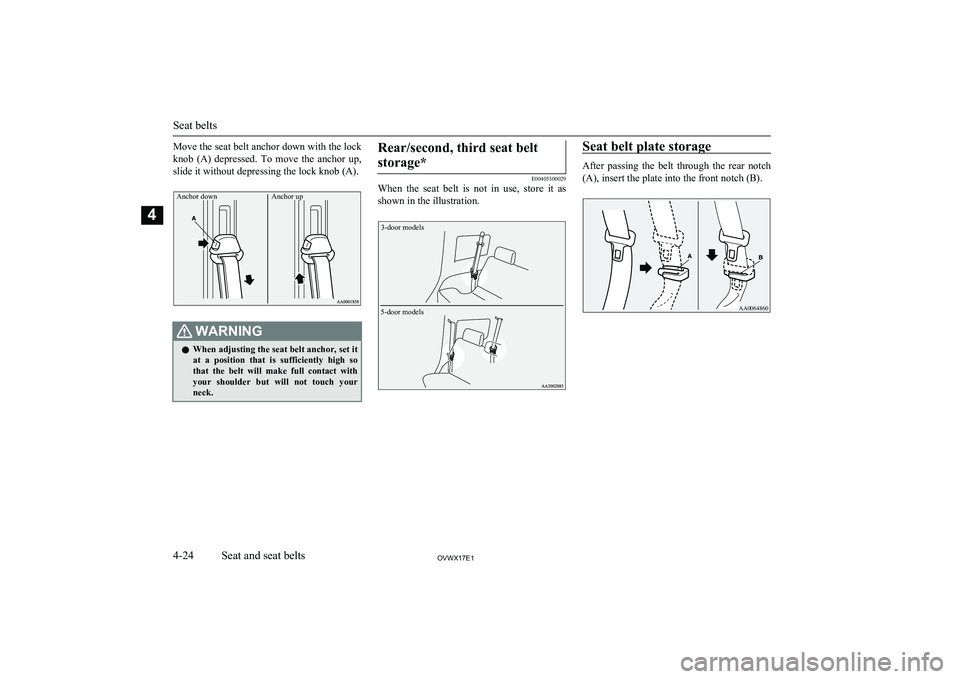

Move the seat belt anchor down with the lock
knob (A) depressed. To move the anchor up,
slide it without depressing the lock knob (A).Anchor down Anchor up
WARNINGl When adjusting the seat belt anchor, set it
at a position that is sufficiently high so
that the belt will make full contact with your shoulder but will not touch your
neck.Rear/second, third seat belt
storage*
E00405300029
When the seat belt is not in use, store it as
shown in the illustration.
3-door models5-door models Seat belt plate storage
After passing the belt through the rear notch
(A), insert the plate into the front notch (B).Seat belts
4-24OVWX17E1Seat and seat belts4 AA0064860

Seat belt buckle storage
Store the seat belt buckle in the storage pock-
et.
Rear/Second seatThird seat (5-door models)
Pregnant women restraint
E00405600064WARNINGlSeat belts work for everyone, including
pregnant women. Pregnant women should
use the available seat belts. This will re- duce the likelihood of injury to both thewoman and the unborn child. The lap belt
should be worn across the thighs and as snug against the hips as possible, but not
across the waist. Consult your doctor if you have any additional questions or con-
cerns.Seat belt pretensioner
system and force limiter
system E00405701323
The driver’s seat and front passenger’s seateach have a seat belt equipped with a preten- sioner system and force limiter system.
Pretensioner system
E00405800747
The pretensioner system will retract their re-
spective seat belts instantaneously, thus max-imizing the seat belt’s effectiveness, if there
is a frontal impact severe enough to injure the
driver and/or front passenger and the ignition
switch is in the “ON” or “START” position.
WARNINGl To obtain the best results from your pre-
tensioner seat belt, make sure you have
adjusted your seat correctly and wear your seat belt properly.CAUTIONl Installation of audio equipment or repairs in
the vicinity of the pretensioner seat belts or
floor console must be performed in line with MITSUBISHI MOTORS guidelines. It is
important to do so because the work could affect the pretensioner systems.
l If you need to scrap the vehicle, please con-
sult a MITSUBISHI MOTORS Authorized
Service Point.
It is important to do so because unexpected activation of the pretensioner seat belts
could cause injuries.NOTEl The pretensioner seat belts will be activated
if the vehicle suffers a severe frontal impact, even if the seat belts are not worn.
l The pretensioner seat belts are designed to
work only once. After the pretensioner seat
belts have been activated, we recommend you to have them replaced by a
MITSUBISHI MOTORS Authorized Serv-
ice Point.
Pregnant women restraint
4-25OVWX17E1Seat and seat belts4

SRS warning lamp
E00405900083
This warning lamp is shared by the SRS air-
bags and the pretensioner seat belts. Refer to
“SRS warning lamp” on page 4-47.
Force limiter system
E00406000153
In the event of a collision, each force limiter
system will effectively absorb the load ap- plied to the seat belt to minimize the impact
to the passenger.
Child restraint
E00406403233
When transporting children in your vehicle,some type of child restraint system should al-
ways be used according to the size of the child. This is required by law in most coun-
tries.
The regulations concerning driving with chil- dren in the front seat may differ from country
to country. You are advised to comply with the relevant regulations.
WARNINGl When possible, put children in the rear
seat. Accident statistics indicate that chil- dren of all sizes and ages are safer when
properly restrained in the rear seat rather than in the front seat.WARNINGl Holding a child in your arms is no substi-
tute for a restraint system. Failure to use
a proper restraint system can result in se- vere or fatal injury to the child.
l Each child restraint device or fixing is to
be used only by one child.
l When attaching a child restraint system
to the rear seat, prevent the front seat- backs from touching the child restraintsystem.
Otherwise, the child could be seriously in-
jured in the event of hard braking or a
collision.
Caution for installing the child
restraint on vehicle with frontpassenger’s airbag
The label shown here is attached on vehicles
with a front passenger’s airbag.
WARNINGl Extreme Hazard!
NEVER use a rearward facing child re- straint on a seat protected by an ACTIVEAIRBAG in front of it, DEATH or SERI- OUS INJURY to the CHILD can occur.NOTEl The labels may be in different positions de-
pending on the vehicle model.
Use rearward facing child restraints in the
rear seat or turn off the front passenger’s air- bag ON-OFF switch. (Refer to “To turn an airbag off” on page 4-40.)
Child restraint
4-26OVWX17E1Seat and seat belts4 Front passenger's airbag ON

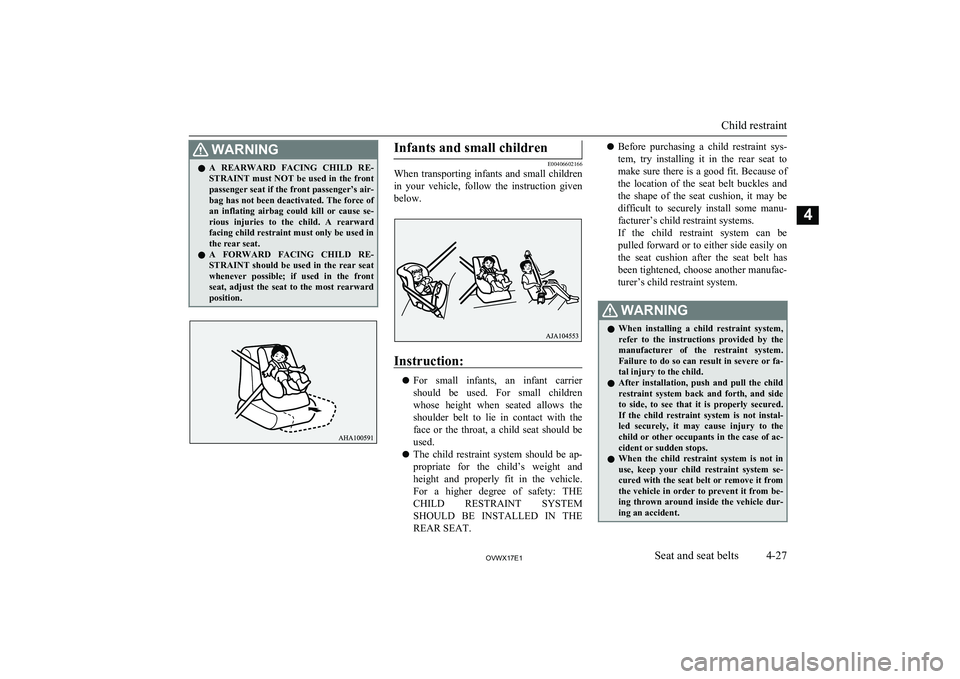

WARNINGlA REARWARD FACING CHILD RE-
STRAINT must NOT be used in the front passenger seat if the front passenger’s air-
bag has not been deactivated. The force of an inflating airbag could kill or cause se-
rious injuries to the child. A rearward facing child restraint must only be used inthe rear seat.
l A FORWARD FACING CHILD RE-
STRAINT should be used in the rear seat
whenever possible; if used in the front seat, adjust the seat to the most rearward
position.Infants and small children
E00406602166
When transporting infants and small children
in your vehicle, follow the instruction given below.
Instruction:
l For small infants, an infant carrier
should be used. For small children whose height when seated allows the shoulder belt to lie in contact with the
face or the throat, a child seat should be
used.
l The child restraint system should be ap-
propriate for the child’s weight and
height and properly fit in the vehicle. For a higher degree of safety: THECHILD RESTRAINT SYSTEM
SHOULD BE INSTALLED IN THE REAR SEAT.
l Before purchasing a child restraint sys-
tem, try installing it in the rear seat to make sure there is a good fit. Because of the location of the seat belt buckles and
the shape of the seat cushion, it may be
difficult to securely install some manu- facturer’s child restraint systems.
If the child restraint system can be
pulled forward or to either side easily on
the seat cushion after the seat belt has
been tightened, choose another manufac- turer’s child restraint system.WARNINGl When installing a child restraint system,
refer to the instructions provided by the manufacturer of the restraint system.Failure to do so can result in severe or fa-tal injury to the child.
l After installation, push and pull the child
restraint system back and forth, and side to side, to see that it is properly secured.
If the child restraint system is not instal-
led securely, it may cause injury to the
child or other occupants in the case of ac- cident or sudden stops.
l When the child restraint system is not in
use, keep your child restraint system se-
cured with the seat belt or remove it from the vehicle in order to prevent it from be- ing thrown around inside the vehicle dur-
ing an accident.
Child restraint
4-27OVWX17E1Seat and seat belts4

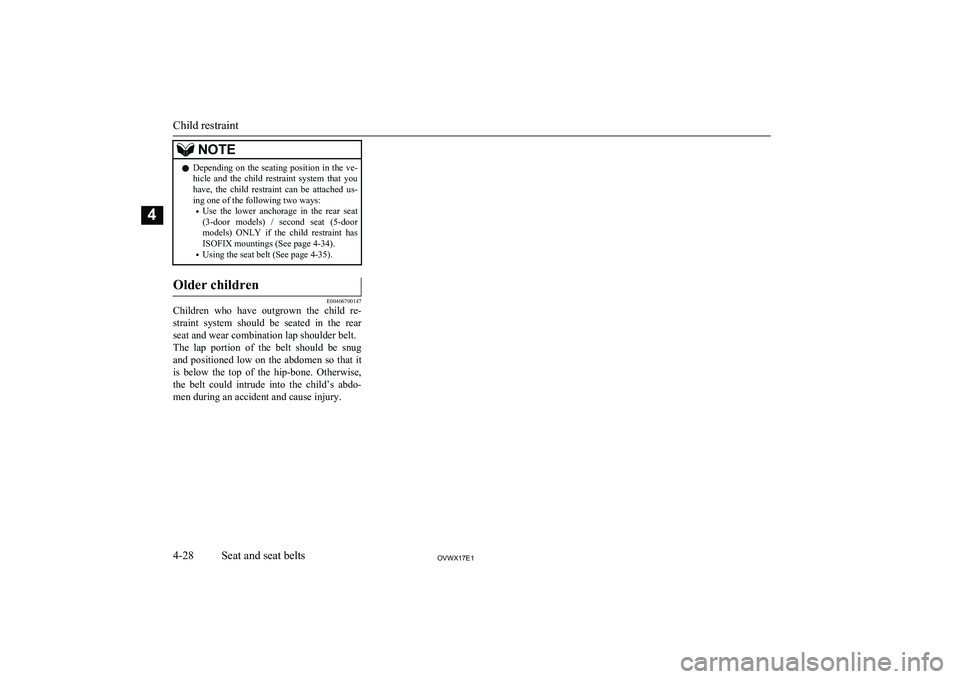

NOTElDepending on the seating position in the ve-
hicle and the child restraint system that you have, the child restraint can be attached us-
ing one of the following two ways:
• Use the lower anchorage in the rear seat
(3-door models) / second seat (5-door
models) ONLY if the child restraint has ISOFIX mountings (See page 4-34).
• Using the seat belt (See page 4-35).Older children
E00406700147
Children who have outgrown the child re-
straint system should be seated in the rear
seat and wear combination lap shoulder belt.
The lap portion of the belt should be snug and positioned low on the abdomen so that it
is below the top of the hip-bone. Otherwise, the belt could intrude into the child’s abdo-
men during an accident and cause injury.
Child restraint
4-28OVWX17E1Seat and seat belts4

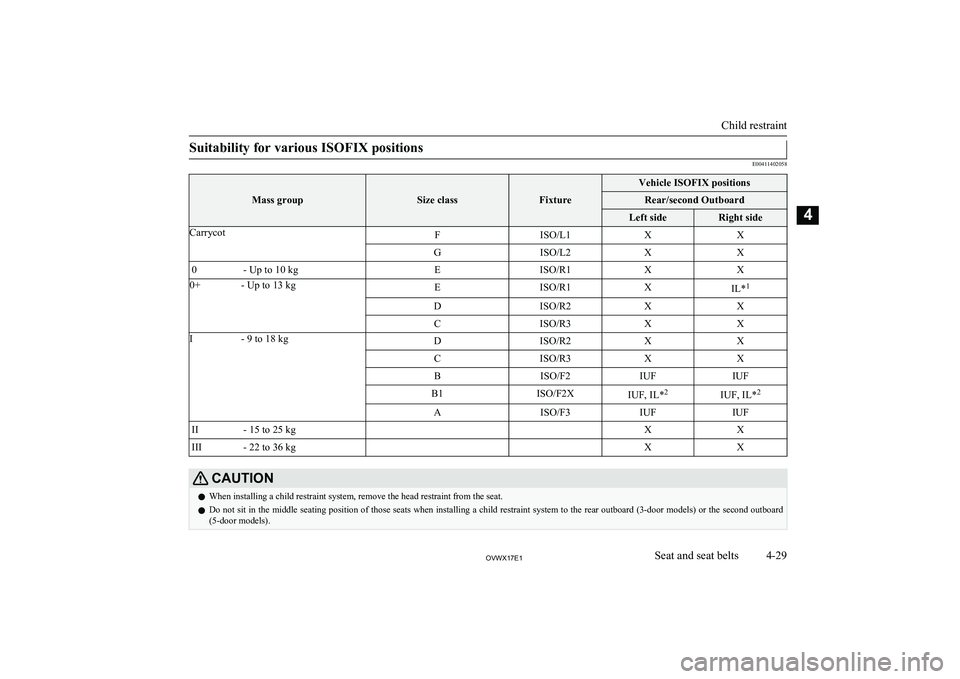

Suitability for various ISOFIX positions
E00411402058Mass groupSize classFixture
Vehicle ISOFIX positionsRear/second OutboardLeft sideRight sideCarrycotFISO/L1XXGISO/L2XX0- Up to 10 kgEISO/R1XX0+- Up to 13 kgEISO/R1XIL*1DISO/R2XXCISO/R3XXI- 9 to 18 kgDISO/R2XXCISO/R3XXBISO/F2IUFIUFB1ISO/F2XIUF, IL* 2IUF, IL*2AISO/F3IUFIUFII- 15 to 25 kg XXIII- 22 to 36 kg XXCAUTIONl
When installing a child restraint system, remove the head restraint from the seat.
l Do not sit in the middle seating position of those seats when installing a child restraint system to the rear outboard (3-door models) or the second outboard
(5-door models).
Child restraint
4-29OVWX17E1Seat and seat belts4

Key of letters to be inserted in the table above:
lIUF- Suitable for ISOFIX forward child restraints systems of universal category approved for use in the mass group.
l IL- Suitable for particular ISOFIX child restraint systems given in the following list (MITSUBISHI MOTORS genuine parts).
l X- ISOFIX position not suitable for ISOFIX child restraint systems in this mass group and/or this size class.IL (Genuine part information) Genuine part No.UN-R44 Approval No.*1MZ314393 (Child restraint system),
MZ314394 (ISOFIX base)E1-04301146*2MZ313045E1-04301133NOTEl
MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point.

Suitability for various seating positions
E00406802823
3-door models
Mass group
Seating positionFront passengerRear outboard
Rear centre
Activated air-
bagDeactivated
AirBag #1Left sideRight side0- Up to 10 kgXXXXX0+- Up to 13 kgXL*1L*1L*1L*1
Child restraint
4-30OVWX17E1Seat and seat belts4
