Mass group
Seating positionFront passengerRear outboard
Rear centre
Activated air-bagDeactivated
AirBag #1Left sideRight sideI-9 to 18 kgL*2L*2L*2L*2L*2II & III-15 to 36 kgL*3L*3L*3L*3L*3
#1
: With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch.
CAUTIONl When installing a child restraint system, remove the head restraint from the seat.
l Do not sit in the middle seating position of the rear seat when installing a child restraint system to the right side of the rear outboard.Key of letters to be inserted in the table above:
l
L- Suitable for particular child restraints given in the following list (MITSUBISHI MOTORS genuine parts).
l X- Seat position not suitable for children in this mass group.
L (Genuine part information) Genuine parts No.UN-R44 Approval No.*1MZ314393E1-04301146*2MZ313045E1-04301133*3MZ314250E1-04301169
Child restraint
4-31OVWX17E1Seat and seat belts4

NOTElThere is no applicable MITSUBISHI MOTORS Genuine Parts to the Mass Group “0-Up to 10 kg”.
l MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point.5-door models
Mass group
Seating positionFront PassengerRear out-
boardIntermediate OutboardIntermediate CentreActivated air- bagDeactivated
AirBag #1Left sideRight side0- Up to 10 kgXXXUUX0+- Up to 13 kgXL*1L*1U, L* 1U, L*1L*1I-9 to 18 kgL*2L*2L*2U, L* 2U, L*2L*2II & III-15 to 36 kgL*3L*3L*3U, L* 3U, L*3L*3
#1
: With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch.
CAUTIONl When installing a child restraint system, remove the head restraint from the seat.
l When installing a “universal” category child restraint system on the intermediate outboard seat, adjust the seatback of the intermediate seat to its most up-
right position.
l When installing a child restraint system that’s a
MITSUBISHI MOTORS genuine part for the mass group “0+ up to 13 kg” in a rear outboard seating posi-
tion, remove the head restraint from the rear outboard seating position and tip the rear outboard seatback fully rearward.
l Do not sit in the middle seating position of the second seat when installing a child restraint system to the right side of the second outboard.
Child restraint
4-32OVWX17E1Seat and seat belts4

Key of letters to be inserted in the table above:
lU- Suitable for “universal” category restraints approved for use in this mass group.
l L- Suitable for particular child restraints given in the following list (MITSUBISHI MOTORS genuine parts).
l X- Seat position not suitable for children in this mass group.L (Genuine part information) Genuine parts No.UN-R44 Approval No.*1MZ314393E1-04301146*2MZ313045E1-04301133*3MZ314250E1-04301169NOTEl
There is no applicable MITSUBISHI MOTORS Genuine Parts to the Mass Group “0-Up to 10 kg”.
l MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point.

Child restraint
4-33OVWX17E1Seat and seat belts4

Installing a child restraint sys-tem to the lower anchorage (ISOFIX child restraint mount-ings) and tether anchorage*
E00408901980
Lower anchorage location
Your vehicle’s rear seat (3-door models)/ second seat (5-door models) is fitted with
lower anchorages for attaching a child re- straint system with ISOFIX mountings.
Tether anchorage locations
There are 2 attachment points on the floor, located behind the rear seat (3-door models)/
second seat (5-door models). These are for securing a child restraint system tether strap to both of the 2 rear (3-door models)/second (5-door models) seating positions in your ve-
hicle.
WARNINGl Child restraint anchorages are designed
to withstand only those loads imposed by
correctly fitted child restraints. Under no circumstances are they to be used for adult seat belts, harnesses, or for attach-
ing other items or equipment to the vehi- cle.Child restraint system with
ISOFIX mountings
The child restraint system is designed only
for seats that incorporate lower anchorages.
Retain the child restraint system using the lower anchorages.
It is not necessary to retain the child restraint
system using the vehicle’s seat belts.
A: Child restraint System connectors
To install
1. Remove any foreign material in or
around the connectors and ensure the ve-
hicle seat belt is in its normal storage po-
sition.
2. Remove the head restraint from the loca-
tion in which you wish to install a child
restraint.
Refer to “Head restraints” on page 4-12.
Child restraint
4-34OVWX17E1Seat and seat belts4

3.Push the child restraint system’s connec-
tors (A) into the slits (B) in accordance with the instructions provided by the
child restrain system’s manufacturer.
A- Connector B- Slit
C- Vehicle seatback
D- Vehicle seat cushion E- Lower anchorage
If your child restraint system requires the
use of a tether strap, fasten the tether strap in accordance with steps 4 through 5.
4. Open the cover from the tether anchor-
age installation point by pulling it back
with your hand as illustrated.
5. Latch the top tether strap hook (F) of the
child restraint system to the tether an- chorage bracket (G) and tighten the top
tether strap so that it is securely fas- tened.
WARNINGl Do not latch the top tether strap hook to
any place, for example the luggage hook (H), other than the tether anchorage
bracket (I), or the child restraint system could not be fastened securely, resulting
in serious injury in the event of a collision.
6. Push and pull the child restraint system
in all directions to be sure it is firmly se- cured.
To remove
Remove the child restraint in accordance
with the instructions provided by the child re-
straint system’s manufacturer.
Installing a child restraint sys-
tem to a 3-point type seat belt
E00408701887
3-door models5-door models
Installation:
1. Put a child restraint system on the seat in
which you wish to install it, and remove
the head restraint from the seat.
Refer to “Head restraints” on page 4-12.
Child restraint
4-35OVWX17E1Seat and seat belts4

2.Fasten the seat belt to secure the child
restraint system. Make sure you hear a “click” when you insert the latch plate in
the buckle.
3. Remove all slack by using the locking
clip.
4. Push and pull the child restraint in all di-
rections to be sure it is secure.WARNINGl For some types of child restraint, the lock-
ing clip (A) should be used to help avoid personal injury during a collision or sud-den manoeuvre.
It must be fitted and used in accordance
with the child restraint manufacturer’s instructions.
The locking clip must be removed when the child restraint is removed.Seat belt inspection
E00406301690
Check the belts for cuts, worn or frayed web- bing and for cracked or deformed metallic
parts. Replace the belt assembly if it is defec-
tive.WARNINGl We recommend you to have all seat belt
assemblies including retractors and at-
taching hardware inspected after any col- lision. We recommend that seat belt as-
semblies in use during a collision be re- placed unless the collision was minor and
the belts show no damage and continue to operate properly.
l Do not attempt to repair or replace any
part of the seat belt assemblies; we recom-
mend you to have this work done by a MITSUBISHI MOTORS Authorized
Service Point. Incorrect repair or replace-
ment could reduce the effectiveness of the
belts and could result in serious injury in the event of a collision.
l Once the pretensioner has been activated,
it cannot be re-used.
It must be replaced together with the re-
tractor.WARNINGl Do not insert any foreign objects (pieces
of plastic, paper clips, buttons, etc.) in the
buckle or retractor mechanism. In addi- tion, do not modify, remove or install the
seat belt. Otherwise, the seat belt may not be able to provide adequate protection in a collision or other situation.
l A dirty belt should be cleaned with neu-
tral detergent in warm water. After rins-
ing in water, let it dry in the shade. Do not
attempt to bleach or re-dye the belts be-
cause this will affect their characteristics.
Supplemental restraint
system (SRS) - airbag E00407203397
The information written in this Supplemental
Restraint System (SRS) section contains im- portant points concerning the driver, front
passenger, side and curtain airbags.
Seat belt inspection
4-36OVWX17E1Seat and seat belts4

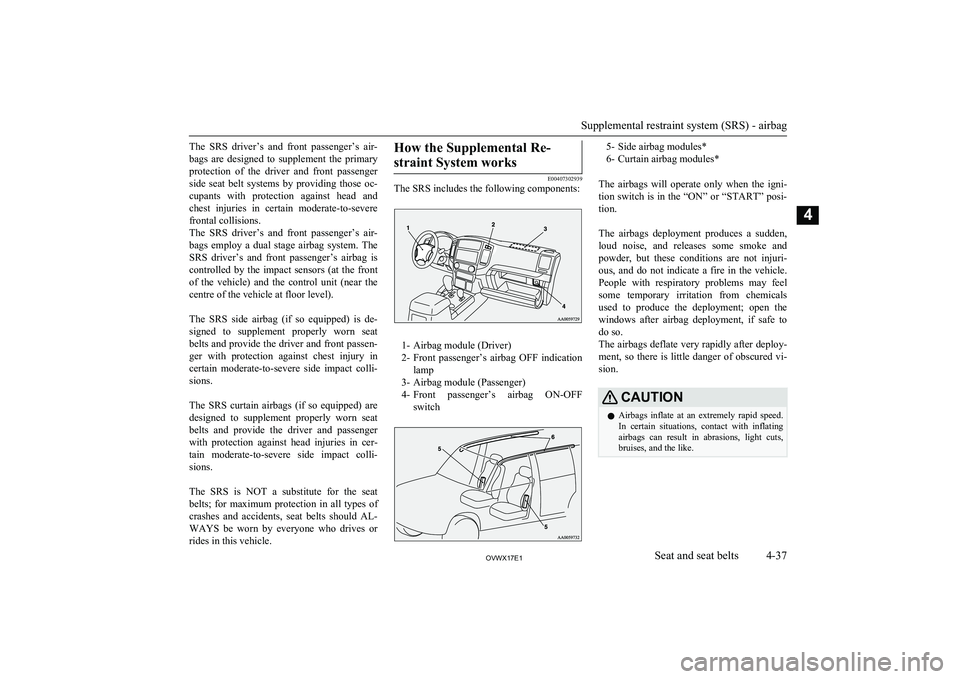

The SRS driver’s and front passenger’s air-bags are designed to supplement the primary
protection of the driver and front passenger
side seat belt systems by providing those oc- cupants with protection against head and
chest injuries in certain moderate-to-severe
frontal collisions.
The SRS driver’s and front passenger’s air- bags employ a dual stage airbag system. The
SRS driver’s and front passenger’s airbag is controlled by the impact sensors (at the front
of the vehicle) and the control unit (near the centre of the vehicle at floor level).

The SRS side airbag (if so equipped) is de-
signed to supplement properly worn seat belts and provide the driver and front passen-
ger with protection against chest injury in certain moderate-to-severe side impact colli- sions.

The SRS curtain airbags (if so equipped) are
designed to supplement properly worn seat belts and provide the driver and passenger with protection against head injuries in cer-
tain moderate-to-severe side impact colli- sions.

The SRS is NOT a substitute for the seat
belts; for maximum protection in all types of crashes and accidents, seat belts should AL-
WAYS be worn by everyone who drives or rides in this vehicle.How the Supplemental Re-
straint System works
E00407302939
The SRS includes the following components:
1- Airbag module (Driver)
2- Front passenger’s airbag OFF indication
lamp
3- Airbag module (Passenger)
4- Front passenger’s airbag ON-OFF
switch
5- Side airbag modules*
6- Curtain airbag modules*
The airbags will operate only when the igni- tion switch is in the “ON” or “START” posi-
tion.

The airbags deployment produces a sudden, loud noise, and releases some smoke and
powder, but these conditions are not injuri- ous, and do not indicate a fire in the vehicle.
People with respiratory problems may feel some temporary irritation from chemicals
used to produce the deployment; open the
windows after airbag deployment, if safe to
do so.
The airbags deflate very rapidly after deploy- ment, so there is little danger of obscured vi-sion.CAUTIONl Airbags inflate at an extremely rapid speed.
In certain situations, contact with inflating
airbags can result in abrasions, light cuts, bruises, and the like.
Supplemental restraint system (SRS) - airbag
4-37OVWX17E1Seat and seat belts4

WARNINGlIT IS VERY IMPORTANT TO BE
PROPERLY SEATED.
A driver or front passenger too close to the steering wheel or instrument panel
during airbag deployment can be killed or seriously injured.
Airbags inflate very fast, and with great force.
If the driver and passengers are not prop-
erly seated and restrained, the airbags may not protect you properly, and could
cause serious or fatal injuries when it in- flates.
l Do not sit on the edge of the seat, or lean
head or chest close to the steering wheel
or instrument panel. Do not put feet or
legs on or against the instrument panel.
l Place all infants and small children in the
rear seat and properly restrained using an
appropriate child restraint system.
The rear seat is the safest place for infants
and children.WARNINGl Infants and small children should never
be unrestrained, stand up against the in-strument panel or be held in your arms or on your lap. They could be seriously in-jured or killed in a collision, including when the airbag inflates. They should be
properly seated in the rear seat in an ap- propriate child restraint system. See the
“Child restraint” section of this owner’s
manual.Use rearward facing child restraints in the
rear seat or turn off the front passenger’s air- bag ON-OFF switch. (Refer to “To turn an airbag off” on page 4-40.)WARNINGl A REARWARD FACING CHILD RE-
STRAINT must NOT be used in the front passenger seat if the front passenger’s air-
bag has not been deactivated. The force of an inflating airbag could kill or cause se-
rious injuries to the child.
A rearward facing child restraint must only be used in the rear seat.
l A FORWARD FACING CHILD RE-
STRAINT should be used in the rear seat
whenever possible; if it must be used in
the front passenger seat, adjust the seat to the most rearward position. Failure to do
so could kill or cause serious injuries to the child.
Supplemental restraint system (SRS) - airbag
4-38OVWX17E1Seat and seat belts4 Front passenger's airbag ON

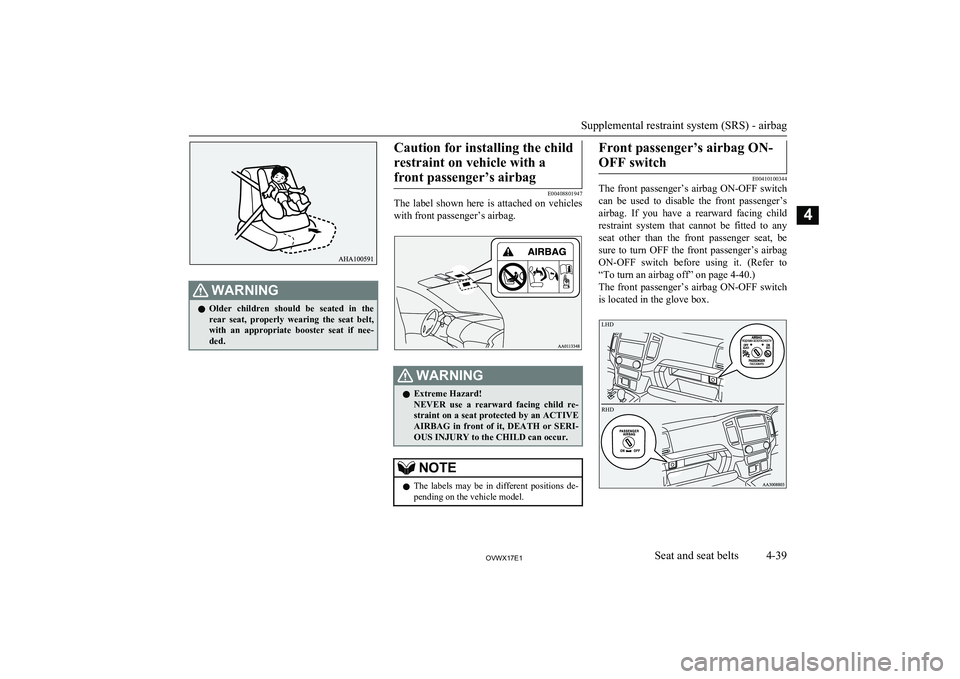

WARNINGlOlder children should be seated in the
rear seat, properly wearing the seat belt,with an appropriate booster seat if nee- ded.Caution for installing the child
restraint on vehicle with a front passenger’s airbag
E00408801947
The label shown here is attached on vehicles
with front passenger’s airbag.
WARNINGl Extreme Hazard!
NEVER use a rearward facing child re- straint on a seat protected by an ACTIVEAIRBAG in front of it, DEATH or SERI- OUS INJURY to the CHILD can occur.NOTEl The labels may be in different positions de-
pending on the vehicle model.Front passenger’s airbag ON-
OFF switch
E00410100344
The front passenger’s airbag ON-OFF switch
can be used to disable the front passenger’s airbag. If you have a rearward facing child
restraint system that cannot be fitted to any seat other than the front passenger seat, be
sure to turn OFF the front passenger’s airbag ON-OFF switch before using it. (Refer to
“To turn an airbag off” on page 4-40.)
The front passenger’s airbag ON-OFF switch is located in the glove box.Supplemental restraint system (SRS) - airbag
4-39OVWX17E1Seat and seat belts4 LHD
RHD

Front passenger’s airbag OFFindication lamp
E00411500068
The front passenger’s airbag OFF indication
lamp is located in the instrument panel.
The indication lamp normally comes on when the ignition switch is turned to the
“ON” position, and goes off a few seconds later.
When the front passenger’s airbag ON-OFF switch is turned OFF, the indication lamp
will stay on to show that the front passen-
ger’s airbag is not operational. When the
front passenger’s airbag ON-OFF switch is turned ON, the indication lamp goes off to
show that the front passenger’s airbag is op-
erational.
WARNINGl Do not fit any accessory that makes the
indication lamp impossible to see, and do
not cover the indication lamp with a stick- er. You would not be able to verify thestatus of the passenger airbag system.To turn an airbag off
E00410600453WARNINGl To reduce risk of serious or fatal injury:
• Always remove the key from the igni-
tion switch before operating a front
passenger’s airbag ON-OFF switch. Failure to do so could adversely affect
the airbag performance.
• Wait at least 60 seconds to operate the
front passenger’s airbag ON-OFF switch after turning the ignition switch
from “ON” position to “LOCK” posi- tion.
The SRS airbag system is designed to retain enough voltage to deploy the air-
bag.
• Always remove the key from the front
passenger’s airbag ON-OFF switch af-ter operating that switch. Failure to do
so could lead to improper position of the front passenger’s airbag ON-OFF switch.WARNING• Do not turn OFF the front passenger’s
airbag ON-OFF switch except when a rearward facing child restraint system
is fitted to the front passenger seat.
• If the indication lamp does not come on
when the front passenger’s airbag ON-
OFF switch is turned OFF, do not fit a rearward facing child restraint system
to the front passenger seat. We recom- mend you to have the system inspected
by a MITSUBISHI MOTORS Author-
ized Service Point.
• If the indication lamp remains on when
the front passenger’s airbag ON-OFF switch is turned ON, do not allow any-
one to sit on the front passenger seat. We recommend you to have the systeminspected by a MITSUBISHI
MOTORS Authorized Service Point.
To turn an airbag off, follow these steps:
1. Insert the key into the front passenger’s
airbag ON-OFF switch, and turn it to the “OFF” position.
2. Remove the key from the key opening of
the front passenger’s airbag ON-OFF switch.
Supplemental restraint system (SRS) - airbag
4-40OVWX17E1Seat and seat belts4
