NISSAN 350Z 2007 Z33 Exterior And Interior User Guide
Manufacturer: NISSAN, Model Year: 2007, Model line: 350Z, Model: NISSAN 350Z 2007 Z33Pages: 50, PDF Size: 2.09 MB
Page 11 of 50
CLIP AND FASTENER
EI-11
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 November2007 350Z

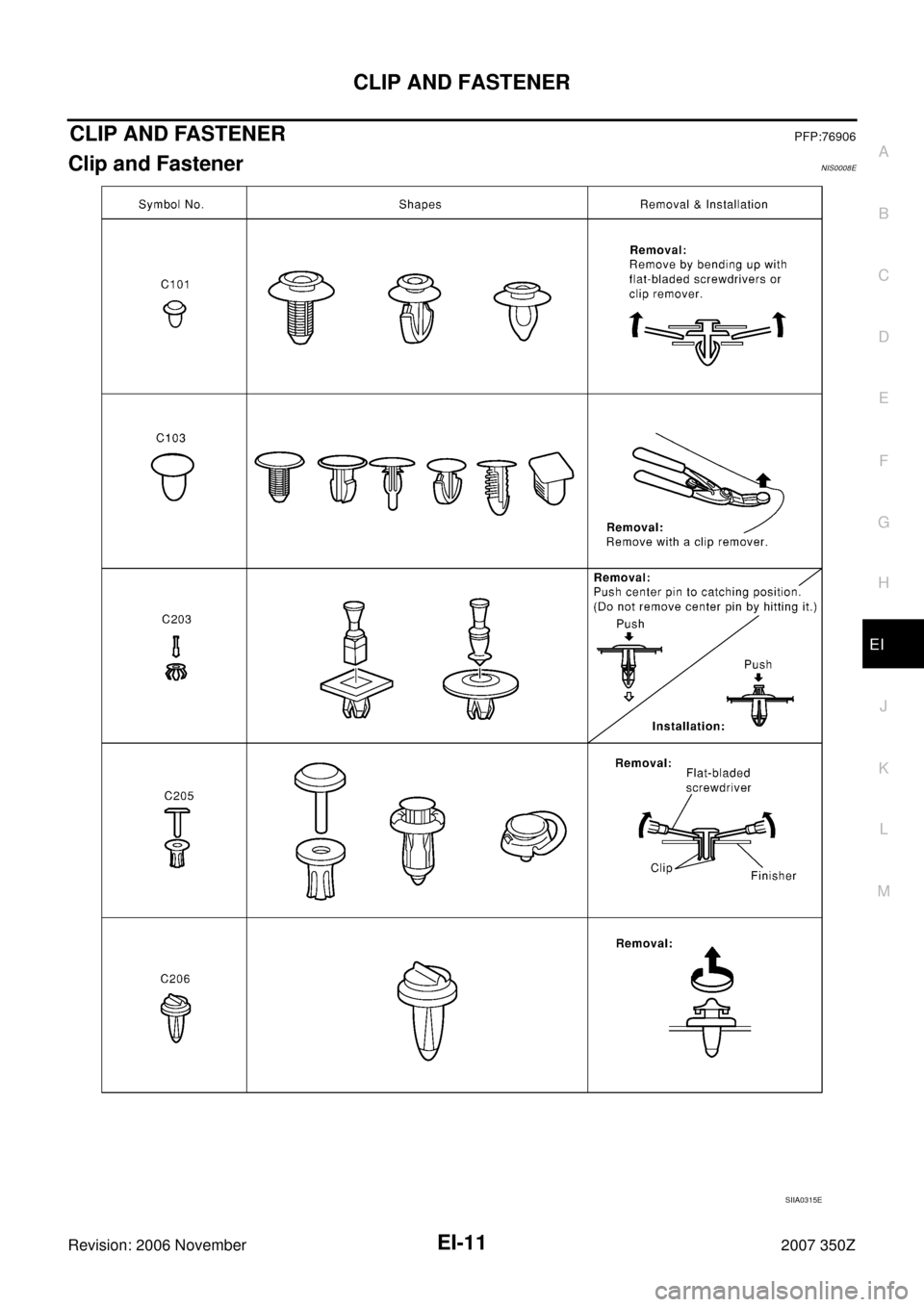

CLIP AND FASTENERPFP:76906
Clip and FastenerNIS0008E
SIIA0315E
Page 12 of 50
EI-12
CLIP AND FASTENER
Revision: 2006 November2007 350Z
SIIA0316E
Page 13 of 50
CLIP AND FASTENER
EI-13
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 November2007 350Z
SIIA0317E
Page 14 of 50
EI-14
FRONT BUMPER
Revision: 2006 November2007 350Z
FRONT BUMPERPFP:F2022
Removal and InstallationNIS0008F
CAUTION:
Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with
oil.
PIIB7143J
Page 15 of 50
FRONT BUMPER
EI-15
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 November2007 350Z
REMOVAL
1. Remove clips of bumper fascia upper portion.
2. Remove screw of bumper fascia lower portion.
3. Remove screws of bumper fascia both side.
4. Remove screws and bolts of both right/left fender protectors on front side. Refer to EI-21, "
FENDER PRO-
TECTOR" .
5. Pull out both right/left sides of bumper fascia and remove bumper fascia assembly.
CAUTION:
When removing bumper fascia, 2 workers are required so as to prevent it from dropping.
6. Remove energy absorber.
7. Remove bolts and nuts of bumper reinforcement and remove bumper fascia.
8. Remove clips of bumper shield-sight and remove bumper shield-sight.
9. Remove bolts of bumper stay and remove bumper stay.
INSTALLATION
Install in the reverse order of removal.
NOTE:
After installing, perform fitting adjustment.
Removal and Installation of Bumper Side Reflector (Left Side) NIS001H6
REMOVAL
1. Remove the front part of fender protector by removing screws and clips.
2. Remove screw of bumper side reflector (left side).
INSTALLATION
Install in the reverse order of removal.
Removal and Installation of Bumper Side Reflector (Right Side) NIS001H7
REMOVAL
1. Remove bumper assembly.
2. Remove screw of bumper side reflector (right side).
INSTALLATION
Install in the reverse order of removal.
1. Bumper stay 2. License plate bracket 3. Bumper reinforcement
4. Energy absorber 5. Bumper fascia assembly 6. Front emblem
7. Bumper upper side molding (RH) 8. Front bumper center 9. Bumper upper side molding (LH)
10. Bumper lower molding 11. Bumper side reflector 12. Bumper side bracket
13. Grommet 14. Air spoiler 15. Retainer
Pawl
Portion Clearance
Front bumper - Front fender A - A 0 - 0.5 mm (0 - 0.020 in)
Front bumper - Head lamp B - B 5.9 - 8.9 mm (0.232 - 0.350 in)
Hood - Head lamp C - C 1.7 - 5.3 mm (0.067 - 0.209 in)
Page 16 of 50
EI-16
FRONT BUMPER
Revision: 2006 November2007 350Z
Removal and Installation of Bumper Molding (Upper side, Lower)NIS001H8
REMOVAL
1. Remove front bumper fascia. Refer to EI-14, "Removal and Installation" .
2. Remove screw of bumper molding (upper side, lower).
3. Disengage the plastic pawls to remove the bumper molding (upper side, lower).
INSTALLATION
Install in the reverse order of removal.
Page 17 of 50
REAR BUMPER
EI-17
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 November2007 350Z
REAR BUMPERPFP:H5022
Removal and InstallationNIS0008G
CAUTION:
Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with-
oil.

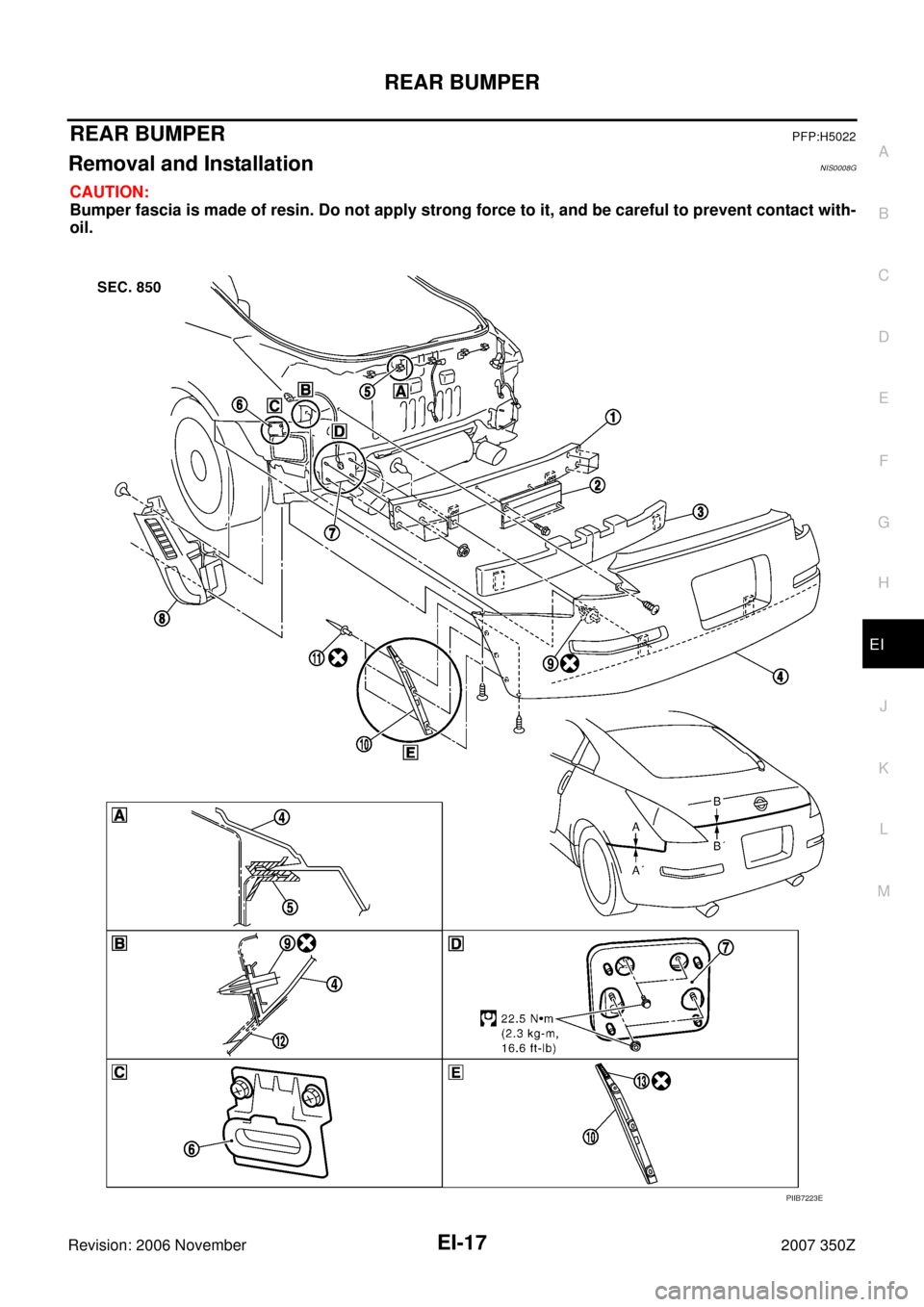

PIIB7223E
Page 18 of 50
EI-18
REAR BUMPER
Revision: 2006 November2007 350Z
REMOVAL
1. Remove rear combination lamp assembly. Refer to LT- 1 2 7 , "Removal and Installation" .
2. Remove screw rear combination portion.
3. Remove clips of closing rear bumper.
4. Remove bolt and screw of both edges bumper fascia.

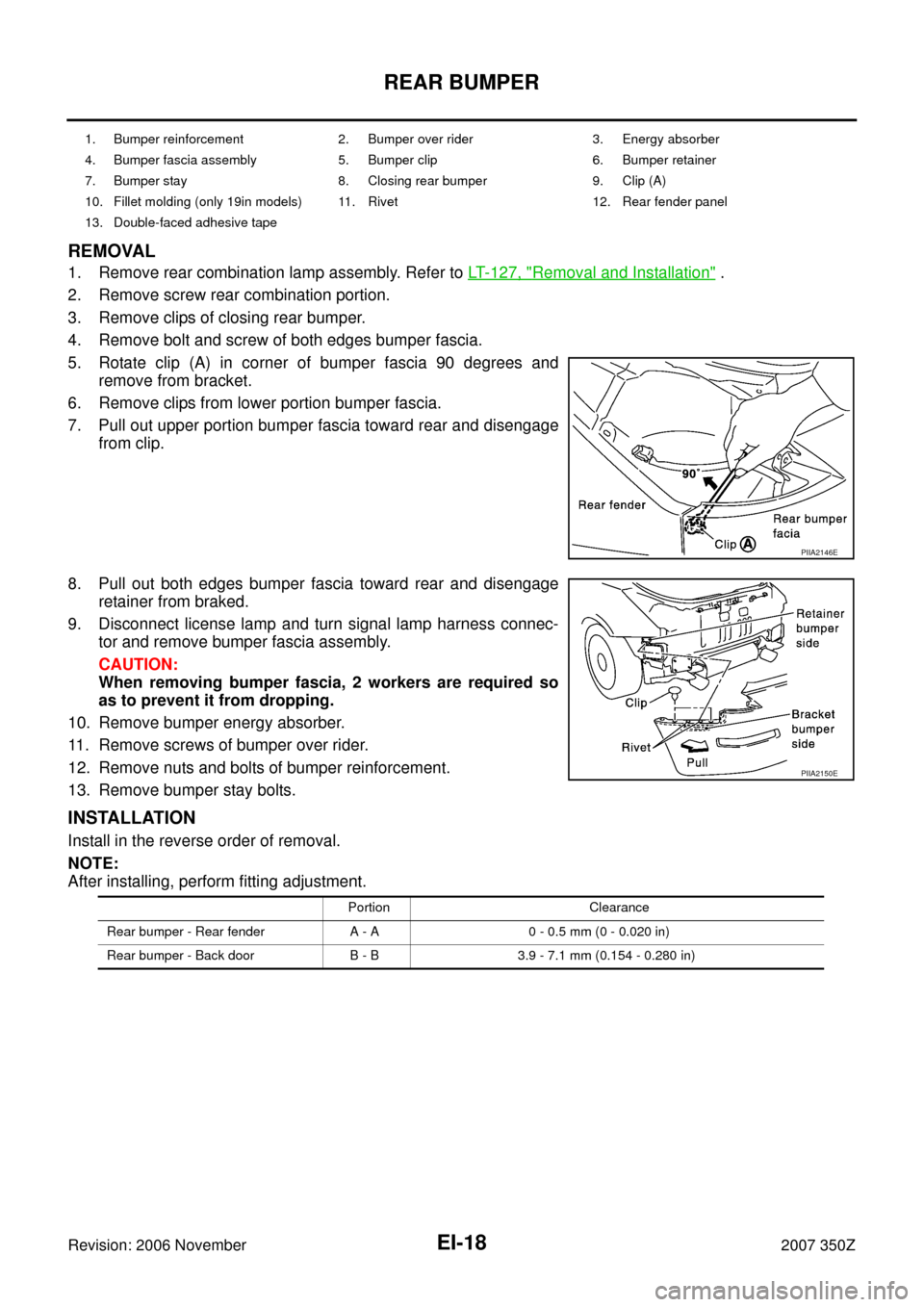

5. Rotate clip (A) in corner of bumper fascia 90 degrees and
remove from bracket.
6. Remove clips from lower portion bumper fascia.
7. Pull out upper portion bumper fascia toward rear and disengage
from clip.
8. Pull out both edges bumper fascia toward rear and disengage
retainer from braked.
9. Disconnect license lamp and turn signal lamp harness connec-
tor and remove bumper fascia assembly.
CAUTION:
When removing bumper fascia, 2 workers are required so
as to prevent it from dropping.
10. Remove bumper energy absorber.
11. Remove screws of bumper over rider.
12. Remove nuts and bolts of bumper reinforcement.
13. Remove bumper stay bolts.
INSTALLATION
Install in the reverse order of removal.
NOTE:
After installing, perform fitting adjustment.
1. Bumper reinforcement 2. Bumper over rider 3. Energy absorber
4. Bumper fascia assembly 5. Bumper clip 6. Bumper retainer
7. Bumper stay 8. Closing rear bumper 9. Clip (A)
10. Fillet molding (only 19in models) 11. Rivet 12. Rear fender panel
13. Double-faced adhesive tape
PIIA2146E
PIIA2150E
Portion Clearance
Rear bumper - Rear fender A - A 0 - 0.5 mm (0 - 0.020 in)
Rear bumper - Back door B - B 3.9 - 7.1 mm (0.154 - 0.280 in)
Page 19 of 50
REAR BUMPER
EI-19
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 November2007 350Z

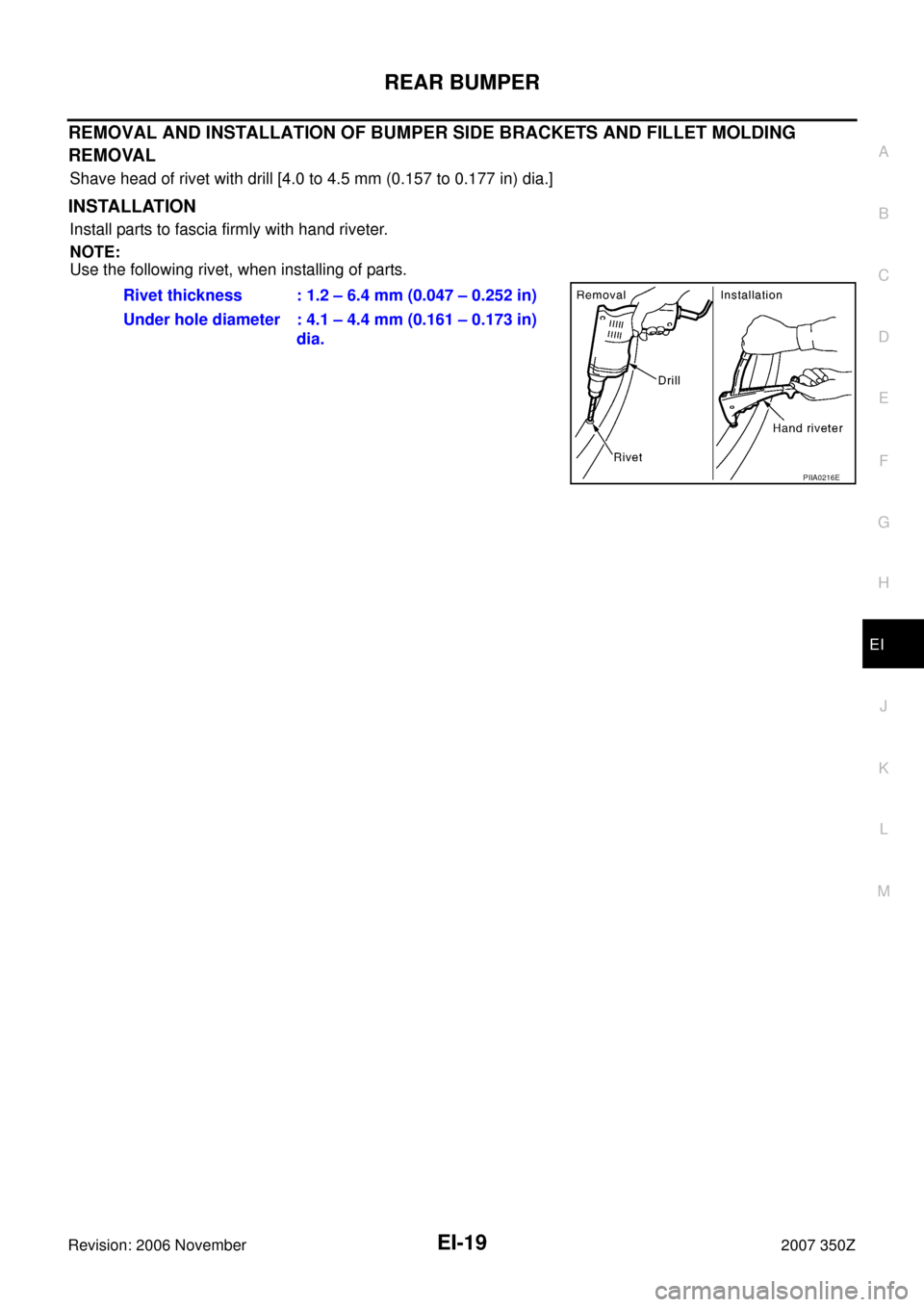

REMOVAL AND INSTALLATION OF BUMPER SIDE BRACKETS AND FILLET MOLDING
REMOVAL
Shave head of rivet with drill [4.0 to 4.5 mm (0.157 to 0.177 in) dia.]
INSTALLATION
Install parts to fascia firmly with hand riveter.
NOTE:
Use the following rivet, when installing of parts.
Rivet thickness : 1.2 – 6.4 mm (0.047 – 0.252 in)
Under hole diameter : 4.1 – 4.4 mm (0.161 – 0.173 in)
dia.
PIIA0216E
Page 20 of 50
EI-20
COWL TOP
Revision: 2006 November2007 350Z
COWL TOPPFP:66100
Removal and InstallationNIS0008H
REMOVAL
1. Remove clips of hoodledge cover (LH/RH).
2. Remove both wiper arms (LH/RH). Refer to WW-30, "
Removal and Installation of Front Wiper Arms,
Adjustment of Wiper Arms Stop Location" .
3. Remove cowl top seal rubber.
4. Remove clips of cowl top cover (RH) and remove cowl top cover (RH).
5. Remove clips, cap, screws and remove cowl top cover (LH).
6. Remove washer hose from cowl top cover.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
After installing, perform adjustment of wiper arm. Refer to WW-30, "
Removal and Installation of Front
Wiper Arms, Adjustment of Wiper Arms Stop Location" .

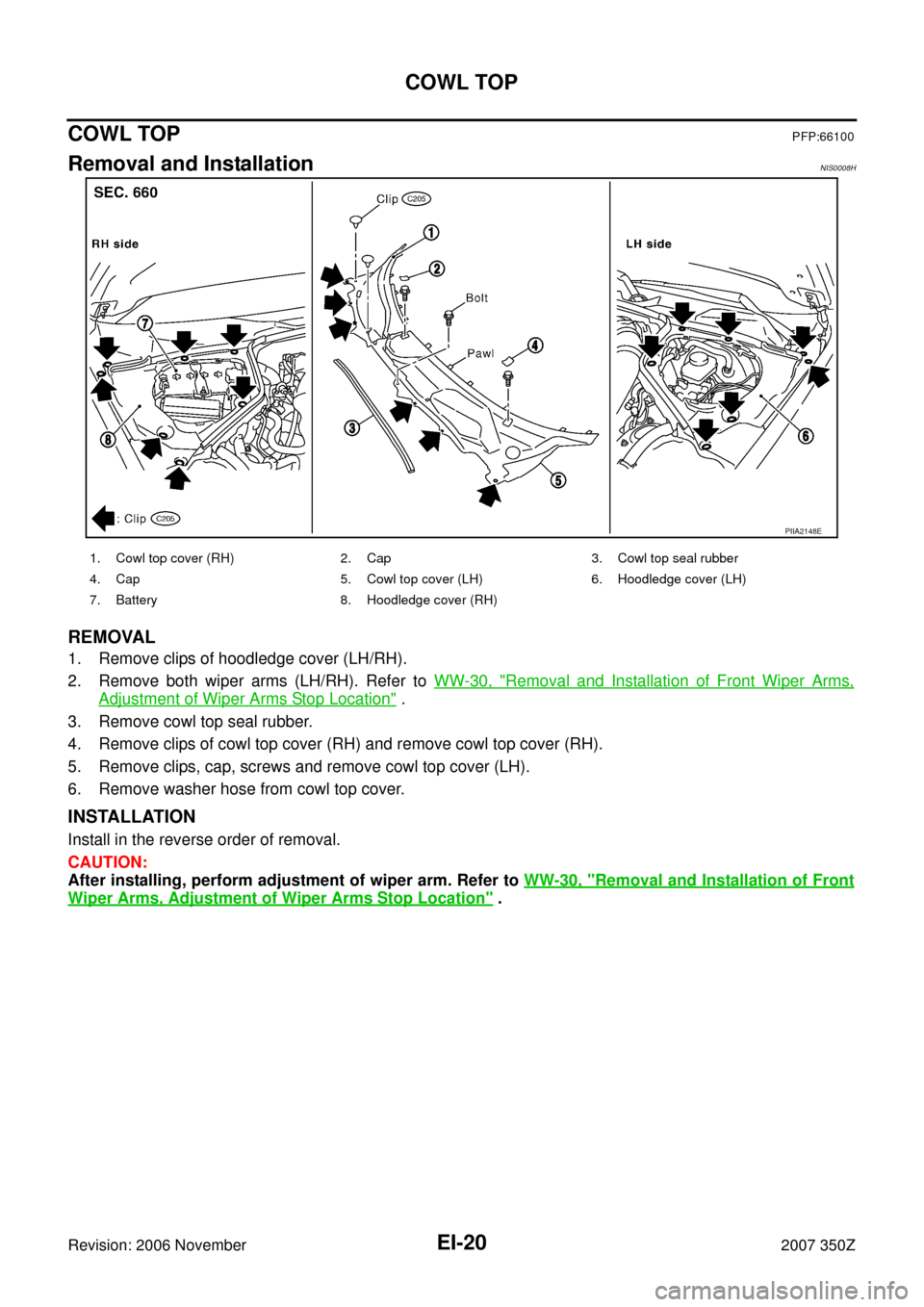

PIIA2148E
1. Cowl top cover (RH) 2. Cap 3. Cowl top seal rubber
4. Cap 5. Cowl top cover (LH) 6. Hoodledge cover (LH)
7. Battery 8. Hoodledge cover (RH)
