FENDER PROTECTORPFP:63840
Removal and InstallationNIS0008I
REMOVAL
1. Remove screws and clips of fender protector.
2. Remove fender protector front and remove fender protector rear.
INSTALLATION
Install in the reverse order of removal.

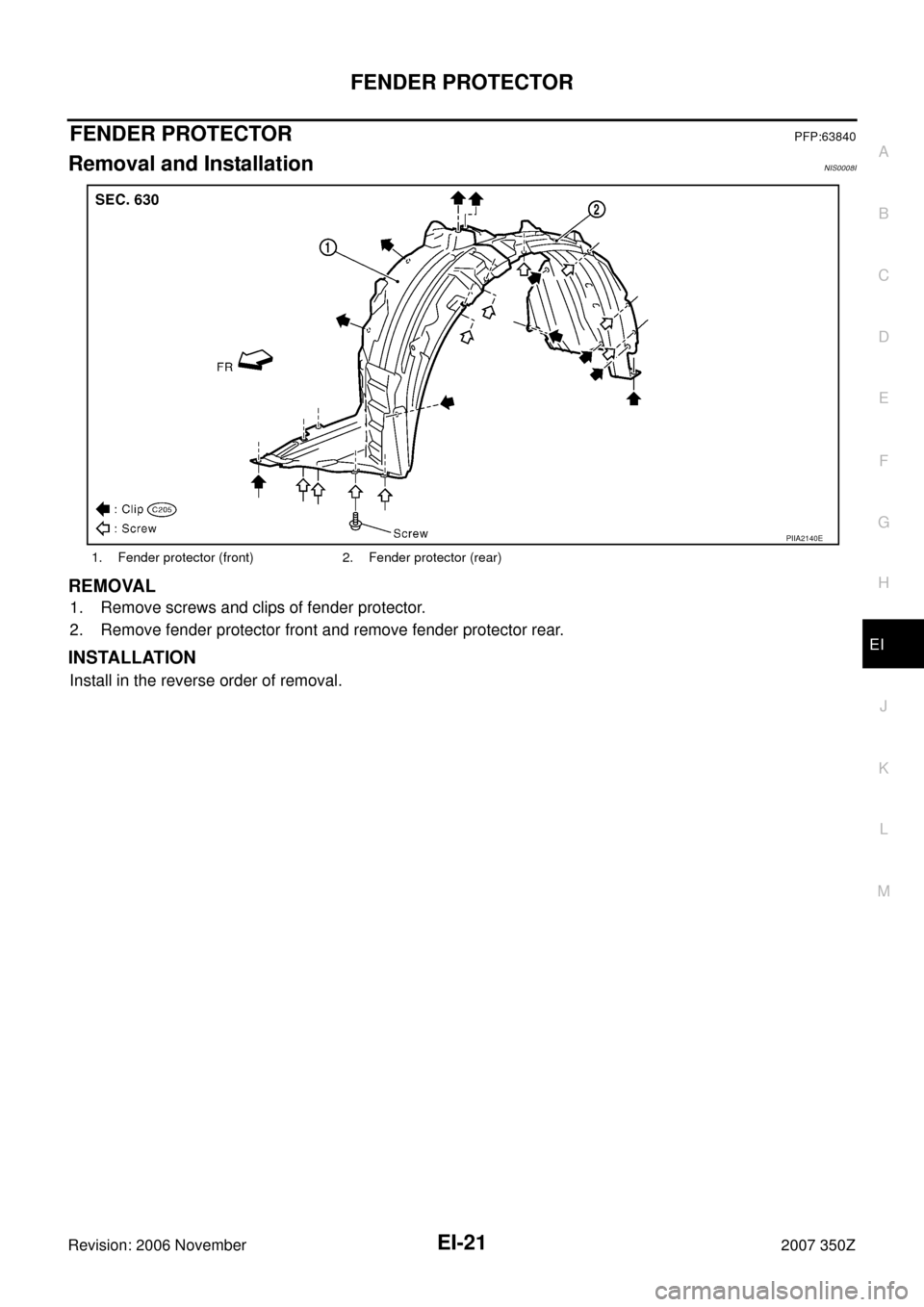

1. Fender protector (front) 2. Fender protector (rear)
PIIA2140E

EI-22
DOOR OUTSIDE MOLDING
Revision: 2006 November2007 350Z
DOOR OUTSIDE MOLDING PFP:82820
Removal and InstallationNIS0008J
REMOVAL
1. Open windows fully.
2. Remove door finisher. Refer to EI-33, "
Removal and Installation" .
3. Remove rear end of door outside molding screw.
4. Disconnect pawls on front edge of molding.
5. Disconnect pawls in the order from front side of door panel portion, with clip clamp remover.
6. Remove slide molding rearward side, after disconnecting all pawls.
INSTALLATION
Install in the reverse order of removal.
CAUTION:

Be careful not to apply excessive force when removing because it is easy to deform parts.

After removal, visually inspect molding, and if it is deformed, replace it with new molding.

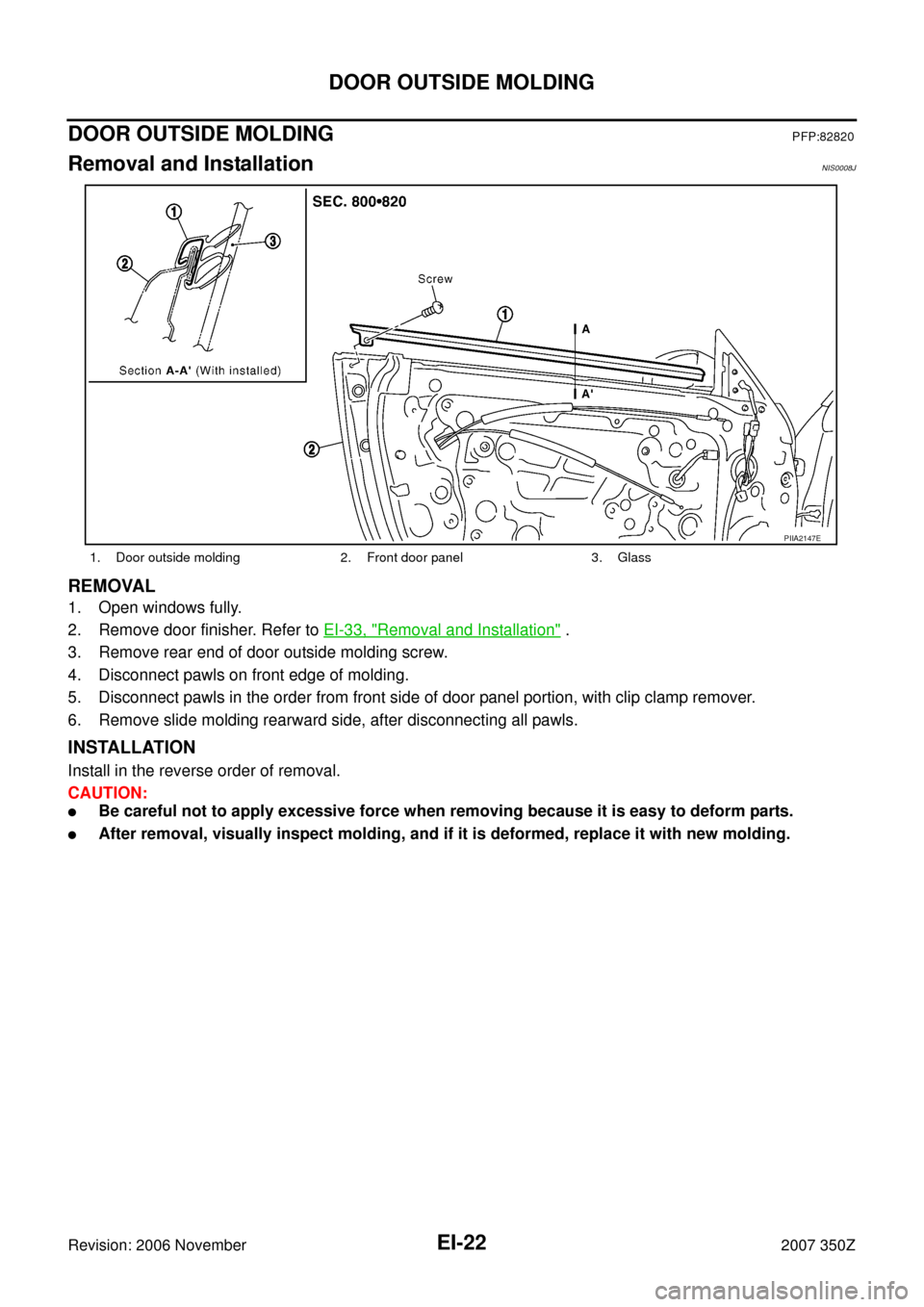

1. Door outside molding 2. Front door panel 3. Glass
PIIA2147E

SIDE SILL FINISHER
EI-23
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 November2007 350Z
SIDE SILL FINISHERPFP:76852
Removal and InstallationNIS0008K
REMOVAL
1. Remove body side welt. Refer to EI-35, "BODY SIDE TRIM" .
2. Remove kicking plate outer. Refer to EI-35, "
BODY SIDE TRIM" .
3. Remove bolts of side sill finisher lower portion.
4. Remove clips of side sill finisher front and rear portion.
5. Remove bolt and nut of reflector mudguard rear.
6. Insert clip clamp remover between panel and side sill finisher, and pull up side sill finisher.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
When installing side sill finisher, check that clips are securely fitted in panel holes on body, and then
press them in.

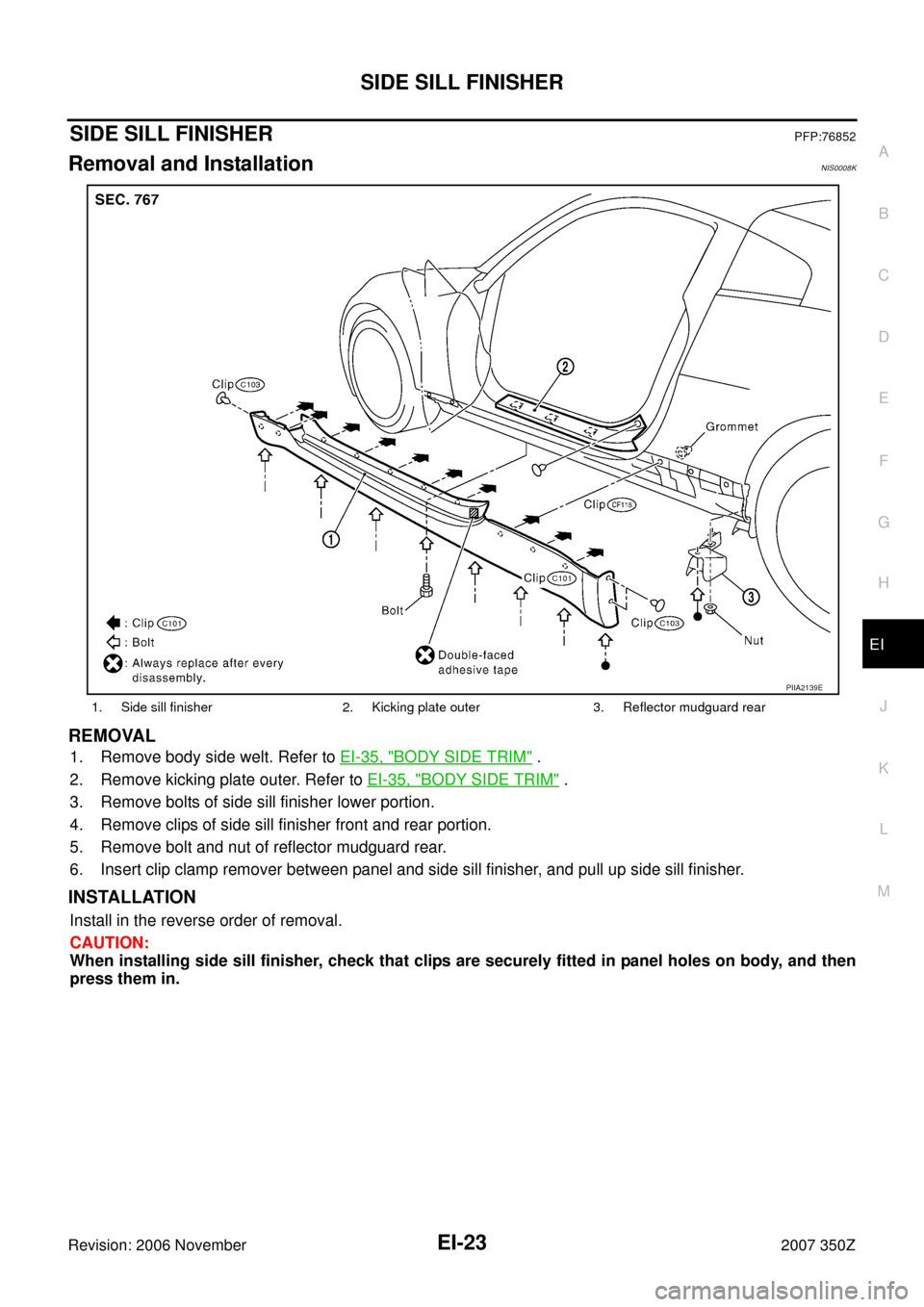

1. Side sill finisher 2. Kicking plate outer 3. Reflector mudguard rear
PIIA2139E

EI-24
SIDE SILL FINISHER
Revision: 2006 November2007 350Z
FRONT DEFLECTOR
Removal
Remove screws and clips of front deflector and remove front deflec-
tor.
Installation
Install in the reverse order of removal.
FLOOR FAIRING
Removal
Remove bolts and clip of floor fairing and remove floor fairing.
Installation
Install in the reverse order of removal.
FLOOR SIDE FAIRING
Removal
Remove nuts and bolt of floor side fairing and remove floor side fair-
ing.
Installation
Install in the reverse order of removal.
REAR DEFLECTOR
Removal
Remove nuts and bolt of rear deflector and remove rear deflector.
Installation
Install in the reverse order of removal.
PIIA6835E
PIIA6836E
PIIA6905E

SIDE SILL FINISHER
EI-25
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 November2007 350Z
REAR DIFFUSER
Removal

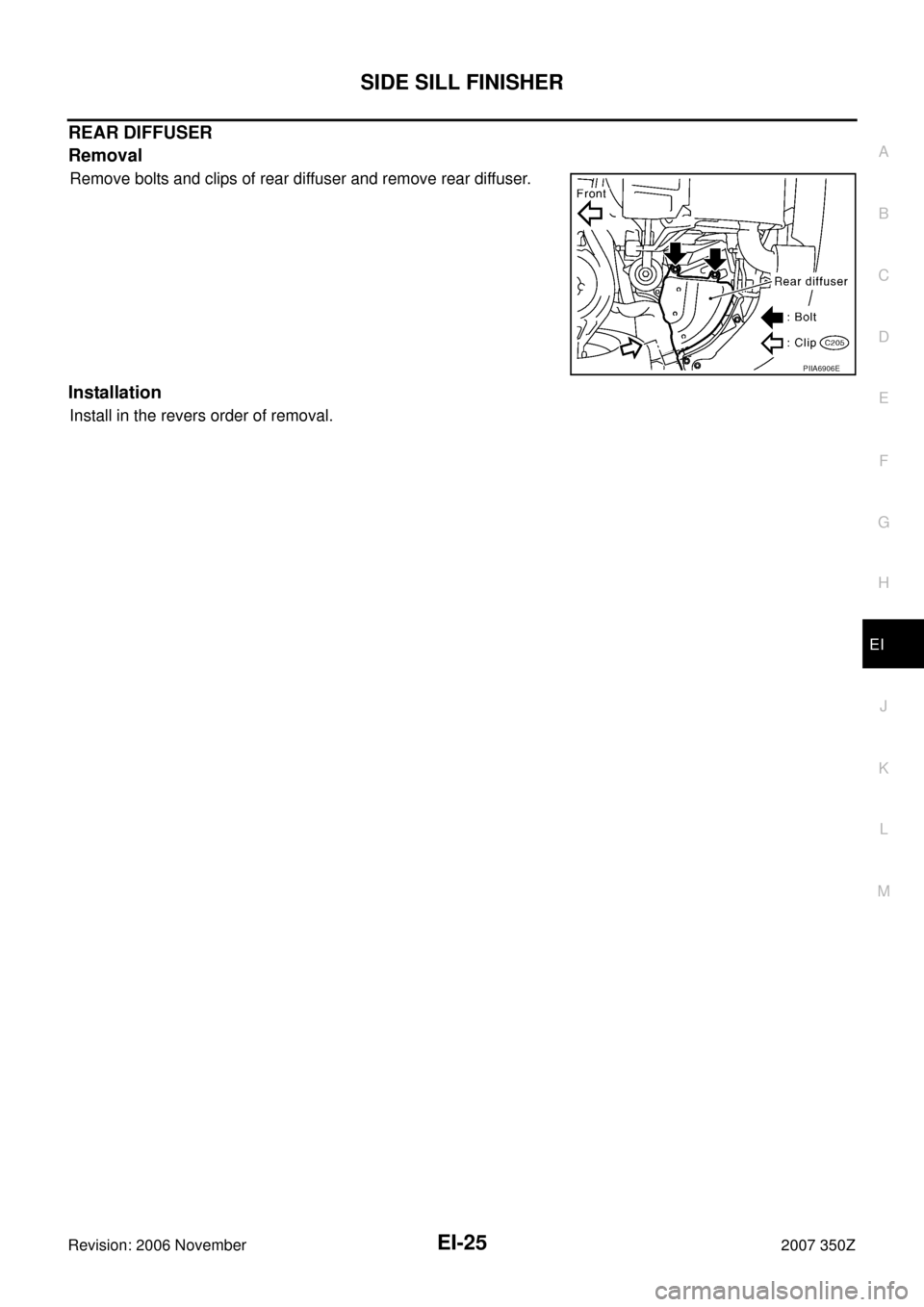

Remove bolts and clips of rear diffuser and remove rear diffuser.
Installation
Install in the revers order of removal.
PIIA6906E

EI-26
WINDSHIELD MOLDING
Revision: 2006 November2007 350Z
WINDSHIELD MOLDINGPFP:72700
Removal and InstallationNIS0008L
REMOVAL
Remove windshield molding. Refer to GW-11, "WINDSHIELD GLASS" .
NOTE:

Apply protective tape around circumference of windshield.

Guiding a cutter knife along glass, cut surface of molding.

Using pliers, draw out all remaining molding left in flanged area of body, and remove it completely from
adhering surface on glass.
INSTALLATION
Install windshield molding. Refer to GW-11, "WINDSHIELD GLASS" .
NOTE:

Align matching marks on body and glass. Install glass to body.
PIIA8724E

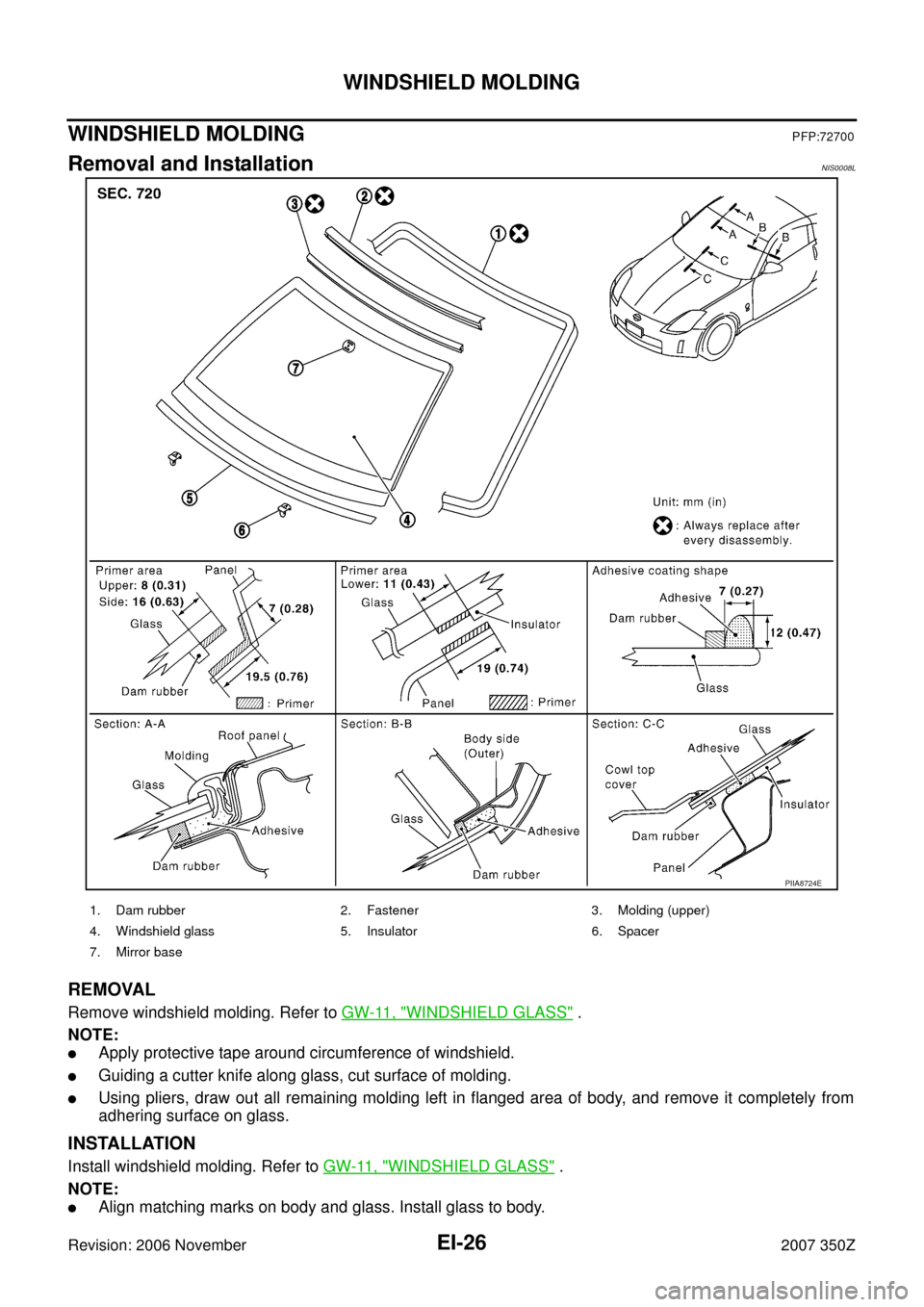

1. Dam rubber 2. Fastener 3. Molding (upper)
4. Windshield glass 5. Insulator 6. Spacer
7. Mirror base

WINDSHIELD MOLDING
EI-27
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 November2007 350Z

Press entire surface of glass lightly to fit it completely.
Using a spatula, repair any adhesive overflow or shortage to make surface smooth. Position windshield mold-
ings and allow their adhesion.
CAUTION:

Be sure to install windshield molding before adhesive hardens.

After installing glass, keep door windows open and avoid driving vehicle until adhesive has com-
pletely cured.

EI-28
REAR WINDOW MOLDING
Revision: 2006 November2007 350Z
REAR WINDOW MOLDINGPFP:79762
Removal and InstallationNIS0008M
REMOVAL OF BACK DOOR WINDOW MOLDING
Remove back door window molding. Refer to GW-14, "BACK DOOR WINDOW GLASS" .
NOTE:
Apply a strip of protective tape along the contour of back door window glass (molding) to prevent paint surface
from being damaged.
INSTALLATION OF BACK DOOR WINDOW MOLDING
Install back door window molding. Refer to GW-14, "BACK DOOR WINDOW GLASS" .
NOTE:

Clean adhesive portion of back door window glass and around circumference with white gasoline.

Apply dam rubber to all surfaces of glass.

Attach back door window molding to side face of glass.
PIIB0822E

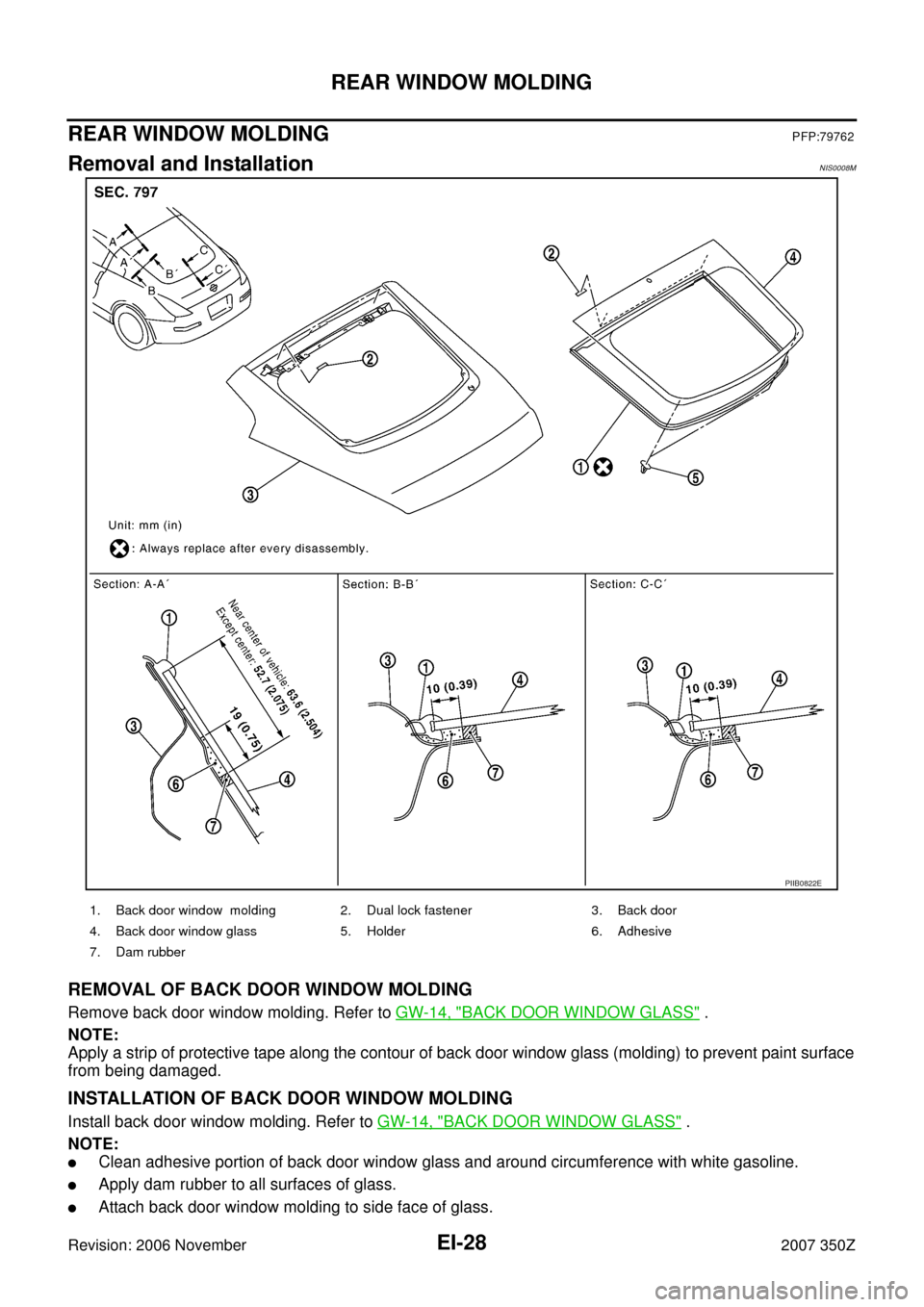

1. Back door window molding 2. Dual lock fastener 3. Back door
4. Back door window glass 5. Holder 6. Adhesive
7. Dam rubber

REAR WINDOW MOLDING
EI-29
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 November2007 350Z

Back door window molding should not overlap on the surface of back door window glass.

EI-30
REAR SPOILER
Revision: 2006 November2007 350Z
REAR SPOILERPFP:96030
Removal and InstallationNIS0008N
REMOVAL
1. Remove back door finisher lower. Refer to EI-47, "Removal and Installation (for Coupe Models)" .
2. Remove nuts of rear spoiler.
3. Remove clip of rear spoiler.
4. Remove double-faced adhesive tapes with wide plastic spatula between back door and rear spoiler.
INSTALLATION
Install in the reverse order of removal.
CAUTION:

Do not let air between contact surfaces when installing.

To secure contact, do not wash vehicle within 24 hours after installation.

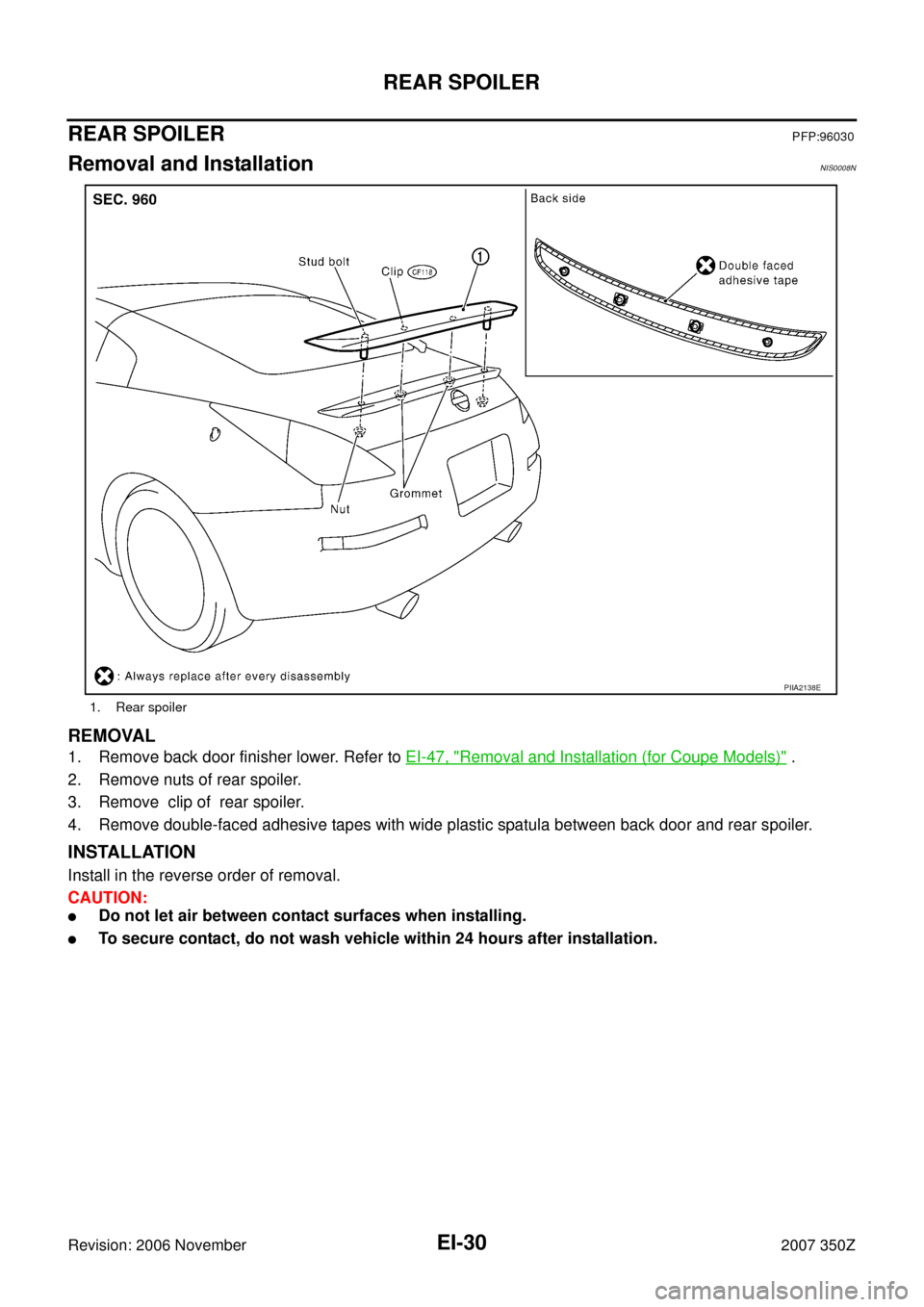

1. Rear spoiler
PIIA2138E
