NISSAN 350Z 2007 Z33 Exterior And Interior Service Manual

LUGGAGE FLOOR TRIM
EI-41
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 November2007 350Z

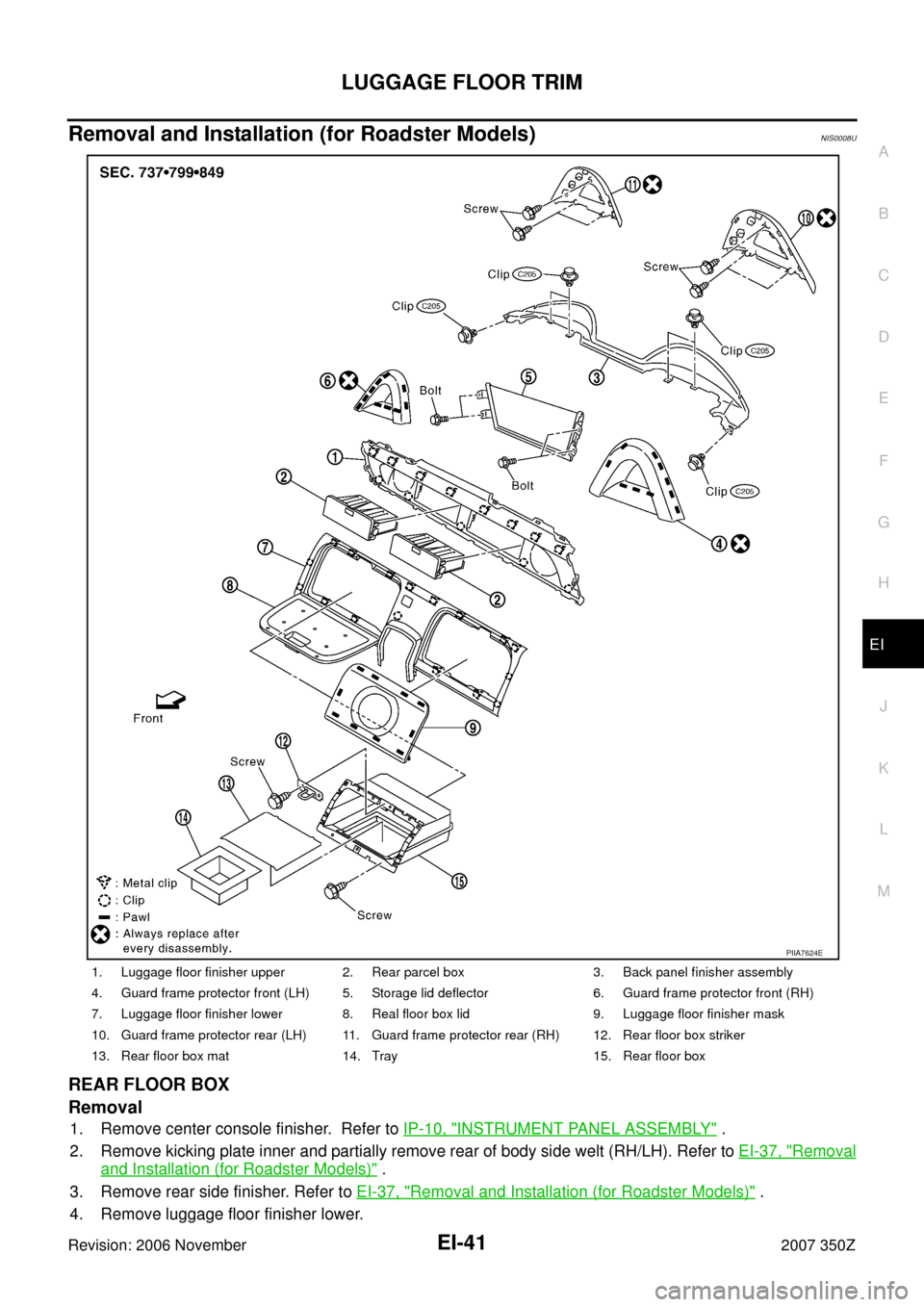

Removal and Installation (for Roadster Models)NIS0008U
REAR FLOOR BOX
Removal
1. Remove center console finisher. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove kicking plate inner and partially remove rear of body side welt (RH/LH). Refer to EI-37, "
Removal
and Installation (for Roadster Models)" .
3. Remove rear side finisher. Refer to EI-37, "
Removal and Installation (for Roadster Models)" .
4. Remove luggage floor finisher lower.
1. Luggage floor finisher upper 2. Rear parcel box 3. Back panel finisher assembly
4. Guard frame protector front (LH) 5. Storage lid deflector 6. Guard frame protector front (RH)
7. Luggage floor finisher lower 8. Real floor box lid 9. Luggage floor finisher mask
10. Guard frame protector rear (LH) 11. Guard frame protector rear (RH) 12. Rear floor box striker
13. Rear floor box mat 14. Tray 15. Rear floor box
PIIA7624E

EI-42
LUGGAGE FLOOR TRIM
Revision: 2006 November2007 350Z
5. Remove rear floor box lid and luggage floor finisher mask from luggage floor finisher lower.
6. Remove rear floor box mat and tray.
7. Remove screws, and remove rear floor box striker.
8. Loosen mounting screws and remove rear floor box.
Installation
Install in the reverse order of removal.
LUGGAGE FLOOR FINISHER UPPER
Removal
1. Remove kicking plate inner and partially remove rear of body side welt (RH/LH). Refer to EI-37, "Removal
and Installation (for Roadster Models)" .
2. Remove rear side finisher. Refer to EI-37, "
Removal and Installation (for Roadster Models)" .
3. Remove luggage floor finisher lower.
4. Remove rear parcel box (RH/LH).
5. Remove luggage floor finisher upper.
Installation
Install in the reverse order of removal.
BACK PANEL FINISHER
Removal
1. Remove kicking plate inner and partially remove rear of body side welt (RH/LH). Refer to EI-37, "Removal
and Installation (for Roadster Models)" .
2. Remove rear side finisher. Refer to EI-37, "
Removal and Installation (for Roadster Models)" .
3. Remove cover and shoulder anchor bolt of seat belt (RH/LH). Refer to SB-6, "
Removal and Installation of
Seat Belt (Roadster)" .
4. Remove front guard frame protector (RH/LH).
5. Loosen mounting bolts and remove storage lid deflector.
6. Loosen screws and remove rear guard frame protector (RH/LH).
7. Remove clips, remove back panel finisher assembly.
Installation
Install in the reverse order of removal.
CAUTION:
To install, check if all clips are matched over holes panel on vehicle, then push on.

FLOOR TRIM
EI-43
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 November2007 350Z

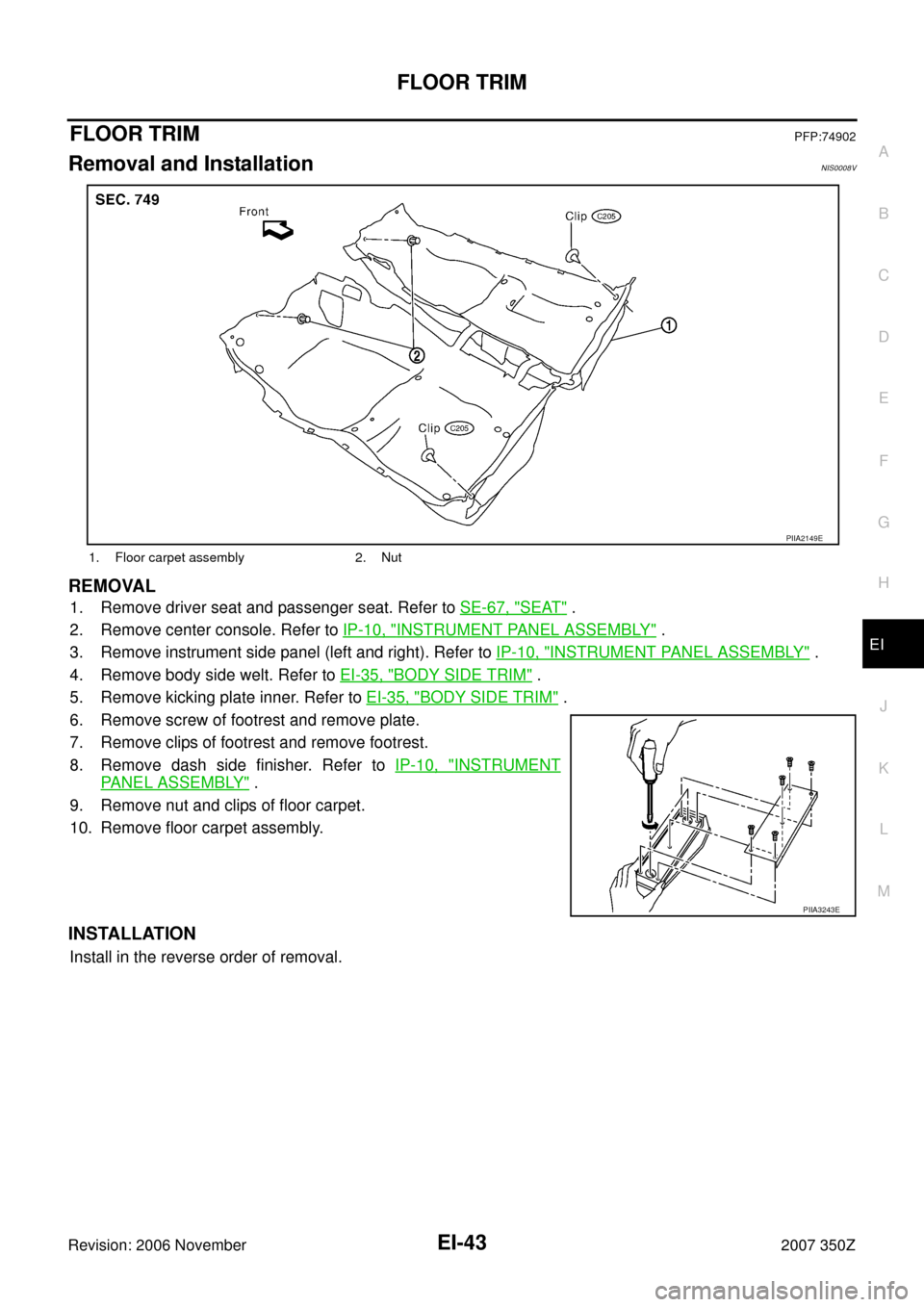

FLOOR TRIMPFP:74902
Removal and InstallationNIS0008V
REMOVAL
1. Remove driver seat and passenger seat. Refer to SE-67, "SEAT" .
2. Remove center console. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
3. Remove instrument side panel (left and right). Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
4. Remove body side welt. Refer to EI-35, "
BODY SIDE TRIM" .
5. Remove kicking plate inner. Refer to EI-35, "
BODY SIDE TRIM" .
6. Remove screw of footrest and remove plate.
7. Remove clips of footrest and remove footrest.
8. Remove dash side finisher. Refer to IP-10, "
INSTRUMENT
PANEL ASSEMBLY" .
9. Remove nut and clips of floor carpet.
10. Remove floor carpet assembly.
INSTALLATION
Install in the reverse order of removal.
1. Floor carpet assembly 2. Nut
PIIA2149E
PIIA3243E

EI-44
HEADLINING
Revision: 2006 November2007 350Z

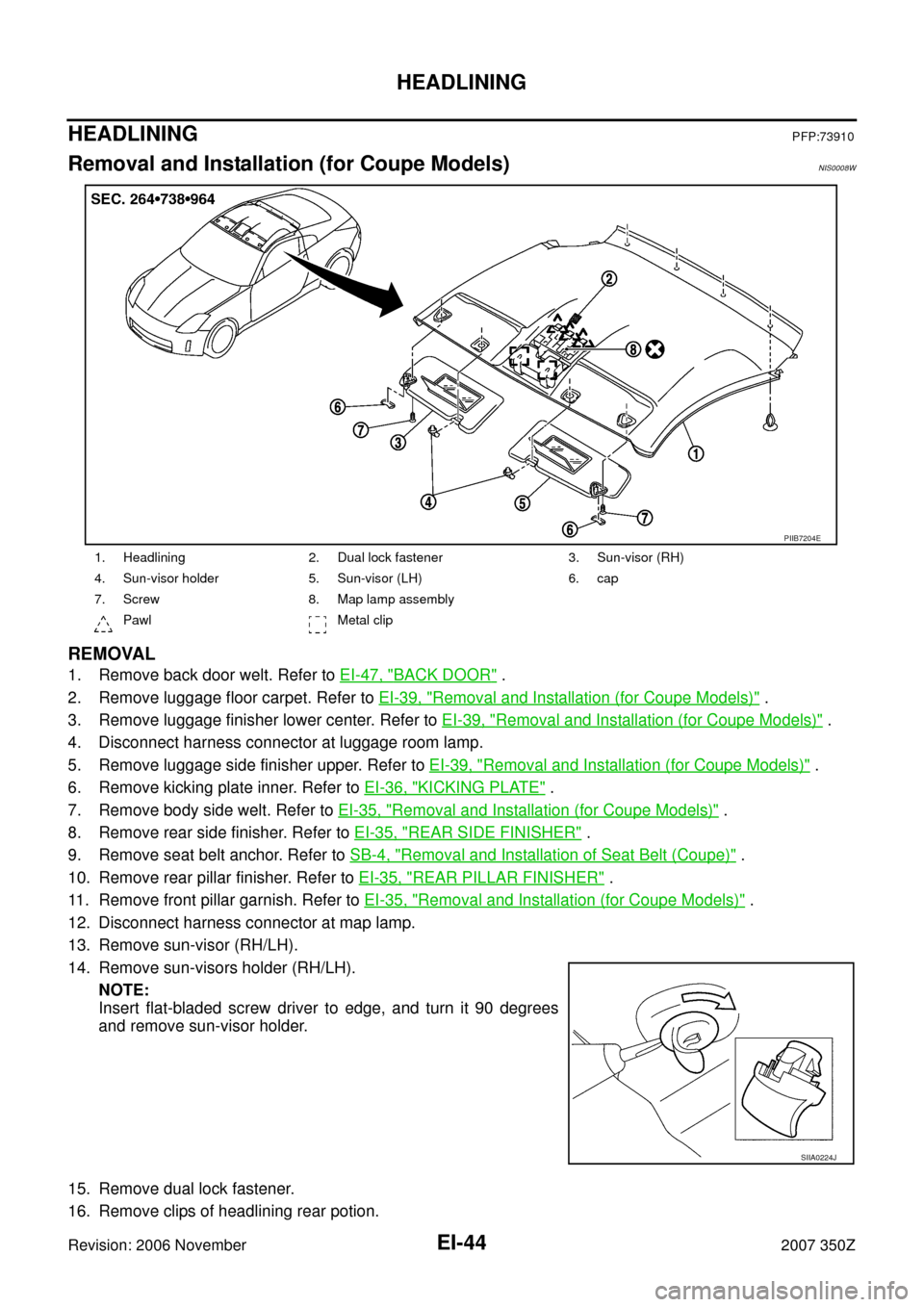

HEADLININGPFP:73910
Removal and Installation (for Coupe Models)NIS0008W
REMOVAL
1. Remove back door welt. Refer to EI-47, "BACK DOOR" .
2. Remove luggage floor carpet. Refer to EI-39, "
Removal and Installation (for Coupe Models)" .
3. Remove luggage finisher lower center. Refer to EI-39, "
Removal and Installation (for Coupe Models)" .
4. Disconnect harness connector at luggage room lamp.
5. Remove luggage side finisher upper. Refer to EI-39, "
Removal and Installation (for Coupe Models)" .
6. Remove kicking plate inner. Refer to EI-36, "
KICKING PLATE" .
7. Remove body side welt. Refer to EI-35, "
Removal and Installation (for Coupe Models)" .
8. Remove rear side finisher. Refer to EI-35, "
REAR SIDE FINISHER" .
9. Remove seat belt anchor. Refer to SB-4, "
Removal and Installation of Seat Belt (Coupe)" .
10. Remove rear pillar finisher. Refer to EI-35, "
REAR PILLAR FINISHER" .
11. Remove front pillar garnish. Refer to EI-35, "
Removal and Installation (for Coupe Models)" .
12. Disconnect harness connector at map lamp.
13. Remove sun-visor (RH/LH).
14. Remove sun-visors holder (RH/LH).
NOTE:
Insert flat-bladed screw driver to edge, and turn it 90 degrees
and remove sun-visor holder.
15. Remove dual lock fastener.
16. Remove clips of headlining rear potion.
1. Headlining 2. Dual lock fastener 3. Sun-visor (RH)
4. Sun-visor holder 5. Sun-visor (LH) 6. cap
7. Screw 8. Map lamp assembly
Pawl Metal clip
PIIB7204E
SIIA0224J

HEADLINING
EI-45
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 November2007 350Z
17. Remove headlining, turn to 90 degrees and take out from back door.
CAUTION:

Always remove or install in a pair.

Cover surroundings with waste to avoid scratches or damages.

Do not bend headlining too hard.
INSTALLATION
Install in the reverse order of removal.

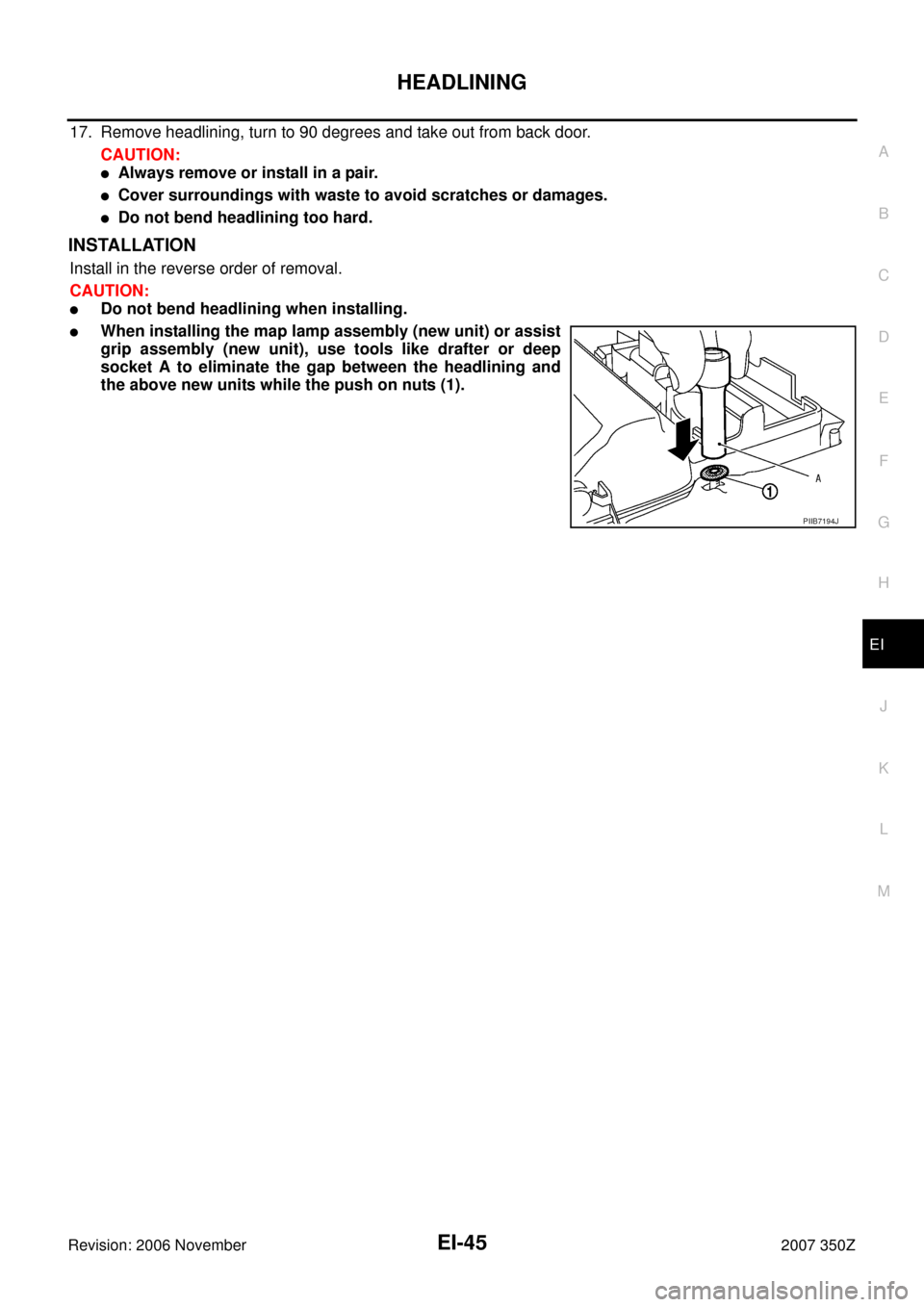

CAUTION:

Do not bend headlining when installing.

When installing the map lamp assembly (new unit) or assist
grip assembly (new unit), use tools like drafter or deep
socket A to eliminate the gap between the headlining and
the above new units while the push on nuts (1).
PIIB7194J

EI-46
HEADLINING
Revision: 2006 November2007 350Z

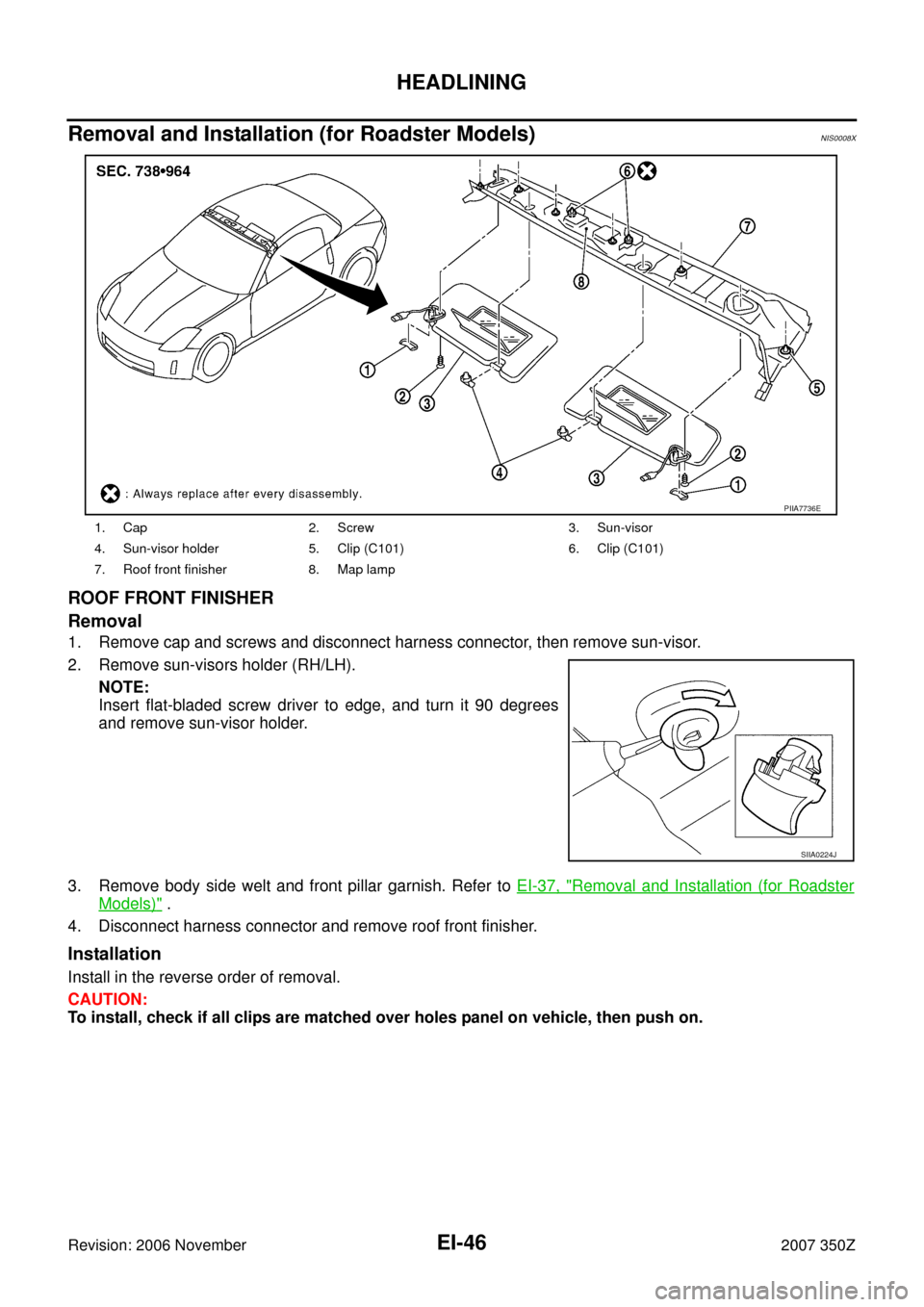

Removal and Installation (for Roadster Models)NIS0008X
ROOF FRONT FINISHER
Removal
1. Remove cap and screws and disconnect harness connector, then remove sun-visor.
2. Remove sun-visors holder (RH/LH).
NOTE:
Insert flat-bladed screw driver to edge, and turn it 90 degrees
and remove sun-visor holder.
3. Remove body side welt and front pillar garnish. Refer to EI-37, "
Removal and Installation (for Roadster
Models)" .
4. Disconnect harness connector and remove roof front finisher.
Installation
Install in the reverse order of removal.
CAUTION:
To install, check if all clips are matched over holes panel on vehicle, then push on.
1. Cap 2. Screw 3. Sun-visor
4. Sun-visor holder 5. Clip (C101) 6. Clip (C101)
7. Roof front finisher 8. Map lamp
PIIA7736E
SIIA0224J

BACK DOOR
EI-47
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 November2007 350Z
BACK DOORPFP:90100
Removal and Installation (for Coupe Models)NIS0008Y

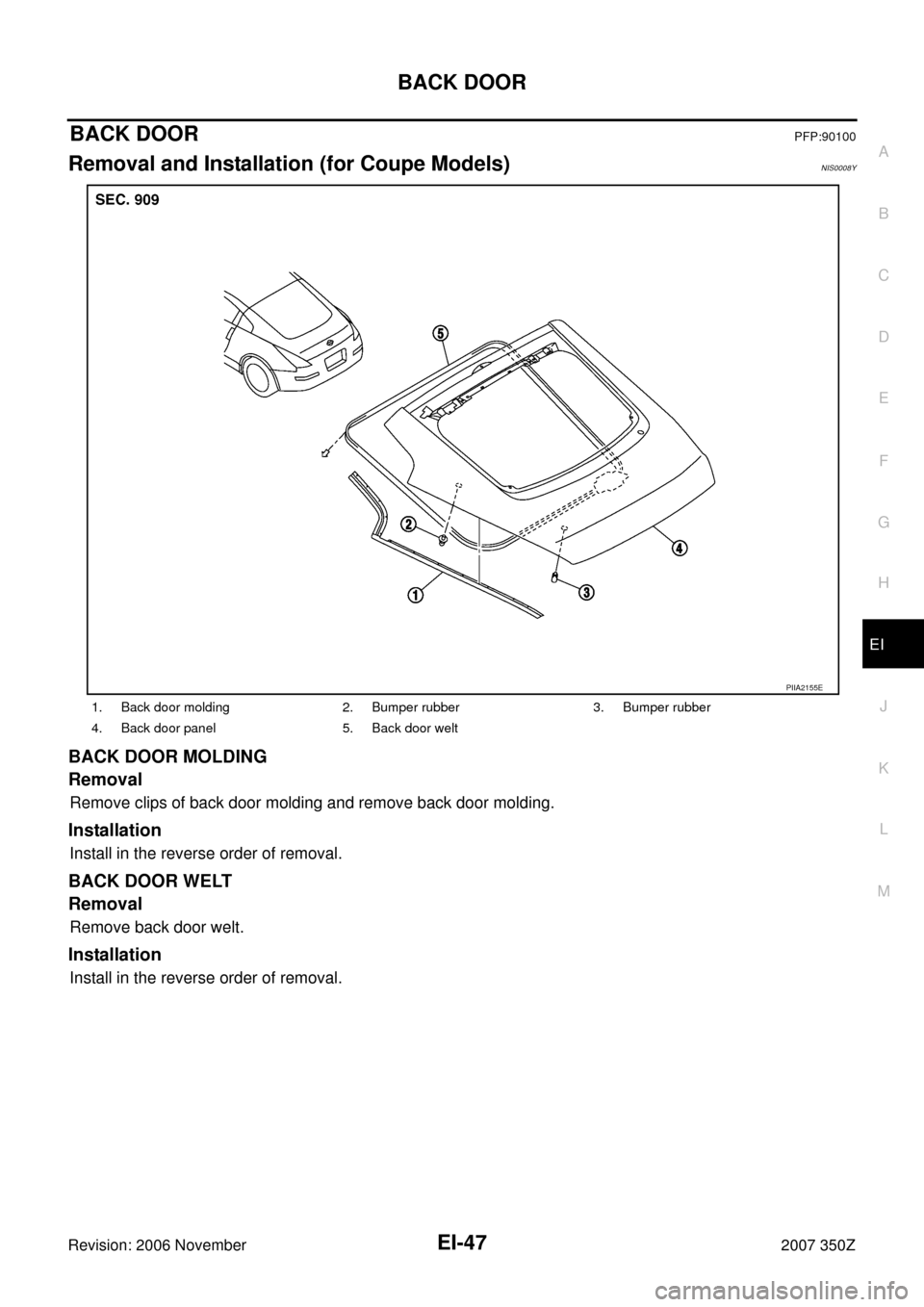

BACK DOOR MOLDING
Removal
Remove clips of back door molding and remove back door molding.
Installation
Install in the reverse order of removal.
BACK DOOR WELT
Removal
Remove back door welt.
Installation
Install in the reverse order of removal.
1. Back door molding 2. Bumper rubber 3. Bumper rubber
4. Back door panel 5. Back door welt
PIIA2155E

EI-48
BACK DOOR
Revision: 2006 November2007 350Z

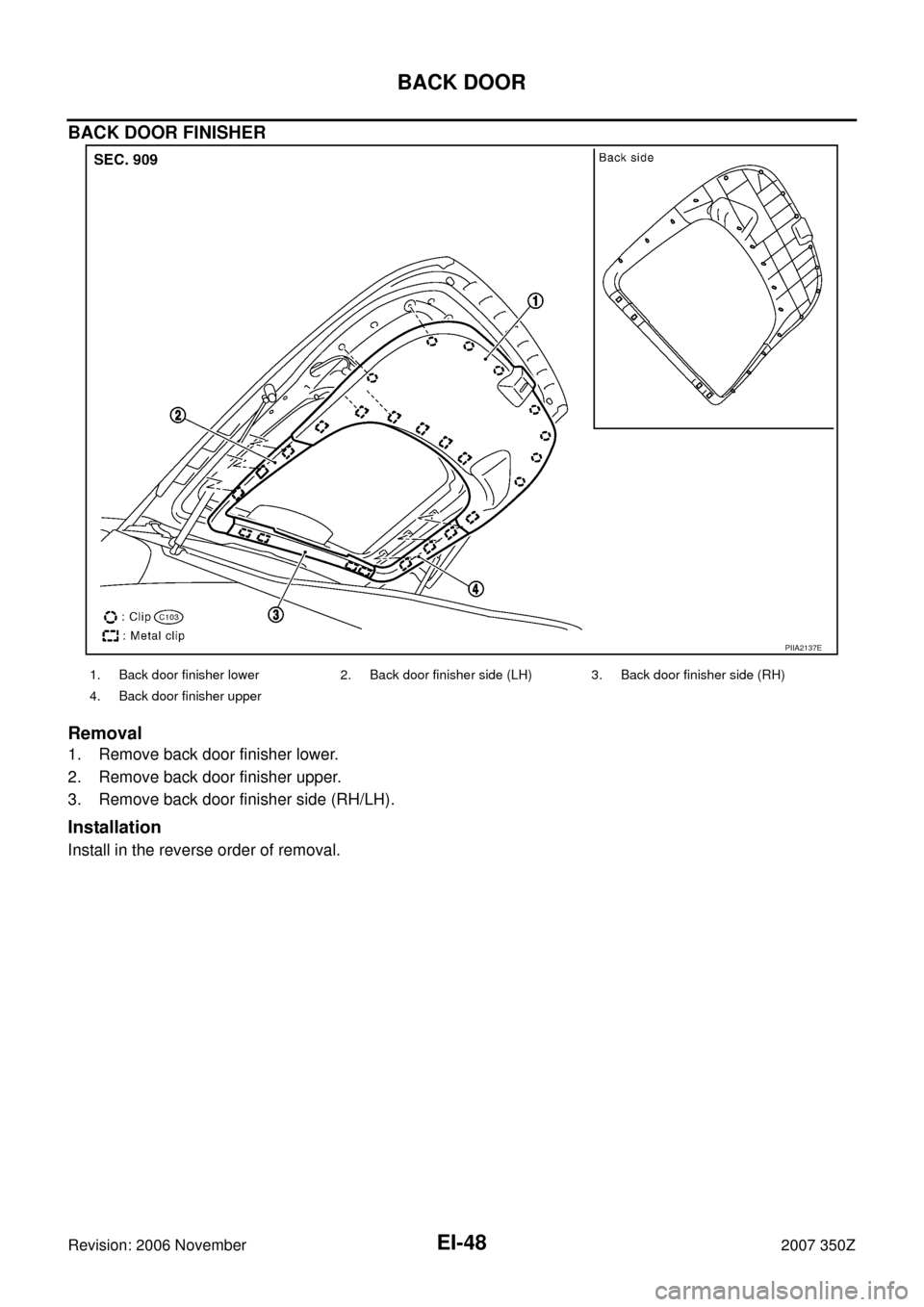

BACK DOOR FINISHER
Removal
1. Remove back door finisher lower.
2. Remove back door finisher upper.
3. Remove back door finisher side (RH/LH).
Installation
Install in the reverse order of removal.
PIIA2137E
1. Back door finisher lower 2. Back door finisher side (LH) 3. Back door finisher side (RH)
4. Back door finisher upper

TRUNK ROOM TRIM & TRUNK LID FINISHER
EI-49
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 November2007 350Z
TRUNK ROOM TRIM & TRUNK LID FINISHERPFP:84920
Removal and Installation (for Roadstar Models)NIS0008Z

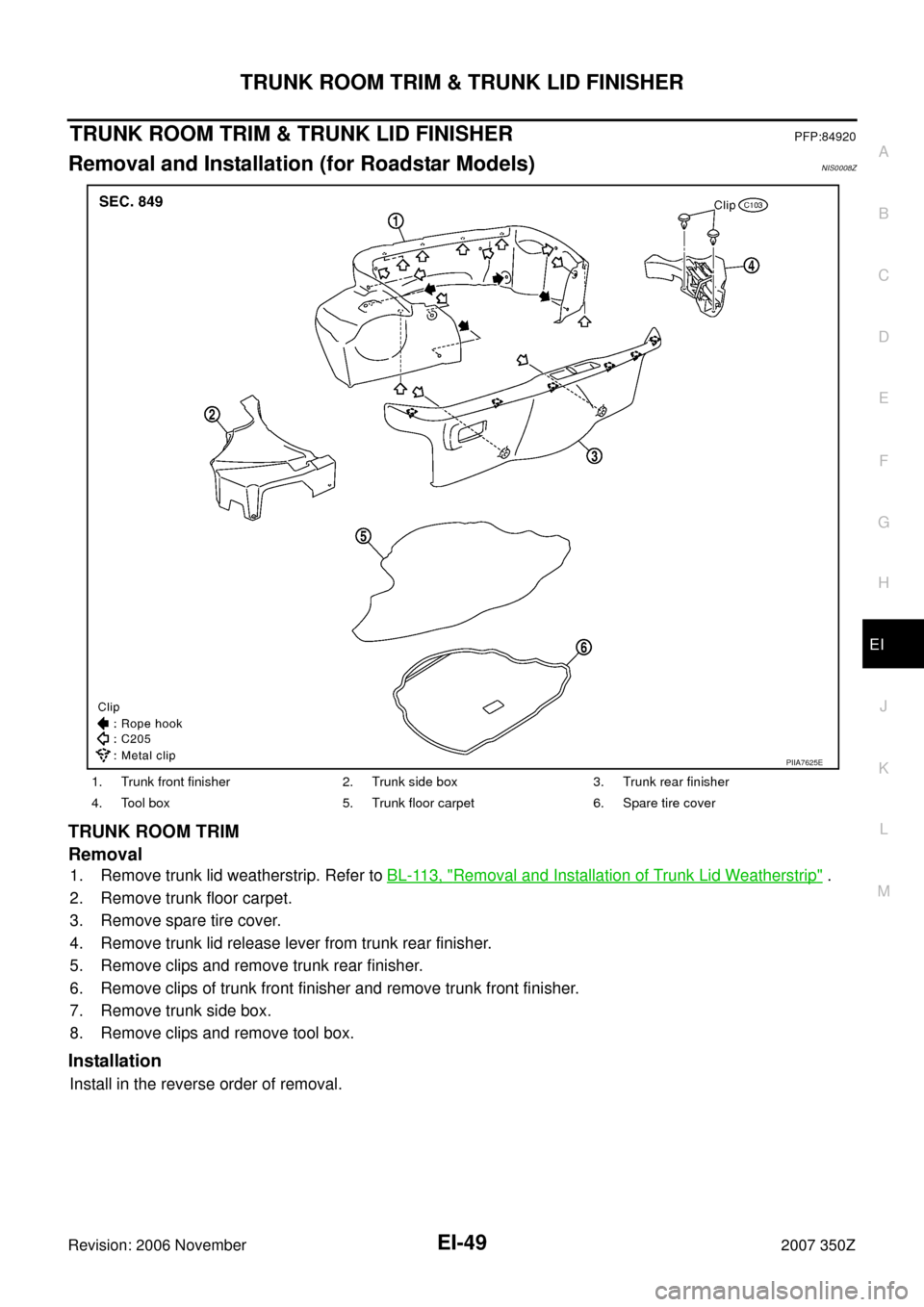

TRUNK ROOM TRIM
Removal
1. Remove trunk lid weatherstrip. Refer to BL-113, "Removal and Installation of Trunk Lid Weatherstrip" .
2. Remove trunk floor carpet.
3. Remove spare tire cover.
4. Remove trunk lid release lever from trunk rear finisher.
5. Remove clips and remove trunk rear finisher.
6. Remove clips of trunk front finisher and remove trunk front finisher.
7. Remove trunk side box.
8. Remove clips and remove tool box.
Installation
Install in the reverse order of removal.
1. Trunk front finisher 2. Trunk side box 3. Trunk rear finisher
4. Tool box 5. Trunk floor carpet 6. Spare tire cover
PIIA7625E

EI-50
TRUNK ROOM TRIM & TRUNK LID FINISHER
Revision: 2006 November2007 350Z
TRUNK LID FINISHER
Removal
Remove clips of trunk lid finisher and remove trunk lid finisher.
Installation
Install in the reverse order of removal.

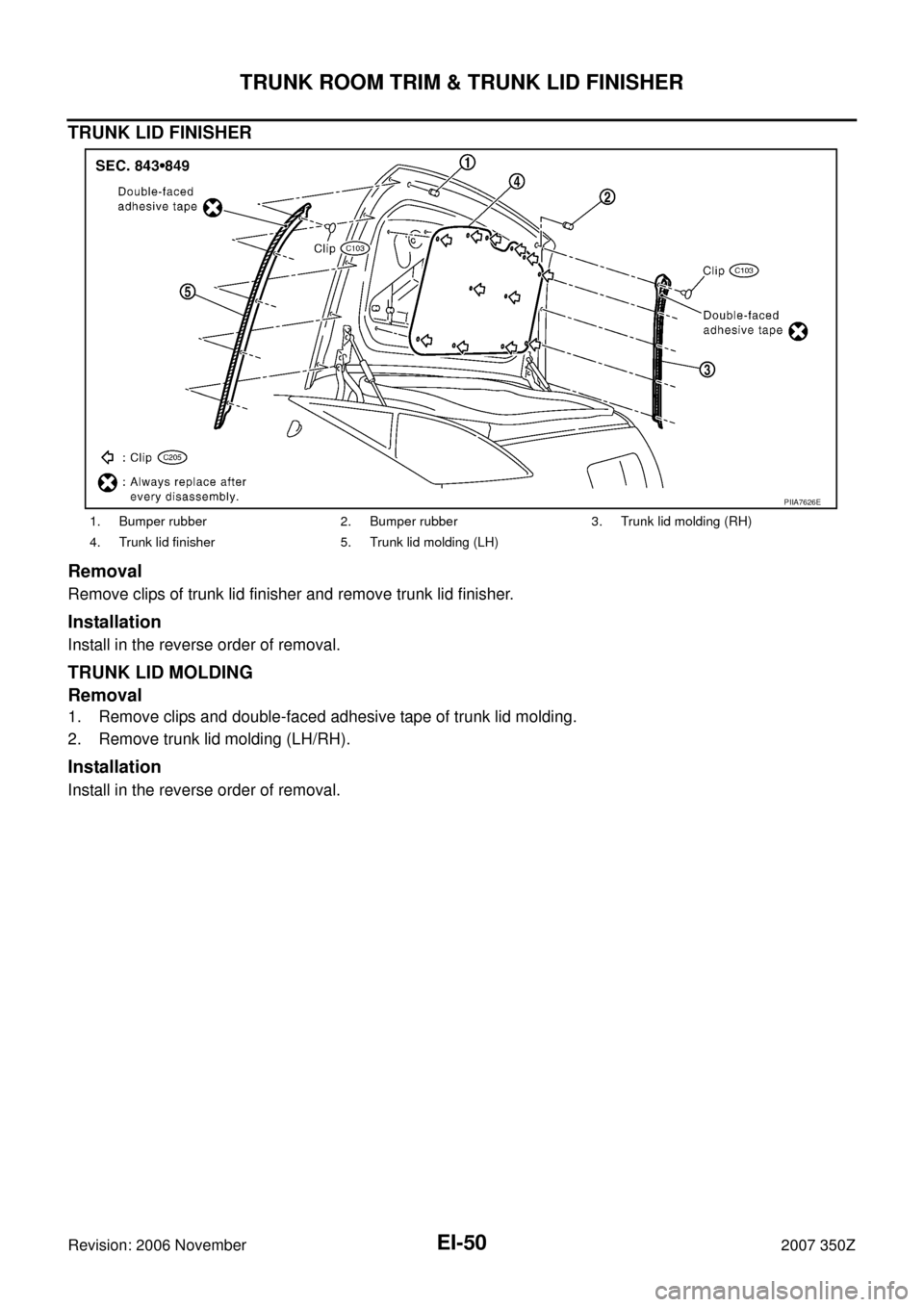

TRUNK LID MOLDING
Removal
1. Remove clips and double-faced adhesive tape of trunk lid molding.
2. Remove trunk lid molding (LH/RH).
Installation
Install in the reverse order of removal.
1. Bumper rubber 2. Bumper rubber 3. Trunk lid molding (RH)
4. Trunk lid finisher 5. Trunk lid molding (LH)
PIIA7626E
