COMBINATION SWITCH
LT-91
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
CONSULT-III Function (BCM)NKS004YP
CONSULT-III can display each diagnostic item using the diagnostic test mode shown following.
DATA MONITOR
Display Item List
NOTE:
This item is displayed, but cannot be monitored.BCM diagnosis part Diagnosis mode Description
COMB SW DATA MONITOR Displays BCM input data in real time.
Monitor item name
“OPERATION OR UNIT”Contents
TURN SIGNAL R “ON/OFF” Displays “Turn Right (ON)/Other (OFF)” status, determined from lighting switch signal.
TURN SIGNAL L “ON/OFF” Displays “Turn Left (ON)/Other (OFF)” status, determined from lighting switch signal.
HI BEAM SW “ON/OFF”Displays status (high beam switch: ON/Others: OFF) of high beam switch judged from lighting
switch signal.
HEAD LAMP SW 1 “ON/OFF”Displays status (headlamp switch 2: ON/Others: OFF) of headlamp switch 1 judged from lighting
switch signal.
HEAD LAMP SW 2 “ON/OFF”Displays status (headlamp switch 2: ON/Others: OFF) of headlamp switch 2 judged from lighting
switch signal.
LIGHT SW 1ST “ON/OFF”Displays status (lighting switch 1ST or 2ND position: ON/Others: OFF) of lighting switch judged
from lighting switch signal.
PASSING SW “ON/OFF”Displays status (flash-to-pass switch: ON/Others: OFF) of flash-to-pass switch judged from lighting
switch signal.
FR FOG SW
NOTE“ON/OFF” —
FR WIPER HI “ON/OFF” Displays “Front Wiper HI (ON)/Other (OFF)” status, determined from wiper switch signal.
FR WIPER LOW “ON/OFF” Displays “Front Wiper LOW (ON)/Other (OFF)” status, determined from wiper switch signal.
FR WIPER INT “ON/OFF” Displays “Front Wiper INT (ON)/Other (OFF)” status, determined from wiper switch signal.
FR WASHER SW “ON/OFF” Displays “Front Washer Switch (ON)/Other (OFF)” status, determined from wiper switch signal.
INT VOLUME [1 - 7] Displays intermittent operation knob setting (1 - 7), determined from wiper switch signal.
RR WIPER ON “ON/OFF” Displays “rear Wiper (ON)/Other (OFF)” status as judged from wiper switch signal.
RR WIPER INT “ON/OFF” Displays “rear Wiper INT (ON)/Other (OFF)” status as judged from wiper switch signal.
RR WASHER SW “ON/OFF” Displays “rear Washer Switch (ON)/Other (OFF)” status as judged from wiper switch signal.
Page 92 of 172

LT-92
COMBINATION SWITCH
Revision: 2006 November2007 350Z
Combination Switch InspectionNKS004YQ
1. SYSTEM CHECK
Referring to table below, check which system malfunctioning switch belongs to.
>> Check the system to which malfunctioning switch belongs, and GO TO 2.
2. SYSTEM CHECK
With CONSULT-III
1. Select "COMBI SW" of BCM data monitor item.
2. Confirm that other switches in malfunctioning system operate normally.
Example: When the HI BEAM switch is malfunctioning, confirm that “TURN RH”, “HEAD LAMP 1” and
“LIGHT SW 1 ST” in System 5, to which the HI BEAM switch belongs, turn ON-OFF normally.
Without CONSULT-III
Operating combination switch, and confirm that other switches in malfunctioning system operate normally.
Example: When the HI BEAM switch is malfunctioning, confirm that “TURN RH”, “HEAD LAMP 1” and “LIGHT
SW 1 ST” in System 5, to which HI BEAM switch belongs, turn ON-OFF normally.
Check results
Other switches in malfunctioning system operate normally.>>Replace lighting switch or wiper switch.
Other switches in malfunctioning system do not operate normally.>>GO TO 3.
System 1 System 2 System 3 System 4 System 5
— FR WASHER FR WIPER LO TURN LH TURN RH
FR WIPER HI — FR WIPER INT PASSING HEAD LAMP 1
INT VOLUME 1 RR WASHER — HEAD LAMP 2 HI BEAM
RR WIPER INT INT VOLUME 3 — — LIGHT SW 1ST
INT VOLUME 2 RR WIPER ON — — —
Page 93 of 172

COMBINATION SWITCH
LT-93
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
3. HARNESS INSPECTION
1. Turn ignition switch OFF.
2. Disconnect BCM and combination switch connectors.
3. Check for continuity between BCM harness connector of the suspect system and the corresponding com-
bination switch harness connector.
4. Check for continuity between BCM harness connector in suspect malfunctioning system and ground.
OK or NG
OK >> GO TO 4.
NG >> Check harness between BCM and combination switch for open or short circuit.
Sus-
pect
systemBCM Combination switch
Continuity
Connector Terminal Connector Terminal
1
M90Input 1 6
M296
Ye s Output 1 36 1
2Input 2 5 7
Output 2 35 2
3Input 3 4 10
Output 3 34 3
4Input 4 3 9
Output 4 33 4
5Input 5 2 8
Output 5 32 5
Suspect
systemBCM
GroundContinuity
Connector Terminal
1
M90Input 1 6
No Output 1 36
2Input 2 5
Output 2 35
3Input 3 4
Output 3 34
4Input 4 3
Output 4 33
5Input 5 2
Output 5 32
PKIB6168E
PKIA7506E
Page 94 of 172

LT-94
COMBINATION SWITCH
Revision: 2006 November2007 350Z
4. BCM OUTPUT TERMINAL INSPECTION
1. Connect BCM and combination switch connectors.
2. Set wiper intermittent dial position 4.
3. Turn ignition switch ON.
4. Check BCM output terminal voltage waveform of suspect mal-
functioning system.
OK or NG
OK >> Open circuit in combination switch, GO TO 5.
NG >> Replace BCM. Refer to BCS-17, "
Removal and Installation of BCM" .
5. COMBINATION SWITCH INSPECTION
Referring to table below, perform combination switch inspection.
>> INSPECTION END
Removal and InstallationNKS004YR
Refer to LT- 8 4 , "LIGHTING AND TURN SIGNAL SWITCH" .
Suspect
systemTerminals
Reference value
(Approx.) (+)
(-) Combination
switch
connectorTerminal
1
M291
Ground
7.2 V 22
33
44
55
PKIC1020E
PKIB4960J
Procedure
1234567
Replace
lighting
switchConfirm
check
resultsOK INSPECTION END
Confirm
check
resultsOK INSPECTION END
Confirm
check
resultsOK INSPECTION END
NGReplace wiper
switchNG Replace switch base NGConfirm symptom
again
Page 95 of 172

STOP LAMP
LT-95
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
STOP LAMPPFP:26550
Wiring Diagram — STOP/L —NKS004YS
TKWT5755E
Page 96 of 172

LT-96
STOP LAMP
Revision: 2006 November2007 350Z
TKWT4038E
Page 97 of 172

STOP LAMP
LT-97
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z

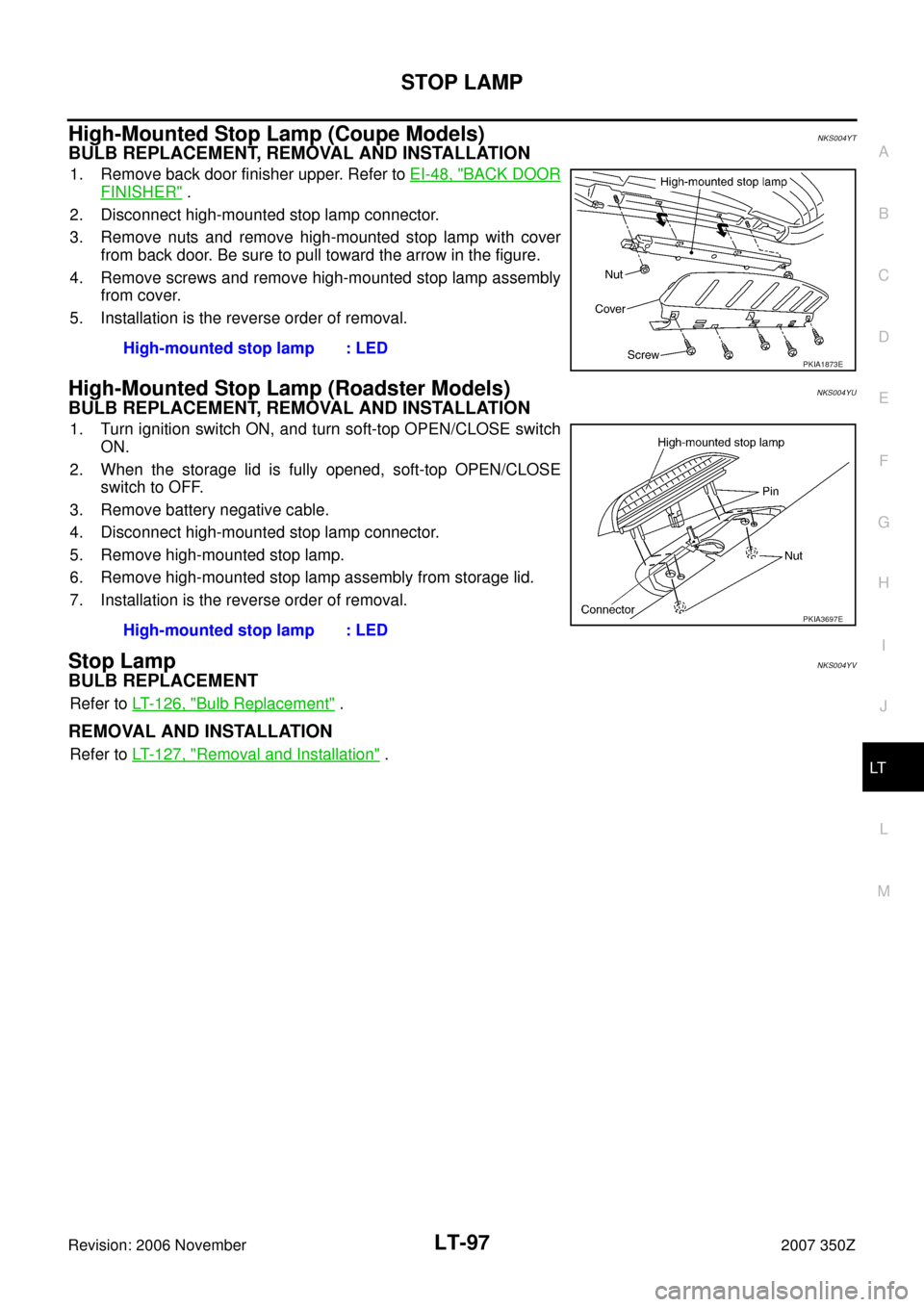

High-Mounted Stop Lamp (Coupe Models)NKS004YT
BULB REPLACEMENT, REMOVAL AND INSTALLATION
1. Remove back door finisher upper. Refer to EI-48, "BACK DOOR
FINISHER" .
2. Disconnect high-mounted stop lamp connector.
3. Remove nuts and remove high-mounted stop lamp with cover
from back door. Be sure to pull toward the arrow in the figure.
4. Remove screws and remove high-mounted stop lamp assembly
from cover.
5. Installation is the reverse order of removal.
High-Mounted Stop Lamp (Roadster Models)NKS004YU
BULB REPLACEMENT, REMOVAL AND INSTALLATION
1. Turn ignition switch ON, and turn soft-top OPEN/CLOSE switch
ON.
2. When the storage lid is fully opened, soft-top OPEN/CLOSE
switch to OFF.
3. Remove battery negative cable.
4. Disconnect high-mounted stop lamp connector.
5. Remove high-mounted stop lamp.
6. Remove high-mounted stop lamp assembly from storage lid.
7. Installation is the reverse order of removal.
Stop LampNKS004YV
BULB REPLACEMENT
Refer to LT- 1 2 6 , "Bulb Replacement" .
REMOVAL AND INSTALLATION
Refer to LT- 1 2 7 , "Removal and Installation" . High-mounted stop lamp : LED
PKIA1873E
High-mounted stop lamp : LEDPKIA3697E
Page 98 of 172

LT-98
BACK-UP LAMP
Revision: 2006 November2007 350Z
BACK-UP LAMPPFP:26550
Wiring Diagram — BACK/L — NKS004YW
COUPE MODELS (A/T)
TKWT5756E
Page 99 of 172

BACK-UP LAMP
LT-99
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
COUPE MODELS (M/T)
TKWT5757E
Page 100 of 172

LT-100
BACK-UP LAMP
Revision: 2006 November2007 350Z
ROADSTER MODELS (A/T)
TKWT5758E
