NISSAN 350Z 2007 Z33 Supplemental Restraint System User Guide TROUBLE DIAGNOSIS SRS-11 C D E F G I J K L MA B SRS Revision: 2006 November2007 350Z Component Parts LocationNHS0000I *: For Coupe PHIA1356E 1. Driver air bag module 2. Front passenger air bag module

Page 12 of 56

NISSAN 350Z 2007 Z33 Supplemental Restraint System User Guide SRS-12 TROUBLE DIAGNOSIS Revision: 2006 November2007 350Z SchematicNHS0000J THWT0270E

Page 13 of 56

NISSAN 350Z 2007 Z33 Supplemental Restraint System User Guide TROUBLE DIAGNOSIS SRS-13 C D E F G I J K L MA B SRS Revision: 2006 November2007 350Z Wiring Diagram — SRS —/For CoupeNHS0000K THWT0271E

Page 14 of 56

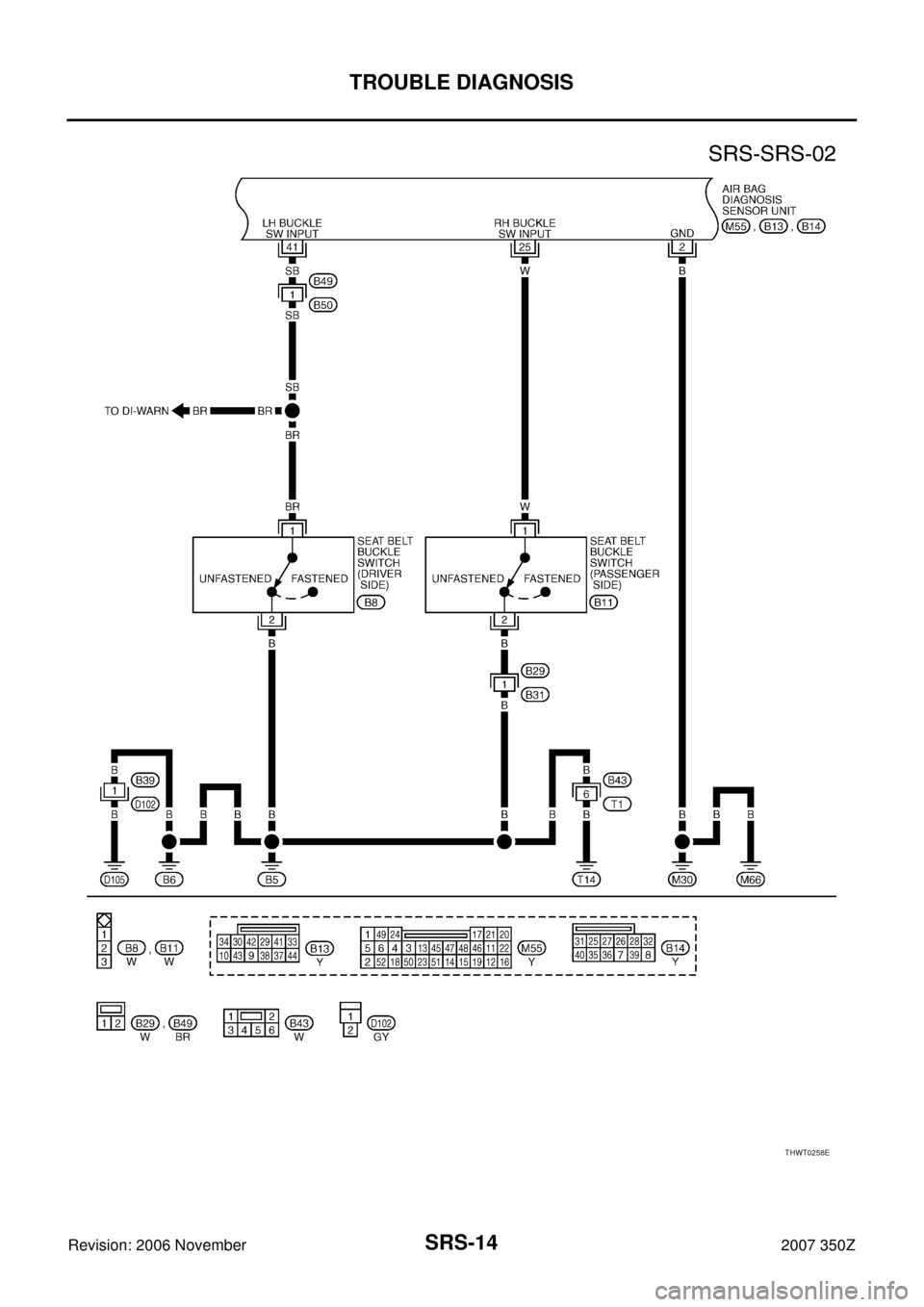

NISSAN 350Z 2007 Z33 Supplemental Restraint System User Guide SRS-14 TROUBLE DIAGNOSIS Revision: 2006 November2007 350Z THWT0258E

Page 15 of 56

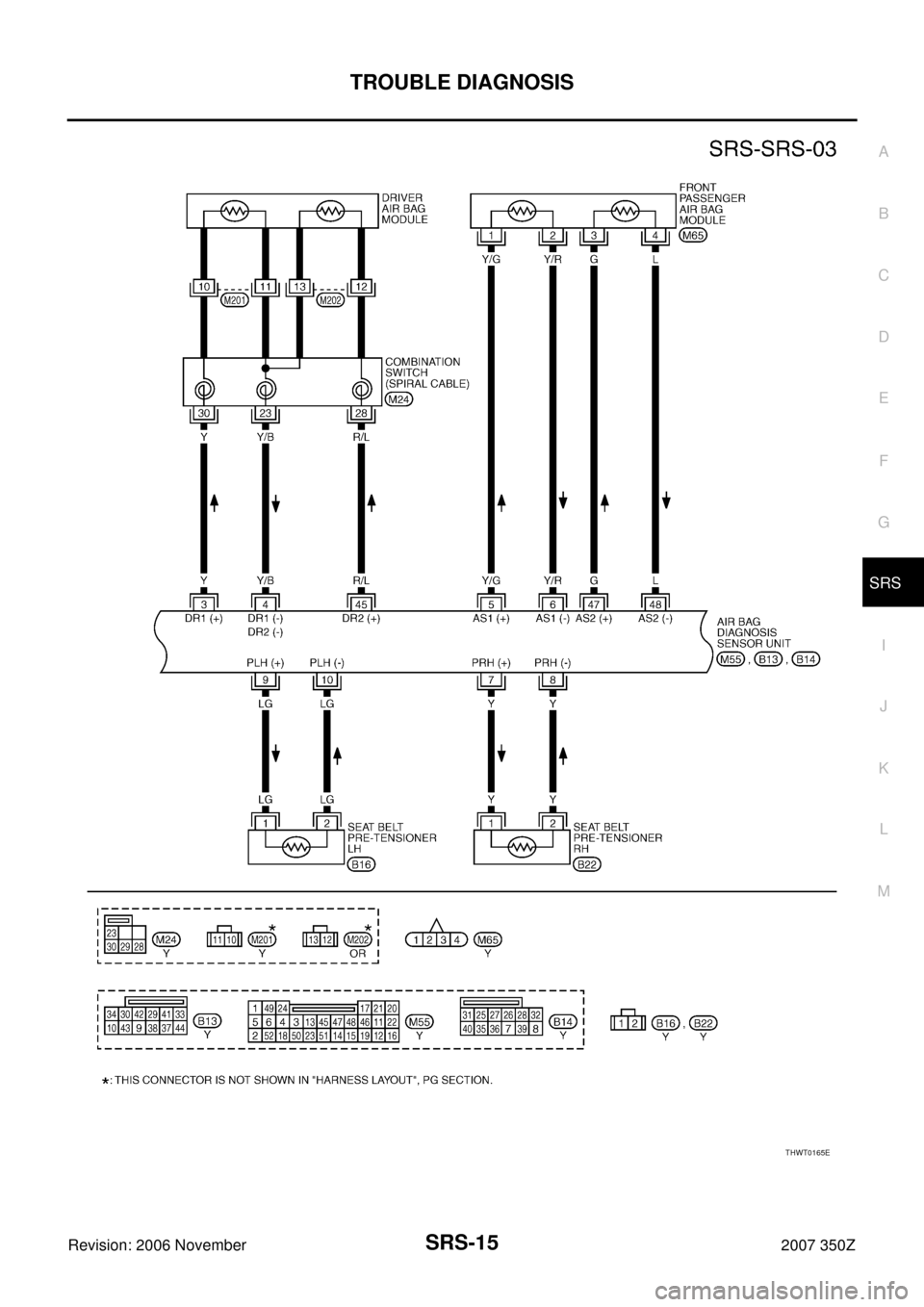

NISSAN 350Z 2007 Z33 Supplemental Restraint System User Guide TROUBLE DIAGNOSIS SRS-15 C D E F G I J K L MA B SRS Revision: 2006 November2007 350Z THWT0165E

Page 16 of 56

NISSAN 350Z 2007 Z33 Supplemental Restraint System User Guide SRS-16 TROUBLE DIAGNOSIS Revision: 2006 November2007 350Z THWT0259E

Page 17 of 56

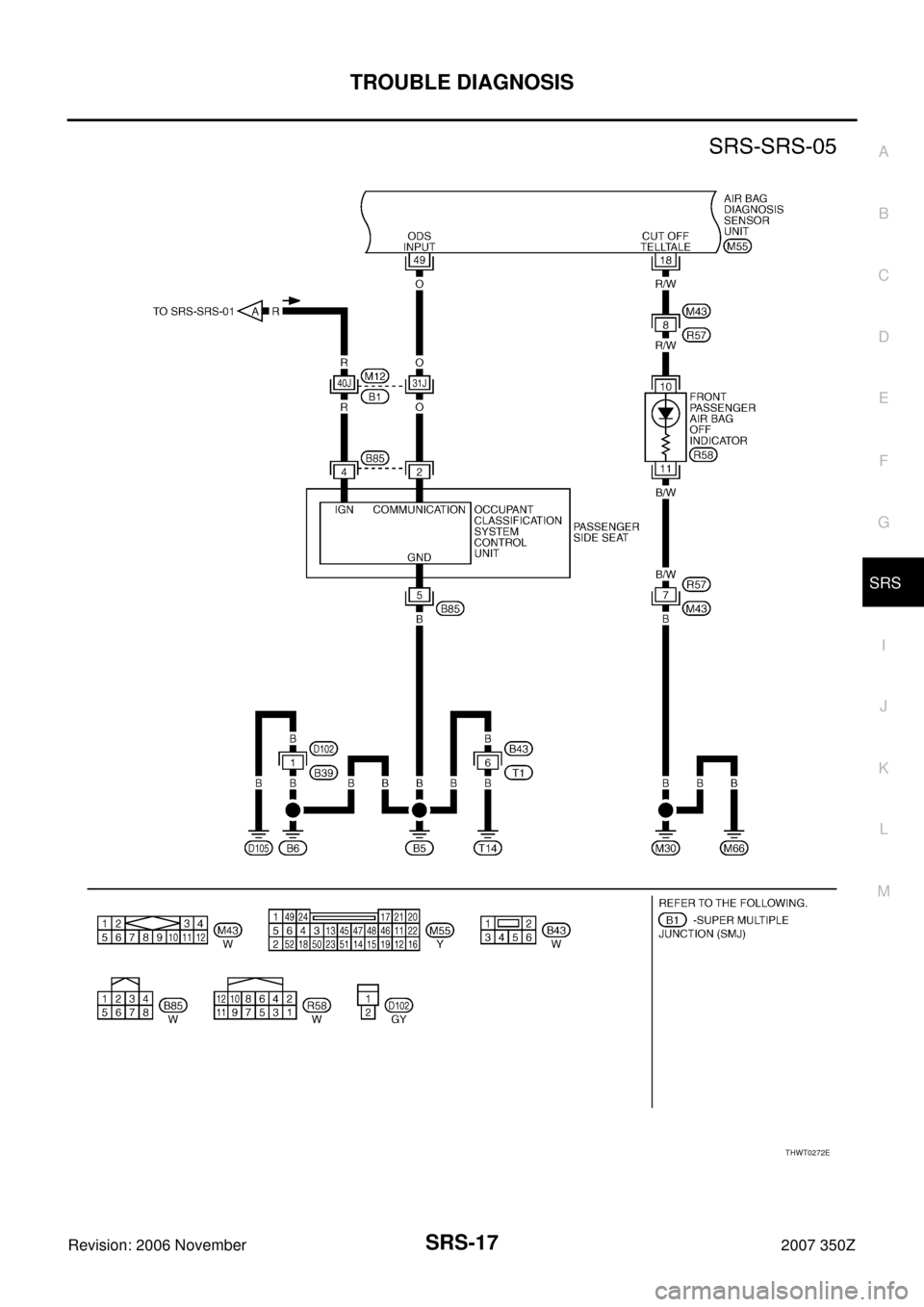

NISSAN 350Z 2007 Z33 Supplemental Restraint System User Guide TROUBLE DIAGNOSIS SRS-17 C D E F G I J K L MA B SRS Revision: 2006 November2007 350Z THWT0272E

Page 18 of 56

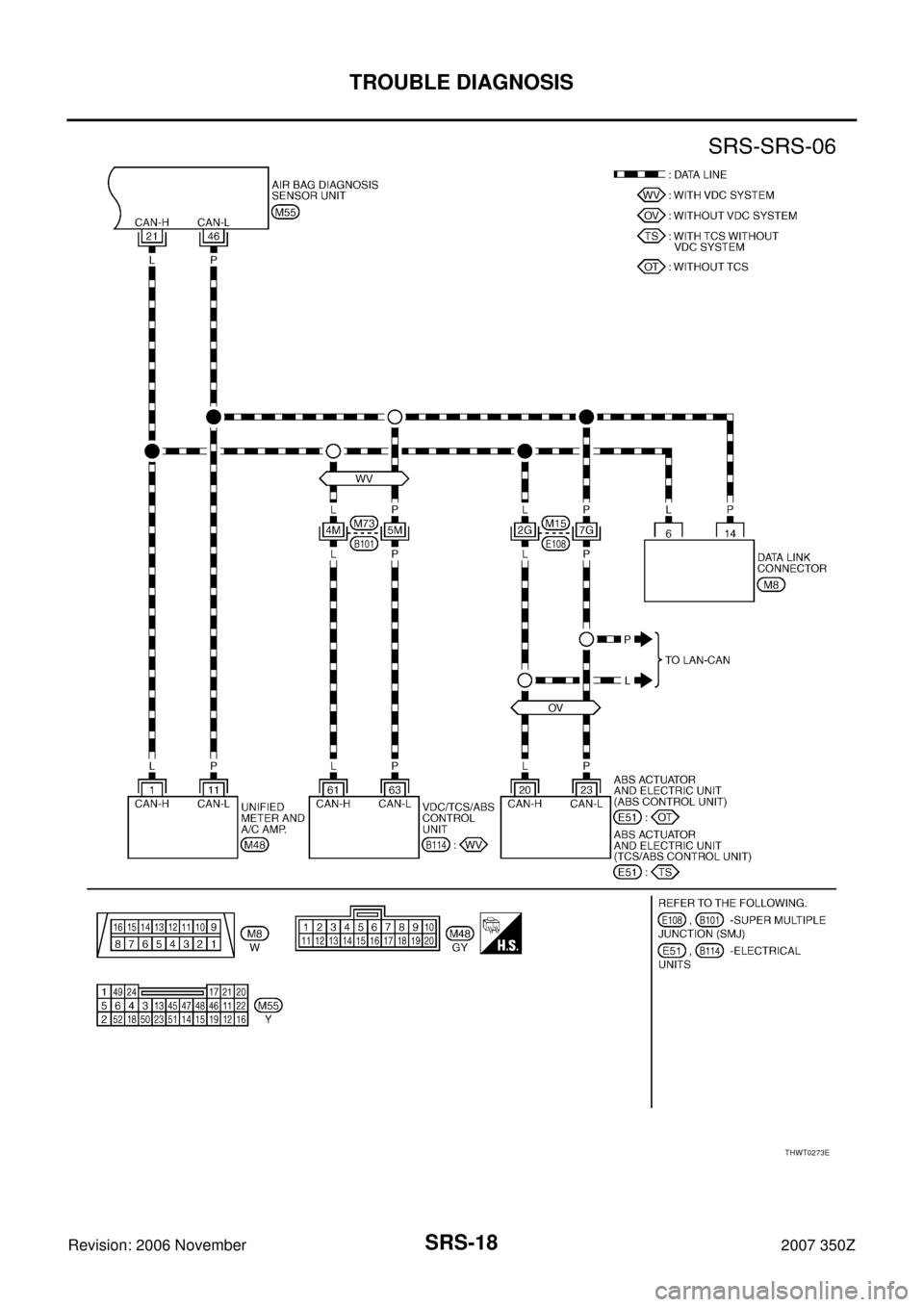

NISSAN 350Z 2007 Z33 Supplemental Restraint System User Guide SRS-18 TROUBLE DIAGNOSIS Revision: 2006 November2007 350Z THWT0273E

Page 19 of 56

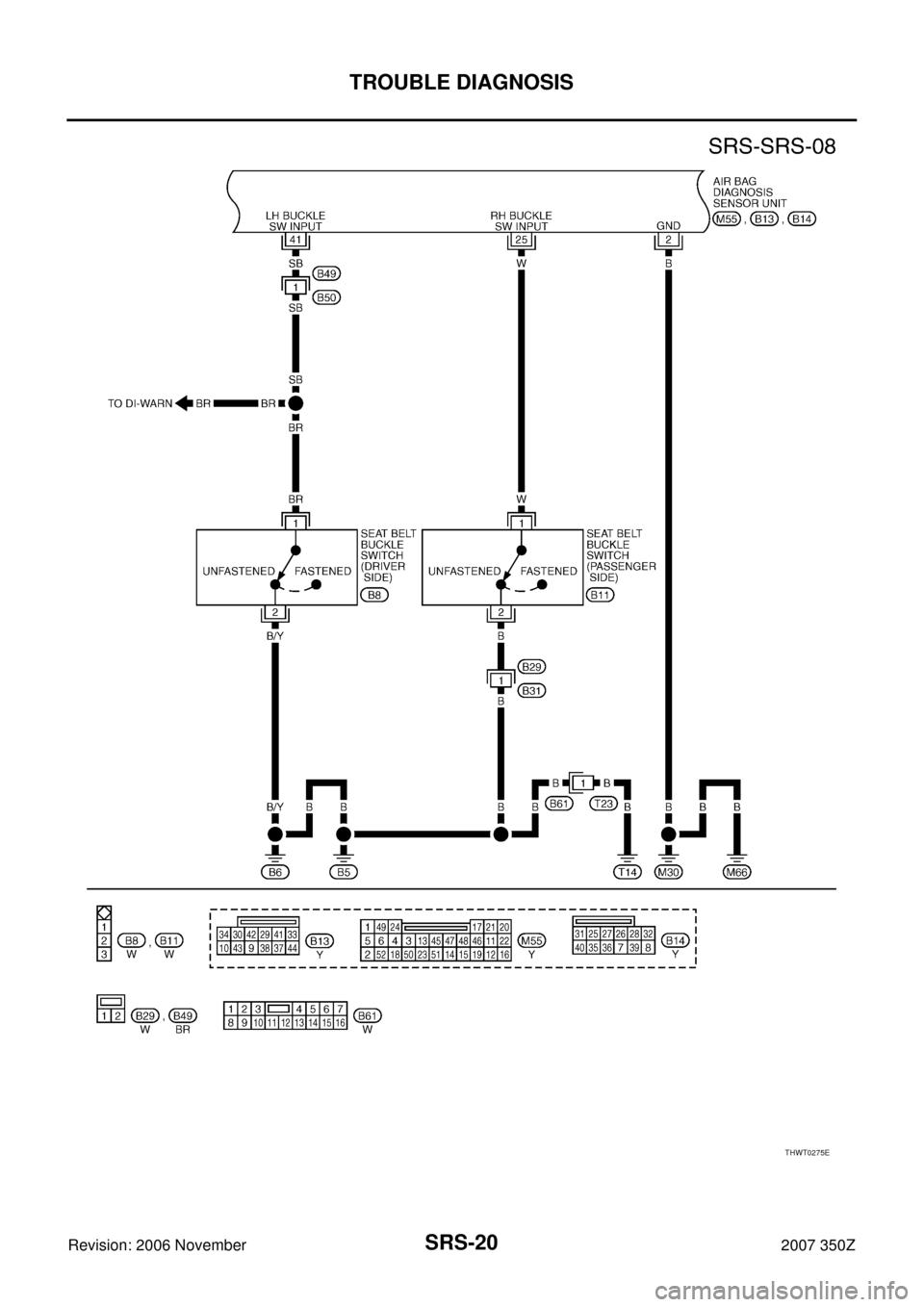

NISSAN 350Z 2007 Z33 Supplemental Restraint System User Guide TROUBLE DIAGNOSIS SRS-19 C D E F G I J K L MA B SRS Revision: 2006 November2007 350Z Wiring Diagram — SRS —/For RoadsterNHS0000L THWT0274E

Page 20 of 56

NISSAN 350Z 2007 Z33 Supplemental Restraint System User Guide SRS-20 TROUBLE DIAGNOSIS Revision: 2006 November2007 350Z THWT0275E
