NISSAN ALMERA 2001 Service Manual

SEL498X

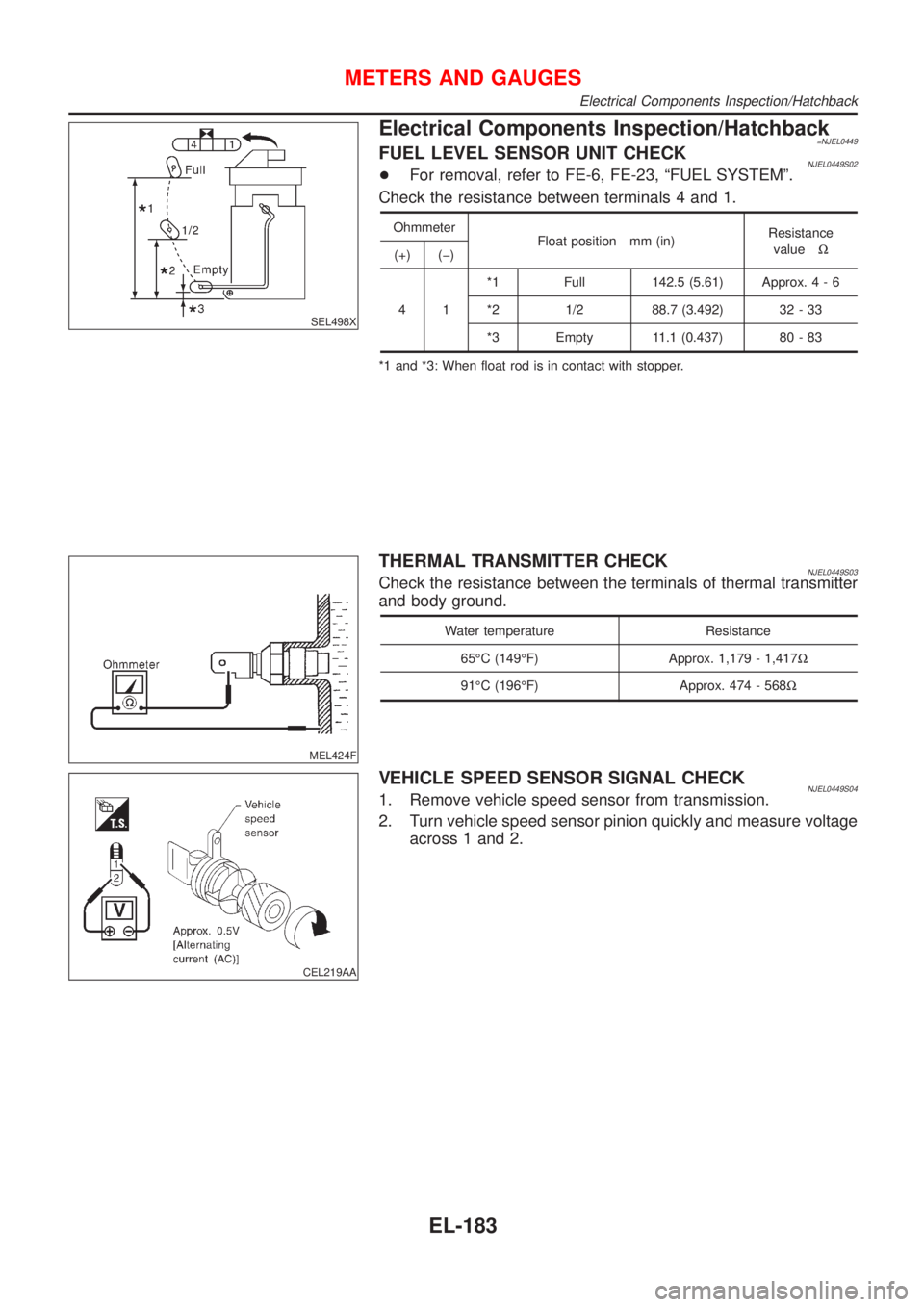

Electrical Components Inspection/Hatchback=NJEL0449FUEL LEVEL SENSOR UNIT CHECKNJEL0449S02+For removal, refer to FE-6, FE-23, ªFUEL SYSTEMº.
Check the resistance between terminals 4 and 1.
Ohmmeter
Float position mm (in)Resistance
valueW
(+) (þ)
41*1 Full 142.5 (5.61) Approx.4-6
*2 1/2 88.7 (3.492) 32 - 33
*3 Empty 11.1 (0.437) 80 - 83
*1 and *3: When float rod is in contact with stopper.
MEL424F
THERMAL TRANSMITTER CHECKNJEL0449S03Check the resistance between the terminals of thermal transmitter
and body ground.
Water temperature Resistance
65ÉC (149ÉF) Approx. 1,179 - 1,417W
91ÉC (196ÉF) Approx. 474 - 568W
CEL219AA
VEHICLE SPEED SENSOR SIGNAL CHECKNJEL0449S041. Remove vehicle speed sensor from transmission.
2. Turn vehicle speed sensor pinion quickly and measure voltage
across 1 and 2.
METERS AND GAUGES
Electrical Components Inspection/Hatchback
EL-183

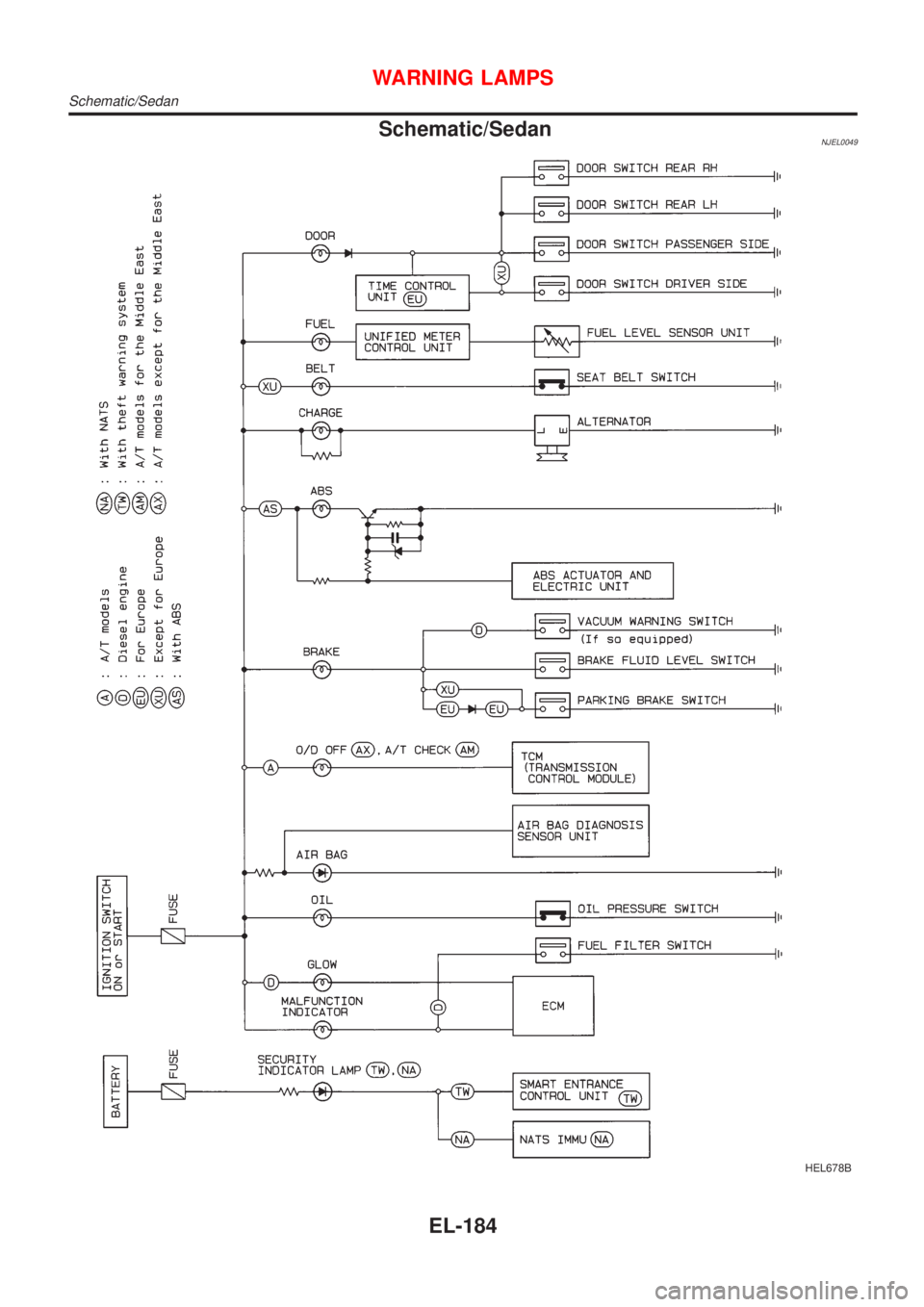

Schematic/SedanNJEL0049
HEL678B
WARNING LAMPS
Schematic/Sedan
EL-184

Wiring Diagram Ð WARN Ð/SedanNJEL0370
HEL385B
WARNING LAMPS
Wiring Diagram Ð WARN Ð/Sedan
EL-185

HEL386B
WARNING LAMPS
Wiring Diagram Ð WARN Ð/Sedan (Cont'd)
EL-186

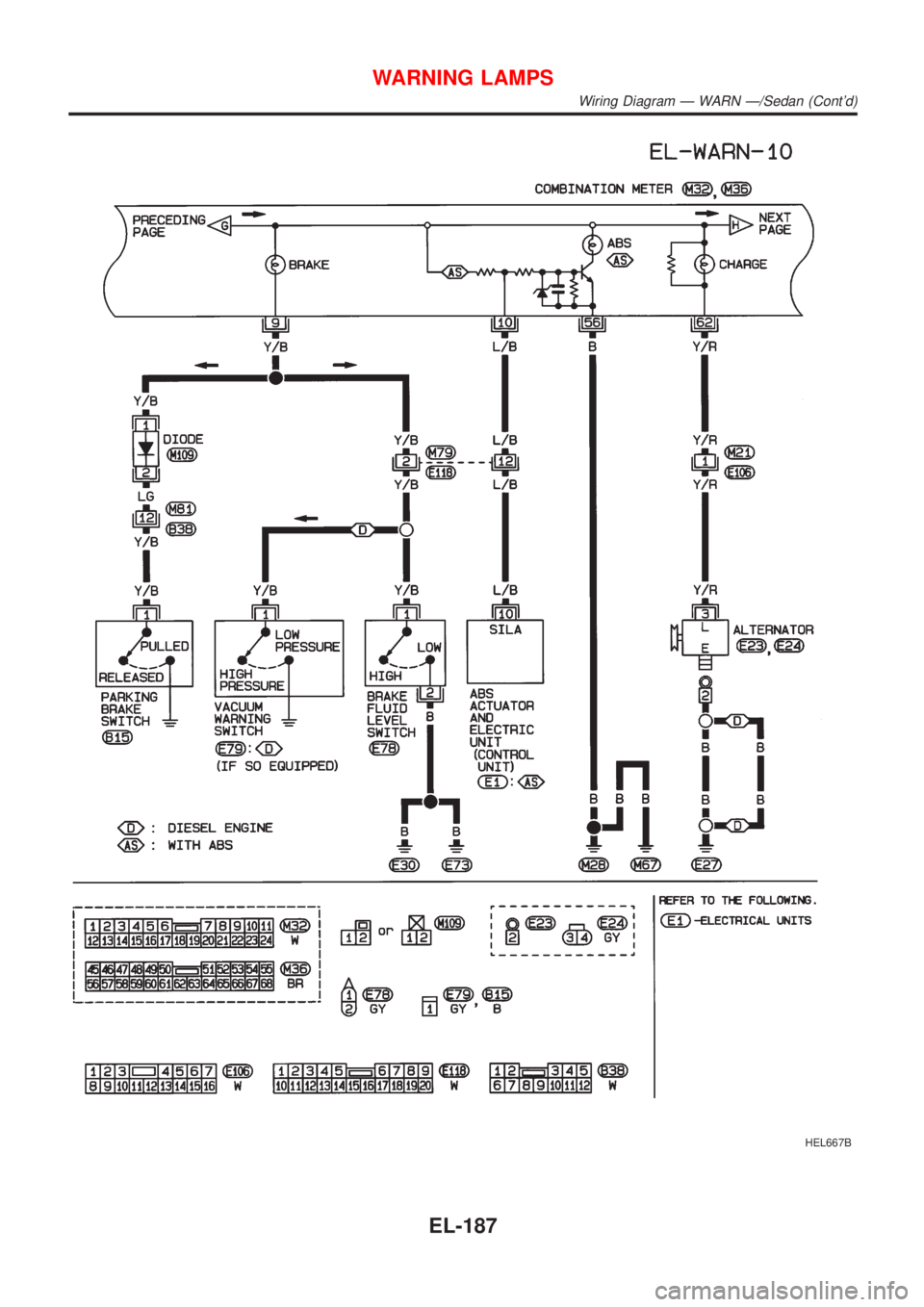

HEL667B
WARNING LAMPS
Wiring Diagram Ð WARN Ð/Sedan (Cont'd)
EL-187

HEL388B
WARNING LAMPS
Wiring Diagram Ð WARN Ð/Sedan (Cont'd)
EL-188

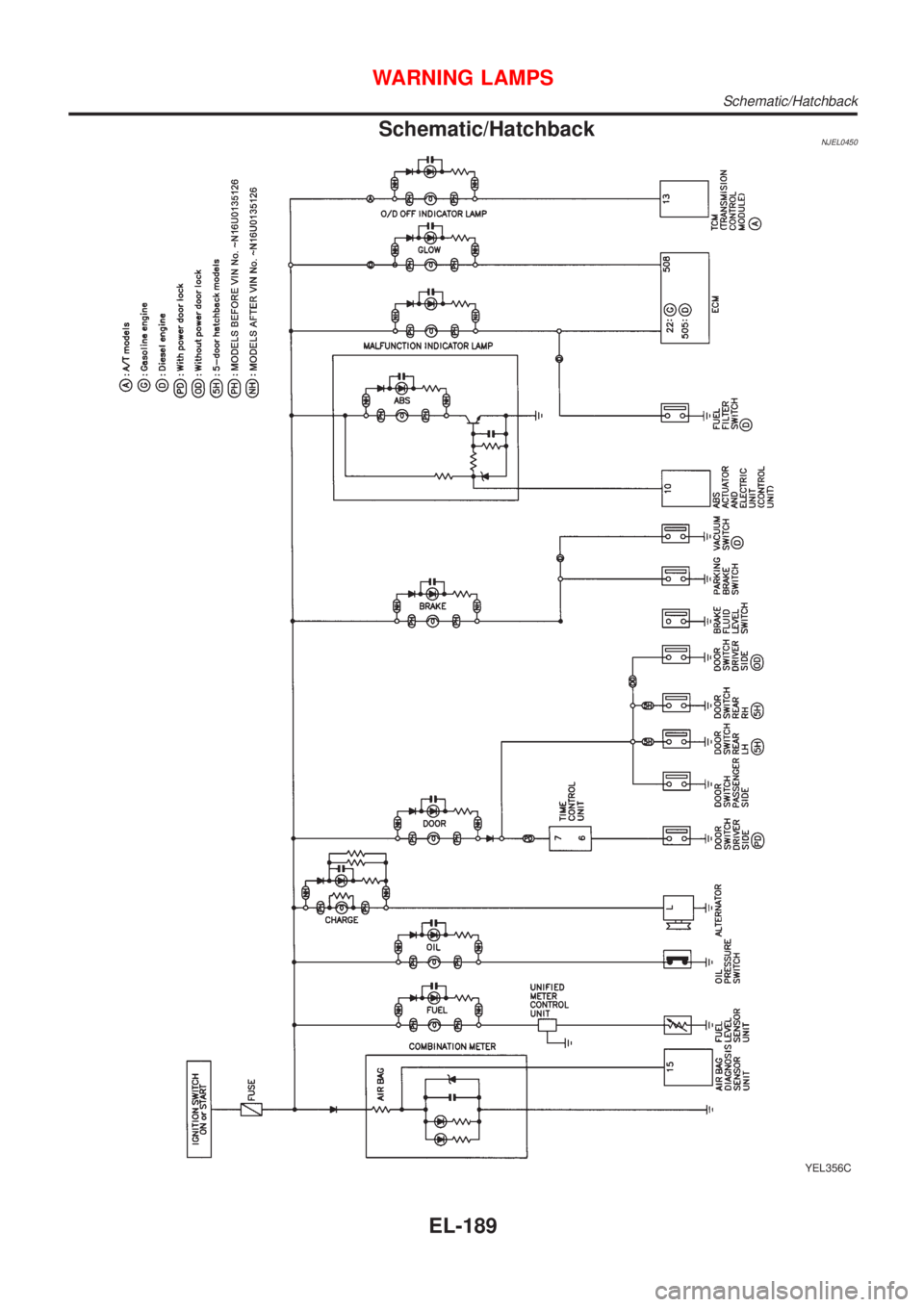

Schematic/HatchbackNJEL0450
YEL356C
WARNING LAMPS
Schematic/Hatchback
EL-189

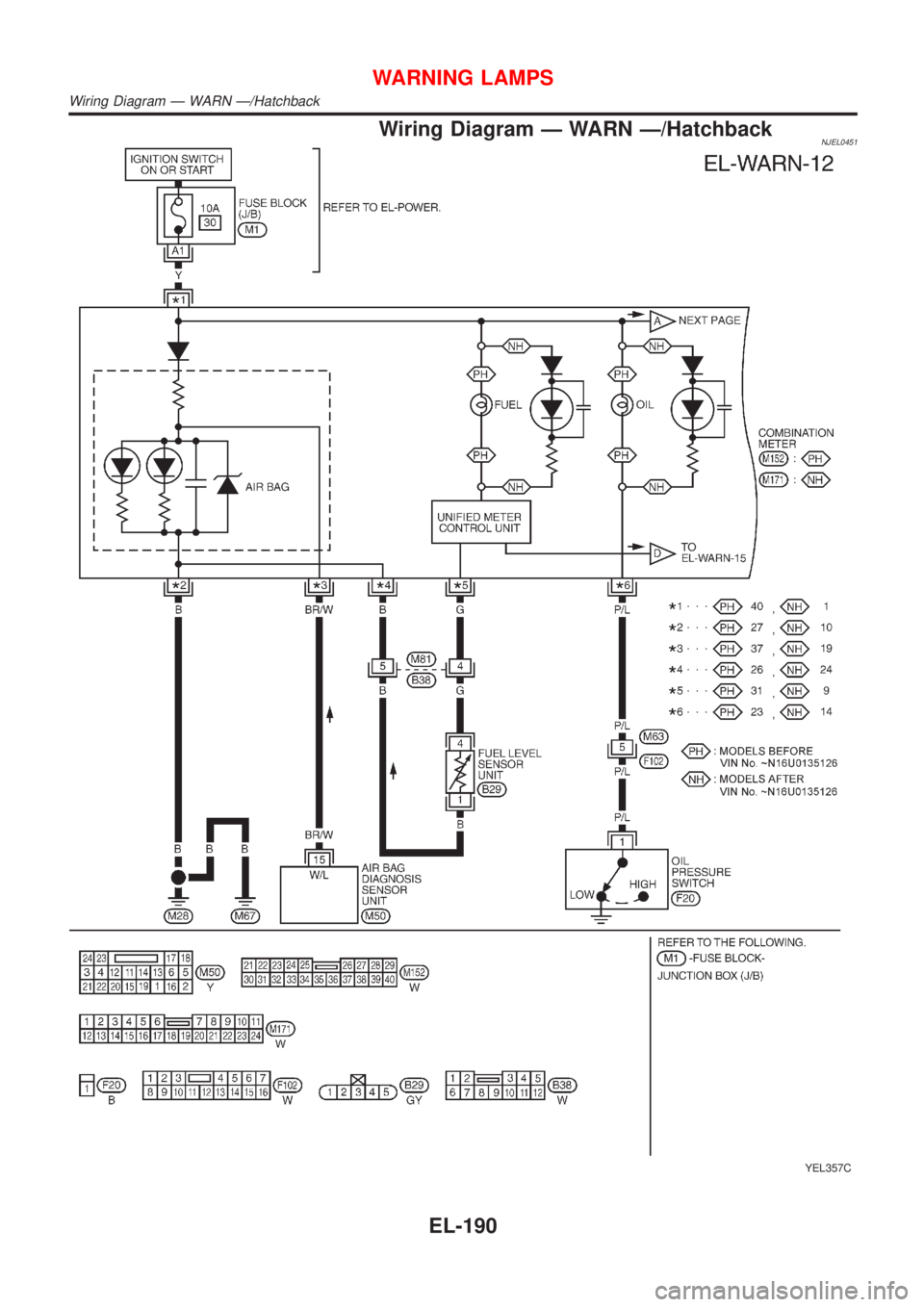

Wiring Diagram Ð WARN Ð/HatchbackNJEL0451
YEL357C
WARNING LAMPS
Wiring Diagram Ð WARN Ð/Hatchback
EL-190

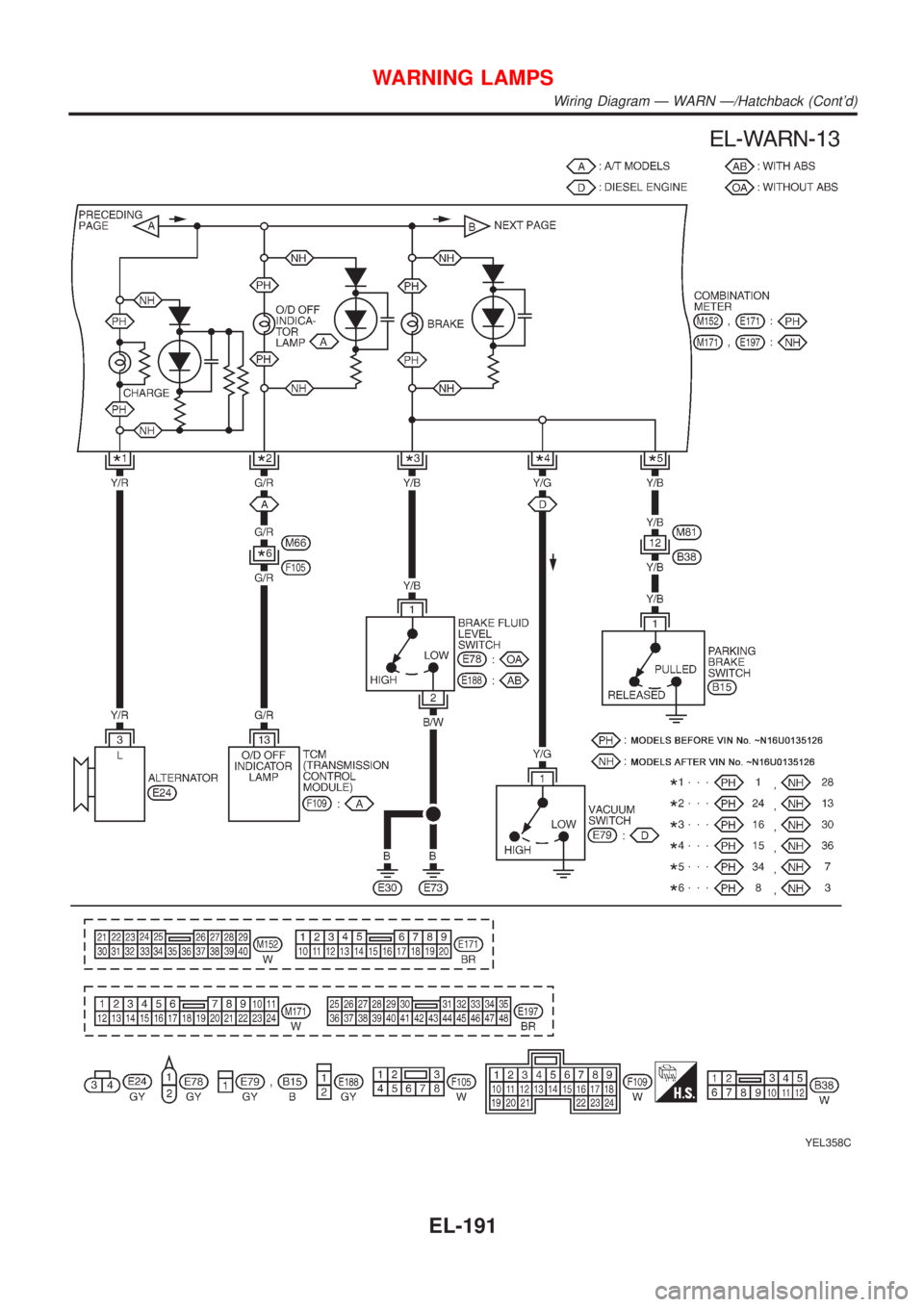

YEL358C
WARNING LAMPS
Wiring Diagram Ð WARN Ð/Hatchback (Cont'd)
EL-191

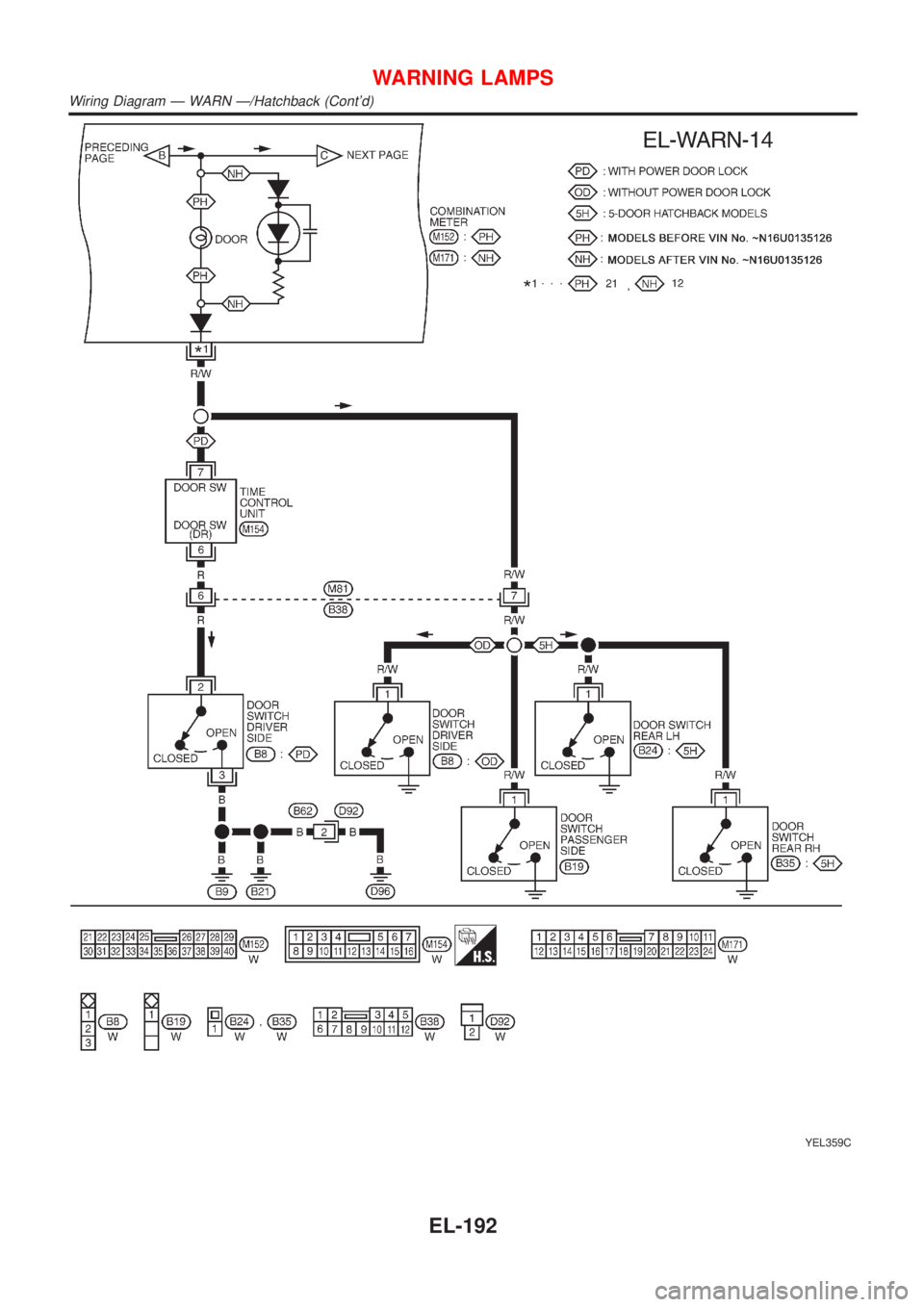

YEL359C
WARNING LAMPS
Wiring Diagram Ð WARN Ð/Hatchback (Cont'd)
EL-192
