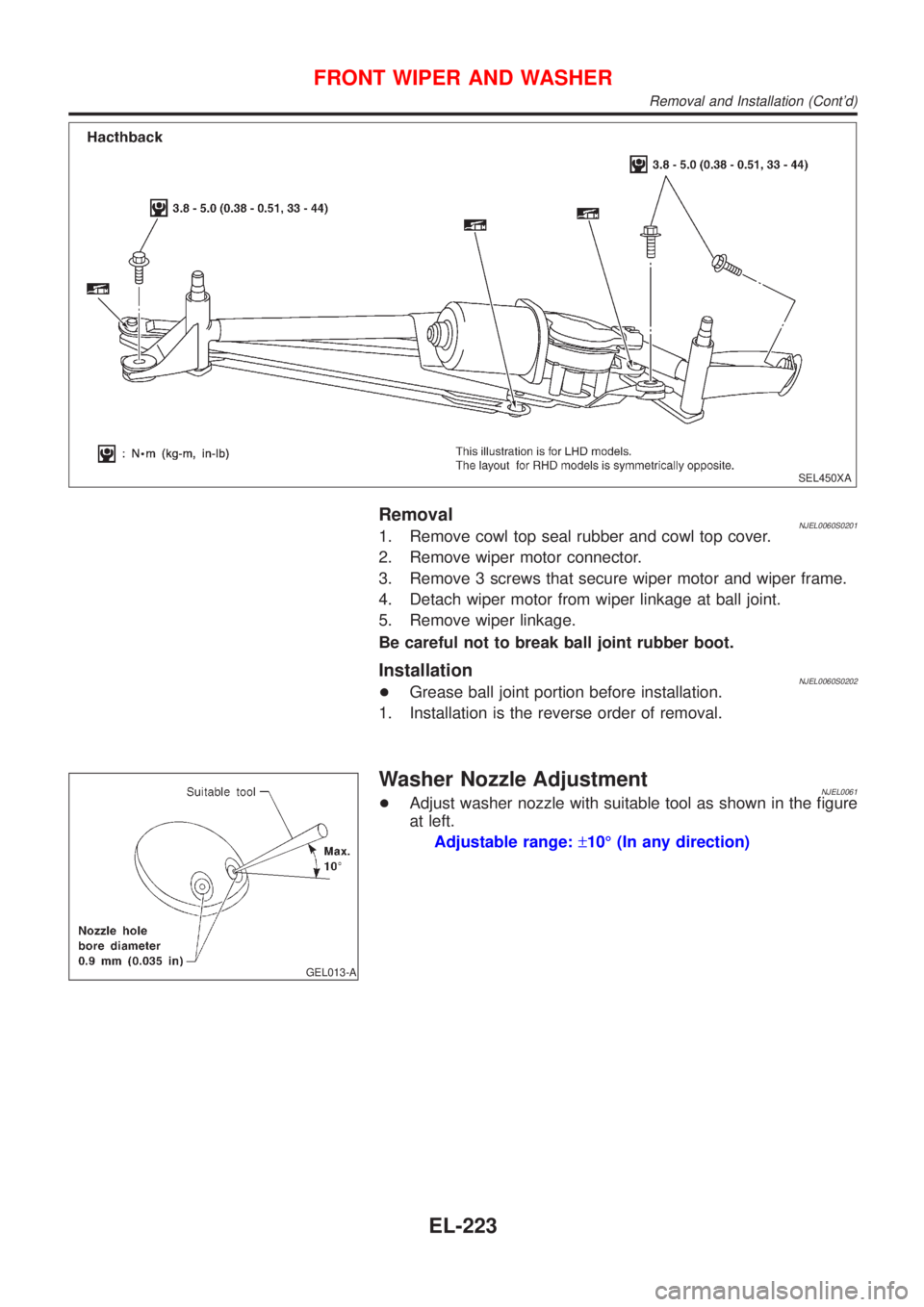

RemovalNJEL0060S02011. Remove cowl top seal rubber and cowl top cover.
2. Remove wiper motor connector.
3. Remove 3 screws that secure wiper motor and wiper frame.
4. Detach wiper motor from wiper linkage at ball joint.
5. Remove wiper linkage.
Be careful not to break ball joint rubber boot.
InstallationNJEL0060S0202+Grease ball joint portion before installation.
1. Installation is the reverse order of removal.
GEL013-A
Washer Nozzle AdjustmentNJEL0061+Adjust washer nozzle with suitable tool as shown in the figure
at left.
Adjustable range:±10É (In any direction)
FRONT WIPER AND WASHER
Removal and Installation (Cont'd)
EL-223

GEL266
GEL267
Sedan
Unit: mm (in)
*1 400 (15.75) *5 151 (5.94)
*2 325 (12.80) *6 155 (6.10)
*3 425 (16.73) *7 250 (9.84)
*4 226 (8.90) *8 380 (14.96)
*A: The diameters of these circles are less than 80 mm (3.15 in).
*B: The diameter of this circle is less than 150 mm (5.91 in).
*C: The diameter of this circle is less than 130 mm (5.12 in).
SEL544T
HATCHBACK
Unit: mm (in)
*1 450 (17.72) *5 150 (5.91)
*2 225 (8.86) *6 155 (6.10)
*3 380 (14.96) *7 250 (9.84)
*4 165 (6.50) *8 320 (12.60)
*: The diameters of these circles are less than 80 mm (3.15 in).
The figure shown is for LHD models.
The layout for RHD models is symmetrically opposite.

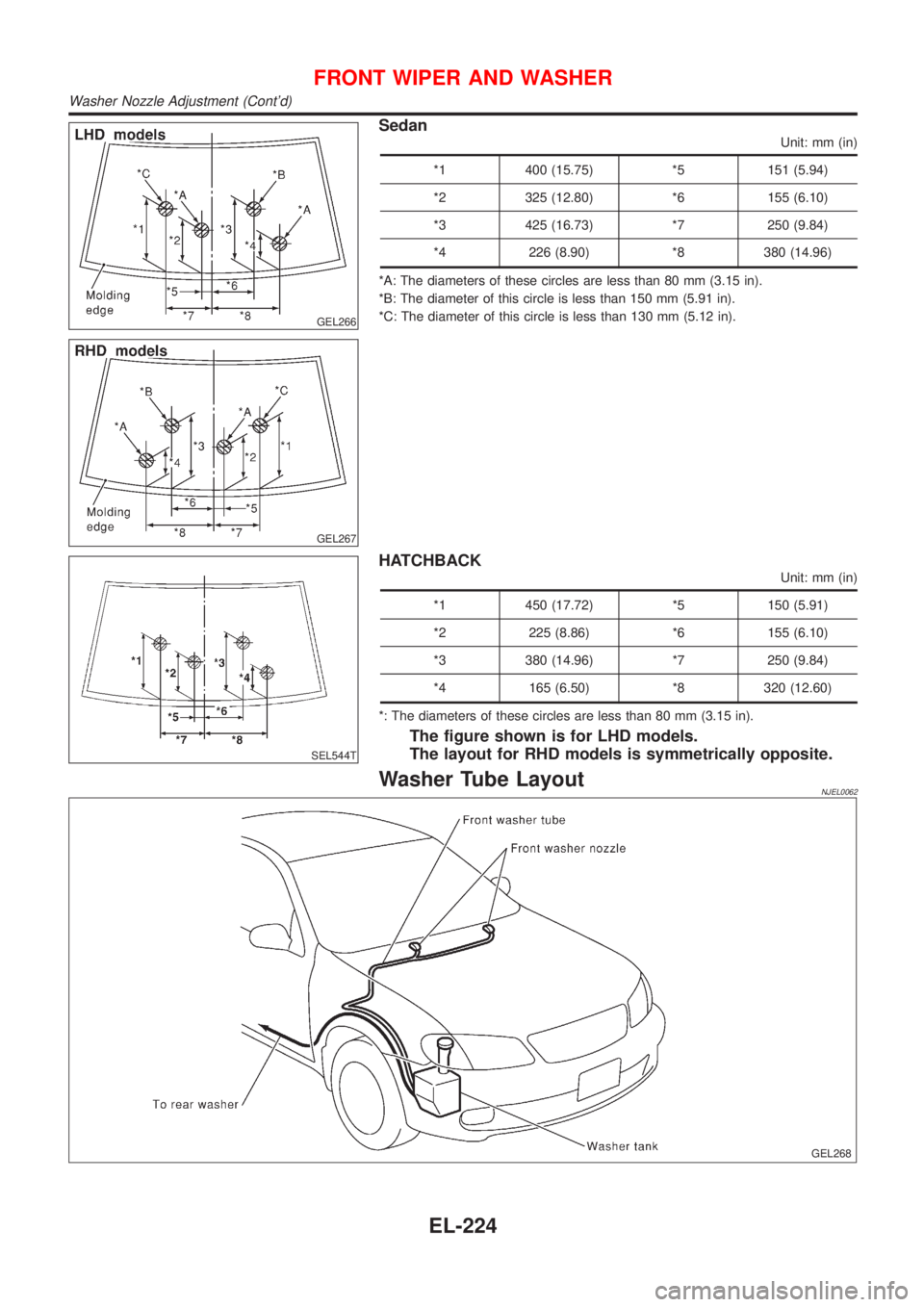

Washer Tube LayoutNJEL0062
GEL268
FRONT WIPER AND WASHER
Washer Nozzle Adjustment (Cont'd)
EL-224

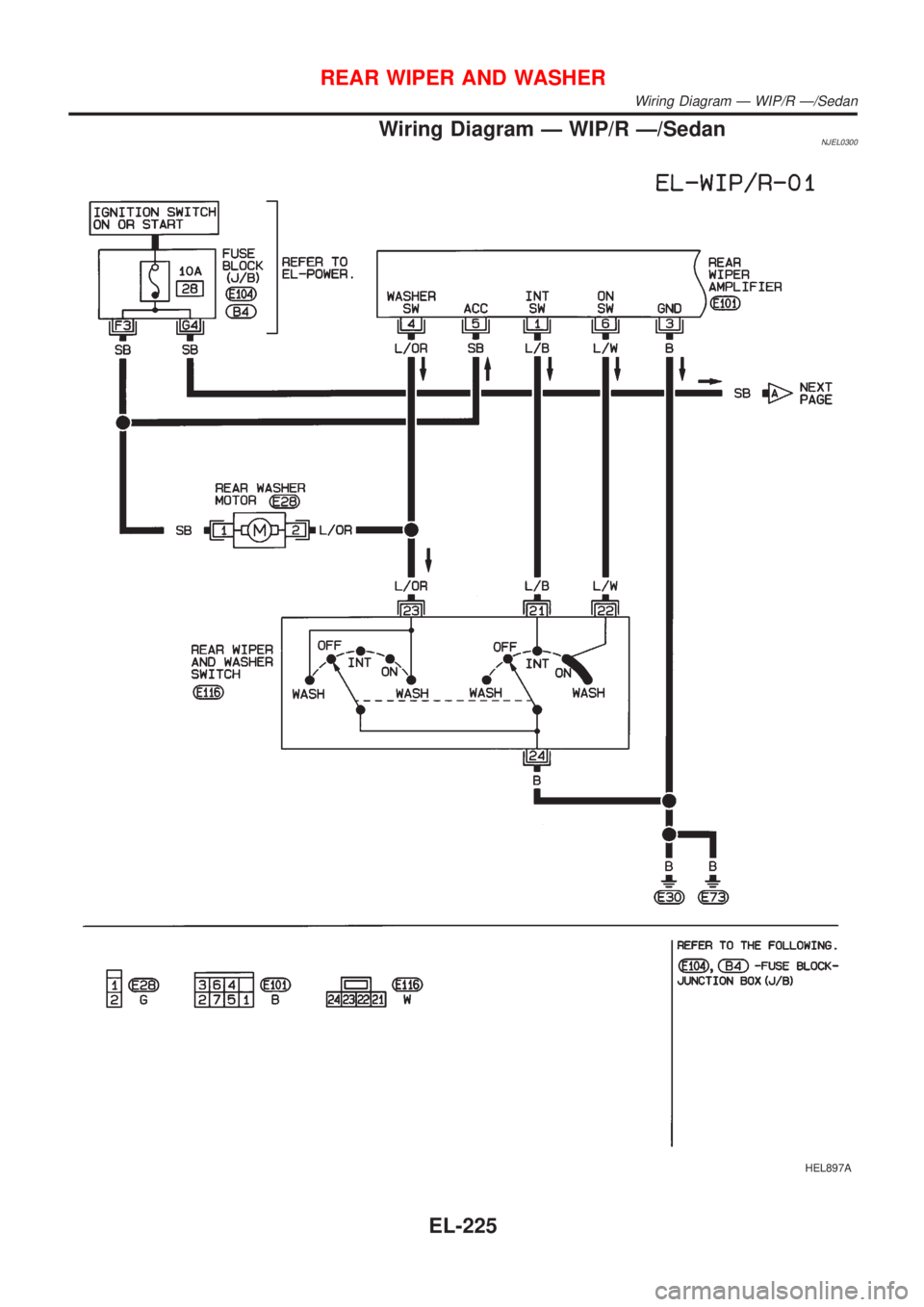

Wiring Diagram Ð WIP/R Ð/SedanNJEL0300
HEL897A
REAR WIPER AND WASHER

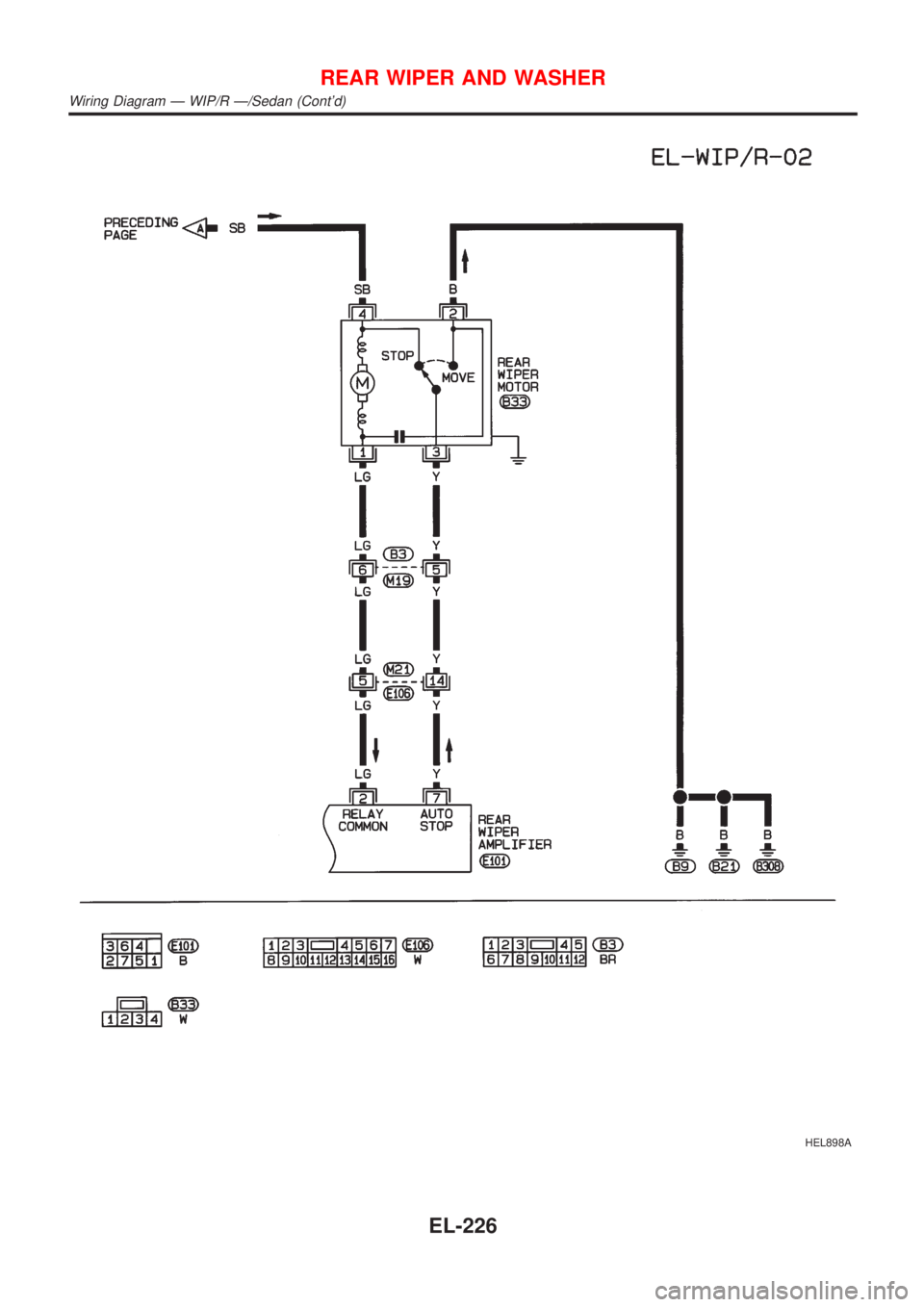

Wiring Diagram Ð WIP/R Ð/Sedan
EL-225

HEL898A
REAR WIPER AND WASHER
Wiring Diagram Ð WIP/R Ð/Sedan (Cont'd)
EL-226

Wiring Diagram Ð WIP/R Ð/HatchbackNJEL0458
YEL362C
REAR WIPER AND WASHER

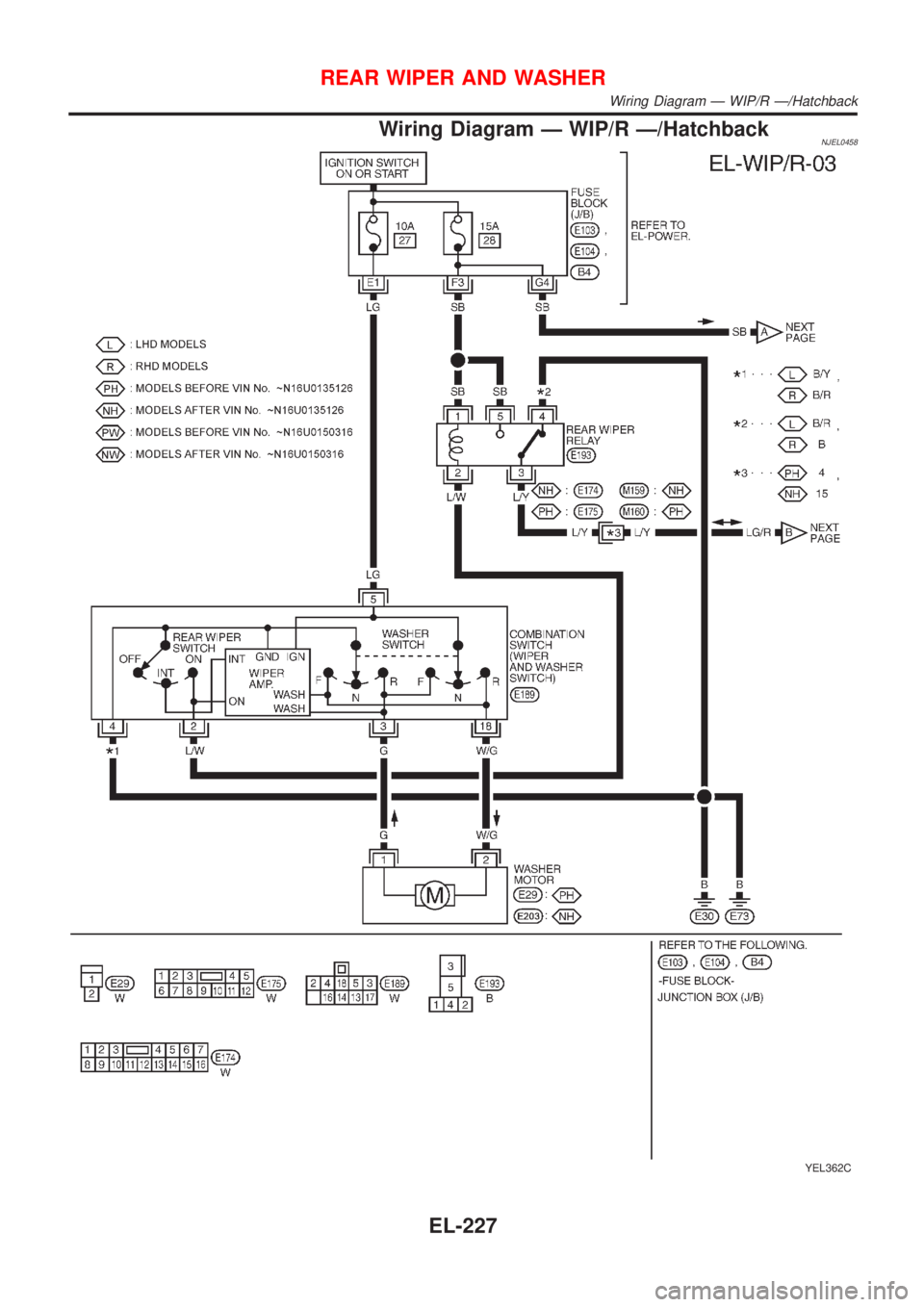

Wiring Diagram Ð WIP/R Ð/Hatchback
EL-227

YEL363C
REAR WIPER AND WASHER
Wiring Diagram Ð WIP/R Ð/Hatchback (Cont'd)
EL-228

GEL269
SEL451XA

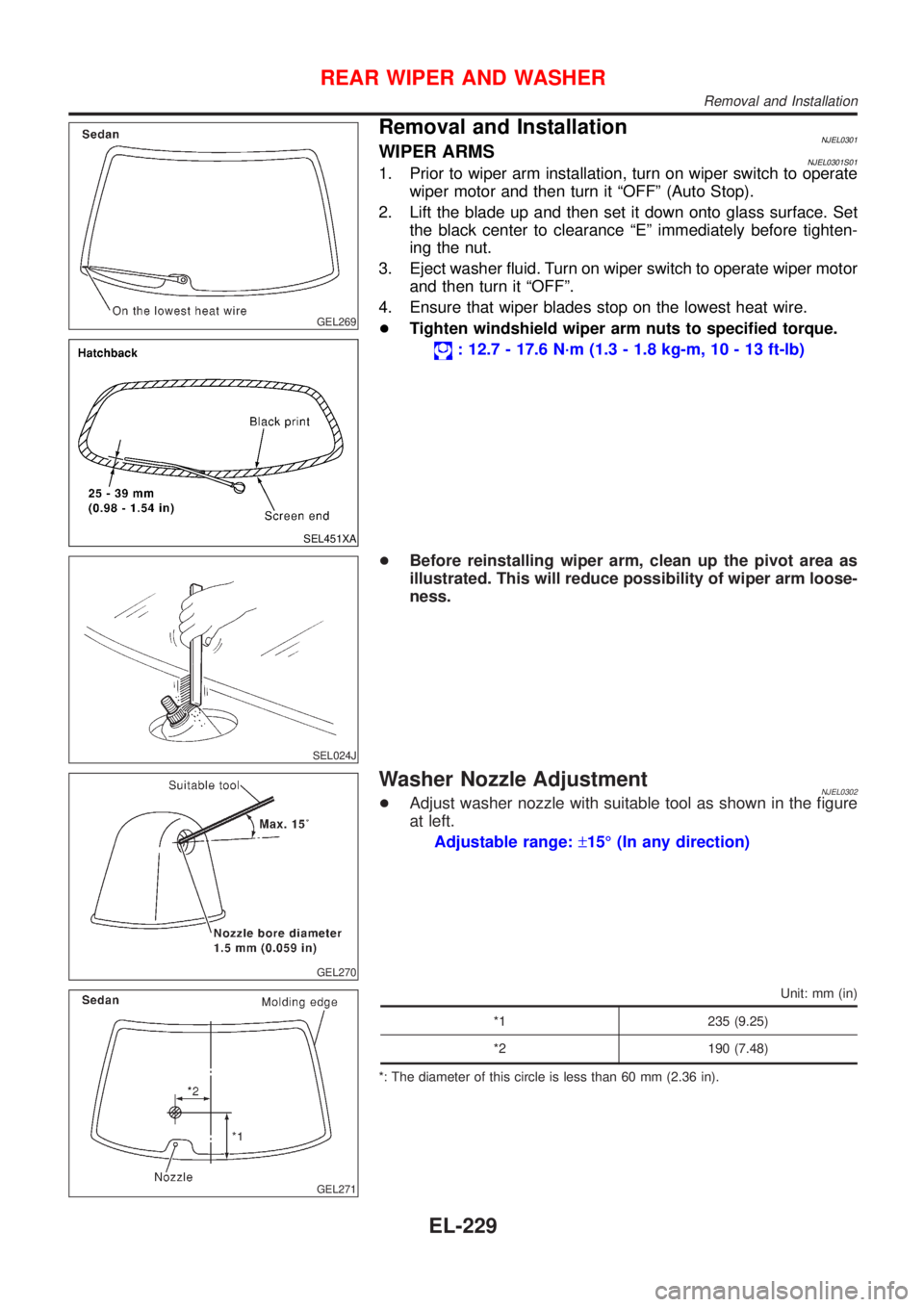

Removal and InstallationNJEL0301WIPER ARMSNJEL0301S011. Prior to wiper arm installation, turn on wiper switch to operate
wiper motor and then turn it ªOFFº (Auto Stop).
2. Lift the blade up and then set it down onto glass surface. Set
the black center to clearance ªEº immediately before tighten-
ing the nut.
3. Eject washer fluid. Turn on wiper switch to operate wiper motor
and then turn it ªOFFº.
4. Ensure that wiper blades stop on the lowest heat wire.
+Tighten windshield wiper arm nuts to specified torque.
: 12.7 - 17.6 N´m (1.3 - 1.8 kg-m, 10 - 13 ft-lb)
SEL024J
+Before reinstalling wiper arm, clean up the pivot area as
illustrated. This will reduce possibility of wiper arm loose-
ness.
GEL270
Washer Nozzle AdjustmentNJEL0302+Adjust washer nozzle with suitable tool as shown in the figure
at left.
Adjustable range:±15É (In any direction)
GEL271
Unit: mm (in)
*1 235 (9.25)
*2 190 (7.48)
*: The diameter of this circle is less than 60 mm (2.36 in).
REAR WIPER AND WASHER
Removal and Installation
EL-229

SEL452XA
The diameter of the washer spit circle is less than 30 mm (1.18 in).
Washer Tube LayoutNJEL0303
GEL272
SEL453X
REAR WIPER AND WASHER
Washer Nozzle Adjustment (Cont'd)
EL-230

Wiring Diagram Ð HLC Ð/SedanNJEL0375
HEL391B
HEADLAMP WASHER
Wiring Diagram Ð HLC Ð/Sedan
EL-231

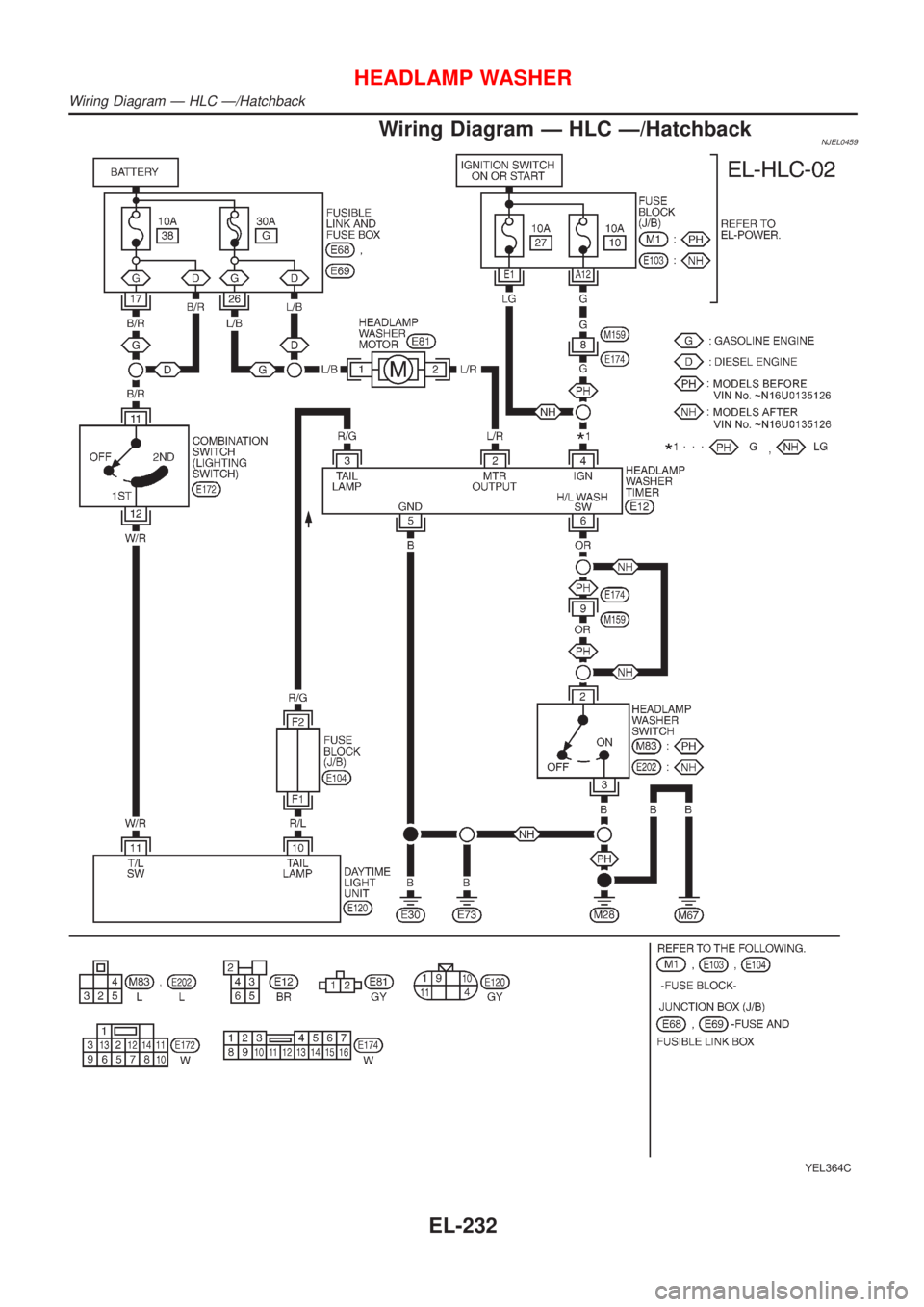

Wiring Diagram Ð HLC Ð/HatchbackNJEL0459
YEL364C
HEADLAMP WASHER
Wiring Diagram Ð HLC Ð/Hatchback
EL-232
