NISSAN ALMERA 2001 Service Manual

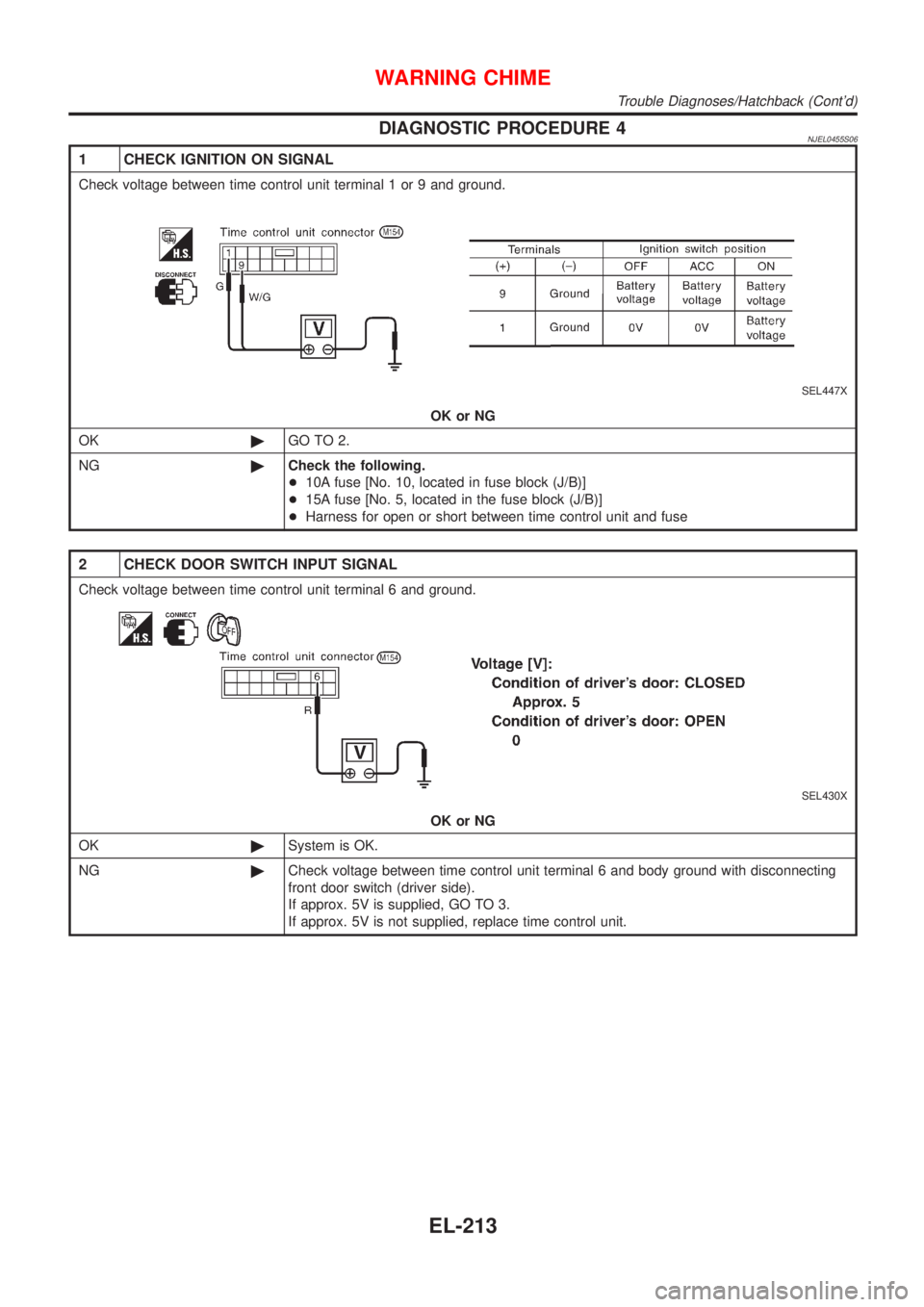

DIAGNOSTIC PROCEDURE 4NJEL0455S06
1 CHECK IGNITION ON SIGNAL
Check voltage between time control unit terminal 1 or 9 and ground.
SEL447X
OK or NG
OK©GO TO 2.
NG©Check the following.
+10A fuse [No. 10, located in fuse block (J/B)]
+15A fuse [No. 5, located in the fuse block (J/B)]
+Harness for open or short between time control unit and fuse
2 CHECK DOOR SWITCH INPUT SIGNAL
Check voltage between time control unit terminal 6 and ground.
SEL430X
OK or NG
OK©System is OK.
NG©Check voltage between time control unit terminal 6 and body ground with disconnecting
front door switch (driver side).
If approx. 5V is supplied, GO TO 3.
If approx. 5V is not supplied, replace time control unit.
WARNING CHIME
Trouble Diagnoses/Hatchback (Cont'd)
EL-213

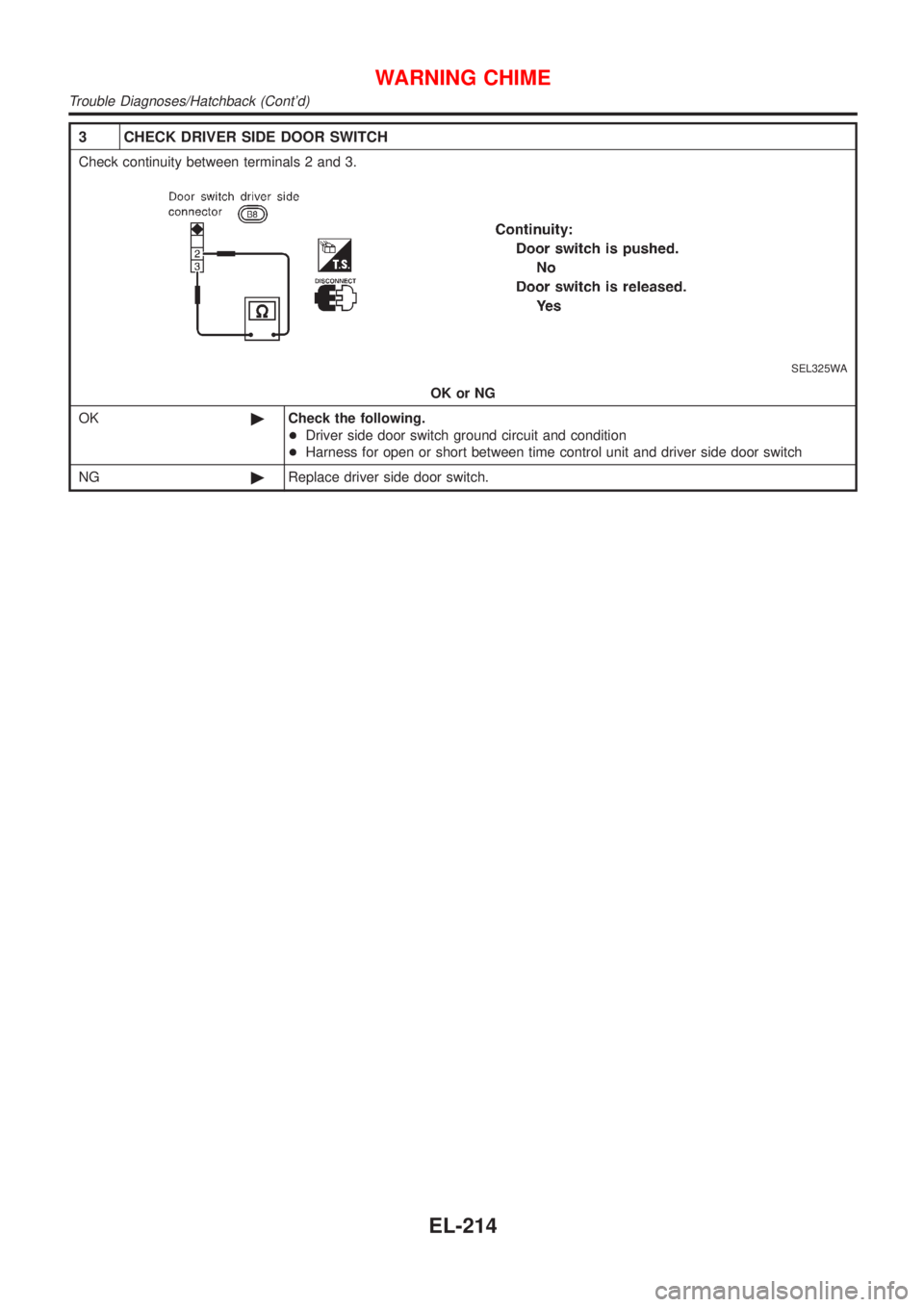

3 CHECK DRIVER SIDE DOOR SWITCH
Check continuity between terminals 2 and 3.
SEL325WA
OK or NG
OK©Check the following.
+Driver side door switch ground circuit and condition
+Harness for open or short between time control unit and driver side door switch
NG©Replace driver side door switch.
WARNING CHIME
Trouble Diagnoses/Hatchback (Cont'd)
EL-214

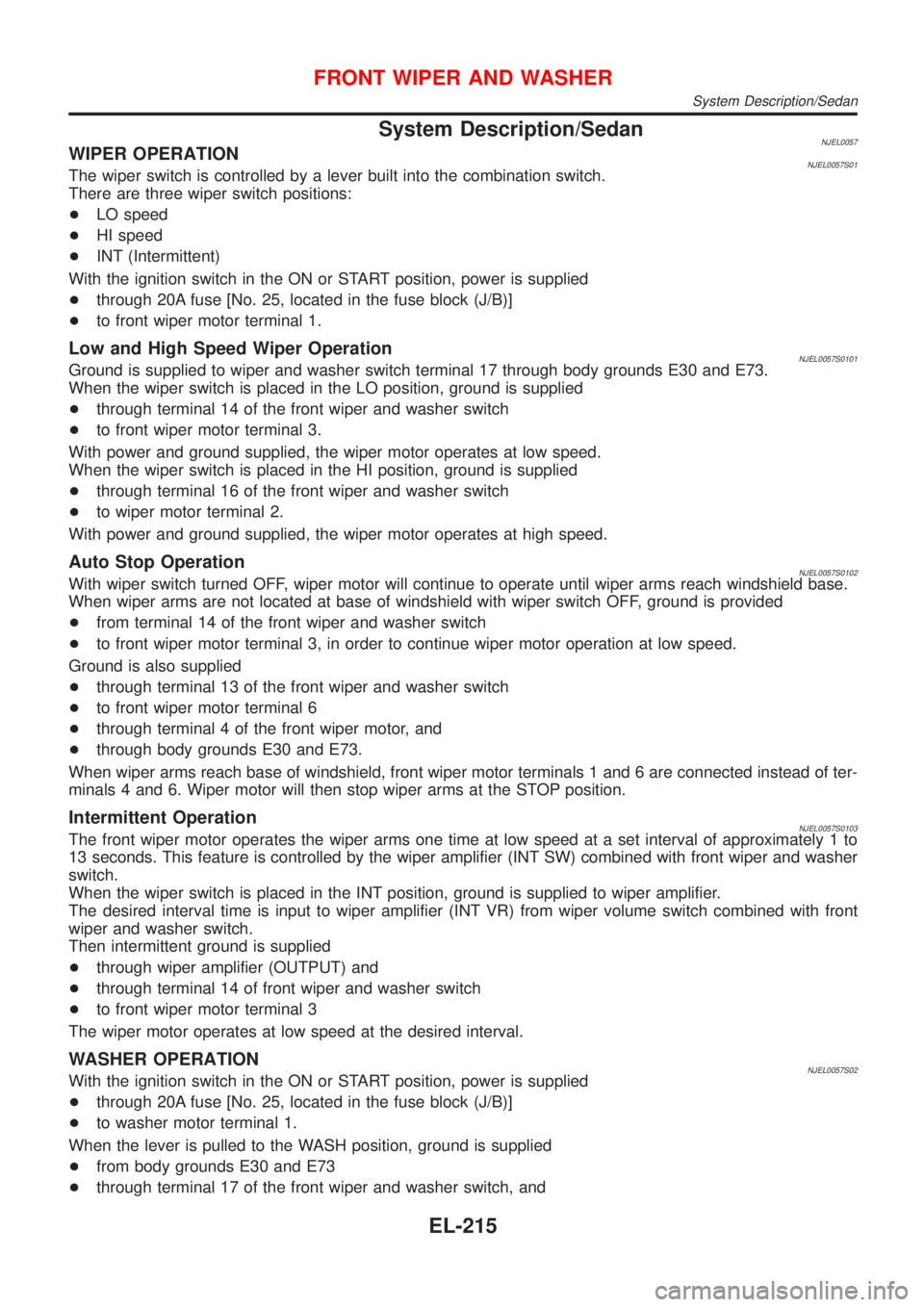

System Description/SedanNJEL0057WIPER OPERATIONNJEL0057S01The wiper switch is controlled by a lever built into the combination switch.
There are three wiper switch positions:
+LO speed
+HI speed
+INT (Intermittent)
With the ignition switch in the ON or START position, power is supplied
+through 20A fuse [No. 25, located in the fuse block (J/B)]
+to front wiper motor terminal 1.
Low and High Speed Wiper OperationNJEL0057S0101Ground is supplied to wiper and washer switch terminal 17 through body grounds E30 and E73.
When the wiper switch is placed in the LO position, ground is supplied
+through terminal 14 of the front wiper and washer switch
+to front wiper motor terminal 3.
With power and ground supplied, the wiper motor operates at low speed.
When the wiper switch is placed in the HI position, ground is supplied
+through terminal 16 of the front wiper and washer switch
+to wiper motor terminal 2.
With power and ground supplied, the wiper motor operates at high speed.
Auto Stop OperationNJEL0057S0102With wiper switch turned OFF, wiper motor will continue to operate until wiper arms reach windshield base.
When wiper arms are not located at base of windshield with wiper switch OFF, ground is provided
+from terminal 14 of the front wiper and washer switch
+to front wiper motor terminal 3, in order to continue wiper motor operation at low speed.
Ground is also supplied
+through terminal 13 of the front wiper and washer switch
+to front wiper motor terminal 6
+through terminal 4 of the front wiper motor, and
+through body grounds E30 and E73.
When wiper arms reach base of windshield, front wiper motor terminals 1 and 6 are connected instead of ter-
minals 4 and 6. Wiper motor will then stop wiper arms at the STOP position.
Intermittent OperationNJEL0057S0103The front wiper motor operates the wiper arms one time at low speed at a set interval of approximately 1 to
13 seconds. This feature is controlled by the wiper amplifier (INT SW) combined with front wiper and washer
switch.
When the wiper switch is placed in the INT position, ground is supplied to wiper amplifier.
The desired interval time is input to wiper amplifier (INT VR) from wiper volume switch combined with front
wiper and washer switch.
Then intermittent ground is supplied
+through wiper amplifier (OUTPUT) and
+through terminal 14 of front wiper and washer switch
+to front wiper motor terminal 3
The wiper motor operates at low speed at the desired interval.
WASHER OPERATIONNJEL0057S02With the ignition switch in the ON or START position, power is supplied
+through 20A fuse [No. 25, located in the fuse block (J/B)]
+to washer motor terminal 1.
When the lever is pulled to the WASH position, ground is supplied
+from body grounds E30 and E73
+through terminal 17 of the front wiper and washer switch, and
FRONT WIPER AND WASHER
System Description/Sedan
EL-215

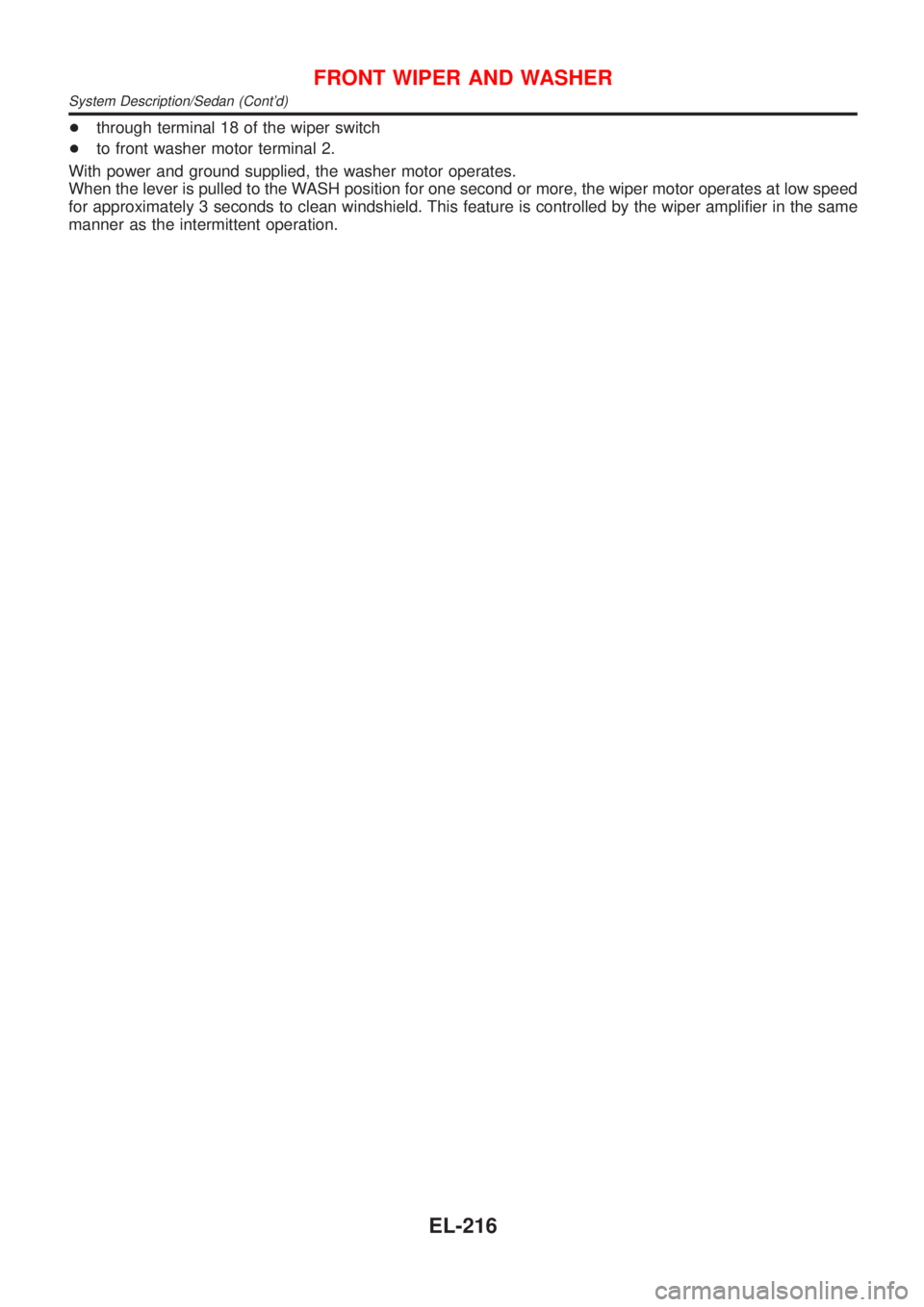

+through terminal 18 of the wiper switch
+to front washer motor terminal 2.
With power and ground supplied, the washer motor operates.
When the lever is pulled to the WASH position for one second or more, the wiper motor operates at low speed
for approximately 3 seconds to clean windshield. This feature is controlled by the wiper amplifier in the same
manner as the intermittent operation.
FRONT WIPER AND WASHER
System Description/Sedan (Cont'd)
EL-216

Wiring Diagram Ð WIPER Ð/SedanNJEL0058
HEL390B
FRONT WIPER AND WASHER
Wiring Diagram Ð WIPER Ð/Sedan
EL-217

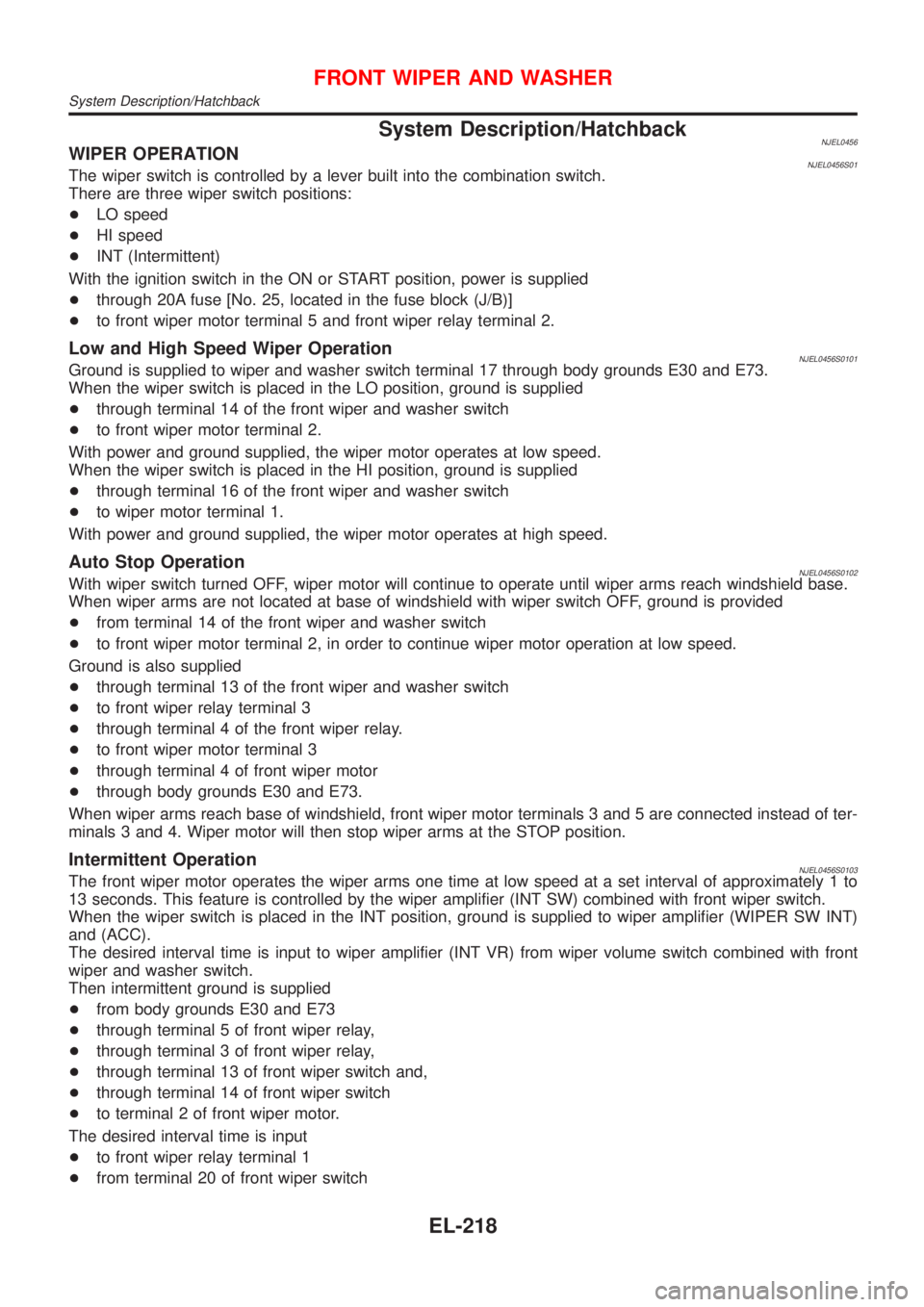

System Description/HatchbackNJEL0456WIPER OPERATIONNJEL0456S01The wiper switch is controlled by a lever built into the combination switch.
There are three wiper switch positions:
+LO speed
+HI speed
+INT (Intermittent)
With the ignition switch in the ON or START position, power is supplied
+through 20A fuse [No. 25, located in the fuse block (J/B)]
+to front wiper motor terminal 5 and front wiper relay terminal 2.
Low and High Speed Wiper OperationNJEL0456S0101Ground is supplied to wiper and washer switch terminal 17 through body grounds E30 and E73.
When the wiper switch is placed in the LO position, ground is supplied
+through terminal 14 of the front wiper and washer switch
+to front wiper motor terminal 2.
With power and ground supplied, the wiper motor operates at low speed.
When the wiper switch is placed in the HI position, ground is supplied
+through terminal 16 of the front wiper and washer switch
+to wiper motor terminal 1.
With power and ground supplied, the wiper motor operates at high speed.
Auto Stop OperationNJEL0456S0102With wiper switch turned OFF, wiper motor will continue to operate until wiper arms reach windshield base.
When wiper arms are not located at base of windshield with wiper switch OFF, ground is provided
+from terminal 14 of the front wiper and washer switch
+to front wiper motor terminal 2, in order to continue wiper motor operation at low speed.
Ground is also supplied
+through terminal 13 of the front wiper and washer switch
+to front wiper relay terminal 3
+through terminal 4 of the front wiper relay.
+to front wiper motor terminal 3
+through terminal 4 of front wiper motor
+through body grounds E30 and E73.
When wiper arms reach base of windshield, front wiper motor terminals 3 and 5 are connected instead of ter-
minals 3 and 4. Wiper motor will then stop wiper arms at the STOP position.
Intermittent OperationNJEL0456S0103The front wiper motor operates the wiper arms one time at low speed at a set interval of approximately 1 to
13 seconds. This feature is controlled by the wiper amplifier (INT SW) combined with front wiper switch.
When the wiper switch is placed in the INT position, ground is supplied to wiper amplifier (WIPER SW INT)
and (ACC).
The desired interval time is input to wiper amplifier (INT VR) from wiper volume switch combined with front
wiper and washer switch.
Then intermittent ground is supplied
+from body grounds E30 and E73
+through terminal 5 of front wiper relay,
+through terminal 3 of front wiper relay,
+through terminal 13 of front wiper switch and,
+through terminal 14 of front wiper switch
+to terminal 2 of front wiper motor.
The desired interval time is input
+to front wiper relay terminal 1
+from terminal 20 of front wiper switch
FRONT WIPER AND WASHER
System Description/Hatchback
EL-218

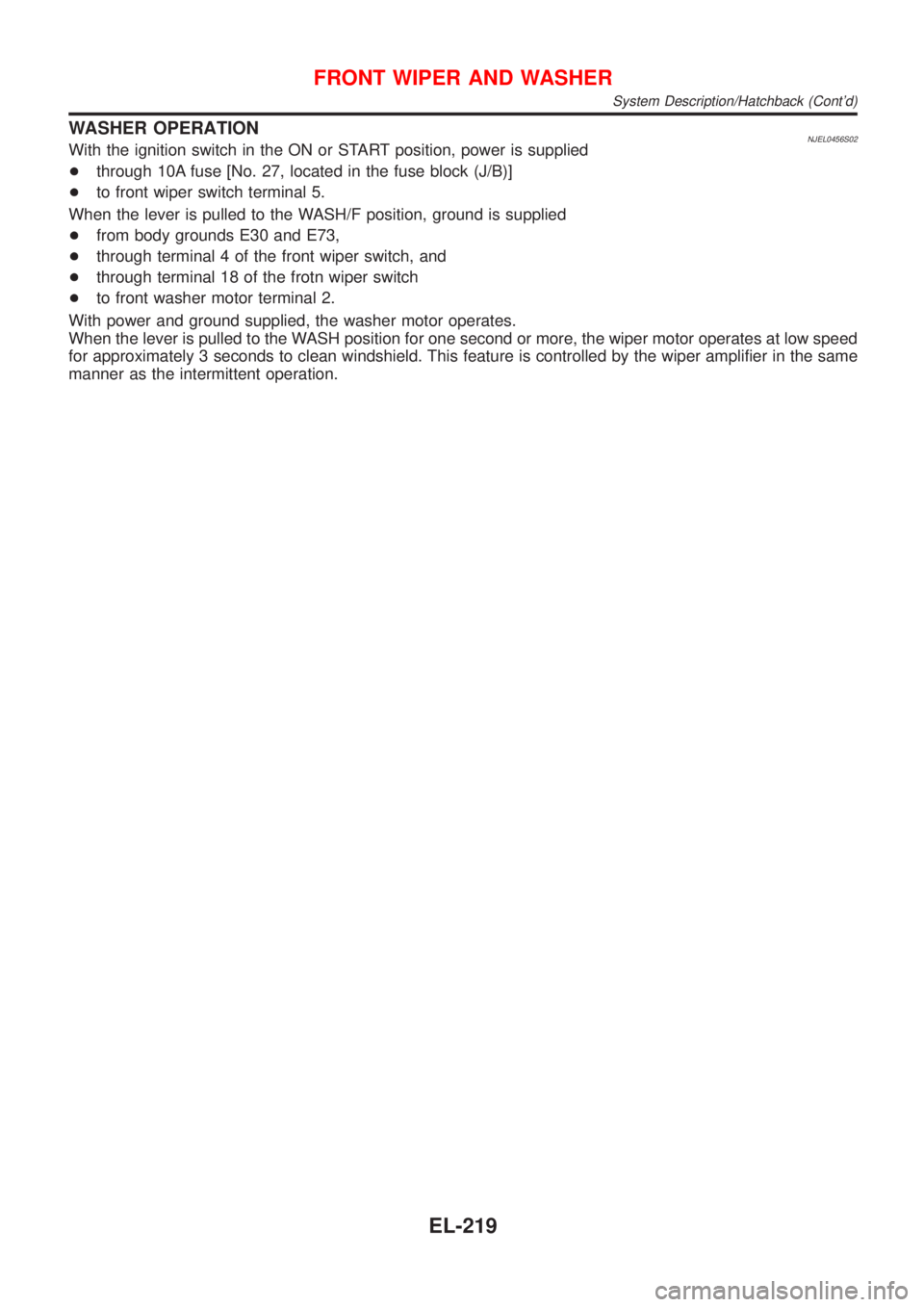

WASHER OPERATIONNJEL0456S02With the ignition switch in the ON or START position, power is supplied
+through 10A fuse [No. 27, located in the fuse block (J/B)]
+to front wiper switch terminal 5.
When the lever is pulled to the WASH/F position, ground is supplied
+from body grounds E30 and E73,
+through terminal 4 of the front wiper switch, and
+through terminal 18 of the frotn wiper switch
+to front washer motor terminal 2.
With power and ground supplied, the washer motor operates.
When the lever is pulled to the WASH position for one second or more, the wiper motor operates at low speed
for approximately 3 seconds to clean windshield. This feature is controlled by the wiper amplifier in the same
manner as the intermittent operation.
FRONT WIPER AND WASHER
System Description/Hatchback (Cont'd)
EL-219

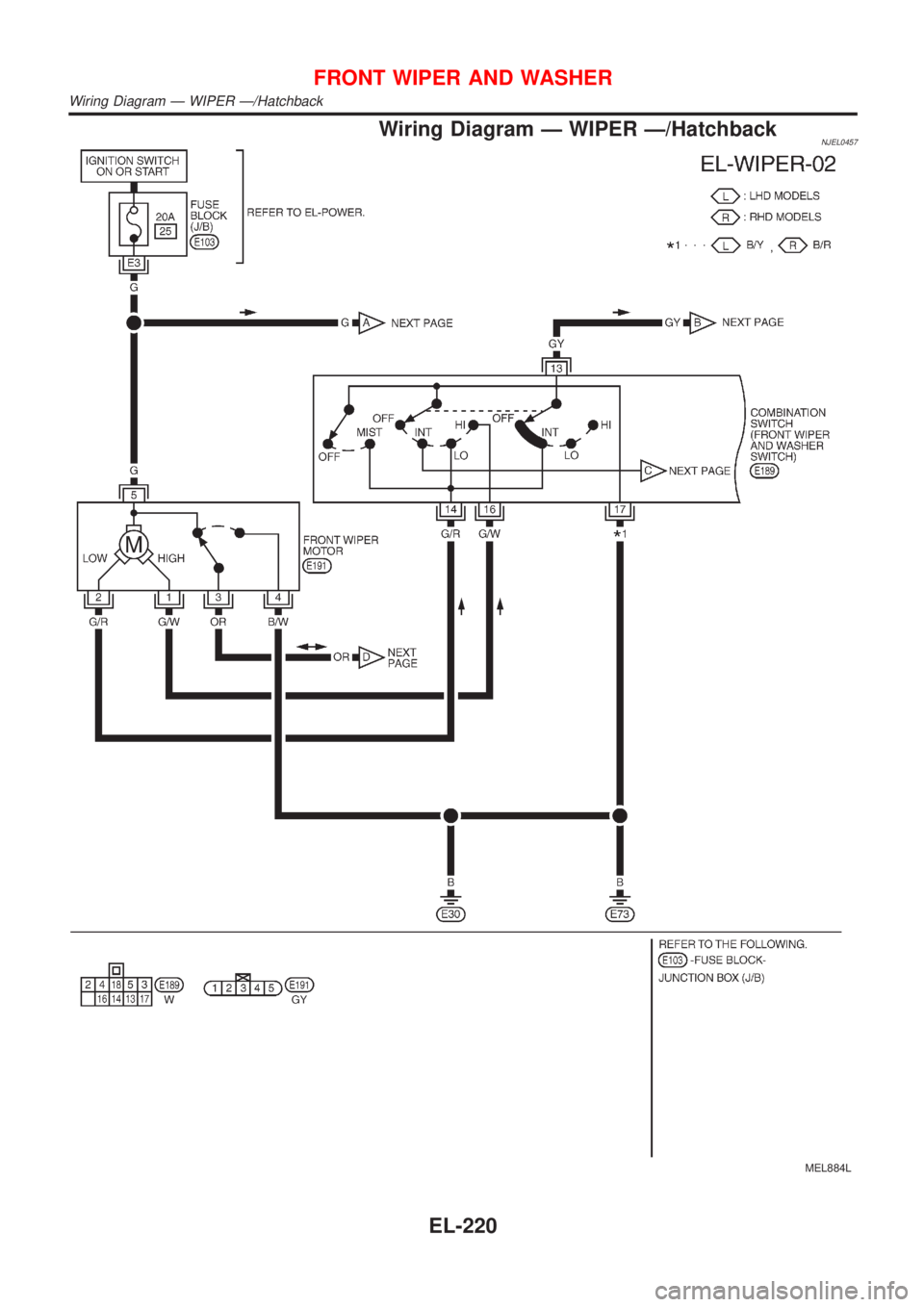

Wiring Diagram Ð WIPER Ð/HatchbackNJEL0457
MEL884L
FRONT WIPER AND WASHER
Wiring Diagram Ð WIPER Ð/Hatchback
EL-220

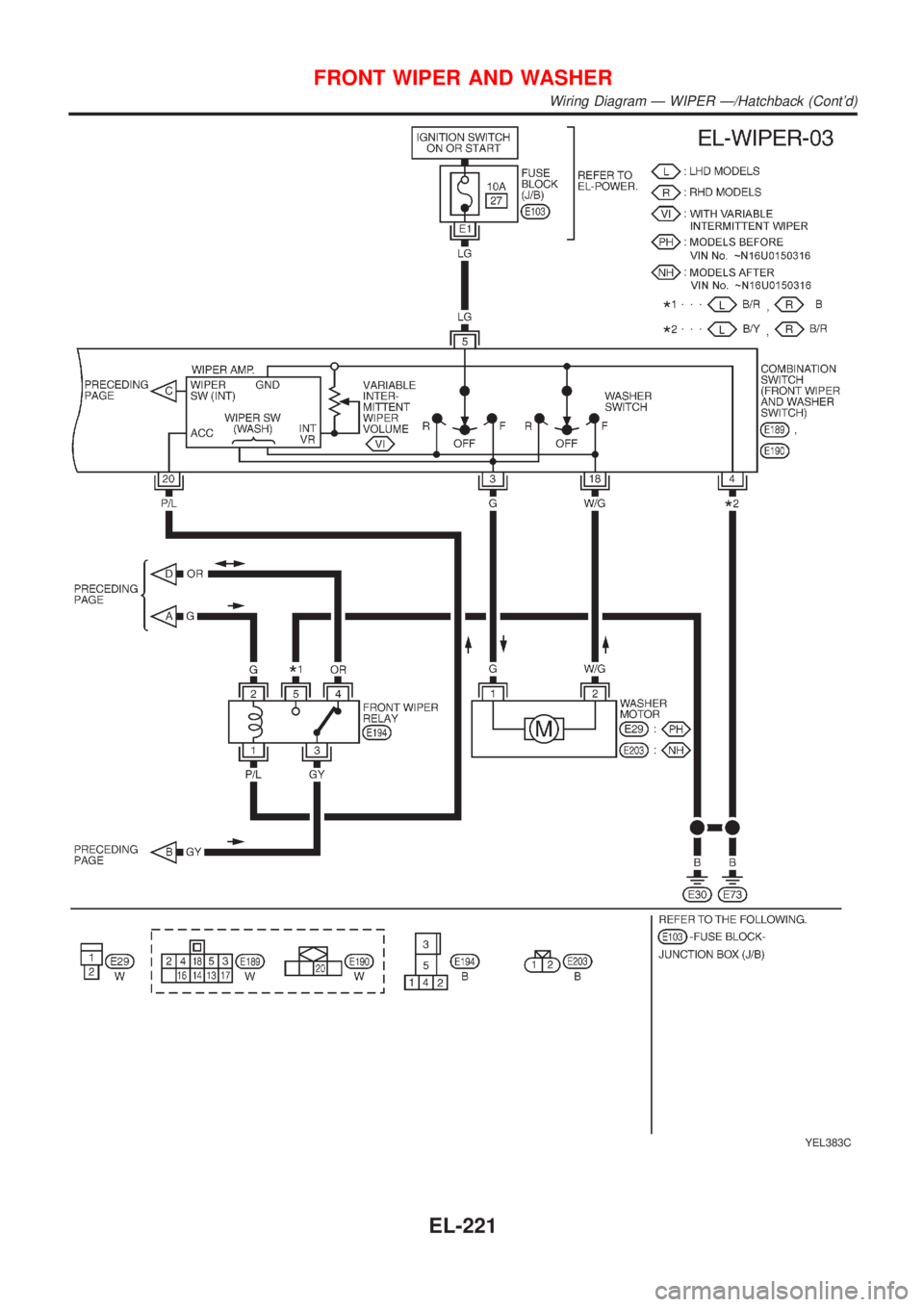

YEL383C
FRONT WIPER AND WASHER
Wiring Diagram Ð WIPER Ð/Hatchback (Cont'd)
EL-221

SEL543TA

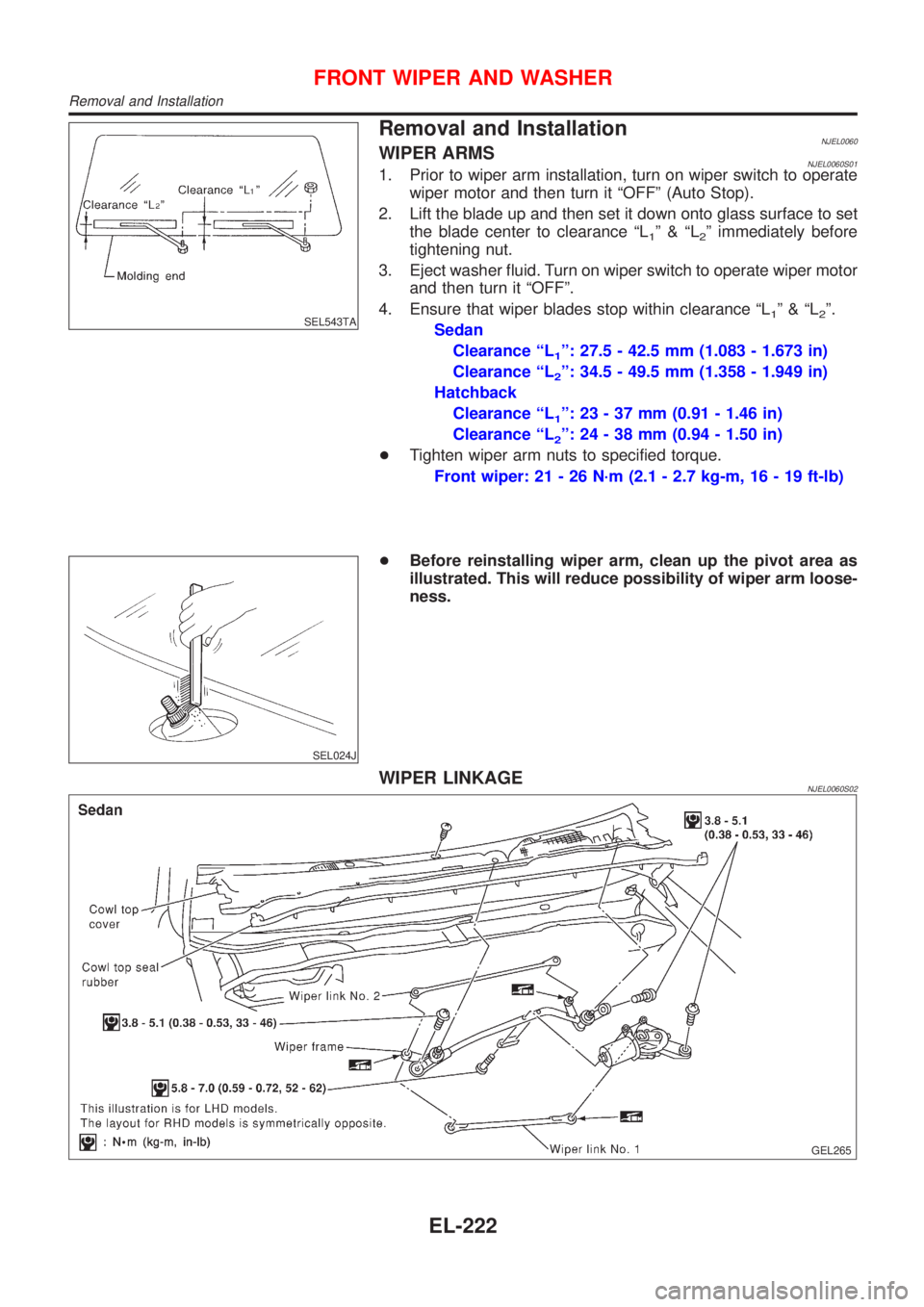

Removal and InstallationNJEL0060WIPER ARMSNJEL0060S011. Prior to wiper arm installation, turn on wiper switch to operate
wiper motor and then turn it ªOFFº (Auto Stop).
2. Lift the blade up and then set it down onto glass surface to set
the blade center to clearance ªL
1º&ªL2º immediately before
tightening nut.
3. Eject washer fluid. Turn on wiper switch to operate wiper motor
and then turn it ªOFFº.
4. Ensure that wiper blades stop within clearance ªL
1º&ªL2º.
Sedan
Clearance ªL
1º: 27.5 - 42.5 mm (1.083 - 1.673 in)
Clearance ªL
2º: 34.5 - 49.5 mm (1.358 - 1.949 in)
Hatchback
Clearance ªL
1º: 23 - 37 mm (0.91 - 1.46 in)
Clearance ªL
2º: 24 - 38 mm (0.94 - 1.50 in)
+Tighten wiper arm nuts to specified torque.
Front wiper: 21 - 26 N´m (2.1 - 2.7 kg-m, 16 - 19 ft-lb)
SEL024J
+Before reinstalling wiper arm, clean up the pivot area as
illustrated. This will reduce possibility of wiper arm loose-
ness.
WIPER LINKAGENJEL0060S02
GEL265
FRONT WIPER AND WASHER
Removal and Installation
EL-222
