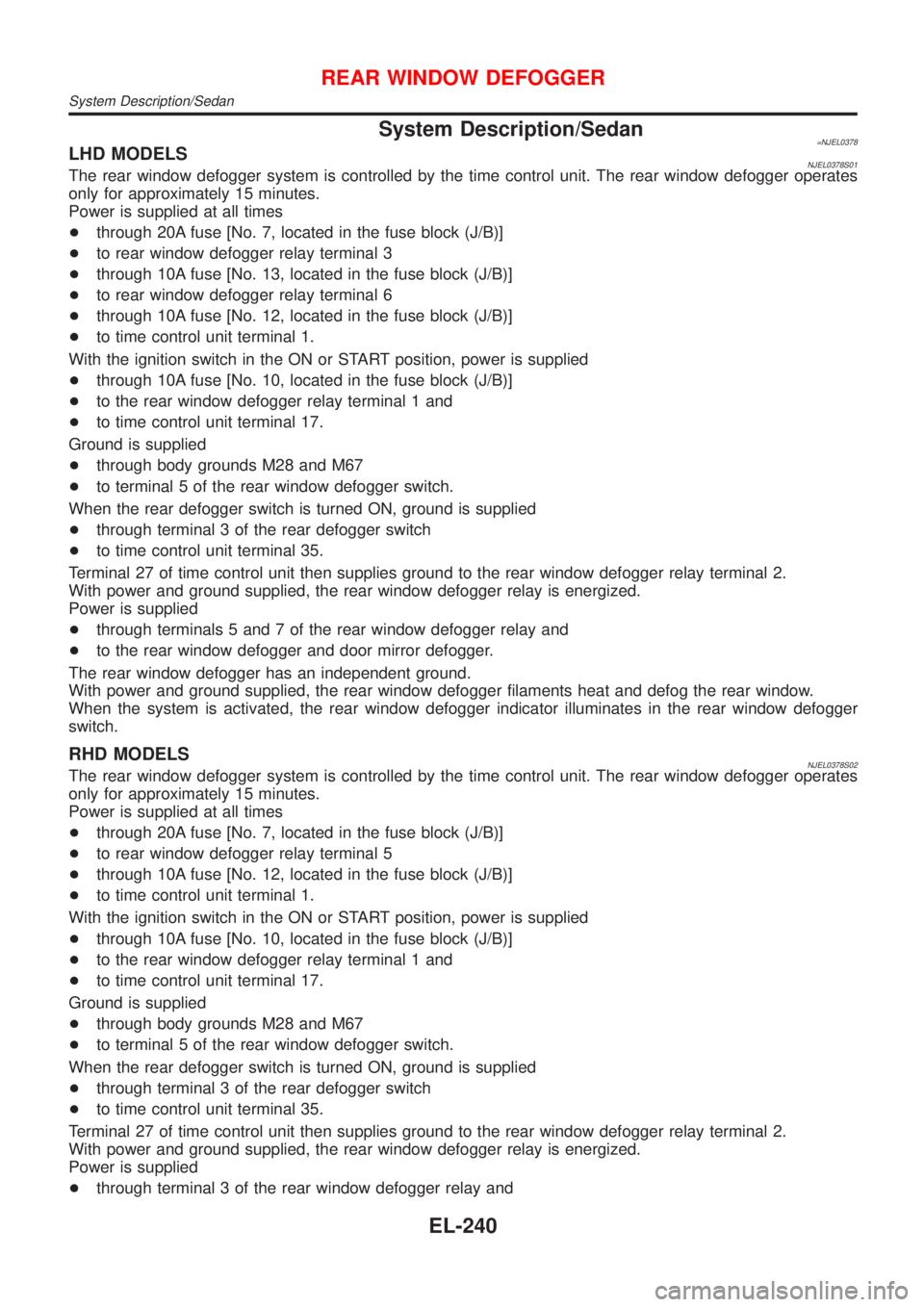

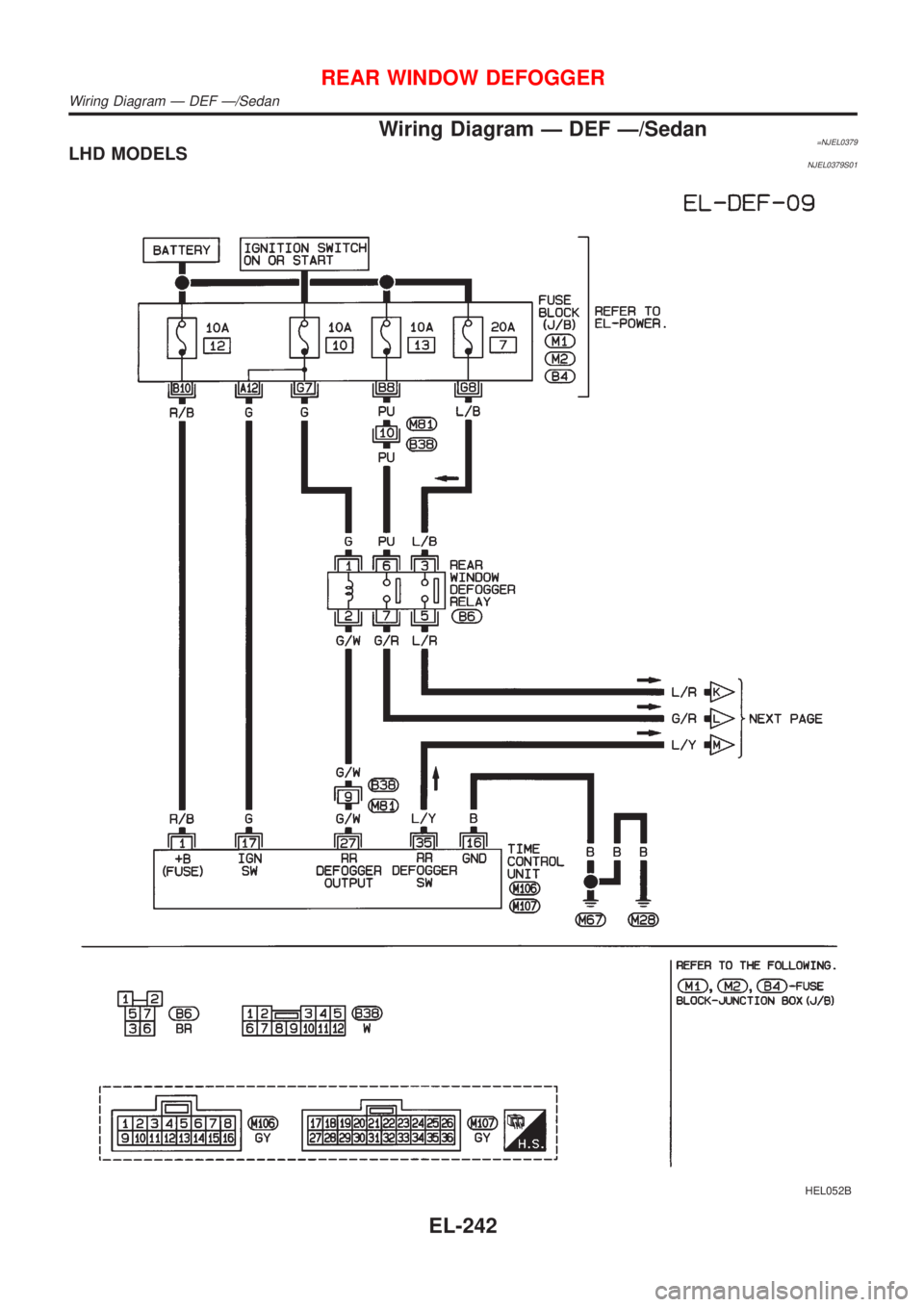

System Description/Sedan=NJEL0378LHD MODELSNJEL0378S01The rear window defogger system is controlled by the time control unit. The rear window defogger operates
only for approximately 15 minutes.
Power is supplied at all times
+through 20A fuse [No. 7, located in the fuse block (J/B)]
+to rear window defogger relay terminal 3
+through 10A fuse [No. 13, located in the fuse block (J/B)]
+to rear window defogger relay terminal 6
+through 10A fuse [No. 12, located in the fuse block (J/B)]
+to time control unit terminal 1.
With the ignition switch in the ON or START position, power is supplied
+through 10A fuse [No. 10, located in the fuse block (J/B)]
+to the rear window defogger relay terminal 1 and
+to time control unit terminal 17.
Ground is supplied
+through body grounds M28 and M67
+to terminal 5 of the rear window defogger switch.
When the rear defogger switch is turned ON, ground is supplied
+through terminal 3 of the rear defogger switch
+to time control unit terminal 35.
Terminal 27 of time control unit then supplies ground to the rear window defogger relay terminal 2.
With power and ground supplied, the rear window defogger relay is energized.
Power is supplied
+through terminals 5 and 7 of the rear window defogger relay and
+to the rear window defogger and door mirror defogger.
The rear window defogger has an independent ground.
With power and ground supplied, the rear window defogger filaments heat and defog the rear window.
When the system is activated, the rear window defogger indicator illuminates in the rear window defogger
switch.
RHD MODELSNJEL0378S02The rear window defogger system is controlled by the time control unit. The rear window defogger operates
only for approximately 15 minutes.
Power is supplied at all times
+through 20A fuse [No. 7, located in the fuse block (J/B)]
+to rear window defogger relay terminal 5
+through 10A fuse [No. 12, located in the fuse block (J/B)]
+to time control unit terminal 1.
With the ignition switch in the ON or START position, power is supplied
+through 10A fuse [No. 10, located in the fuse block (J/B)]
+to the rear window defogger relay terminal 1 and
+to time control unit terminal 17.
Ground is supplied
+through body grounds M28 and M67
+to terminal 5 of the rear window defogger switch.
When the rear defogger switch is turned ON, ground is supplied
+through terminal 3 of the rear defogger switch
+to time control unit terminal 35.
Terminal 27 of time control unit then supplies ground to the rear window defogger relay terminal 2.
With power and ground supplied, the rear window defogger relay is energized.
Power is supplied
+through terminal 3 of the rear window defogger relay and
REAR WINDOW DEFOGGER
System Description/Sedan
EL-240
+to the rear window defogger.
The rear window defogger has an independent ground.
With power and ground supplied, the rear window defogger filaments heat and defog the rear window.
When the system is activated, the rear window defogger indicator illuminates in the rear window defogger
switch.
REAR WINDOW DEFOGGER
System Description/Sedan (Cont'd)
EL-241
