NISSAN ALMERA 2001 Service Manual

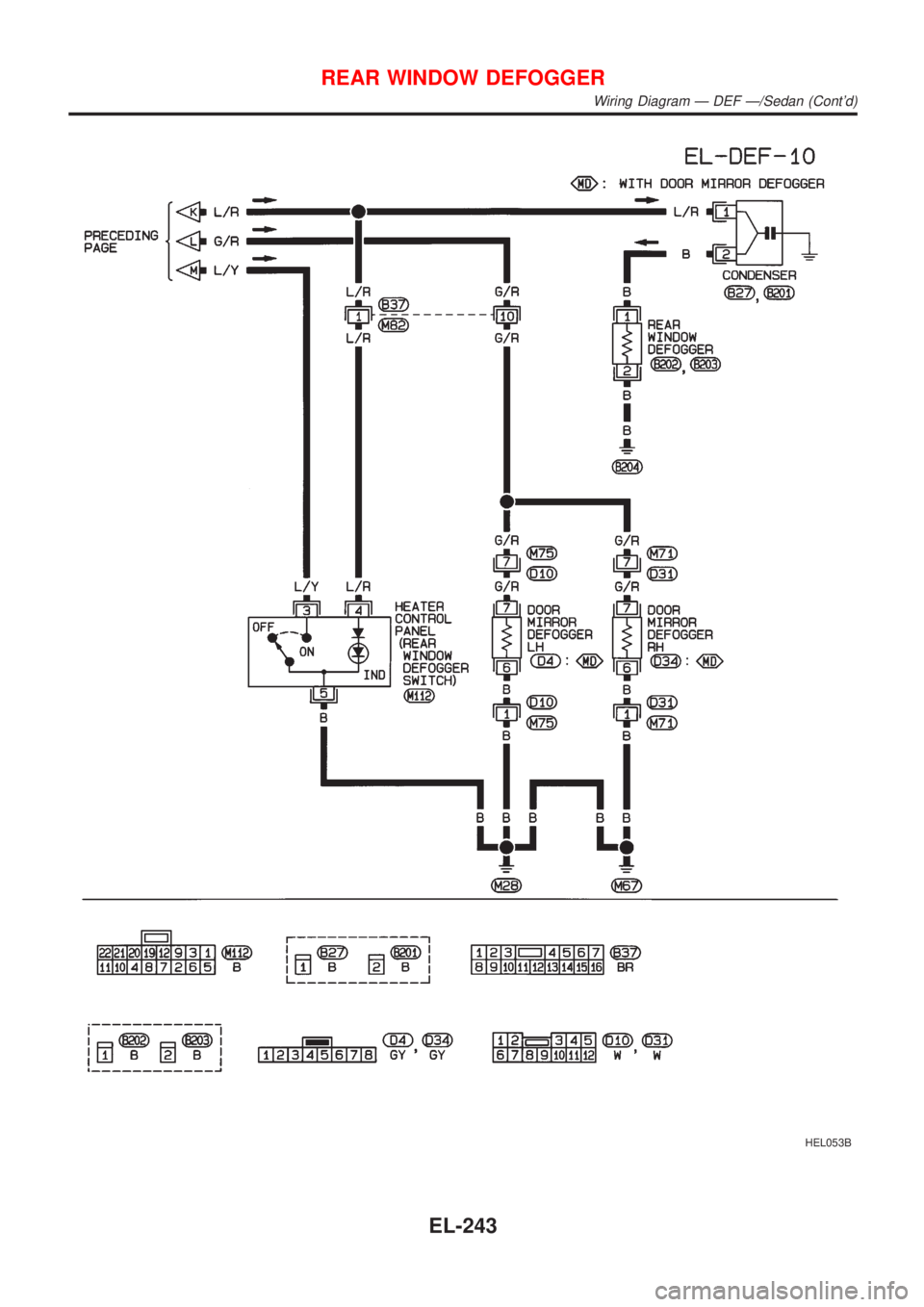

HEL053B
REAR WINDOW DEFOGGER
Wiring Diagram Ð DEF Ð/Sedan (Cont'd)
EL-243

RHD MODELSNJEL0379S02
HEL395B
REAR WINDOW DEFOGGER
Wiring Diagram Ð DEF Ð/Sedan (Cont'd)
EL-244

HEL396B
REAR WINDOW DEFOGGER
Wiring Diagram Ð DEF Ð/Sedan (Cont'd)
EL-245

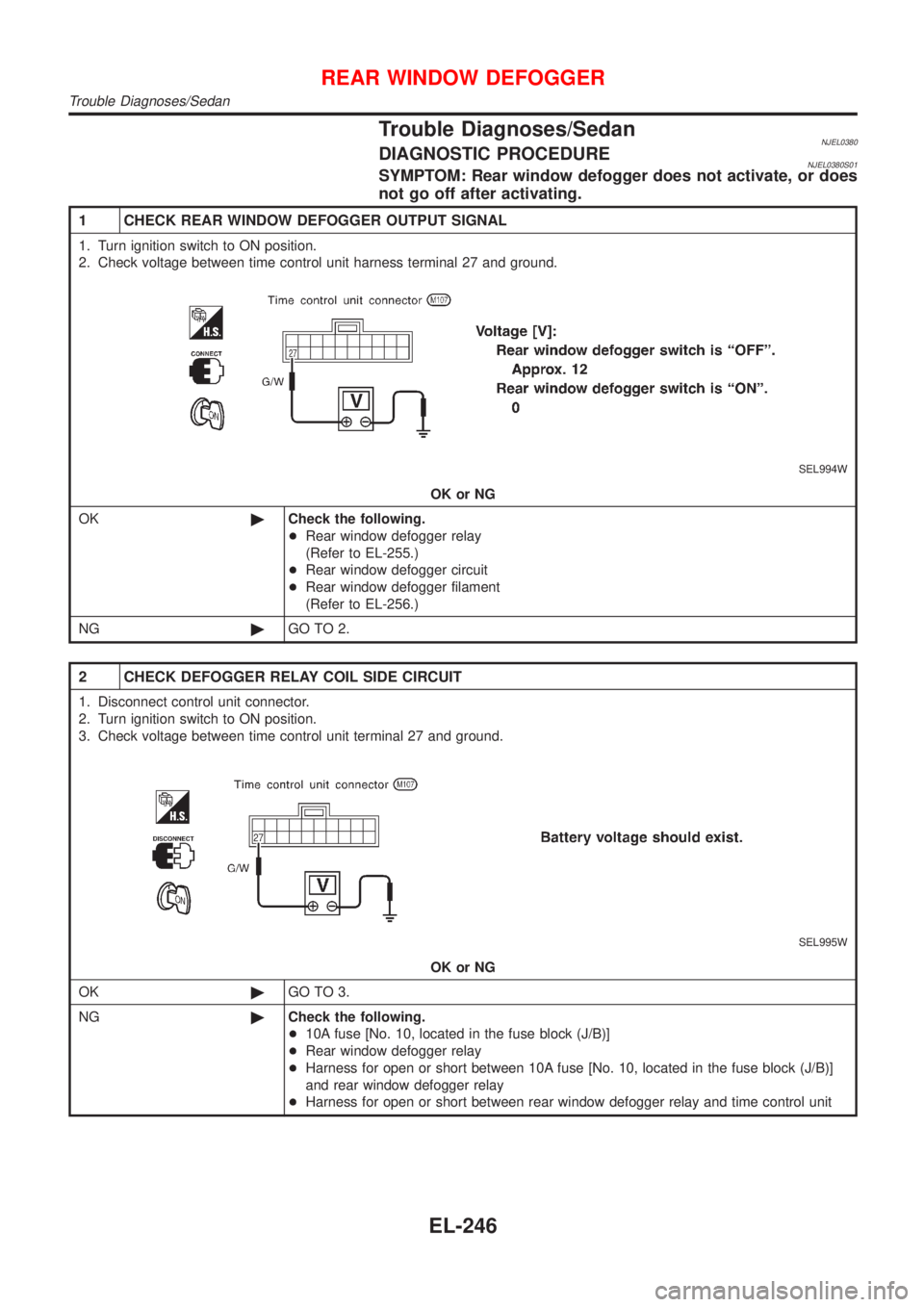

Trouble Diagnoses/SedanNJEL0380DIAGNOSTIC PROCEDURENJEL0380S01SYMPTOM: Rear window defogger does not activate, or does
not go off after activating.
1 CHECK REAR WINDOW DEFOGGER OUTPUT SIGNAL
1. Turn ignition switch to ON position.
2. Check voltage between time control unit harness terminal 27 and ground.
SEL994W
OK or NG
OK©Check the following.
+Rear window defogger relay
(Refer to EL-255.)
+Rear window defogger circuit
+Rear window defogger filament
(Refer to EL-256.)
NG©GO TO 2.
2 CHECK DEFOGGER RELAY COIL SIDE CIRCUIT
1. Disconnect control unit connector.
2. Turn ignition switch to ON position.
3. Check voltage between time control unit terminal 27 and ground.
SEL995W
OK or NG
OK©GO TO 3.
NG©Check the following.
+10A fuse [No. 10, located in the fuse block (J/B)]
+Rear window defogger relay
+Harness for open or short between 10A fuse [No. 10, located in the fuse block (J/B)]
and rear window defogger relay
+Harness for open or short between rear window defogger relay and time control unit
REAR WINDOW DEFOGGER
Trouble Diagnoses/Sedan
EL-246

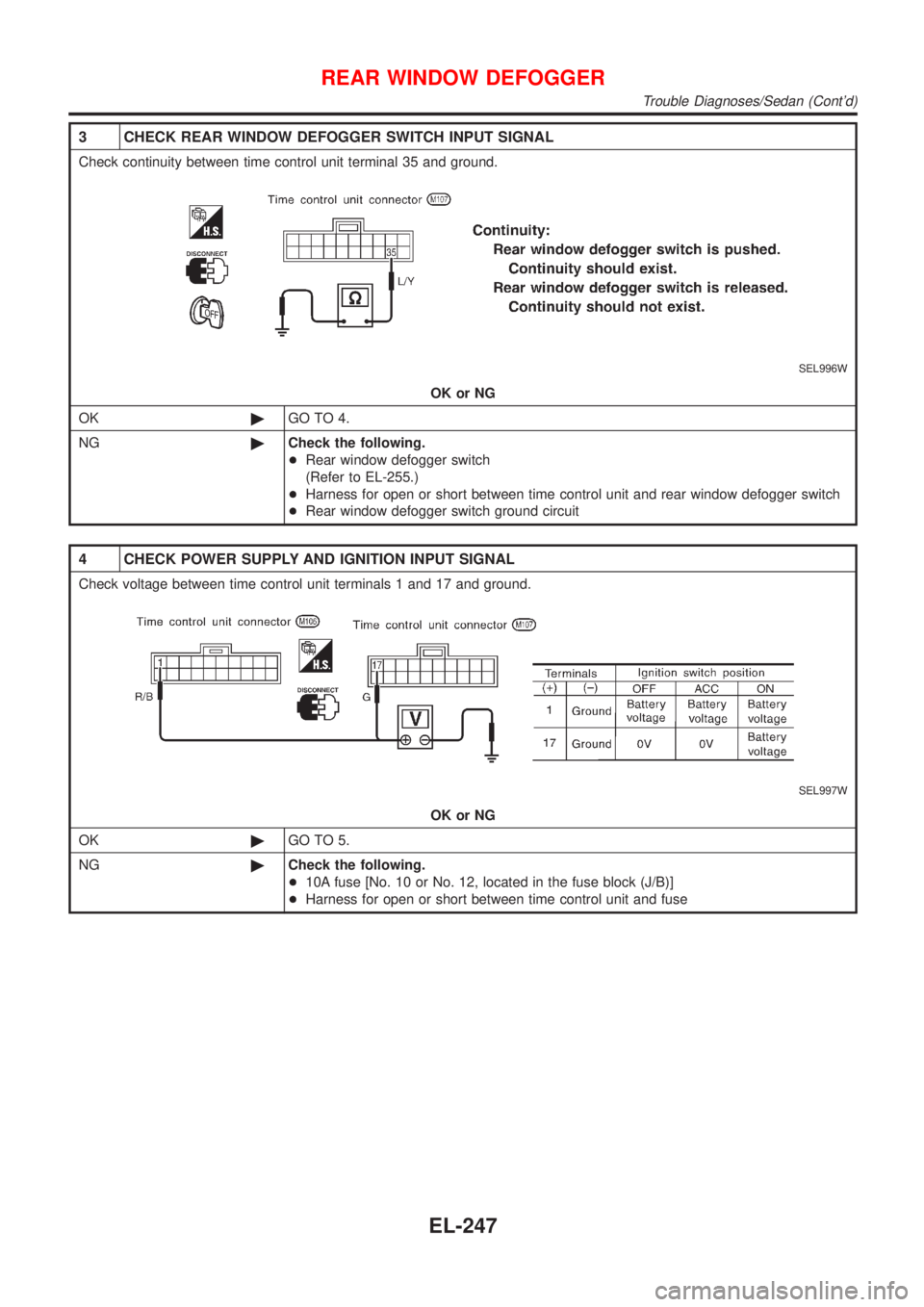

3 CHECK REAR WINDOW DEFOGGER SWITCH INPUT SIGNAL
Check continuity between time control unit terminal 35 and ground.
SEL996W
OK or NG
OK©GO TO 4.
NG©Check the following.
+Rear window defogger switch
(Refer to EL-255.)
+Harness for open or short between time control unit and rear window defogger switch
+Rear window defogger switch ground circuit
4 CHECK POWER SUPPLY AND IGNITION INPUT SIGNAL
Check voltage between time control unit terminals 1 and 17 and ground.
SEL997W
OK or NG
OK©GO TO 5.
NG©Check the following.
+10A fuse [No. 10 or No. 12, located in the fuse block (J/B)]
+Harness for open or short between time control unit and fuse
REAR WINDOW DEFOGGER
Trouble Diagnoses/Sedan (Cont'd)
EL-247

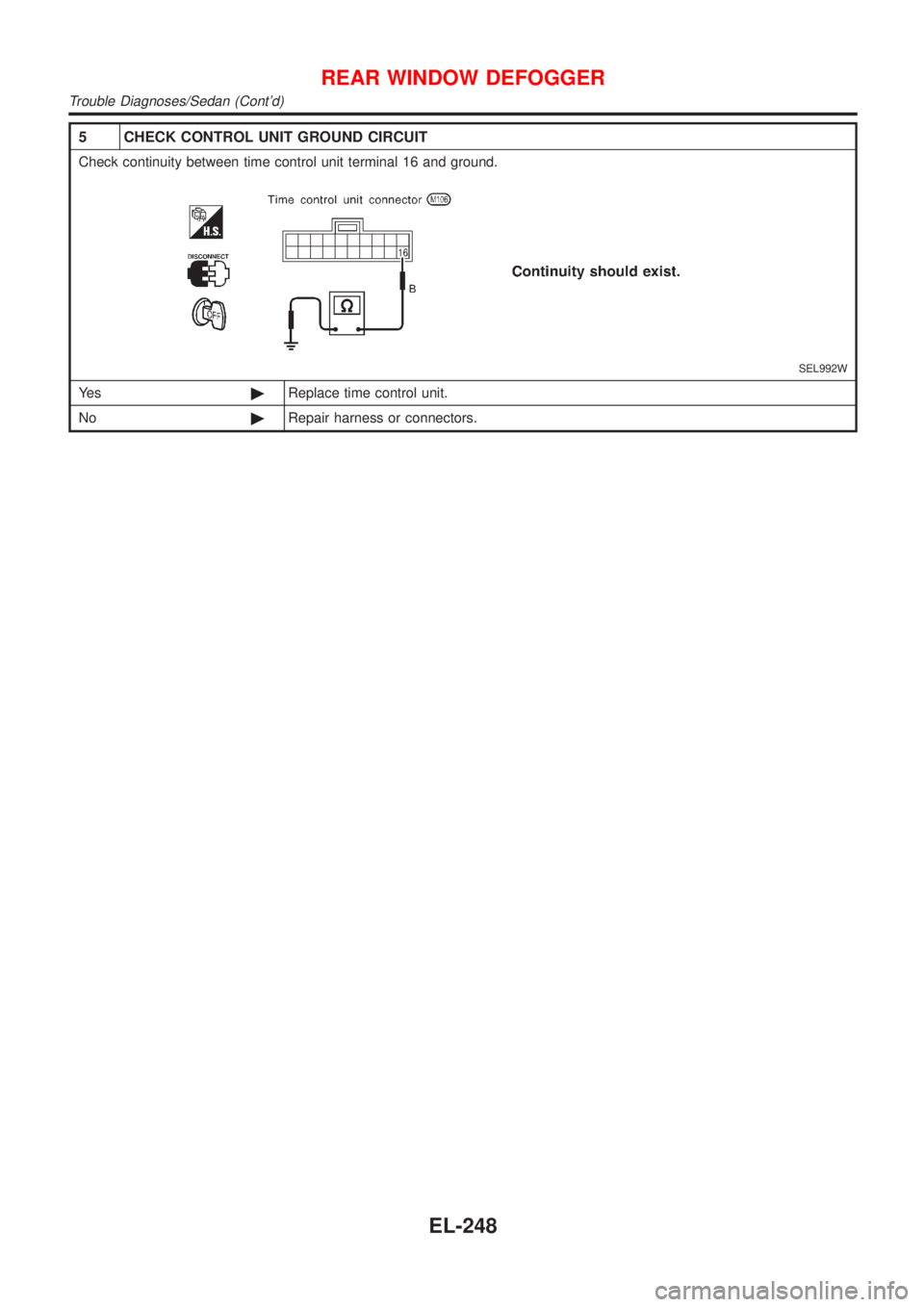

5 CHECK CONTROL UNIT GROUND CIRCUIT
Check continuity between time control unit terminal 16 and ground.
SEL992W
Ye s©Replace time control unit.
No©Repair harness or connectors.
REAR WINDOW DEFOGGER
Trouble Diagnoses/Sedan (Cont'd)
EL-248

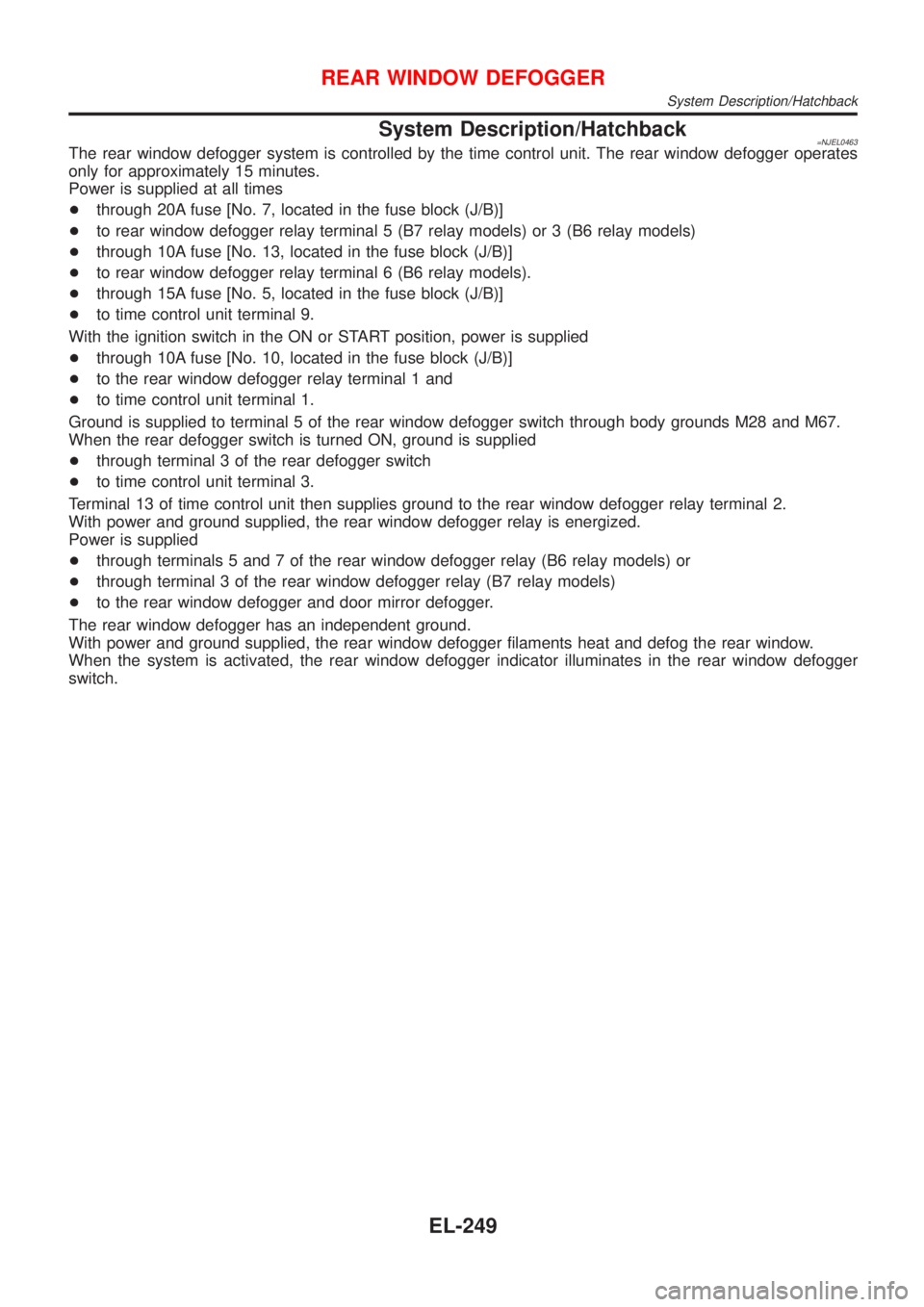

System Description/Hatchback=NJEL0463The rear window defogger system is controlled by the time control unit. The rear window defogger operates
only for approximately 15 minutes.
Power is supplied at all times
+through 20A fuse [No. 7, located in the fuse block (J/B)]
+to rear window defogger relay terminal 5 (B7 relay models) or 3 (B6 relay models)
+through 10A fuse [No. 13, located in the fuse block (J/B)]
+to rear window defogger relay terminal 6 (B6 relay models).
+through 15A fuse [No. 5, located in the fuse block (J/B)]
+to time control unit terminal 9.
With the ignition switch in the ON or START position, power is supplied
+through 10A fuse [No. 10, located in the fuse block (J/B)]
+to the rear window defogger relay terminal 1 and
+to time control unit terminal 1.
Ground is supplied to terminal 5 of the rear window defogger switch through body grounds M28 and M67.
When the rear defogger switch is turned ON, ground is supplied
+through terminal 3 of the rear defogger switch
+to time control unit terminal 3.
Terminal 13 of time control unit then supplies ground to the rear window defogger relay terminal 2.
With power and ground supplied, the rear window defogger relay is energized.
Power is supplied
+through terminals 5 and 7 of the rear window defogger relay (B6 relay models) or
+through terminal 3 of the rear window defogger relay (B7 relay models)
+to the rear window defogger and door mirror defogger.
The rear window defogger has an independent ground.
With power and ground supplied, the rear window defogger filaments heat and defog the rear window.
When the system is activated, the rear window defogger indicator illuminates in the rear window defogger
switch.
REAR WINDOW DEFOGGER
System Description/Hatchback
EL-249

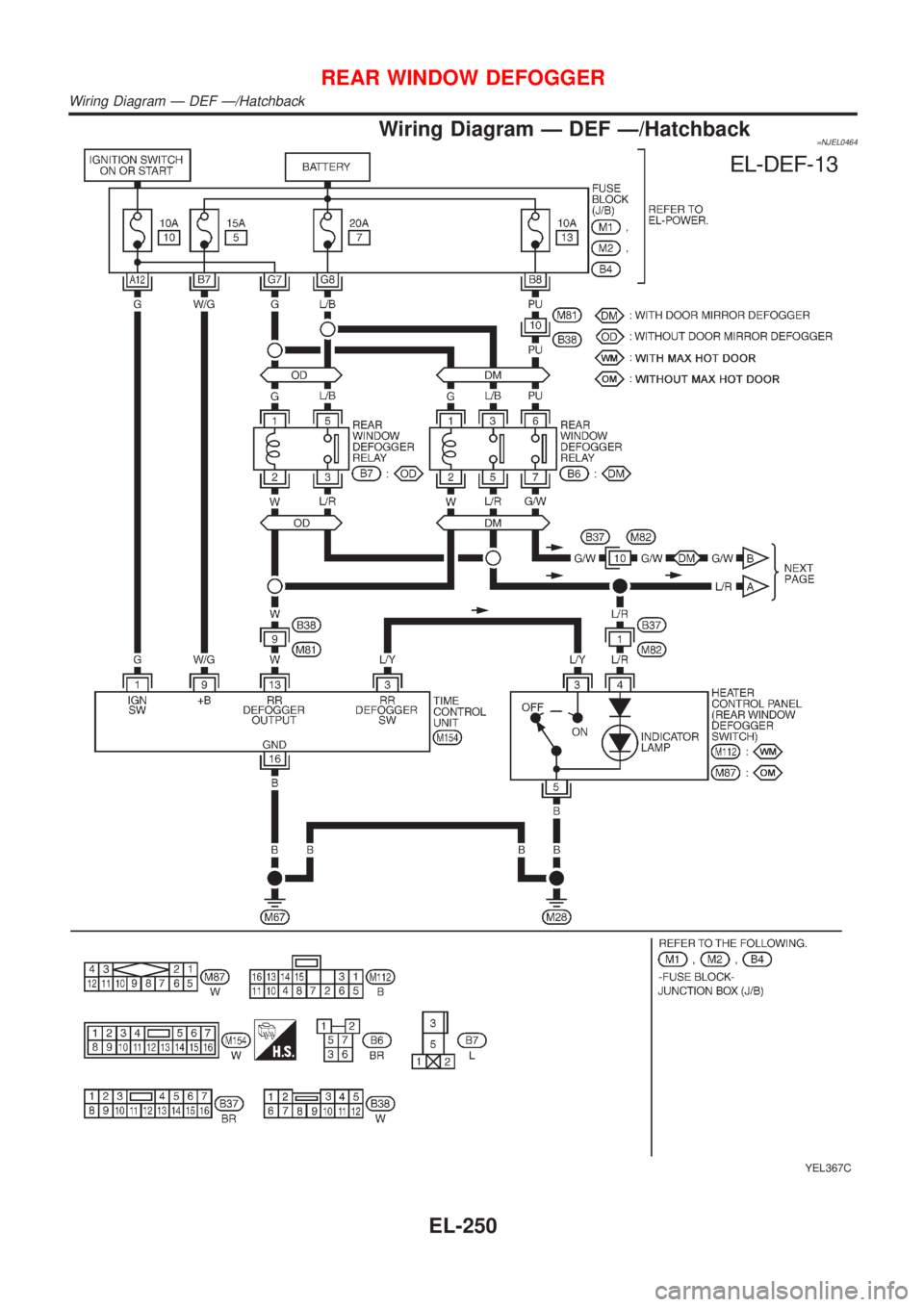

Wiring Diagram Ð DEF Ð/Hatchback=NJEL0464
YEL367C
REAR WINDOW DEFOGGER
Wiring Diagram Ð DEF Ð/Hatchback
EL-250

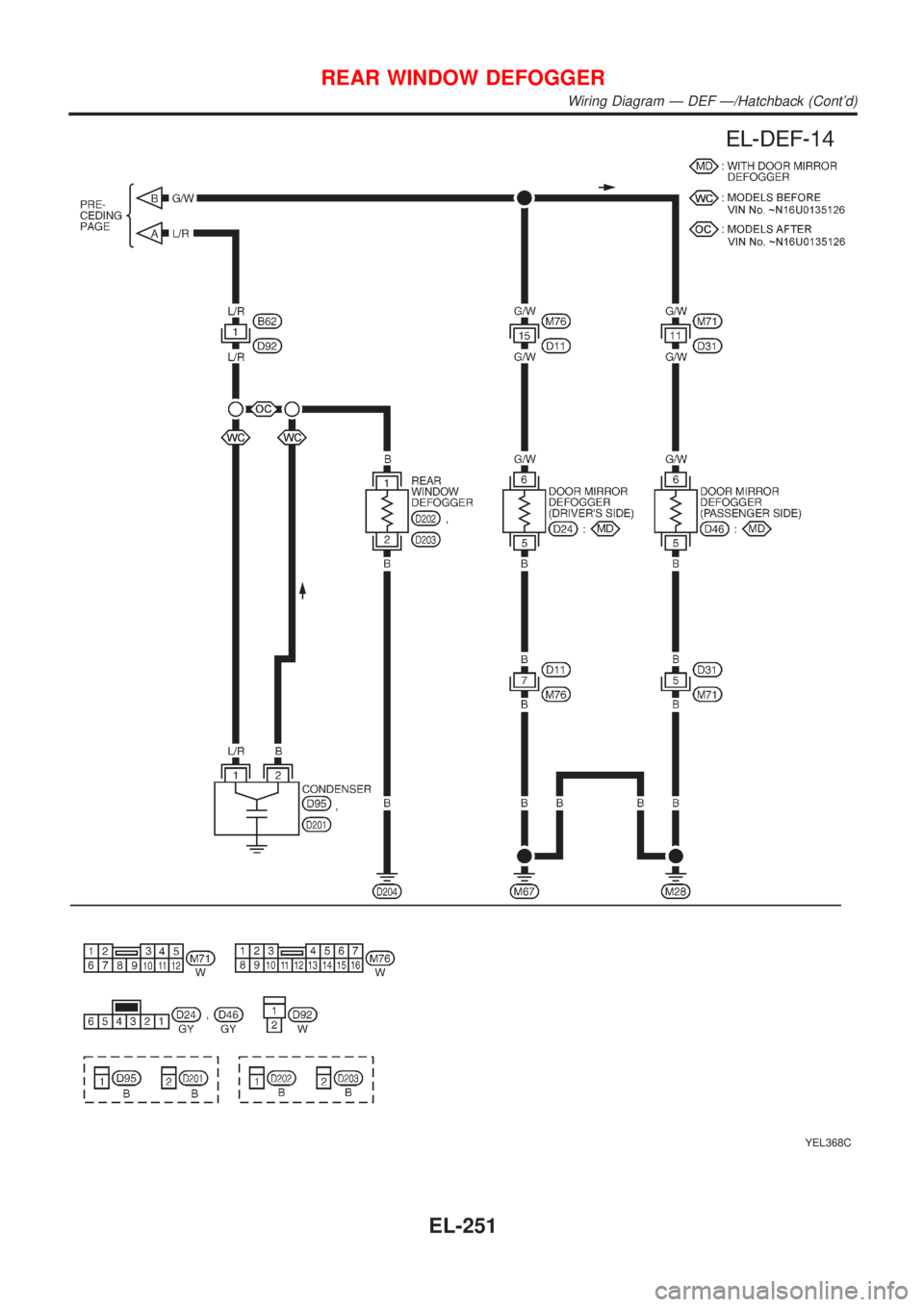

YEL368C
REAR WINDOW DEFOGGER
Wiring Diagram Ð DEF Ð/Hatchback (Cont'd)
EL-251

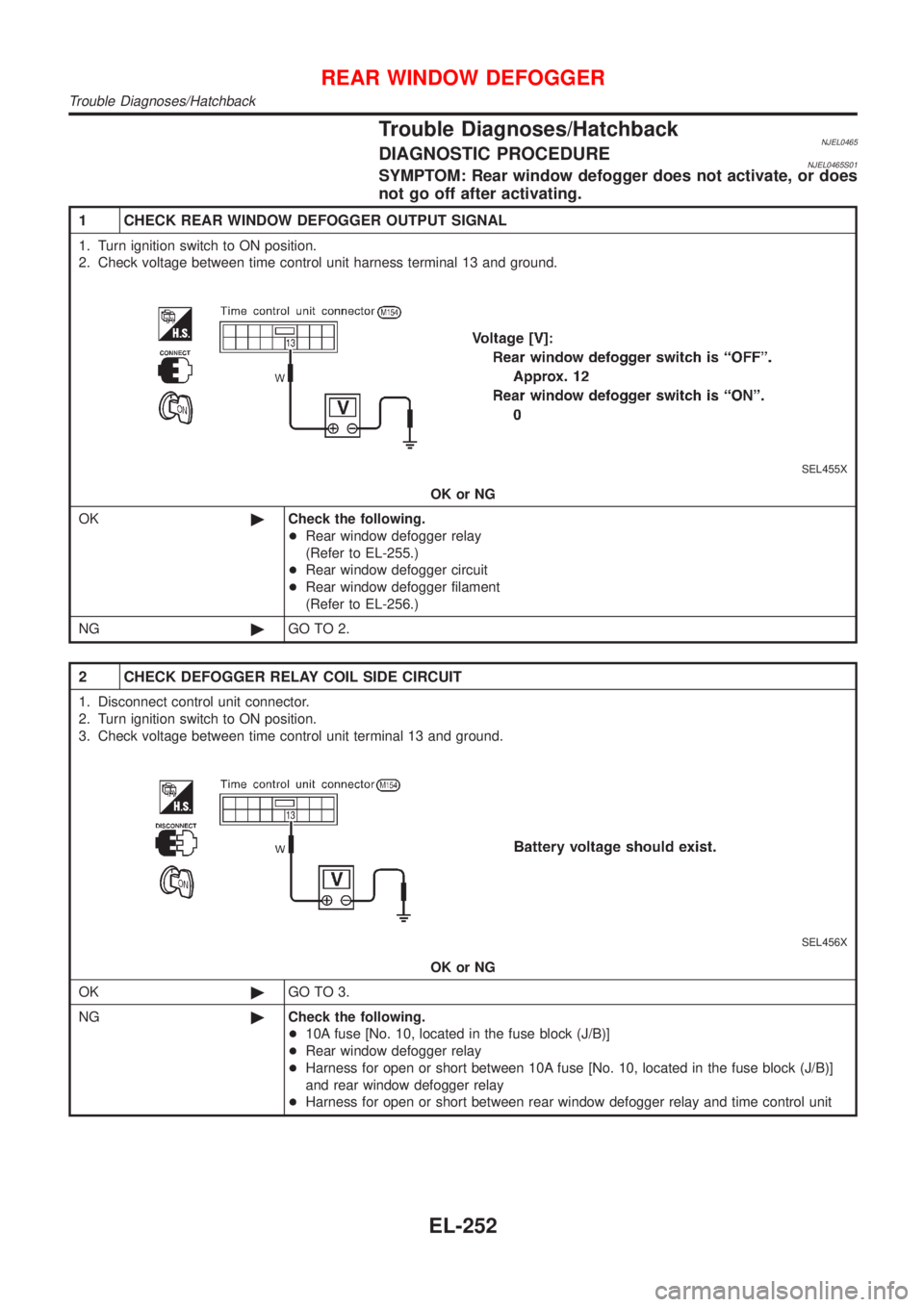

Trouble Diagnoses/HatchbackNJEL0465DIAGNOSTIC PROCEDURENJEL0465S01SYMPTOM: Rear window defogger does not activate, or does
not go off after activating.
1 CHECK REAR WINDOW DEFOGGER OUTPUT SIGNAL
1. Turn ignition switch to ON position.
2. Check voltage between time control unit harness terminal 13 and ground.
SEL455X
OK or NG
OK©Check the following.
+Rear window defogger relay
(Refer to EL-255.)
+Rear window defogger circuit
+Rear window defogger filament
(Refer to EL-256.)
NG©GO TO 2.
2 CHECK DEFOGGER RELAY COIL SIDE CIRCUIT
1. Disconnect control unit connector.
2. Turn ignition switch to ON position.
3. Check voltage between time control unit terminal 13 and ground.
SEL456X
OK or NG
OK©GO TO 3.
NG©Check the following.
+10A fuse [No. 10, located in the fuse block (J/B)]
+Rear window defogger relay
+Harness for open or short between 10A fuse [No. 10, located in the fuse block (J/B)]
and rear window defogger relay
+Harness for open or short between rear window defogger relay and time control unit
REAR WINDOW DEFOGGER
Trouble Diagnoses/Hatchback
EL-252
