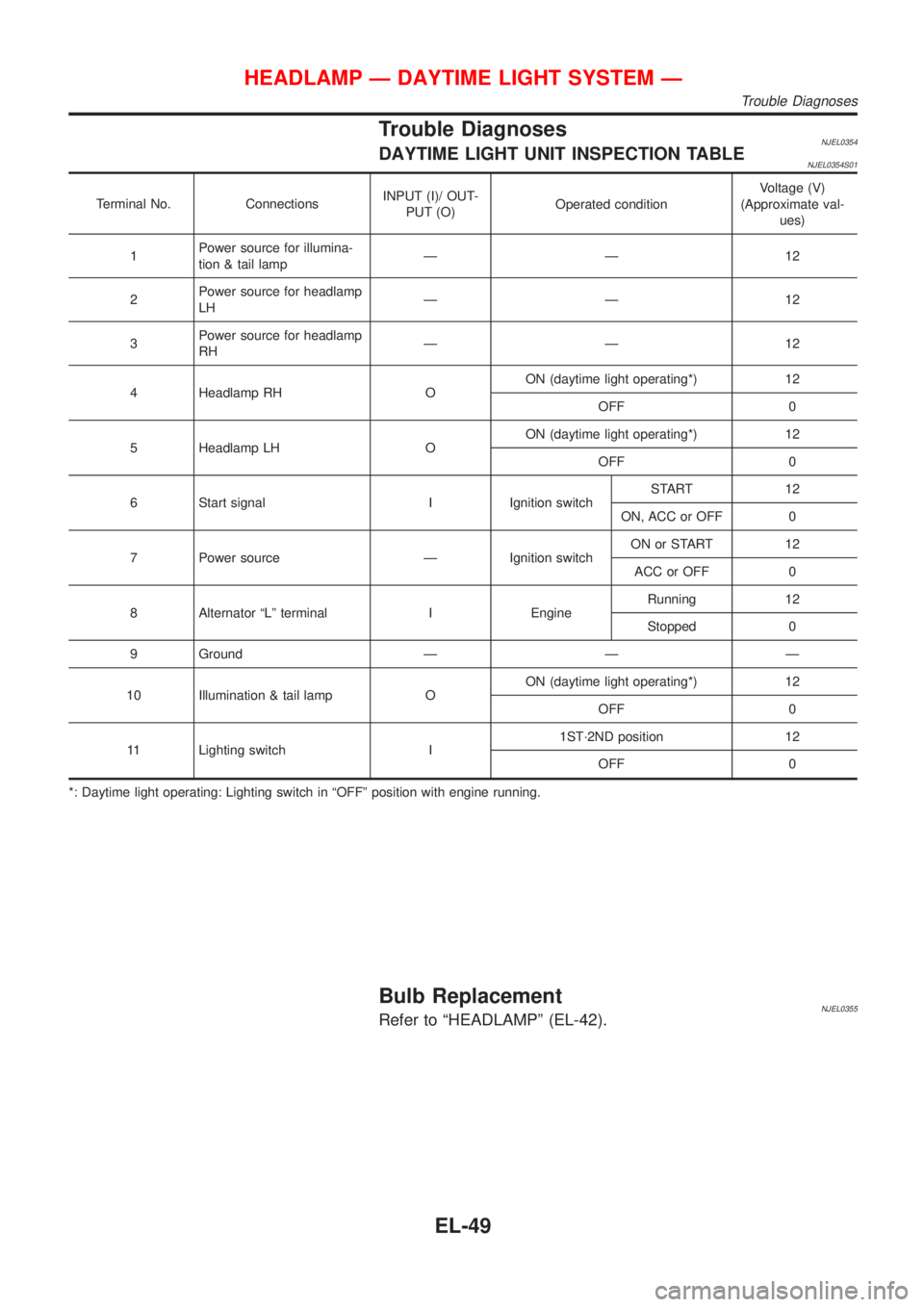

Trouble DiagnosesNJEL0354DAYTIME LIGHT UNIT INSPECTION TABLENJEL0354S01
Terminal No. ConnectionsINPUT (I)/ OUT-
PUT (O)Operated conditionVoltage (V)
(Approximate val-
ues)
1Power source for illumina-
tion & tail lampÐÐ12
2Power source for headlamp
LHÐÐ12
3Power source for headlamp
RHÐÐ12
4 Headlamp RH OON (daytime light operating*) 12
OFF 0
5 Headlamp LH OON (daytime light operating*) 12
OFF 0
6 Start signal I Ignition switchSTART 12
ON, ACC or OFF 0
7 Power source Ð Ignition switchON or START 12
ACC or OFF 0
8 Alternator ªLº terminal I EngineRunning 12
Stopped 0
9 Ground Ð Ð Ð
10 Illumination & tail lamp OON (daytime light operating*) 12
OFF 0
11 Lighting switch I1ST´2ND position 12
OFF 0
*: Daytime light operating: Lighting switch in ªOFFº position with engine running.
Bulb ReplacementNJEL0355Refer to ªHEADLAMPº (EL-42).
HEADLAMP Ð DAYTIME LIGHT SYSTEM Ð
Trouble Diagnoses
EL-49

Aiming AdjustmentNJEL0356Refer to ªHEADLAMPº (EL-42).
HEADLAMP Ð DAYTIME LIGHT SYSTEM Ð
Aiming Adjustment
EL-50

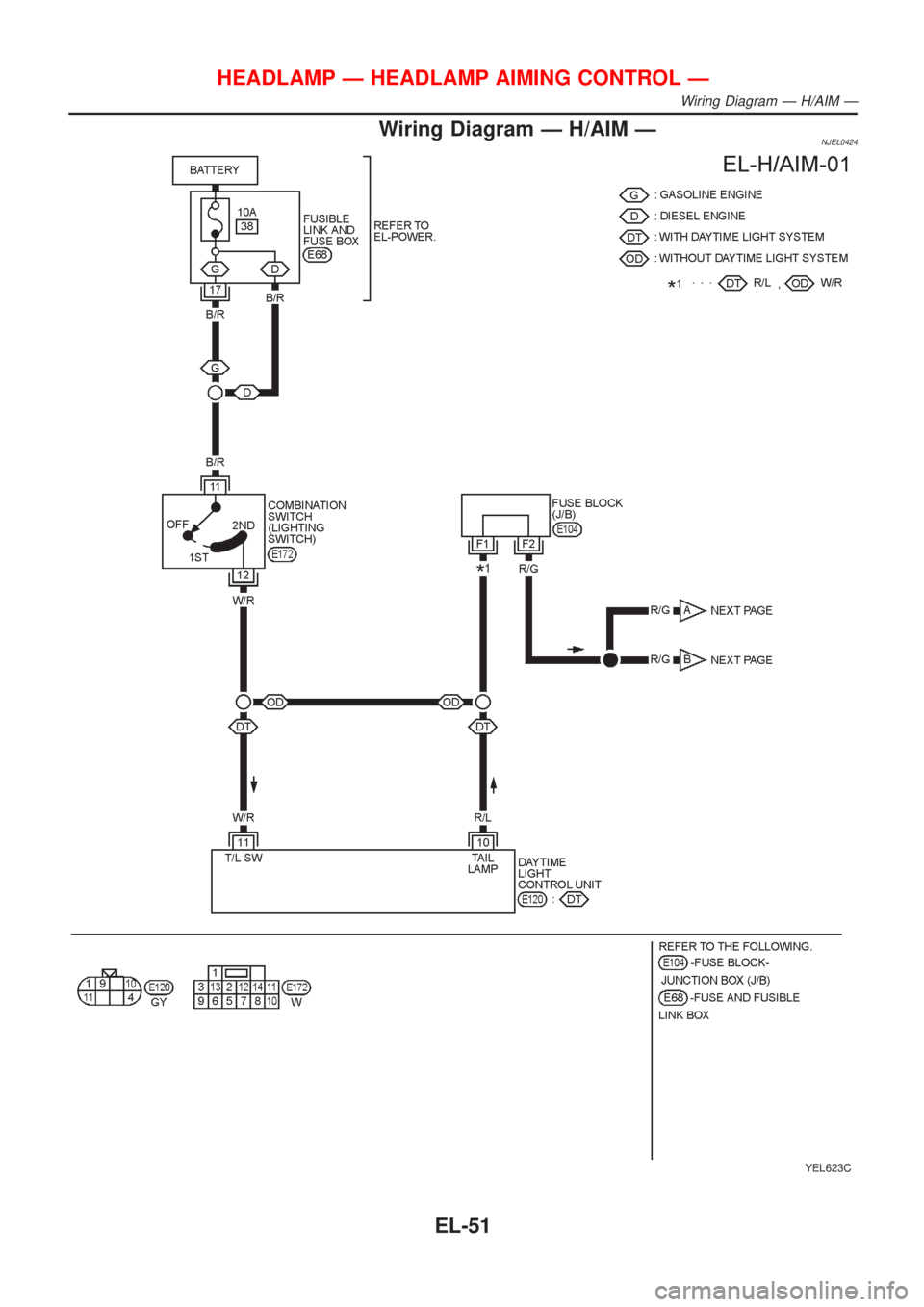

Wiring Diagram Ð H/AIM ÐNJEL0424
YEL623C
HEADLAMP Ð HEADLAMP AIMING CONTROL Ð
Wiring Diagram Ð H/AIM Ð
EL-51

YEL624C

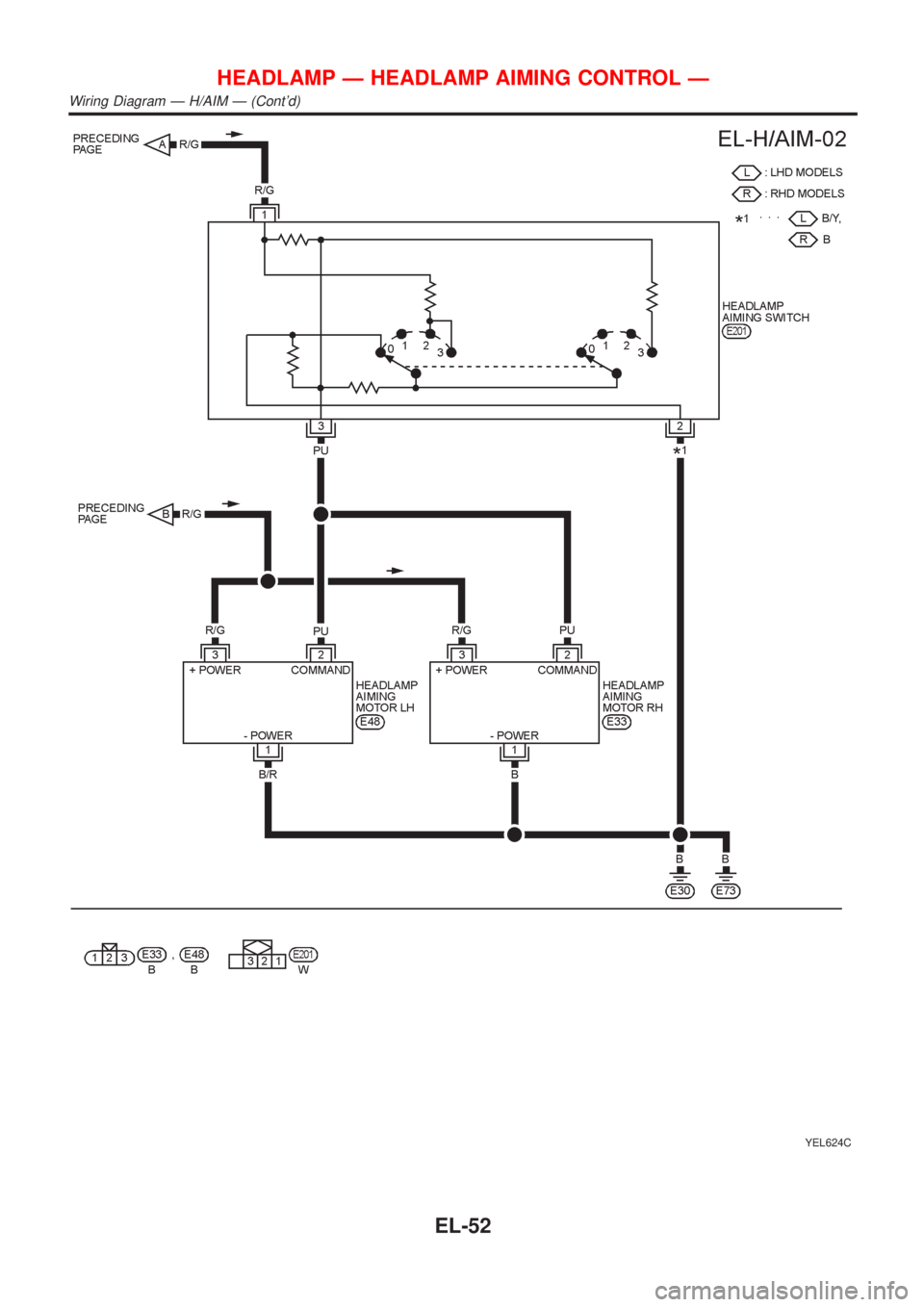

HEADLAMP Ð HEADLAMP AIMING CONTROL Ð
Wiring Diagram Ð H/AIM Ð (Cont'd)
EL-52

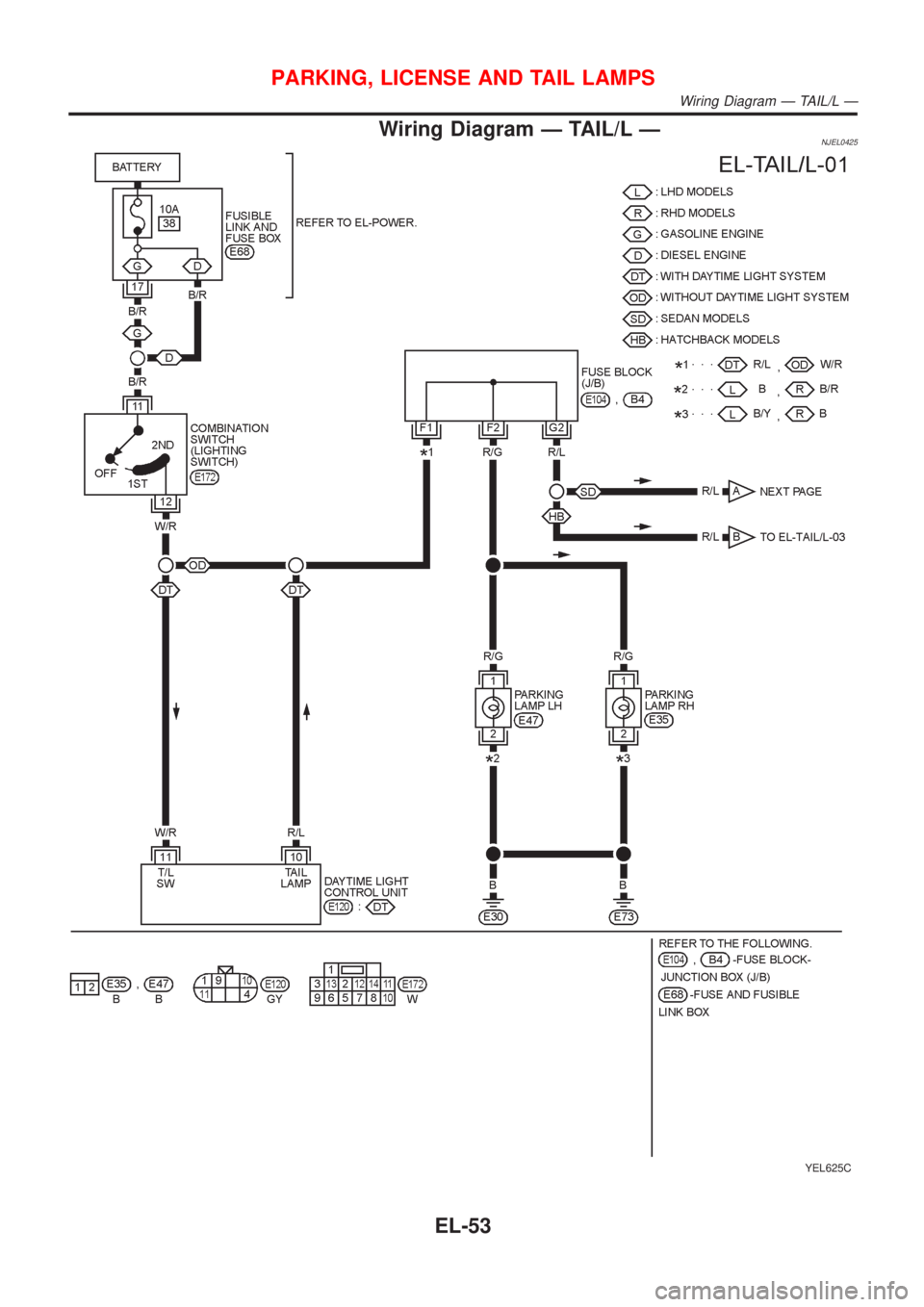

Wiring Diagram Ð TAIL/L ÐNJEL0425
YEL625C
PARKING, LICENSE AND TAIL LAMPS
Wiring Diagram Ð TAIL/L Ð
EL-53

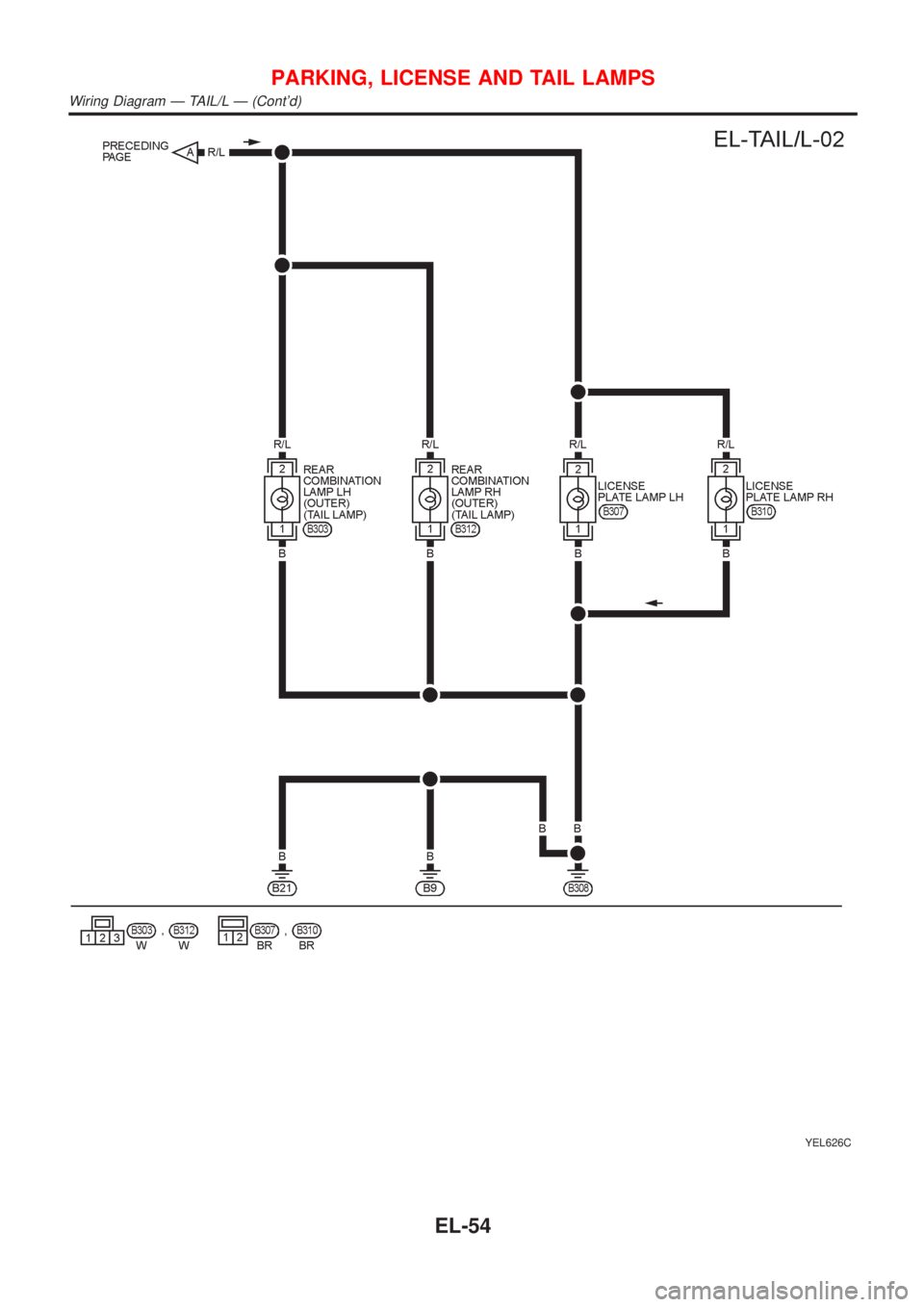

YEL626C
PARKING, LICENSE AND TAIL LAMPS

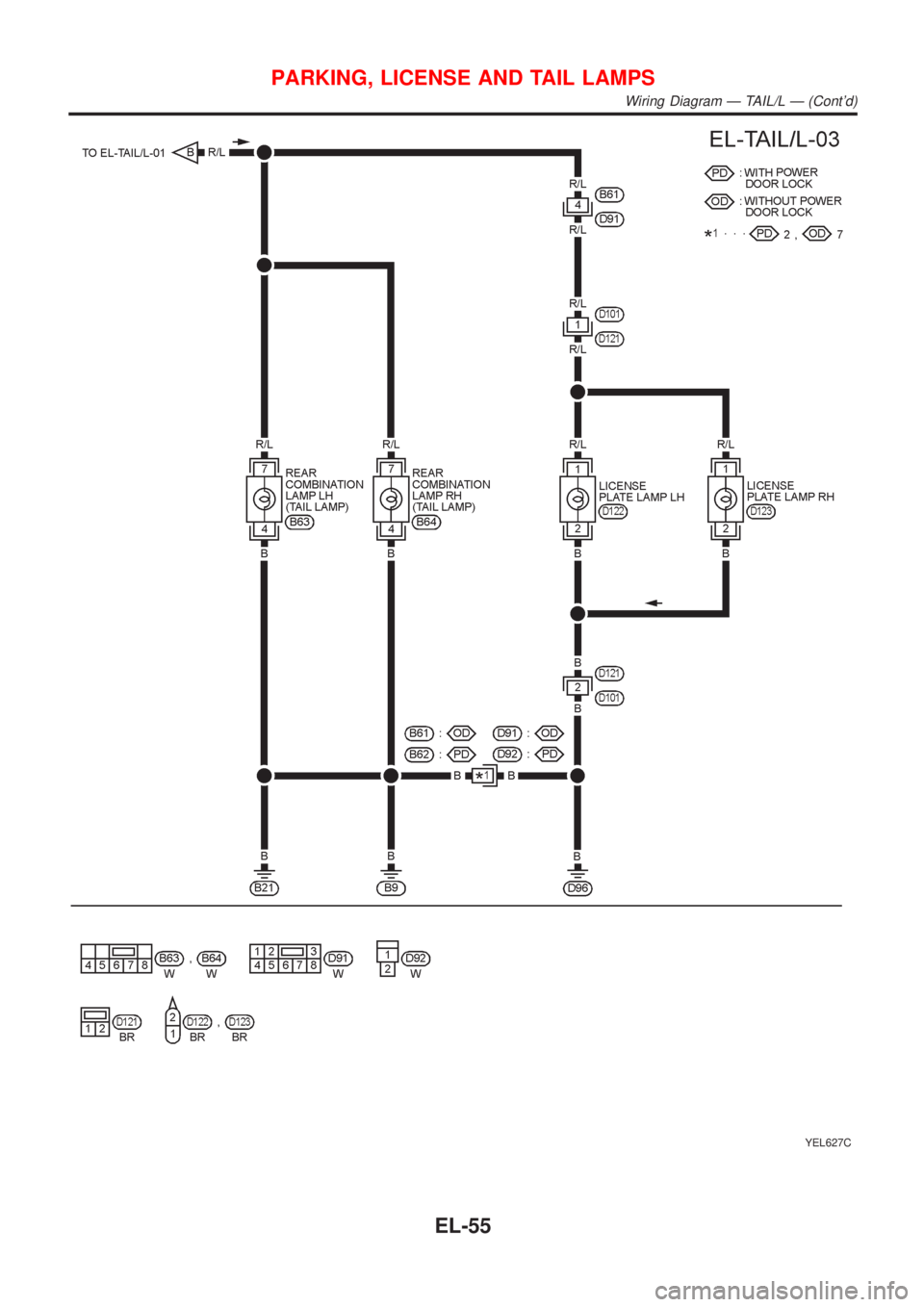

Wiring Diagram Ð TAIL/L Ð (Cont'd)
EL-54

YEL627C
PARKING, LICENSE AND TAIL LAMPS
Wiring Diagram Ð TAIL/L Ð (Cont'd)
EL-55

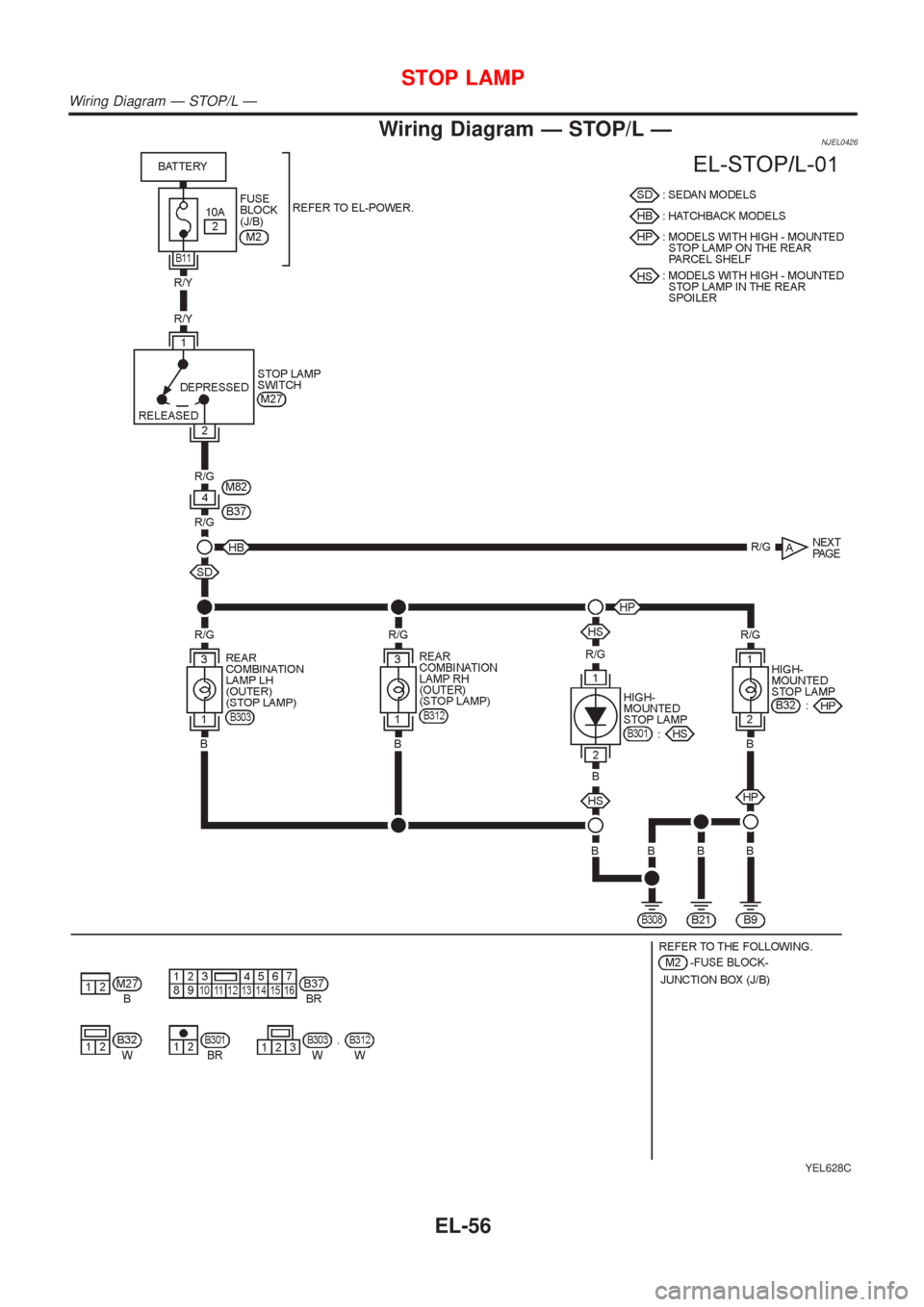

Wiring Diagram Ð STOP/L ÐNJEL0426
YEL628C
STOP LAMP
Wiring Diagram Ð STOP/L Ð
EL-56

YEL629C
STOP LAMP
Wiring Diagram Ð STOP/L Ð (Cont'd)
EL-57

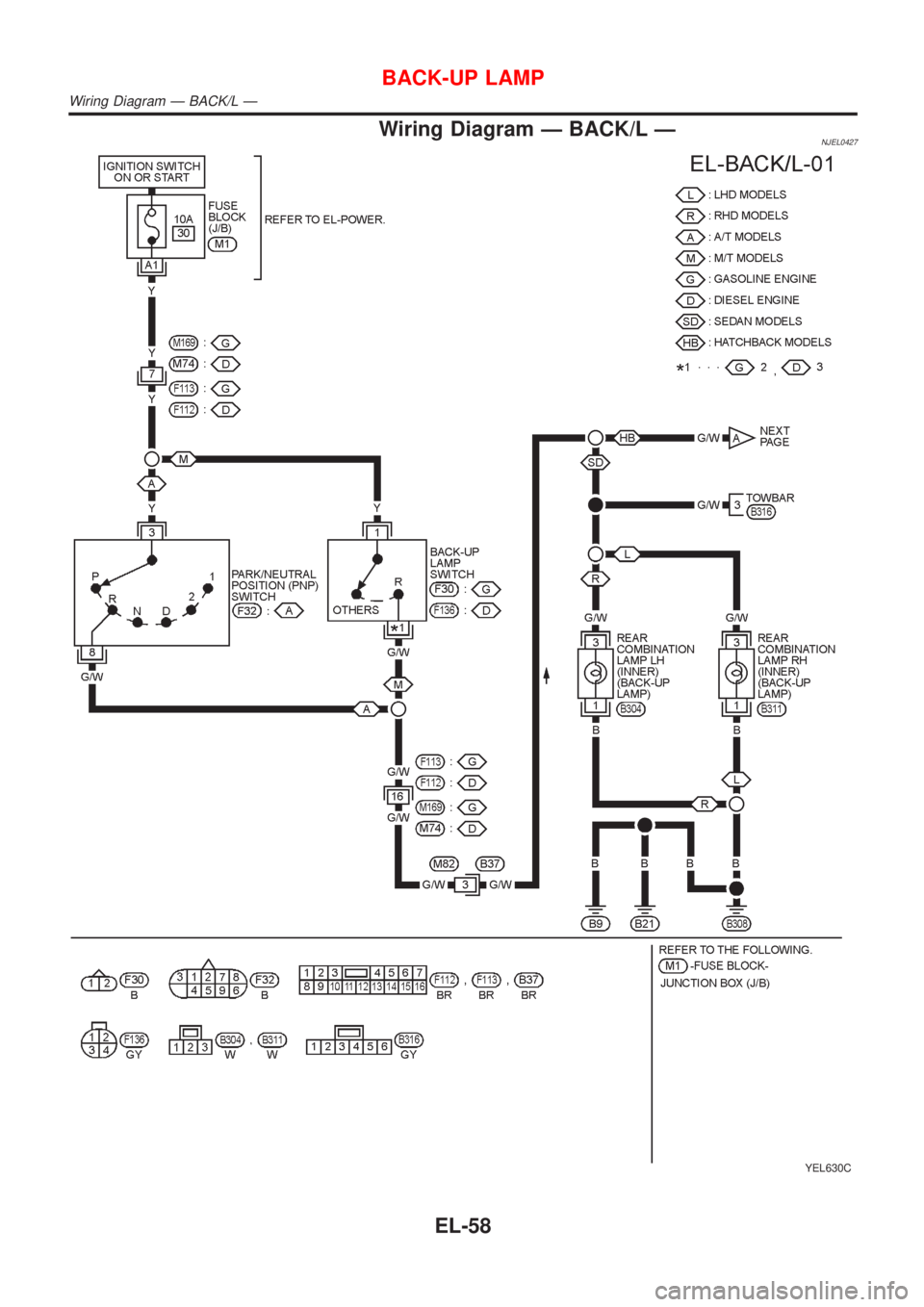

Wiring Diagram Ð BACK/L ÐNJEL0427
YEL630C
BACK-UP LAMP
Wiring Diagram Ð BACK/L Ð
EL-58
