YEL691C

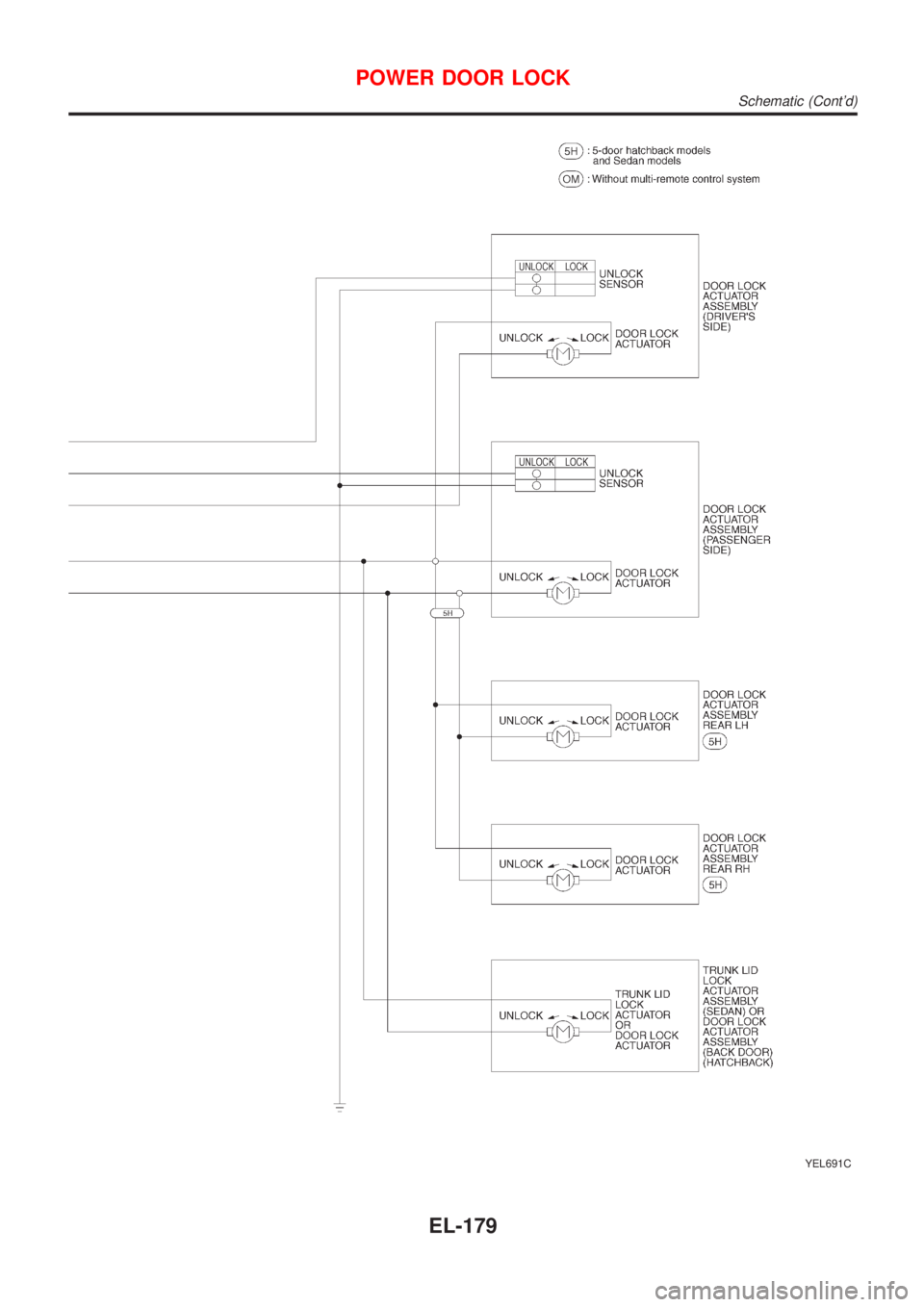

POWER DOOR LOCK
Schematic (Cont'd)
EL-179

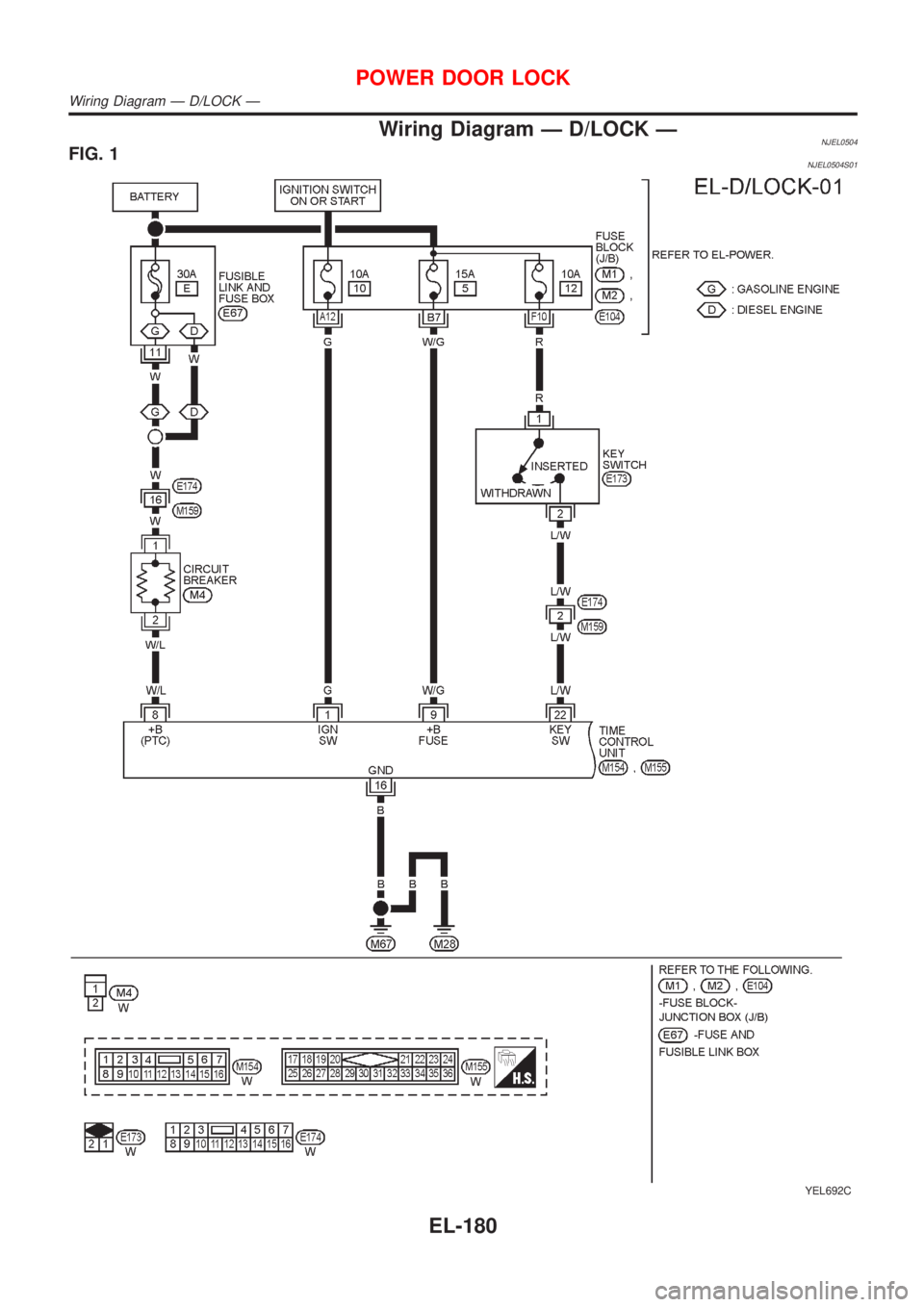

Wiring Diagram Ð D/LOCK ÐNJEL0504FIG. 1NJEL0504S01
YEL692C
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð
EL-180

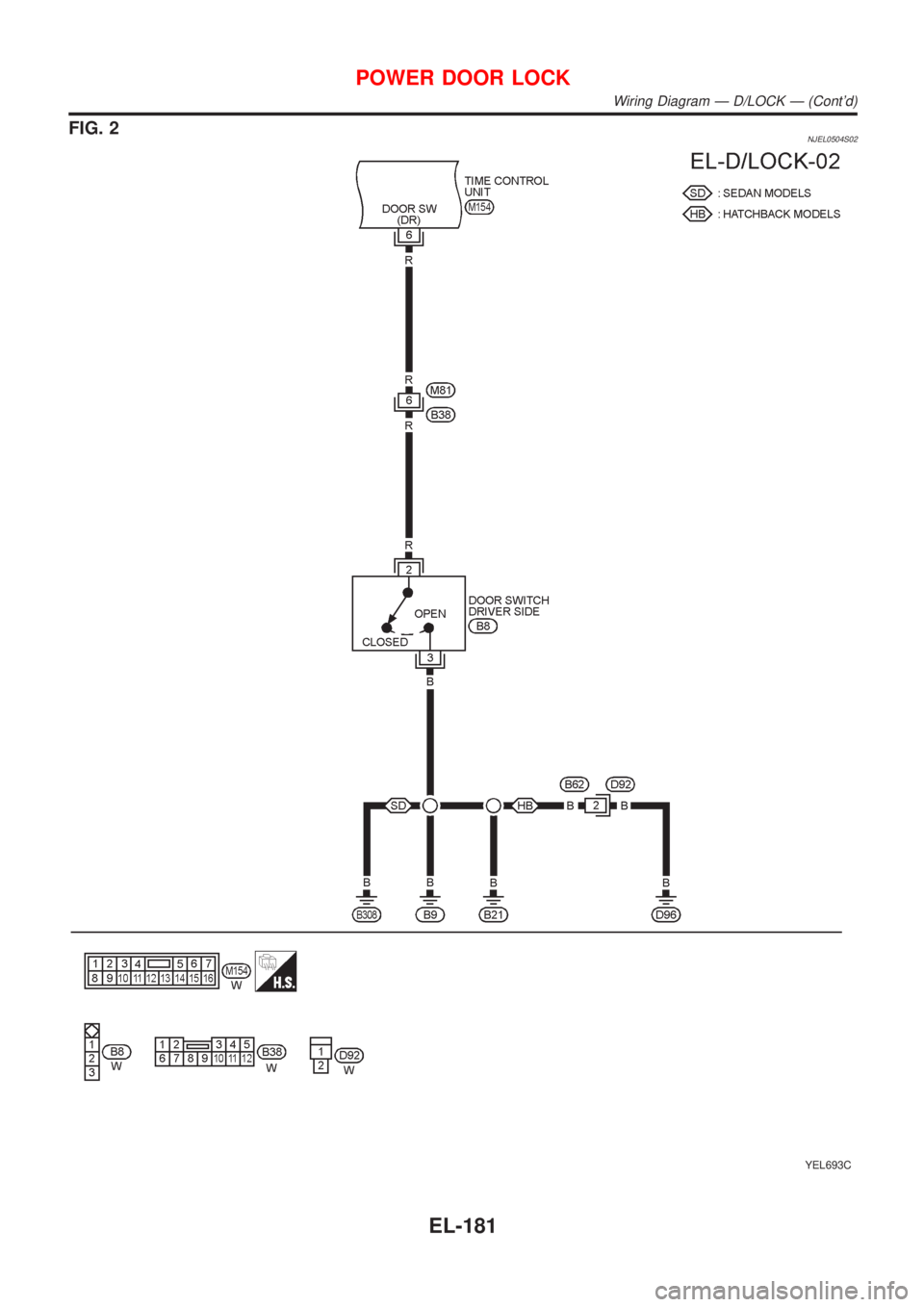

FIG. 2NJEL0504S02
YEL693C
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð (Cont'd)
EL-181

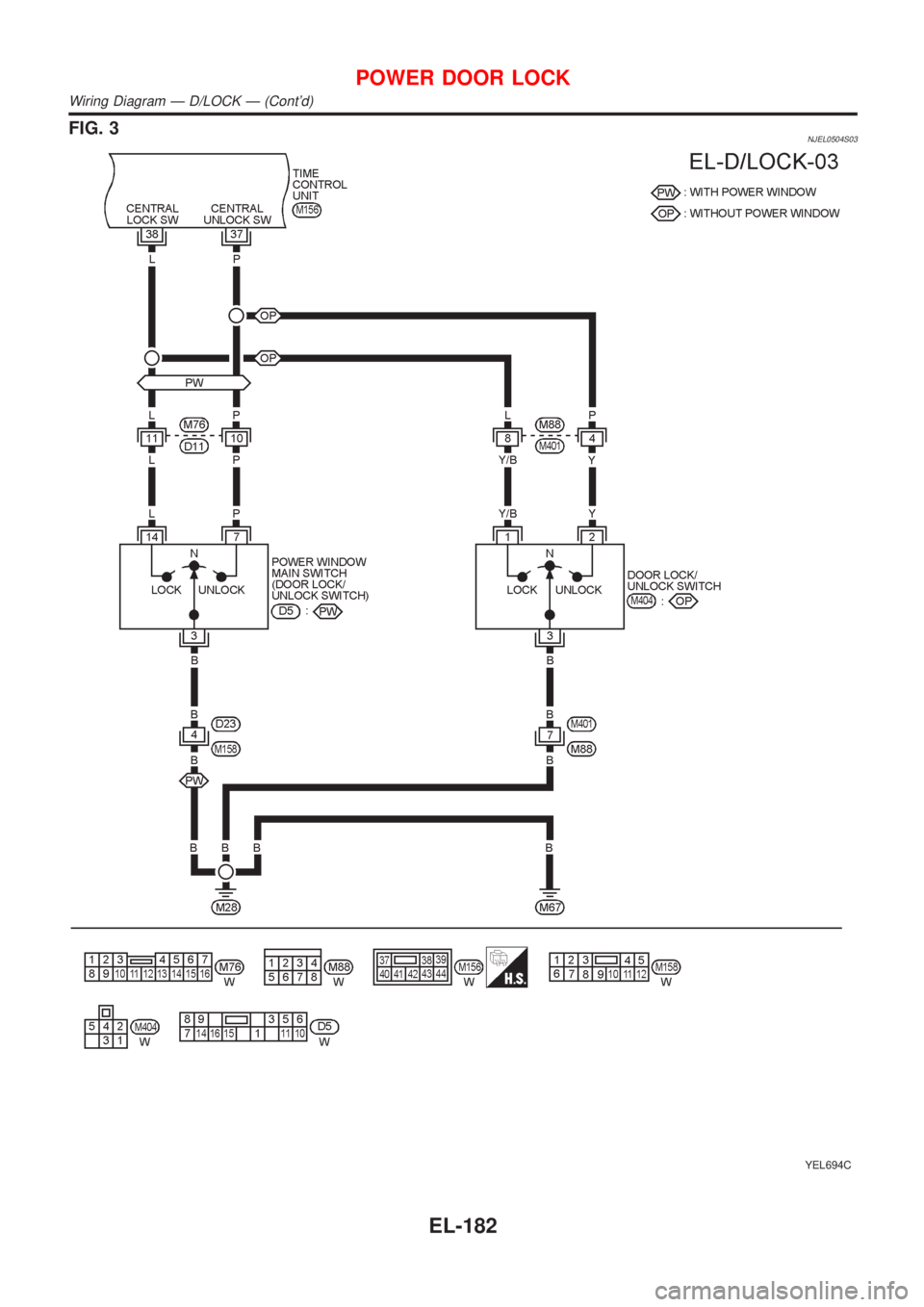

FIG. 3NJEL0504S03
YEL694C
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð (Cont'd)
EL-182

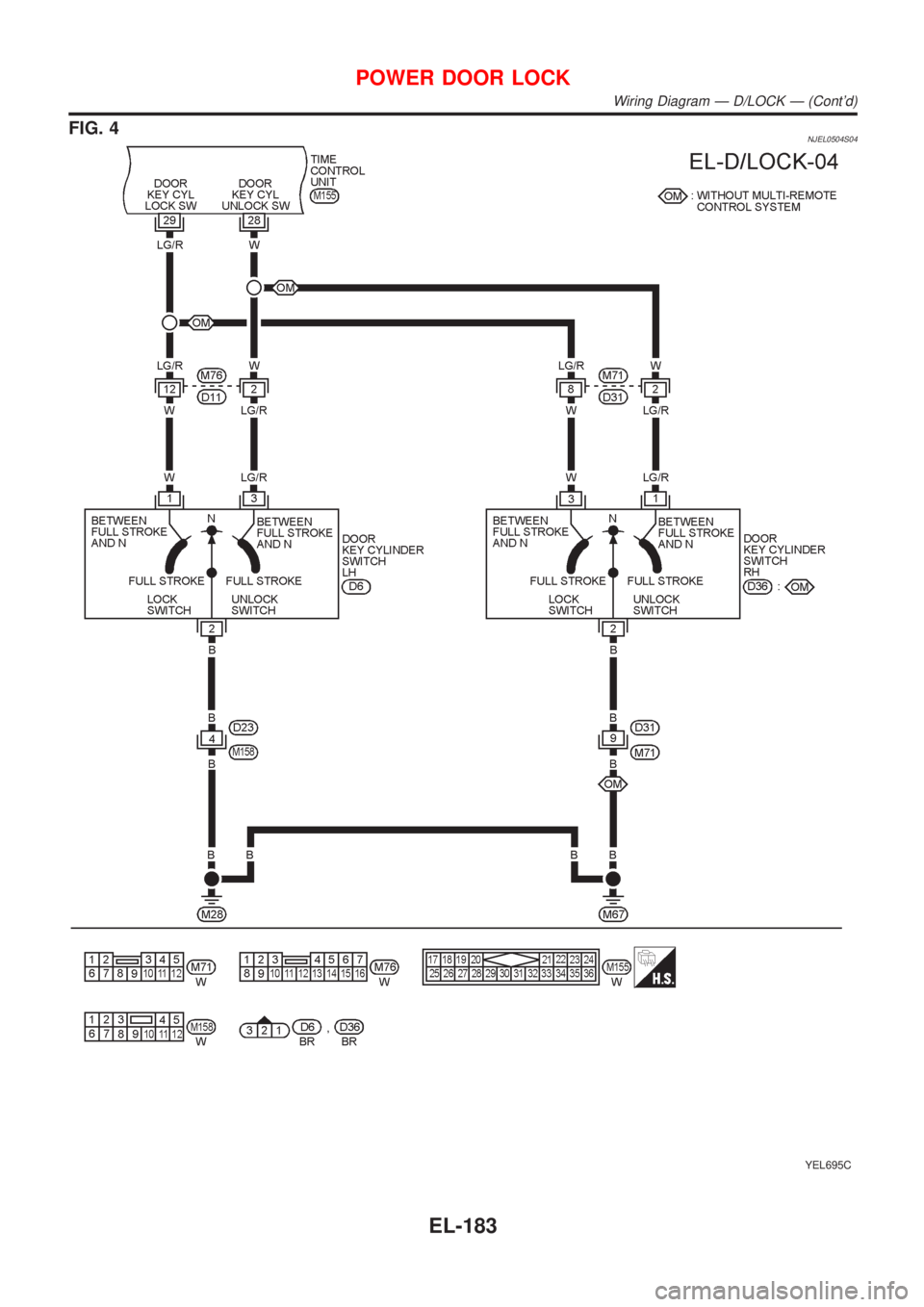

FIG. 4NJEL0504S04
YEL695C
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð (Cont'd)
EL-183

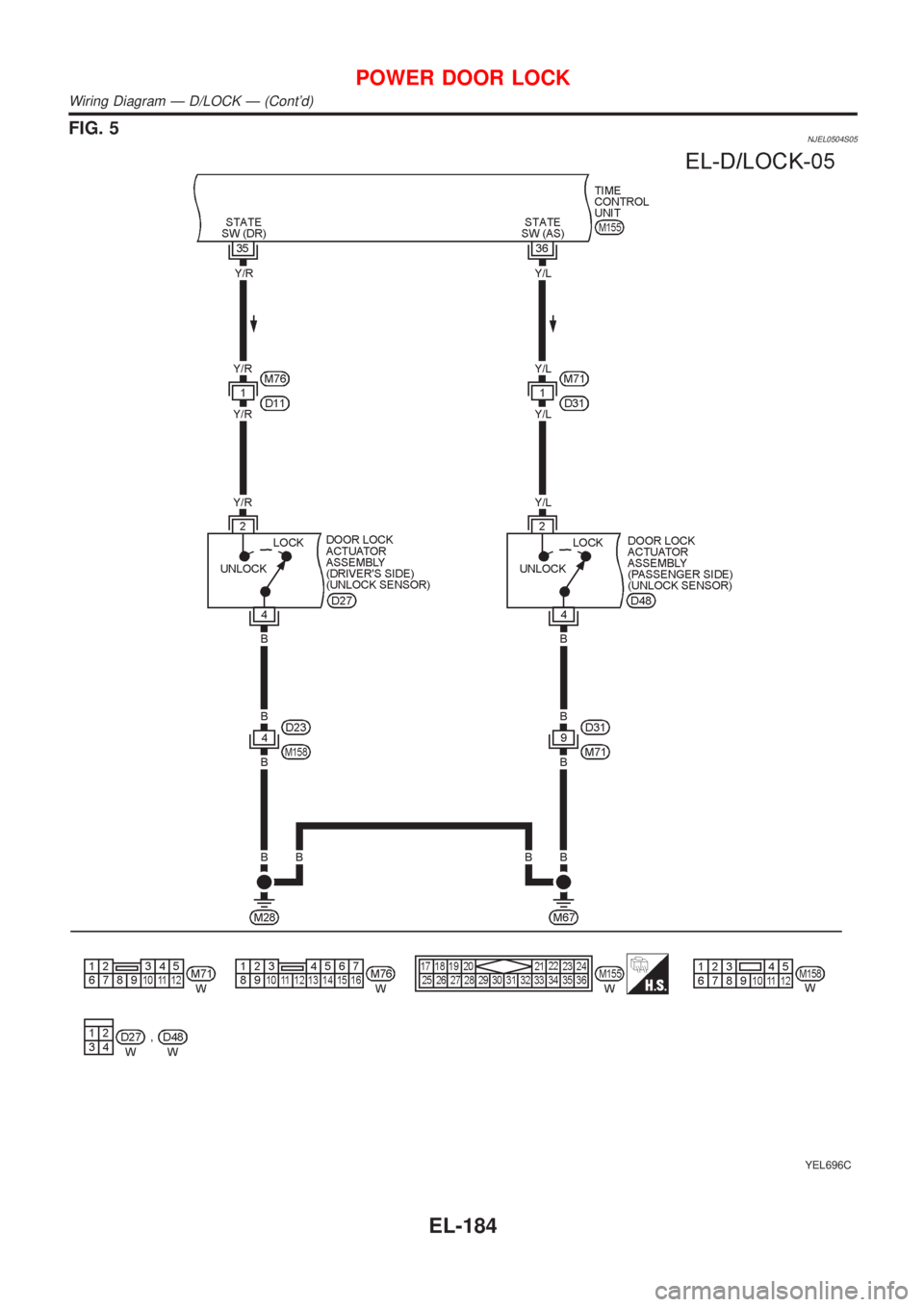

FIG. 5NJEL0504S05
YEL696C
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð (Cont'd)
EL-184

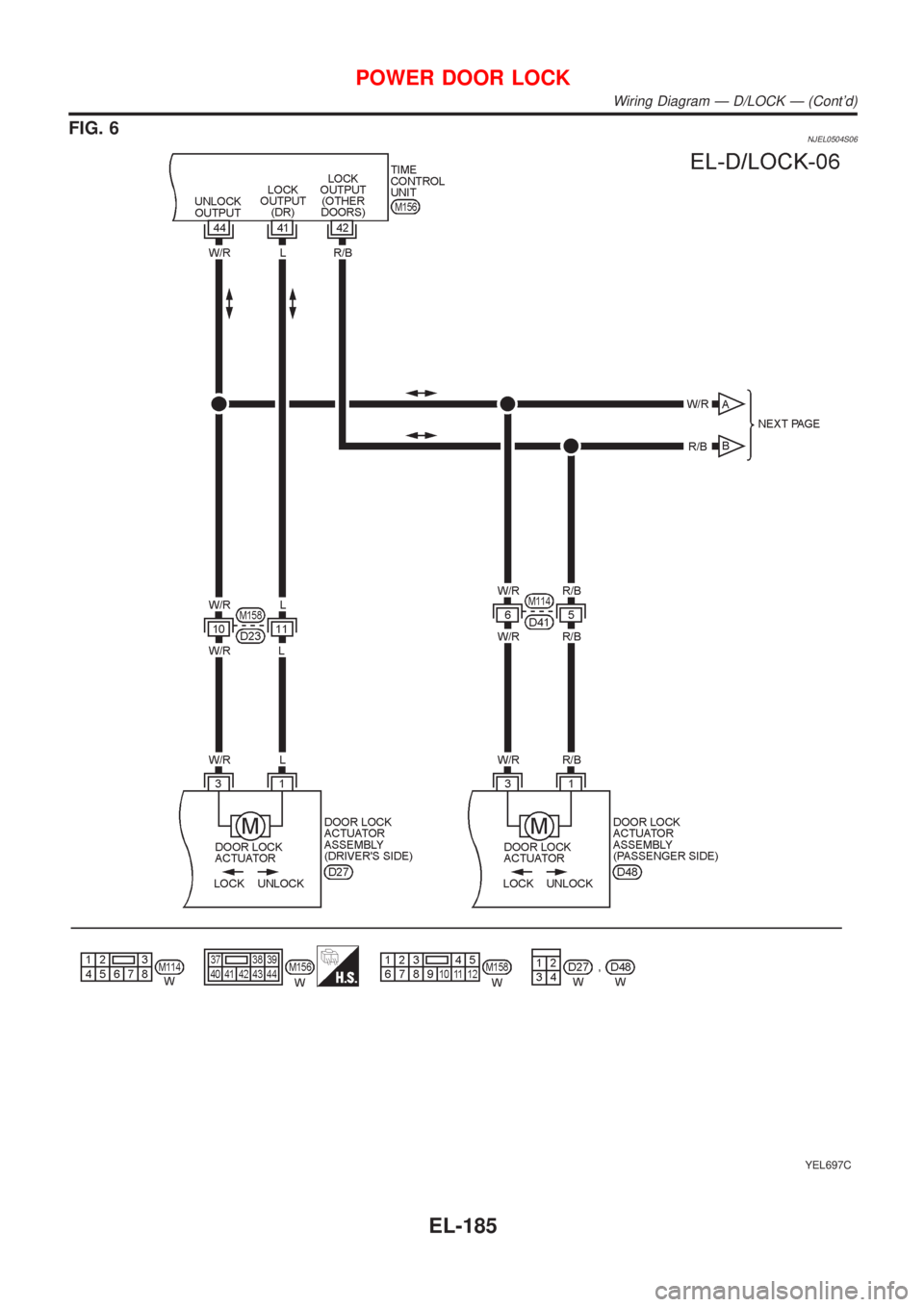

FIG. 6NJEL0504S06
YEL697C
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð (Cont'd)
EL-185

FIG. 7NJEL0504S07
YEL698C
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð (Cont'd)
EL-186

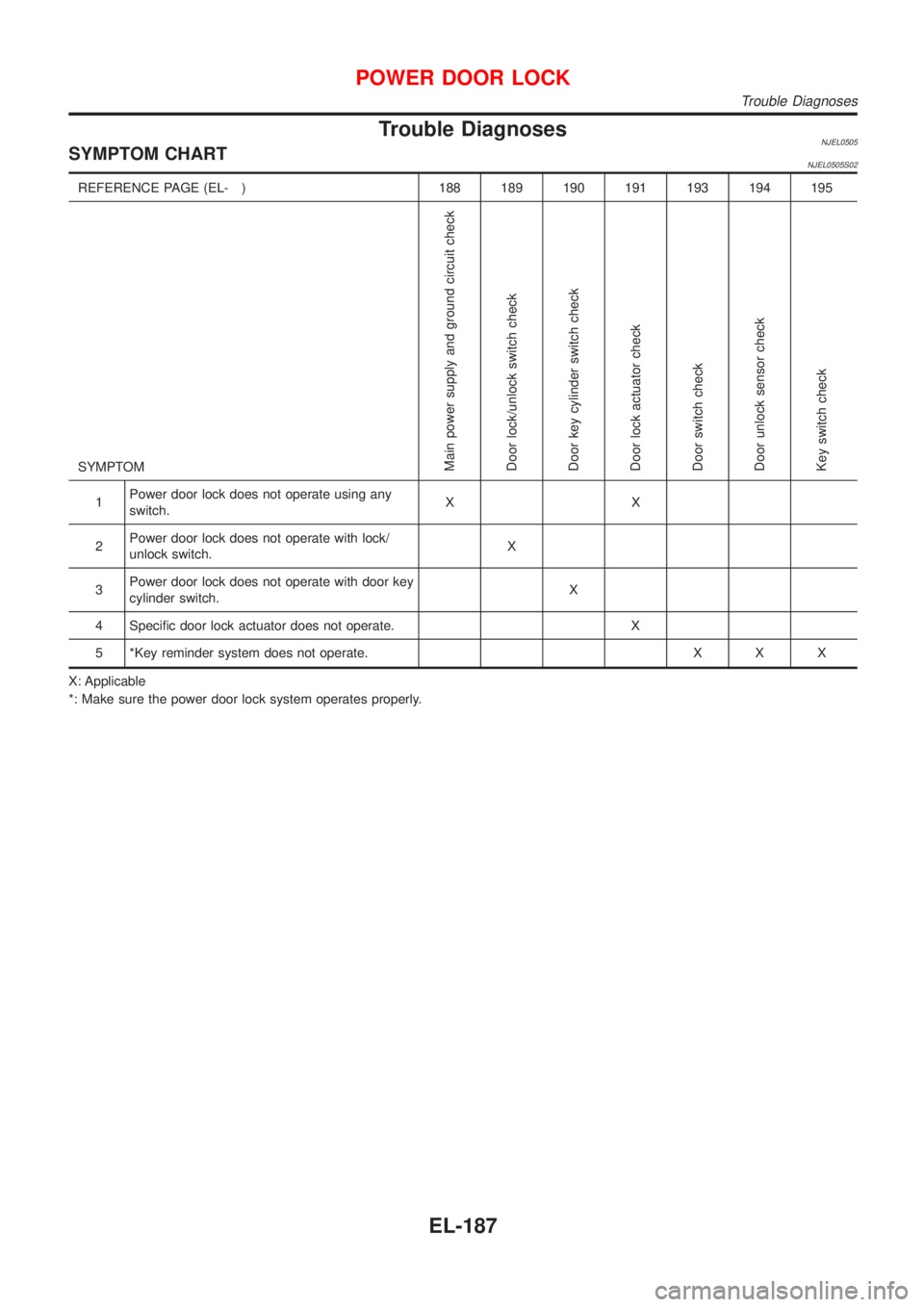

Trouble DiagnosesNJEL0505SYMPTOM CHARTNJEL0505S02
REFERENCE PAGE (EL- ) 188 189 190 191 193 194 195
SYMPTOM
Main power supply and ground circuit check
Door lock/unlock switch check
Door key cylinder switch check
Door lock actuator check
Door switch check
Door unlock sensor check
Key switch check
1Power door lock does not operate using any
switch.XX
2Power door lock does not operate with lock/
unlock switch.X
3Power door lock does not operate with door key
cylinder switch.X
4 Specific door lock actuator does not operate. X
5 *Key reminder system does not operate. X X X
X: Applicable
*: Make sure the power door lock system operates properly.
POWER DOOR LOCK
Trouble Diagnoses
EL-187

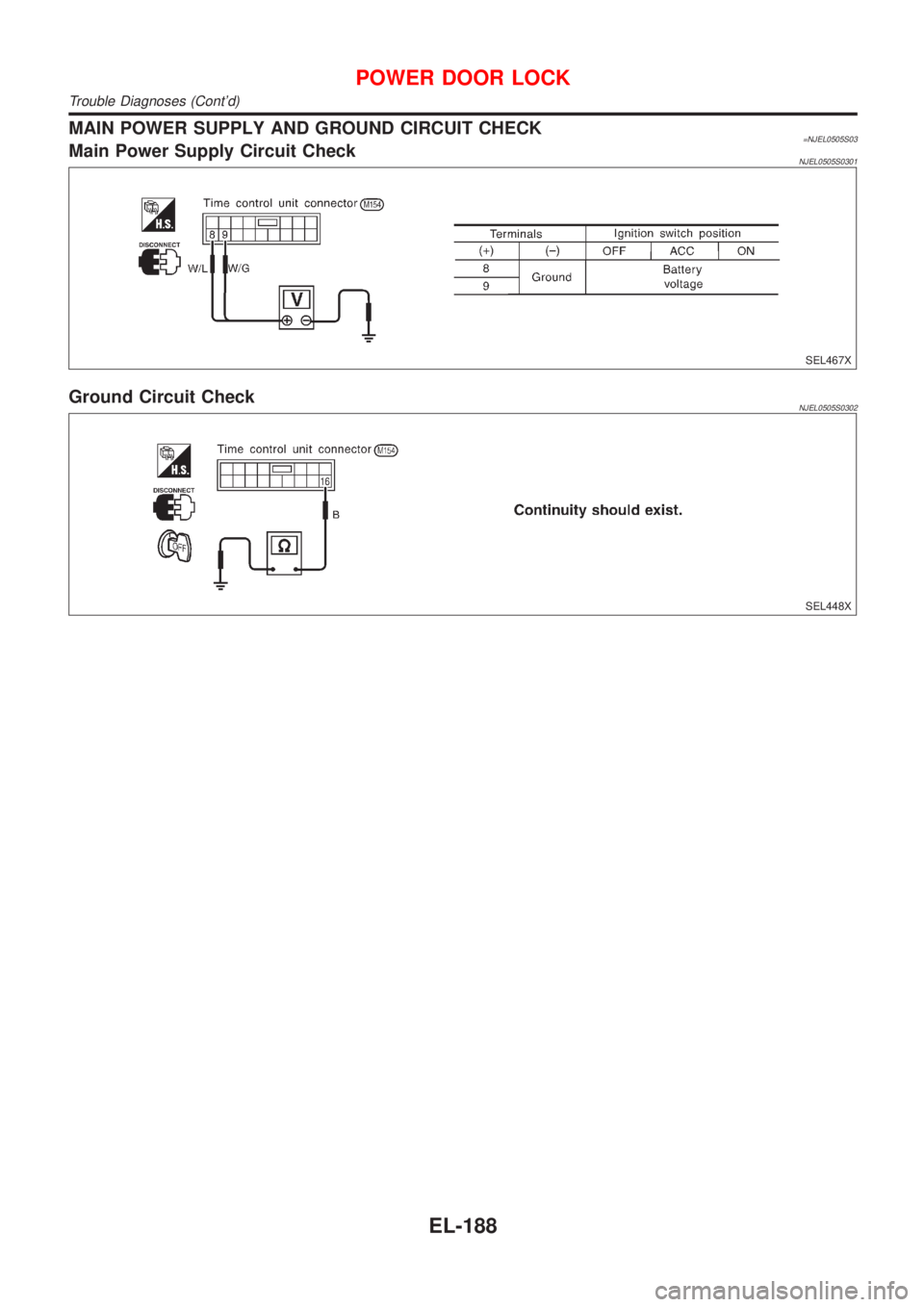

MAIN POWER SUPPLY AND GROUND CIRCUIT CHECK=NJEL0505S03Main Power Supply Circuit CheckNJEL0505S0301
SEL467X
Ground Circuit CheckNJEL0505S0302
SEL448X
POWER DOOR LOCK
Trouble Diagnoses (Cont'd)
EL-188
