NISSAN ALMERA N16 2001 Electronic Repair Manual

YEL700C

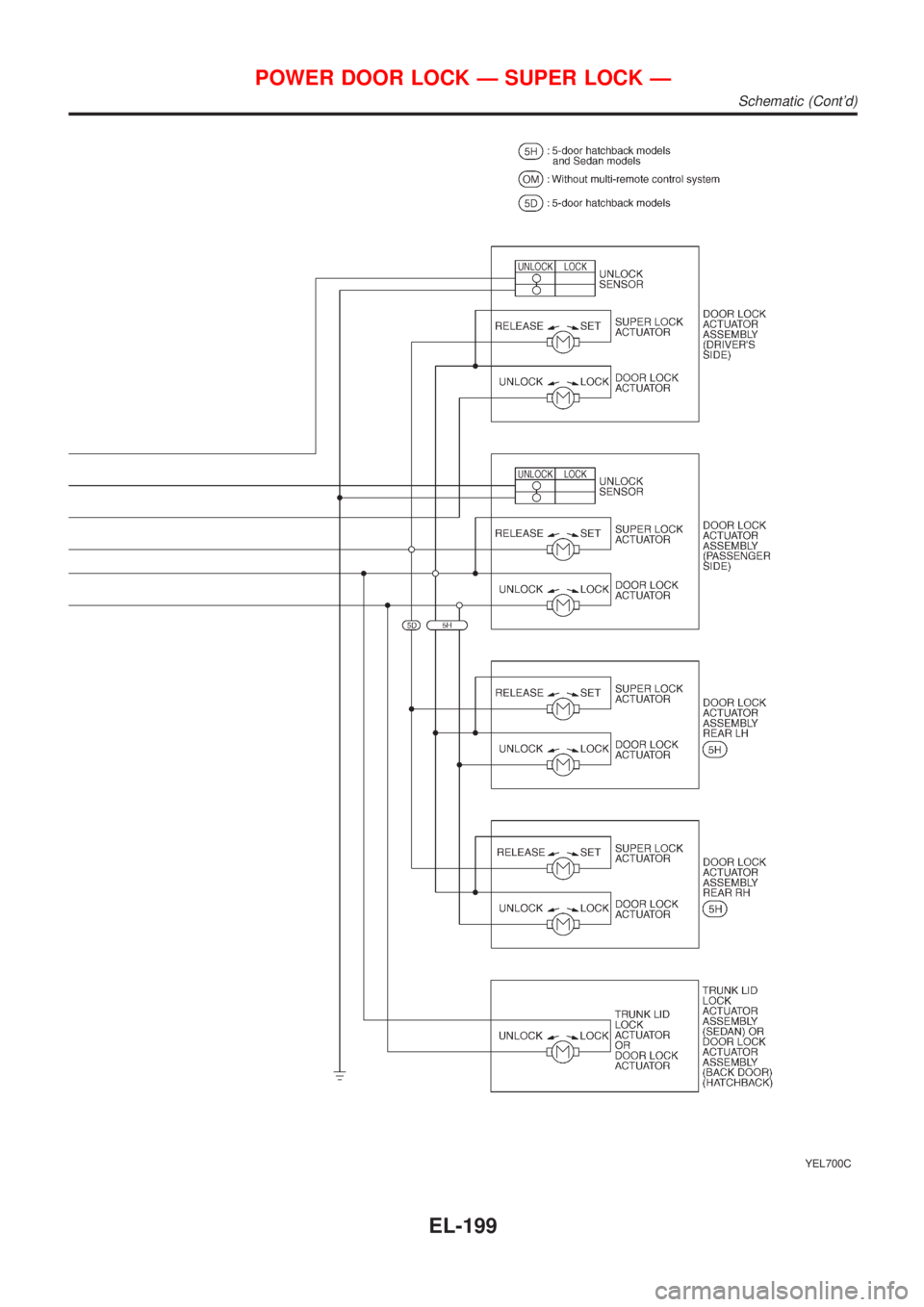

POWER DOOR LOCK Ð SUPER LOCK Ð
Schematic (Cont'd)
EL-199

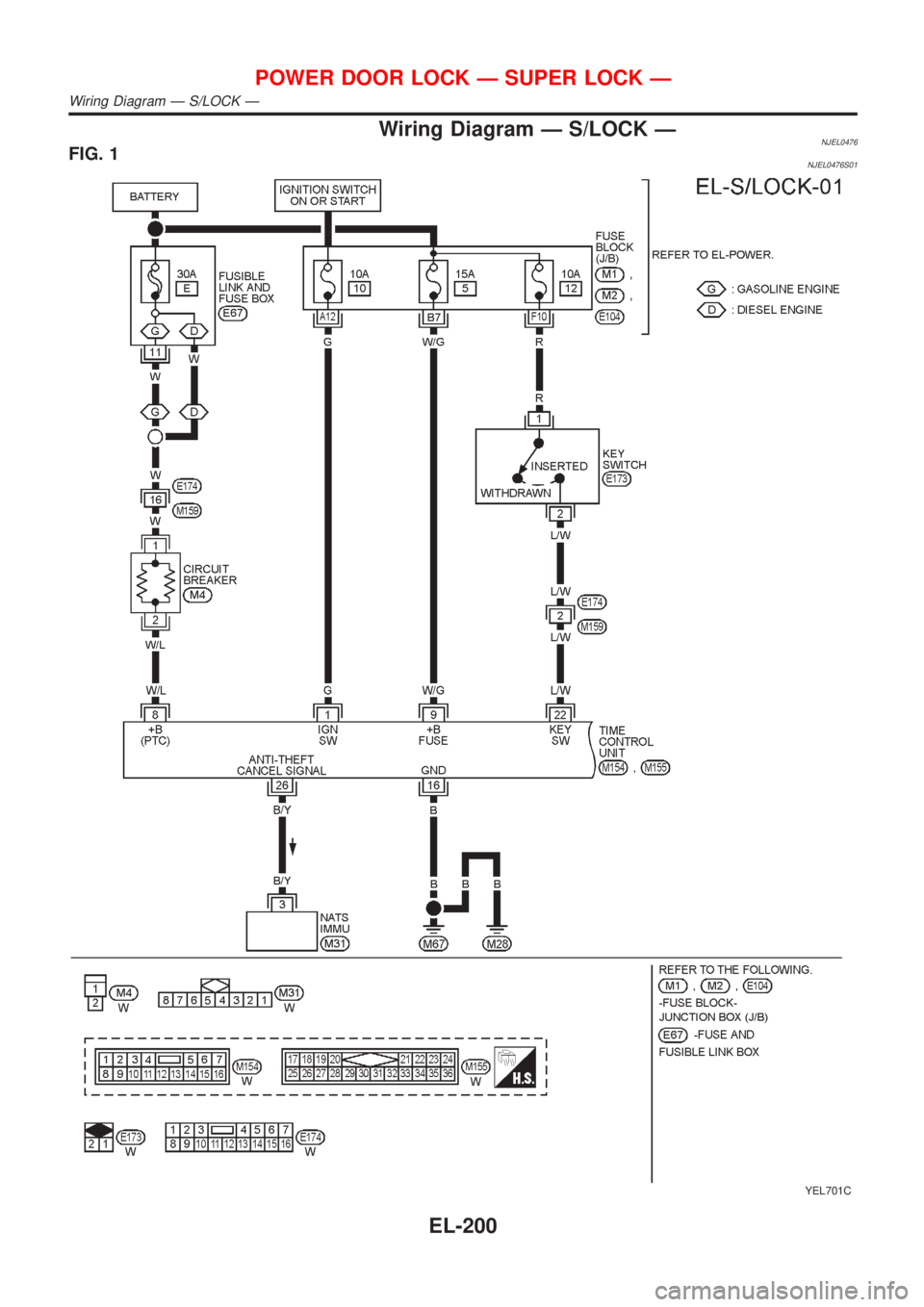

Wiring Diagram Ð S/LOCK ÐNJEL0476FIG. 1NJEL0476S01
YEL701C
POWER DOOR LOCK Ð SUPER LOCK Ð
Wiring Diagram Ð S/LOCK Ð
EL-200

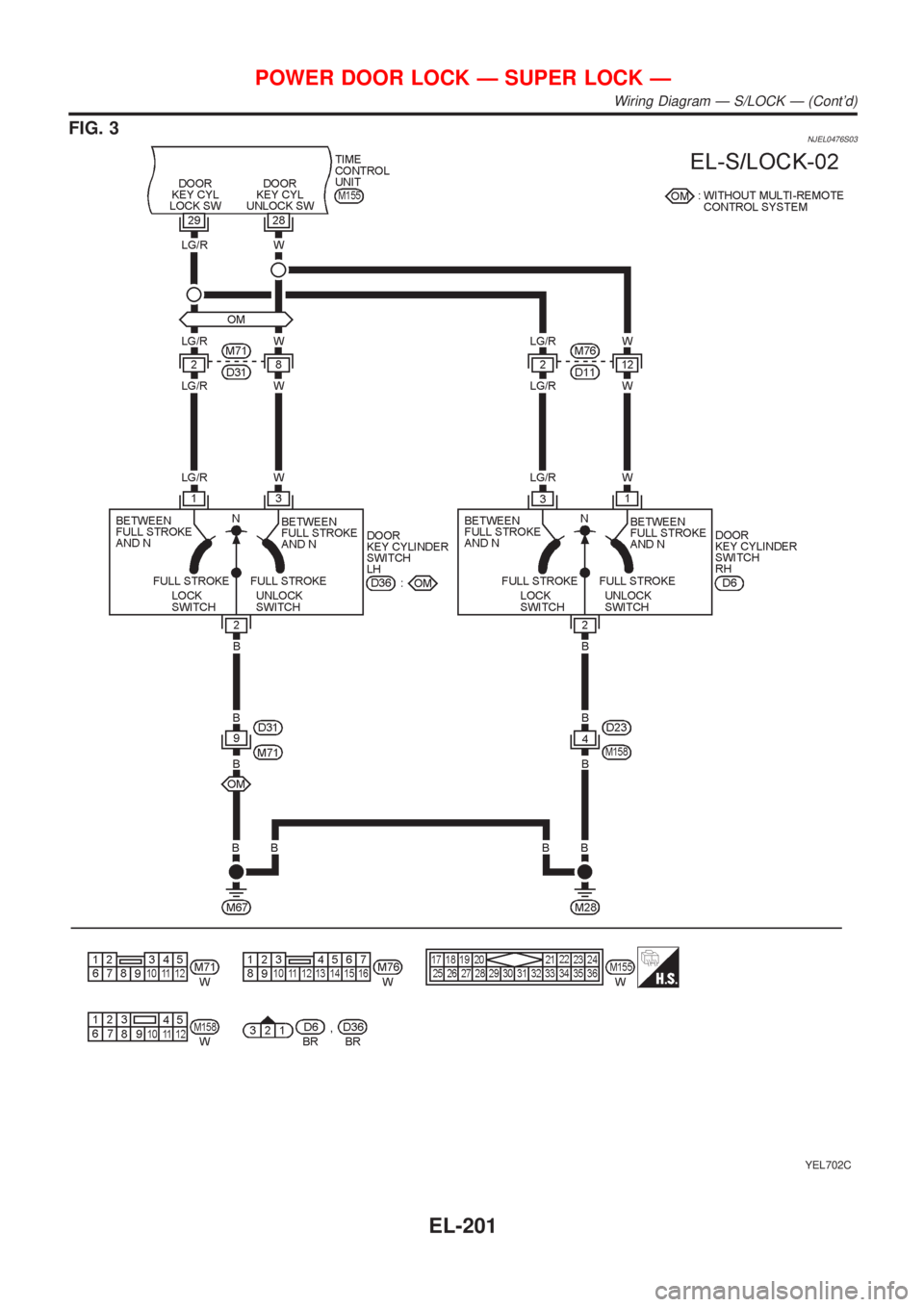

FIG. 3NJEL0476S03
YEL702C
POWER DOOR LOCK Ð SUPER LOCK Ð
Wiring Diagram Ð S/LOCK Ð (Cont'd)
EL-201

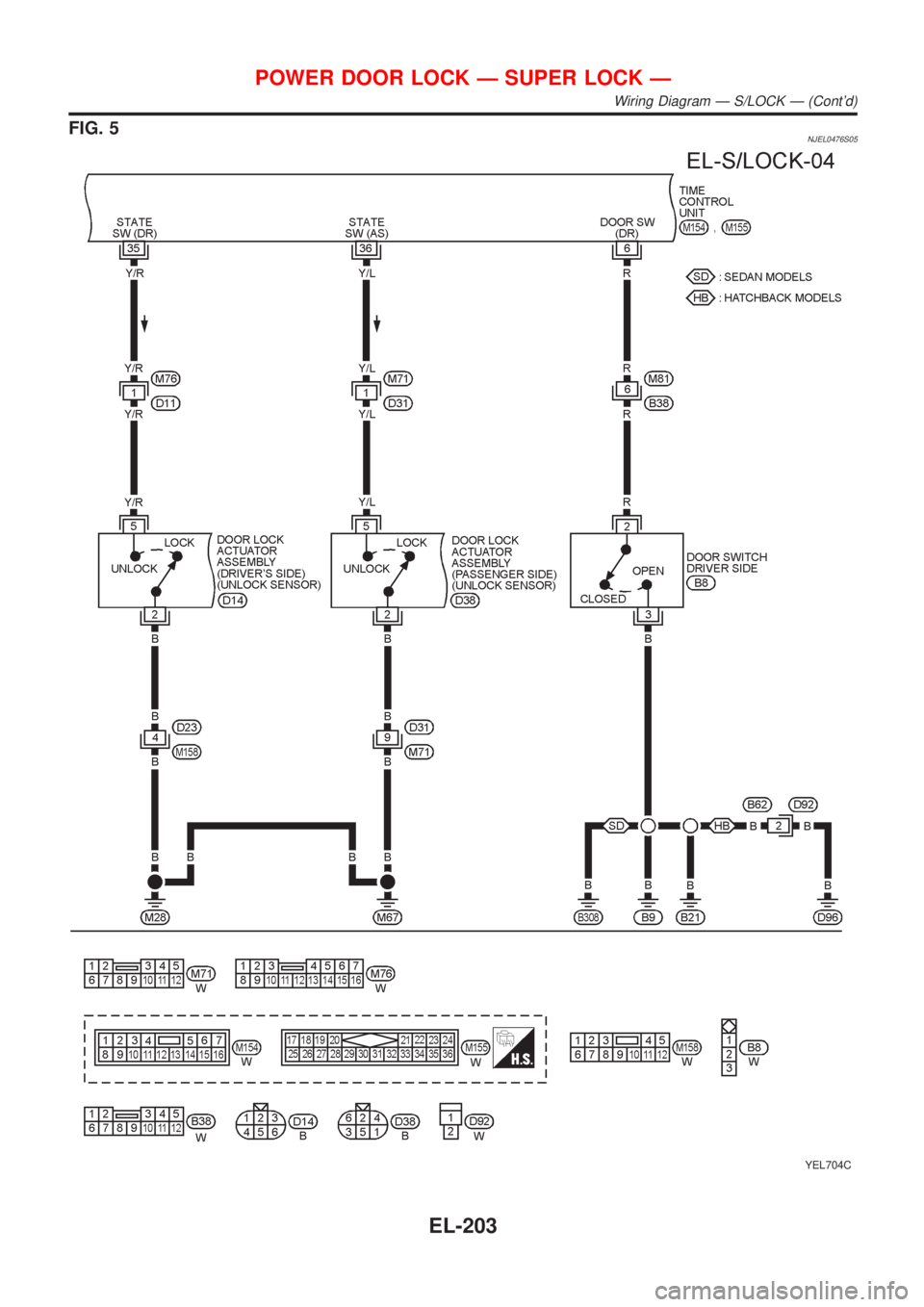

FIG. 4NJEL0476S04
YEL703C
POWER DOOR LOCK Ð SUPER LOCK Ð

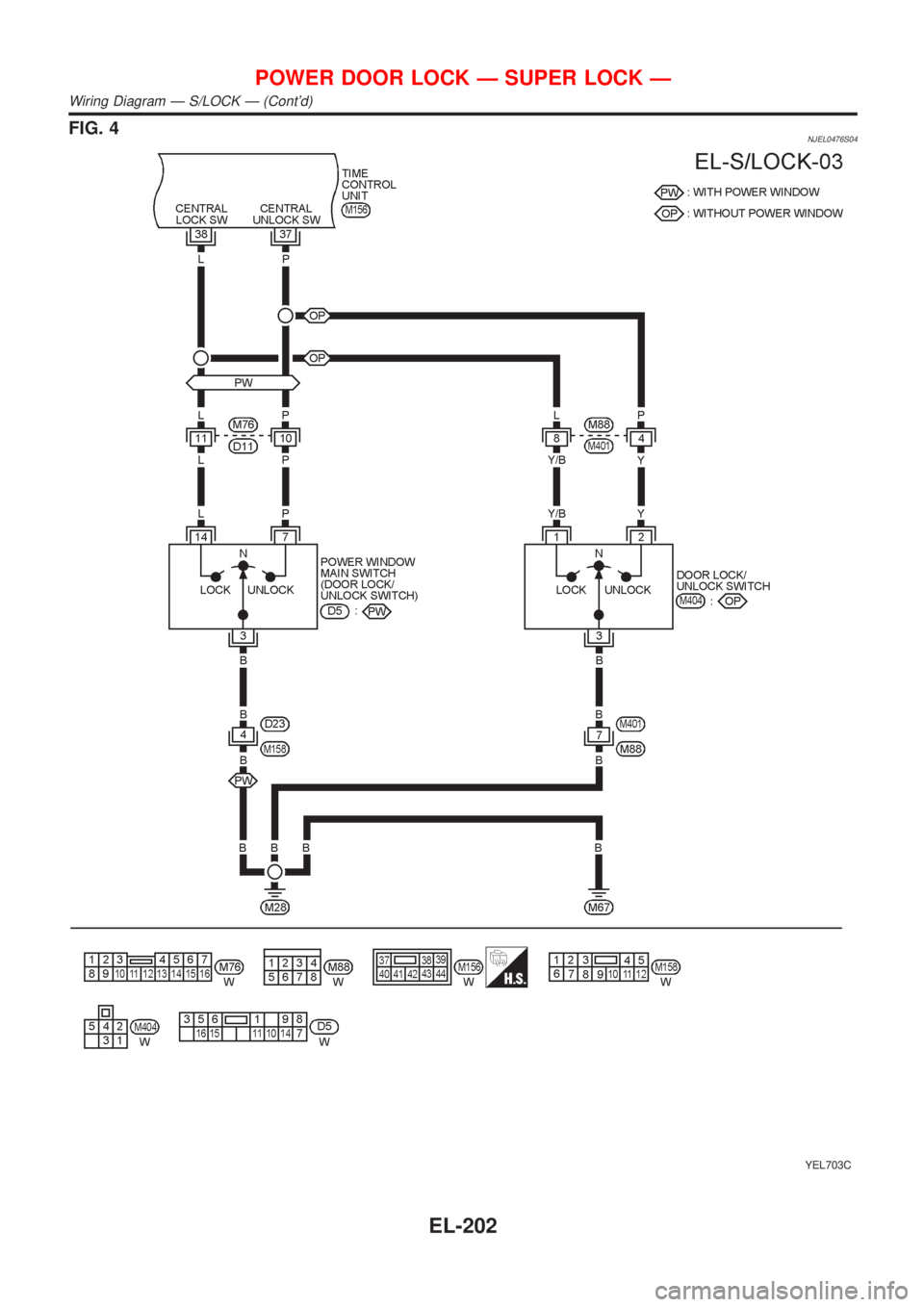

Wiring Diagram Ð S/LOCK Ð (Cont'd)
EL-202

FIG. 5NJEL0476S05
YEL704C
POWER DOOR LOCK Ð SUPER LOCK Ð
Wiring Diagram Ð S/LOCK Ð (Cont'd)
EL-203

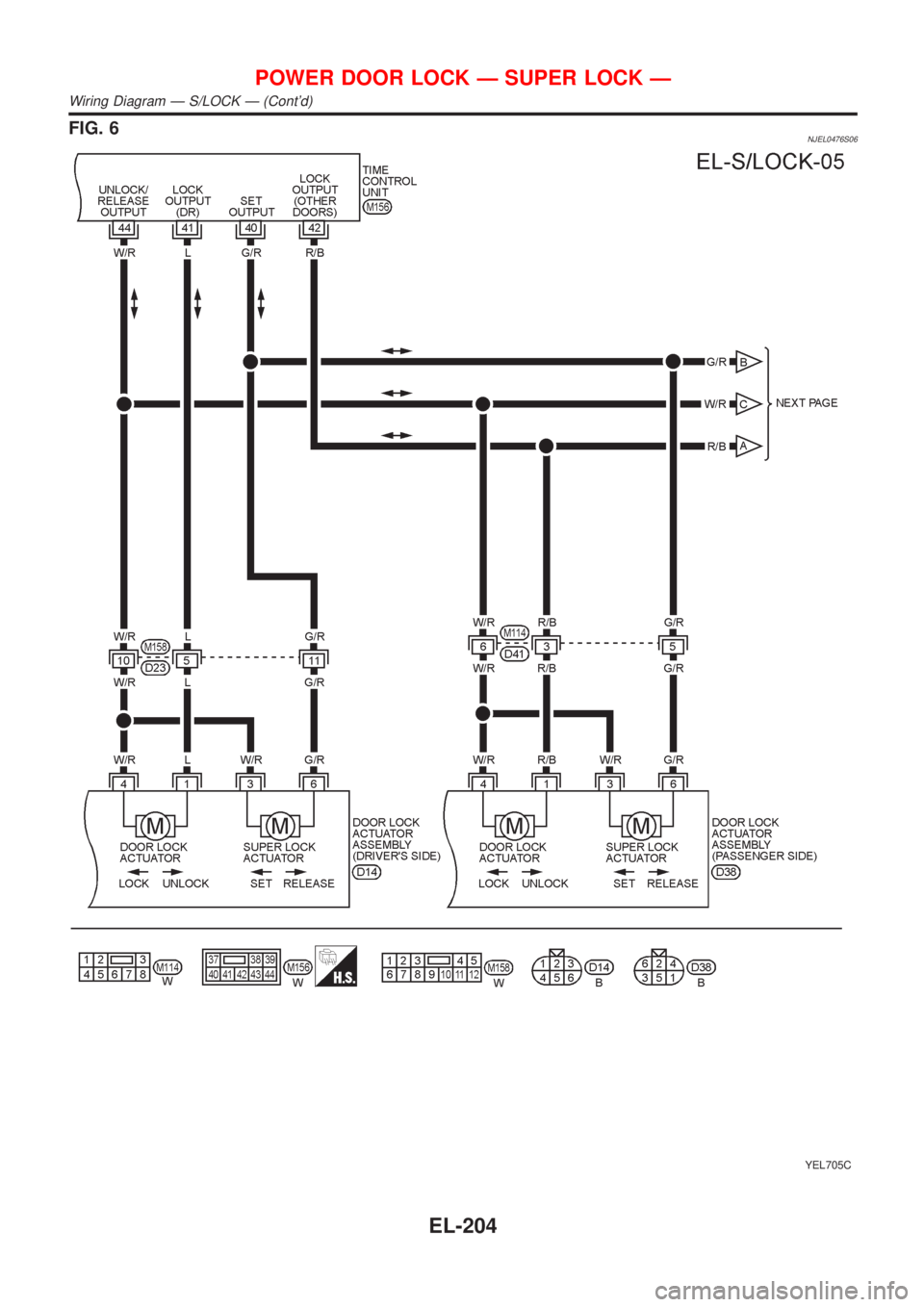

FIG. 6NJEL0476S06
YEL705C
POWER DOOR LOCK Ð SUPER LOCK Ð
Wiring Diagram Ð S/LOCK Ð (Cont'd)
EL-204

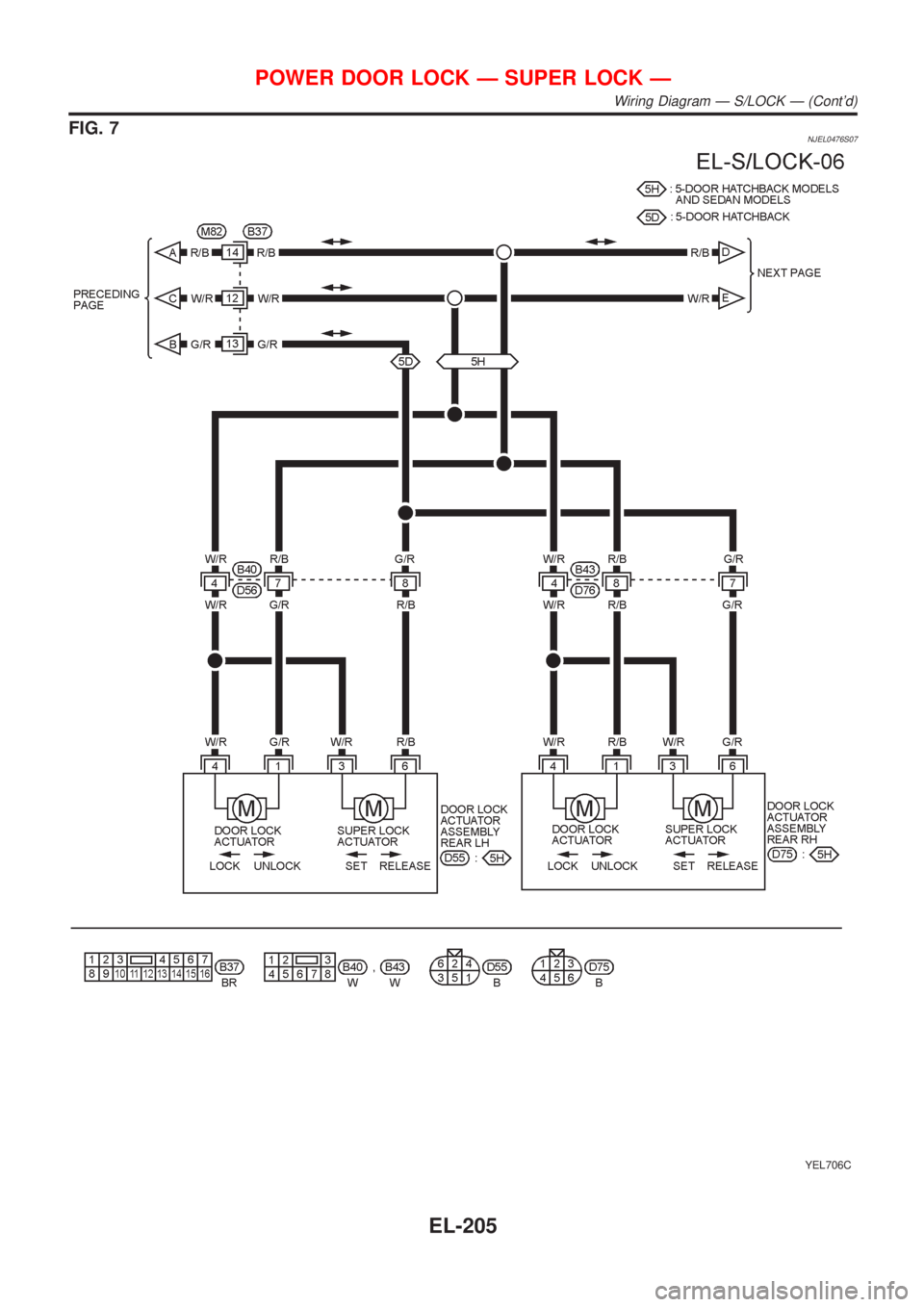

FIG. 7NJEL0476S07
YEL706C
POWER DOOR LOCK Ð SUPER LOCK Ð
Wiring Diagram Ð S/LOCK Ð (Cont'd)
EL-205

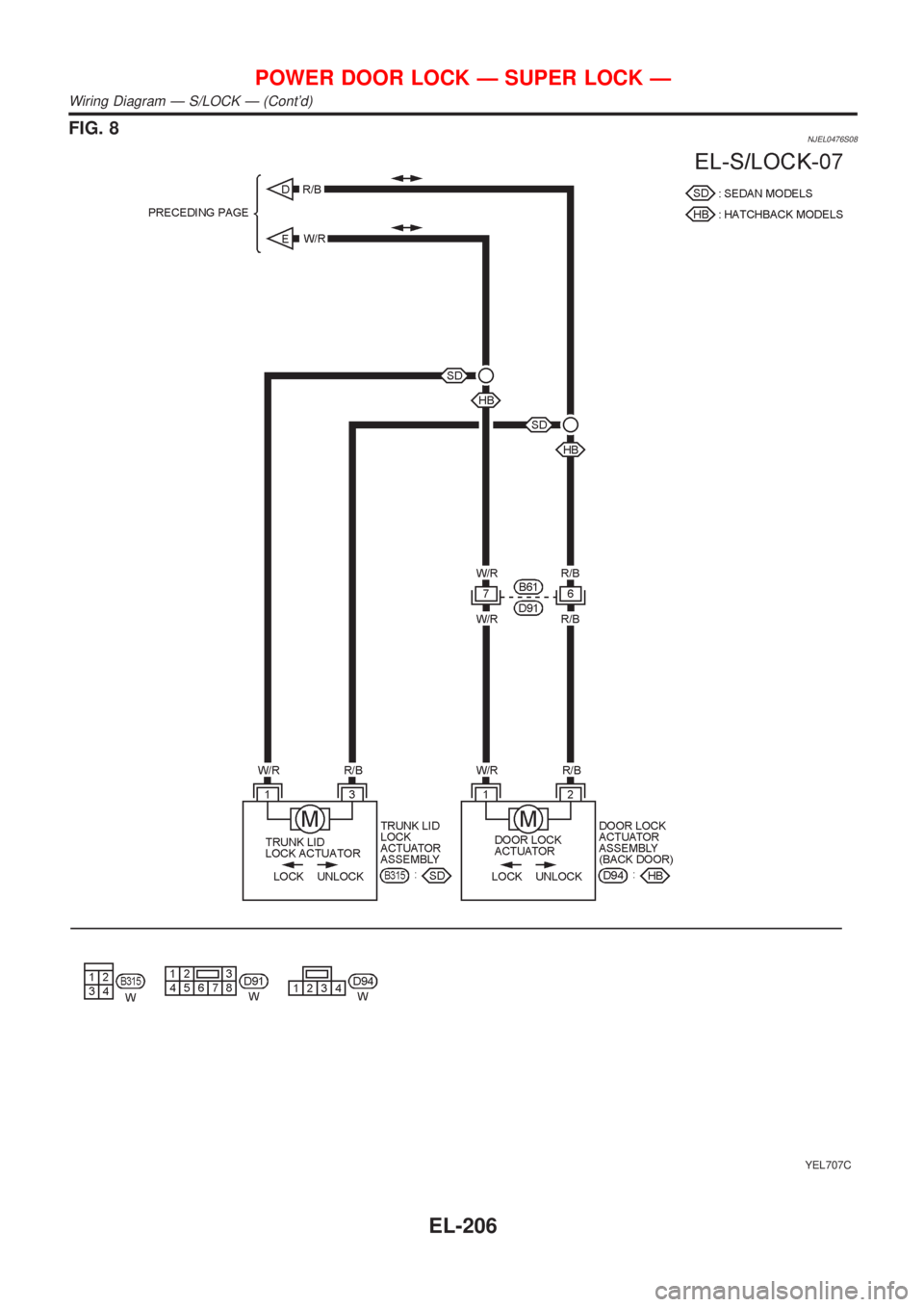

FIG. 8NJEL0476S08
YEL707C
POWER DOOR LOCK Ð SUPER LOCK Ð
Wiring Diagram Ð S/LOCK Ð (Cont'd)
EL-206

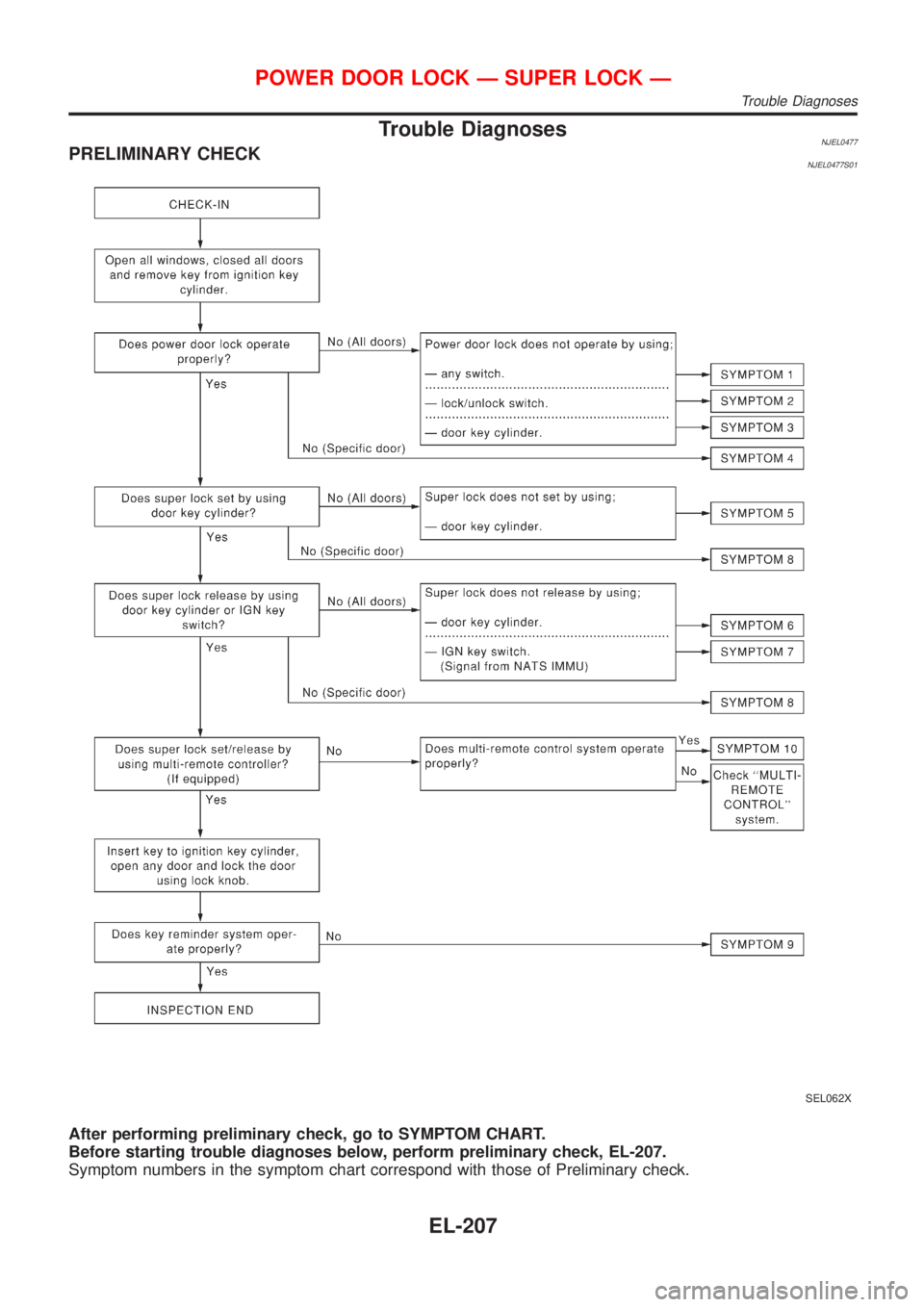

Trouble DiagnosesNJEL0477PRELIMINARY CHECKNJEL0477S01
SEL062X
After performing preliminary check, go to SYMPTOM CHART.
Before starting trouble diagnoses below, perform preliminary check, EL-207.
Symptom numbers in the symptom chart correspond with those of Preliminary check.
POWER DOOR LOCK Ð SUPER LOCK Ð
Trouble Diagnoses
EL-207

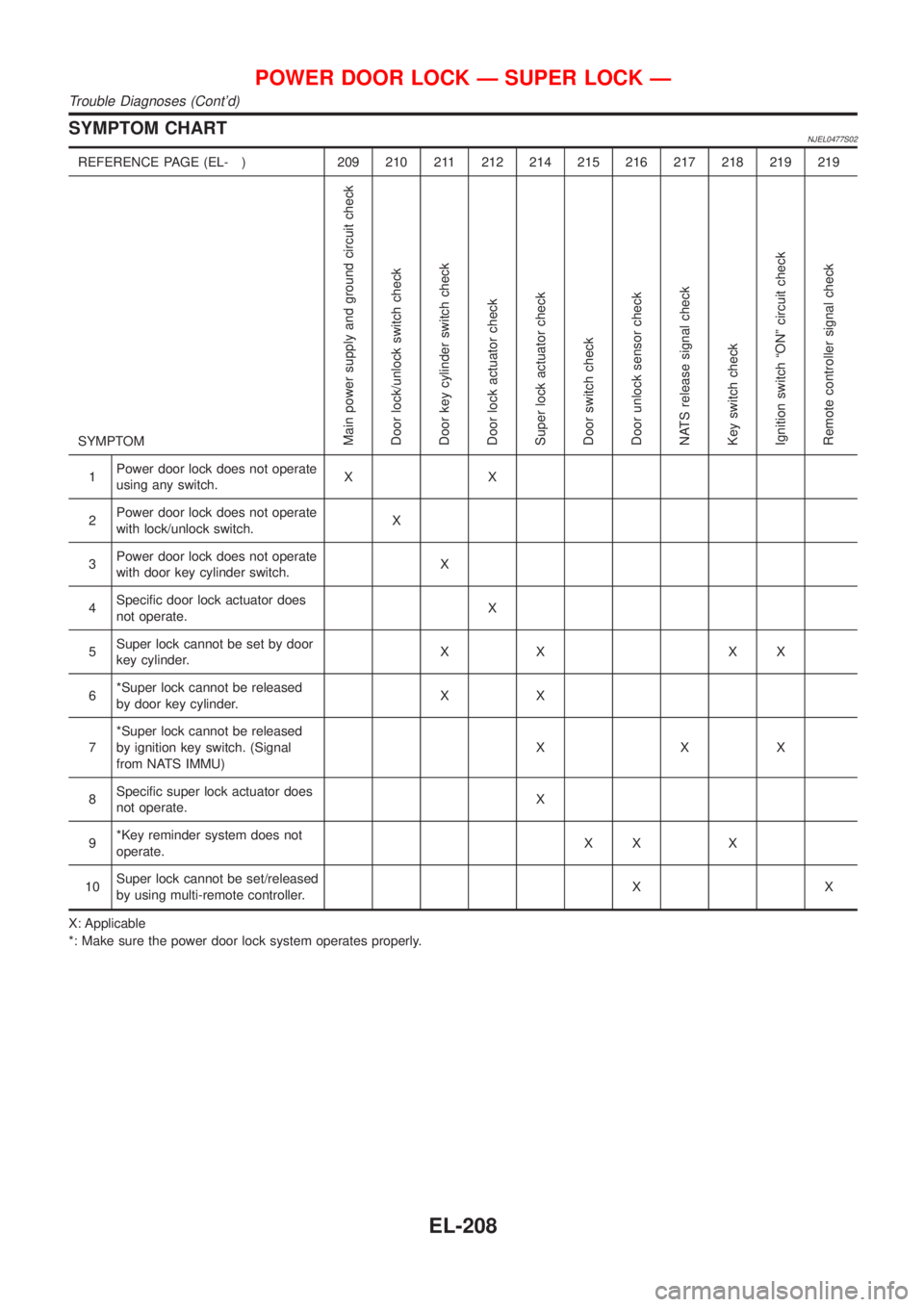

SYMPTOM CHARTNJEL0477S02
REFERENCE PAGE (EL- ) 209 210 211 212 214 215 216 217 218 219 219
SYMPTOM
Main power supply and ground circuit check
Door lock/unlock switch check
Door key cylinder switch check
Door lock actuator check
Super lock actuator check
Door switch check
Door unlock sensor check
NATS release signal check
Key switch check
Ignition switch ªONº circuit check
Remote controller signal check
1Power door lock does not operate
using any switch.XX
2Power door lock does not operate
with lock/unlock switch.X
3Power door lock does not operate
with door key cylinder switch.X
4Specific door lock actuator does
not operate.X
5Super lock cannot be set by door
key cylinder.XX XX
6*Super lock cannot be released
by door key cylinder.XX
7*Super lock cannot be released
by ignition key switch. (Signal
from NATS IMMU)XXX
8Specific super lock actuator does
not operate.X
9*Key reminder system does not
operate.XX X
10Super lock cannot be set/released
by using multi-remote controller.XX
X: Applicable
*: Make sure the power door lock system operates properly.
POWER DOOR LOCK Ð SUPER LOCK Ð
Trouble Diagnoses (Cont'd)
EL-208
