Page 2281 of 2493

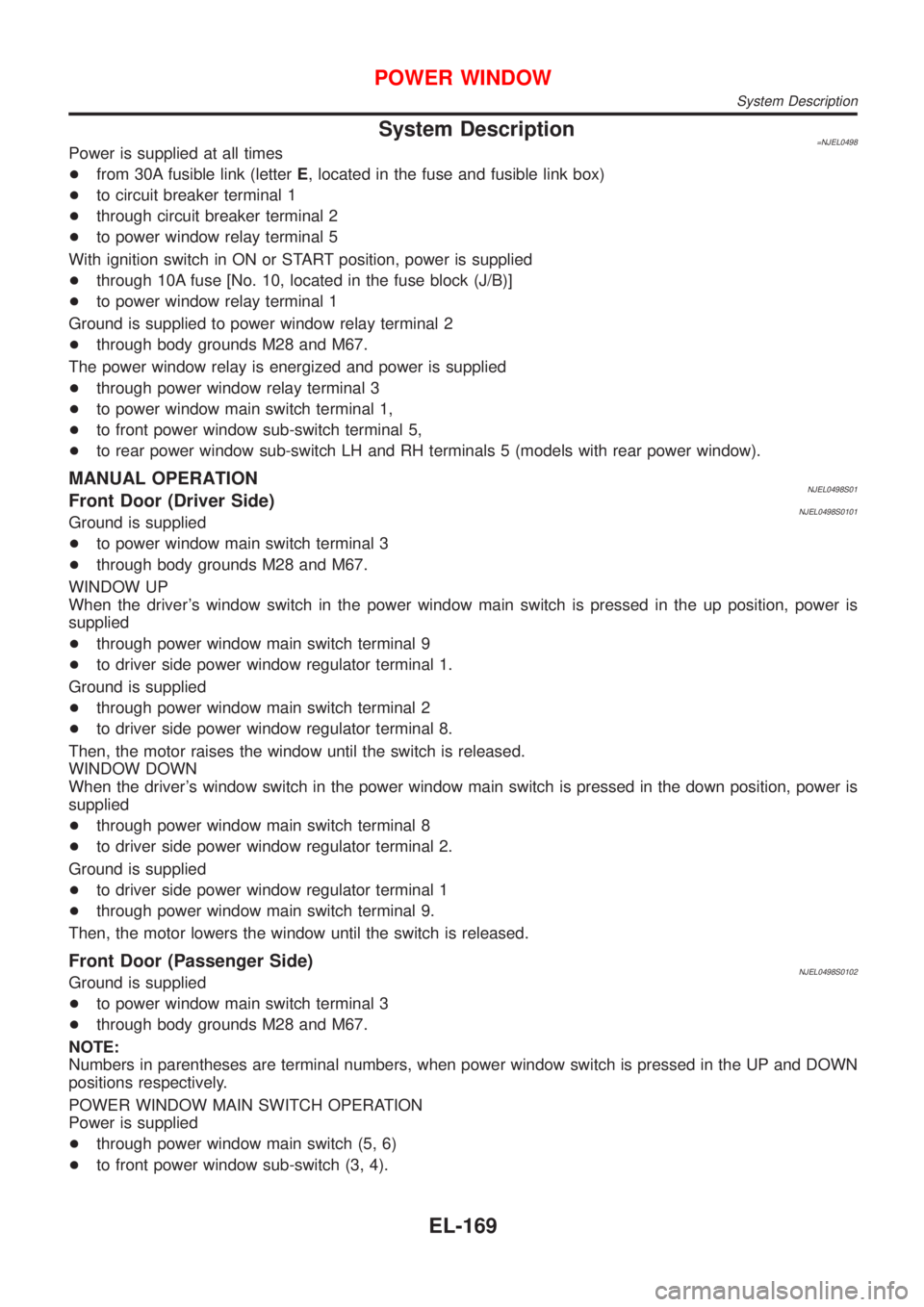

NISSAN ALMERA N16 2001  Electronic Repair Manual System Description=NJEL0498Power is supplied at all times
+from 30A fusible link (letterE, located in the fuse and fusible link box)
+to circuit breaker terminal 1
+through circuit breaker terminal 2

Page 2282 of 2493

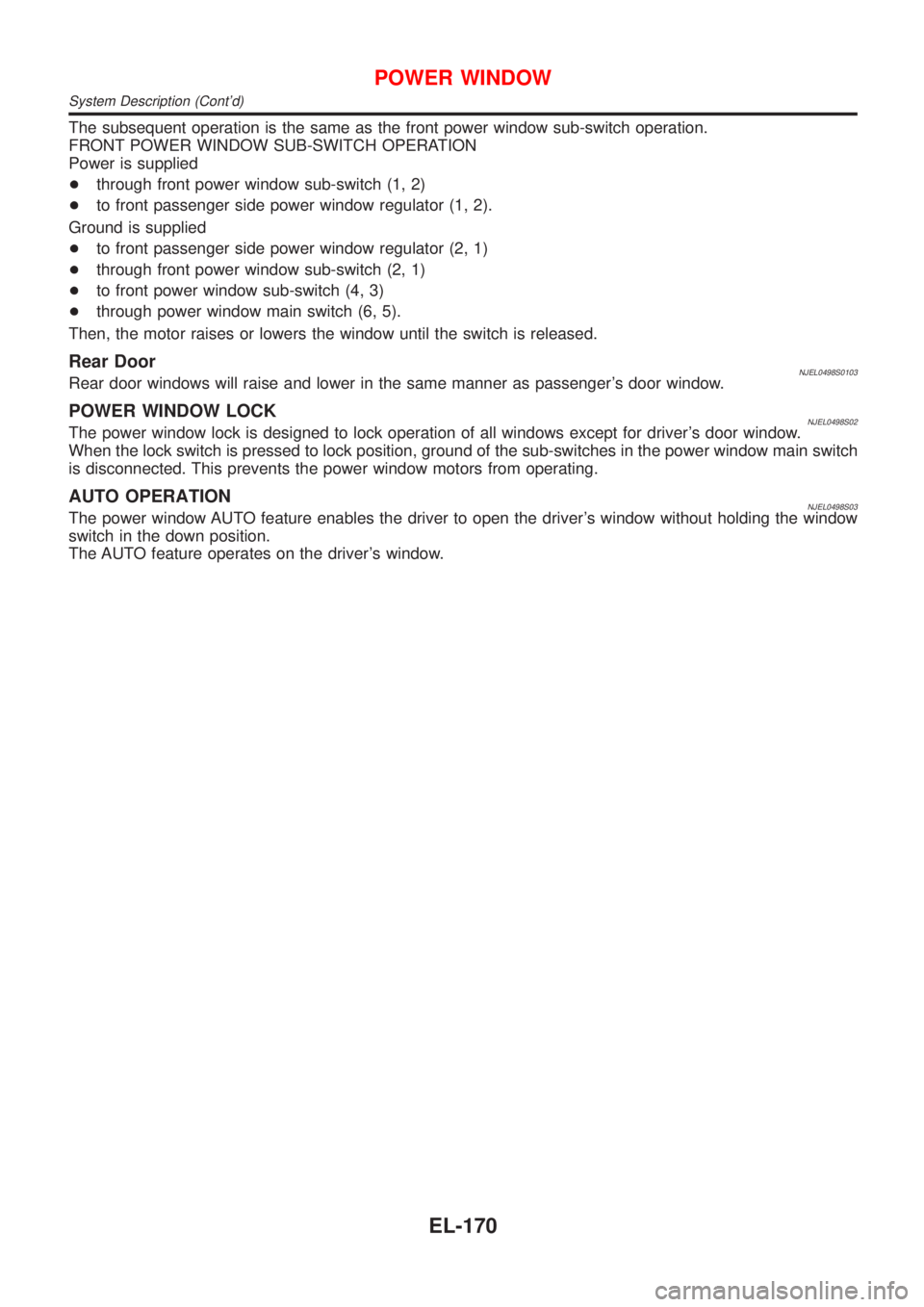

NISSAN ALMERA N16 2001  Electronic Repair Manual The subsequent operation is the same as the front power window sub-switch operation.
FRONT POWER WINDOW SUB-SWITCH OPERATION
Power is supplied
+through front power window sub-switch (1, 2)
+to front p

Page 2283 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual SchematicNJEL0499
MEL916L
POWER WINDOW
Schematic
EL-171

Page 2284 of 2493

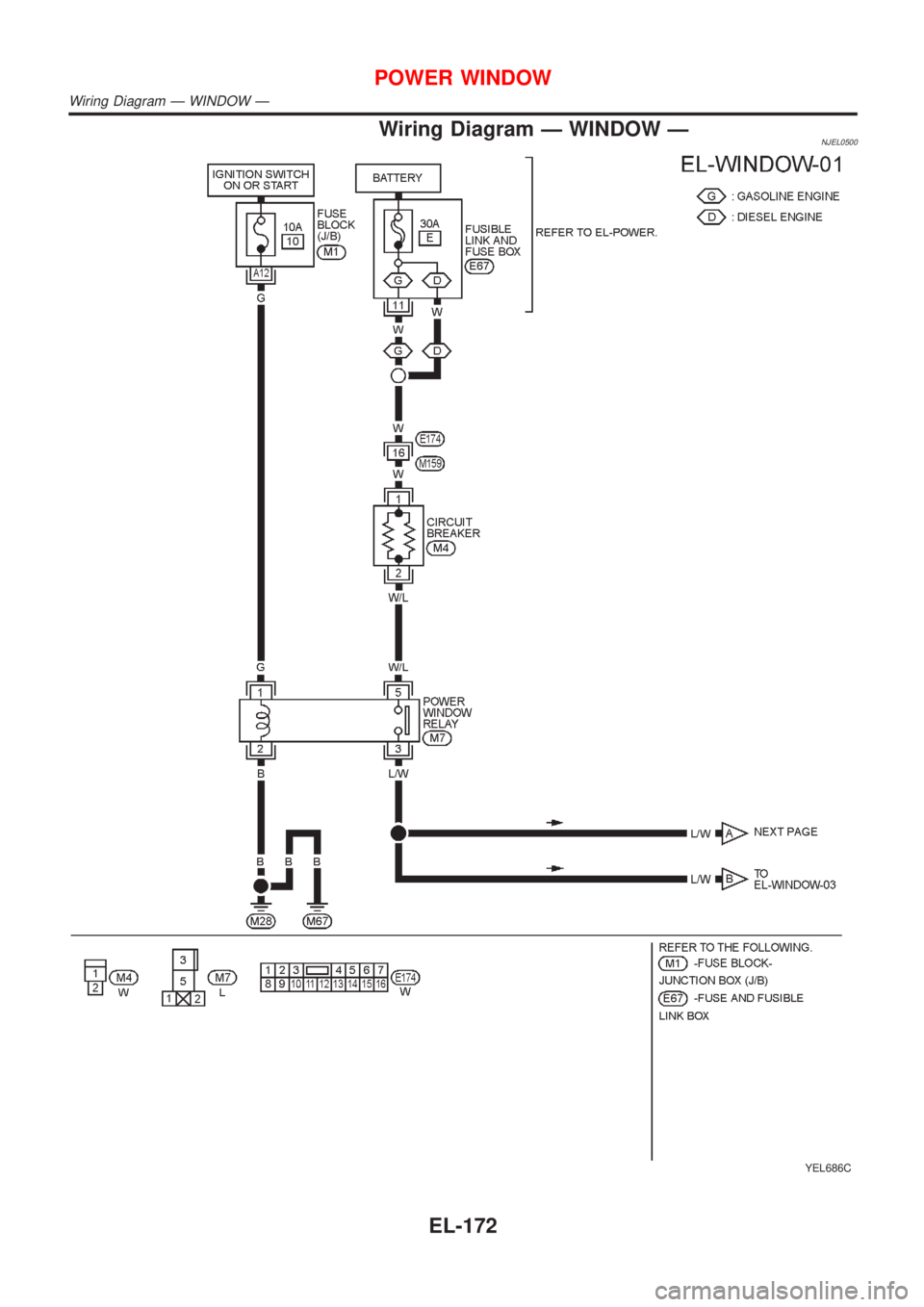

NISSAN ALMERA N16 2001  Electronic Repair Manual Wiring Diagram Ð WINDOW ÐNJEL0500
YEL686C
POWER WINDOW
Wiring Diagram Ð WINDOW Ð
EL-172

Page 2285 of 2493

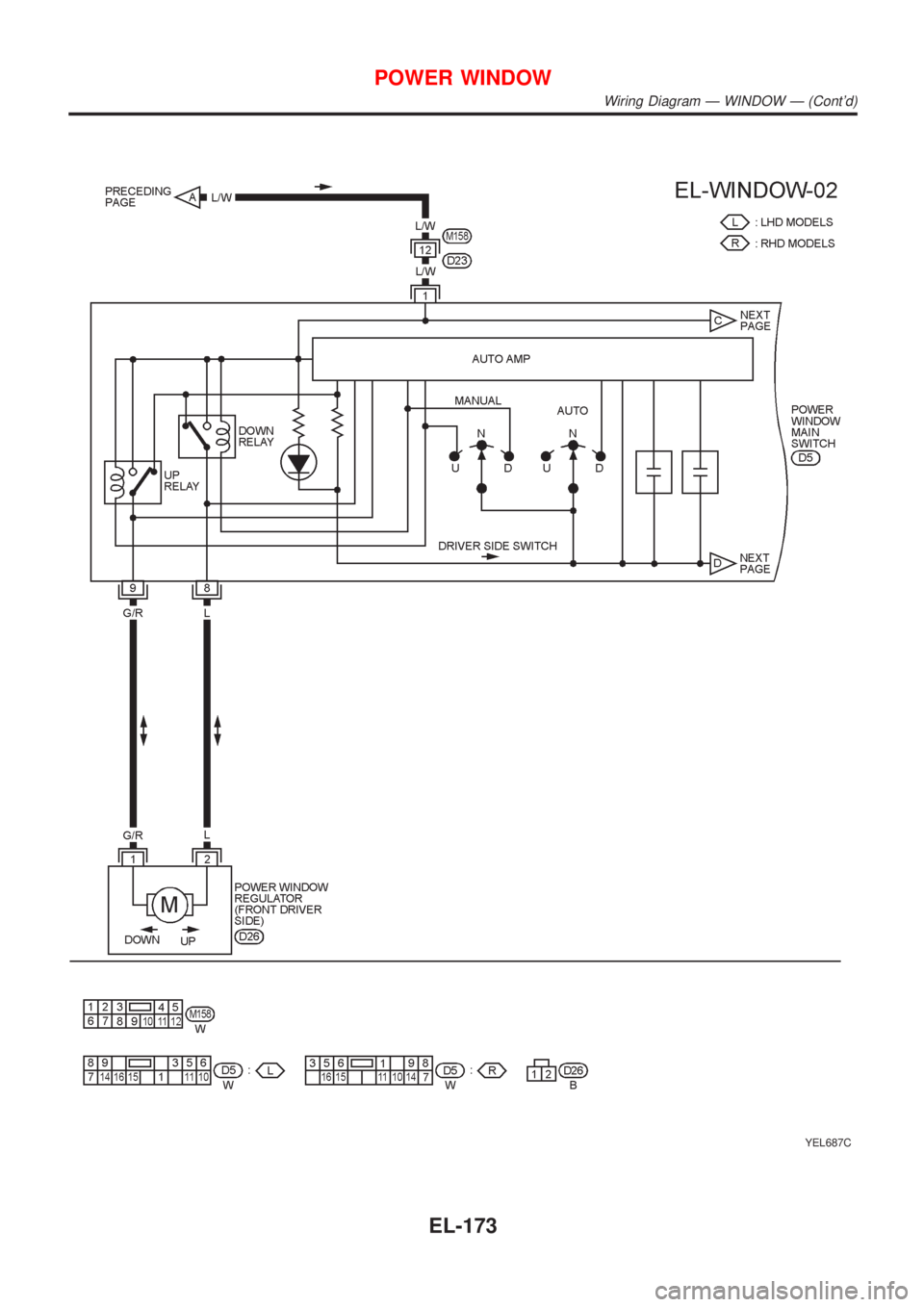

NISSAN ALMERA N16 2001  Electronic Repair Manual YEL687C
POWER WINDOW
Wiring Diagram Ð WINDOW Ð (Contd)
EL-173

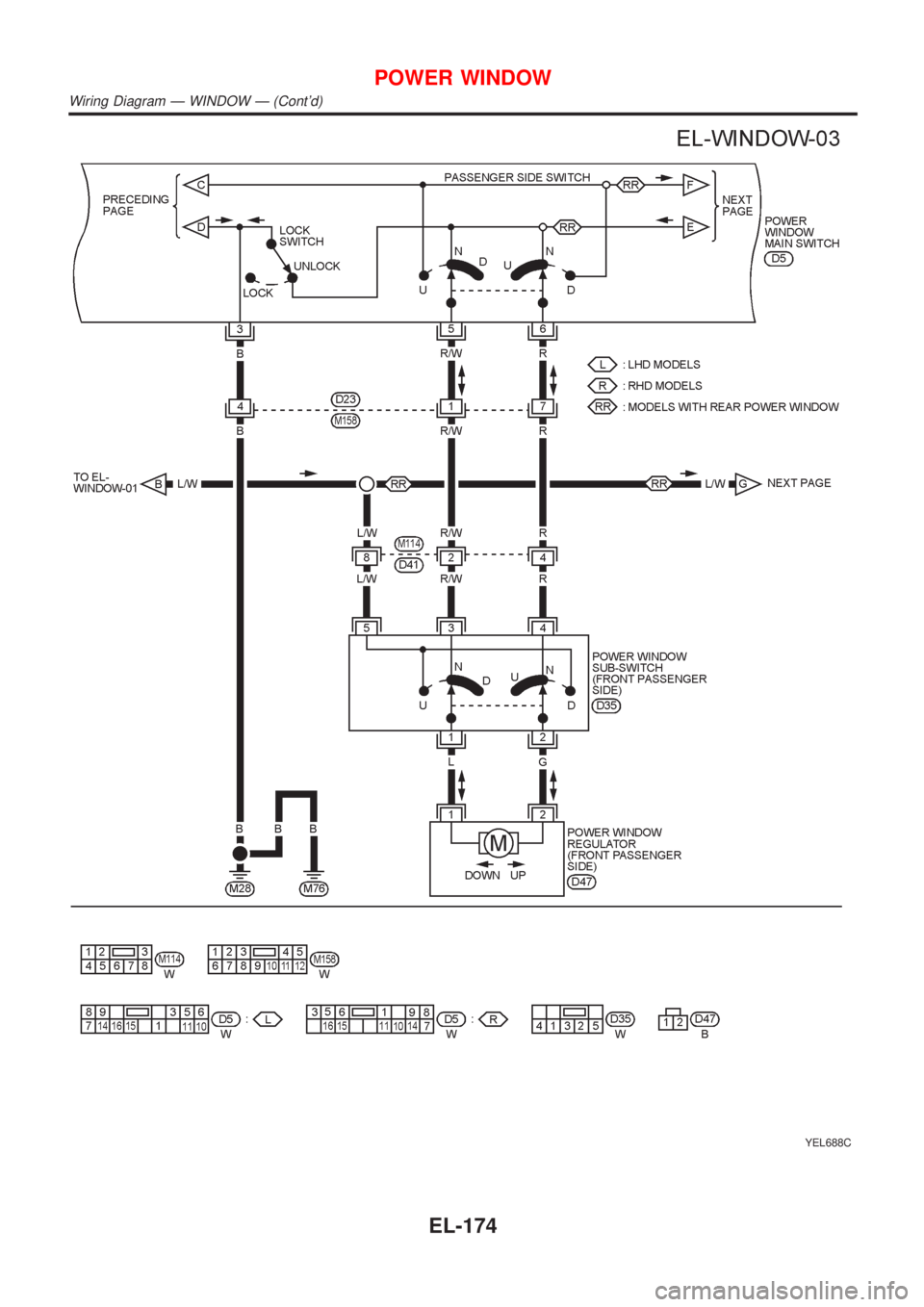

Page 2286 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual YEL688C
POWER WINDOW
Wiring Diagram Ð WINDOW Ð (Contd)
EL-174

Page 2287 of 2493

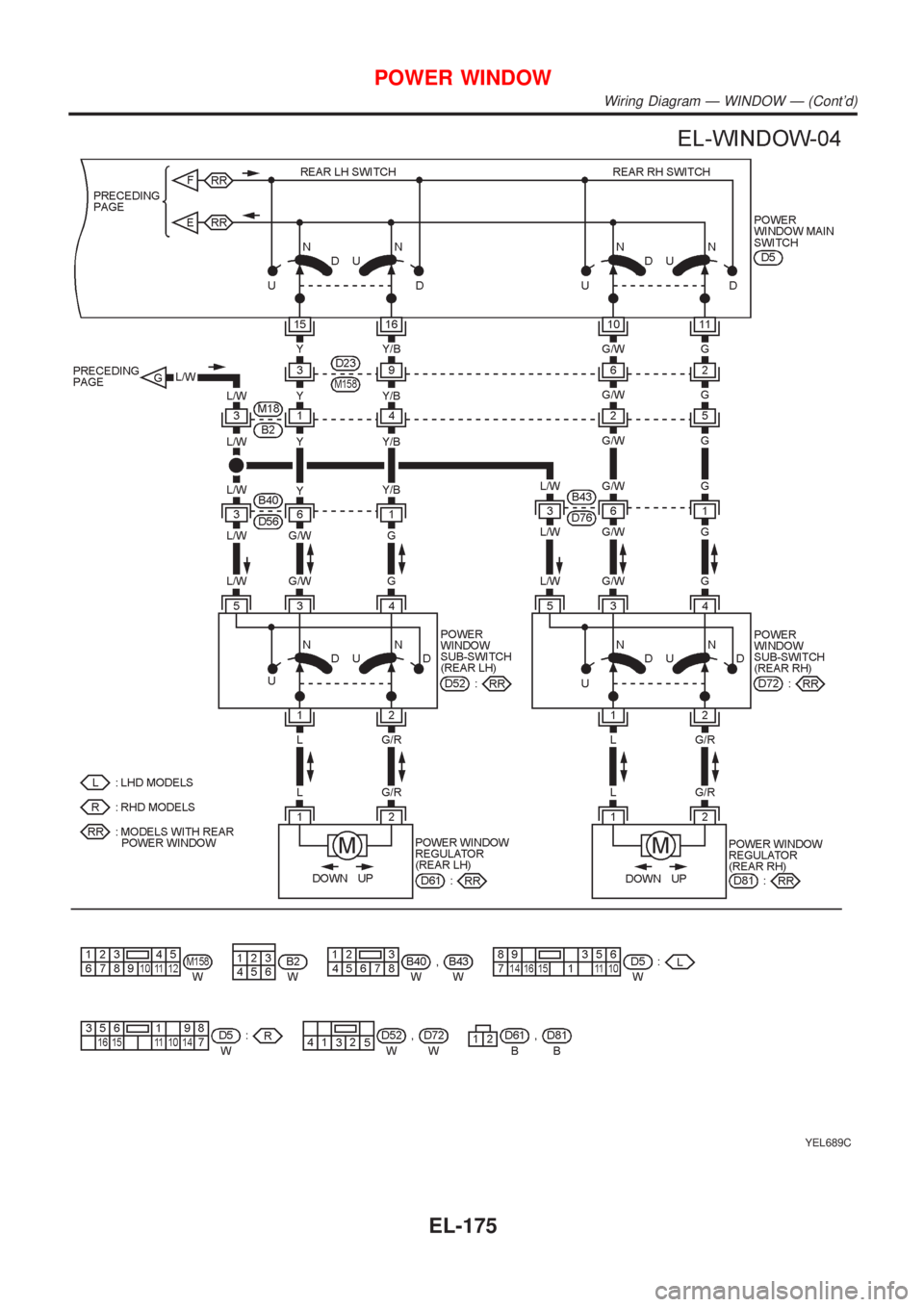

NISSAN ALMERA N16 2001  Electronic Repair Manual YEL689C
POWER WINDOW
Wiring Diagram Ð WINDOW Ð (Contd)
EL-175

Page 2288 of 2493

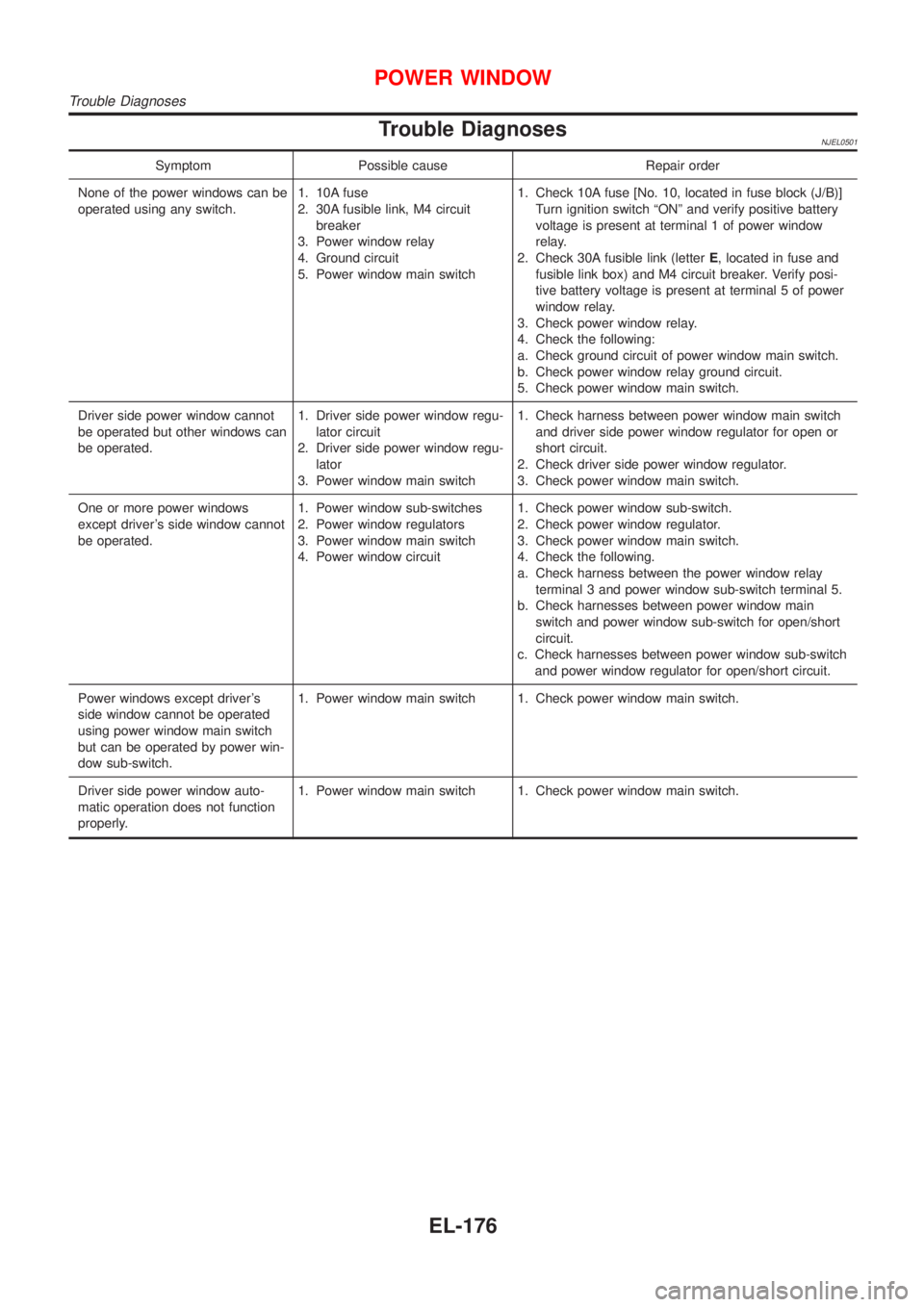

NISSAN ALMERA N16 2001  Electronic Repair Manual Trouble DiagnosesNJEL0501
Symptom Possible cause Repair order
None of the power windows can be
operated using any switch.1. 10A fuse
2. 30A fusible link, M4 circuit
breaker
3. Power window relay
4. Gr

Page 2289 of 2493

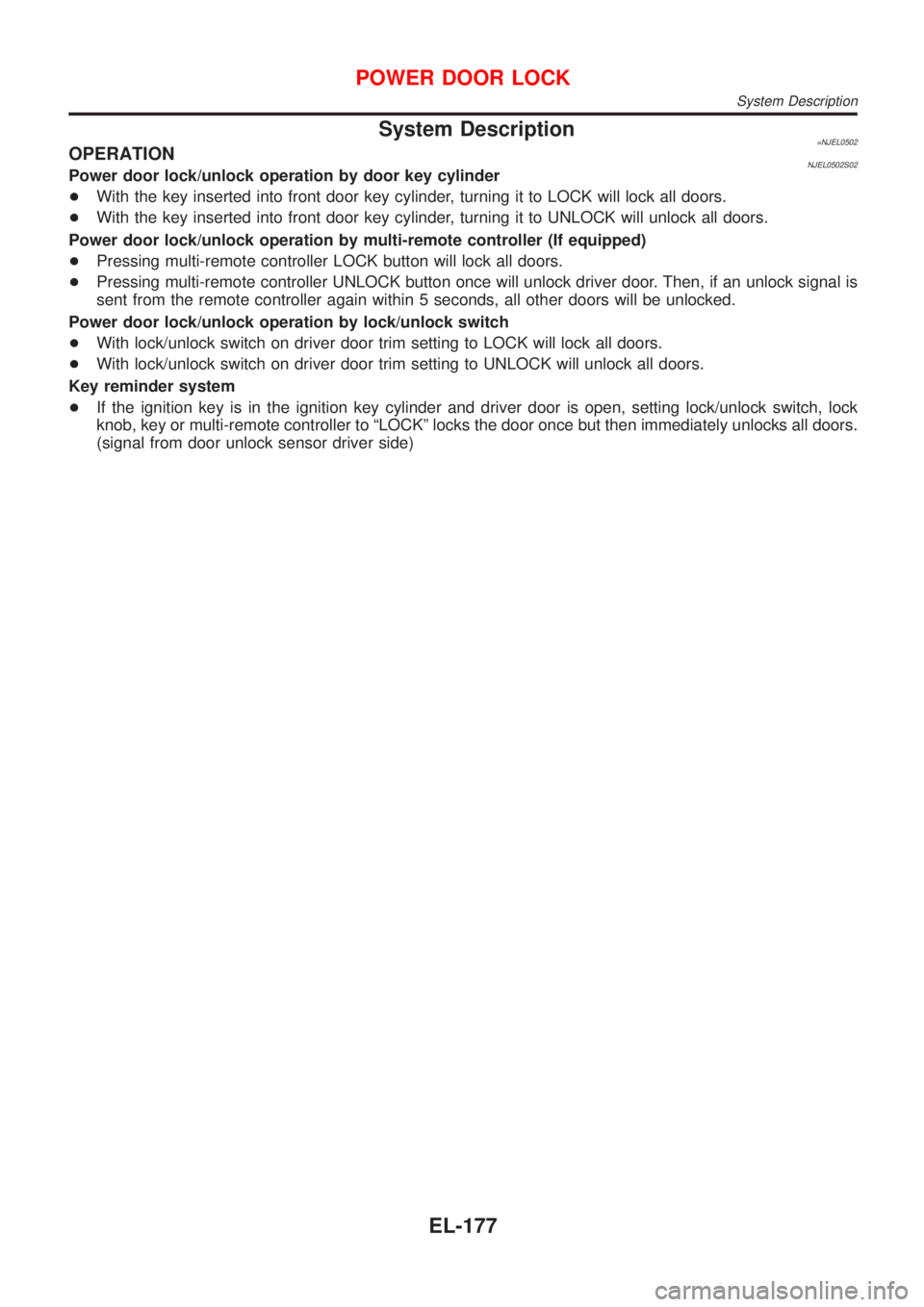

NISSAN ALMERA N16 2001  Electronic Repair Manual System Description=NJEL0502OPERATIONNJEL0502S02Power door lock/unlock operation by door key cylinder
+With the key inserted into front door key cylinder, turning it to LOCK will lock all doors.
+With

Page 2290 of 2493

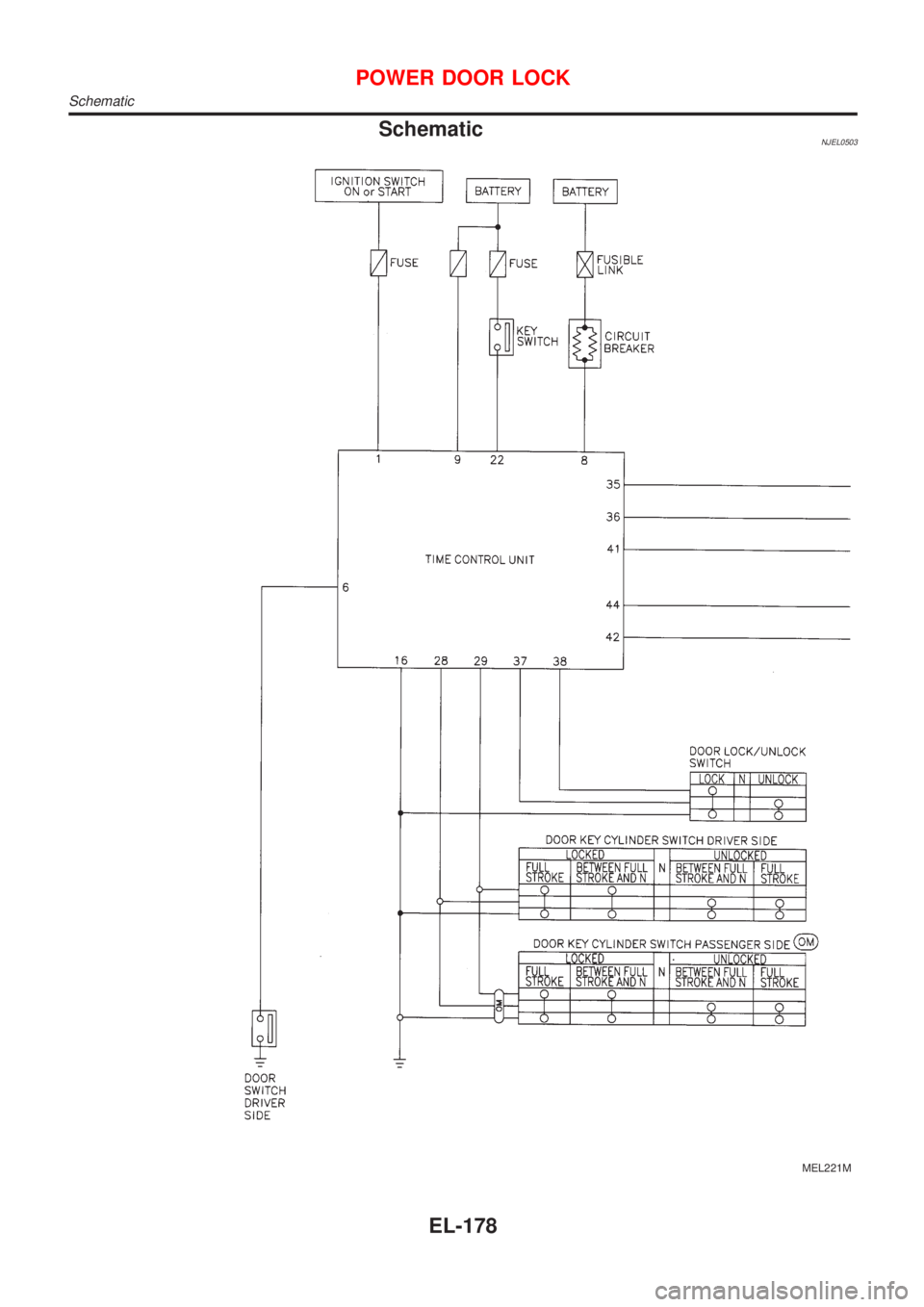

NISSAN ALMERA N16 2001  Electronic Repair Manual SchematicNJEL0503
MEL221M
POWER DOOR LOCK
Schematic
EL-178
