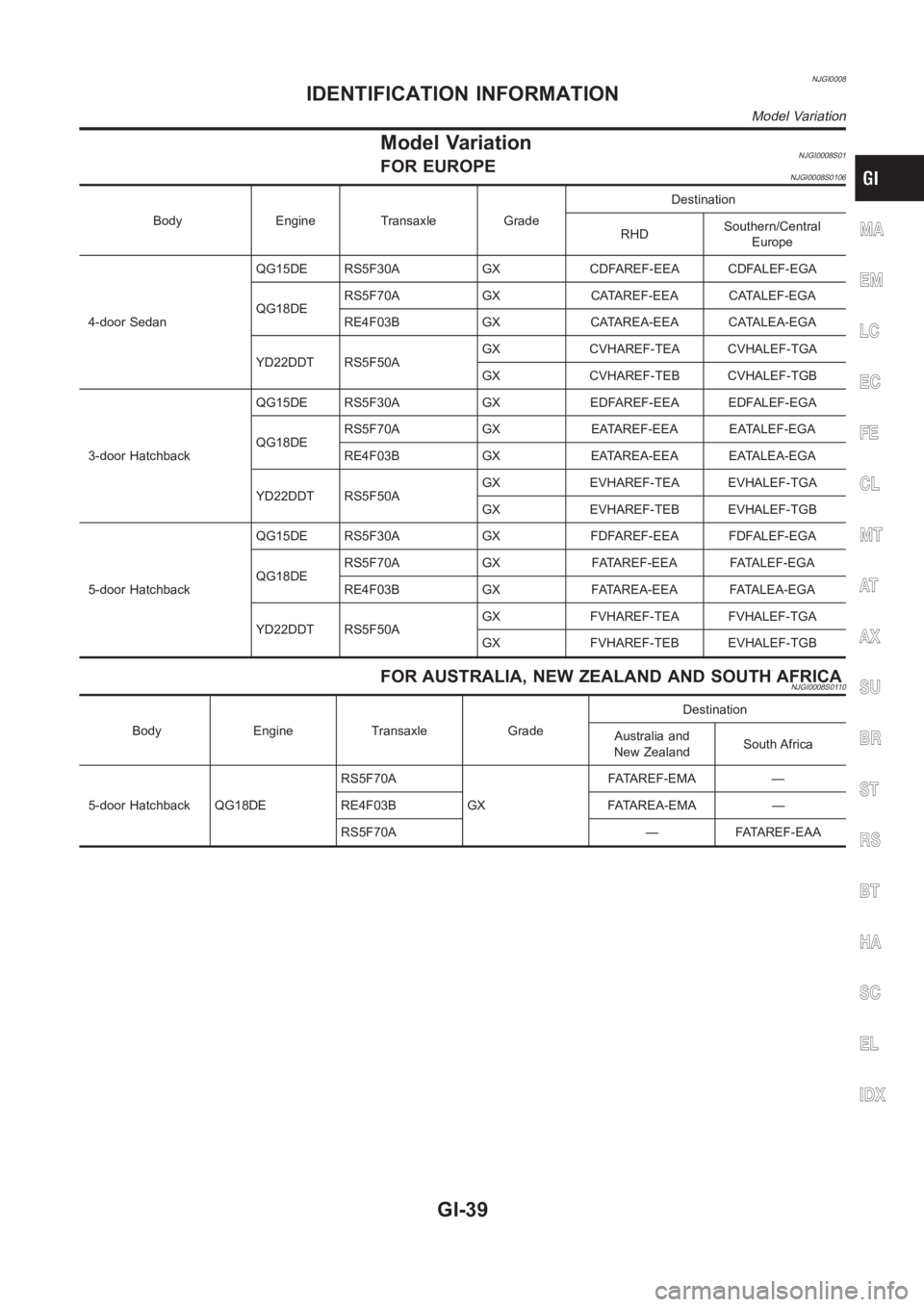

Model VariationNJGI0008S01FOR EUROPENJGI0008S0106
Body Engine Transaxle GradeDestination
RHDSouthern/Central
Europe
4-door SedanQG15DE RS5F30A GX CDFAREF-EEA CDFALEF-EGA
QG18DERS5F70A GX CATAREF-EEA CATALEF-EGA
RE4F03B GX CATAREA-EEA CATALEA-EGA
YD22DDT RS5F50AGX CVHAREF-TEA CVHALEF-TGA
GX CVHAREF-TEB CVHALEF-TGB
3-door HatchbackQG15DE RS5F30A GX EDFAREF-EEA EDFALEF-EGA
QG18DERS5F70A GX EATAREF-EEA EATALEF-EGA
RE4F03B GX EATAREA-EEA EATALEA-EGA
YD22DDT RS5F50AGX EVHAREF-TEA EVHALEF-TGA
GX EVHAREF-TEB EVHALEF-TGB
5-door HatchbackQG15DE RS5F30A GX FDFAREF-EEA FDFALEF-EGA
QG18DERS5F70A GX FATAREF-EEA FATALEF-EGA
RE4F03B GX FATAREA-EEA FATALEA-EGA
YD22DDT RS5F50AGX FVHAREF-TEA FVHALEF-TGA
GX FVHAREF-TEB EVHALEF-TGB
FOR AUSTRALIA, NEW ZEALAND AND SOUTH AFRICANJGI0008S0110
Body Engine Transaxle GradeDestination
Australia and
New ZealandSouth Africa
5-door Hatchback QG18DERS5F70A
GXFATAREF-EMA —
RE4F03B FATAREA-EMA —
RS5F70A — FATAREF-EAA
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
IDENTIFICATION INFORMATION
Model Variation
GI-39
Page 42 of 3189
PREFIX AND SUFFIX DESIGNATIONSNJGI0008S0112
YGI005
Identification NumberNJGI0008S02
SGI135A
IDENTIFICATION INFORMATION
Model Variation (Cont’d)
GI-40
Page 43 of 3189
VEHICLE IDENTIFICATION NUMBER ARRANGEMENTNJGI0008S0201
YGI003
IDENTIFICATION PLATENJGI0008S0202
NGI011
IDENTIFICATION INFORMATION
Identification Number (Cont’d)
GI-41
Page 44 of 3189
SGI117A
SGI118A
ENGINE SERIAL NUMBERNJGI0008S0203
SGI113A
AUTOMATIC TRANSAXLE NUMBERNJGI0008S0204
IDENTIFICATION INFORMATION
Identification Number (Cont’d)
GI-42
Page 45 of 3189
SGI114A
SGI115A
SGI116A

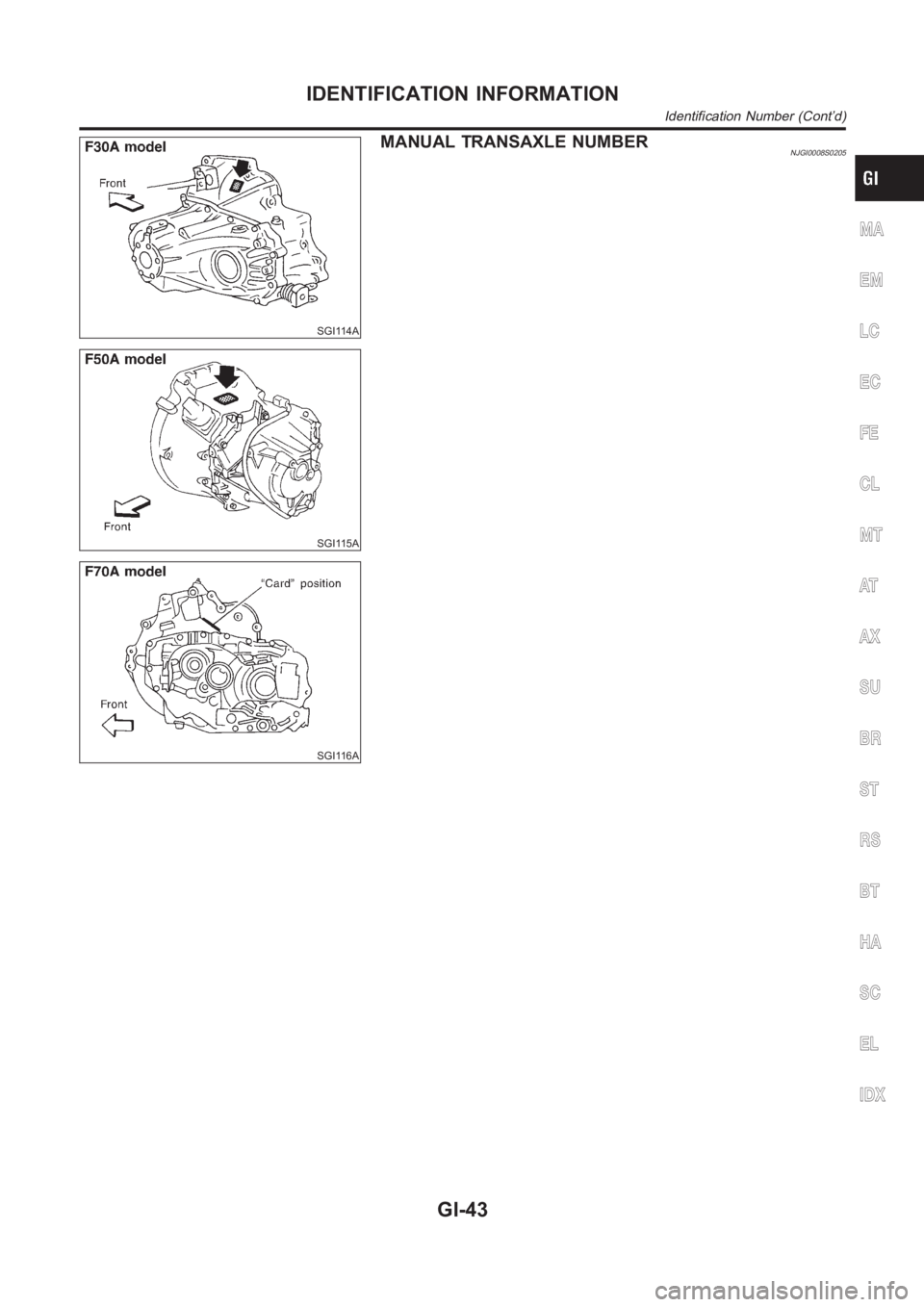

MANUAL TRANSAXLE NUMBERNJGI0008S0205
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
IDENTIFICATION INFORMATION
Identification Number (Cont’d)
GI-43
Page 46 of 3189

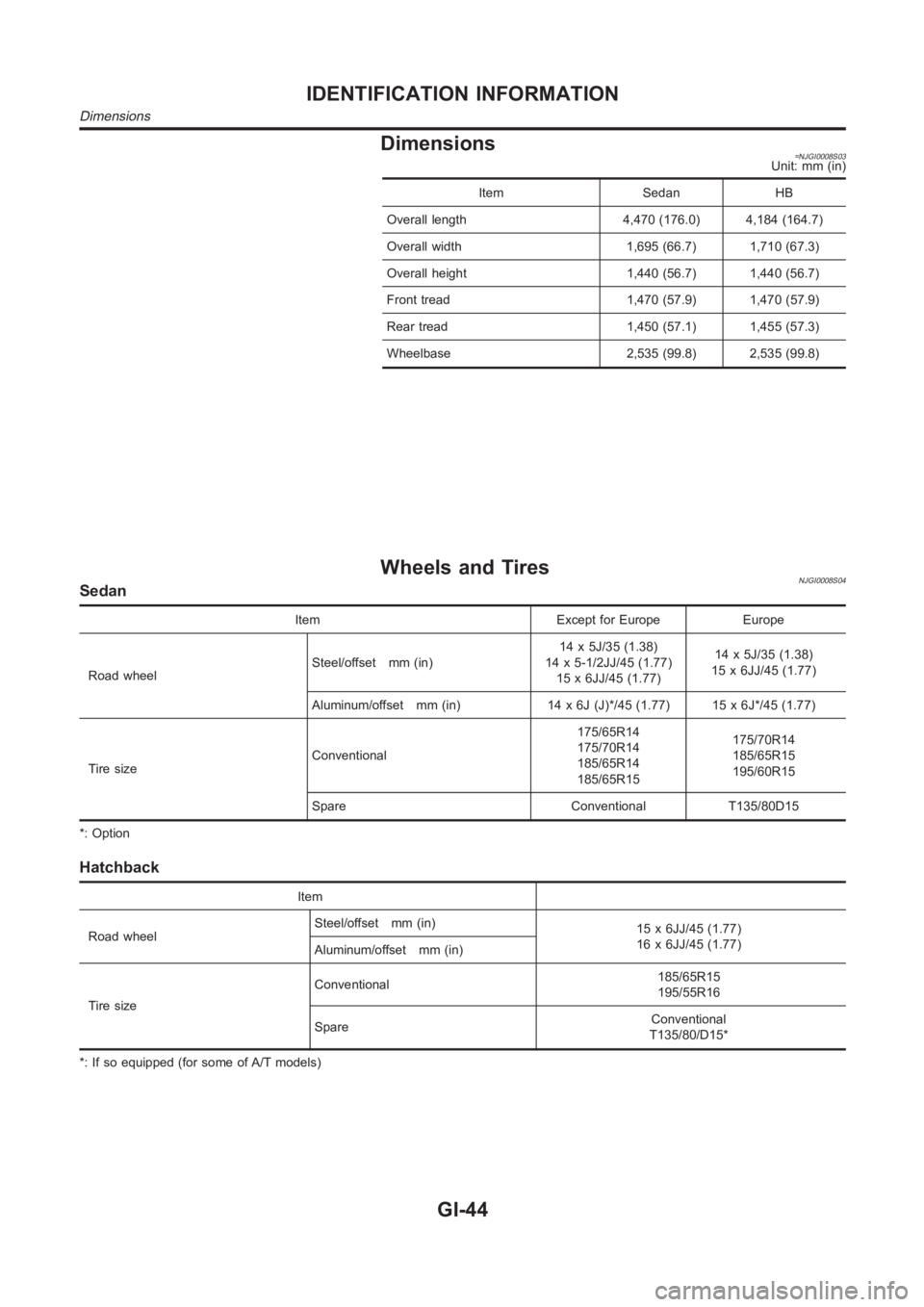

Dimensions=NJGI0008S03Unit: mm (in)
Item Sedan HB
Overall length 4,470 (176.0) 4,184 (164.7)
Overall width 1,695 (66.7) 1,710 (67.3)
Overall height 1,440 (56.7) 1,440 (56.7)
Front tread 1,470 (57.9) 1,470 (57.9)
Rear tread 1,450 (57.1) 1,455 (57.3)
Wheelbase 2,535 (99.8) 2,535 (99.8)
Wheels and TiresNJGI0008S04Sedan
Item Except for Europe Europe
Road wheelSteel/offset mm (in)14 x 5J/35 (1.38)
14 x 5-1/2JJ/45 (1.77)
15 x 6JJ/45 (1.77)14 x 5J/35 (1.38)
15 x 6JJ/45 (1.77)
Aluminum/offset mm (in) 14 x 6J (J)*/45 (1.77) 15 x 6J*/45 (1.77)
Tire sizeConventional175/65R14
175/70R14
185/65R14
185/65R15175/70R14
185/65R15
195/60R15
Spare Conventional T135/80D15
*: Option
Hatchback
Item
Road wheelSteel/offset mm (in)
15 x 6JJ/45 (1.77)
16 x 6JJ/45 (1.77)
Aluminum/offset mm (in)
Tire sizeConventional185/65R15
195/55R16
SpareConventional
T135/80/D15*
*: If so equipped (for some of A/T models)
IDENTIFICATION INFORMATION
Dimensions
GI-44
Page 47 of 3189
NJGI0009

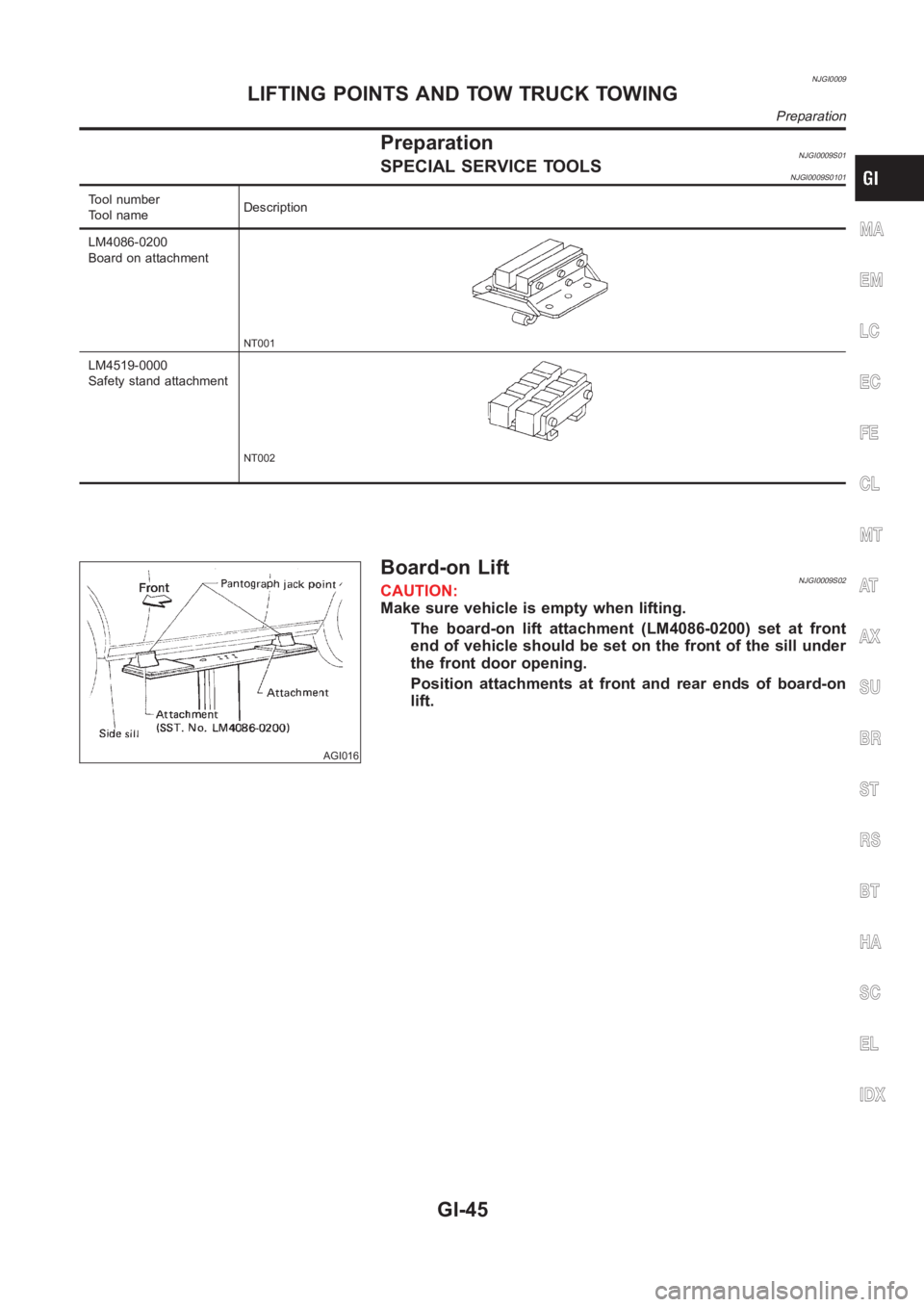

PreparationNJGI0009S01SPECIAL SERVICE TOOLSNJGI0009S0101
Tool number
Tool nameDescription
LM4086-0200
Board on attachment
NT001
LM4519-0000
Safety stand attachment
NT002
AGI016
Board-on LiftNJGI0009S02CAUTION:
Make sure vehicle is empty when lifting.
The board-on lift attachment (LM4086-0200) set at front
end of vehicle should be set on the front of the sill under
the front door opening.
Position attachments at front and rear ends of board-on
lift.
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
LIFTING POINTS AND TOW TRUCK TOWING
Preparation
GI-45
Page 48 of 3189

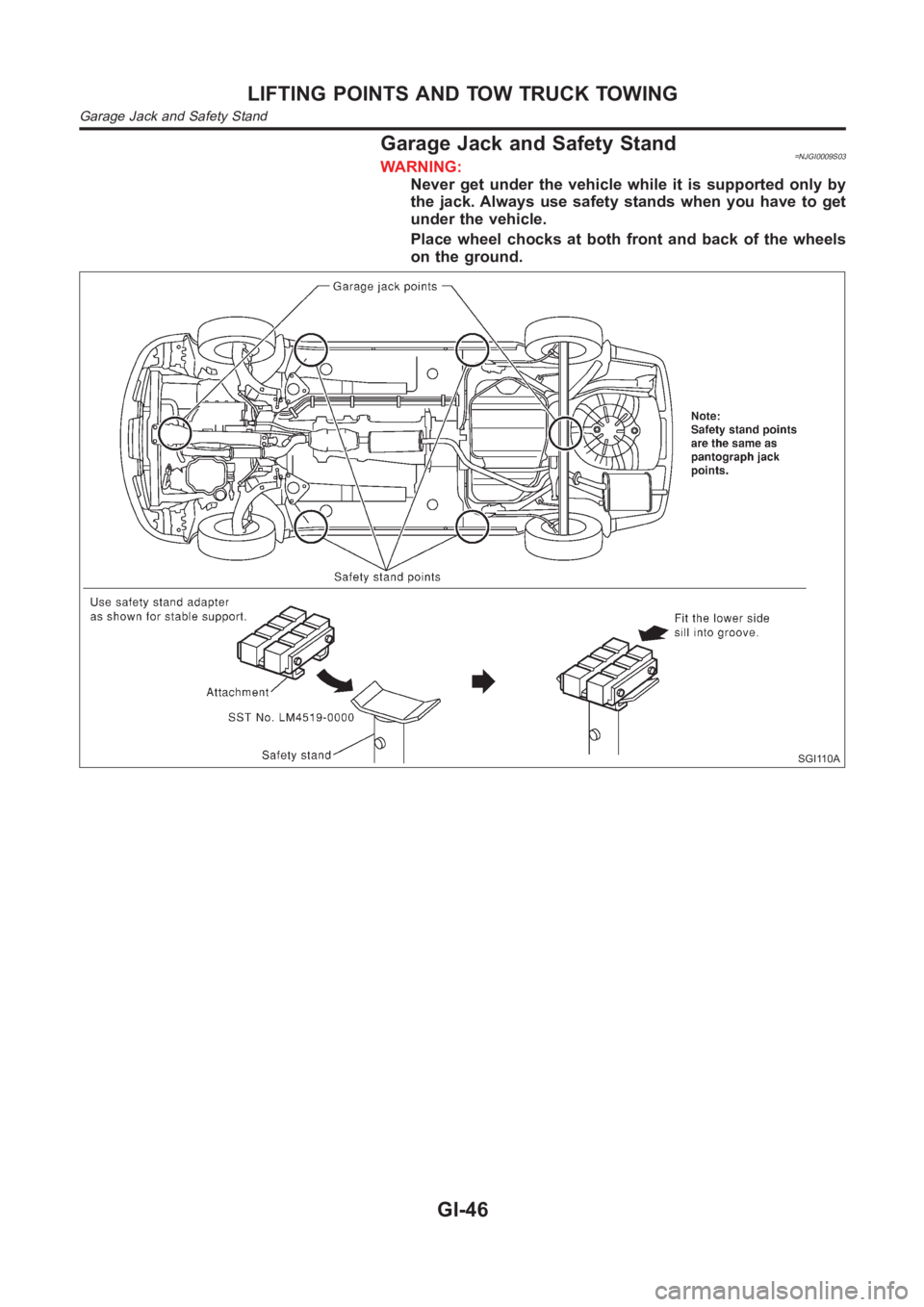

Garage Jack and Safety Stand=NJGI0009S03WARNING:
Never get under the vehicle while it is supported only by
the jack. Always use safety stands when you have to get
under the vehicle.
Place wheel chocks at both front and back of the wheels
on the ground.
SGI110A
LIFTING POINTS AND TOW TRUCK TOWING
Garage Jack and Safety Stand
GI-46
Page 49 of 3189
2-pole Lift=NJGI0009S04WARNING:
When lifting the vehicle, open the lift arms as wide as possible
and ensure that the front and rear of the vehicle are well bal-
anced.
When setting the lift arm, do not allow the arm to contact the
brake tubes, brake cable, fuel lines and sill spoiler.
S G I 111 A
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
LIFTING POINTS AND TOW TRUCK TOWING
2-pole Lift
GI-47
Page 50 of 3189
SGI805
SGI987

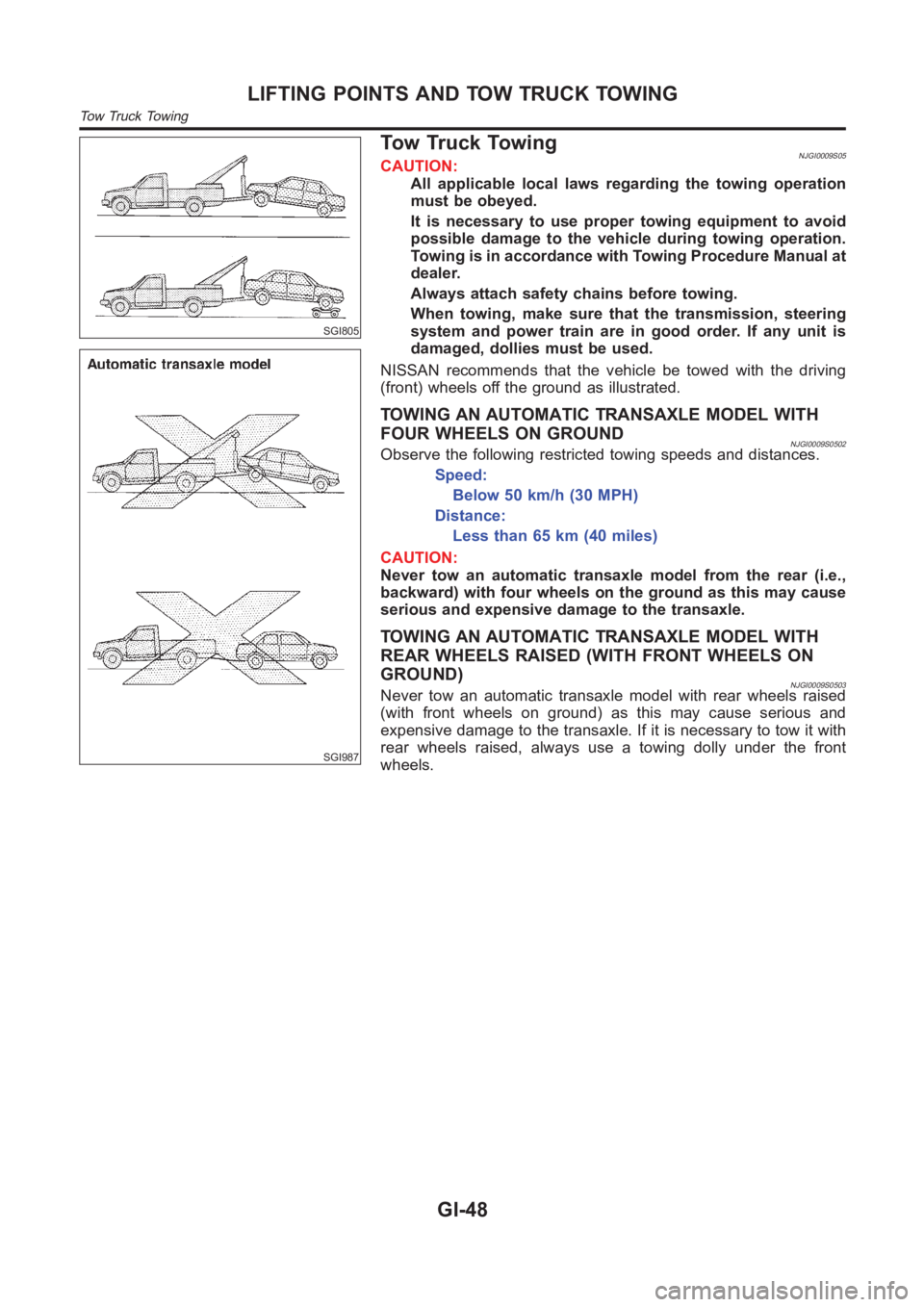

Tow Truck TowingNJGI0009S05CAUTION:
All applicable local laws regarding the towing operation
must be obeyed.
It is necessary to use proper towing equipment to avoid
possible damage to the vehicle during towing operation.
Towing is in accordance with Towing Procedure Manual at
dealer.
Always attach safety chains before towing.
When towing, make sure that the transmission, steering
system and power train are in good order. If any unit is
damaged, dollies must be used.
NISSAN recommends that the vehicle be towed with the driving
(front) wheels off the ground as illustrated.
TOWING AN AUTOMATIC TRANSAXLE MODEL WITH
FOUR WHEELS ON GROUND
NJGI0009S0502Observe the following restricted towing speeds and distances.
Speed:
Below 50 km/h (30 MPH)
Distance:
Less than 65 km (40 miles)
CAUTION:
Never tow an automatic transaxle model from the rear (i.e.,
backward) with four wheels on the ground as this may cause
serious and expensive damage to the transaxle.
TOWING AN AUTOMATIC TRANSAXLE MODEL WITH
REAR WHEELS RAISED (WITH FRONT WHEELS ON
GROUND)
NJGI0009S0503Never tow an automatic transaxle model with rear wheels raised
(with front wheels on ground) as this may cause serious and
expensive damage to the transaxle. If it is necessary to tow it with
rear wheels raised, always use a towing dolly under the front
wheels.
LIFTING POINTS AND TOW TRUCK TOWING
Tow Truck Towing
GI-48
