PREPARATION
EM-5
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
PREPARATIONPFP:00002
Special Service ToolsEBS00LPU
Tool number
To o l n a m eDescription
ST0501S000
Engine stand assembly
1. ST05011000
Engine stand
2. ST05012000
BaseDisassembling and assembling
Engine attachment assembly
1. KV10106500
Engine attachment
2. KV10113300
Sub-attachmentOverhauling engine
KV10114400
Heated oxygen sensor wrenchLoosening or tightening heated oxygen
sensor
a: 22 mm (0.87 in)
ST10120000
Cylinder head bolt wrenchLoosening and tightening cylinder head bolt
a: 13 mm (0.51 in) dia.
b: 12 mm (0.47 in)
c: 10 mm (0.39 in)
KV10116200
Valve spring compressor
1. KV10115900
AttachmentDisassembling valve mechanism
KV10115600
Valve oil seal driftInstalling valve oil seal
KV10107902
Valve oil seal pullerRemoving valve oil seal
NT042
NT029
NT636
NT583
NT022
NT024
NT011

EM-6
[QG]
PREPARATION
KV101151S0
Lifter stopper set
1. KV10115110
Camshaft pliers
2. KV10115120
Lifter stopperChanging shims
EM03470000
Piston ring compressorPiston assembly into cylinder bore
1. ST15243000
Valve seat drift
2. KV11103710
Adapter
3. KV11103720
AdapterInstalling valve seat drift
KV10111100
Seal cutterRemoving oil pan
WS39930000
Tube presserPressing the tube of liquid gasket
KV10112100
Angle wrenchTightening bolts for bearing cap, cylinder
head, etc. in angle Tool number
Tool nameDescription
NT041
NT044
PBIC1120E
NT046
NT052
NT014

PREPARATION
EM-7
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM

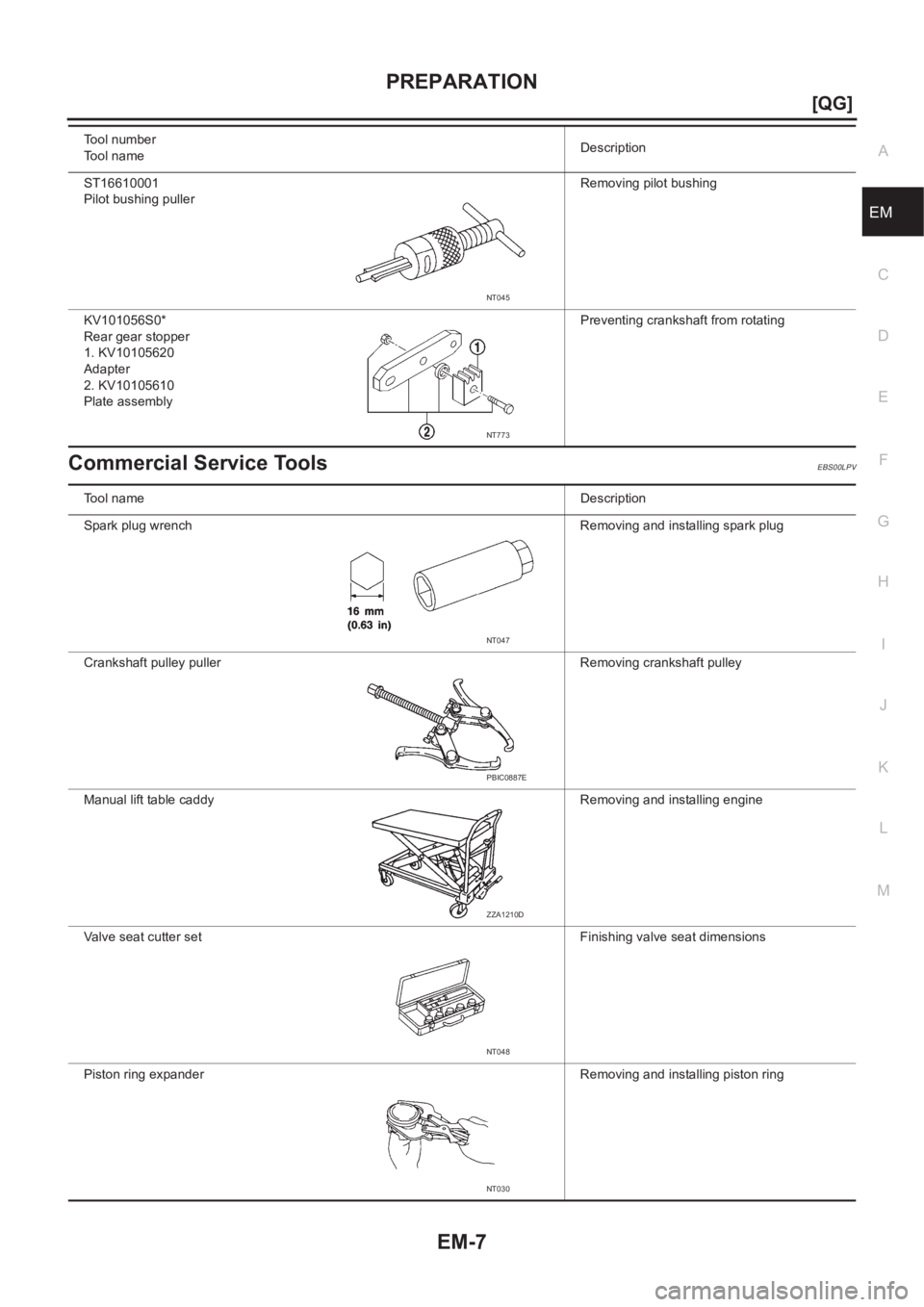

Commercial Service ToolsEBS00LPV
ST16610001
Pilot bushing pullerRemoving pilot bushing
KV101056S0*
Rear gear stopper
1. KV10105620
Adapter
2. KV10105610
Plate assemblyPreventing crankshaft from rotating Tool number
To o l n a m eDescription
NT045
NT773
To o l n a m eDescription
Spark plug wrench Removing and installing spark plug
Crankshaft pulley puller Removing crankshaft pulley
Manual lift table caddy Removing and installing engine
Valve seat cutter set Finishing valve seat dimensions
Piston ring expander Removing and installing piston ring
NT047
PBIC0887E
ZZA1210D
NT048
NT030

EM-8
[QG]
PREPARATION

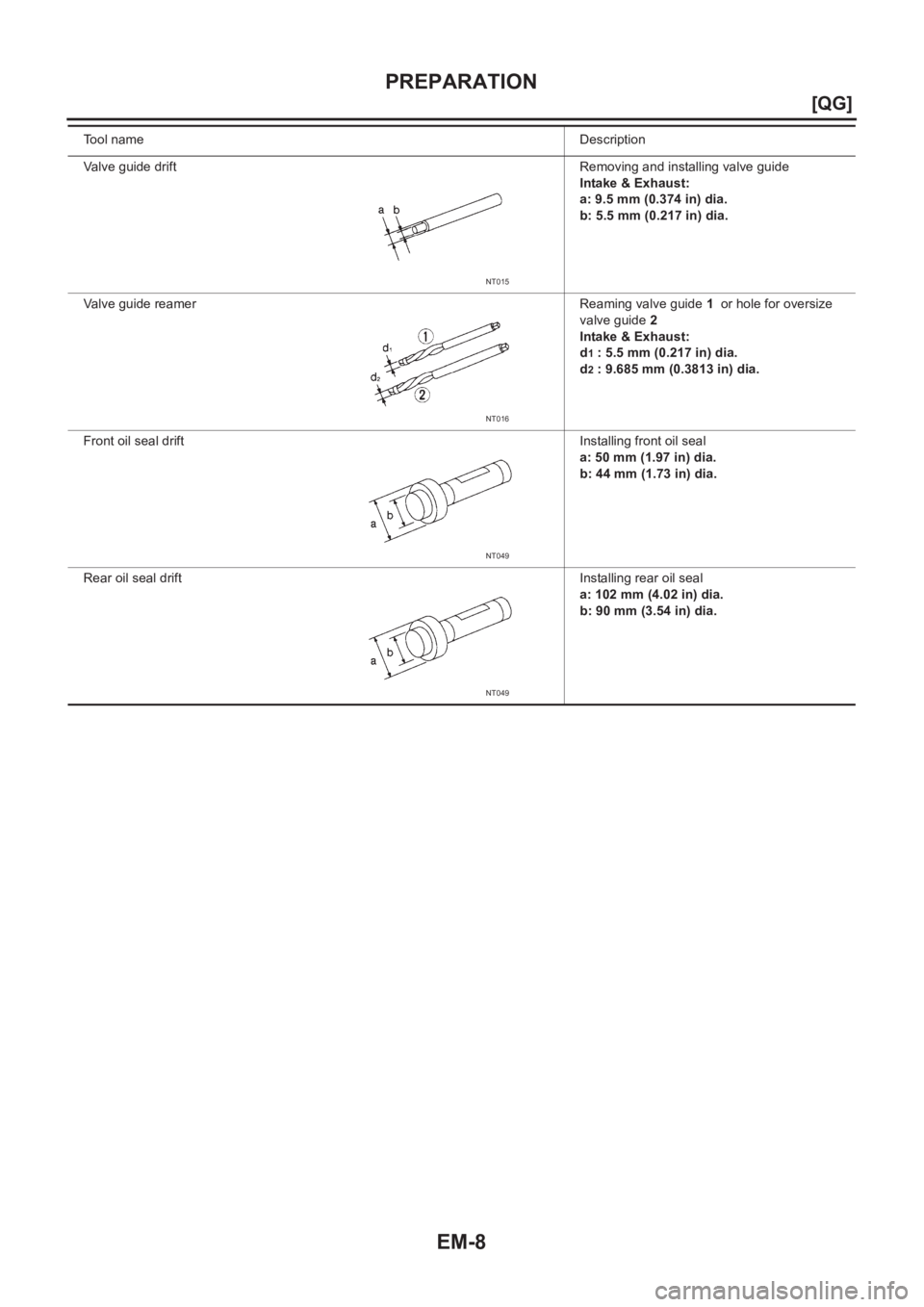

Valve guide drift Removing and installing valve guide
Intake & Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.
Valve guide reamer Reaming valve guide 1 or hole for oversize
valve guide 2
Intake & Exhaust:
d
1 : 5.5 mm (0.217 in) dia.
d
2 : 9.685 mm (0.3813 in) dia.
Front oil seal drift Installing front oil seal
a: 50 mm (1.97 in) dia.
b: 44 mm (1.73 in) dia.
Rear oil seal drift Installing rear oil seal
a: 102 mm (4.02 in) dia.
b: 90 mm (3.54 in) dia. Tool nameDescription
NT015
NT016
NT049
NT049

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING
EM-9
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003

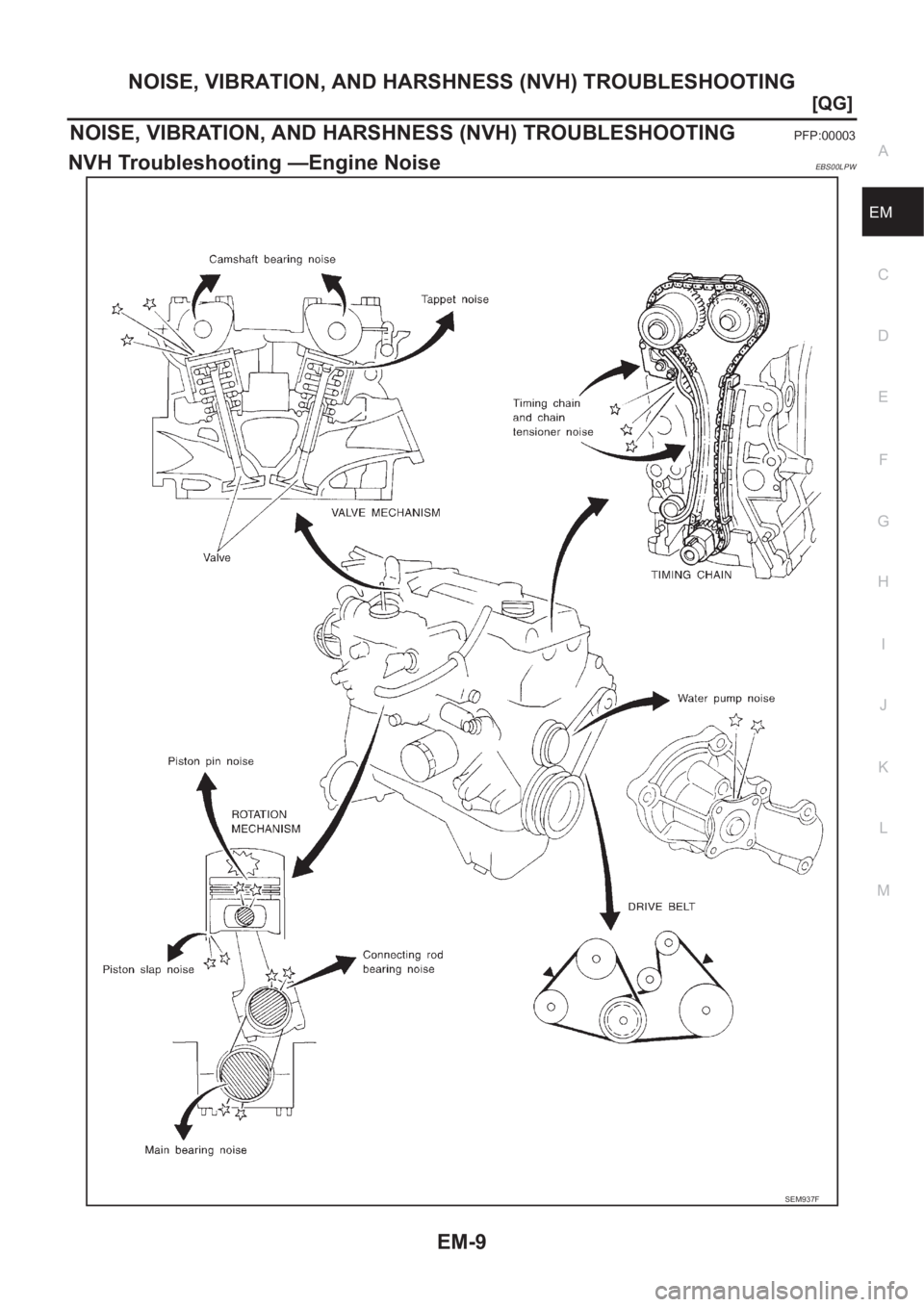

NVH Troubleshooting —Engine NoiseEBS00LPW
SEM937F

EM-10
[QG]
NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

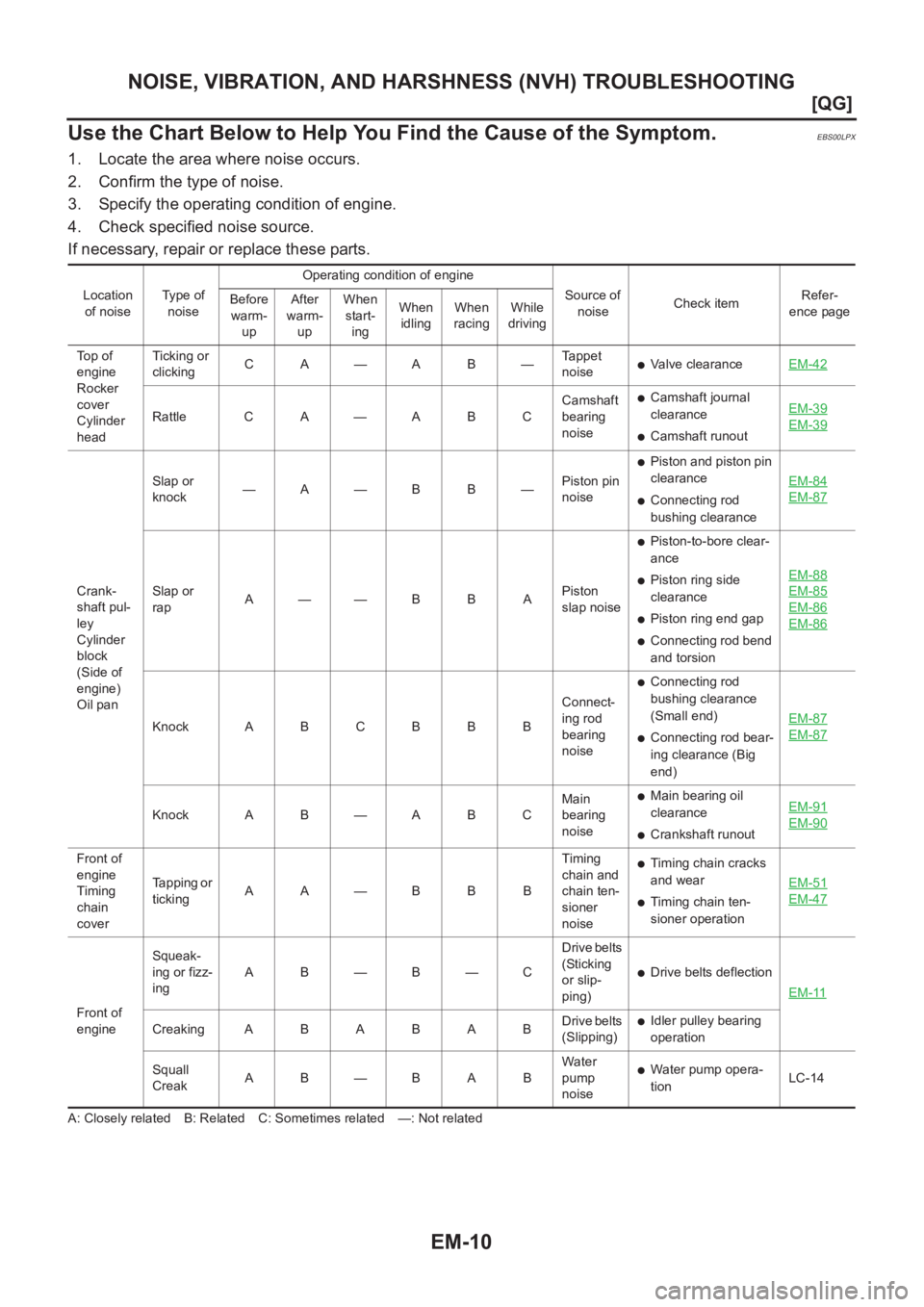

Use the Chart Below to Help You Find the Cause of the Symptom.
EBS00LPX
1. Locate the area where noise occurs.
2. Confirm the type of noise.
3. Specify the operating condition of engine.
4. Check specified noise source.
If necessary, repair or replace these parts.
A: Closely related B: Related C: Sometimes related —: Not relatedLocation
of noiseTy p e o f
noiseOperating condition of engine
Source of
noiseCheck itemRefer-
ence page Before
warm-
upAfter
warm-
upWhen
start-
ingWhen
idlingWhen
racingWhile
driving
Top of
engine
Rocker
cover
Cylinder
headTick in g o r
clickingCA—AB—Tappet
noise
●Valve clearanceEM-42
Rattle C A — A B CCamshaft
bearing
noise
●Camshaft journal
clearance
●Camshaft runoutEM-39EM-39
Crank-
shaft pul-
ley
Cylinder
block
(Side of
engine)
Oil panSlap or
knock—A—B B—Piston pin
noise
●Piston and piston pin
clearance
●Connecting rod
bushing clearanceEM-84EM-87
Slap or
rapA——B B APiston
slap noise
●Piston-to-bore clear-
ance
●Piston ring side
clearance
●Piston ring end gap
●Connecting rod bend
and torsionEM-88
EM-85
EM-86
EM-86
Knock A B C B B BConnect-
ing rod
bearing
noise
●Connecting rod
bushing clearance
(Small end)
●Connecting rod bear-
ing clearance (Big
end)EM-87EM-87
Knock A B — A B CMain
bearing
noise
●Main bearing oil
clearance
●Crankshaft runoutEM-91EM-90
Front of
engine
Timing
chain
coverTapping or
tickingAA—BBBTiming
chain and
chain ten-
sioner
noise●Timing chain cracks
and wear
●Timing chain ten-
sioner operationEM-51EM-47
Front of
engineSqueak-
ing or fizz-
ingAB—B—CDrive belts
(Sticking
or slip-
ping)
●Drive belts deflection
EM-11
CreakingABABABDrive belts
(Slipping)●Idler pulley bearing
operation
Squall
CreakAB—BABWater
pump
noise
●Water pump opera-
tionLC-14

DRIVE BELTS
EM-11
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
DRIVE BELTSPFP:02117

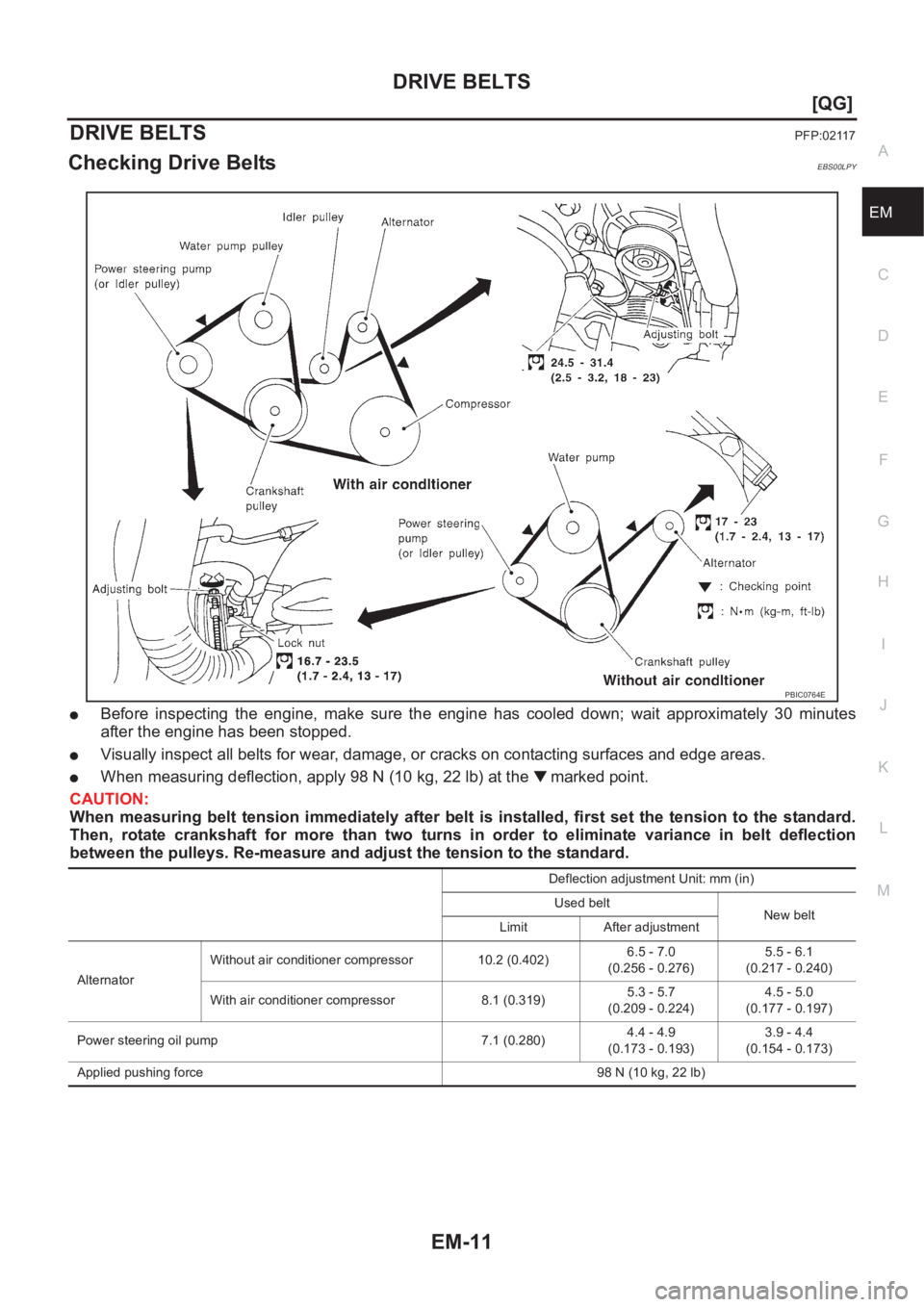

Checking Drive BeltsEBS00LPY
●Before inspecting the engine, make sure the engine has cooled down; wait approximately 30 minutes
after the engine has been stopped.
●Visually inspect all belts for wear, damage, or cracks on contacting surfaces and edge areas.
●When measuring deflection, apply 98 N (10 kg, 22 lb) at the ▼ marked point.
CAUTION:
When measuring belt tension immediately after belt is installed, first set the tension to the standard.
Then, rotate crankshaft for more than two turns in order to eliminate variance in belt deflection
between the pulleys. Re-measure and adjust the tension to the standard.
PBIC0764E
Deflection adjustment Unit: mm (in)
Used belt
New belt
Limit After adjustment
AlternatorWithout air conditioner compressor 10.2 (0.402)6.5 - 7.0
(0.256 - 0.276)5.5 - 6.1
(0.217 - 0.240)
With air conditioner compressor 8.1 (0.319)5.3 - 5.7
(0.209 - 0.224)4.5 - 5.0
(0.177 - 0.197)
Power steering oil pump 7.1 (0.280)4.4 - 4.9
(0.173 - 0.193)3.9 - 4.4
(0.154 - 0.173)
Applied pushing force 98 N (10 kg, 22 lb)

EM-12
[QG]
DRIVE BELTS

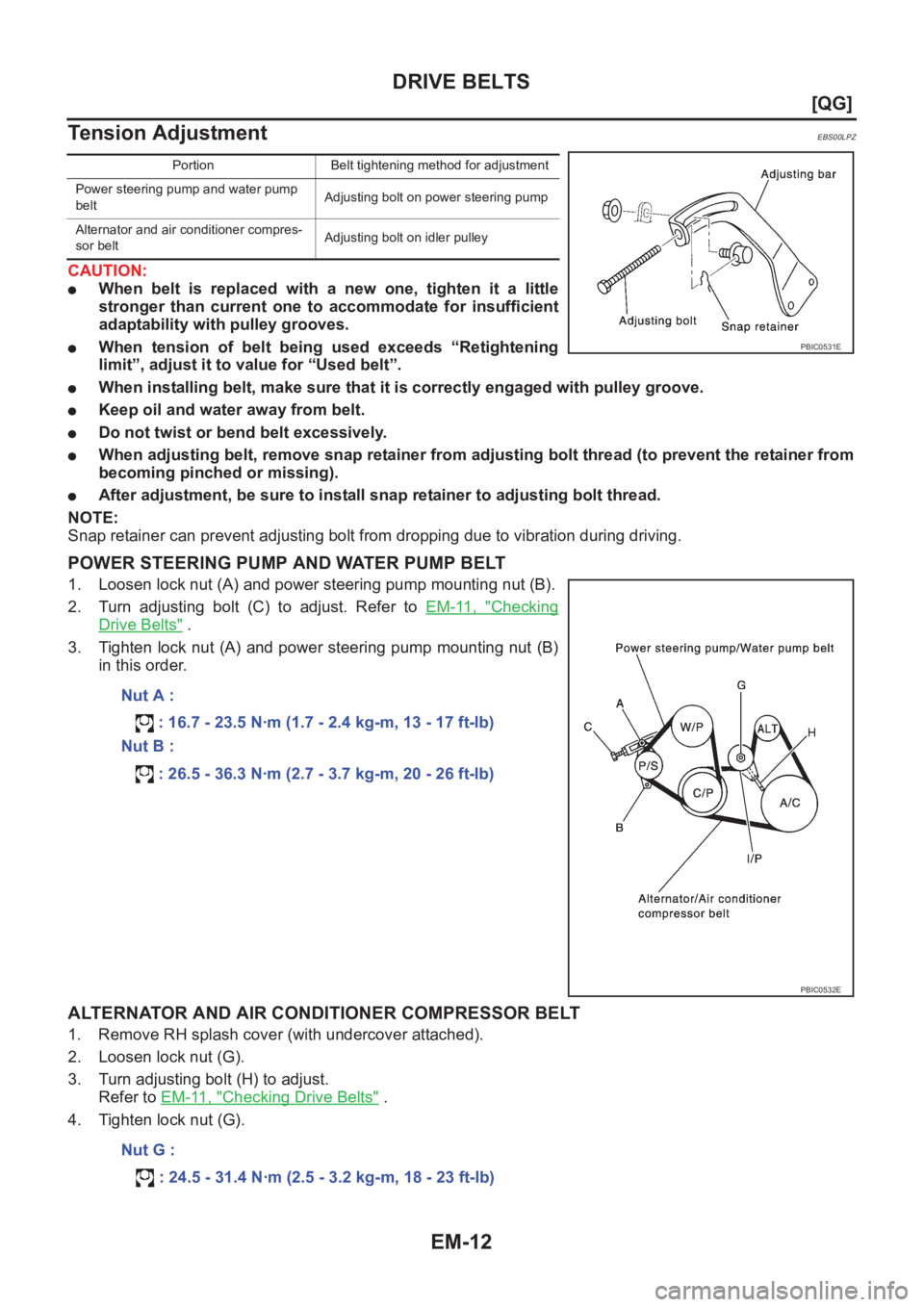

Tension Adjustment
EBS00LPZ
CAUTION:
●When belt is replaced with a new one, tighten it a little
stronger than current one to accommodate for insufficient
adaptability with pulley grooves.
●When tension of belt being used exceeds “Retightening
limit”, adjust it to value for “Used belt”.
●When installing belt, make sure that it is correctly engaged with pulley groove.
●Keep oil and water away from belt.
●Do not twist or bend belt excessively.
●When adjusting belt, remove snap retainer from adjusting bolt thread (to prevent the retainer from
becoming pinched or missing).
●After adjustment, be sure to install snap retainer to adjusting bolt thread.
NOTE:
Snap retainer can prevent adjusting bolt from dropping due to vibration during driving.
POWER STEERING PUMP AND WATER PUMP BELT
1. Loosen lock nut (A) and power steering pump mounting nut (B).
2. Turn adjusting bolt (C) to adjust. Refer to EM-11, "
Checking
Drive Belts" .
3. Tighten lock nut (A) and power steering pump mounting nut (B)
in this order.
ALTERNATOR AND AIR CONDITIONER COMPRESSOR BELT
1. Remove RH splash cover (with undercover attached).
2. Loosen lock nut (G).
3. Turn adjusting bolt (H) to adjust.
Refer to EM-11, "
Checking Drive Belts" .
4. Tighten lock nut (G).
Portion Belt tightening method for adjustment
Power steering pump and water pump
beltAdjusting bolt on power steering pump
Alternator and air conditioner compres-
sor beltAdjusting bolt on idler pulley
PBIC0531E
Nut A :
: 16.7 - 23.5 N·m (1.7 - 2.4 kg-m, 13 - 17 ft-lb)
Nut B :
: 26.5 - 36.3 N·m (2.7 - 3.7 kg-m, 20 - 26 ft-lb)
PBIC0532E
Nut G :
: 24.5 - 31.4 N·m (2.5 - 3.2 kg-m, 18 - 23 ft-lb)
