NISSAN ALMERA TINO 2001 Service Repair Manual

MODELS WITH FUSE AND FUSIBLE LINK BOX E90NLEL0436S02
YEL416C

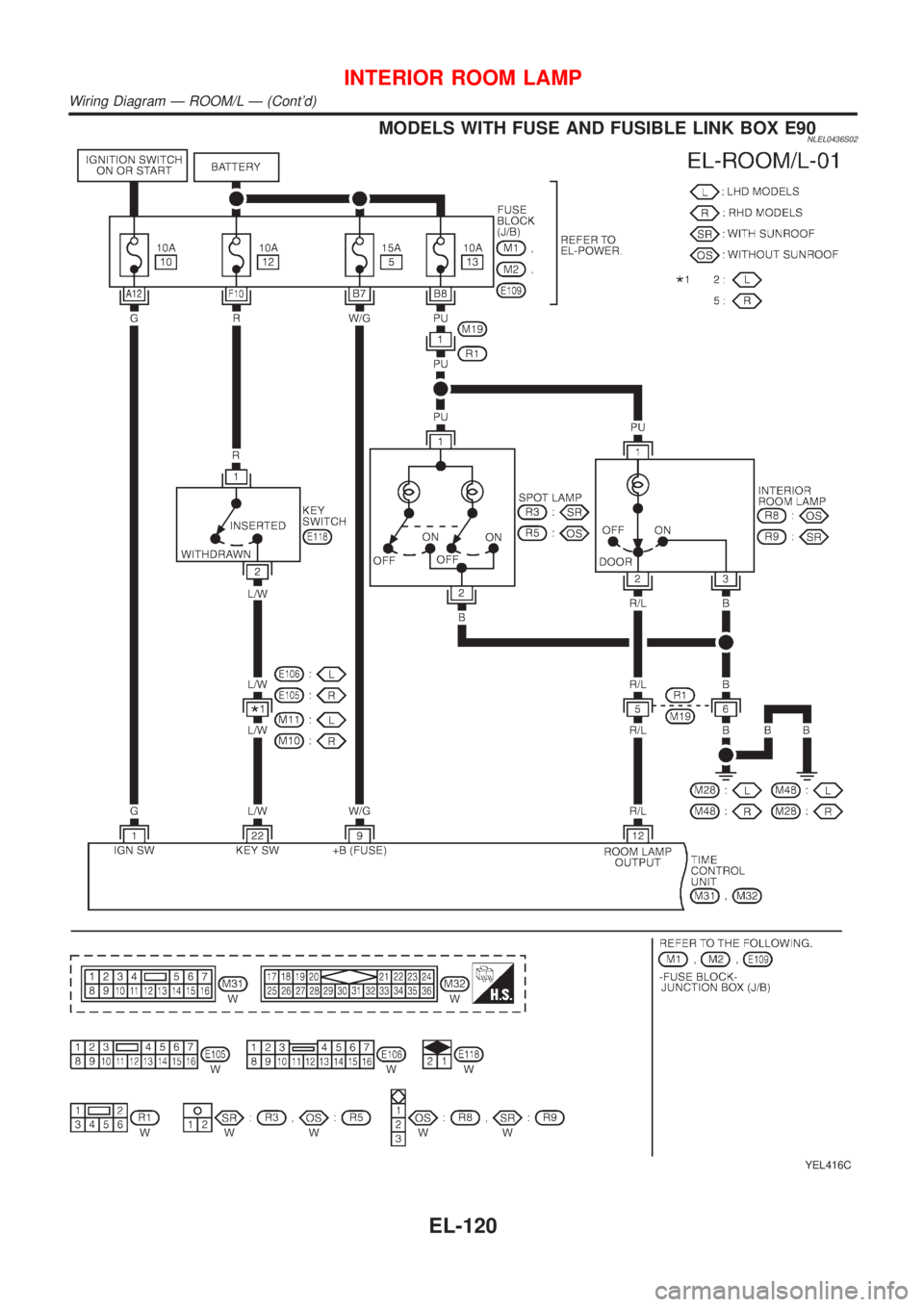

INTERIOR ROOM LAMP
Wiring Diagram Ð ROOM/L Ð (Cont'd)
EL-120

YEL417C

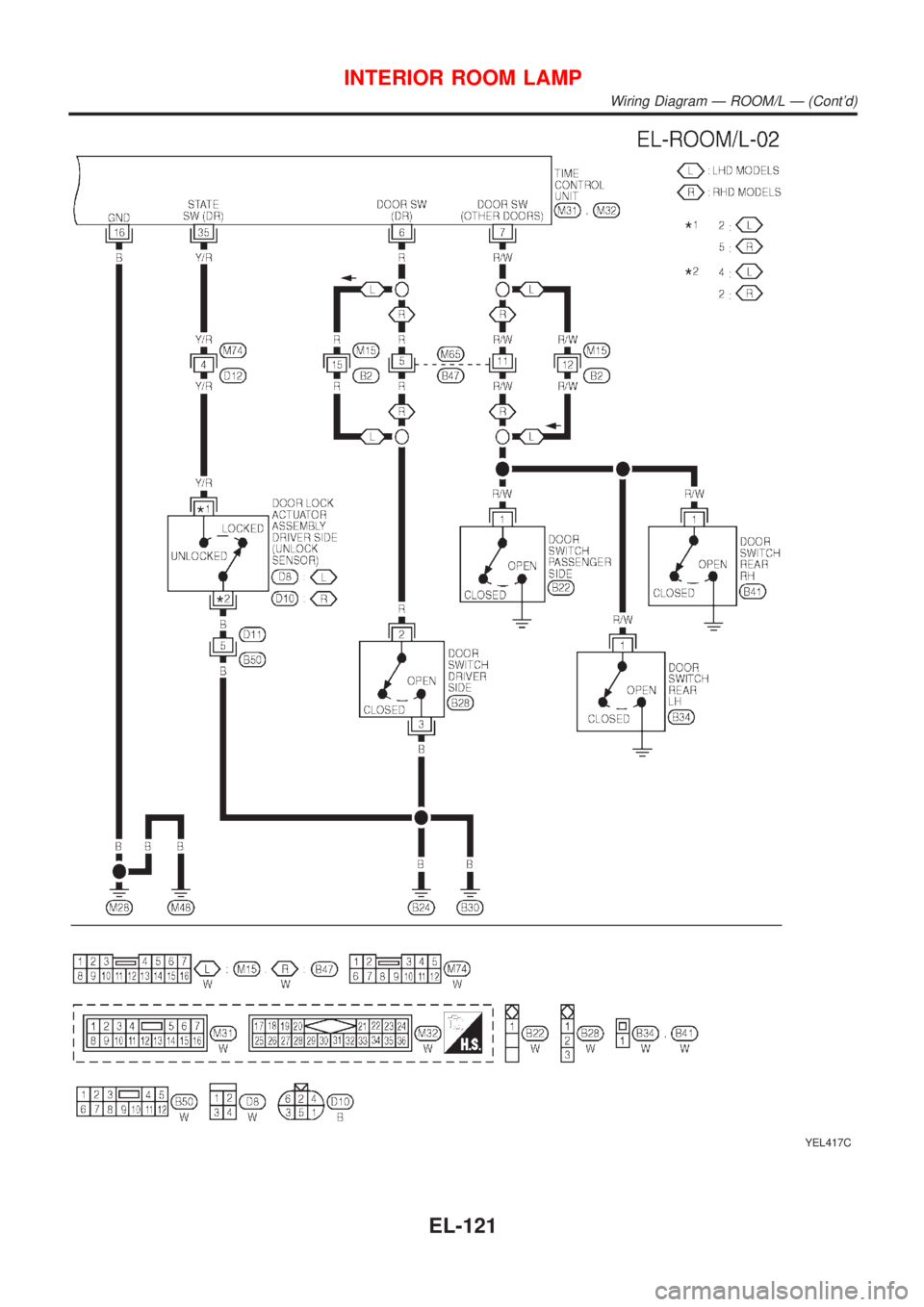

INTERIOR ROOM LAMP
Wiring Diagram Ð ROOM/L Ð (Cont'd)
EL-121

Trouble Diagnoses=NLEL0437DIAGNOSTIC PROCEDURE 1NLEL0437S01SYMPTOM: Interior room lamp timer does not operate.
1 CHECK IGNITION ON SIGNAL
Check voltage between time control unit harness connector terminal 1 and ground.
NEL646
OK or NG
OK©GO TO 2.
NG©Check the following.
+10A fuse [No. 10, located in fuse block (J/B)]
+Harness for open or short between time control unit and fuse
2 CHECK DOOR SWITCH INPUT SIGNAL
Check voltage between time control unit harness connector terminal 6 and ground.
NEL647
OK or NG
OK©GO TO 4.
NG©GO TO 3.
INTERIOR ROOM LAMP

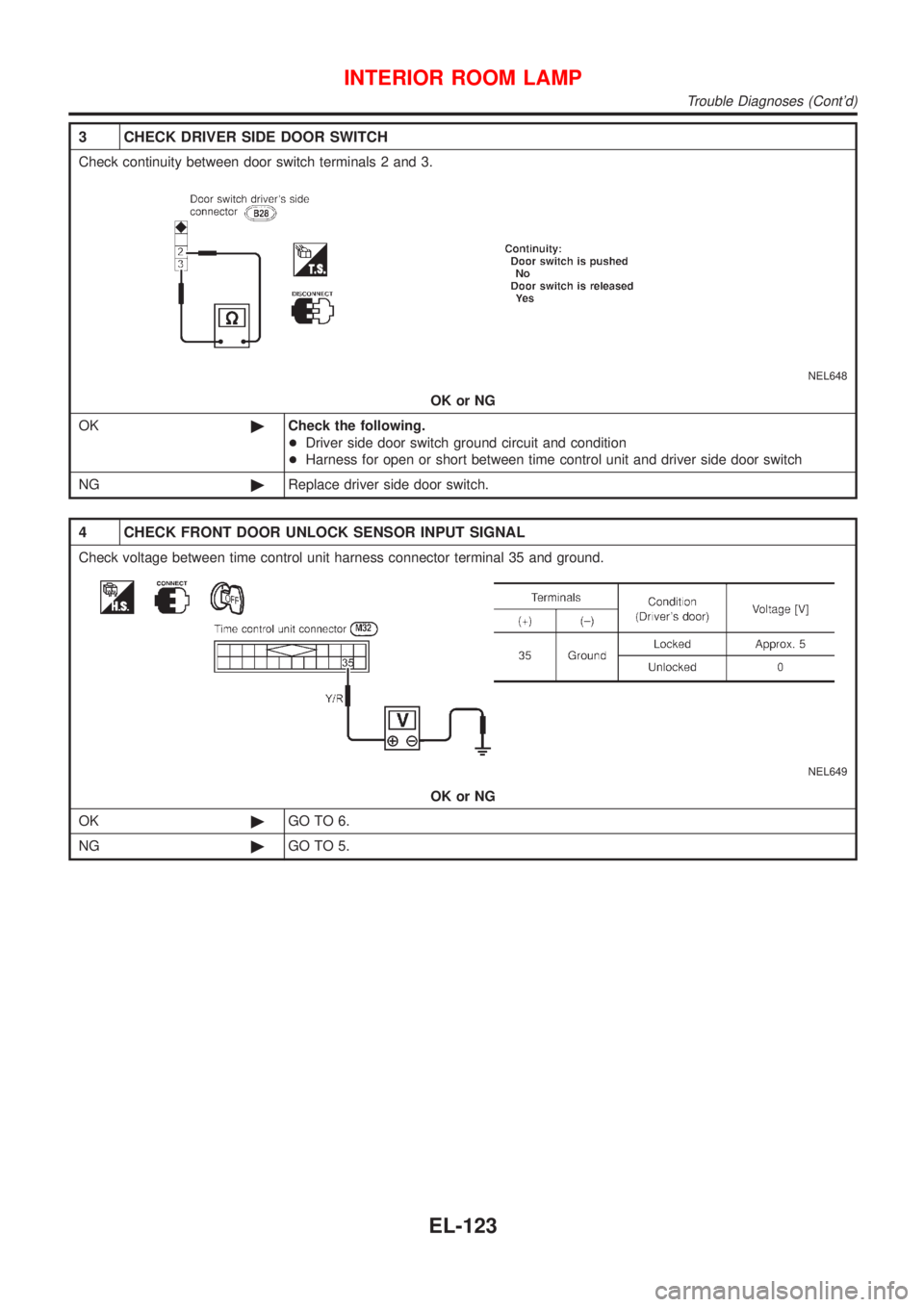

Trouble Diagnoses
EL-122

3 CHECK DRIVER SIDE DOOR SWITCH
Check continuity between door switch terminals 2 and 3.
NEL648
OK or NG
OK©Check the following.
+Driver side door switch ground circuit and condition
+Harness for open or short between time control unit and driver side door switch
NG©Replace driver side door switch.
4 CHECK FRONT DOOR UNLOCK SENSOR INPUT SIGNAL
Check voltage between time control unit harness connector terminal 35 and ground.
NEL649
OK or NG
OK©GO TO 6.
NG©GO TO 5.

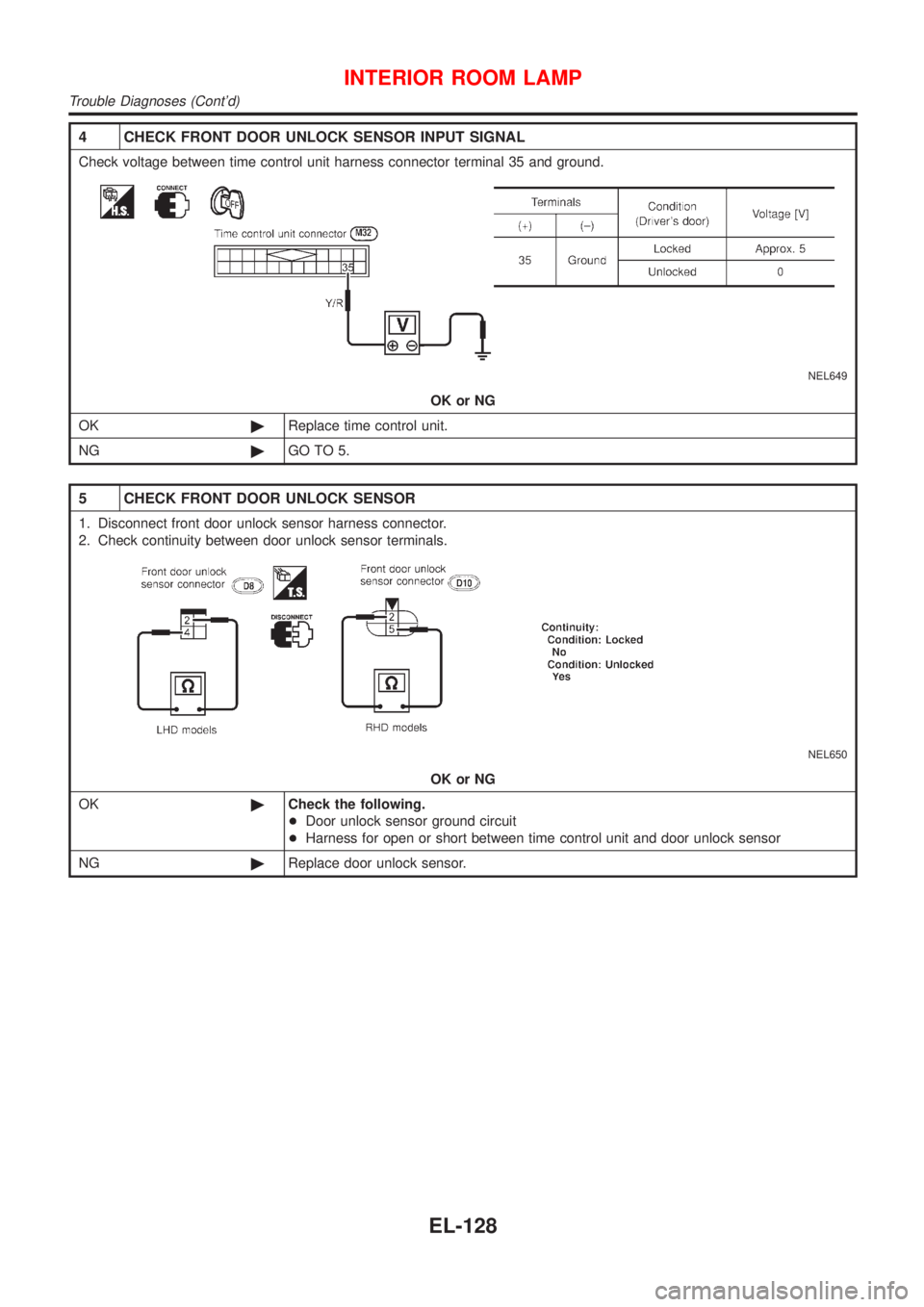

INTERIOR ROOM LAMP

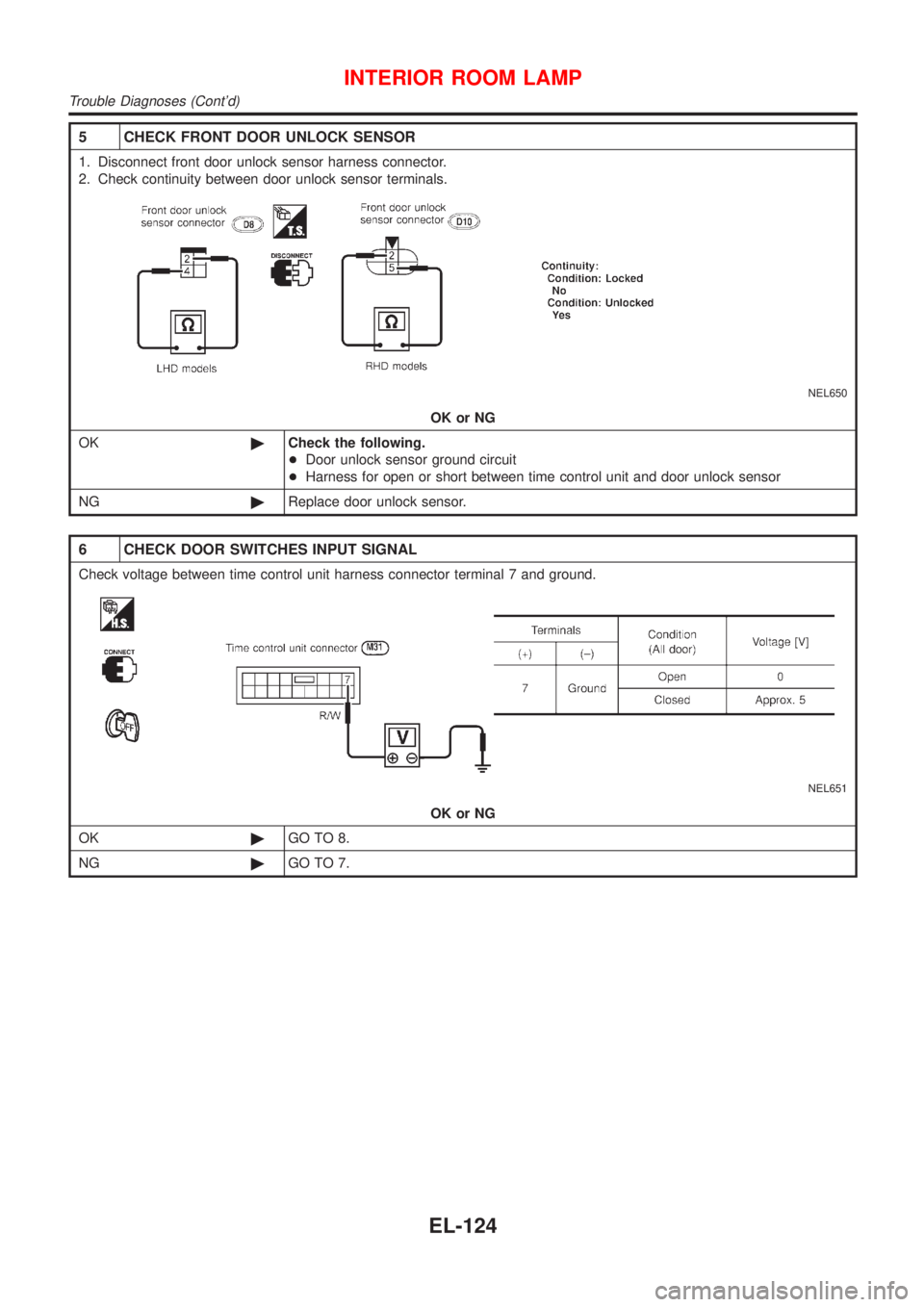

Trouble Diagnoses (Cont'd)
EL-123

5 CHECK FRONT DOOR UNLOCK SENSOR
1. Disconnect front door unlock sensor harness connector.
2. Check continuity between door unlock sensor terminals.
NEL650
OK or NG
OK©Check the following.
+Door unlock sensor ground circuit
+Harness for open or short between time control unit and door unlock sensor
NG©Replace door unlock sensor.
6 CHECK DOOR SWITCHES INPUT SIGNAL
Check voltage between time control unit harness connector terminal 7 and ground.
NEL651
OK or NG
OK©GO TO 8.
NG©GO TO 7.
INTERIOR ROOM LAMP

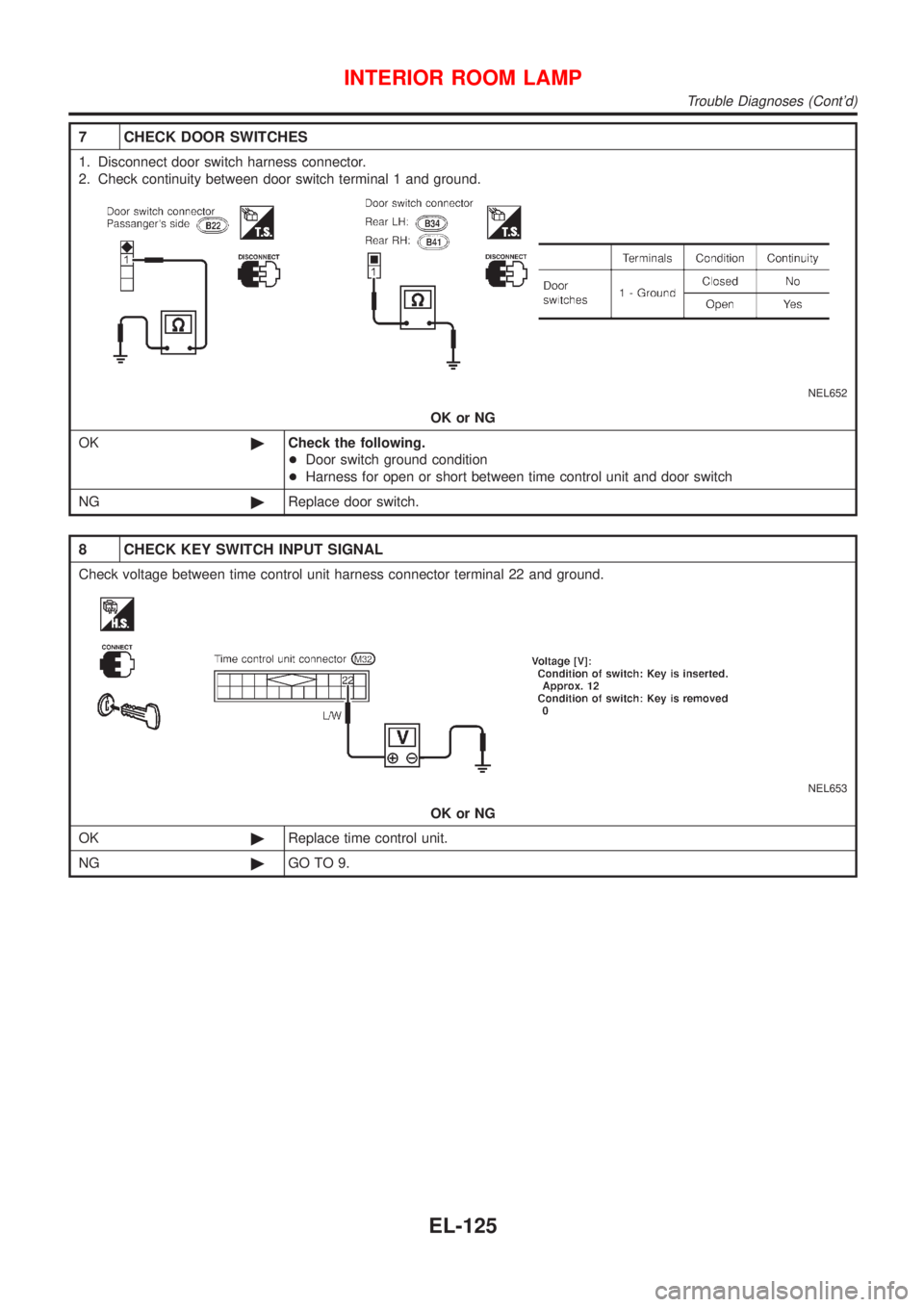

Trouble Diagnoses (Cont'd)
EL-124

7 CHECK DOOR SWITCHES
1. Disconnect door switch harness connector.
2. Check continuity between door switch terminal 1 and ground.
NEL652
OK or NG
OK©Check the following.
+Door switch ground condition
+Harness for open or short between time control unit and door switch
NG©Replace door switch.
8 CHECK KEY SWITCH INPUT SIGNAL
Check voltage between time control unit harness connector terminal 22 and ground.
NEL653
OK or NG
OK©Replace time control unit.
NG©GO TO 9.
INTERIOR ROOM LAMP

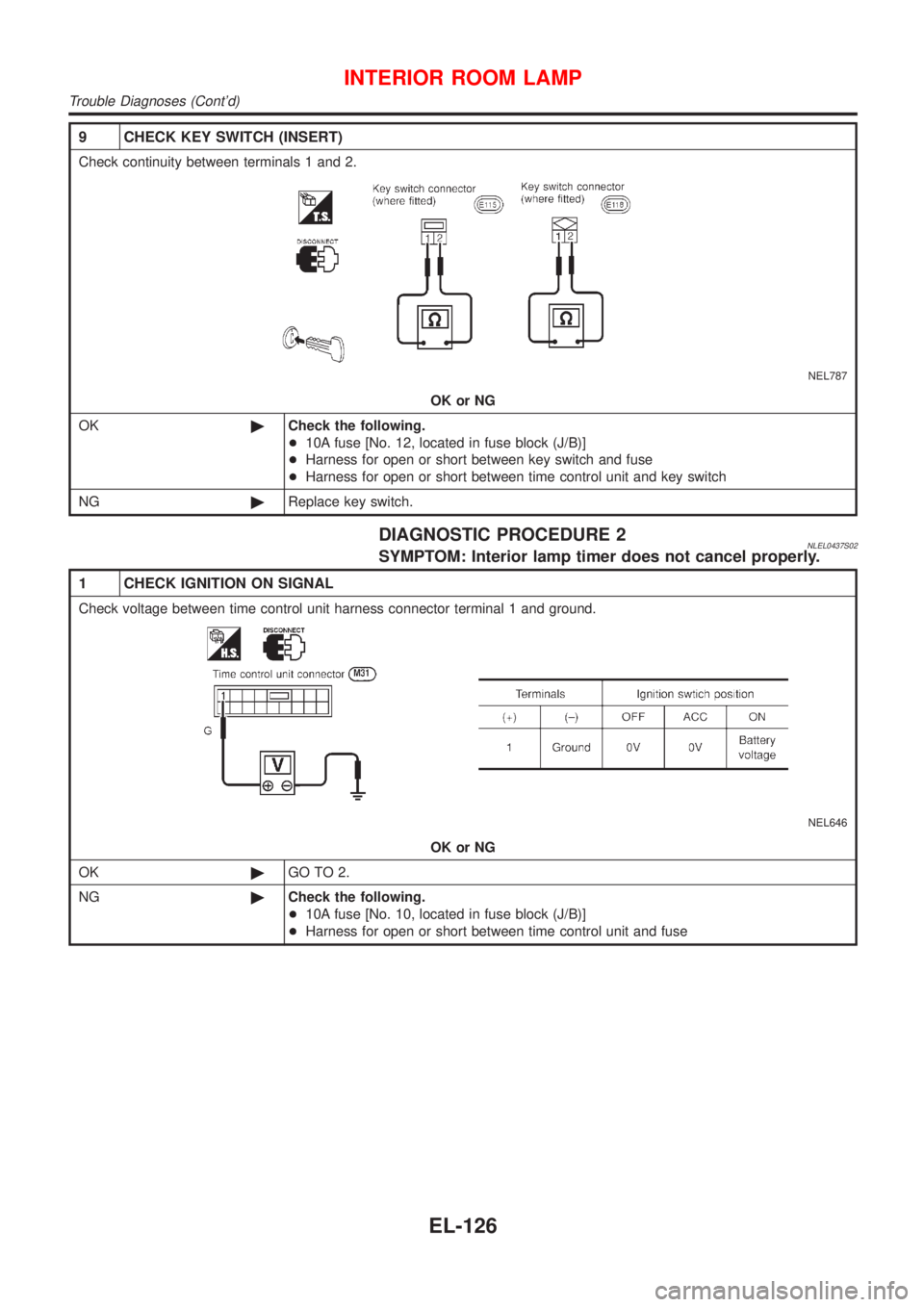

Trouble Diagnoses (Cont'd)
EL-125

9 CHECK KEY SWITCH (INSERT)
Check continuity between terminals 1 and 2.
NEL787
OK or NG
OK©Check the following.
+10A fuse [No. 12, located in fuse block (J/B)]
+Harness for open or short between key switch and fuse
+Harness for open or short between time control unit and key switch
NG©Replace key switch.
DIAGNOSTIC PROCEDURE 2NLEL0437S02SYMPTOM: Interior lamp timer does not cancel properly.
1 CHECK IGNITION ON SIGNAL
Check voltage between time control unit harness connector terminal 1 and ground.
NEL646
OK or NG
OK©GO TO 2.
NG©Check the following.
+10A fuse [No. 10, located in fuse block (J/B)]
+Harness for open or short between time control unit and fuse
INTERIOR ROOM LAMP

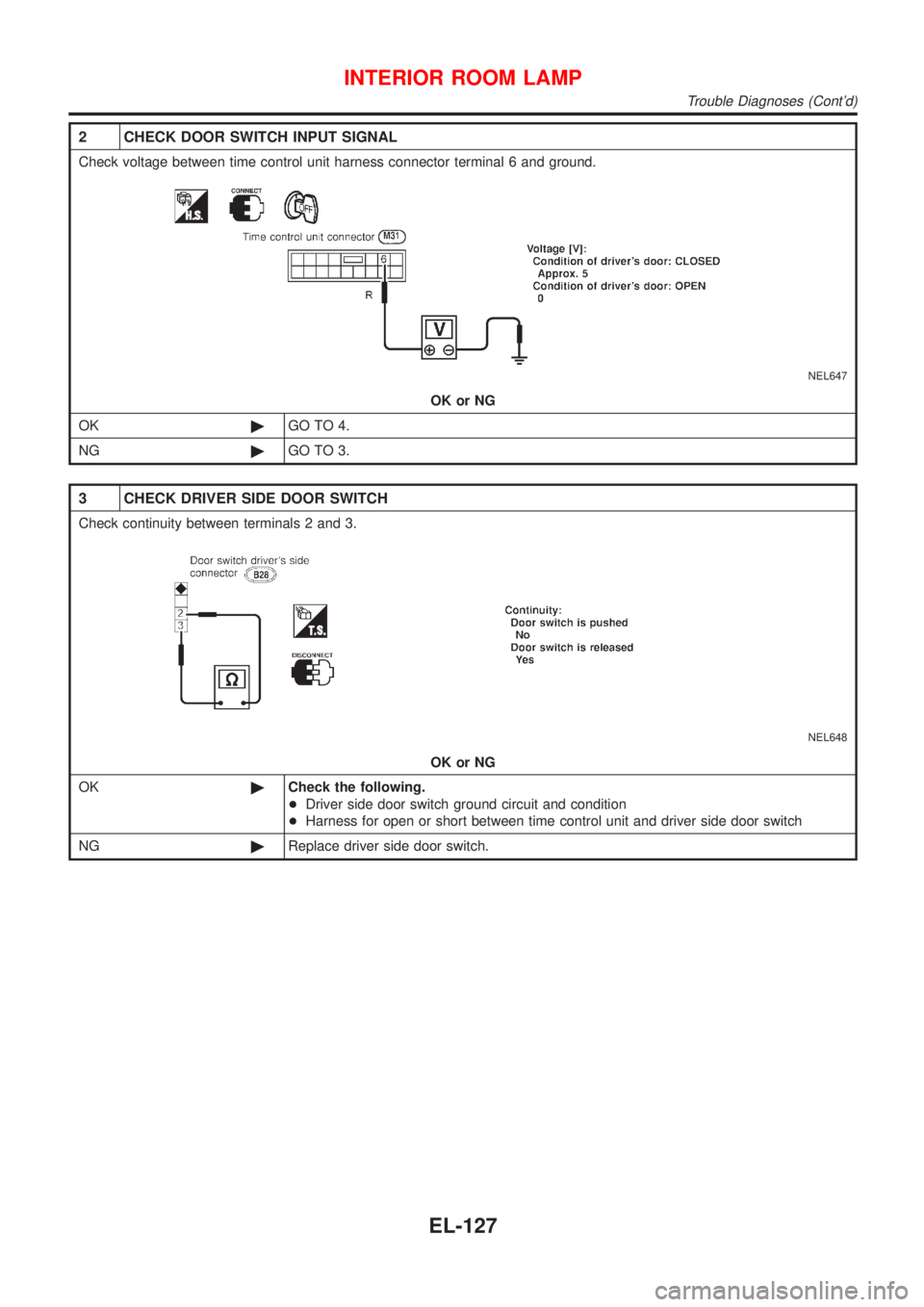

Trouble Diagnoses (Cont'd)
EL-126

2 CHECK DOOR SWITCH INPUT SIGNAL
Check voltage between time control unit harness connector terminal 6 and ground.
NEL647
OK or NG
OK©GO TO 4.
NG©GO TO 3.
3 CHECK DRIVER SIDE DOOR SWITCH
Check continuity between terminals 2 and 3.
NEL648
OK or NG
OK©Check the following.
+Driver side door switch ground circuit and condition
+Harness for open or short between time control unit and driver side door switch
NG©Replace driver side door switch.
INTERIOR ROOM LAMP
Trouble Diagnoses (Cont'd)
EL-127

4 CHECK FRONT DOOR UNLOCK SENSOR INPUT SIGNAL
Check voltage between time control unit harness connector terminal 35 and ground.
NEL649
OK or NG
OK©Replace time control unit.
NG©GO TO 5.
5 CHECK FRONT DOOR UNLOCK SENSOR
1. Disconnect front door unlock sensor harness connector.
2. Check continuity between door unlock sensor terminals.
NEL650
OK or NG
OK©Check the following.
+Door unlock sensor ground circuit
+Harness for open or short between time control unit and door unlock sensor
NG©Replace door unlock sensor.
INTERIOR ROOM LAMP
Trouble Diagnoses (Cont'd)
EL-128

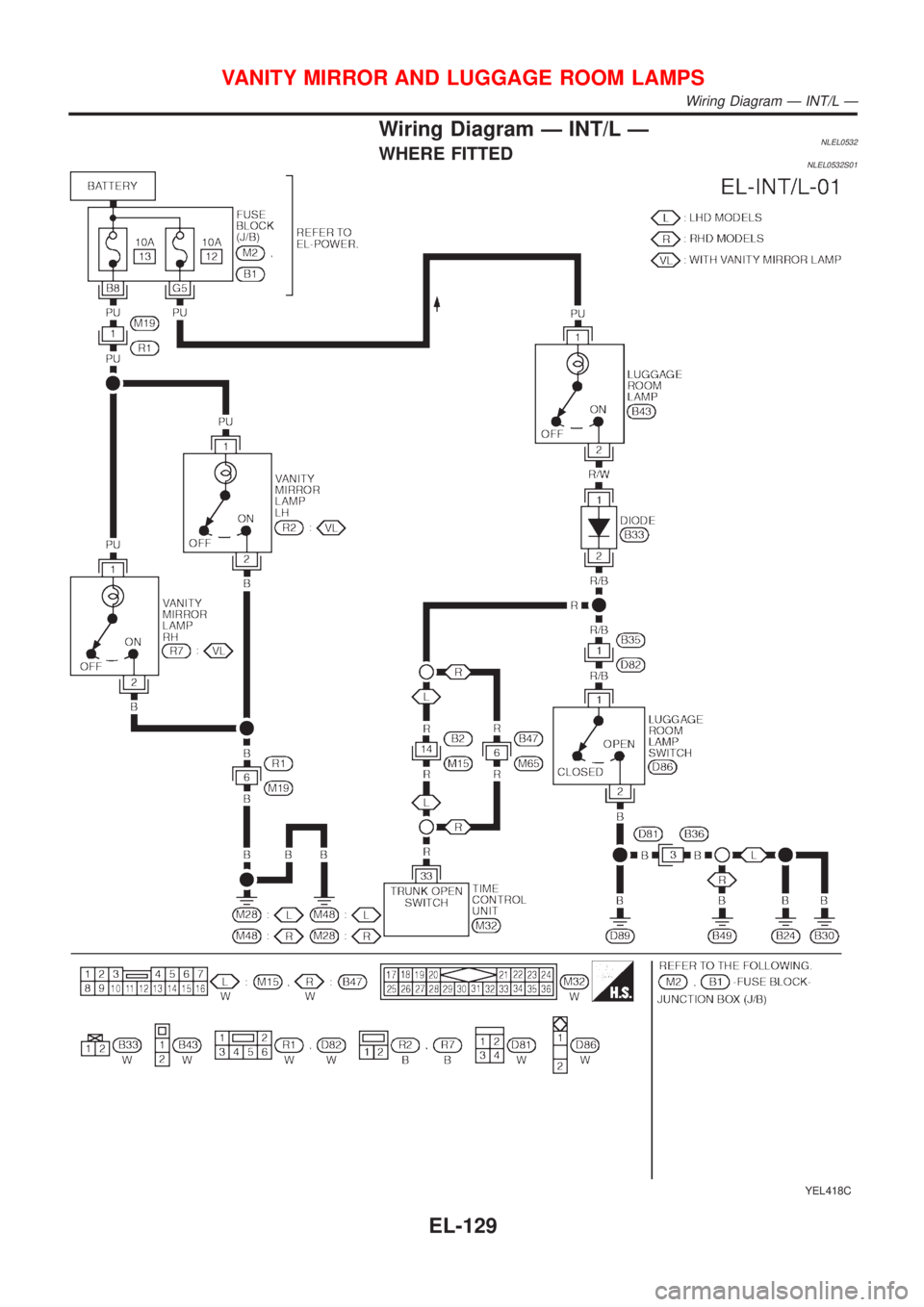

Wiring Diagram Ð INT/L ÐNLEL0532WHERE FITTEDNLEL0532S01
YEL418C
VANITY MIRROR AND LUGGAGE ROOM LAMPS
Wiring Diagram Ð INT/L Ð
EL-129
