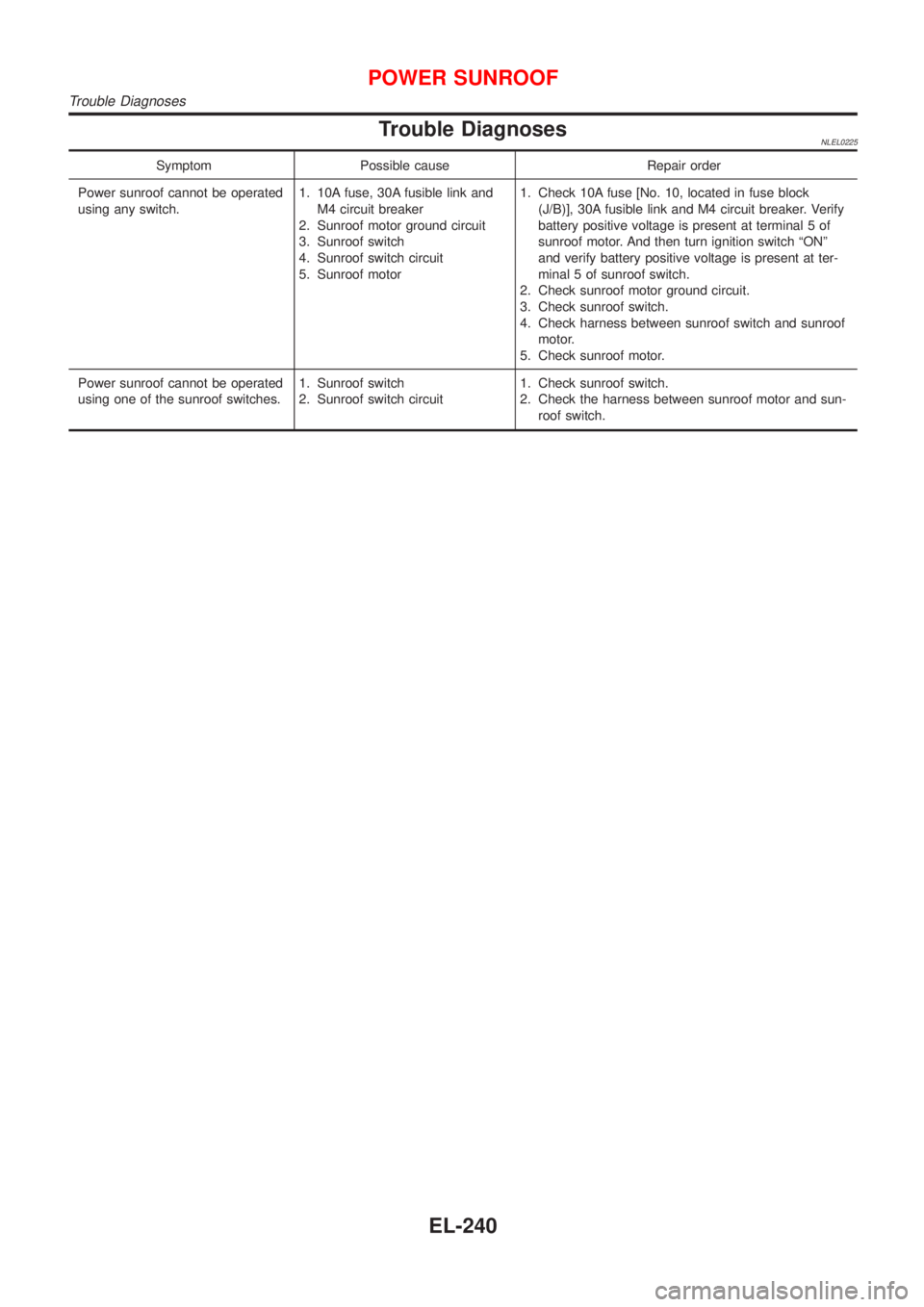

Trouble DiagnosesNLEL0225
Symptom Possible cause Repair order
Power sunroof cannot be operated
using any switch.1. 10A fuse, 30A fusible link and
M4 circuit breaker
2. Sunroof motor ground circuit
3. Sunroof switch
4. Sunroof switch circuit
5. Sunroof motor1. Check 10A fuse [No. 10, located in fuse block
(J/B)], 30A fusible link and M4 circuit breaker. Verify
battery positive voltage is present at terminal 5 of
sunroof motor. And then turn ignition switch ªONº
and verify battery positive voltage is present at ter-
minal 5 of sunroof switch.
2. Check sunroof motor ground circuit.
3. Check sunroof switch.
4. Check harness between sunroof switch and sunroof
motor.
5. Check sunroof motor.
Power sunroof cannot be operated
using one of the sunroof switches.1. Sunroof switch
2. Sunroof switch circuit1. Check sunroof switch.
2. Check the harness between sunroof motor and sun-
roof switch.
POWER SUNROOF
Trouble Diagnoses
EL-240

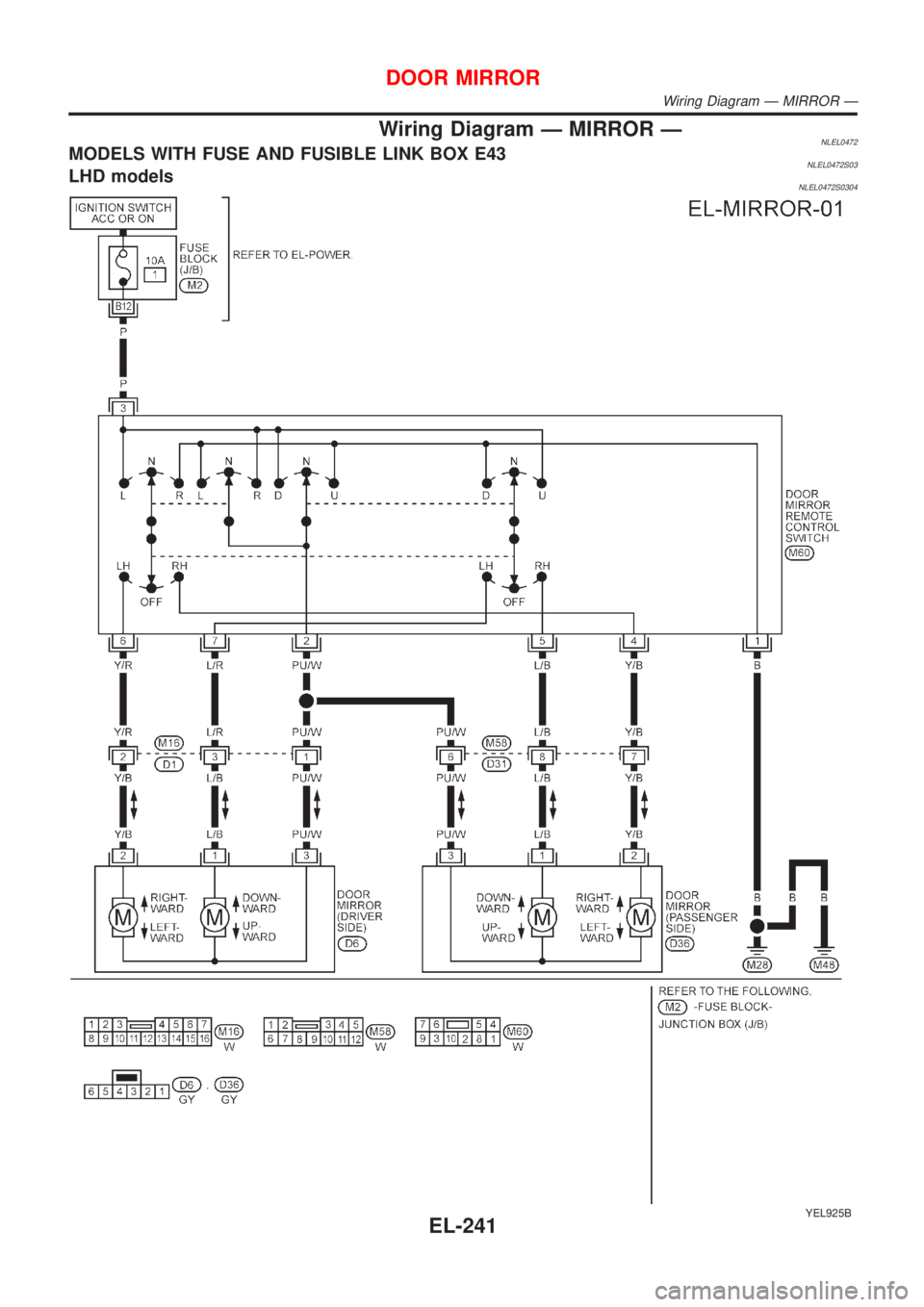

Wiring Diagram Ð MIRROR ÐNLEL0472MODELS WITH FUSE AND FUSIBLE LINK BOX E43NLEL0472S03LHD modelsNLEL0472S0304
YEL925B
DOOR MIRROR
Wiring Diagram Ð MIRROR Ð
EL-241

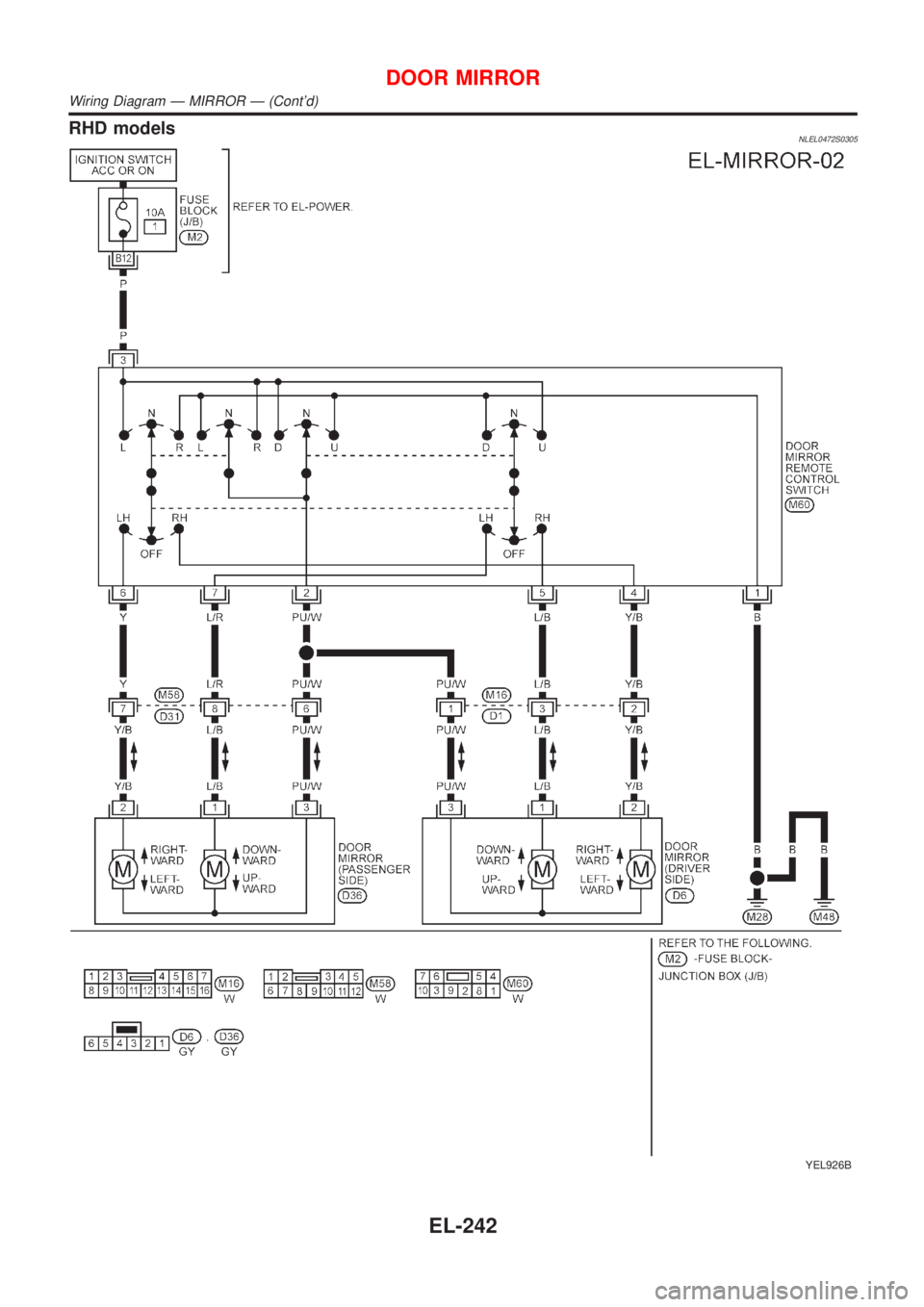

RHD modelsNLEL0472S0305
YEL926B
DOOR MIRROR
Wiring Diagram Ð MIRROR Ð (Cont'd)
EL-242

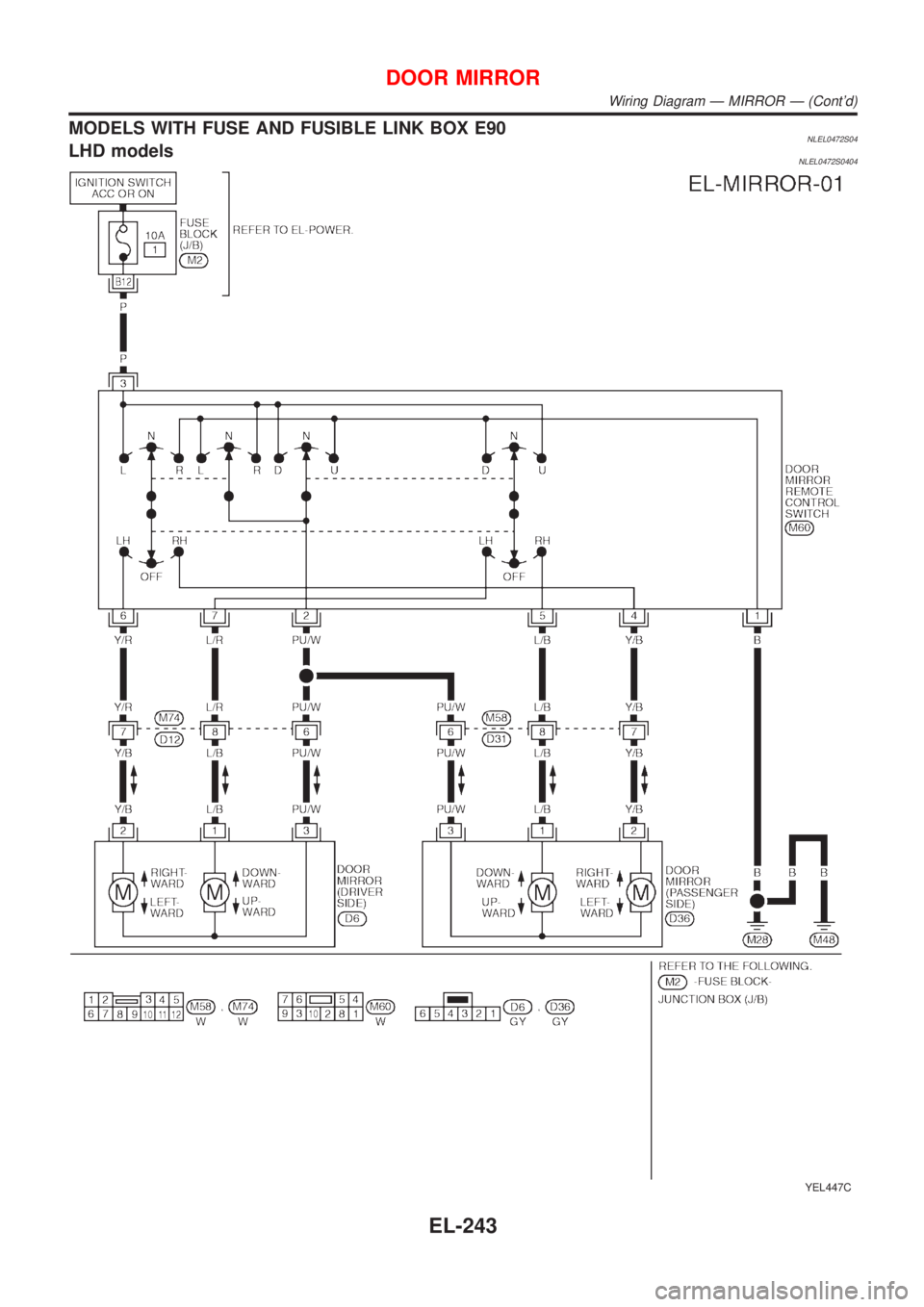

MODELS WITH FUSE AND FUSIBLE LINK BOX E90NLEL0472S04LHD modelsNLEL0472S0404
YEL447C
DOOR MIRROR
Wiring Diagram Ð MIRROR Ð (Cont'd)
EL-243

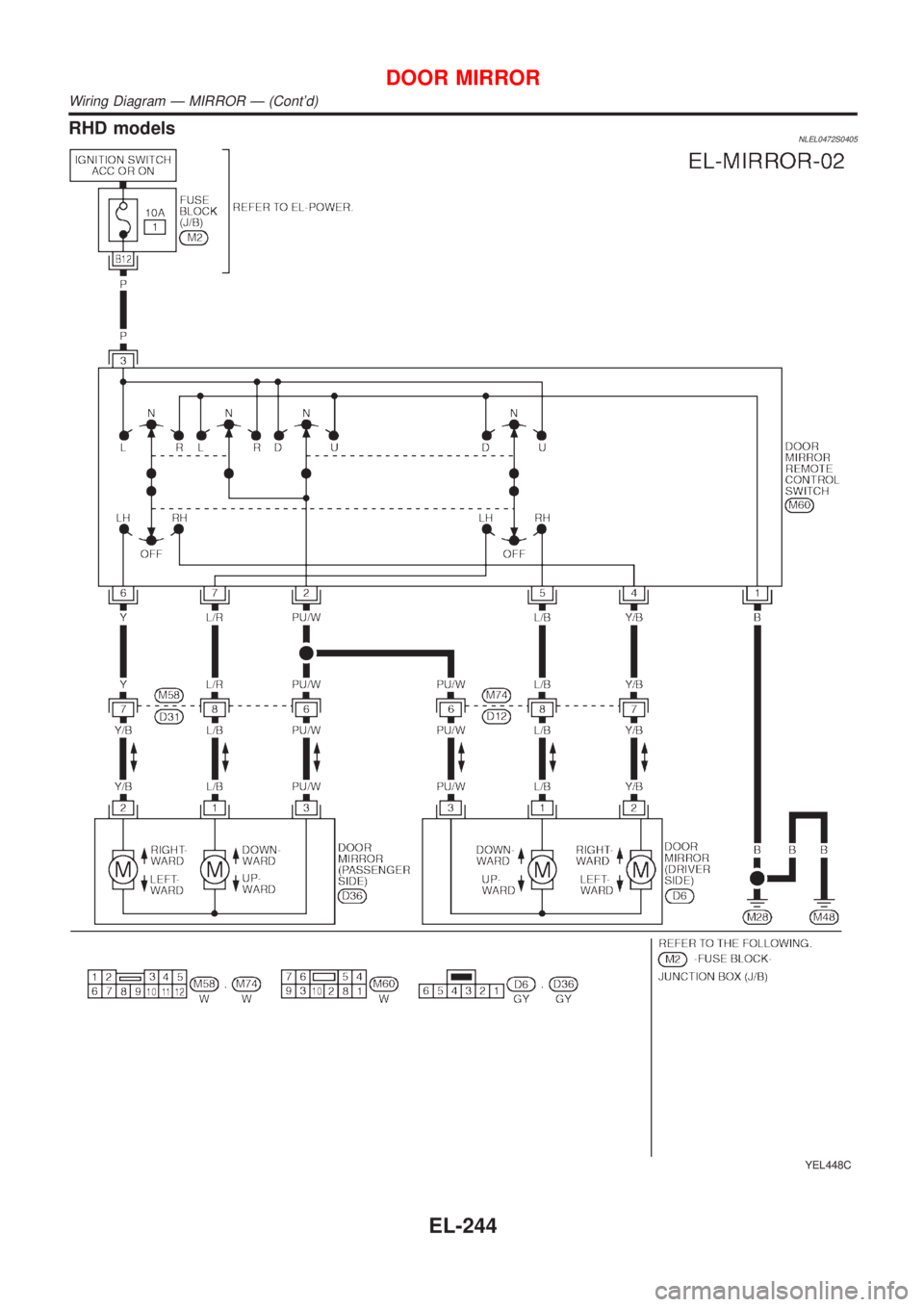

RHD modelsNLEL0472S0405
YEL448C
DOOR MIRROR
Wiring Diagram Ð MIRROR Ð (Cont'd)
EL-244

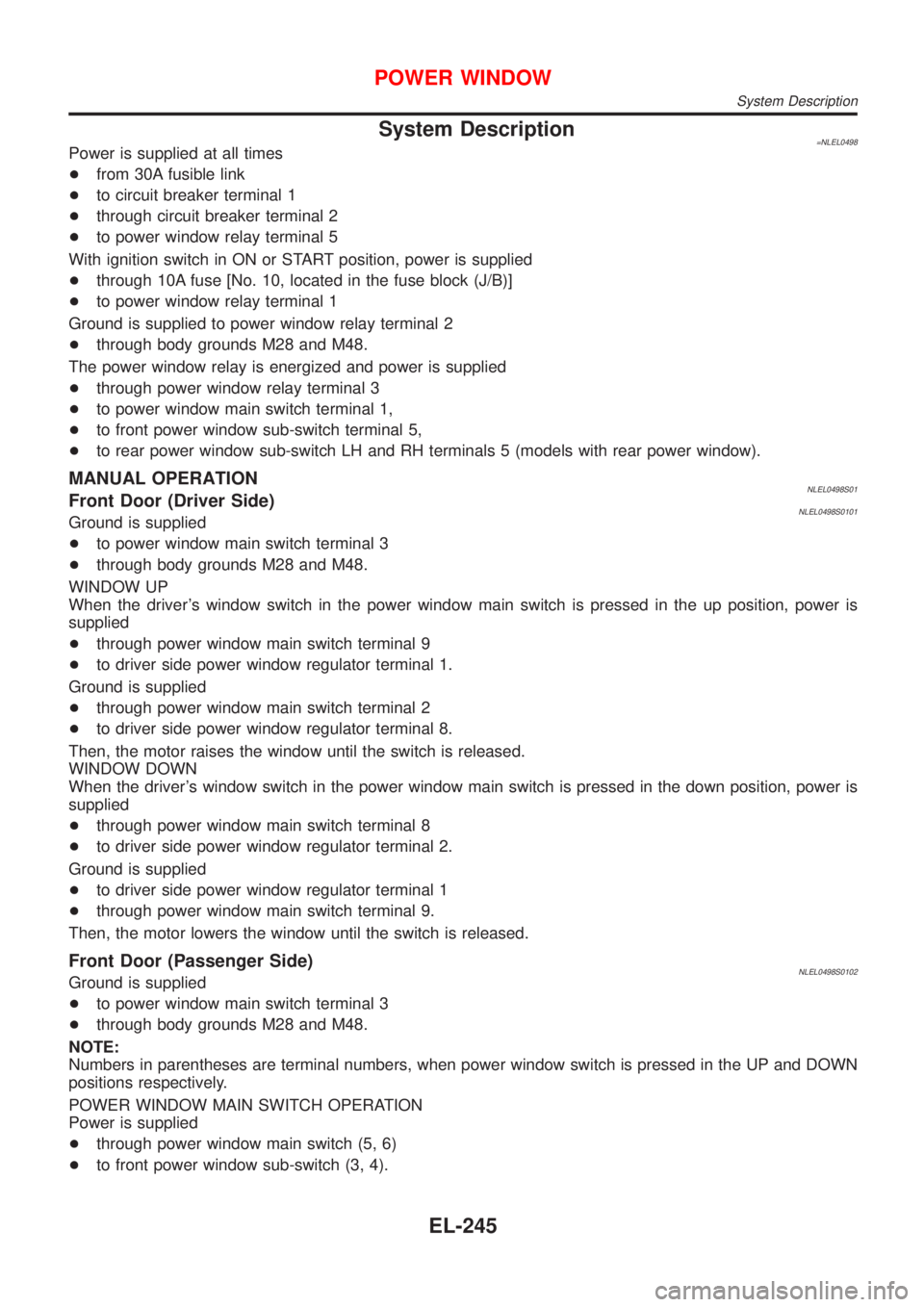

System Description=NLEL0498Power is supplied at all times
+from 30A fusible link
+to circuit breaker terminal 1
+through circuit breaker terminal 2
+to power window relay terminal 5
With ignition switch in ON or START position, power is supplied
+through 10A fuse [No. 10, located in the fuse block (J/B)]
+to power window relay terminal 1
Ground is supplied to power window relay terminal 2
+through body grounds M28 and M48.
The power window relay is energized and power is supplied
+through power window relay terminal 3
+to power window main switch terminal 1,
+to front power window sub-switch terminal 5,
+to rear power window sub-switch LH and RH terminals 5 (models with rear power window).
MANUAL OPERATIONNLEL0498S01Front Door (Driver Side)NLEL0498S0101Ground is supplied
+to power window main switch terminal 3
+through body grounds M28 and M48.
WINDOW UP
When the driver's window switch in the power window main switch is pressed in the up position, power is
supplied
+through power window main switch terminal 9
+to driver side power window regulator terminal 1.
Ground is supplied
+through power window main switch terminal 2
+to driver side power window regulator terminal 8.
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the driver's window switch in the power window main switch is pressed in the down position, power is
supplied
+through power window main switch terminal 8
+to driver side power window regulator terminal 2.
Ground is supplied
+to driver side power window regulator terminal 1
+through power window main switch terminal 9.
Then, the motor lowers the window until the switch is released.
Front Door (Passenger Side)NLEL0498S0102Ground is supplied
+to power window main switch terminal 3
+through body grounds M28 and M48.
NOTE:
Numbers in parentheses are terminal numbers, when power window switch is pressed in the UP and DOWN
positions respectively.
POWER WINDOW MAIN SWITCH OPERATION
Power is supplied
+through power window main switch (5, 6)
+to front power window sub-switch (3, 4).
POWER WINDOW
System Description
EL-245

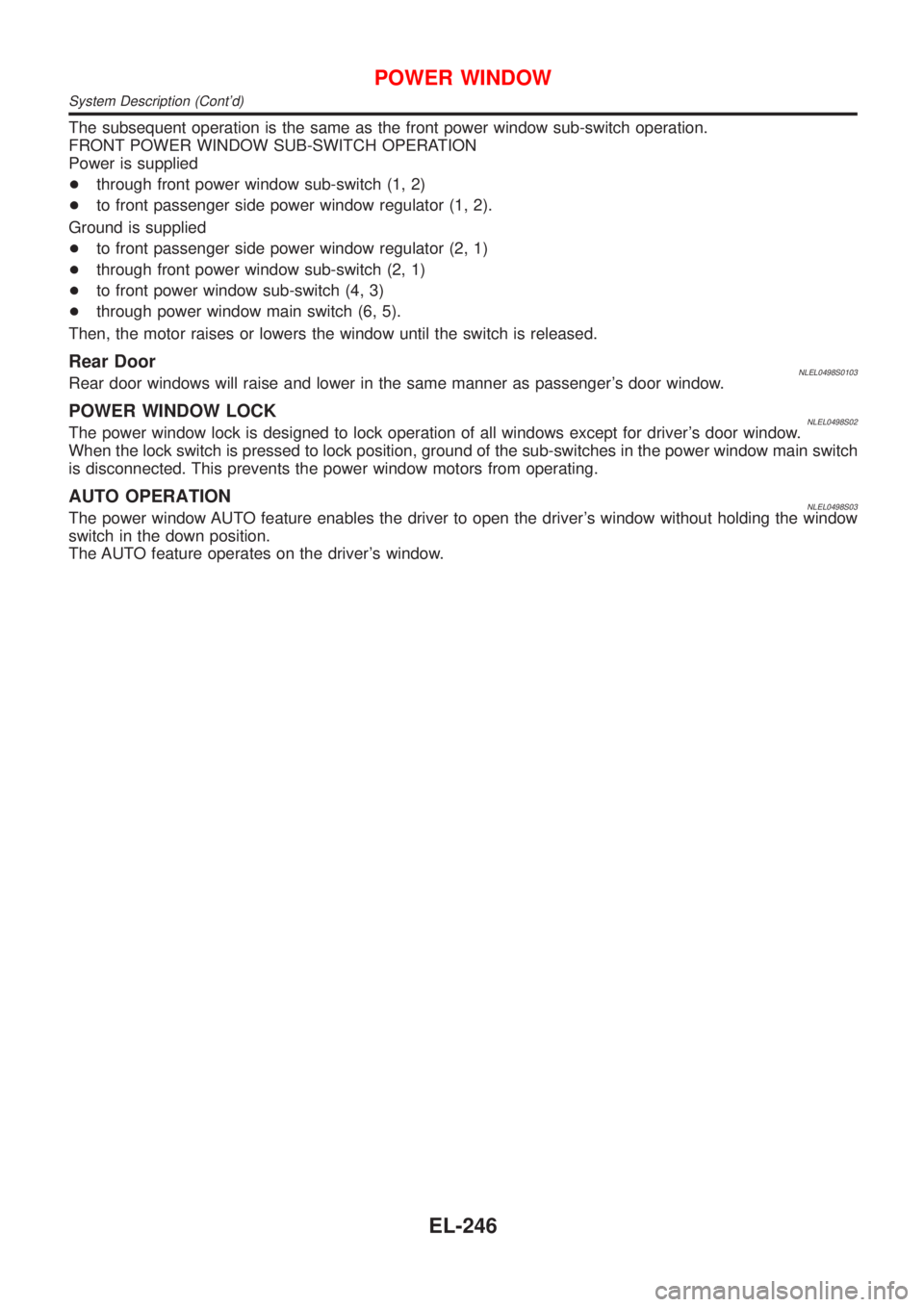

The subsequent operation is the same as the front power window sub-switch operation.
FRONT POWER WINDOW SUB-SWITCH OPERATION
Power is supplied
+through front power window sub-switch (1, 2)
+to front passenger side power window regulator (1, 2).
Ground is supplied
+to front passenger side power window regulator (2, 1)
+through front power window sub-switch (2, 1)
+to front power window sub-switch (4, 3)
+through power window main switch (6, 5).
Then, the motor raises or lowers the window until the switch is released.
Rear DoorNLEL0498S0103Rear door windows will raise and lower in the same manner as passenger's door window.
POWER WINDOW LOCKNLEL0498S02The power window lock is designed to lock operation of all windows except for driver's door window.
When the lock switch is pressed to lock position, ground of the sub-switches in the power window main switch
is disconnected. This prevents the power window motors from operating.
AUTO OPERATIONNLEL0498S03The power window AUTO feature enables the driver to open the driver's window without holding the window
switch in the down position.
The AUTO feature operates on the driver's window.
POWER WINDOW
System Description (Cont'd)
EL-246

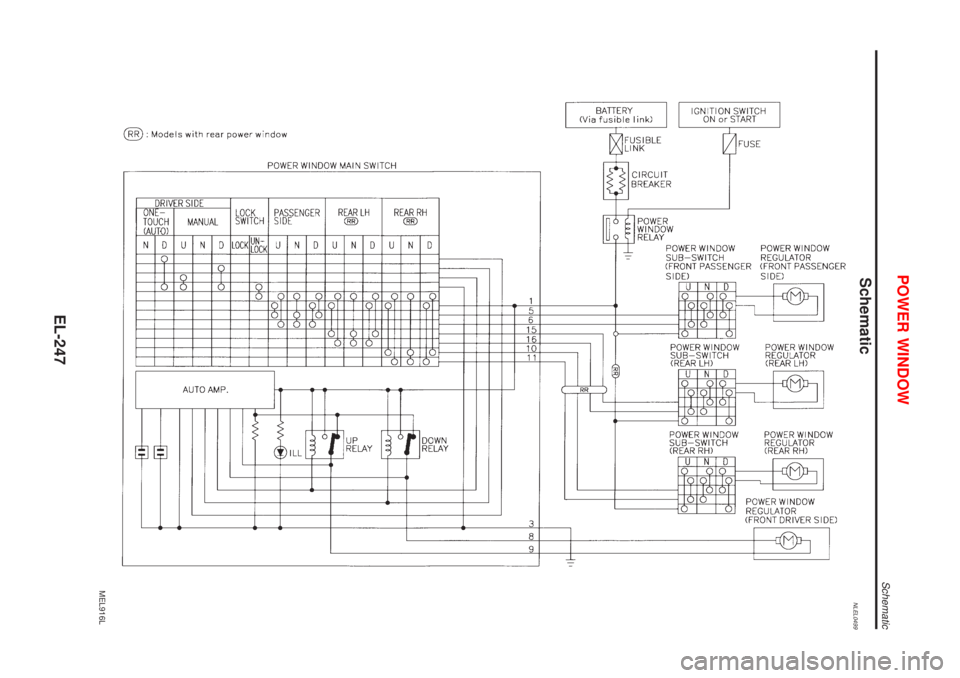

SchematicNLEL0499
MEL916L
POWER WINDOW
Schematic
EL-247

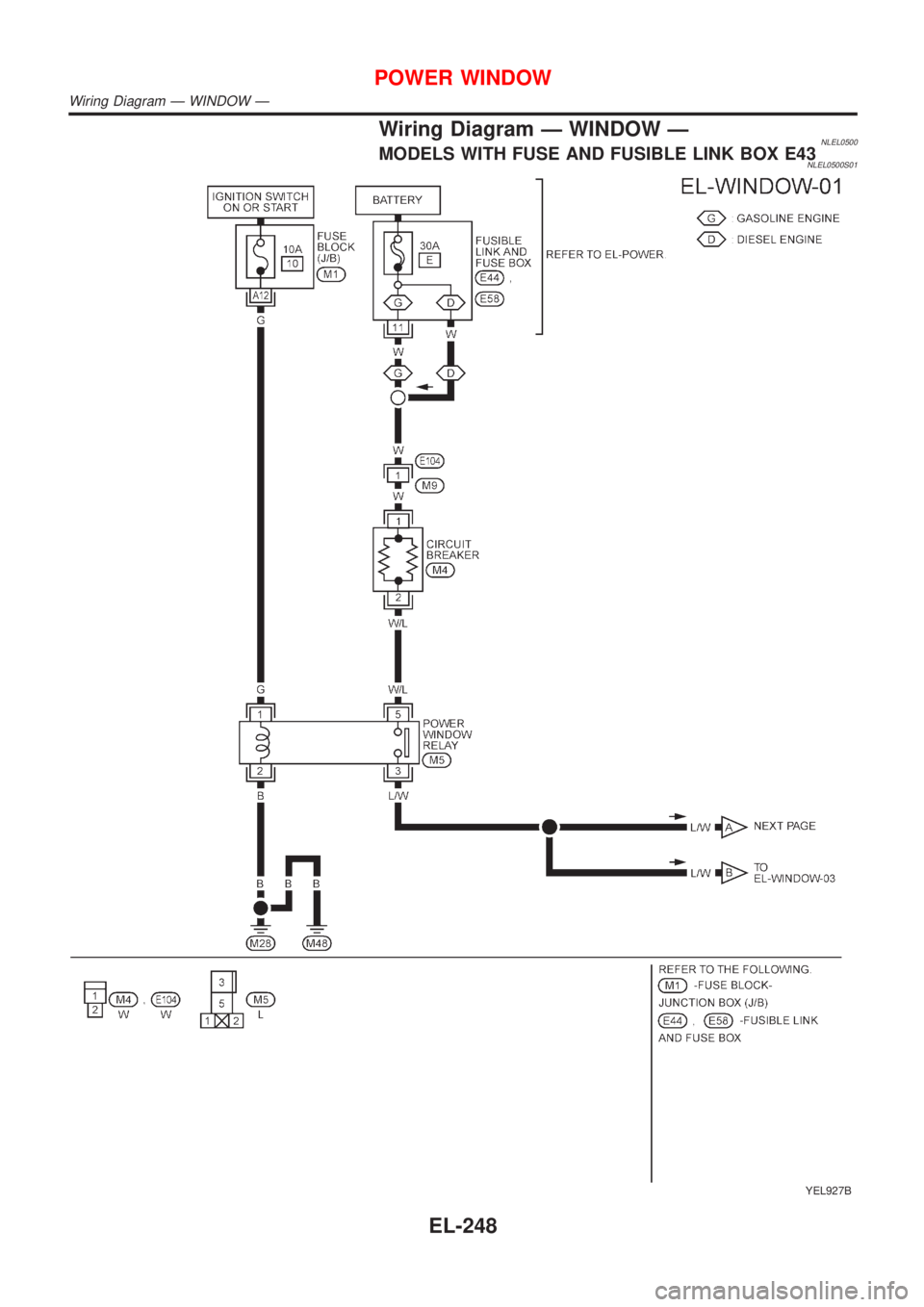

Wiring Diagram Ð WINDOW ÐNLEL0500MODELS WITH FUSE AND FUSIBLE LINK BOX E43NLEL0500S01
YEL927B
POWER WINDOW
Wiring Diagram Ð WINDOW Ð
EL-248

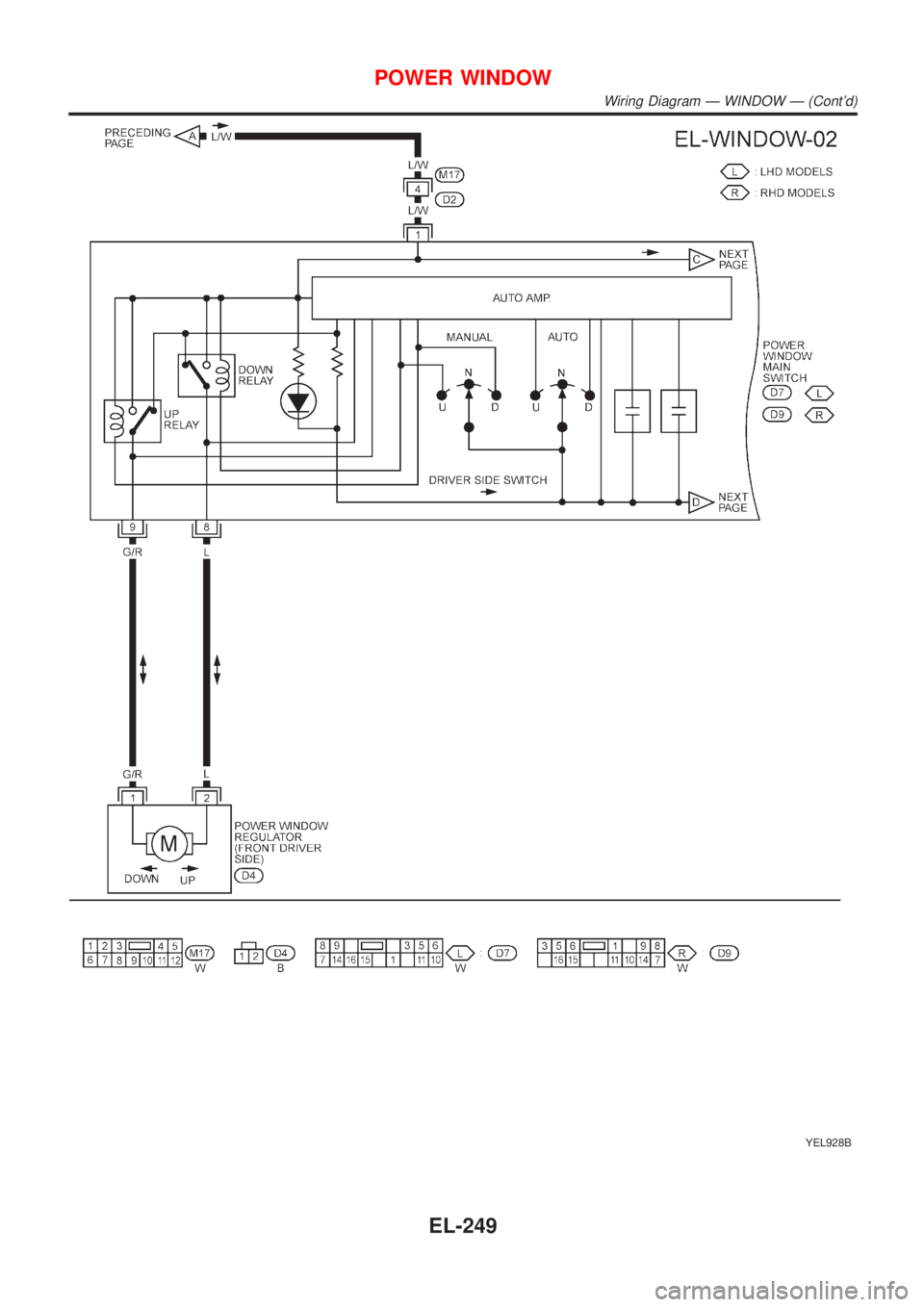

YEL928B
POWER WINDOW
Wiring Diagram Ð WINDOW Ð (Cont'd)
EL-249
