NISSAN ALMERA TINO 2001 Service Repair Manual

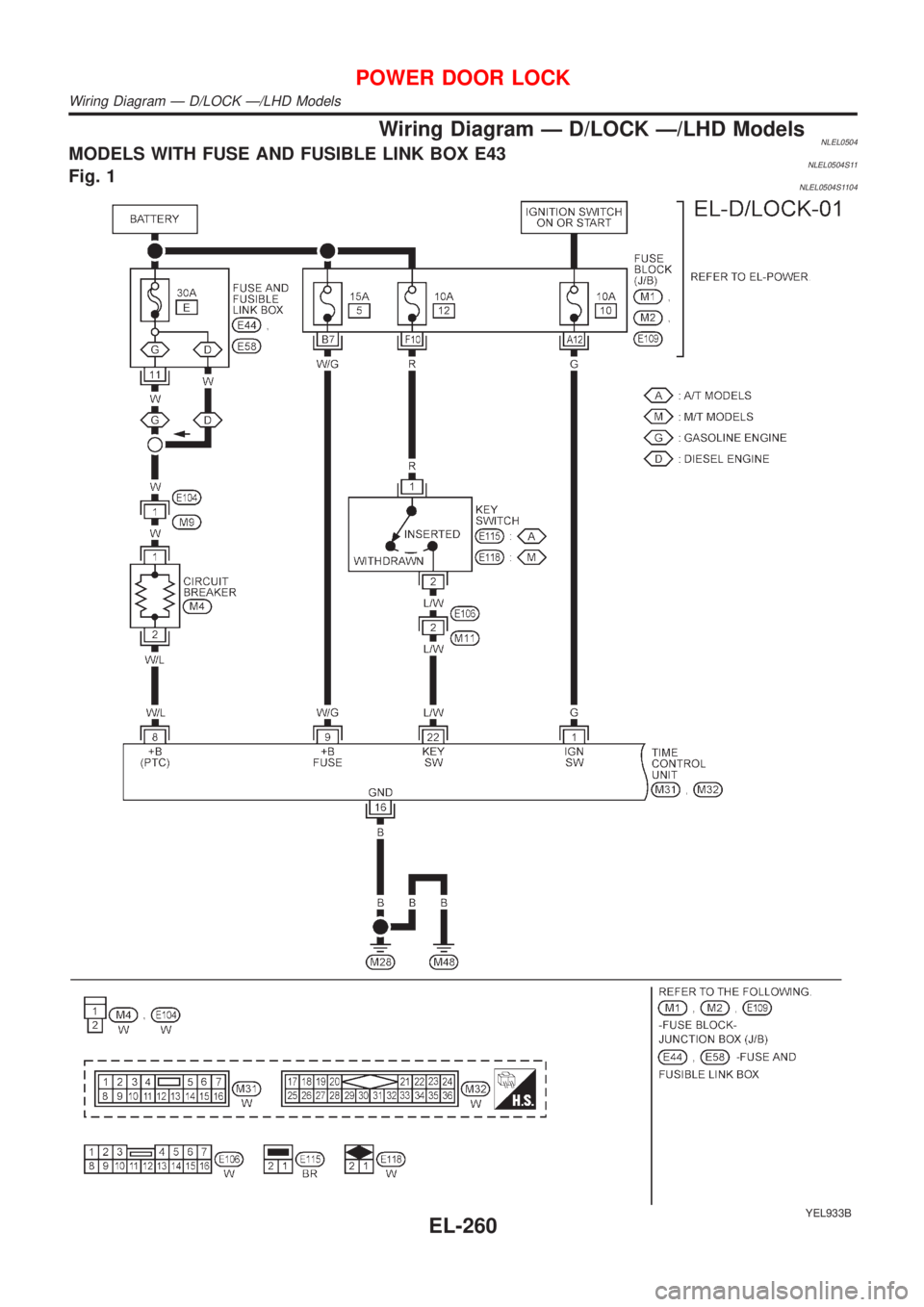

Wiring Diagram Ð D/LOCK Ð/LHD ModelsNLEL0504MODELS WITH FUSE AND FUSIBLE LINK BOX E43NLEL0504S11Fig. 1NLEL0504S1104
YEL933B
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð/LHD Models
EL-260

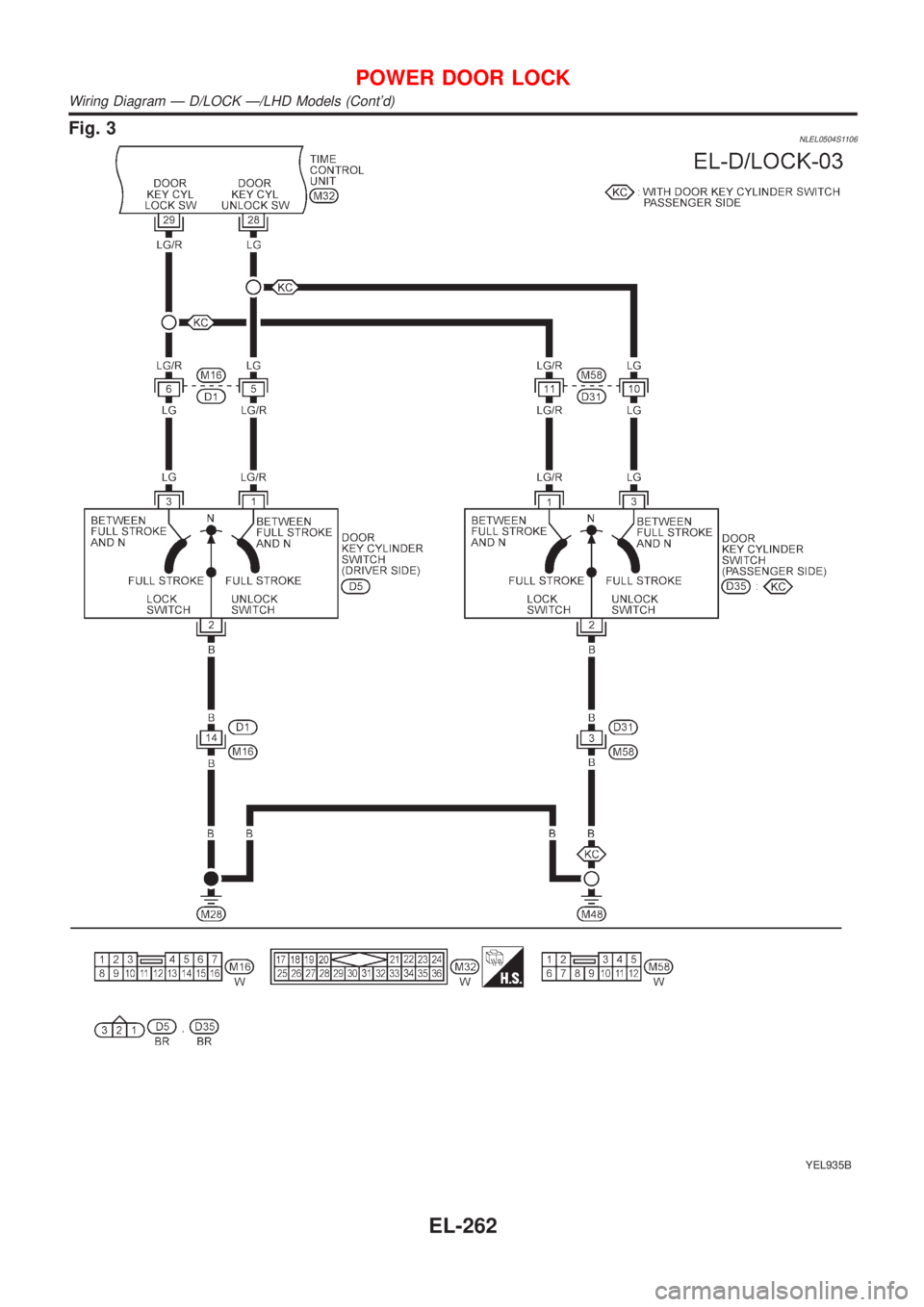

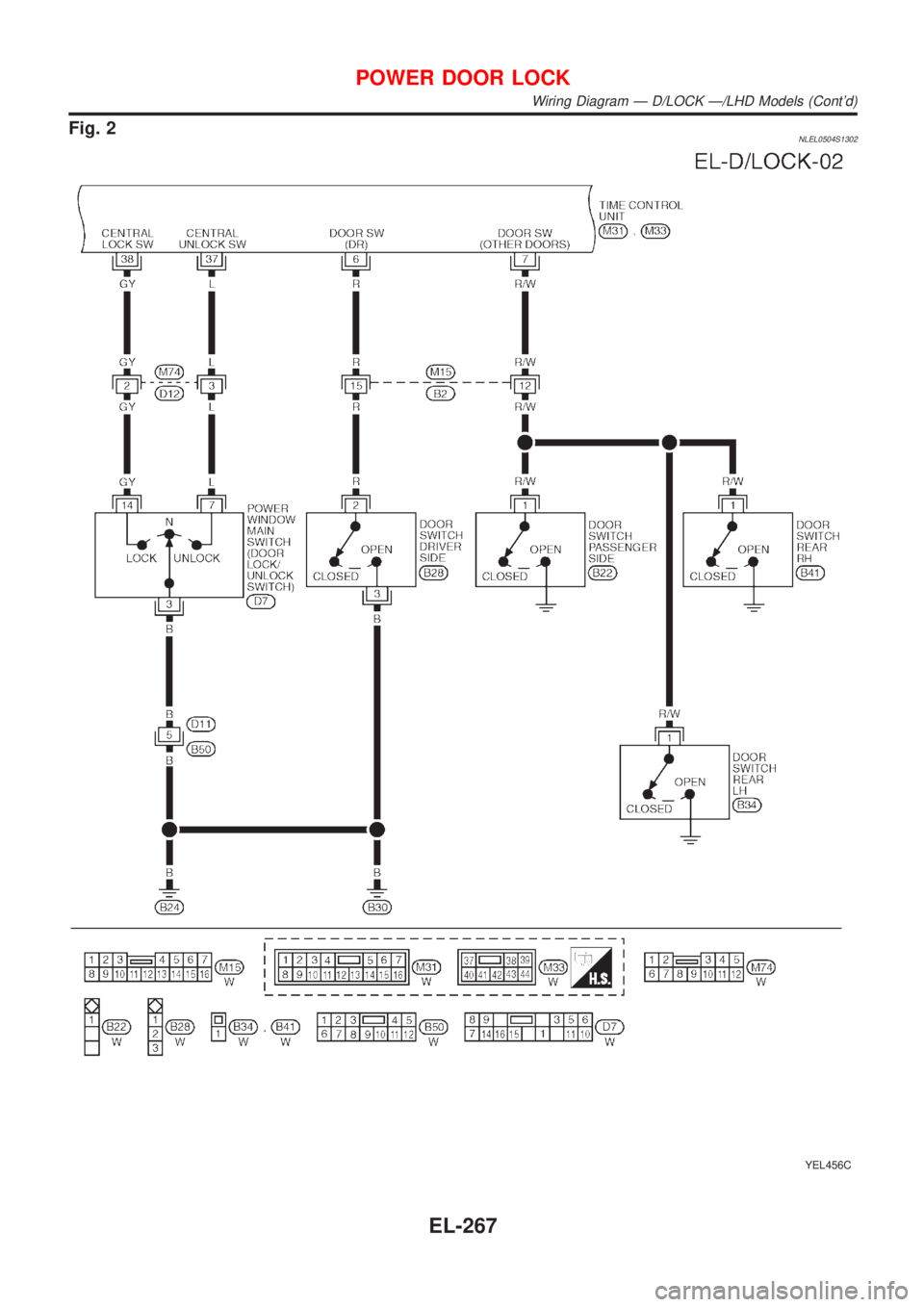

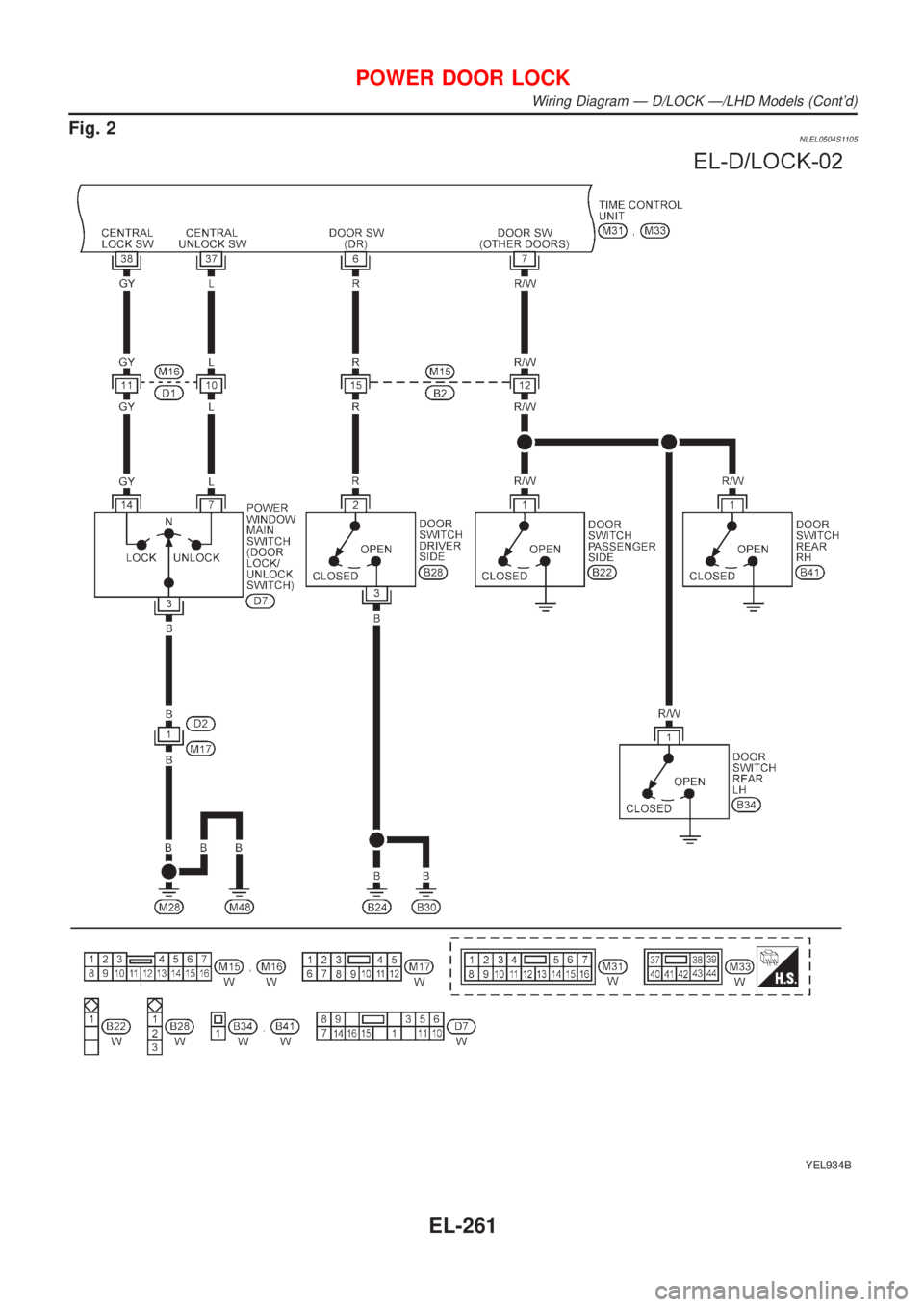

Fig. 2NLEL0504S1105
YEL934B
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð/LHD Models (Cont'd)
EL-261

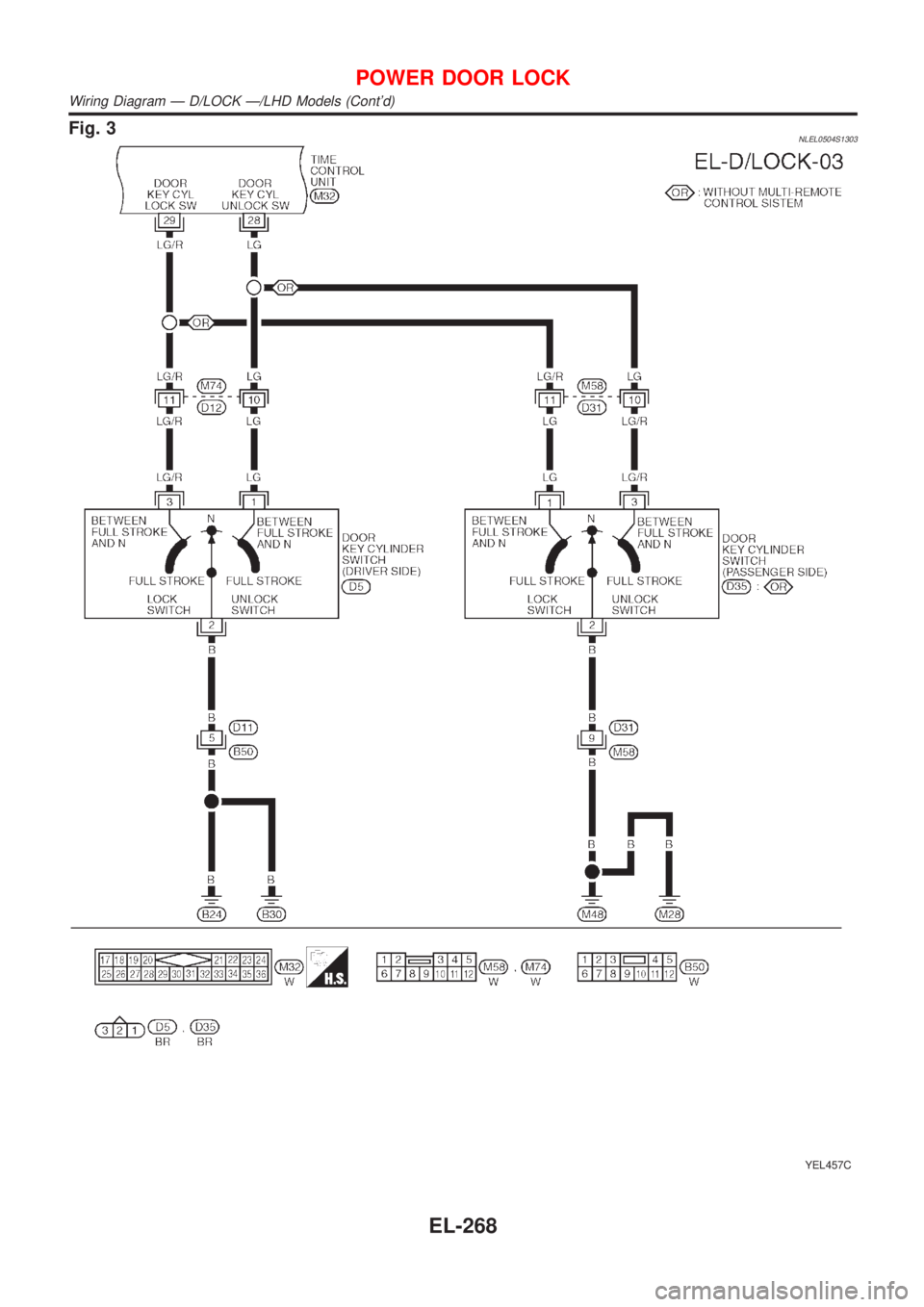

Fig. 3NLEL0504S1106
YEL935B
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð/LHD Models (Cont'd)
EL-262

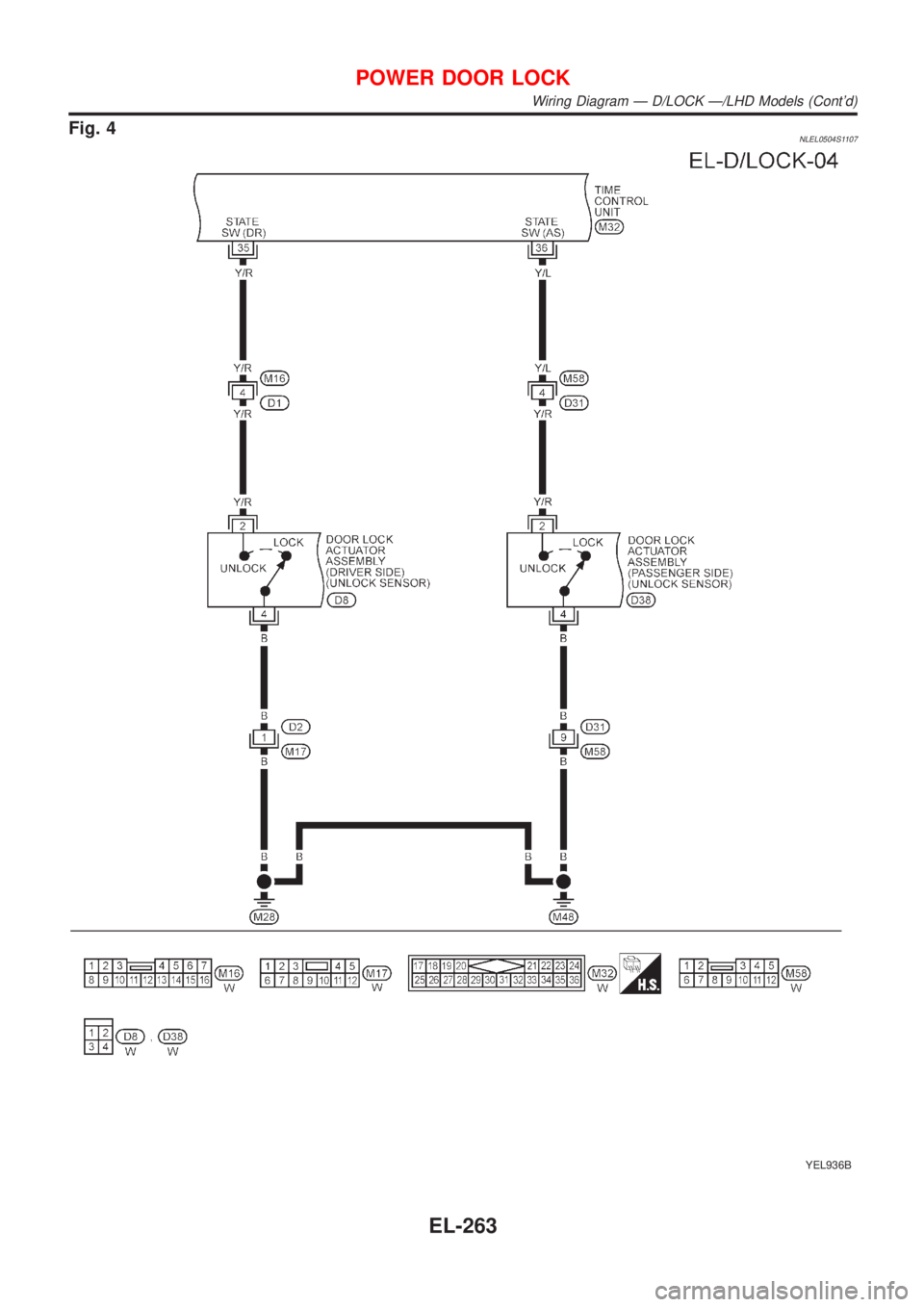

Fig. 4NLEL0504S1107
YEL936B
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð/LHD Models (Cont'd)
EL-263

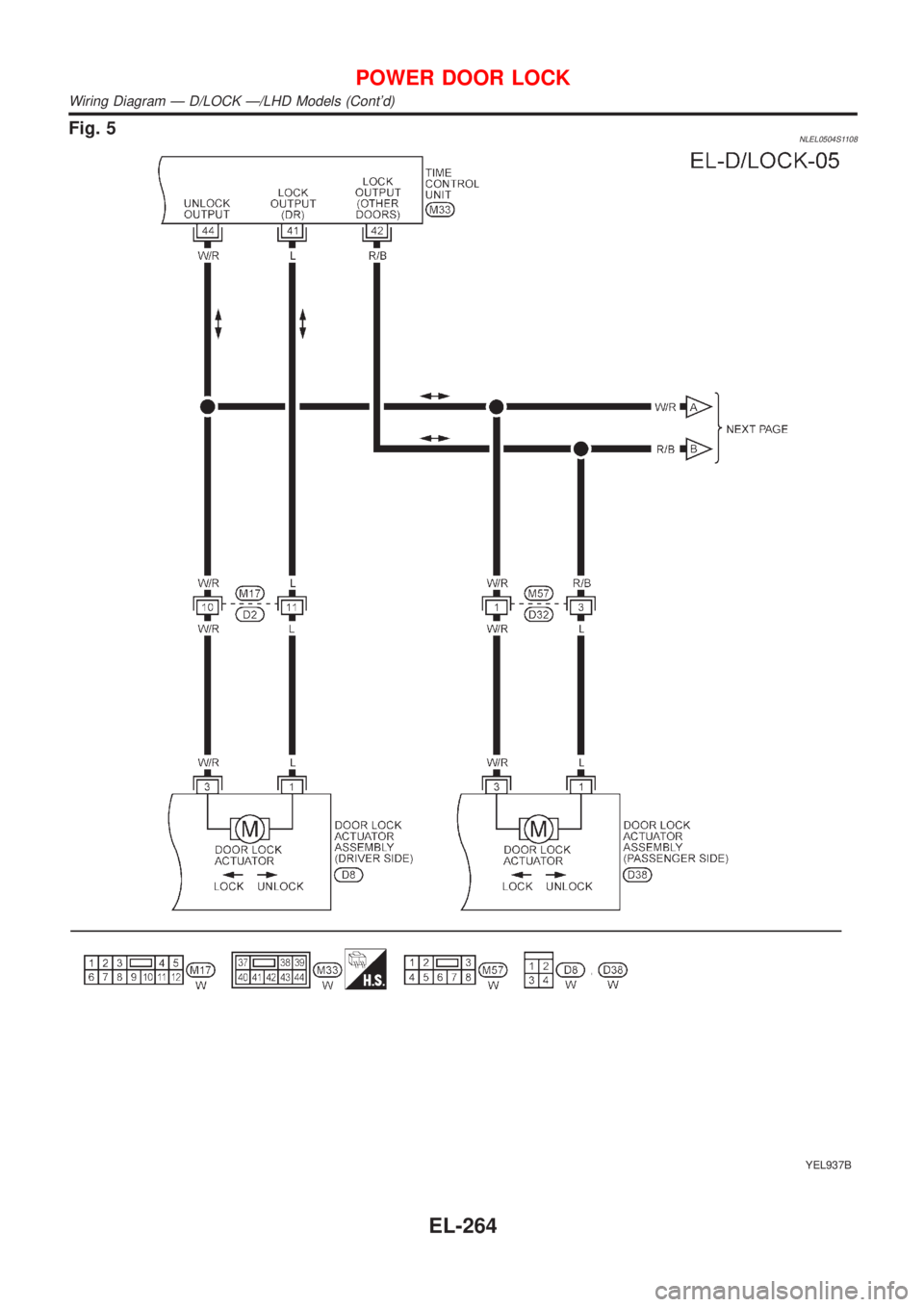

Fig. 5NLEL0504S1108
YEL937B
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð/LHD Models (Cont'd)
EL-264

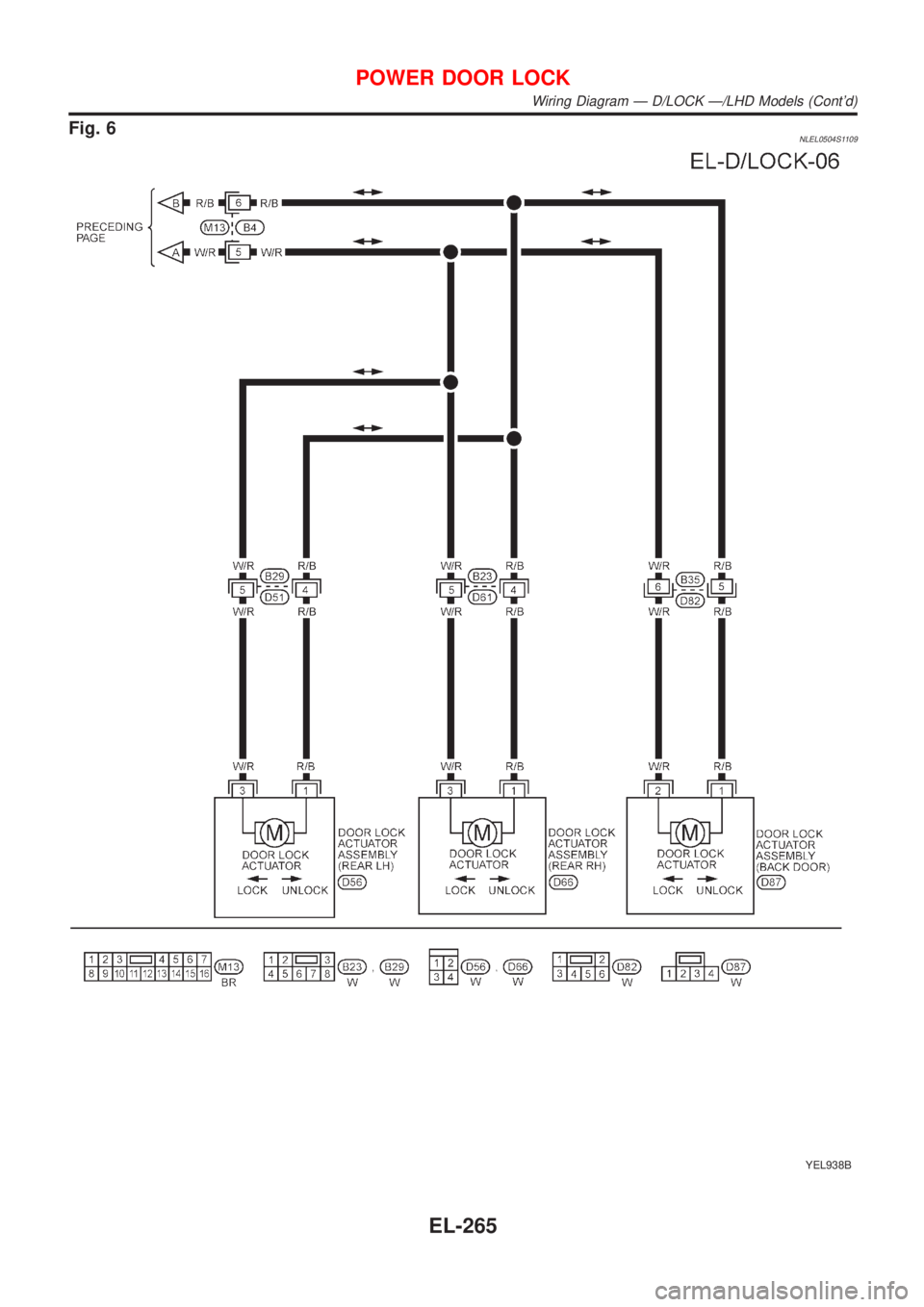

Fig. 6NLEL0504S1109
YEL938B
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð/LHD Models (Cont'd)
EL-265

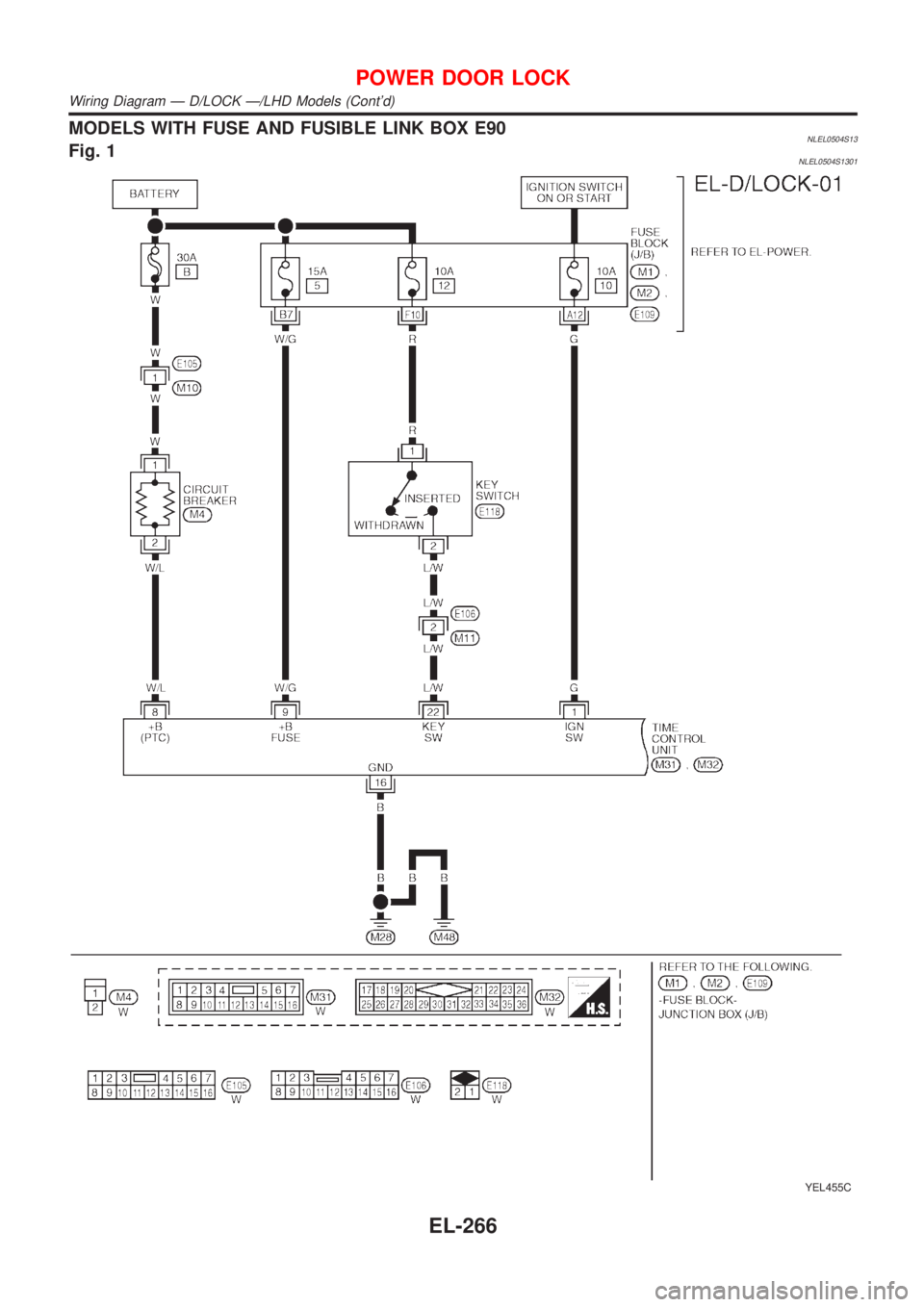

MODELS WITH FUSE AND FUSIBLE LINK BOX E90NLEL0504S13Fig. 1NLEL0504S1301
YEL455C
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð/LHD Models (Cont'd)
EL-266

Fig. 2NLEL0504S1302
YEL456C
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð/LHD Models (Cont'd)
EL-267

Fig. 3NLEL0504S1303
YEL457C
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð/LHD Models (Cont'd)
EL-268

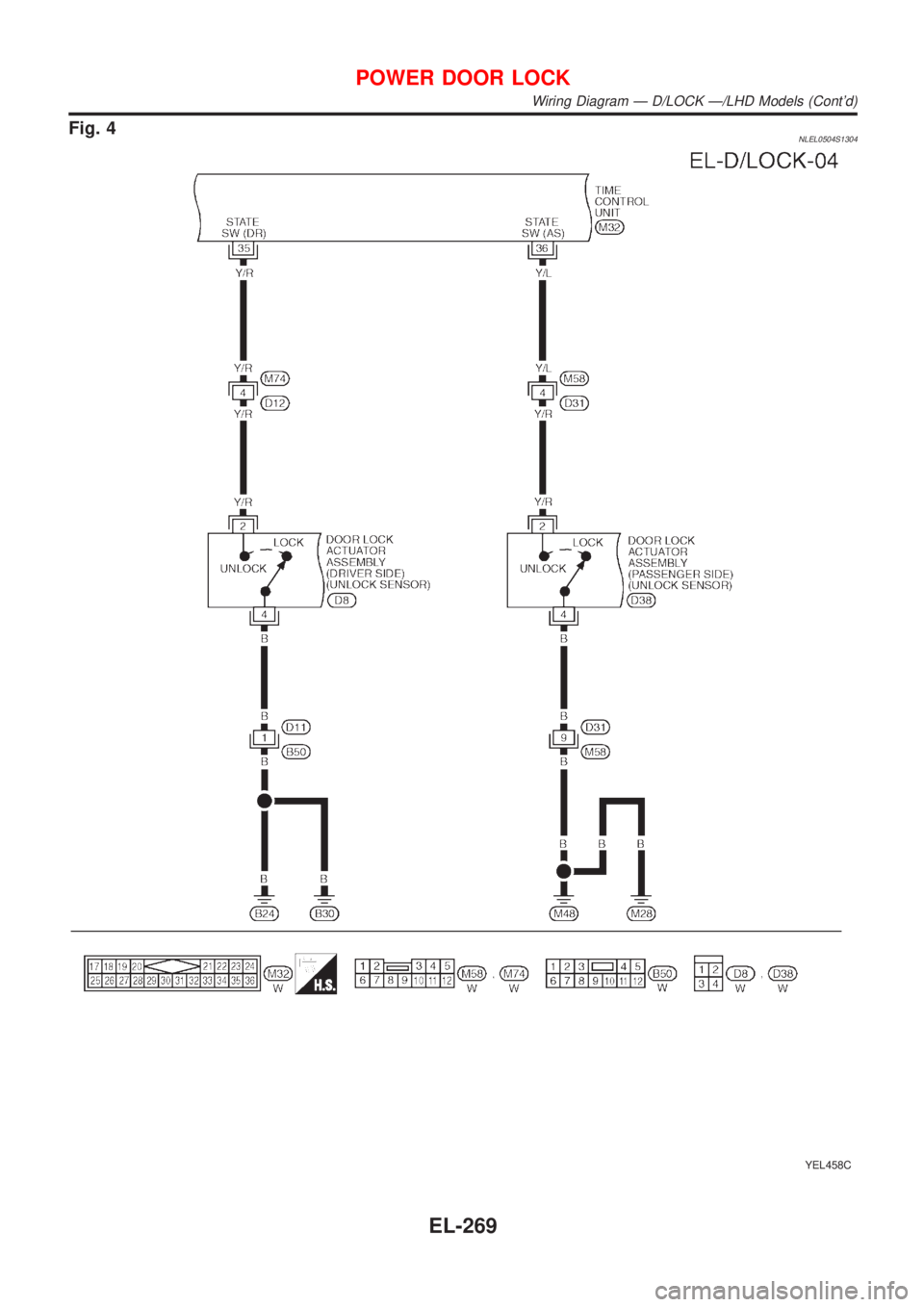

Fig. 4NLEL0504S1304
YEL458C
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð/LHD Models (Cont'd)
EL-269
