NISSAN ALMERA TINO 2001 Service Repair Manual

MODELS WITH FUSE AND FUSIBLE LINK BOX E90NLEL0513S02
YEL473C
NAVIGATION SYSTEM
Schematic (Cont'd)
EL-380

Wiring Diagram Ð NAVI ÐNLEL0514MODELS WITH FUSE AND FUSIBLE LINK BOX E43NLEL0514S05LHD ModelsNLEL0514S0501
YEL957B
NAVIGATION SYSTEM

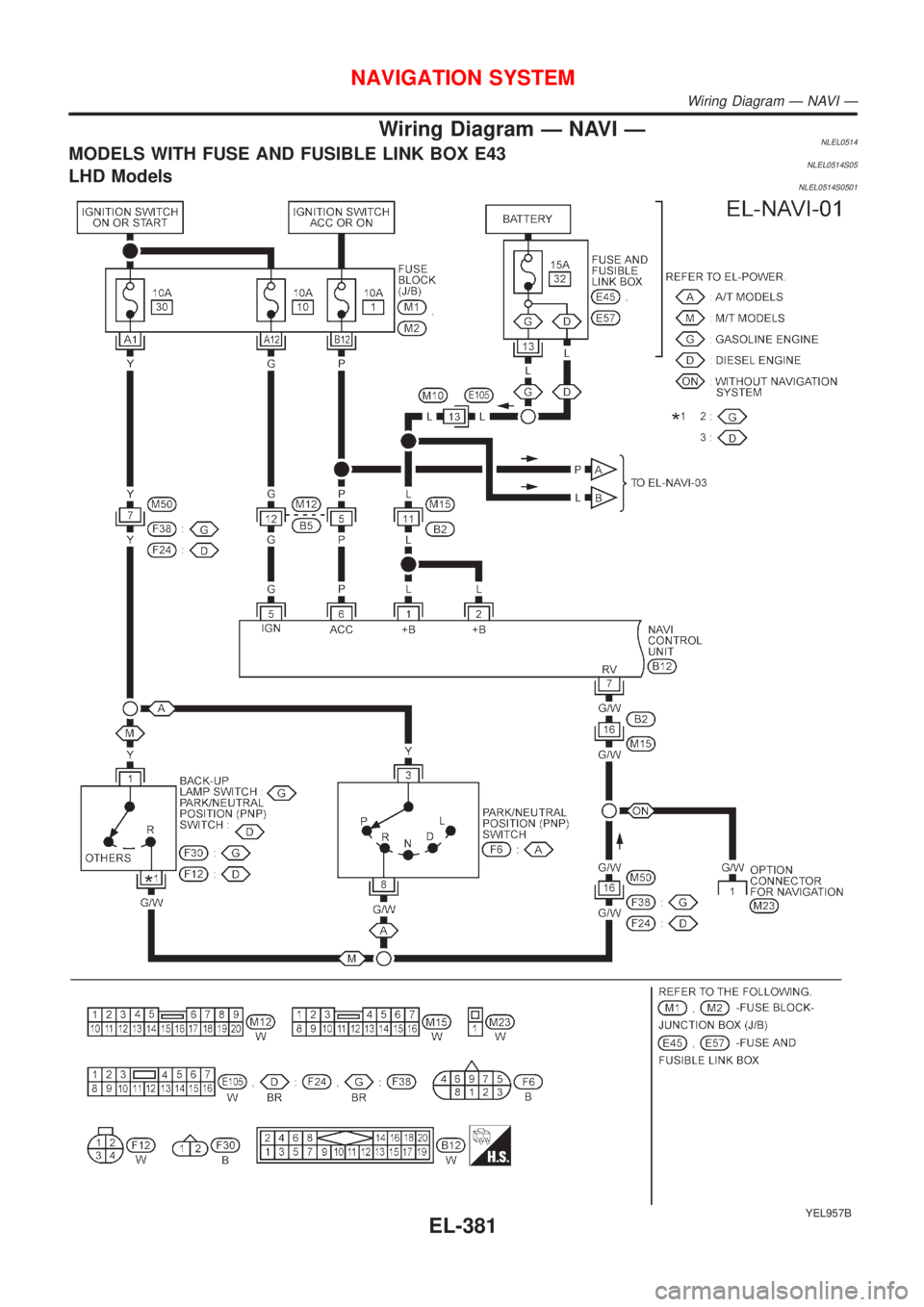

Wiring Diagram Ð NAVI Ð
EL-381

YEL958B

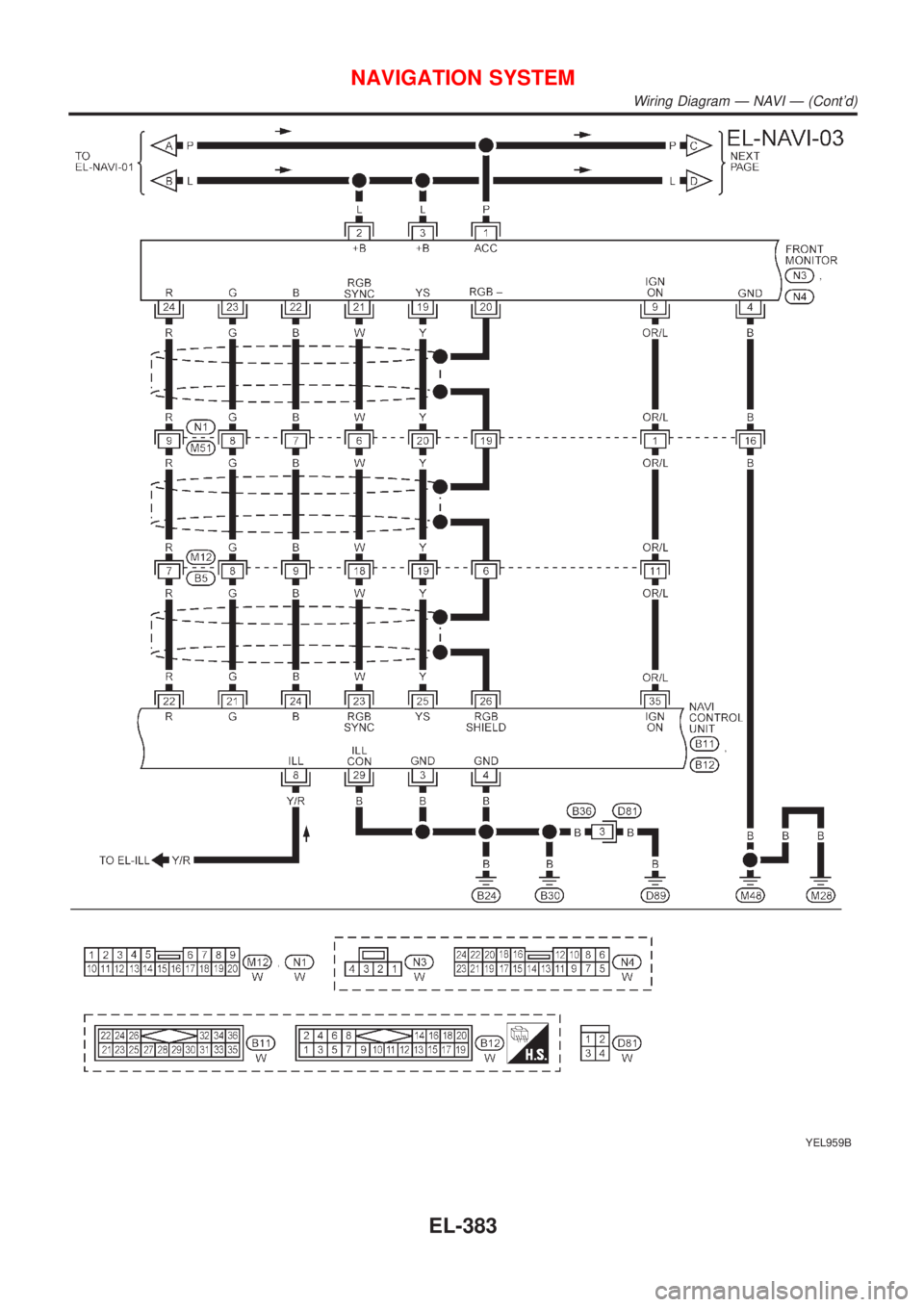

NAVIGATION SYSTEM
Wiring Diagram Ð NAVI Ð (Cont'd)
EL-382

YEL959B

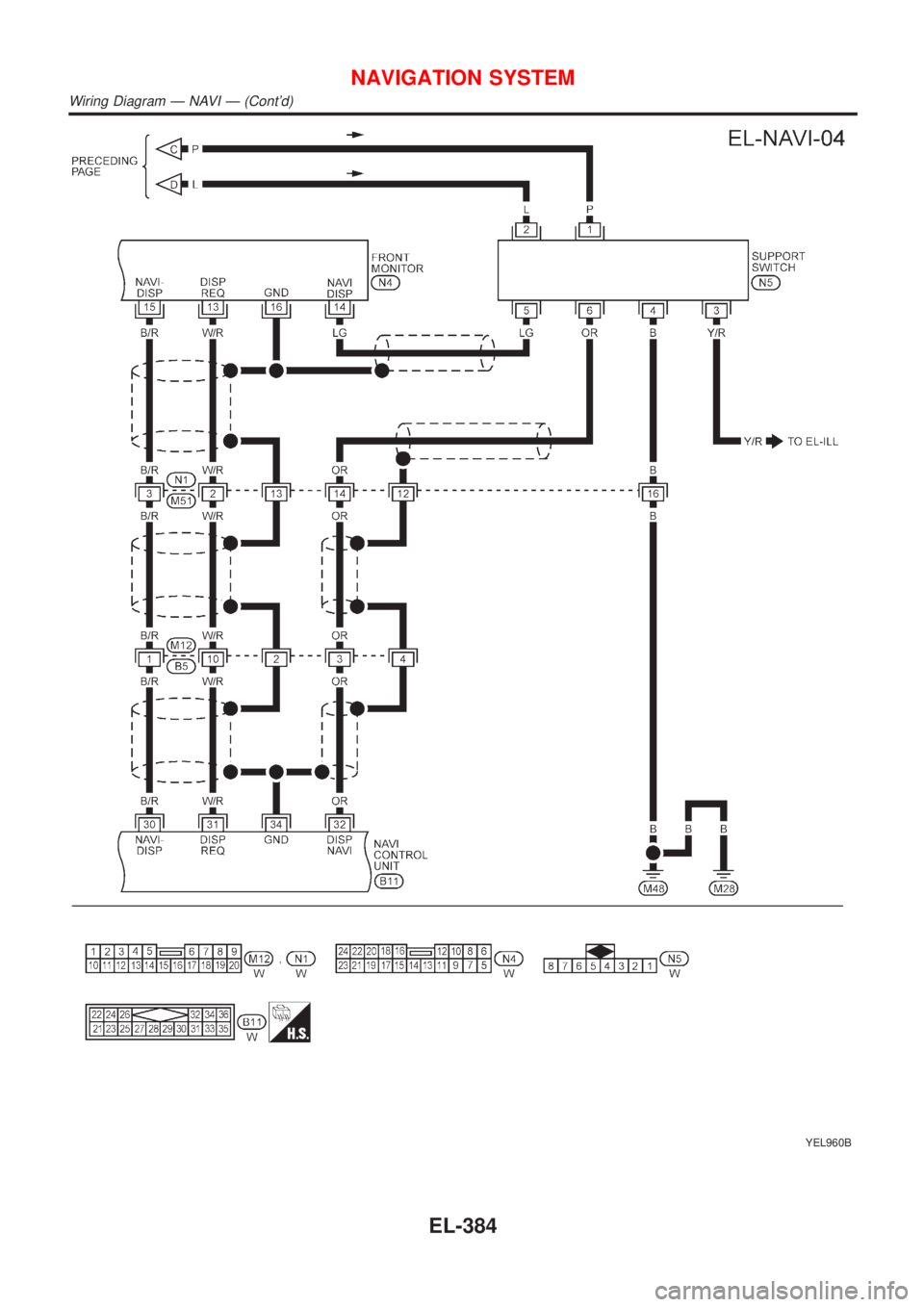

NAVIGATION SYSTEM
Wiring Diagram Ð NAVI Ð (Cont'd)
EL-383

YEL960B

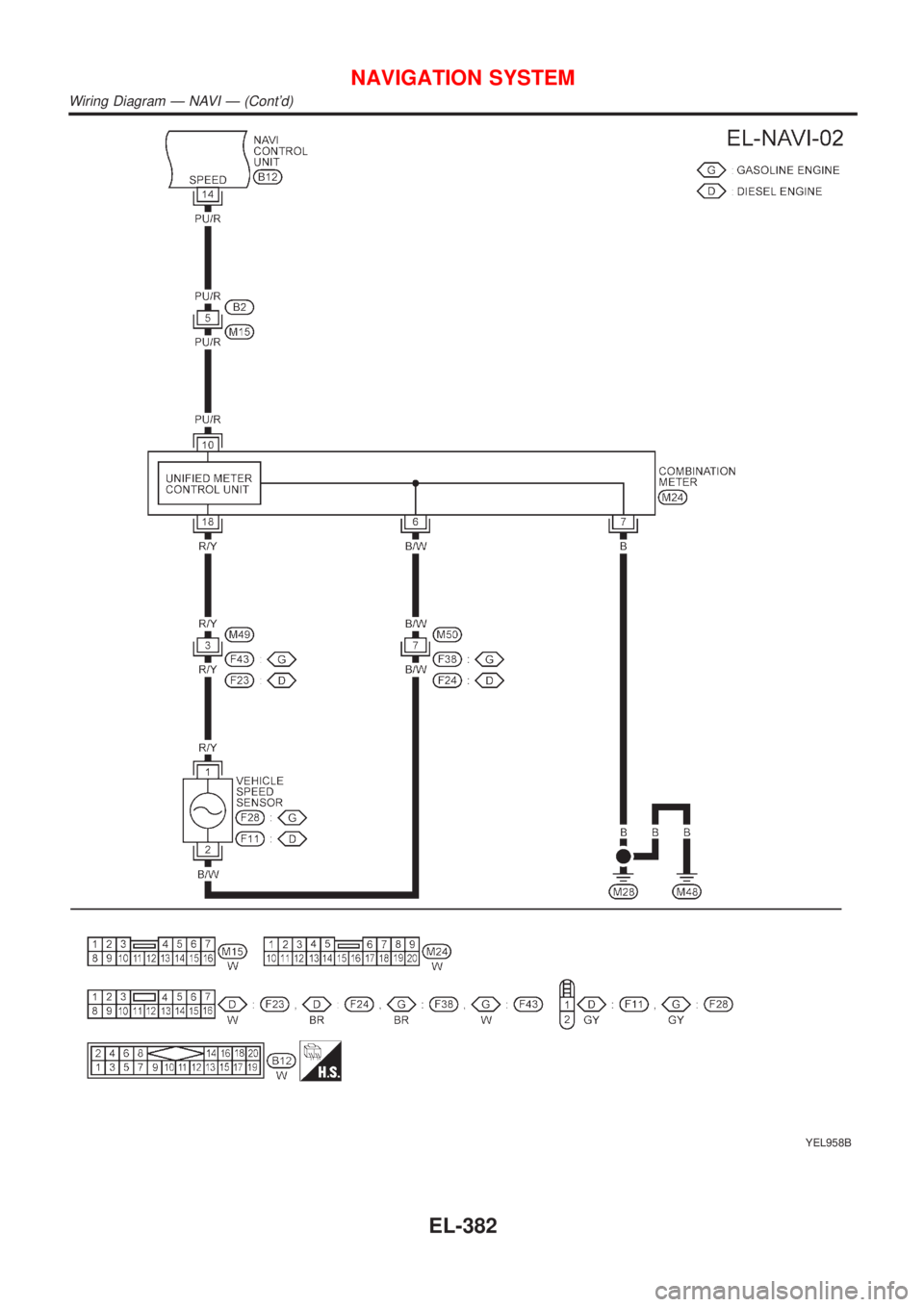

NAVIGATION SYSTEM
Wiring Diagram Ð NAVI Ð (Cont'd)
EL-384

YEL961B
NAVIGATION SYSTEM
Wiring Diagram Ð NAVI Ð (Cont'd)
EL-385

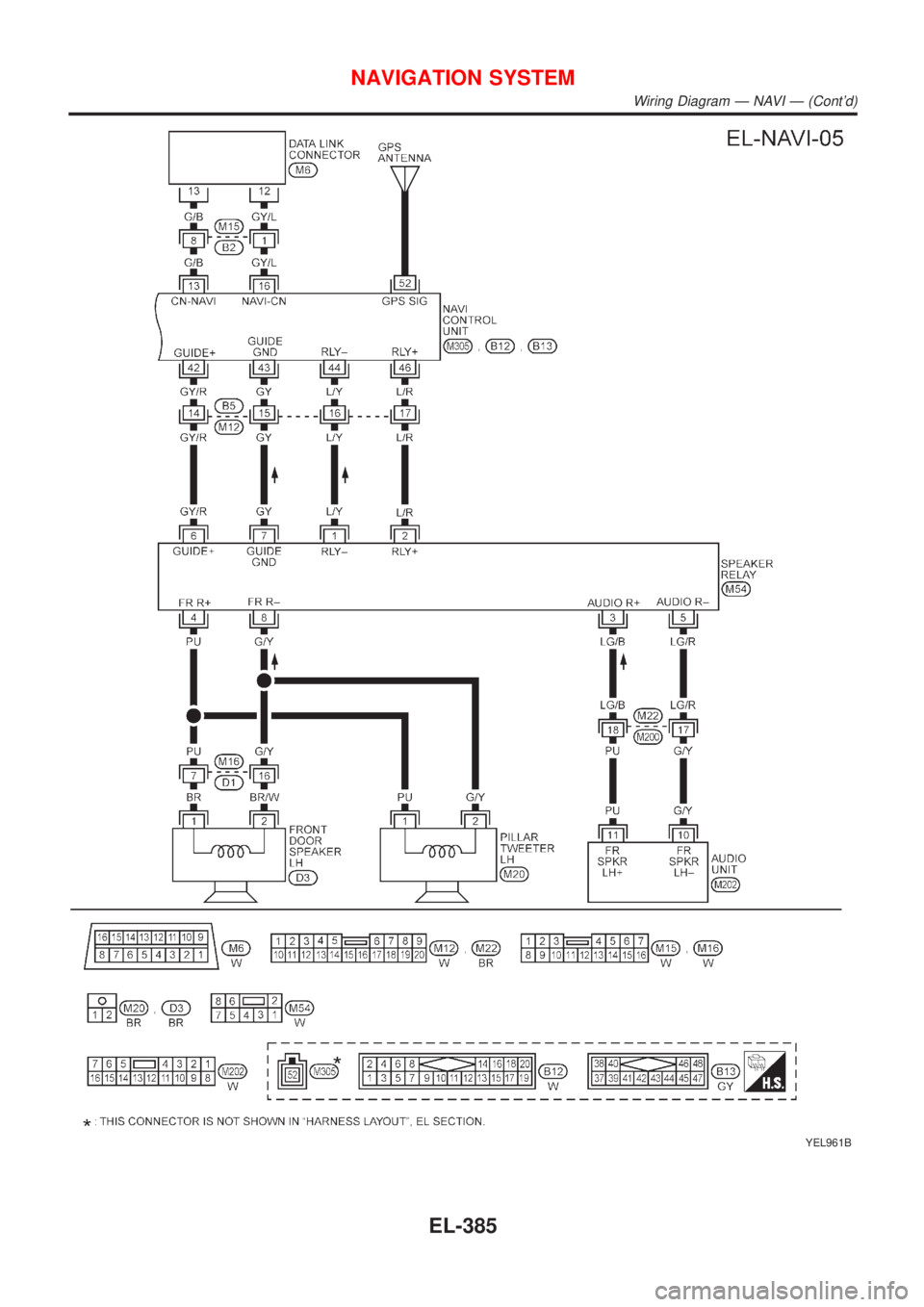

RHD ModelsNLEL0514S0502
YEL962B

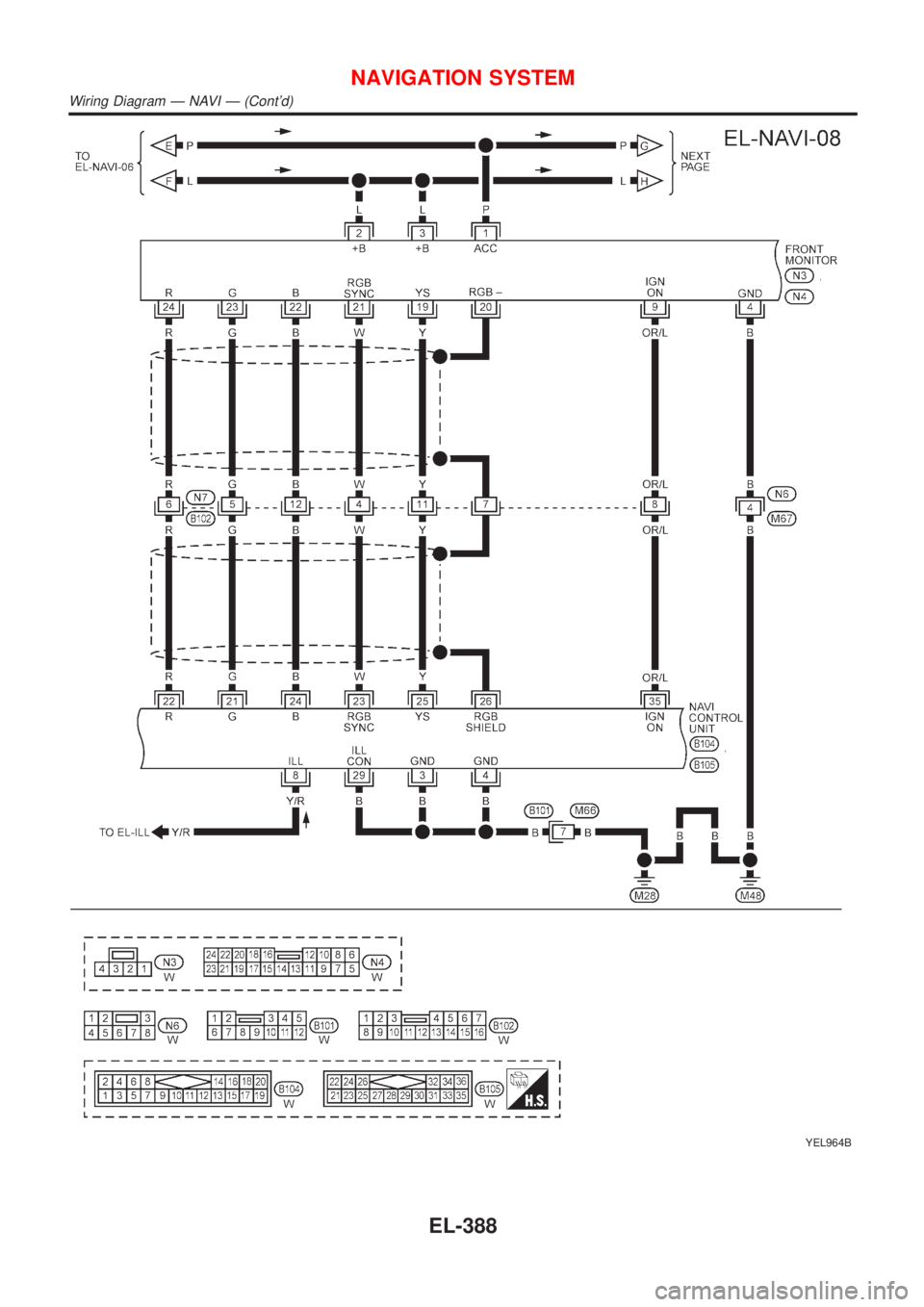

NAVIGATION SYSTEM
Wiring Diagram Ð NAVI Ð (Cont'd)
EL-386

YEL963B

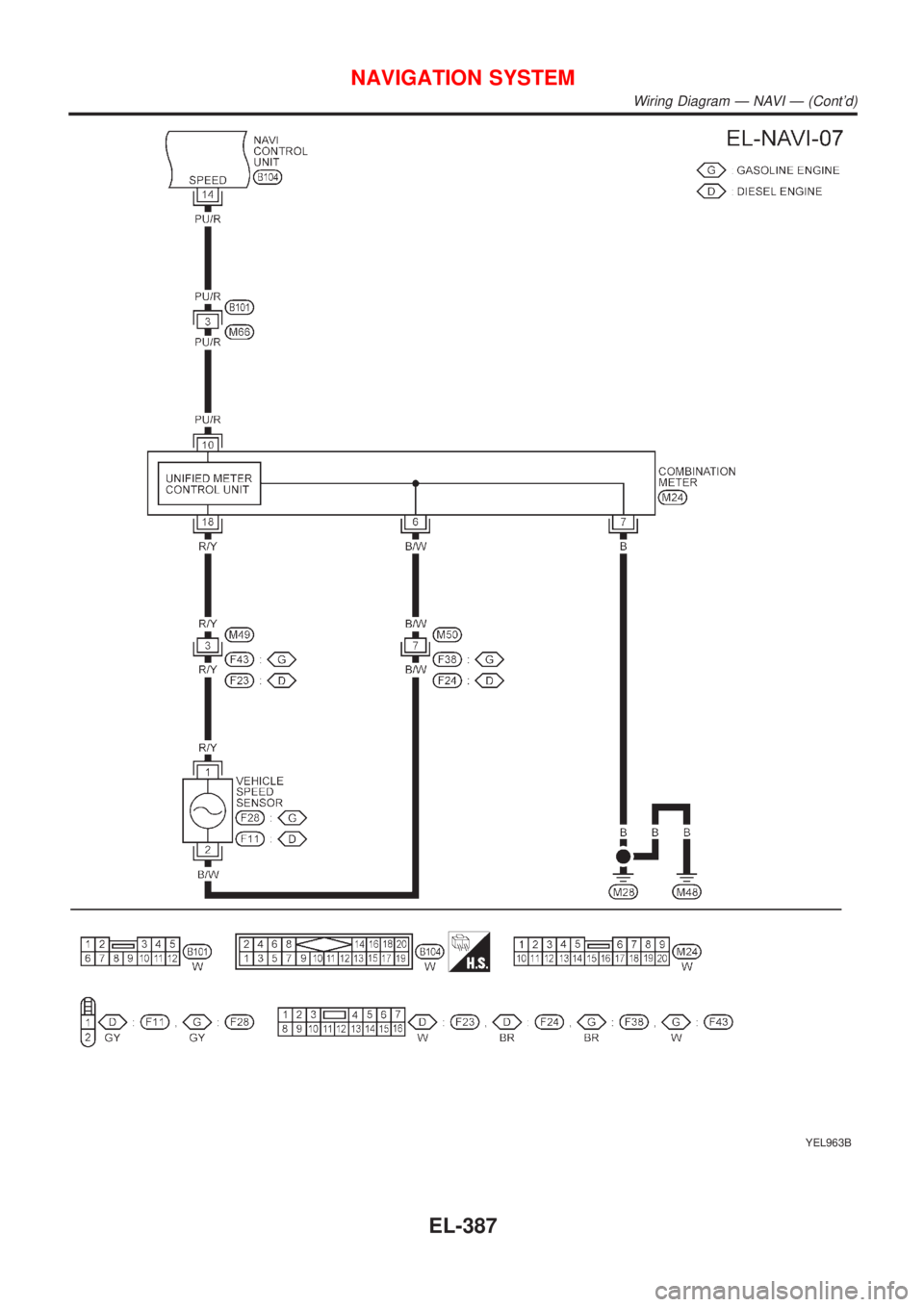

NAVIGATION SYSTEM
Wiring Diagram Ð NAVI Ð (Cont'd)
EL-387

YEL964B

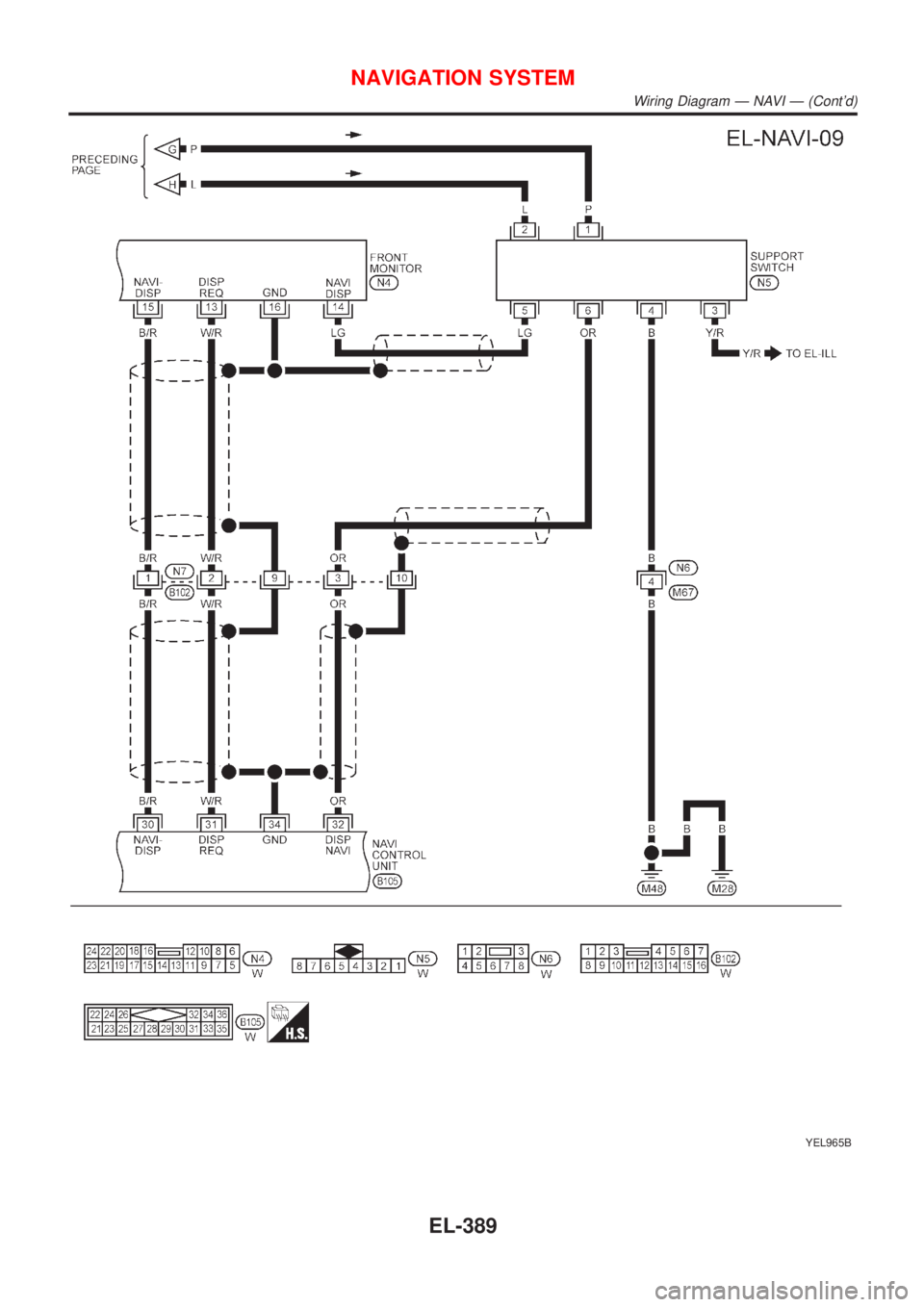

NAVIGATION SYSTEM
Wiring Diagram Ð NAVI Ð (Cont'd)
EL-388

YEL965B
NAVIGATION SYSTEM
Wiring Diagram Ð NAVI Ð (Cont'd)
EL-389
