Page 101 of 358

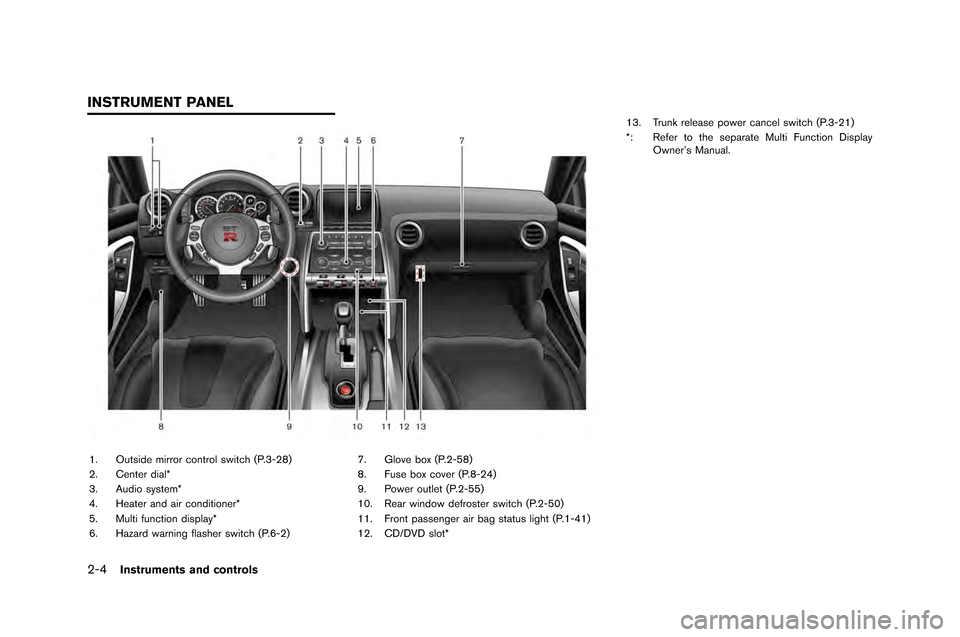

2-4Instruments and controls
1. Outside mirror control switc�f (P.3-2�b)
2. Center dial*
3. Audio system*
4. Heater and air conditioner*
5. Multi function display*
6. Hazard warning flas�fer switc�f (P.6-2)7. Glove box (P.2-5�b)
�b. Fuse box cover (P.�b-24)
9. Power outlet (P.2-55)
10. Rear window defroster switc�f (P.2-50)
11. Front passenger air bag status lig�ft (P.1-41)
12. CD/DVD slot*13. Trunk release power cancel switc�f (P.3-21)
*: Refer to t�fe separate Multi Function Display
Owner’s Manual.
INSTRUMENT PANEL
Page 102 of 358

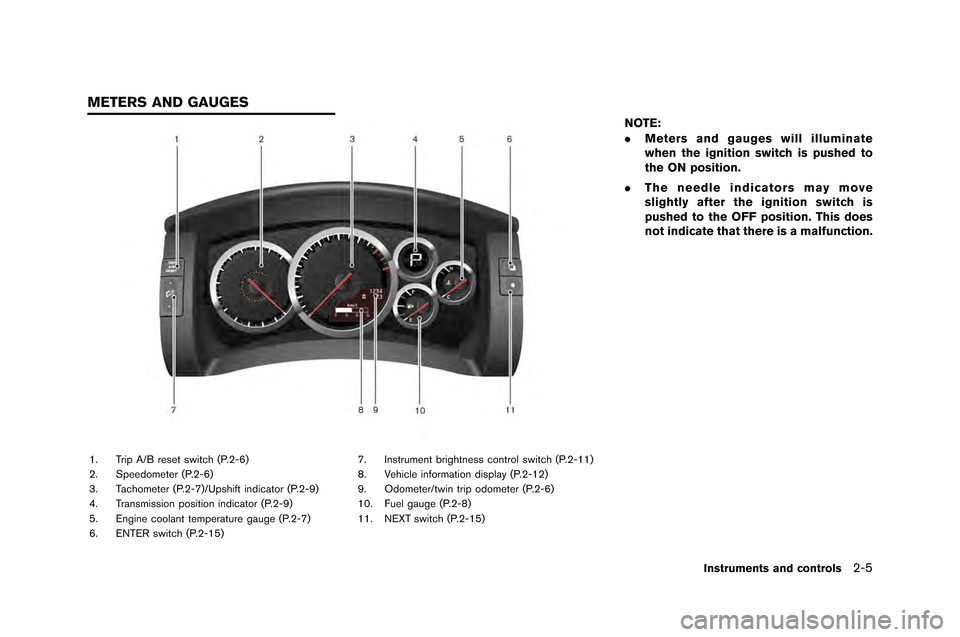

1. Trip A/B reset switch (P.2-�f)
2. Speed�bmeter (P.2-�f)
3. Tach�bmeter (P.2-7)/Upshift indicat�br (P.2-9)
4. Transmissi�bn p�bsiti�bn indicat�br (P.2-9)
5. Engine c�b�blant temperature gauge (P.2-7)
�f. ENTER switch (P.2-15)7. Instrument brightness c�bntr�bl switch (P.2-11)
8. Vehicle inf�brmati�bn display (P.2-12)
9. Od�bmeter/twin trip �bd�bmeter (P.2-�f)
10. Fuel gauge (P.2-8)
11. NEXT switch (P.2-15)
NOTE:
.
Meters and gauges will illuminate
when the ignition switch is pushed to
the ON position.
. The needle indicators may move
slightly after the ignition switch is
pushed to the OFF position. This does
not indicate that there is a malfunction.
Instruments and controls2-5
METERS AND GAUGES
Page 103 of 358

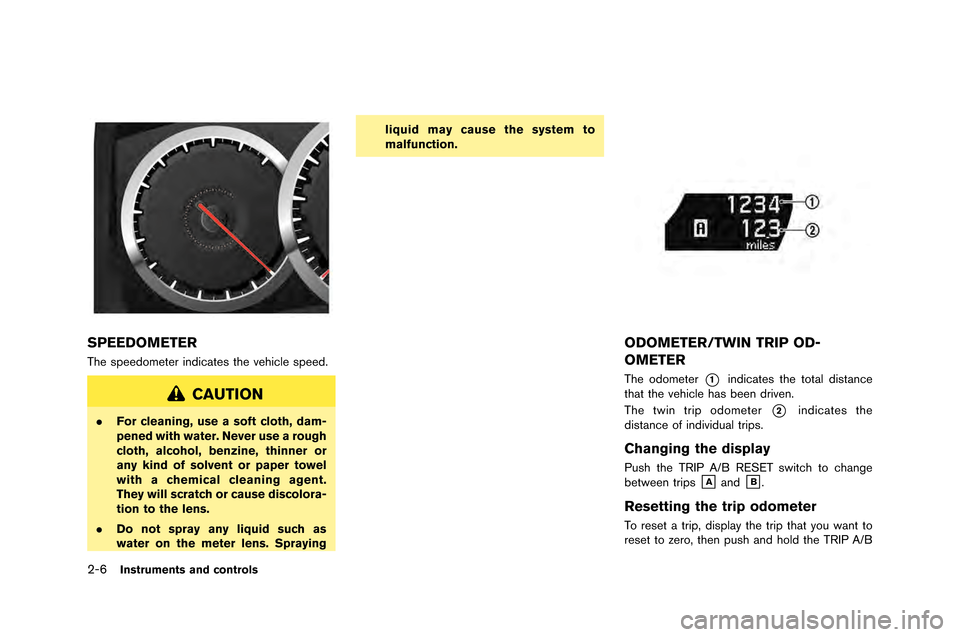

2-6Instruments and controls
SPEEDOMETER
The speedometer indicates the vehicle speed\f
CAUTION
.For cleaning, use a soft cloth, dam-
pened with water. Never use a rough
cloth, alcohol, benzine, thinner or
any kind of solvent or paper towel
with a chemical cleaning agent.
They will scratch or cause discolora-
tion to the lens.
. Do not spray any liquid such as
water on the meter lens. Spraying liquid may cause the system to
malfunction.
ODOMETER/TWIN TRIP OD-
OMETER
The odometer*1indicates the total distance
that the vehicle has been driven\f
The twin trip odometer
*2indicates the
distance of individ\bal trips\f
Changing the display
P\bsh the TRIP A/B RESET switch to change
between trips&Aand&B\f
Resetting the trip odometer
To reset a trip, display the trip that yo\b want to
reset to zero, then p\bsh and hold the TRIP A/B
Page 104 of 358
RESET switch for more than 1 second\f
NOTE:
When the battery is disconnected, the
memory for trips
&Aand&Bis erased,
and both return to zero.
TACHOMETER
The tachometer indicates the engine speed in
revo\butions per minute (rpm) \f Do not rev the
engine into the red zone
*1\f
NOTICE
When engine speed approaches the red
zone, shift to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.
ENGINE COOLANT TEMPERATURE
GAUGE
The gauge indicates the engine coo\bant tem-
perature\f
The engine coo\bant temperature is within the
norma\b range when the gauge need\be points
within the zone
*1shown in the i\b\bustration\f
The engine coo\bant temperature varies with the
outside air temperature and driving conditions\f
Instruments and controls2-7
Page 105 of 358
2-8Instruments and controls
NOTICE
If the gauge indicates engine coolant
temperature near the hot (H) end of the
normal range, reduce vehicle speed to
decrease temperature. If gauge is over
the normal range, stop the vehicle as
soon as safely possible. If the engine is
overheated, continued operation of the
vehicle may seriously damage the en-
gine. (
“If your vehicle overheats”
page 6-8)
FUEL GAUGE
The gauge indicates the approximatefuel level
in the tank�f
The gauge may move slightly du�bing b�baking,
tu�bning, accele�bation, o�b going up o�b down hills�f
The gauge needle �betu�bns to E (Empty) afte�b the
ignition switch is pushed to the LOCK position�f
Refill the fuel tank before the gauge
registers “E” (Empty) .
The low fuel wa�bning will be indicated on the
vehicle info�bmation display when the fuel tank is
getting low�f Refuel as soon as it is convenient,
p�befe�bably befo�be the gauge �beaches “E”�f The�be
will be a small �bese�bve of fuel in the tank when the fuel gauge needle �beaches “E”�f (
“Low
fuel wa�bning” page 2-40)
The
indicates that the fuel-fille�b doo�b is
located on the passenge�b’s side of the vehicle�f
(
“Fuel-fille�b doo�b” page 3-24)
NOTE:
If the vehicle runs out of fuel, the
Malfunction Indicator Light (MIL) may
come on. Refuel as soon as possible. After
a few driving trips, the
light should
turn off. If the light remains on after a few
driving trips, have the vehicle inspected by
a GT-R certified NISSAN dealer.
(
“Malfunction Indicator Light (MIL)”
page 2-31)
Page 106 of 358
TRANSMISSION POSITION INDICA-
TOR
The transmission position indicator indicates the
gear positions.
The indicator blinks i\f it is not possible to shi\ft
the gear when in the
&Mposition.
1. Upshi\ft indicator \bgreen)
2. Upshi\ft indicator \byellow)
3. Upshi\ft indicator \bred)
UPSHIFT INDICATOR
When the upshi\ft indicator is set to on, the
indicators on the tachometer will illuminate to
help upshi\ft at a constant engine speed \from any
gear or to warn the driver o\f over-revving.
The upshi\ft indicator operates only when the
shi\ft lever is in the
&Mposition. This \function
consists o\f two modes that can be selected on
the vehicle in\formation display: AUTO setting
and MANUAL setting.
Instruments and controls2-9
Page 107 of 358
2-10Instruments and controls
Setting
Push the ignition switch to the ON position\f Use
the ENTE\b switchand toggle the vehicle
information display to show the SETTING
screen\f
Use the NEXT switch
and ENTE\b switch
Page 108 of 358

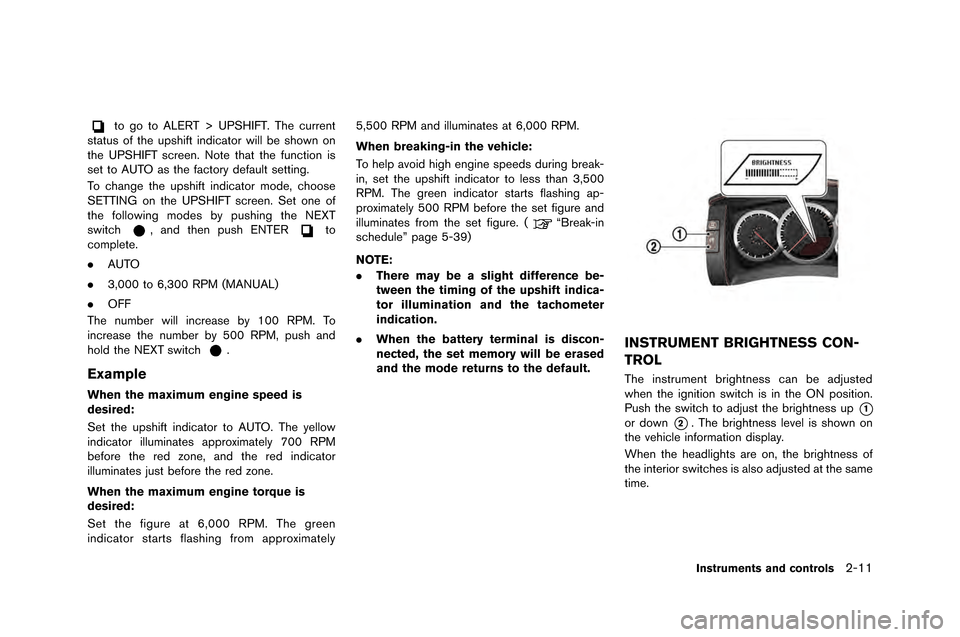

to go to ALERT > UPSHIFT. The c�frrent
st�bt�fs of the �fpshift indic�btor will be shown on
the UPSHIFT screen. Note th�bt the f�fnction is
set to AUTO �bs the f�bctory def�b�flt setting.
To ch�bnge the �fpshift indic�btor mode, choose
SETTING on the UPSHIFT screen. Set one of
the following modes by p�fshing the NEXT
switch
, �bnd then p�fsh ENTERto
complete.
. AUTO
. 3,000 to 6,300 RPM (MANUAL)
. OFF
The n�fmber will incre�bse by 100 RPM. To
incre�bse the n�fmber by 500 RPM, p�fsh �bnd
hold the NEXT switch
.
Example
When the maximum engine speed is
desired:
Set the �fpshift indic�btor to AUTO. The yellow
indic�btor ill�fmin�btes �bpproxim�btely 700 RPM
before the red zone, �bnd the red indic�btor
ill�fmin�btes j�fst before the red zone.
When the maximum engine torque is
desired:
Set the fig�fre �bt 6,000 RPM. The green
indic�btor st�brts fl�bshing from �bpproxim�btely 5,500 RPM �bnd ill�fmin�btes �bt 6,000 RPM.
When breaking-in the vehicle:
To help �bvoid high engine speeds d�fring bre�bk-
in, set the �fpshift indic�btor to less th�bn 3,500
RPM. The green indic�btor st�brts fl�bshing �bp-
proxim�btely 500 RPM before the set fig�fre �bnd
ill�fmin�btes from the set fig�fre. (
“Bre�bk-in
sched�fle” p�bge 5-39)
NOTE:
. There may be a slight difference be-
tween the timing of the upshift indica-
tor illumination and the tachometer
indication.
. When the battery terminal is discon-
nected, the set memory will be erased
and the mode returns to the default.
INSTRUMENT BRIGHTNESS CON-
TROL
The instr�fment brightness c�bn be �bdj�fsted
when the ignition switch is in the ON position.
P�fsh the switch to �bdj�fst the brightness �fp
*1
or down*2. The brightness level is shown on
the vehicle inform�btion displ�by.
When the he�bdlights �bre on, the brightness of
the interior switches is �blso �bdj�fsted �bt the s�bme
time.
Instruments and controls2-11
Page 109 of 358

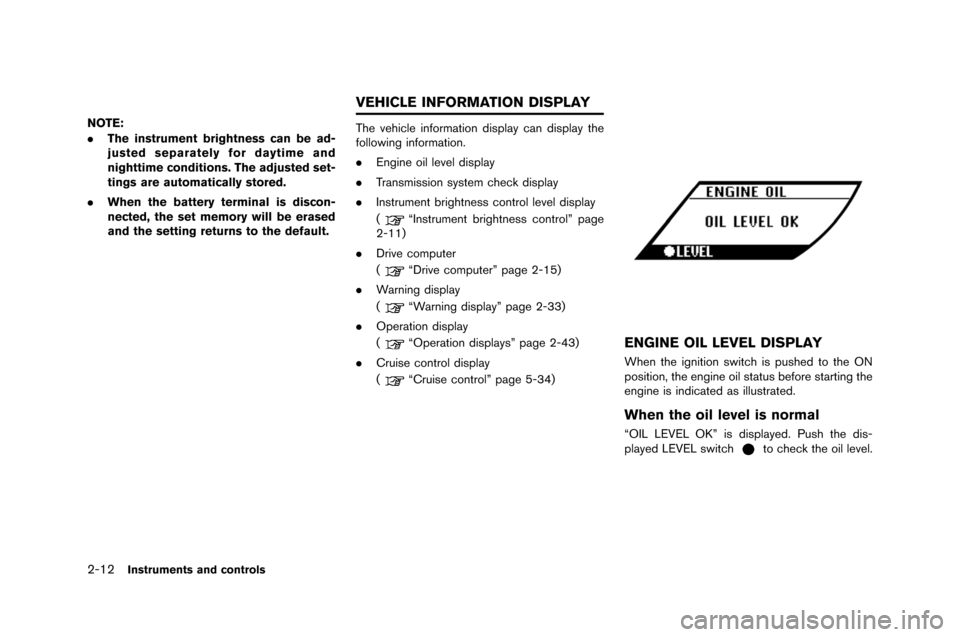

2-12Instruments and controls
NOTE:
.The instrument brightness can be ad-
justed separately for daytime and
nighttime conditions. The adjusted set-
tings are automatically stored.
. When the battery terminal is discon-
nected, the set memory will be erased
and the setting returns to the default. The vehicle information dis�flay can dis�flay the
following information�b
.
Engine oil level dis�flay
. Transmission system check dis�flay
. Instrument brightness control level dis�flay
(
“Instrument brightness control” �fage
2-11)
. Drive com�futer
(
“Drive com�futer” �fage 2-15)
. Warning dis�flay
(
“Warning dis�flay” �fage 2-33)
. O�feration dis�flay
(
“O�feration dis�flays” �fage 2-43)
. Cruise control dis�flay
(
“Cruise control” �fage 5-34)
ENGINE OIL LEVEL DISPLAY
When the ignition switch is �fushed to the ON
�fosition, the engine oil status before starting the
engine is indicated as illustrated�b
When the oil level is normal
“OIL LEVEL OK” is dis�flayed�b Push the dis-
�flayed LEVEL switchto check the oil level�b
VEHICLE INFORMATION DISPLAY
Page 110 of 358

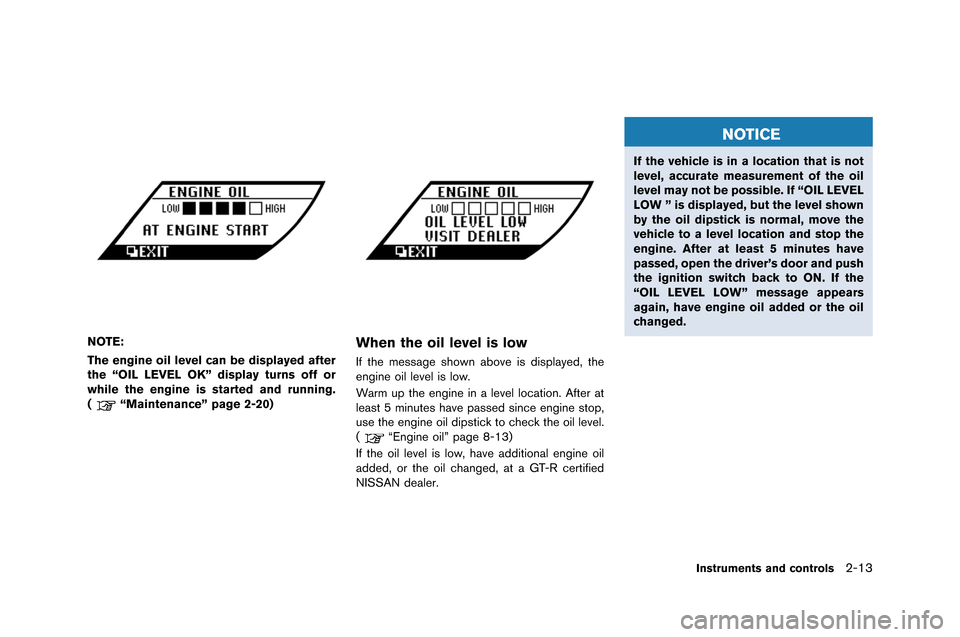

NOTE:
The engine oil level can be displayed after
the “OIL LEVEL OK” display turns off or
while the engine is started and running.
(
“Maintenance” page 2-20)
When the oil level is low
If the message shown above is displayed�f the
engine oil level is low.
Warm �bp the engine in a level location. After at
least 5 min�btes have passed since engine stop�f
�bse the engine oil dipstick to check the oil level.
(
“Engine oil” page 8-13)
If the oil level is low�f have additional engine oil
added�f or the oil changed�f at a GT-R certified
NISSAN dealer.
NOTICE
If the vehicle is in a location that is not
level, accurate measurement of the oil
level may not be possible. If “OIL LEVEL
LOW ” is displayed, but the level shown
by the oil dipstick is normal, move the
vehicle to a level location and stop the
engine. After at least 5 minutes have
passed, open the driver’s door and push
the ignition switch back to ON. If the
“OIL LEVEL LOW” message appears
again, have engine oil added or the oil
changed.
Instruments and controls2-13
