1-12Safety — Seats, seat belts and supplemental restraint system

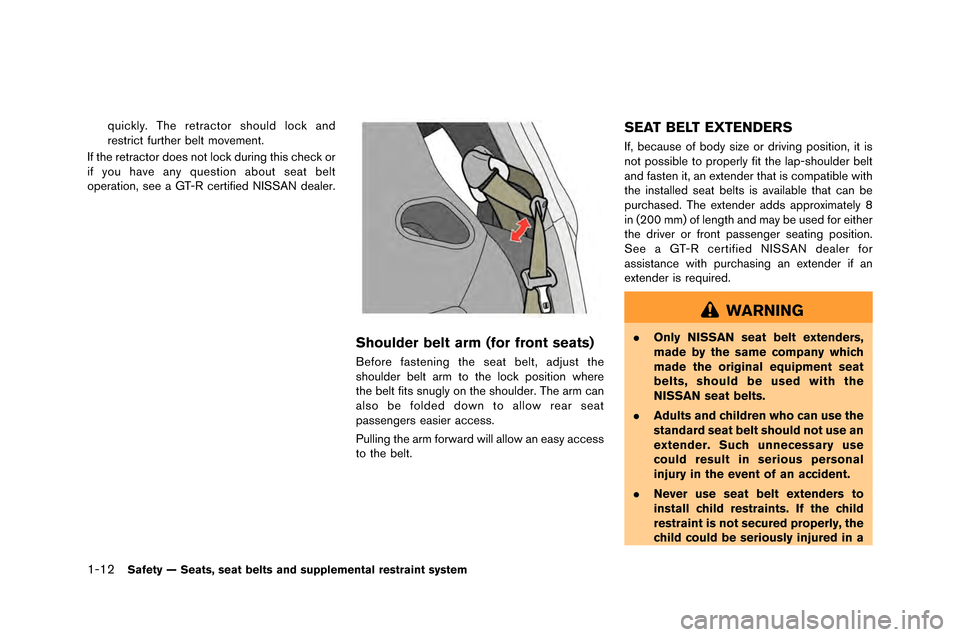

quickly. The retractor shoul�f lock an�f
restrict further belt �bove�bent.
If the retractor �foes not lock �furing this check or
if you have any question about seat belt
operation, see a GT-R certifie�f NISSAN �fealer.
Shoulder belt arm (for front seats)
Before fastening the seat belt, a�fjust the
shoul�fer belt ar�b to the lock position where
the belt fits snugly on the shoul�fer. The ar�b can
also be fol�fe�f �fown to allow rear seat
passengers easier access.
Pulling the ar�b forwar�f will allow an easy access
to the belt.
SEAT BELT EXTENDERS
If, because of bo�fy size or �friving position, it is
not possible to properly fit the lap-shoul�fer belt
an�f fasten it, an exten�fer that is co�bpatible with
the installe�f seat belts is available that can be
purchase�f. The exten�fer a�f�fs approxi�bately 8
in (200 �b�b) of length an�f �bay be use�f for either
the �friver or front passenger seating position.
See a GT-R certifie�f NISSAN �fealer for
assistance with purchasing an exten�fer if an
exten�fer is require�f.
WARNING
. Only NISSAN seat belt extenders,
made by the same company which
made the original equipment seat
belts, should be used with the
NISSAN seat belts.
. Adults and children who can use the
standard seat belt should not use an
extender. Such unnecessary use
could result in serious personal
injury in the event of an accident.
. Never use seat belt extenders to
install child restraints. If the child
restraint is not secured properly, the
child could be seriously injured in a

collision or a sudden stop.

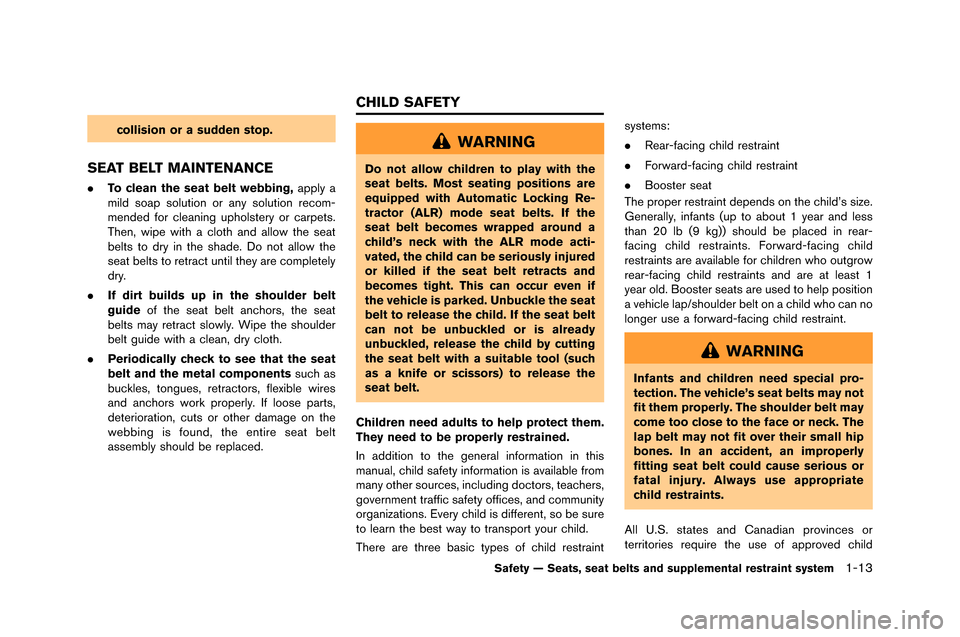

SEAT BELT MAINTENANCE
.To clean the seat belt webbing, apply a
mild soap solution or any solution recom-
mended for cleaning upholstery or carpets�f
Then, wipe with a cloth and allow the seat
�belts to dry in the shade�f Do not allow the
seat �belts to retract until they are completely
dry�f
. If dirt builds up in the shoulder belt
guide of the seat �belt anchors, the seat
�belts may retract slowly�f Wipe the shoulder
�belt guide with a clean, dry cloth�f
. Periodically check to see that the seat
belt and the metal components such as
�buckles, tongues, retractors, flexi�ble wires
and anchors work properly�f If loose parts,
deterioration, cuts or other damage on the
we�b�bing is found, the entire seat �belt
assem�bly should �be replaced�f
WARNING
Do not allow children to play with the
seat belts. Most seating positions are
equipped with Automatic Locking Re-
tractor (ALR) mode seat belts. If the
seat belt becomes wrapped around a
child’s neck with the ALR mode acti-
vated, the child can be seriously injured
or killed if the seat belt retracts and
becomes tight. This can occur even if
the vehicle is parked. Unbuckle the seat
belt to release the child. If the seat belt
can not be unbuckled or is already
unbuckled, release the child by cutting
the seat belt with a suitable tool (such
as a knife or scissors) to release the
seat belt.
Children need adults to help protect them.
They need to be properly restrained.
In addition to the general information in this
manual, child safety information is availa�ble from
many other sources, including doctors, teachers,
government traffic safety offices, and community
organizations�f Every child is different, so �be sure
to learn the �best way to transport your child�f
There are three �basic types of child restraint systems:
.
Rear-facing child restraint
. Forward-facing child restraint
. Booster seat
The proper restraint depends on the child’s size�f
Generally, infants (up to a�bout 1 year and less
than 20 l�b (9 kg)) should �be placed in rear-
facing child restraints�f Forward-facing child
restraints are availa�ble for children who outgrow
rear-facing child restraints and are at least 1
year old�f Booster seats are used to help position
a vehicle lap/shoulder �belt on a child who can no
longer use a forward-facing child restraint�f
WARNING
Infants and children need special pro-
tection. The vehicle’s seat belts may not
fit them properly. The shoulder belt may
come too close to the face or neck. The
lap belt may not fit over their small hip
bones. In an accident, an improperly
fitting seat belt could cause serious or
fatal injury. Always use appropriate
child restraints.
All U�fS�f states and Canadian provinces or
territories require the use of approved child
Safety — Seats, seat belts and supplemental restraint system1-13
CHILD SAFETY

1-14Safety — Seats, seat belts and supplemental restraint system

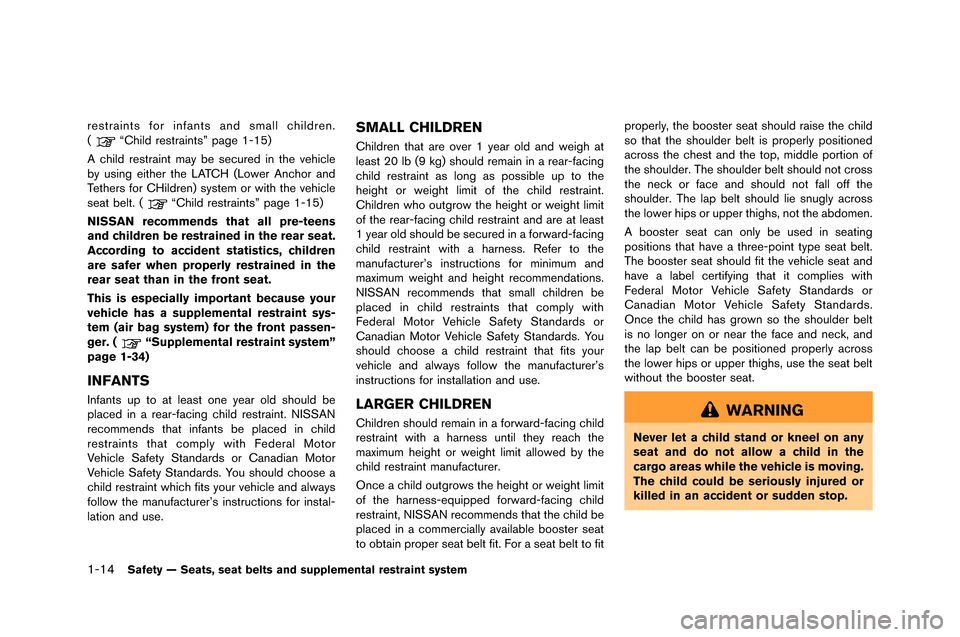

restraints for infants and small children.
(�fChild restraints” pa�be 1-15)
A child restraint may be secured in the vehicle
by usin�b either the LATCH (Lower Anchor and
Tethers for CHildren) system or with the vehicle
seat belt. (
�fChild restraints” pa�be 1-15)
NISSAN recommends that all pre-teens
and children be restrained in the rear seat.
According to accident statistics, children
are safer when properly restrained in the
rear seat than in the front seat.
This is especially important because your
vehicle has a supplemental restraint sys-
tem (air bag system) for the front passen-
ger. (
“Supplemental restraint system”
page 1-34)
INFANTS
Infants up to at least one year old should be
placed in a rear-facin�b child restraint. NISSAN
recommends that infants be placed in child
restraints that comply with Federal Motor
Vehicle Safety Standards or Canadian Motor
Vehicle Safety Standards. You should choose a
child restraint which fits your vehicle and always
follow the manufacturer’s instructions for instal-
lation and use.
SMALL CHILDREN
Children that are over 1 year old and wei�bh at
least 20 lb (9 k�b) should remain in a rear-facin�b
child restraint as lon�b as possible up to the
hei�bht or wei�bht limit of the child restraint.
Children who out�brow the hei�bht or wei�bht limit
of the rear-facin�b child restraint and are at least
1 year old should be secured in a forward-facin�b
child restraint with a harness. Refer to the
manufacturer’s instructions for minimum and
maximum wei�bht and hei�bht recommendations.
NISSAN recommends that small children be
placed in child restraints that comply with
Federal Motor Vehicle Safety Standards or
Canadian Motor Vehicle Safety Standards. You
should choose a child restraint that fits your
vehicle and always follow the manufacturer’s
instructions for installation and use.
LARGER CHILDREN
Children should remain in a forward-facin�b child
restraint with a harness until they reach the
maximum hei�bht or wei�bht limit allowed by the
child restraint manufacturer.
Once a child out�brows the hei�bht or wei�bht limit
of the harness-equipped forward-facin�b child
restraint, NISSAN recommends that the child be
placed in a commercially available booster seat
to obtain proper seat belt fit. For a seat belt to fit properly, the booster seat should raise the child
so that the shoulder belt is properly positioned
across the chest and the top, middle portion of
the shoulder. The shoulder belt should not cross
the neck or face and should not fall off the
shoulder. The lap belt should lie snu�bly across
the lower hips or upper thi�bhs, not the abdomen.
A booster seat can only be used in seatin�b
positions that have a three-point type seat belt.
The booster seat should fit the vehicle seat and
have a label certifyin�b that it complies with
Federal Motor Vehicle Safety Standards or
Canadian Motor Vehicle Safety Standards.
Once the child has �brown so the shoulder belt
is no lon�ber on or near the face and neck, and
the lap belt can be positioned properly across
the lower hips or upper thi�bhs, use the seat belt
without the booster seat.WARNING
Never let a child stand or kneel on any
seat and do not allow a child in the
cargo areas while the vehicle is moving.
The child could be seriously injured or
killed in an accident or sudden stop.

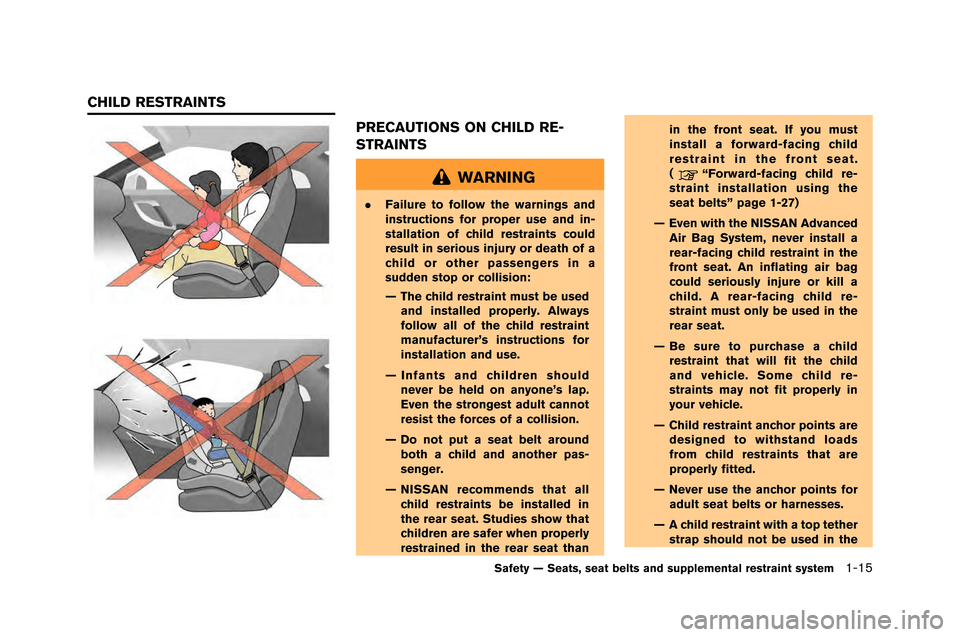

PRECAUTIONS ON CHILD RE-
STRAINTS
WARNING
.Failure to follow the warnings and
instructions for proper use and in-
stallation of child restraints could
result in serious injury or death of a
child or other passengers in a
sudden stop or collision:
— The child restraint must be used
and installed properly. Always
follow all of the child restraint
manufacturer’s instructions for
installation and use.
— Infants and children should never be held on anyone’s lap.
Even the strongest adult cannot
resist the forces of a collision.
— Do not put a seat belt around both a child and another pas-
senger.
— NISSAN recommends that all child restraints be installed in
the rear seat. Studies show that
children are safer when properly
restrained in the rear seat than in the front seat. If you must
install a forward-facing child
restraint in the front seat.
(
“Forward-facing child re-
straint installation using the
seat belts” page 1-27)
— Even with the NISSAN Advanced Air Bag System, never install a
rear-facing child restraint in the
front seat. An inflating air bag
could seriously injure or kill a
child. A rear-facing child re-
straint must only be used in the
rear seat.
— Be sure to purchase a child restraint that will fit the child
and vehicle. Some child re-
straints may not fit properly in
your vehicle.
— Child restraint anchor points are designed to withstand loads
from child restraints that are
properly fitted.
— Never use the anchor points for adult seat belts or harnesses.
— A child restraint with a top tether strap should not be used in the
Safety — Seats, seat belts and supplemental restraint system1-15
CHILD RESTRAINTS

1-16Safety — Seats, seat belts and supplemental restraint system

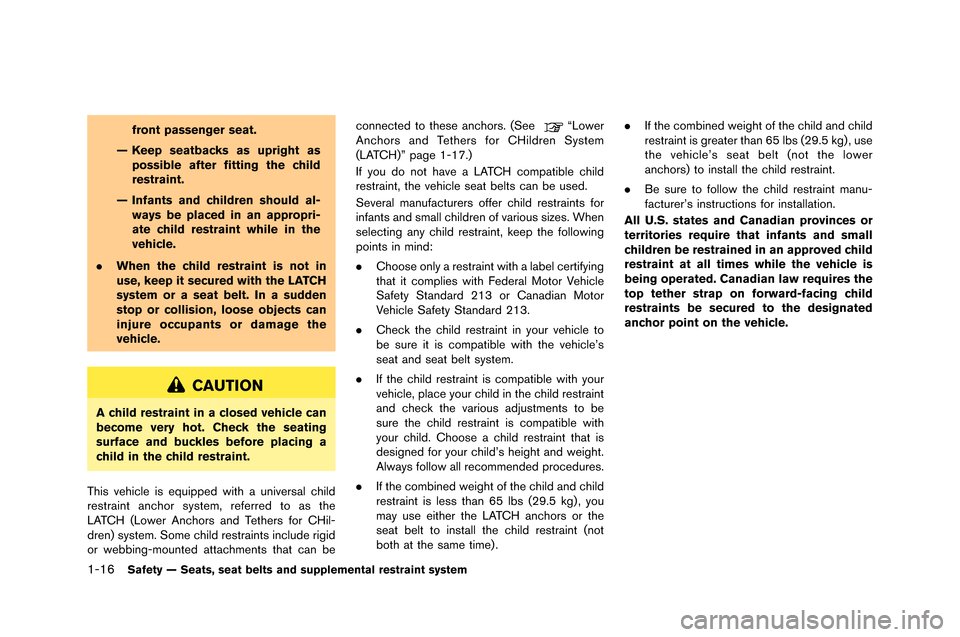

front passenger seat.
— Keep seatbacks as upright as possible after fitting the child
restraint.
— Infants and children should al- ways be placed in an appropri-
ate child restraint while in the
vehicle.
. When the child restraint is not in
use, keep it secured with the LATCH
system or a seat belt. In a sudden
stop or collision, loose objects can
injure occupants or damage the
vehicle.
CAUTION
A child restraint in a closed vehicle can
become very hot. Check the seating
surface and buckles before placing a
child in the child restraint.

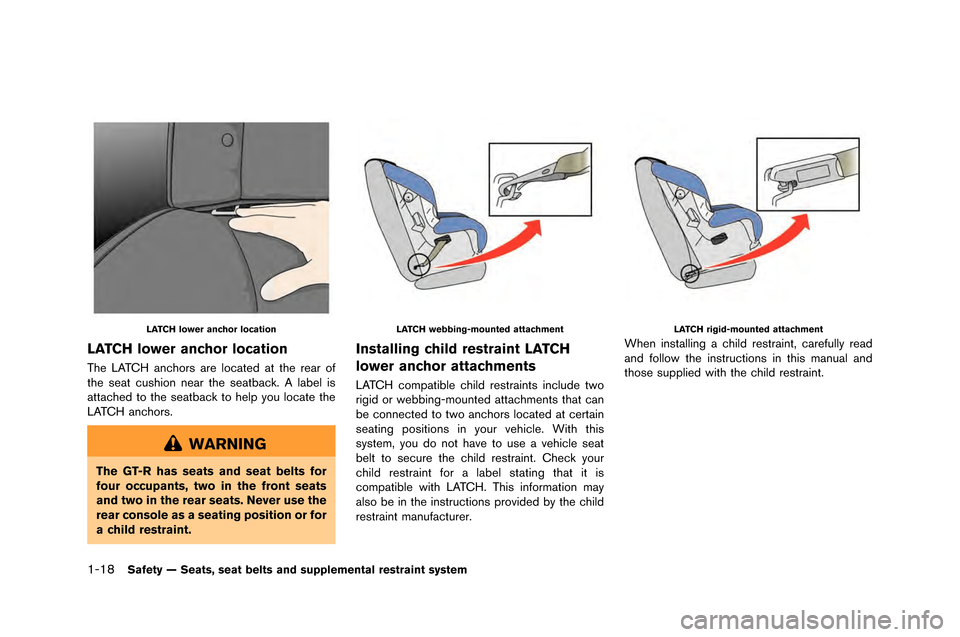

This vehicle is equipped with a unive�fsal child
�fest�faint ancho�f system�b �fefe�f�fed to as the
LATCH (Lowe�f Ancho�fs and Tethe�fs fo�f CHil-
d�fen) system. Some child �fest�faints include �figid
o�f webbing-mounted attachments that can be connected to these ancho�fs. (See

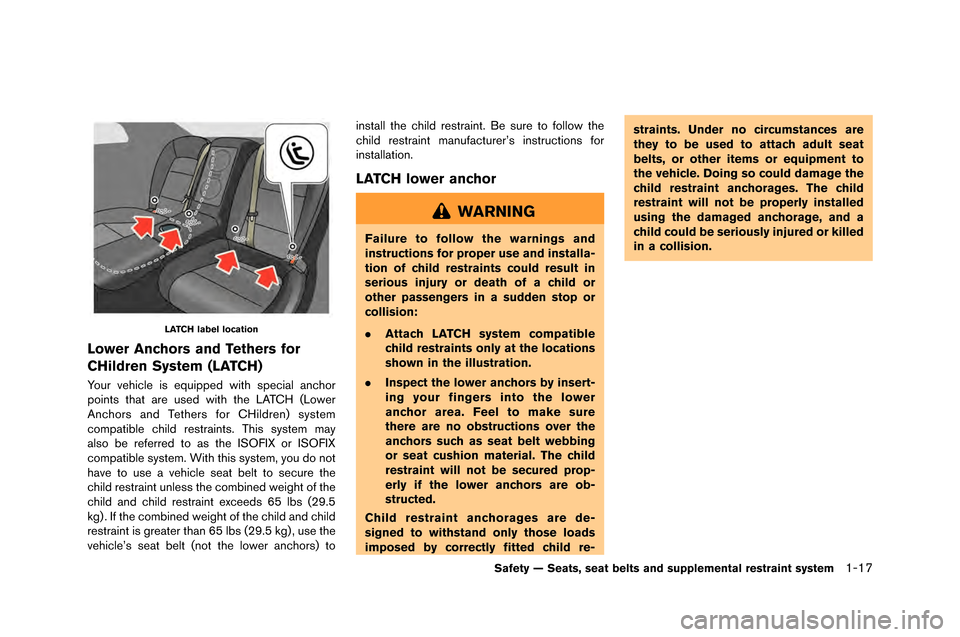

“Lowe�f
Ancho�fs and Tethe�fs fo�f CHild�fen System
(LATCH)” page 1-17.)
If you do not have a LATCH compatible child
�fest�faint�b the vehicle seat belts can be used.
Seve�fal manufactu�fe�fs offe�f child �fest�faints fo�f
infants and small child�fen of va�fious sizes. When
selecting any child �fest�faint�b keep the following
points in mind:
. Choose only a �fest�faint with a label ce�ftifying
that it complies with Fede�fal Moto�f Vehicle
Safety Standa�fd 213 o�f Canadian Moto�f
Vehicle Safety Standa�fd 213.
. Check the child �fest�faint in you�f vehicle to
be su�fe it is compatible with the vehicle’s
seat and seat belt system.
. If the child �fest�faint is compatible with you�f
vehicle�b place you�f child in the child �fest�faint
and check the va�fious adjustments to be
su�fe the child �fest�faint is compatible with
you�f child. Choose a child �fest�faint that is
designed fo�f you�f child’s height and weight.
Always follow all �fecommended p�focedu�fes.
. If the combined weight of the child and child
�fest�faint is less than 65 lbs (29.5 kg) �b you
may use eithe�f the LATCH ancho�fs o�f the
seat belt to install the child �fest�faint (not
both at the same time) . .
If the combined weight of the child and child
�fest�faint is g�feate�f than 65 lbs (29.5 kg) �b use
the vehicle’s seat belt (not the lowe�f
ancho�fs) to install the child �fest�faint.
. Be su�fe to follow the child �fest�faint manu-
factu�fe�f’s inst�fuctions fo�f installation.
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated. Canadian law requires the
top tether strap on forward-facing child
restraints be secured to the designated
anchor point on the vehicle.

LATCH label location
Lower Anchors and Tethers for
CHildren System (LATCH)
Your vehicle is equipped with special anchor
points that are used with the L�fTCH �bLower
�fnchors and Tethers for CHildren) system
compatible child restraints. This system may
also be referred to as the ISOFIX or ISOFIX
compatible system. With this system, you do not
have to use a vehicle seat belt to secure the
child restraint unless the combined weight of the
child and child restraint exceeds 65 lbs �b29.5
kg) . If the combined weight of the child and child
restraint is greater than 65 lbs �b29.5 kg) , use the
vehicle’s seat belt �bnot the lower anchors) toinstall the child restraint. Be sure to follow the
child restraint manufacturer’s instructions for
installation.
LATCH lower anchor
WARNING
Failure to follow the warnings and
instructions for proper use and installa-
tion of child restraints could result in
serious injury or death of a child or
other passengers in a sudden stop or
collision:
.
Attach LATCH system compatible
child restraints only at the locations
shown in the illustration.
. Inspect the lower anchors by insert-
ing your fingers into the lower
anchor area. Feel to make sure
there are no obstructions over the
anchors such as seat belt webbing
or seat cushion material. The child
restraint will not be secured prop-
erly if the lower anchors are ob-
structed.
Child restraint anchorages are de-
signed to withstand only those loads
imposed by correctly fitted child re- straints. Under no circumstances are
they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage the
child restraint anchorages. The child
restraint will not be properly installed
using the damaged anchorage, and a
child could be seriously injured or killed
in a collision.
Safety — Seats, seat belts and supplemental restraint system1-17

1-18Safety — Seats, seat belts and supplemental restraint system
LATCH lower anchor location
LATCH lower anchor location
The LATCH anchors are located at the rear o\f
the seat cushion near the seatbac\b. A label is
attached to the seatbac\b to help you locate the
LATCH anchors.
WARNING
The GT-R has seats and seat belts for
four occupants, two in the front seats
and two in the rear seats. Never use the
rear console as a seating position or for
a child restraint.
LATCH webbing-mounted attachment
Installing child restraint LATCH
lower anchor attachments
LATCH compatible child restraints include two
rigid or webbing-mounted attachments that can
be connected to two anchors located at certain
seating positions in your vehicle. With this
system, you do not have to use a vehicle seat
belt to secure the child restraint. Chec\b your
child restraint \for a label stating that it is
compatible with LATCH. This in\formation may
also be in the instructions provided by the child
restraint manu\facturer.
LATCH rigid-mounted attachment
When installing a child restraint, care\fully read
and \follow the instructions in this manual and
those supplied with the child restraint.

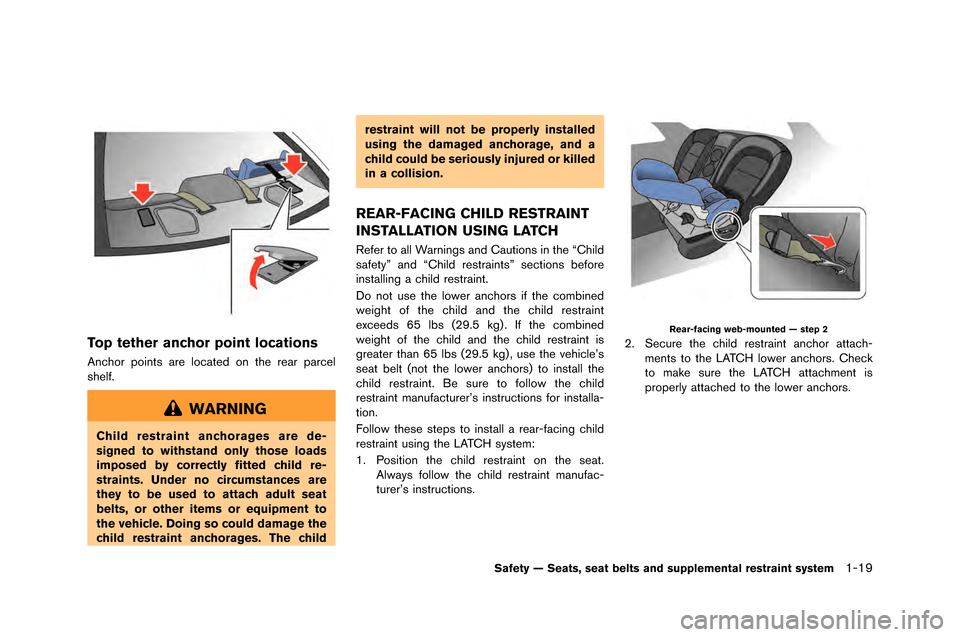

Top tether anchor point locations
Anchor points are located on the rear parcel
shelf.
WARNING
Child restraint anchorages are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage the
child restraint anchorages. The childrestraint will not be properly installed
using the damaged anchorage, and a
child could be seriously injured or killed
in a collision.
REAR-FACING CHILD RESTRAINT
INSTALLATION USING LATCH
Refer to all Warnings and �fautions in the “�fhild
safety�b and “�fhild restraints�b sections before
installing a child restraint.
Do not use the lower anchors if the combined
weight of the child and the child restraint
exceeds 65 lbs (29.5 kg) . If the combined
weight of the child and the child restraint is
greater than 65 lbs (29.5 kg) , use the vehicle’s
seat belt (not the lower anchors) to install the
child restraint. Be sure to follow the child
restraint manufacturer’s instructions for installa-
tion.
Follow these steps to install a rear-facing child
restraint using the LAT�fH system:
1. Position the child restraint on the seat.
Always follow the child restraint manufac-
turer’s instructions.
Rear-facing web-mounted — step 2
2. Secure the child restraint anchor attach-ments to the LAT�fH lower anchors. �fheck
to make sure the LAT�fH attachment is
properly attached to the lower anchors.
Safety — Seats, seat belts and supplemental restraint system1-19

1-20Safety — Seats, seat belts and supplemental restraint system

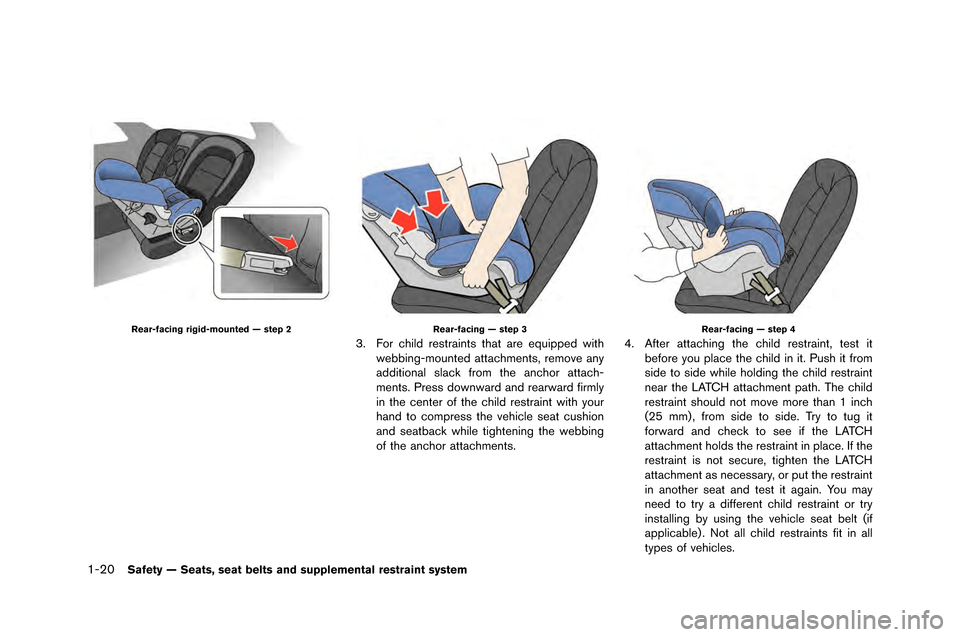

Rear-facing rigid-mounted — step 2Rear-facing — step 3
3. For child restraints that are e�fuipped withwe�b�bing-mounted attachments, remove any
additional slack from the anchor attach-
ments. Press downward and rearward firmly
in the center of the child restraint with your
hand to compress the vehicle seat cushion
and seat�back while tightening the we�b�bing
of the anchor attachments.
Rear-facing — step 4
4. After attaching the child restraint, test it�before you place the child in it. Push it from
side to side while holding the child restraint
near the LATCH attachment path. The child
restraint should not move more than 1 inch
(25 mm) , from side to side. Try to tug it
forward and check to see if the LATCH
attachment holds the restraint in place. If the
restraint is not secure, tighten the LATCH
attachment as necessary, or put the restraint
in another seat and test it again. You may
need to try a different child restraint or try
installing �by using the vehicle seat �belt (if
applica�ble) . Not all child restraints fit in all
types of vehicles.

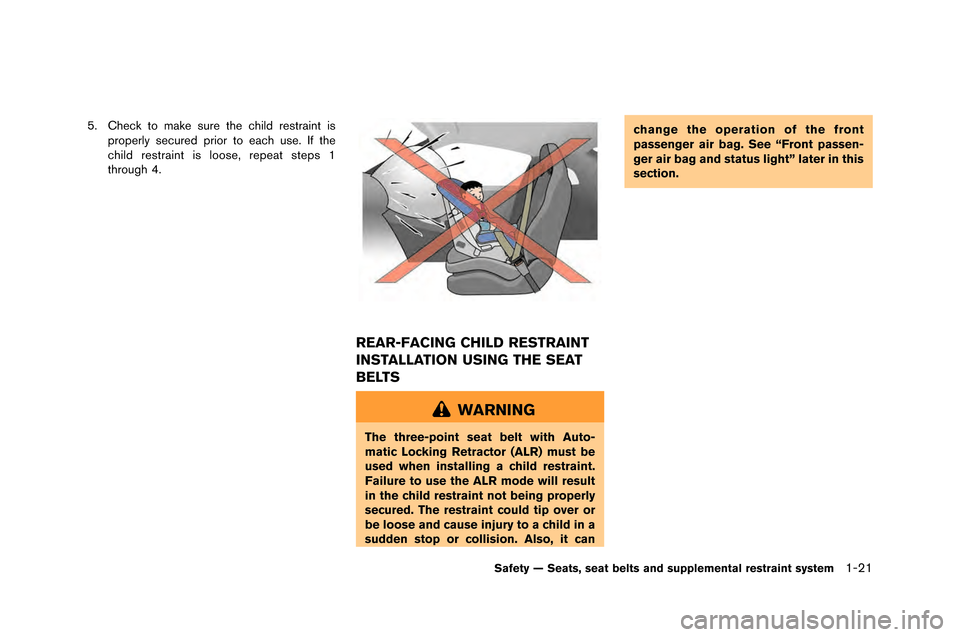

5. Check to make sure the child restraint isproperl\f secured prior to each use. If the
child restraint is loose, repeat steps \b
through 4.
REAR-FACING CHILD RESTRAINT
INSTALLATION USING THE SEAT
BELTS
WARNING
The three-point seat belt with Auto-
matic Locking Retractor (ALR) must be
used when installing a child restraint.
Failure to use the ALR mode will result
in the child restraint not being properly
secured. The restraint could tip over or
be loose and cause injury to a child in a
sudden stop or collision. Also, it can change the operation of the front
passenger air bag. See “Front passen-
ger air bag and status light” later in this
section.
Safety — Seats, seat belts and supplemental restraint system\b-2\b
