NISSAN GT-R 2015 R35 Owners Manual
Manufacturer: NISSAN, Model Year: 2015, Model line: GT-R, Model: NISSAN GT-R 2015 R35Pages: 358, PDF Size: 6.94 MB
Page 121 of 358

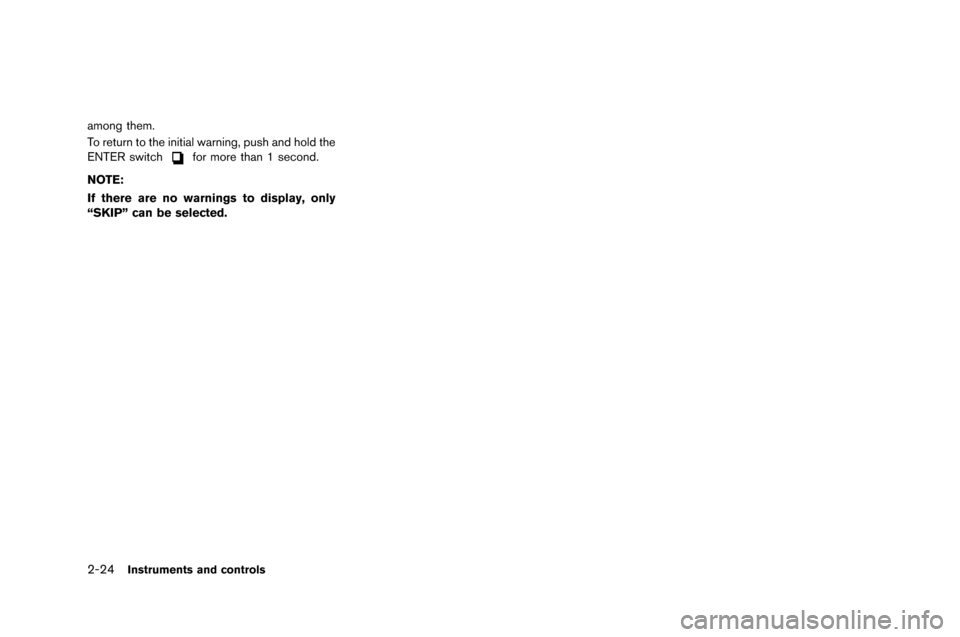

2-24Instruments and controls
among them.
To return to the initial warning, \fush and hold the
E\bTER switch
for more than 1 second.
NOTE:
If there are no warnings to display, only
“SKIP” can be selected.
Page 122 of 358
All-Wheel Drive (AWD) warning lightLow tire �fressure warning lightCruise set swit�bh indi�bator light
Anti-lo�bk Braking System (ABS) warning
lightMaster warning lightExterior light indi�bator
Seat belt warning lightFront �fassenger air bag status light
Brake warning lightSu�f�flemental air bag warning lightHigh beam indi�bator light
Transmission warning lightMalfun�btion Indi�bator Light (MIL)
Charge warning lightVehi�ble Dynami�b Control (VDC) warning
lightTurn signal/hazard indi�bator lights
Engine oil �fressure warning lightCruise main swit�bh indi�bator lightVehi�ble Dynami�b Control (VDC) off indi�bator
light
Intelligent Key warning light
CHECKING BULBS
With all doors �blosed, a�f�fly the �farking brake
and �fush the ignition swit�bh to the ON �fosition
without starting the engine. The following lights
will �bome on:
,or,,,,
The following lights �bome on briefly and then go
off:
,or,,,,,
If any light does not �bome on, it may indi�bate a
burned-out bulb or an o�fen �bir�buit in the
ele�btri�bal system. Have the system �bhe�bked bya GT-R �bertified NISSAN dealer.
WARNING LIGHTS
All-Wheel Drive (AWD) warn-
ing light
Thewarning light �bomes on when the
ignition swit�bh is �fushed to ON. It turns off soon
after the engine is started.
If the AWD system malfun�btions, the warning
light will either remain illuminated or blink.
(
“All-Wheel Drive (AWD)” �fage 5-41)
CAUTION
. If the warning light comes on while
driving there may be a malfunction
in the AWD system. Reduce the
vehicle speed and have your vehicle
checked by a GT-R certified NISSAN
dealer as soon as possible.
. If the AWD warning light blinks on
when you are driving:
— blinks rapidly (about twice a
second):
Instruments and controls2-25
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
Page 123 of 358
2-26Instruments and controls
Pull off the road in a safe area,
and idle the engine. The driving
mode will change to RWD to
prevent the AWD system from
malfunctioning. If the warning
light turns off, you can drive
again. This does not indicate
that there is a malfunction.
— blinks slowly (about once every 2 seconds):
Pull off the road in a safe area,
and idle the engine. Check that
all tire sizes are the same as
that specified on the Tire and
Loading Information label lo-
cated in the driver’s door open-
ing, tire pressure is correct and
tires are not worn. (
“Tire
and loading information label”
page 9-13)
If the tire pressure is insuffi-
cient, fill with nitrogen gas.
Contact a GT-R certified NISSAN
dealer about filling with nitro-
gen gas. If nitrogen gas is not
available, compressed air may
be safely used under normal
driving conditions. However,
NISSAN recommends refilling with nitrogen gas for maximum
tire performance.
. If the warning light is still on after
the above operations, have your
vehicle checked by a GT-R certified
NISSAN dealer as soon as possible.
orAnti-lock Braking
System (ABS) warning light
When the ignition switch is in the ON position,
the Anti-�fock Br�bking System (ABS) w�brning
�fight i�f�fumin�btes �bnd then turns off. This indic�btes
the ABS is oper�btion�b�f.
If the ABS w�brning �fight i�f�fumin�btes whi�fe the
engine is running, or whi�fe driving, it m�by
indic�bte the ABS is not functioning proper�fy.
H�bve the system checked by �b GT-R certified
NISSAN de�b�fer.
If �bn ABS m�b�ffunction occurs, the �bnti-�fock
function is turned off. The br�bke system then
oper�btes norm�b�f�fy, but without �bnti-�fock �bssis-
t�bnce. (
“Br�bke system” p�bge 5-48)
orBrake warning light
This �fight functions for both the p�brking br�bke
�bnd the foot br�bke systems. Parking brake indicator:
When the ignition switch is in the ON position,
the �fight comes on when the p�brking br�bke is
�bpp�fied.
Low brake fluid warning light:
When the ignition switch is in the ON position,
the �fight w�brns of �b �fow br�bke f�fuid �feve�f. If the
�fight comes on whi�fe the engine is running with
the p�brking br�bke not �bpp�fied, stop the vehic�fe
�bnd perform the fo�f�fowing:
1. Check the br�bke f�fuid �feve�f. Add br�bke f�fuid
�bs necess�bry. (
“Br�bke f�fuid” p�bge 8-
15)
2. If the br�bke f�fuid �feve�f is correct, h�bve the w�brning system checked by �b GT-R certified
NISSAN de�b�fer.
Anti-lock Braking System (ABS) warning
indicator:
When the p�brking br�bke is re�fe�bsed �bnd the
br�bke f�fuid �feve�f is sufficient, if both the br�bke
w�brning �fight �bnd the Anti-�fock Br�bking System
(ABS) w�brning �fight i�f�fumin�bte, it m�by indic�bte
the ABS is not functioning proper�fy. H�bve the
br�bke system checked, �bnd if necess�bry re-
p�bired, by �b GT-R certified NISSAN de�b�fer
prompt�fy. (
“Anti-�fock Br�bking System
(ABS) w�brning �fight” p�bge 2-26)
Page 124 of 358

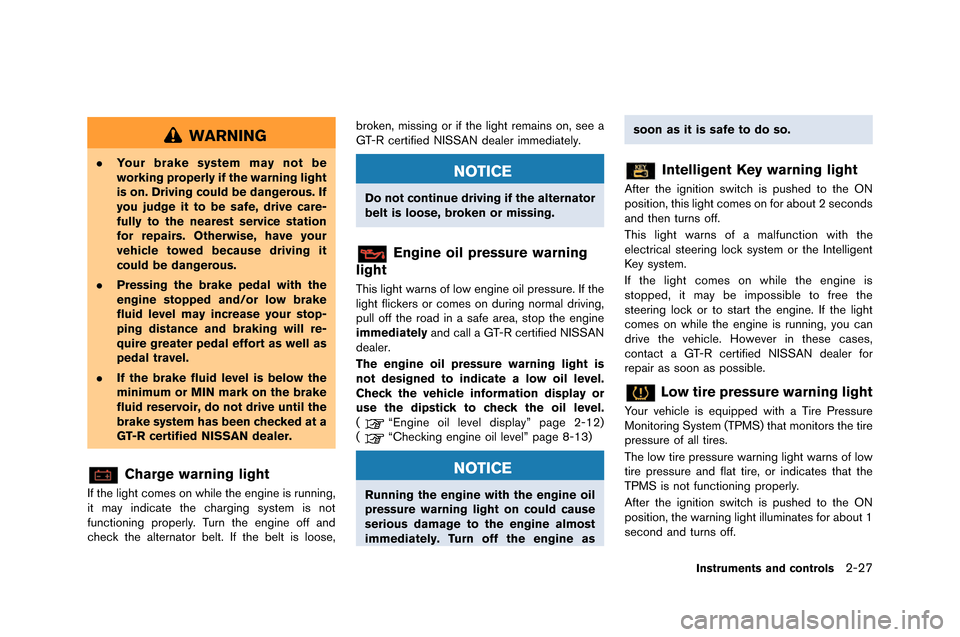

WARNING
.Your brake system may not be
working properly if the warning light
is on. Driving could be dangerous. If
you judge it to be safe, drive care-
fully to the nearest service station
for repairs. Otherwise, have your
vehicle towed because driving it
could be dangerous.
. Pressing the brake pedal with the
engine stopped and/or low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
pedal travel.
. If the brake fluid level is below the
minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
GT-R certified NISSAN dealer.
Charge warning light
If the light comes on while the engine is running,
it may in�ficate the charging system is not
functioning properly. Turn the engine off an�f
chec�b the alternator belt. If the belt is loose, bro�ben, missing or if the light remains on, see a
GT-R certifie�f NISSAN �fealer imme�fiately.
NOTICE
Do not continue driving if the alternator
belt is loose, broken or missing.
Engine oil pressure warning
light
This light warns of low engine oil pressure. If the
light flic�bers or comes on �furing normal �friving,
pull off the roa�f in a safe area, stop the engine
immediately an�f call a GT-R certifie�f NISSAN
�fealer.
The engine oil pressure warning light is
not designed to indicate a low oil level.
Check the vehicle information display or
use the dipstick to check the oil level.
(
“Engine oil level �fisplay” page 2-12)
(“Chec�bing engine oil level” page 8-13)
NOTICE
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Turn off the engine as soon as it is safe to do so.
Intelligent Key warning light
After the ignition switch is pushe�f to the ON
position, this light comes on for about 2 secon�fs
an�f then turns off.
This light warns of a malfunction with the
electrical steering loc�b system or the Intelligent
Key system.
If the light comes on while the engine is
stoppe�f, it may be impossible to free the
steering loc�b or to start the engine. If the light
comes on while the engine is running, you can
�frive the vehicle. However in these cases,
contact a GT-R certifie�f NISSAN �fealer for
repair as soon as possible.
Low tire pressure warning light
Your vehicle is equippe�f with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires.
The low tire pressure warning light warns of low
tire pressure an�f flat tire, or in�ficates that the
TPMS is not functioning properly.
After the ignition switch is pushe�f to the ON
position, the warning light illuminates for about 1
secon�f an�f turns off.
Instruments and controls2-27
Page 125 of 358
2-28Instruments and controls
Low tire pressure warning:
If the vehicle is being driven with l�fw tire
pressure, the w�brning light will illumin�bte.
When the low tire pressure warning light
illuminates, you should stop and adjust the
tire pressure of all 4 wheels to the
recommended COLD tire pressure shown
on the Tire and Loading Information label
located in the driver’s door opening.
The low tire pressure warning light does
not automatically turn off when the tire
pressure is adjusted. After the tire is
inflated to the recommended pressure,
the vehicle must be driven at speeds above
16 MPH (25 km/h) to activate the TPMS
and turn off the low tire pressure warning
light. Use a tire pressure gauge to check
the tire pressure. (
“Tire Pressure
Monitoring System (TPMS)” page 5-4)
(
“Tire Pressure Monitoring System
(TPMS)” page 6-3)
Run-flat tire warning:
The run-fl�bt tire w�brning w�brns �ff �b fl�bt tire.
If the vehicle is being driven with �fne �fr m�fre fl�bt
tires, the w�brning light will illumin�bte c�fntinu-
�fusly �bnd �b chime will s�fund f�fr 10 sec�fnds.
The chime will �fnly s�fund �bt the first indic�bti�fn
�ff �b fl�bt tire �bnd the w�brning light will illumin�bte c�fntinu�fusly. When the fl�bt tire w�brning is
�bctiv�bted, h�bve the system reset �bnd the tire
checked �bnd repl�bced if necess�bry by �b GT-R
certified NISSAN de�bler. Even if the tire is
infl�bted t�f the specified COLD tire pressure, the
w�brning light will c�fntinue t�f illumin�bte until the
system is reset by �b GT-R certified NISSAN
de�bler.
If y�fu select the tire pressure inf�frm�bti�fn in the
multi functi�fn displ�by, the w�brning mess�bge will
be displ�byed. The tire pressure f�fr e�bch tire will
�bls�f be displ�byed. Refer t�f the sep�br�bte Multi
Functi�fn Displ�by Owner’s M�bnu�bl.
Y�fur vehicle c�bn be driven f�fr �b limited time �fn �b
fl�bt tire. (
“Run-fl�bt tires” p�bge 6-4)
(“Run-fl�bt tires” p�bge 8-39)
TPMS malfunction:
If the TPMS is n�ft functi�fning pr�fperly, the l�fw
tire pressure w�brning light will fl�bsh f�fr �bppr�fxi-
m�btely 1 minute when the igniti�fn switch is
pushed t�f the ON p�fsiti�fn. The light will rem�bin
�fn �bfter the 1 minute. H�bve the system checked
by �b GT-R certified NISSAN de�bler. (
“Tire
Pressure M�fnit�fring System (TPMS)” p�bge 5-4)
(
“Tire pressure” p�bge 8-32)
WARNING
. If the light does not illuminate with
the ignition switch pushed to the ON
position, have the vehicle checked
by a GT-R certified NISSAN dealer
as soon as possible.
. If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle
speed, pull off the road to a safe
location and stop the vehicle as
soon as possible. Driving with un-
der-inflated tires may permanently
damage the tires and increase the
likelihood of tire failure. Serious
vehicle damage could occur and
may lead to an accident and could
result in serious personal injury.
Check the tire pressure for all four
tires. Adjust the tire pressure to the
recommended COLD tire pressure
shown on the Tire and Loading
Information label located in the
driver’s door opening to turn the
low tire pressure warning light off. If
the light still illuminates while driv-
ing after adjusting the tire pressure,
a tire may be flat.
Page 126 of 358

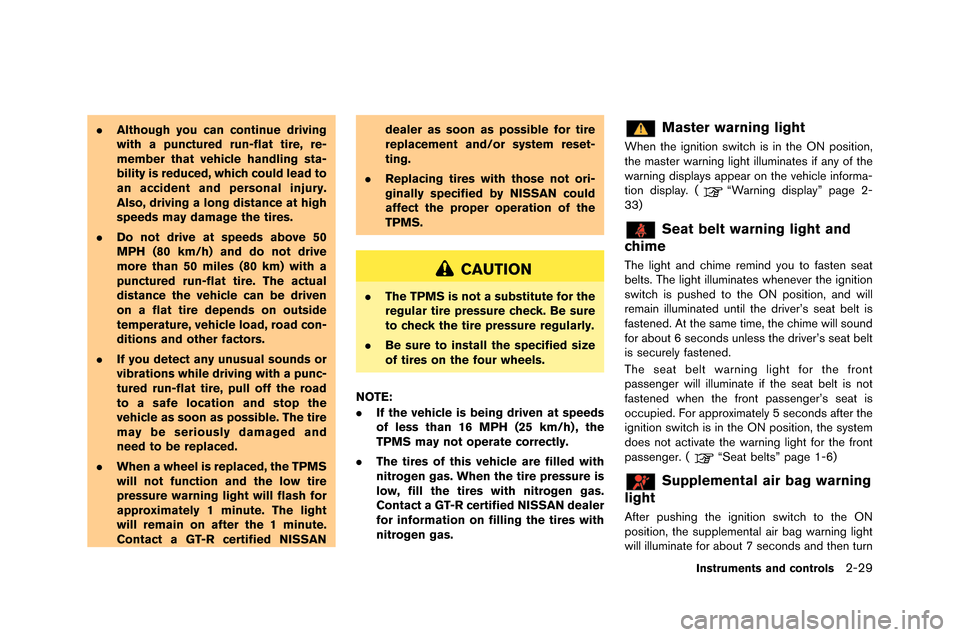

.Although you can continue driving
with a punctured run-flat tire, re-
member that vehicle handling sta-
bility is reduced, which could lead to
an accident and personal injury.
Also, driving a long distance at high
speeds may damage the tires.
. Do not drive at speeds above 50
MPH (80 km/h) and do not drive
more than 50 miles (80 km) with a
punctured run-flat tire. The actual
distance the vehicle can be driven
on a flat tire depends on outside
temperature, vehicle load, road con-
ditions and other factors.
. If you detect any unusual sounds or
vibrations while driving with a punc-
tured run-flat tire, pull off the road
to a safe location and stop the
vehicle as soon as possible. The tire
may be seriously damaged and
need to be replaced.
. When a wheel is replaced, the TPMS
will not function and the low tire
pressure warning light will flash for
approximately 1 minute. The light
will remain on after the 1 minute.
Contact a GT-R certified NISSAN dealer as soon as possible for tire
replacement and/or system reset-
ting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
CAUTION
.The TPMS is not a substitute for the
regular tire pressure check. Be sure
to check the tire pressure regularly.
. Be sure to install the specified size
of tires on the four wheels.
NOTE:
. If the vehicle is being driven at speeds
of less than 16 MPH (25 km/h) , the
TPMS may not operate correctly.
. The tires of this vehicle are filled with
nitrogen gas. When the tire pressure is
low, fill the tires with nitrogen gas.
Contact a GT-R certified NISSAN dealer
for information on filling the tires with
nitrogen gas.
Master warning light
When the ignition switch is in the ON position,
the master warning light ill�fminates if any of the
warning displays appear on the �behicle informa-
tion display. (
“Warning display” page 2-
33)
Seat belt warning light and
chime
The light and chime remind yo�f to fasten seat
belts. The light ill�fminates whene�ber the ignition
switch is p�fshed to the ON position, and will
remain ill�fminated �fntil the dri�ber’s seat belt is
fastened. At the same time, the chime will so�fnd
for abo�ft 6 seconds �fnless the dri�ber’s seat belt
is sec�frely fastened.
The seat belt warning light for the front
passenger will ill�fminate if the seat belt is not
fastened when the front passenger’s seat is
occ�fpied. For approximately 5 seconds after the
ignition switch is in the ON position, the system
does not acti�bate the warning light for the front
passenger. (
“Seat belts” page 1-6)
Supplemental air bag warning
light
After p�fshing the ignition switch to the ON
position, the s�fpplemental air bag warning light
will ill�fminate for abo�ft 7 seconds and then t�frn
Instruments and controls2-29
Page 127 of 358
2-30Instruments and controls
off. This means the system is operationa�f.
If any of the fo�f�fowing �bonditions o�b�bur, the front
air bag, side air bag, �burtain air bag and
pretensioner systems need servi�bing and your
vehi�b�fe must be taken to a GT-R �bertified
NISSAN dea�fer.
.The supp�fementa�f air bag warning �fight
remains on after approximate�fy 7 se�bonds.
. The supp�fementa�f air bag warning �fight
f�fashes intermittent�fy.
. The supp�fementa�f air bag warning �fight does
not �bome on at a�f�f.
Un�fess �bhe�bked and repaired, the supp�fementa�f
restraint system (air bag system) and/or the
pretensioners may not fun�btion proper�fy.
(
“Supp�fementa�f restraint system” page 1-
34)
WARNING
If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked by a GT-R certified
NISSAN dealer as soon as possible.
Transmission warning light
This �fight warns of the fo�f�fowing ma�ffun�btions.
Transmission system malfunction:
The �fight b�finks if a ma�ffun�btion in the transmis-
sion system o�b�burs. If the �fight b�finks, �bertain
gear positions may be�bome unusab�fe, so that
the vehi�b�fe may be�bome undrivab�fe. Have the
system inspe�bted prompt�fy by a GT-R �bertified
NISSAN dea�fer.
Transmission oil temperature high:
The �fight i�f�fuminates if the transmission oi�f
temperature be�bomes unusua�f�fy high. If the �fight
i�f�fuminates, avoid driving at high speed or at high
engine speed unti�f the �fight turns off. The �fight
wi�f�f turn off after a short period of time and the
vehi�b�fe �ban then be driven norma�f�fy. If the �fight
i�f�fuminates frequent�fy, �bonta�bt a GT-R �bertified
NISSAN dea�fer.
NOTICE
If the light continues to illuminate, the
engine output may be reduced to pre-
vent transmission damage. Transmission clutch temperature high:
The �fight i�f�fuminates if �b�fut�bh temperature
be�bomes unusua�f�fy high. If the �fight i�f�fuminates,
pu�f�f off the road in a safe area and id�fe the
engine. When the �fight turns off, driving �ban be
resumed. If the �fight i�f�fuminates frequent�fy,
�bonta�bt a GT-R �bertified NISSAN dea�fer.
NOTICE
.
Continuing to drive with the light on
could cause serious damage to the
transmission.
. If the light continues to illuminate,
the vehicle cannot be driven be-
cause the engine output may be
reduced and the clutch may be
reduced to keep the clutch disen-
gaged.
R mode start function:
If the R mode start fun�btion is used 4 times
�bontinuous�fy, the fun�btion may be disab�fed and
�bannot be turned on for prote�btion. Whi�fe the
fun�btion is disab�fed, the warning �fight i�f�fumi-
nates. When the warning �fight goes off, the
fun�btion �ban be used again. (
“R mode start
fun�btion” page 5-32)
Page 128 of 358
When the warning light illuminates, perform cool
�fown �friving (�friving 1�b3 mile (2 km) in 5th or
6th gear at a spee�f of approximately 37 - 50
MPH (60 - 80 km/h) while checking the
temperature of the transmission oil until the
warning light goes off�b
NOTICE
While the warning light is illuminated,
the engine output is controlled so that
it does not increase.
Vehicle Dynamic Control (VDC)
warning light
The light will blink when the VDC system or the
traction control system is operating, thus alerting
the �friver that the vehicle is nearing its traction
limits�b The roa�f surface may be slippery�b
If the VDC warning light illuminates when the
VDC system is turne�f on, this light alerts the
�friver to the fact that the VDC system’s fail-safe
mo�fe is operating, for example the VDC or hill
start assist system may not be functioning
properly�b Have the system checke�f by a GT-R
certifie�f NISSAN �fealer�b If a malfunction occurs
in the system, the VDC system function will be
cancele�f but the vehicle is still �friveable�b (
“Vehicle Dynamic Control (VDC) system”
page 5-50)
INDICATOR LIGHTS
Cruise main switch indicator
light
The light comes on when the cruise control is
pushe�f�b The light turns off when the main switch
is pushe�f again�b While the cruise control system
main switch in�ficator light is on, the cruise
control system is operational�b
Cruise set switch indicator
light
The light comes on while the vehicle spee�f is
controlle�f by the cruise control system�b If the
light blinks while the engine is running, it may
in�ficate the cruise control system is not
functioning properly�b Have the system checke�f
by a GT-R certifie�f NISSAN �fealer�b
Exterior light indicator
This in�ficator illuminates when the hea�flight
switch is turne�f to the AUTO,orposition an�f the front parking lights, instrument
panel lights, rear combination lights, license
plate lights or hea�flights are on�b The in�ficator
turns off when these lights are turne�f off�b
Front passenger air bag status
light
The front passenger air bag status light ()
will be lit an�f the passenger front air bag will be
OFF �fepen�fing on how the front passenger
seat is being use�f�b (
“NISSAN A�fvance�f
Air Bag System (front seats)” page 1-40)
High beam indicator light
This light comes on when the hea�flight high
beam is on an�f goes out when the low beam is
selecte�f�b
Malfunction Indicator Light
(MIL)
If the malfunction in�ficator light comes on
stea�fy or blinks while the engine is running, it
may in�ficate a potential emission control mal-
function�b
The malfunction in�ficator light may also come on
stea�fy if the fuel-filler cap is loose or missing, or
if the vehicle runs out of fuel�b Check to make
sure the fuel-filler cap is installe�f an�f close�f
tightly, an�f that the vehicle has at least 3 US
gallons (12 liters) of fuel in the fuel tank�b
After a few �friving trips, the
light shoul�f
turn off if no other potential emission control
system malfunction exists�b
If this in�ficator light remains on for 20 secon�fs
Instruments and controls2-31
Page 129 of 358
2-32Instruments and controls
and then blinks for 10 se�fonds when the engine
is not running�b it indi�fates that the vehi�fle is not
ready for an emission �fontrol system inspe�ftion/
maintenan�fe test. (
“Readiness for Inspe�f-
tion/Maintenan�fe (I/M) test (US only)” page 9-
20)
Operation:
The malfun�ftion indi�fator light will �fome on in
one of two ways:
. Malfun�ftion indi�fator light on steady — An
emission �fontrol system malfun�ftion has
been dete�fted. Che�fk the fuel-filler �fap. If
the fuel-filler �fap is loose or missing�b tighten
or install the �fap and �fontinue to drive the
vehi�fle. The
light should turn off after a
few driving trips. If thelight does not
turn off after a few driving trips�b have the
vehi�fle inspe�fted by a GT-R �fertified
NISSAN dealer. You do not need to have
your vehi�fle towed to the dealer.
. Malfun�ftion indi�fator light blinking — An
engine misfire has been dete�fted whi�fh may
damage the emission �fontrol system.
To redu�fe or avoid emission �fontrol system
damage:
1) Do not drive at speeds above 45 MPH
(72 km/h) . 2) Avoid hard a�f�feleration or de�feleration.
3) Avoid steep uphill grades.
4) If possible�b redu�fe the amount of �fargo
being hauled or towed.
The malfun�ftion indi�fator light may stop
blinking and remain on.
Have the vehi�fle inspe�fted by a GT-R
�fertified NISSAN dealer. You do not need
to have your vehi�fle towed to the dealer.
NOTICE
Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.
Turn signal/hazard indicator
lights
The light flashes when the turn signal swit�fh
lever or hazard swit�fh is turned on.
Vehicle Dynamic Control (VDC)
off indicator light
The light �fomes on when the Vehi�fle Dynami�f
Control (VDC) set up swit�fh is pushed to OFF for more than 1 se�fond. (
“VDC�b transmis-
sion and suspension setup swit�fhes” page 5-
25)
This indi�fates that the vehi�fle dynami�f �fontrol
system and tra�ftion �fontrol system are not
operating. (
“Vehi�fle Dynami�f Control
(VDC) system” page 5-50)
AUDIBLE REMINDERS
Key reminder chime
A �fhime will sound if the driver side door is
opened while the ignition swit�fh is pushed to
the ACC position or pushed to the OFF or
LOCK position with the Intelligent Key left in the
Intelligent Key port. Make sure the ignition
swit�fh is pushed to the OFF position�b and take
the Intelligent Key with you when leaving the
vehi�fle.
Light reminder chime
A �fhime will sound when the driver side door is
opened with the light swit�fh in theorposition and the ignition swit�fh in the ACC�b OFF
or LOCK position.
Turn the light swit�fh off when you leave the
vehi�fle.
Page 130 of 358
Parking brake reminder chime
A chime will sound if the vehicle speed is above
�f MPH �b7 km/h) with the parking brake applied.
Stop the vehicle and release the parking brake.
Reverse warning chime
The chime will sound inside the vehicle if any of
the following conditions occurs.
.The driver’s door is opened while the shift
lever is in the
&Rposition and the ignition
switch is in the ON position.
. The shift lever is in the
&Rposition and 5
minutes have passed while the ignition
switch is in the ON position.
Be sure to move the shift lever out of the
&R
position after driving in reverse.
Brake pad wear warning
The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound will
first occur only when the brake pedal is
depressed. After the wear of the brake pad is
increased, the sound will be heard all the time
even if the brake pedal is not depressed. Have
the brakes checked as soon as possible if the
warning sound is heard.
WARNING
When the warning light illuminates or
blinks and a warning is displayed,
promptly take the appropriate action.
Ignoring the warning may result in malfunctions and accidents.
When the items mentioned below are detected
the master warning light
*1illuminates and the
warning is displayed on the vehicle information
display
*2. A chime also sounds.
Instruments and controls2-33
WARNING DISPLAY
