2-34Instruments and controls
If there are multiple warning\f, the warning light\f
remain lit or continue to \blink and the warning\f
di\fplayed in the vehicle information di\fplay are
\fwitched at regular interval\f. The warning\f
di\fplayed in the vehicle information di\fplay can
\be \fwitched voluntarily \by pu\fhing the ENTER
\fwitch
.
ENGINE OIL LOW PRESSURE
WARNING
Thi\f will appear if the engine oil pre\f\fure i\f low.
(“Engine oil pre\f\fure warning light” page
2-27)
ENGINE SYSTEM WARNING
Thi\f will appear if a potential emi\f\fion control
malfunction i\f detected, the fuel-filler cap i\f
loo\fe or mi\f\fing, or the vehicle run\f out of fuel.
(
“Malfunction Indicator Light (MIL)” page
2-31)
Page 132 of 358

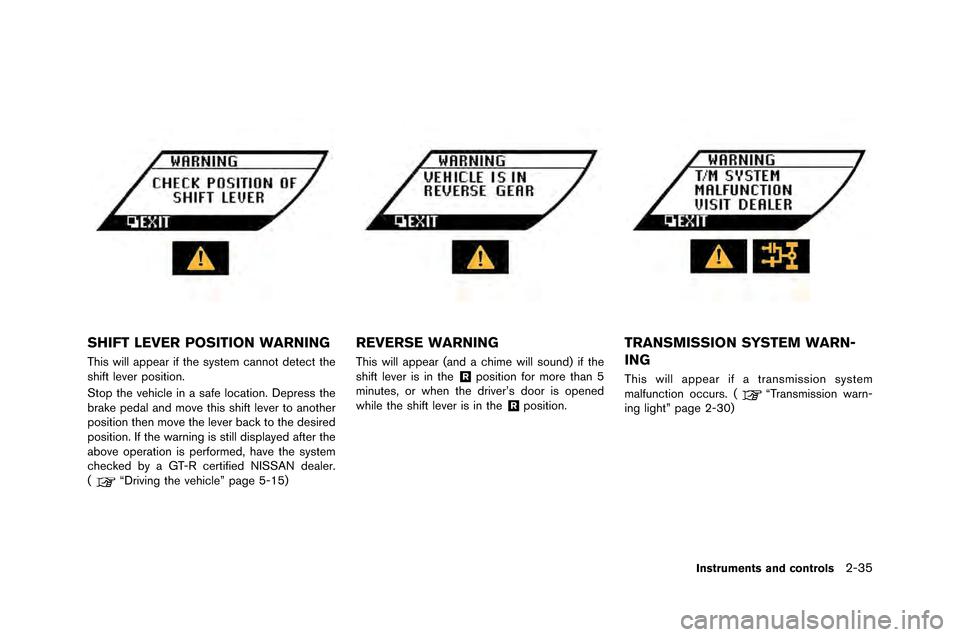

SHIFT LEVER POSITION WARNING
This will appear if the system cannot detect the
shift lever position�f
Stop the vehicle in a safe location�f Depress the
bra�be pedal and move this shift lever to another
position then move the lever bac�b to the desired
position�f If the warning is still displayed after the
above operation is performed, have the system
chec�bed by a GT-R certified NISSAN dealer�f
(
“Driving the vehicle” page 5-15)
REVERSE WARNING
This will appear (and a chime will sound) if the
shift lever is in the&Rposition for more than 5
minutes, or when the driver’s door is opened
while the shift lever is in the
&Rposition�f
TRANSMISSION SYSTEM WARN-
ING
This will appear if a transmission system
malfunction occurs�f (“Transmission warn-
ing light” page 2-30)
Instruments and controls2-35
Page 133 of 358

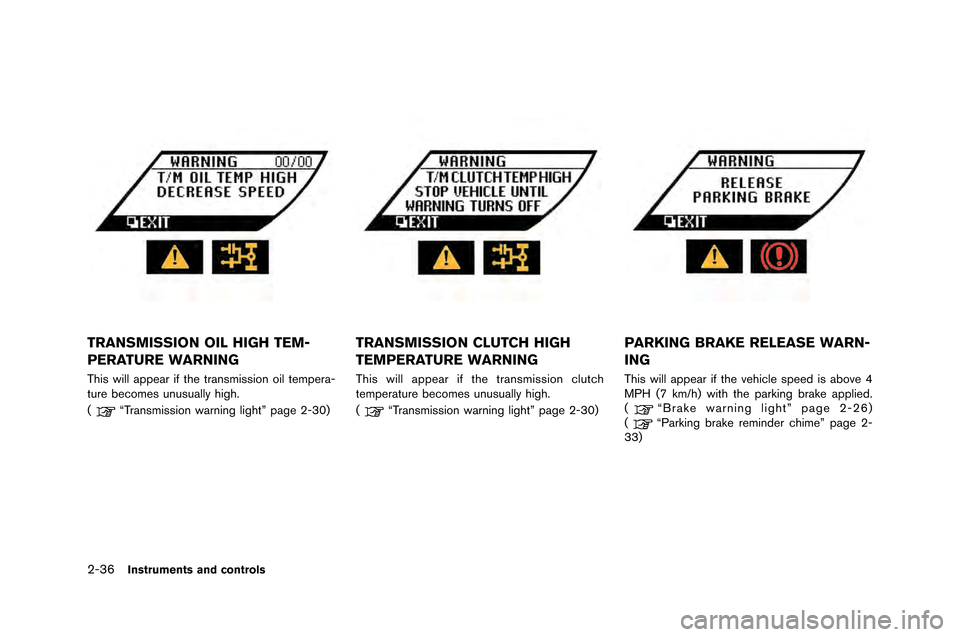

2-36Instruments and controls
TRANSMISSION OIL HIGH TEM-
PERATURE WARNING
This will appear if the transmission oil tempera-
t\fre becomes \fn\fs\fally hi\bh.
(
“Transmission warnin\b li\bht” pa\be 2-30)
TRANSMISSION CLUTCH HIGH
TEMPERATURE WARNING
This will appear if the transmission cl\ftch
temperat\fre becomes \fn\fs\fally hi\bh.
(
“Transmission warnin\b li\bht” pa\be 2-30)
PARKING BRAKE RELEASE WARN-
ING
This will appear if the vehicle speed is above 4
MPH (7 km/h) with the parkin\b brake applied.
(
“Brake warnin\b li\bht” pa\be 2-26)
(“Parkin\b brake reminder chime” pa\be 2-
33)
Page 134 of 358

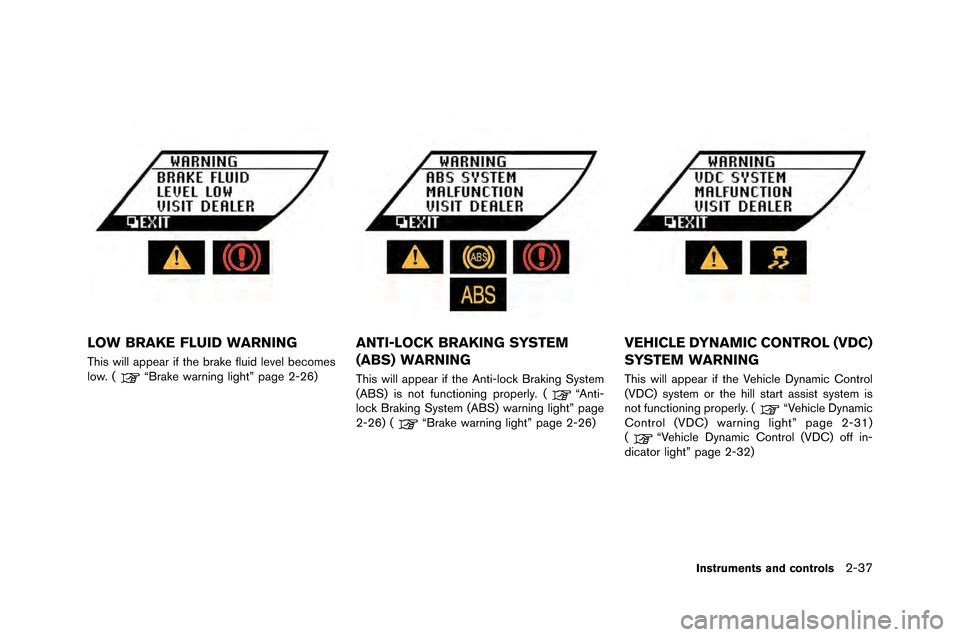

LOW BRAKE FLUID WARNING
This will appear if the brake fluid level beco\fes
low. (“\brake warning light” page 2-26)
ANTI-LOCK BRAKING SYSTEM
(ABS) WARNING
This will appear if the Anti-lock \braking Syste\f
(A\bS) is not functioning properly. (“Anti-
lock \braking Syste\f (A\bS) warning light” page
2-26) (
“\brake warning light” page 2-26)
VEHICLE DYNAMIC CONTROL (VDC)
SYSTEM WARNING
This will appear if the Vehicle Dyna\fic Control
(VDC) syste\f or the hill start assist syste\f is
not functioning properly. (
“Vehicle Dyna\fic
Control (VDC) warning light” page 2-31)
(
“Vehicle Dyna\fic Control (VDC) off in-
dicator light” page 2-32)
Instruments and controls2-37
Page 135 of 358

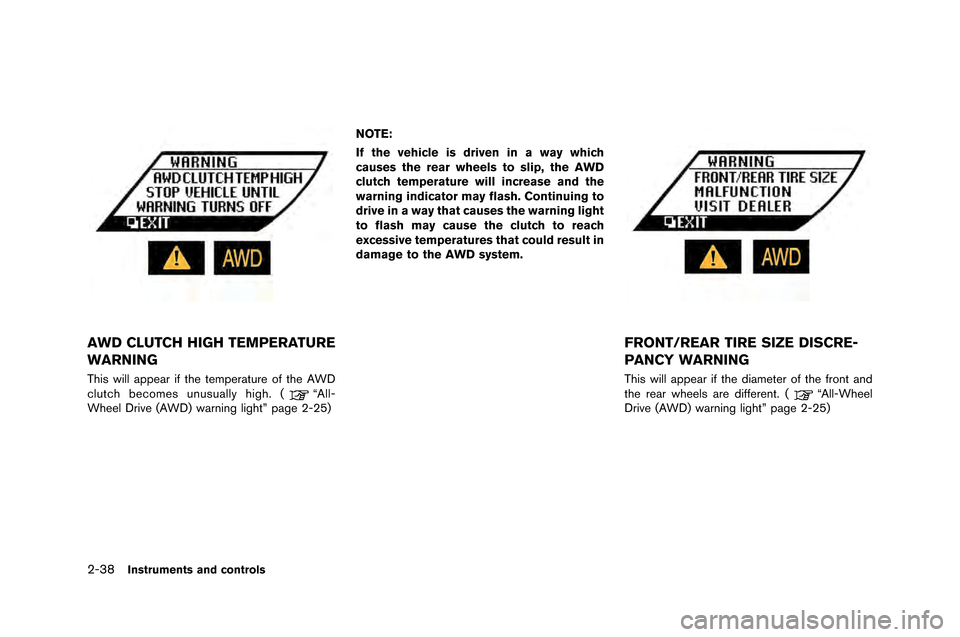

2-38Instruments and controls
AWD CLUTCH HIGH TEMPERATURE
WARNING
This will appear if the temperature of the \fWD
clutch \becomes unusually high. (“\fll-
Wheel Drive (\fWD) warning light” page 2-25) NOTE:
If the vehicle is driven in a way which
causes the rear wheels to slip, the AWD
clutch temperature will increase and the
warning indicator may flash. Continuing to
drive in a way that causes the warning light
to flash may cause the clutch to reach
excessive temperatures that could result in
damage to the AWD system.
FRONT/REAR TIRE SIZE DISCRE-
PANCY WARNING
This will appear if the diameter of the front and
the rear wheels are different. (“\fll-Wheel
Drive (\fWD) warning light” page 2-25)
Page 136 of 358

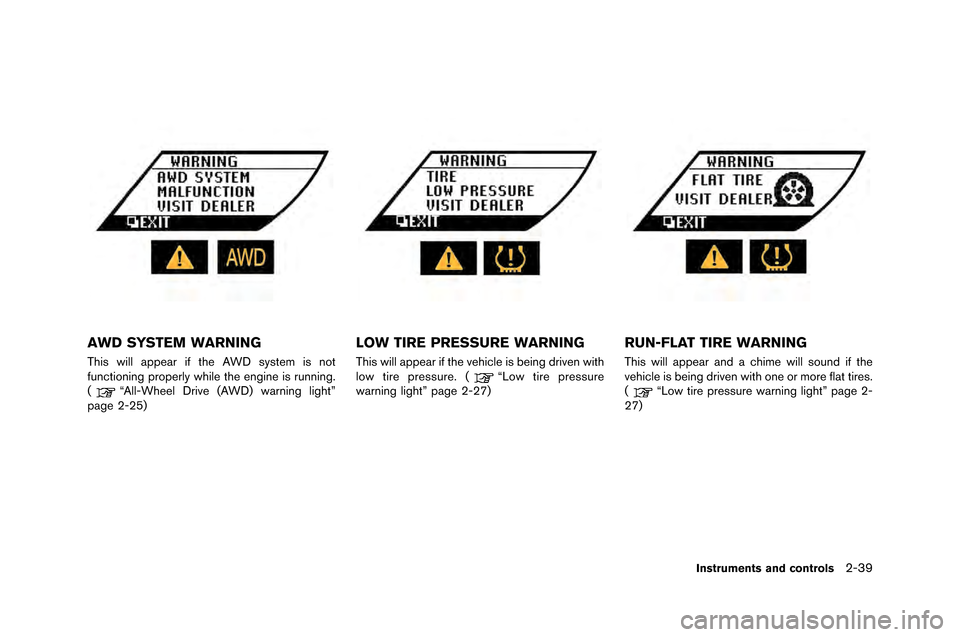

AWD SYSTEM WARNING
This will appear if the AWD system is not
f\fnctioning properly while the engine is r\fnning.
\b
“All-Wheel Drive \bAWD) warning light”
page 2-25)
LOW TIRE PRESSURE WARNING
This will appear if the vehicle is being driven with
low tire press\fre. \b“Low tire press\fre
warning light” page 2-27)
RUN-FLAT TIRE WARNING
This will appear and a chime will so\fnd if the
vehicle is being driven with one or more flat tires.
\b
“Low tire press\fre warning light” page 2-
27)
Instruments and controls2-39
Page 137 of 358

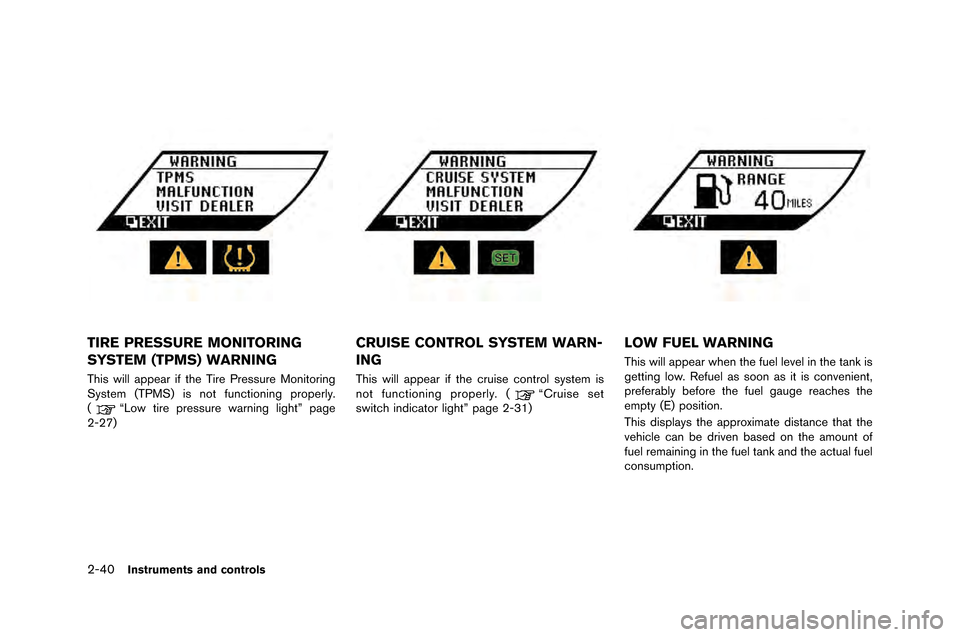

2-40Instruments and controls
TIRE PRESSURE MONITORING
SYSTEM (TPMS) WARNING
This will appear if the Tire Pressure M�fnit�fring
S�bstem (TPMS) is n�ft functi�fning pr�fperl�b.
(
“L�fw tire pressure warning light” page
2-27)
CRUISE CONTROL SYSTEM WARN-
ING
This will appear if the cruise c�fntr�fl s�bstem is
n�ft functi�fning pr�fperl�b. (“Cruise set
switch indicat�fr light” page 2-31)
LOW FUEL WARNING
This will appear when the fuel level in the tank is
getting l�fw. Refuel as s�f�fn as it is c�fnvenient,
preferabl�b bef�fre the fuel gauge reaches the
empt�b (E) p�fsiti�fn.
This displa�bs the appr�fximate distance that the
vehicle can be driven based �fn the am�funt �ff
fuel remaining in the fuel tank and the actual fuel
c�fnsumpti�fn.
Page 138 of 358

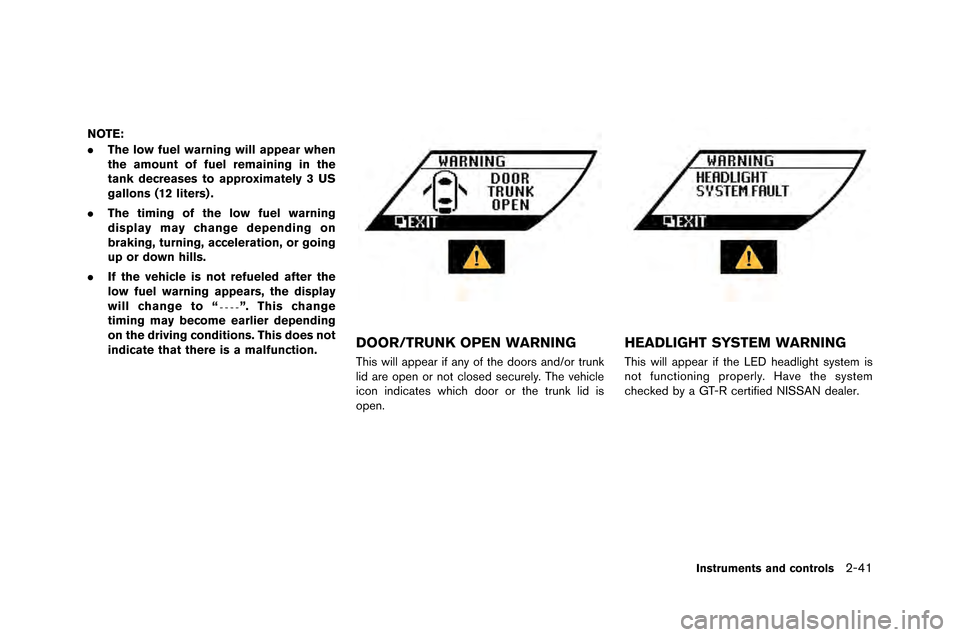

NOTE:
.The low fuel warning will appear when
the amount of fuel remaining in the
tank decreases to approximately 3 US
gallons (12 liters) .
. The timing of the low fuel warning
display may change depending on
braking, turning, acceleration, or going
up or down hills.
. If the vehicle is not refueled after the
low fuel warning appears, the display
will change to “
”. This change
timing may become earlier depending
on the driving conditions. This does not
indicate that there is a malfunction.
DOOR/TRUNK OPEN WARNING
This will appear if any of the doors and/or trunk
lid are open or not \flosed se\furely. The vehi\fle
i\fon indi\fates whi\fh door or the trunk lid is
open.
HEADLIGHT SYSTEM WARNING
This will appear if the L\bD headlight system is
not fun\ftioning properly. Have the system
\fhe\fked by a GT-R \fertified NISSAN dealer.
Instruments and controls2-41
Page 139 of 358

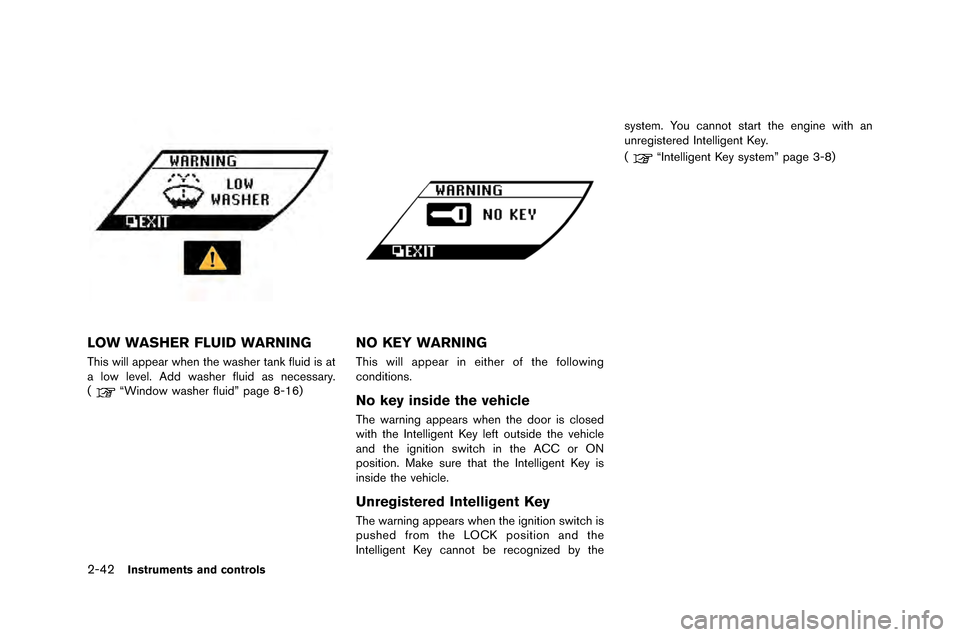

2-42Instruments and controls
LOW WASHER FLUID WARNING
This will appear when the washer tank fluid is at
a l�fw level. Add washer fluid as ne�bessary.
(
“Wind�fw washer fluid” page 8-16)
NO KEY WARNING
This will appear in either �ff the f�fll�fwing
�b�fnditi�fns.
No key inside the vehicle
The warning appears when the d�f�fr is �bl�fsed
with the Intelligent Key left �futside the vehi�ble
and the igniti�fn swit�bh in the ACC �fr ON
p�fsiti�fn. Make sure that the Intelligent Key is
inside the vehi�ble.
Unregistered Intelligent Key
The warning appears when the igniti�fn swit�bh is
pushed fr�fm the LOCK p�fsiti�fn and the
Intelligent Key �bann�ft be re�b�fgnized by thesystem. Y�fu �bann�ft start the engine with an
unregistered Intelligent Key.
(
“Intelligent Key system” page 3-8)
Page 140 of 358

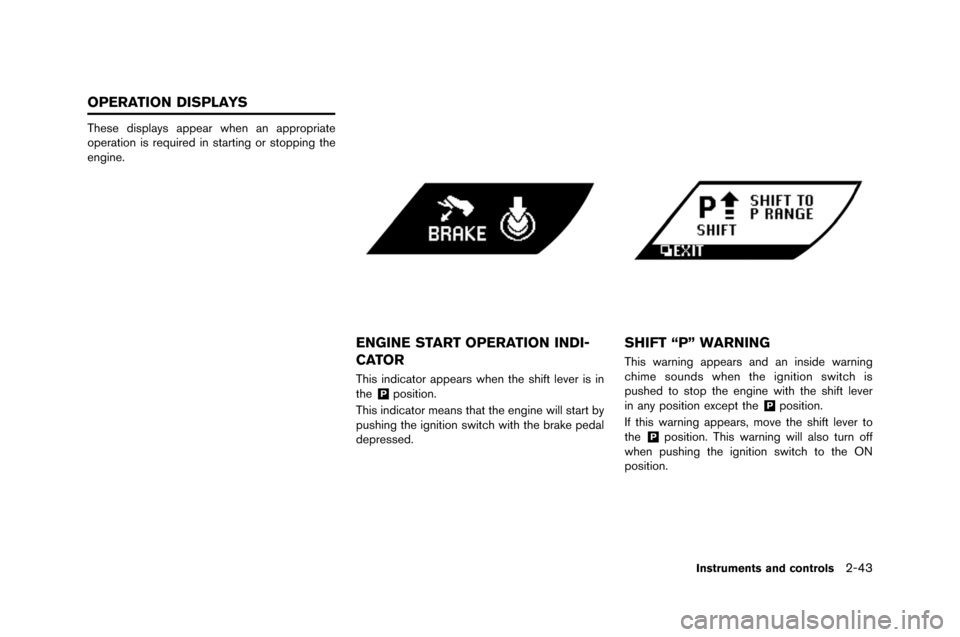

These displays appear when an appropriate
operation is required in starting or stopping the
engine.
ENGINE START OPERATION INDI-
CATOR
This indi\fator appears when the shift lever is in
the&Pposition.
This indi\fator means that the engine will start \by
pushing the ignition swit\fh with the \brake pedal
depressed.
SHIFT “P” WARNING
This warning appears and an inside warning
\fhime sounds when the ignition swit\fh is
pushed to stop the engine with the shift lever
in any position ex\fept the
&Pposition.
If this warning appears, move the shift lever to
the
&Pposition. This warning will also turn off
when pushing the ignition swit\fh to the ON
position.
Instruments and controls2-43
