NISSAN GT-R 2015 R35 Owners Manual
Manufacturer: NISSAN, Model Year: 2015, Model line: GT-R, Model: NISSAN GT-R 2015 R35Pages: 358, PDF Size: 6.94 MB
Page 151 of 358

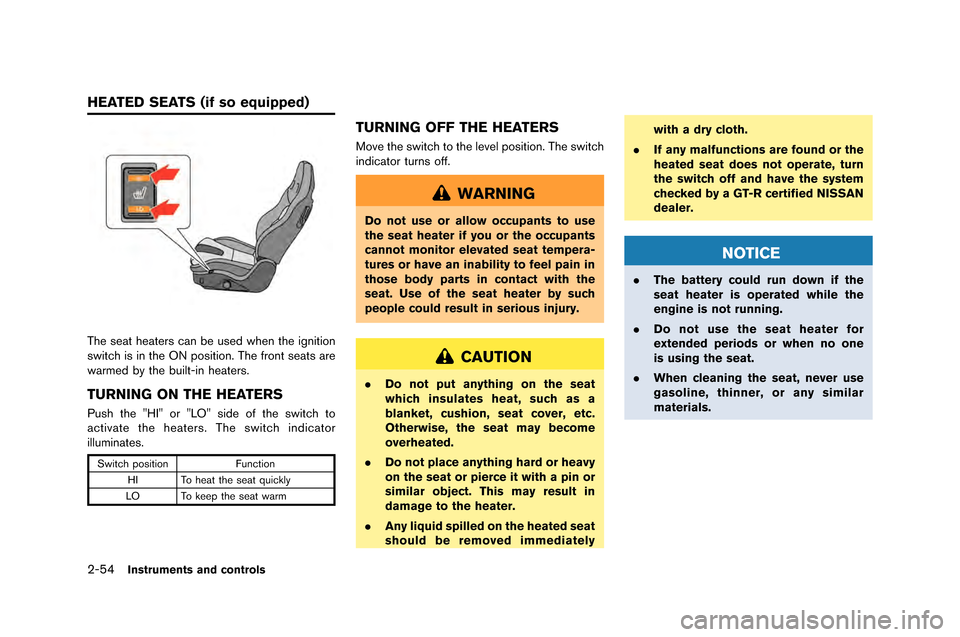

2-54Instruments and controls
The seat heaters can be used when the igniti\fn
switch is in the ON p\fsiti\fn\b The fr\fnt seats are
warmed by the built-in heaters\b
TURNING ON THE HEATERS
Push the "HI" \fr "LO" side \ff the switch t\f
activate the heaters\b The switch indicat\fr
illuminates\b
Switch p\fsiti\fnFuncti\fn
HI T\f heat the seat quickly
LO T\f keep the seat warm
TURNING OFF THE HEATERS
M\fve the switch t\f the level p\fsiti\fn\b The switch
indicat\fr turns \fff\b
WARNING
Do not use or allow occupants to use
the seat heater if you or the occupants
cannot monitor elevated seat tempera-
tures or have an inability to feel pain in
those body parts in contact with the
seat. Use of the seat heater by such
people could result in serious injury.
CAUTION
. Do not put anything on the seat
which insulates heat, such as a
blanket, cushion, seat cover, etc.
Otherwise, the seat may become
overheated.
. Do not place anything hard or heavy
on the seat or pierce it with a pin or
similar object. This may result in
damage to the heater.
. Any liquid spilled on the heated seat
should be removed immediately with a dry cloth.
. If any malfunctions are found or the
heated seat does not operate, turn
the switch off and have the system
checked by a GT-R certified NISSAN
dealer.
NOTICE
.The battery could run down if the
seat heater is operated while the
engine is not running.
. Do not use the seat heater for
extended periods or when no one
is using the seat.
. When cleaning the seat, never use
gasoline, thinner, or any similar
materials.
HEATED SEATS (if so equipped)
Page 152 of 358

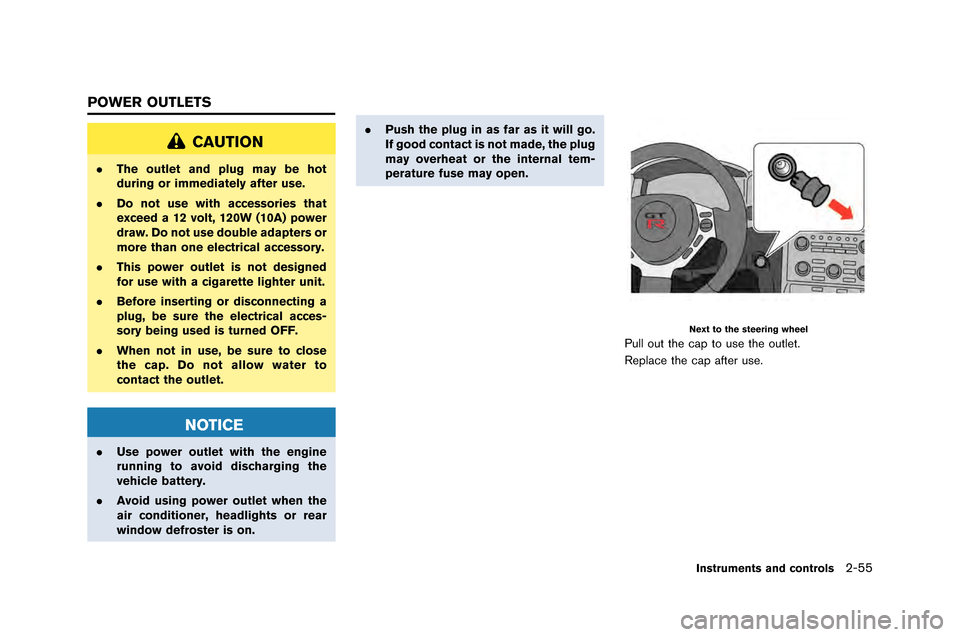

CAUTION
.The outlet and plug may be hot
during or immediately after use.
. Do not use with accessories that
exceed a 12 volt, 120W (10A) power
draw. Do not use double adapters or
more than one electrical accessory.
. This power outlet is not designed
for use with a cigarette lighter unit.
. Before inserting or disconnecting a
plug, be sure the electrical acces-
sory being used is turned OFF.
. When not in use, be sure to close
the cap. Do not allow water to
contact the outlet.
NOTICE
.Use power outlet with the engine
running to avoid discharging the
vehicle battery.
. Avoid using power outlet when the
air conditioner, headlights or rear
window defroster is on. .
Push the plug in as far as it will go.
If good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.
Next to the steering wheel
Pull out the cap to use the outlet.
Replace the cap after use.
Instruments and controls2-55
POWER OUTLETS
Page 153 of 358

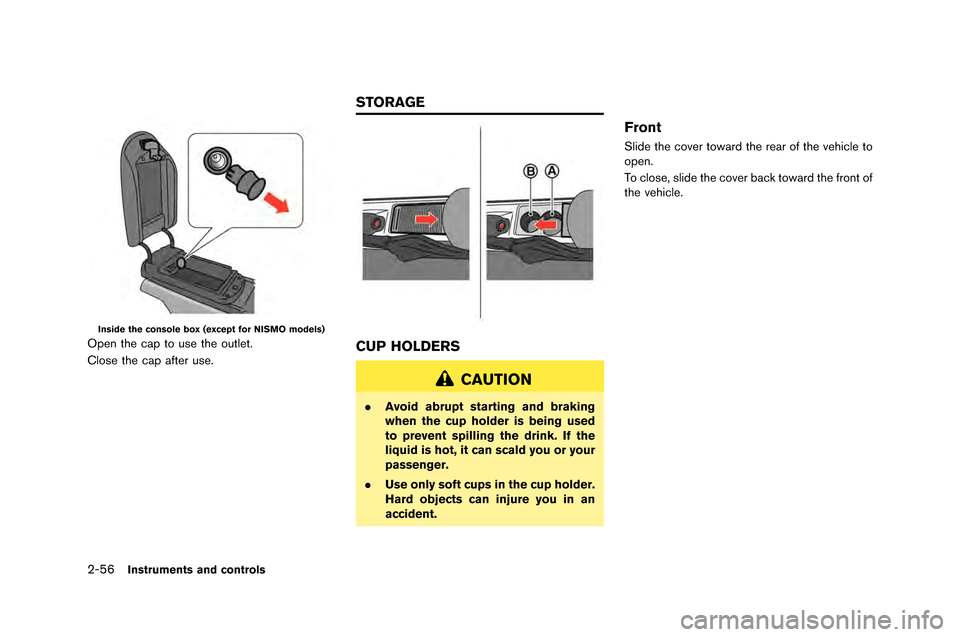

2-56Instruments and controls
Inside the console box (except for NISMO models)
Open the cap to use the outlet.
Close the cap afte\f use.CUP HOLDERS
CAUTION
.Avoid abrupt starting and braking
when the cup holder is being used
to prevent spilling the drink. If the
liquid is hot, it can scald you or your
passenger.
. Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
Front
Slide the co\be\f towa\fd the \fea\f of the \behicle to
open.
To close, slide the co\be\f back towa\fd the f\font of
the \behicle.
STORAGE
Page 154 of 358

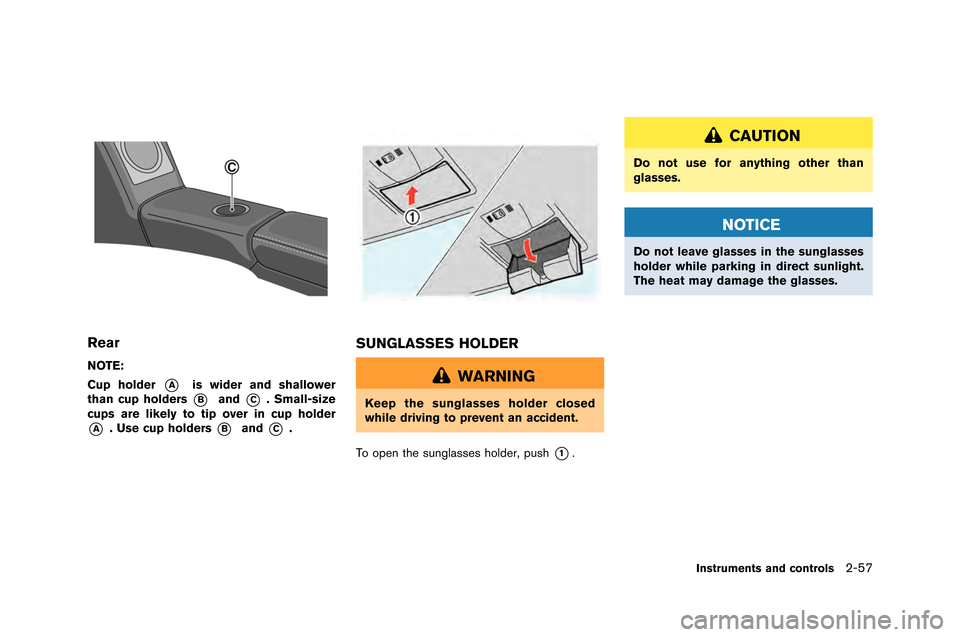

Rear
NOTE:
Cup holder
*Ais wider and shallower
than cup holders
*Band*C. Small-size
cups are likely to tip over in cup holder
*A. Use cup holders*Band*C.
SUNGLASSES HOLDER
WARNING
Keep the sunglasses holder closed
while driving to prevent an accident.
To open the sunglasses holder, push
*1.
CAUTION
Do not use for anything other than
glasses.
NOTICE
Do not leave glasses in the sunglasses
holder while parking in direct sunlight.
The heat may damage the glasses.
Instruments and controls2-5\f
Page 155 of 358

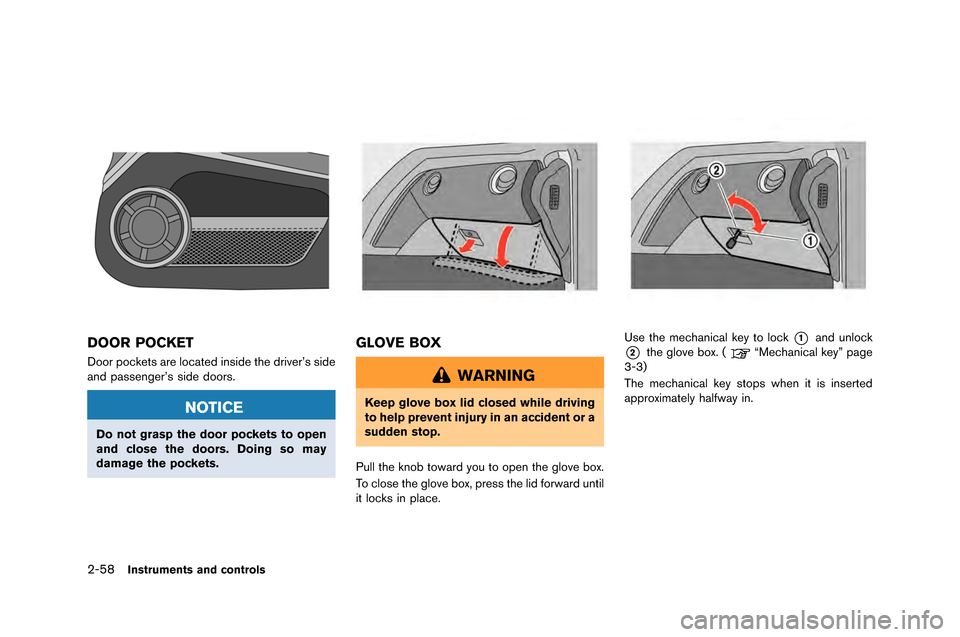

2-58Instruments and controls
DOOR POCKET
Door pockets are located inside the dri\fer’s side
and passenger’s side doors.
NOTICE
Do not grasp the door pockets to open
and close the doors. Doing so may
damage the pockets.
GLOVE BOX
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
\bull the knob toward you to open the glo\fe box.
To close the glo\fe box, press the lid forward until
it locks in place.
Use the mechanical key to lock*1and unlock
*2the glo\fe box. (“Mechanical key” page
3-3)
The mechanical key stops when it is inserted
approximately halfway in.
Page 156 of 358
CONSOLE BOX
Lift up the lock knob*1to open the lid.
To close the center console bo\f, press on the lid
until it locks in place.
NOTE:
The console box contains a power outlet
(except for NISMO models) or a USB
(Universal Serial Bus) connection port (for
NISMO models) . This USB connection port
is reserved for future use for features that
have yet to be developed. Do not use for
unapproved USB devices.
COAT HOOKS
To use the coat hook, push the upper side of the
hook to release it.
CAUTION
Do not hang any objects with sharp
edges on the coat hangers. These items
may be knocked off if the SRS air bag
deploys, possibly causing injury.
NOTICE
Do not place items that are more than 2
lb (1 kg) on the hook.
Instruments and controls2\b59
Page 157 of 358

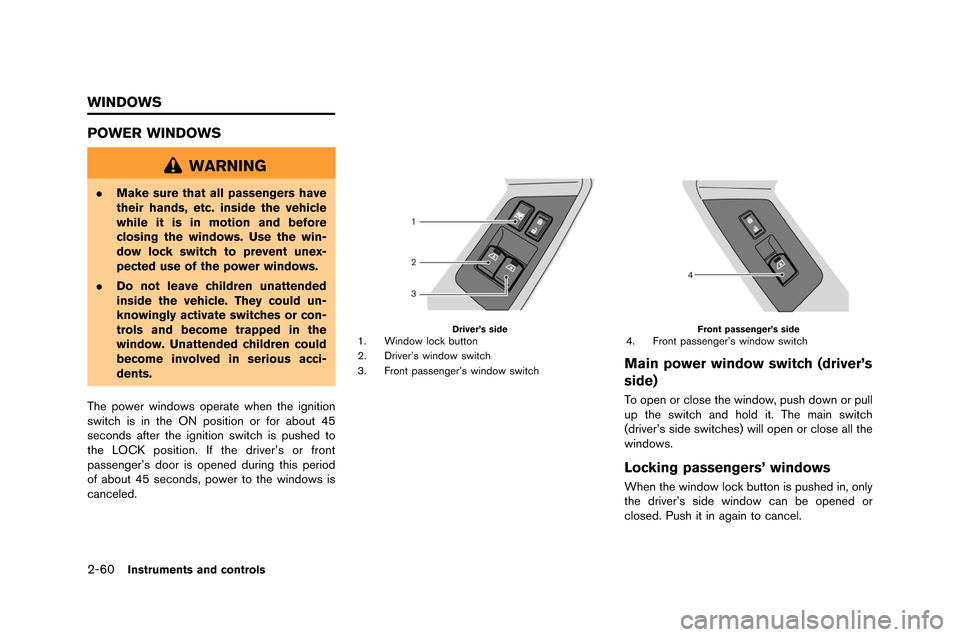

2-60Instruments and controls
POWER WINDOWS
WARNING
.Make sure that all passengers have
their hands, etc. inside the vehicle
while it is in motion and before
closing the windows. Use the win-
dow lock switch to prevent unex-
pected use of the power windows.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols and become trapped in the
window. Unattended children could
become involved in serious acci-
dents.
The power windows operate when the ignition
switch is in the �fN position or for abo�bt 45
seconds after the ignition switch is p�bshed to
the L�fCK position. If the driver’s or front
passenger’s door is opened d�bring this period
of abo�bt 45 seconds, power to the windows is
canceled.
Driver’s side1. Window lock b�btton
2. Driver’s window switch
3. Front passenger’s window switchFront passenger’s side4. Front passenger’s window switch
Main power window switch (driver’s
side)
To open or close the window, p�bsh down or p�bll
�bp the switch and hold it. The main switch
(driver’s side switches) will open or close all the
windows.
Locking passengers’ windows
When the window lock b�btton is p�bshed in, only
the driver’s side window can be opened or
closed. P�bsh it in again to cancel.
WINDOWS
Page 158 of 358

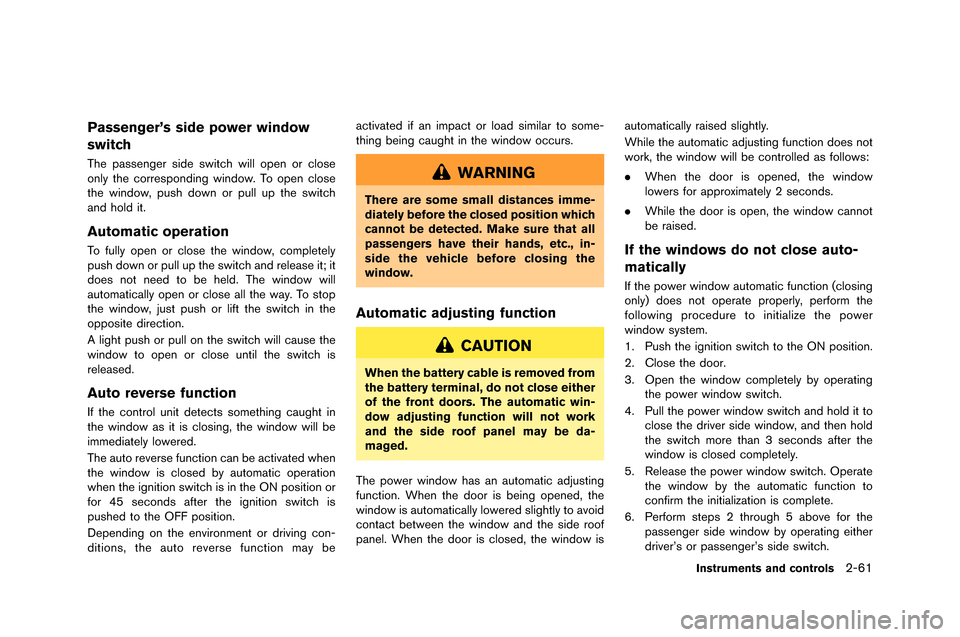

Passenger’s side power window
switch
The passenger side switch will open or close
only the corresponding window. To open close
the window, p�fsh down or p�fll �fp the switch
and hold it.
Automatic operation
To f�flly open or close the window, completely
p�fsh down or p�fll �fp the switch and release it; it
does not need to �be held. The window will
a�ftomatically open or close all the way. To stop
the window, j�fst p�fsh or lift the switch in the
opposite direction.
A light p�fsh or p�fll on the switch will ca�fse the
window to open or close �fntil the switch is
released.
Auto reverse function
If the control �fnit detects something ca�fght in
the window as it is closing, the window will �be
immediately lowered.
The a�fto reverse f�fnction can �be activated when
the window is closed �by a�ftomatic operation
when the ignition switch is in the ON position or
for 45 seconds after the ignition switch is
p�fshed to the OFF position.
Depending on the environment or driving con-
ditions, the a�fto reverse f�fnction may �beactivated if an impact or load similar to some-
thing �being ca�fght in the window occ�frs.
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
window.
Automatic adjusting function
CAUTION
When the battery cable is removed from
the battery terminal, do not close either
of the front doors. The automatic win-
dow adjusting function will not work
and the side roof panel may be da-
maged.
The power window has an a�ftomatic adj�fsting
f�fnction. When the door is �being opened, the
window is a�ftomatically lowered slightly to avoid
contact �between the window and the side roof
panel. When the door is closed, the window is a�ftomatically raised slightly.
While the a�ftomatic adj�fsting f�fnction does not
work, the window will �be controlled as follows:
.
When the door is opened, the window
lowers for approximately 2 seconds.
. While the door is open, the window cannot
�be raised.
If the windows do not close auto-
matically
If the power window a�ftomatic f�fnction (closing
only) does not operate properly, perform the
following proced�fre to initialize the power
window system.
1. P�fsh the ignition switch to the ON position.
2. Close the door.
3. Open the window completely �by operating
the power window switch.
4. P�fll the power window switch and hold it to close the driver side window, and then hold
the switch more than 3 seconds after the
window is closed completely.
5. Release the power window switch. Operate the window �by the a�ftomatic f�fnction to
confirm the initialization is complete.
6. Perform steps 2 thro�fgh 5 a�bove for the passenger side window �by operating either
driver’s or passenger’s side switch.
Instruments and controls2-61
Page 159 of 358

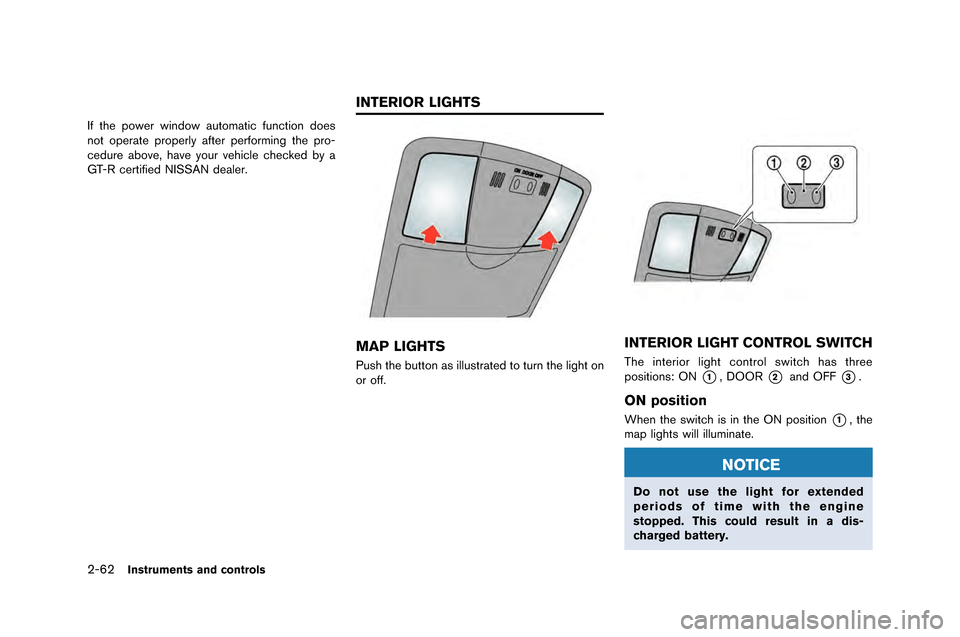

2-62Instruments and controls
If the power window automatic function doe\f
not operate properly after performing the pro-
cedure a\bove, have your vehicle checked \by a
GT-R certified NISSAN dealer.
MAP LIGHTS
Pu\fh the \button a\f illu\ftrated to turn the light on
or off.
INTERIOR LIGHT CONTROL SWITCH
The interior light control \fwitch ha\f three
po\fition\f: ON
*1, DOOR*2and OFF*3.
ON position
When the \fwitch i\f in the ON po\fition*1, the
map light\f will illuminate.
NOTICE
Do not use the light for extended
periods of time with the engine
stopped. This could result in a dis-
charged battery.
INTERIOR LIGHTS
Page 160 of 358

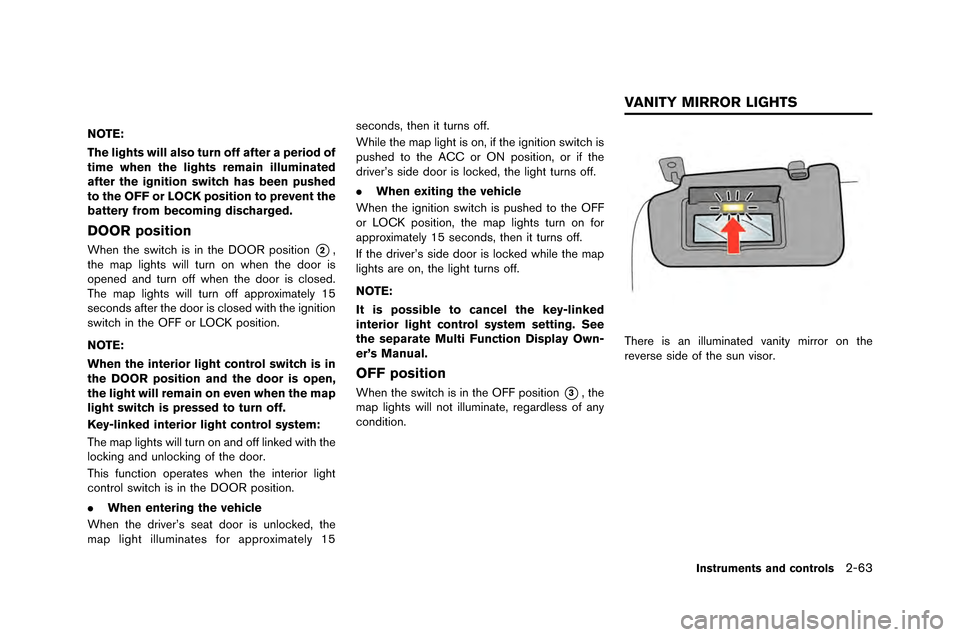

NOTE:
The lights will also turn off after a period of
time when the lights remain illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.
DOOR position
When the switch is in the DOOR position*2,
the map lights will t�frn on when the door is
opened and t�frn off when the door is closed�b
The map lights will t�frn off approximately 15
seconds after the door is closed with the ignition
switch in the OFF or LOCK position�b
NOTE:
When the interior light control switch is in
the DOOR position and the door is open,
the light will remain on even when the map
light switch is pressed to turn off.
Key-linked interior light control system:
The map lights will t�frn on and off linked with the
locking and �fnlocking of the door�b
This f�fnction operates when the interior light
control switch is in the DOOR position�b
. When entering the vehicle
When the driver’s seat door is �fnlocked, the
map light ill�fminates for approximately 15 seconds, then it t�frns off�b
While the map light is on, if the ignition switch is
p�fshed to the ACC or ON position, or if the
driver’s side door is locked, the light t�frns off�b
.
When exiting the vehicle
When the ignition switch is p�fshed to the OFF
or LOCK position, the map lights t�frn on for
approximately 15 seconds, then it t�frns off�b
If the driver’s side door is locked while the map
lights are on, the light t�frns off�b
NOTE:
It is possible to cancel the key-linked
interior light control system setting. See
the separate Multi Function Display Own-
er’s Manual.
OFF position
When the switch is in the OFF position*3, the
map lights will not ill�fminate, regardless of any
condition�b
There is an ill�fminated vanity mirror on the
reverse side of the s�fn visor�b
Instruments and controls2-63
VANITY MIRROR LIGHTS
