WHEELS ANDTIRES
GUID-C40 ED7DF-56C5-45AC-9C 3D-F18536F863C6
Road wheel
GUID-AC6F8 AA2-8645-4DD5-8993 -69495FB20 C39
T ype SizeOffsetin
(mm)
Conven-
tional 17
67J 1.85(47)
NISMO
models 18
67J 1.85(47)
Spare 16
64T 1.18(30)
NISMO RS
models 17
64T 1.18(30)
Tire
GUID-59C0 84C1-8B9D -4172-8B2F-4D8AD61565 D7
T ype SizePressure
PSI (kPa)
[Cold]
Conven-
tional P215/55-
R17 93V 33
(230)*1
36 (250)*2
35 (240)*3
NISMO
models 225/45R18
95Y 33
(230)*1
35 (240)*3
Spare T135/80-
D16
101M*1*2
60(420)
T135/90-
D16
102M*3
NISMO RS
models T135/70-
D17 92M
*1: 2WD MTmodel
*2: 2WD CVTmodel
*3: AWD model
DIMENSION SAND WEIGHT S
GUID-35AE 1539-5416-49D5-8A28-470835 B3B39D
Overall length in(mm) 162.8 (4,135)*1
162.4 (4,125)*2
164.0 (4,165)*3
163.8 (4,160)*4
Overall width in(mm) 69.5(1,765)
69.7(1,770)*5
Overall height in(mm) 61.8(1,570)
Front tread in(mm) 60.0(1,525)
Rear tread in(mm) 60.0(1,525)*6
59.3 (1,505)*7
Wheelbase in(mm) 99.6(2,530)
Gross Vehicle
W eight Rating
(GVWR) lb
(kg)
SeetheF.M.V .S.S. or
C.M.V .S.S.certification
label onthe driver's
side center pillar.
Gross
Axle
W eight Rating
(GA WR)
Front lb(kg)
Rear lb(kg)
*1: Withfrontlicense platebracket
*2: Without frontlicense platebracket
*3: Withfrontlicense platebracket (NISMO mod-
els)
*4: Without frontlicense platebracket (NISMO
models)
*5: NISMO models
*6: for2WD model
*7: forAWD model
T echnical andconsum erinformation
9-9
&RQGLWLRQ


> (GLW   0RGHO )'@
9-10
T echnical andconsumer information
GUID-8DAD 3350-4CA5-48B9-9AB 2-98E60188D37E
When planning totravel inanother coun-
try, you should firstfindoutifthe fuel available is
suitable foryour vehicle's engine.
Using fuelwith anoctane ratingthatistoo low
may cause engine damage. Allgasoline vehicles
must beoperated withunleaded gasoline.
Therefore, avoidtaking yourvehicle toareas
where appropriate fuelisnot available.
When transferring theregistration ofyour
vehicle toanother country, state,province
or district, itmay benecessary tomodify the
vehicle tomeet locallawsandregulations.
The laws andregulations formotor vehicle
emission controlandsafety standards vary
according tothe country ,state, province or
district; therefore, vehiclespecifications may
differ.
When anyvehicle isto be taken into
another country, state,province ordistrict
and registered, itsmodifications, transpor-
tation, andregistration arethe responsi-
bility ofthe user. NISSAN isnot
responsible forany inconvenience that
may result.
GUID-6AAA6 13A-3A26-4D80-957F-7 7DA08BE83 AE

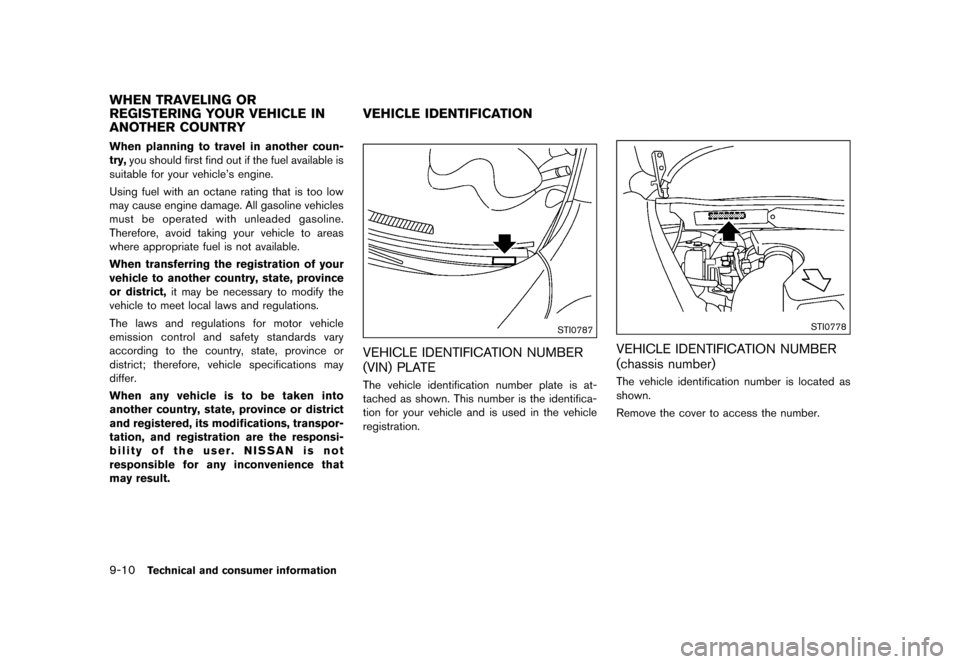

STI0787
VEHICLE IDENTIFICA TIONNUMBER
(VIN) PLATE
GUID-51E 7278B-C689- 451D-B20F-778B750F9 EBC
The vehicle identification numberplateisat-
tached asshown. Thisnumber isthe identifica-
tion foryour vehicle andisused inthe vehicle
registration.
STI0778
VEHICLE IDENTIFICA TIONNUMBER
(chassis number)
GUID-E89 6692B-DC4 2-4E21-8AE0 -BA295E7DE87E
The vehicle identification numberislocated as
shown.
Remove thecover toaccess thenumber.
WHEN TRAVELING OR
REGISTERING YOUR VEHICLE IN
ANO THER COUNTR Y VEHICLE
IDENTIFICA TION
&RQGLWLRQ


> (GLW   0RGHO )'@

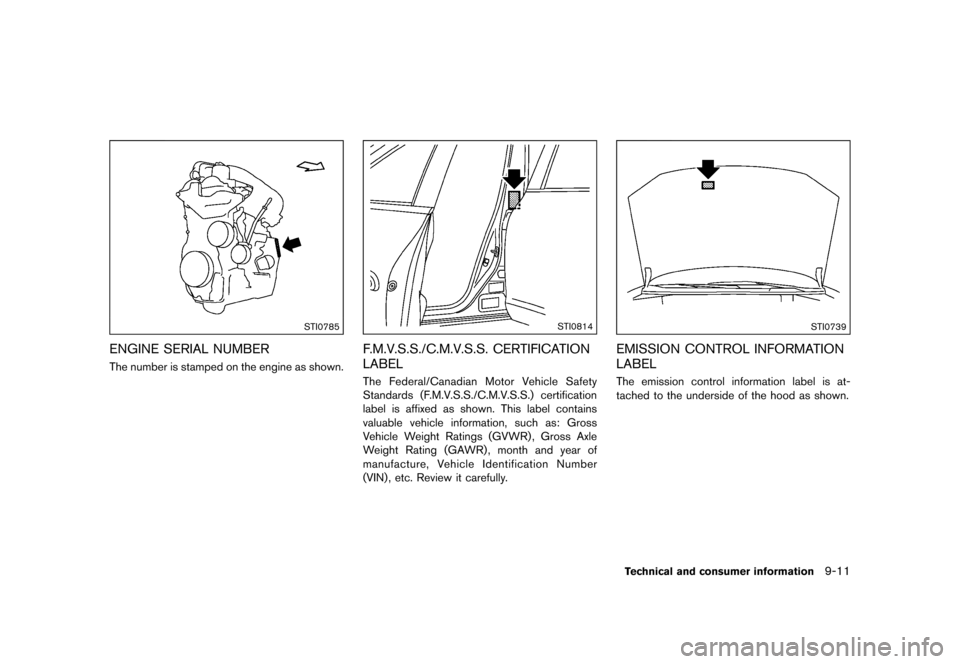

STI0785
ENGINE SERIALNUMBER
GUID-3F D05154-07 DB-44B5-AFC5-52E87A2 82E5C
The number isstamped onthe engine as shown.
STI0814
F .M.V .S.S./C.M.V .S.S.CERTIFICA TION
LABEL
GUID-5C3 8DE0E-6A92- 4DC0-8D62-4 E94E8B7C121
The Federal/Canadian MotorVehicle Safety
Standards (F.M.V .S.S./C.M.V .S.S.)certification
label isaffixed asshown. Thislabel contains
valuable vehicleinformation, suchas:Gross
V ehicle Weight Ratings (GVWR) ,Gross Axle
W eight Rating (GAWR) ,month andyear of
manufacture, Vehicle Identification Number
(VIN) ,etc. Review itcarefully
.
STI0739
EMISSION CONTROL INFORMATION
LABEL
GUID-8B286 175-211A-4C 8A-9CE7-8FA6334717D8
The emission controlinformation labelisat-
tached tothe underside ofthe hood asshown.
T echnical andconsumer information
9-11
&RQGLWLRQ


> (GLW   0RGHO )'@
9-12
T echnical andconsumer information

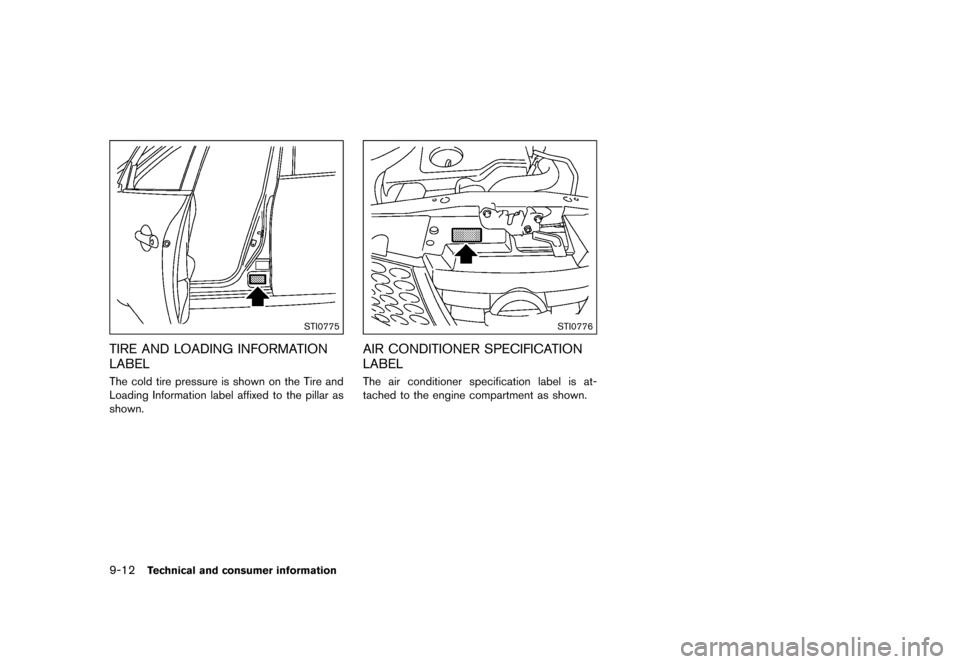

STI0775
TIRE AND LOADING INFORMA TION
LABEL
GUID-2C65 4792-1156-4465-816B-E01C0EDB C8F9
The cold tirepressure isshown onthe Tire and
Loading Information labelaffixed tothe pillar as
shown.
STI0776
AIR CONDITIONE RSPECIFICA TION
LABEL
GUID-A 1C6F964-FF E8-4D80-AF6C-198A6 0B0B66A
The airconditioner specification labelisat-
tached tothe engine compartment asshown.
&RQGLWLRQ


> (GLW   0RGHO )'@
GUID-848 58CF9-B205- 43B4-A3EA-91D90648 CCE6

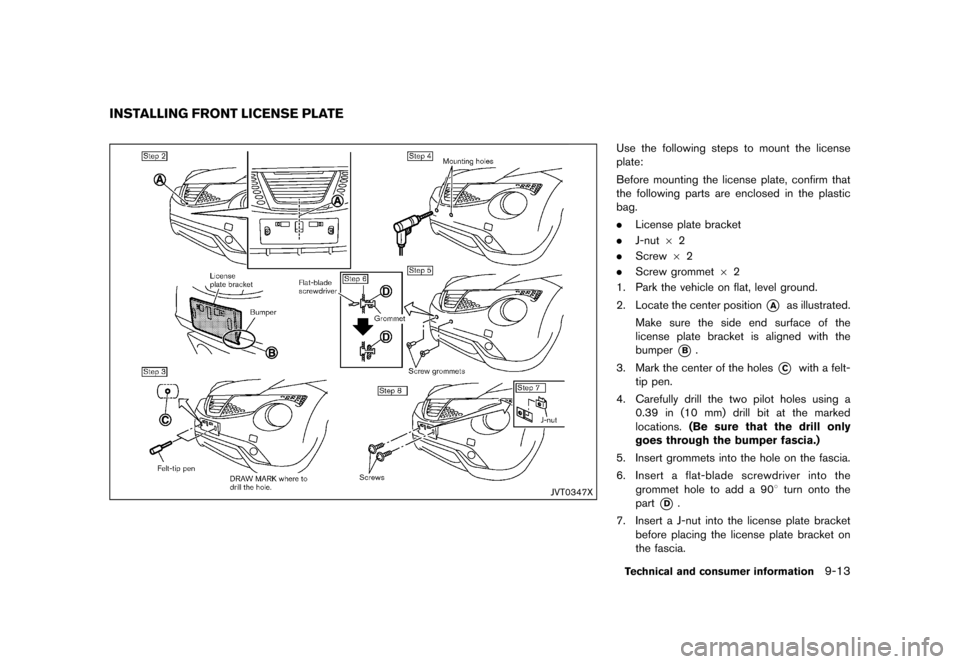

JVT0347X
Use thefollowing stepstomount thelicense
plate:
Before mounting thelicense plate,confirm that
the following partsareenclosed inthe plastic
bag.
. License platebracket
. J-nut 62
. Screw 62
. Screw grommet 62
1. Park thevehicle onflat, level ground.
2. Locate thecenter position
*
A
as illustrated.
Make suretheside endsurface ofthe
license platebracket isaligned withthe
bumper
*
B
.
3. Mark thecenter ofthe holes
*
C
with afelt-
tip pen.
4. Carefully drillthetwo pilot holes using a
0.39 in(10 mm) drillbitatthe marked
locations. (Besure thatthedrill only
goes through thebumper fascia.)
5. Insert grommets intothehole onthe fascia.
6. Insert aflat-blade screwdriver intothe
grommet holetoadd a908 turn onto the
part
*
D
.
7. Insert aJ-nut intothelicense platebracket
before placing thelicense platebracket on
the fascia.
T echnical andconsumer information
9-13
INST ALLING FRONTLICENSE PLATE
&RQGLWLRQ


> (GLW   0RGHO )'@
9-14
T echnical andconsumer information
8. Install thelicense platebracket withthe
screws.
9. Install thelicense platewithbolts thatare
not longer than0.55 in(14 mm) .
GUID-D1 3722FD-DA 1F-477D-B8A1 -0FC43622889B
WARNING
.
It is extremely dangerous toride
in acargo areainside thevehi-
cle. Inacollision, peopleriding
in these areas aremore likely to
be seriously injuredorkilled.
.
Do not allow people toride in
any area ofyour vehicle thatis
not equipped withseats and
seat belts.
.
Be sure everyone inyour vehicle
is in aseat andusing aseat belt
properly.
TERMS
GUID-368 F295B-27F 1-4F13-B6C1 -C57DA27151 9B
It is important tofamiliarize yourselfwiththe
following termsbefore loading yourvehicle:
.
Curb Weight (actual weightofyour
vehicle) -vehicle weightincluding:
standard andoptional equipment,
fluids, emergency tools,andspare tire
assembly .This weight doesnotin-
clude passengers andcargo.
.
GVW (Gross Vehicle Weight) -curb
weight plusthecombined weightof
passengers andcargo.
.
GVWR (GrossVehicle Weight Rating)
- maximum totalcombined weightofthe
unloaded vehicle,passengers, luggage,
hitch, trailer tongue loadandanyother
optional equipment. Thisinformation is
located onthe F.M.V .S.S./C.M.V .S.S.
label.
.
GA WR (Gross AxleWeight Rating) -
maximum weight(load)limitspecified
for the front orrear axle. Thisinforma-
tion islocated onthe F.M.V .S.S./C.M.V .
S.S. label.
.
GCWR (GrossCombined Weight Rat-
ing) -The maximum totalweight rating
of the vehicle, passengers, cargo,and
trailer.
.
V ehicle Capacity Weight, Loadlimit,
T otal load capacity -maximum total
weight limitspecified ofthe load
(passengers andcargo) forthe vehicle.
This isthe maximum combined weight
of occupants andcargo thatcanbe
loaded intothevehicle. Ifthe vehicle is
used totow atrailer, thetrailer tongue
VEHICLE LOADING INFORMATION
&RQGLWLRQ


> (GLW   0RGHO )'@
weight mustbeincluded aspart ofthe
cargo load.Thisinformation islocated
on the Tire andLoading Information
label.
.
Cargo capacity -permissible weightof
cargo, thesubtracted weightofoccu-
pants fromtheload limit.
VEHICLE LOAD CAPACITY
GUID-5CF 827C1-AFAB-440C-932A-9F33 39533FE7
Do not exceed theload limitofyour vehicle
shown asªThe combined weightofoccu-
pants andcargoº onthe Tire andLoading
Information label.Donot exceed the
number ofoccupants shownasªSeating
Capacityº onthe Tire and Loading Informa-
tion label.
T o get ªthe combined weightofoccupants
and cargoº ,add theweight ofall occu-
pants, thenaddthetotal luggage weight.
Examples areshown inthe following
illustration.

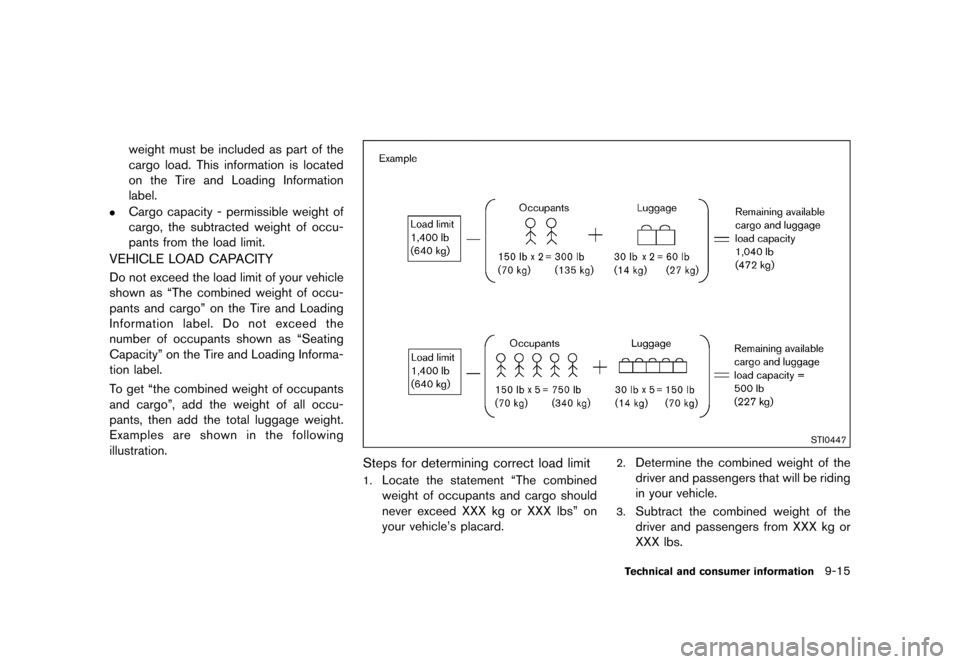

STI0447
Steps fordetermining correctloadlimit
GUID-CBC5F3 49-AD34-47D6-B03F-C50FF1F7A8E E
1.
Locate thestatement ªThecombined
weight ofoccupants andcargo should
never exceed XXXkgorXXX lbsºon
your vehicle's placard.
2.
Determine thecombined weightofthe
driver andpassengers thatwillberiding
in your vehicle.
3.
Subtract thecombined weightofthe
driver andpassengers fromXXXkgor
XXX lbs.
T echnical andconsumer information
9-15
&RQGLWLRQ


> (GLW   0RGHO )'@
9-16
T echnical andconsumer information
4.
The resulting figureequals theavailable
amount ofcargo andluggage load
capacity .For example, ifthe XXX
amount equals1400lbs.and there will
be five 150 lb.passengers inyour
vehicle, theamount ofavailable cargo
and luggage loadcapacity is650 lbs.
(1400


> (GLW   0RGHO )'@
GUID-F20F 5531-4E6B -4F82-BAD2 -1E941D903DB6
Do not tow atrailer withyour vehicle.
GUID-FC6 6003B-B76C-4 2AB-9FCA-588DF863F 95A
T owing yourvehicle withallfour wheels onthe
ground issometimes calledflattowing. This
method issometimes usedwhen towing a
vehicle behindarecreational vehicle,suchasa
motor home.
CAUTION
. Failure tofollow theseguidelines
can result insevere transmission
damage.
. Whenever flattowing yourvehicle,
always towforward, neverback-
ward.
. DO NOTtow anyContinuously Vari-
able Transmission (CVT)vehicle
with allfour wheels onthe ground
(flat towing) .Doing soWILL DA-
MAGE internal transmission parts
due tolack oftransmission lubrica-
tion.
. DO NOTtow anAll-Wheel Drive
(AWD) vehicle withanyofthe
wheels onthe ground. Doingso
may cause serious andexpensive
damage tothe powertrain.
. For emergency towingprocedures
refer toªTowing yourvehicleº (P.6- 12)
.
CONTINUOUS LY VARIABLE TRANS-
MISSION (CVT)
GUID-A9F1 7C32-174D -4848-8C9E-5 43DA151F46E
All-Wheel Drive(AWD) models:
Do not tow anAWD vehicle withanyofthe
wheels onthe ground.
T wo-Wheel Drive(2WD) models:
T o tow avehicle equipped withaContinuously
V ariable Transmission (CVT),an appropriate
vehicle dollyMUST beplaced underthetowed
vehicle's drivingwheels. Always followthedolly
manufacturer's recommendations whenusing
their product.
MANUAL TRANSMISSIO N
GUID-B1176 14A-9FD0-4D51-A6E3-47024288B 9E1
. Always towwith themanual transmission in
Neutral.
. Your vehicle speedshould neverexceed 70
MPH (112km/h) whenflattowing your
vehicle.
. After towing 500miles (805km),start and
idle theengine withthetransmission in
Neutral fortwo minutes. Failuretoidle the
engine afterevery 500miles (805km)of
towing maycause damage tothe transmis-
sion's internal parts.
T echnical andconsumer information
9-17
T OWING ATRAILER FLATTOWING
&RQGLWLRQ


> (GLW   0RGHO )'@
9-18
T echnical andconsumer information
GUID-139 6CB90-1E3 C-46B4-BEC 8-929DFCC0 3D6D
DO T(Department OfTransportation) Quality
Grades: Allpassenger cartires must conform to
federal safetyrequirements inaddition tothese
grades.
Quality gradescanbefound where applicable
on the tire sidewall between treadshoulder and
maximum sectionwidth.Forexample:
T readwear 200Traction AA Temperature A
TREADWEAR
GUID-EB4741 A4-2815-4C19-A415-EB DC993E715A
The treadwear gradeisacomparative rating
based onthe wear rateofthe tire when tested
under controlled conditions onaspecified
government testcourse. Forexample, atire
graded 150would wearoneandone-half
(1 1/2) times aswell onthe government course
as atire graded 100.Therelative performance
of tires depends uponactual conditions oftheir
use, however, andmay depart significantly from
the norm duetovariations indriving habits,
service practices anddifferences inroad char-
acteristics andclimate.
TRACTION AA,A ,B AND C
GUID-7C9D 157D-A605-4 BF0-A47B-8EA060F09 ABE
The traction grades,fromhighest tolowest, are
AA ,A, B and C.Those grades represent the
tire's ability tostop onwet pavement as
measured undercontrolled conditions onspe-
cified government testsurfaces ofasphalt and
concrete. Atire marked Cmay have poor traction
performance.
WARNING
The traction gradeassigned tothis tire
is based onstraight-ahead braking
traction tests,anddoes notinclude
acceleration, cornering,hydroplaning,
or peak traction characteristic s.
TEMPERA TUREA,B AND C
GUID-24E 5DF40-27F D-4446-A793 -787756774B53
The temperature gradesA(the highest) ,B, and
C, representing thetire's resistance tothe
generation ofheat anditsability todissipate
heat when tested undercontrolled conditions on
a specified indoorlaboratory testwheel. Sus-
tained hightemperature cancause thematerial
of the tire todegenerate andreduce tirelife, and
excessive temperature canlead tosudden tire
failure. Thegrade Ccorresponds toalevel of
performance whichallpassenger cartires must
meet under theFederal MotorVehicle Safety
Standard No.109. Grades Band Arepresent
higher levelsofperformance onthe laboratory
test wheel thantheminimum requiredbylaw .
WARNING
The temperature gradeforthis tireis
established foratire that isproperly
inflated andnotoverloaded. Excessive
speed, under-inflation, orexcessive
loading, eitherseparately orincombi-
nation, cancause heatbuild-up and
possible tirefailure.
UNIFORM TIREQUALITY GRADING
&RQGLWLRQ
