> ( G L W 0 R G H O ) ' @
SDI2705

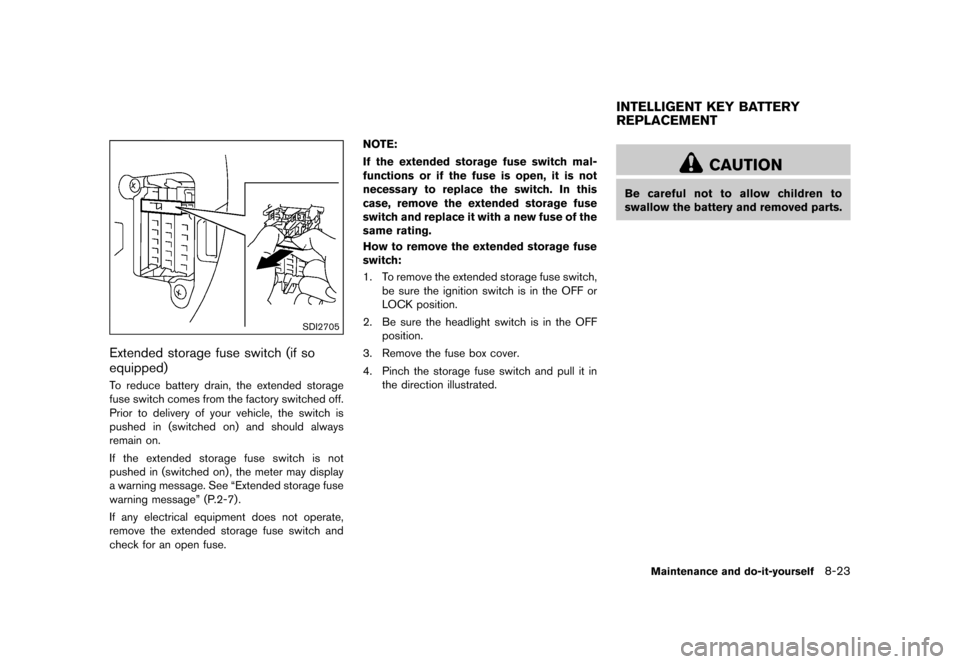

Extended storagefuseswitch (ifso
equipped)
GUID-7EE1 D234-C9B0 -4378-9F56-2 EAE0BD5CAB4
T o reduce batterydrain,theextended storage
fuse switch comes fromthefactory switched off.
Prior todelivery ofyour vehicle, theswitch is
pushed in(switched on)and should always
remain on.
If the extended storagefuseswitch isnot
pushed in(switched on),the meter maydisplay
a warning message. SeeªExtended storagefuse
warning messageº (P.2-7) .
If any electrical equipment doesnotoperate,
remove theextended storagefuseswitch and
check foranopen fuse. NO
TE:
If the extended storagefuseswitch mal-
functions orifthe fuse isopen, itis not
necessary toreplace theswitch. Inthis
case, remove theextended storagefuse
switch andreplace itwith anew fuse ofthe
same rating.
How toremove theextended storagefuse
switch:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
1. To remove theextended storagefuseswitch,
be sure theignition switchisin the OFF or
L OCK position.
2. Besure theheadlight switchisin the OFF
position.
3. Remove thefuse boxcover.
4. Pinch thestorage fuseswitch andpullitin
the direction illustrated.
GUID-E0 3C12AE-52 04-44DA-8C9 2-75FB6768F780
CAUTION
Be careful nottoallow children to
swallow thebattery andremoved parts.
Maintenance anddo-it-yo urself
8-23
INTELLIGE NTKEY BATTER Y
REPLACEM ENT
& R Q G L W L R Q
Page 332 of 383
> ( G L W 0 R G H O ) ' @
8-24
Maintenance anddo-it-yours elf
SDI2451

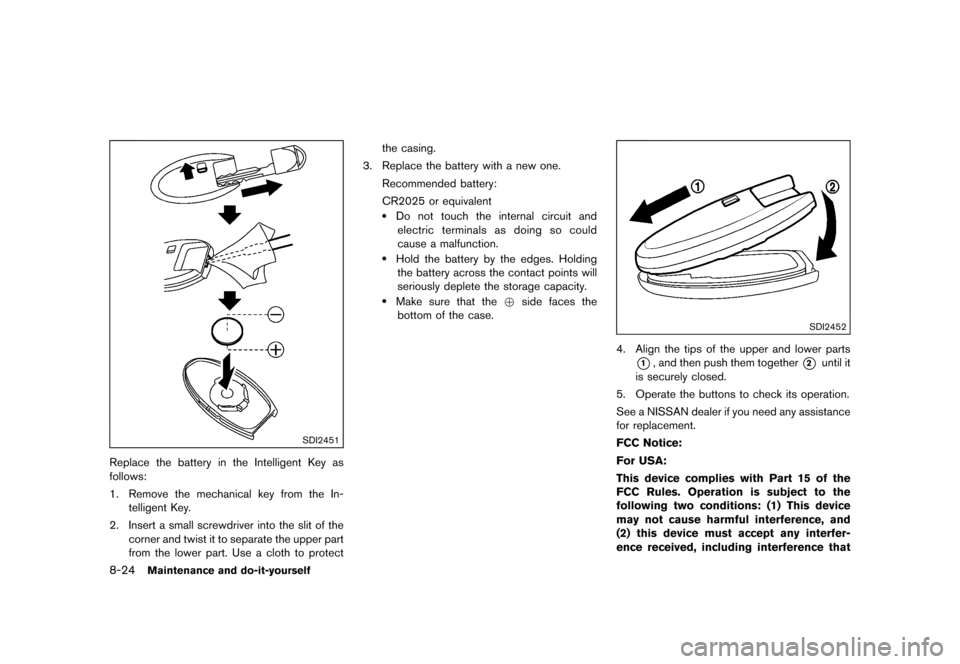

Replace thebattery inthe Intelligent Key as
follows:
1. Remove themechanical keyfrom theIn-
telligent Key .
2. Insert asmall screwdriver intotheslitofthe
corner andtwist itto separate theupper part
from thelower part.Useacloth toprotect the
casing.
3. Replace thebattery withanew one.
Recommended battery:
CR2025 orequivalent
.
Do not touch theinternal circuitand
electric terminals asdoing socould
cause amalfunction.
.
Hold thebattery bythe edges. Holding
the battery acrossthecontact pointswill
seriously depletethestorage capacity.
.
Make surethatthe+side faces the
bottom ofthe
case.
SDI2452
4. Align thetips ofthe upper andlower parts
*
1
, and then push them together
*
2
until it
is securely closed.
5. Operate thebuttons tocheck itsoperation.
See aNISSAN dealerifyou need anyassistance
for replacement.
FCC Notice:
For USA:
This device complies withPart15ofthe
FCC Rules. Operation issubject tothe
following twoconditions: (1)This device
may notcause harmful interference, and
(2) this device mustaccept anyinterfer-
ence received, including interference that
& R Q G L W L R Q
Page 333 of 383
> ( G L W 0 R G H O ) ' @

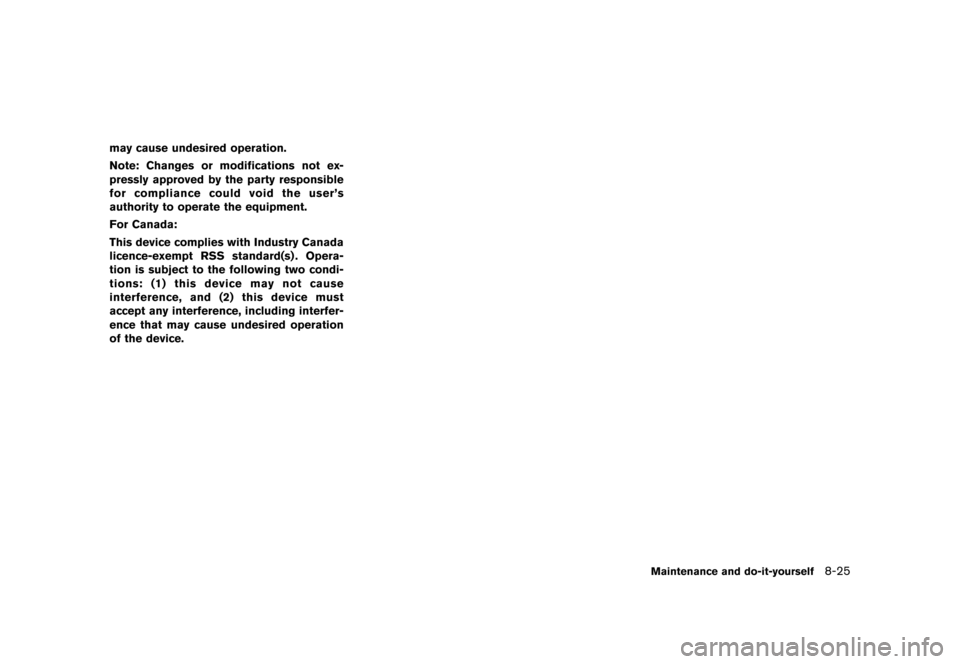

may cause undesired operation.
Note: Changes ormodifications notex-
pressly approved bythe party responsible
for compliance couldvoidtheuser's
authority tooperate theequipment.
For Canada:
This device complies withIndustry Canada
licence-exempt RSSstandard(s) .Opera-
tion issubject tothe following twocondi-
tions: (1)this device maynotcause
interference, and(2)this device must
accept anyinterference, includinginterfer-
ence thatmay cause undesired operation
of the device.
Maintenance anddo-it-yo urself
8-25
& R Q G L W L R Q
Page 334 of 383
> ( G L W 0 R G H O ) ' @
8-26
Maintenance anddo-it-yours elf
GUID-23FC8 0BC-9A5D-4CDF-AF41 -4375212E 36BD
JVM0505X

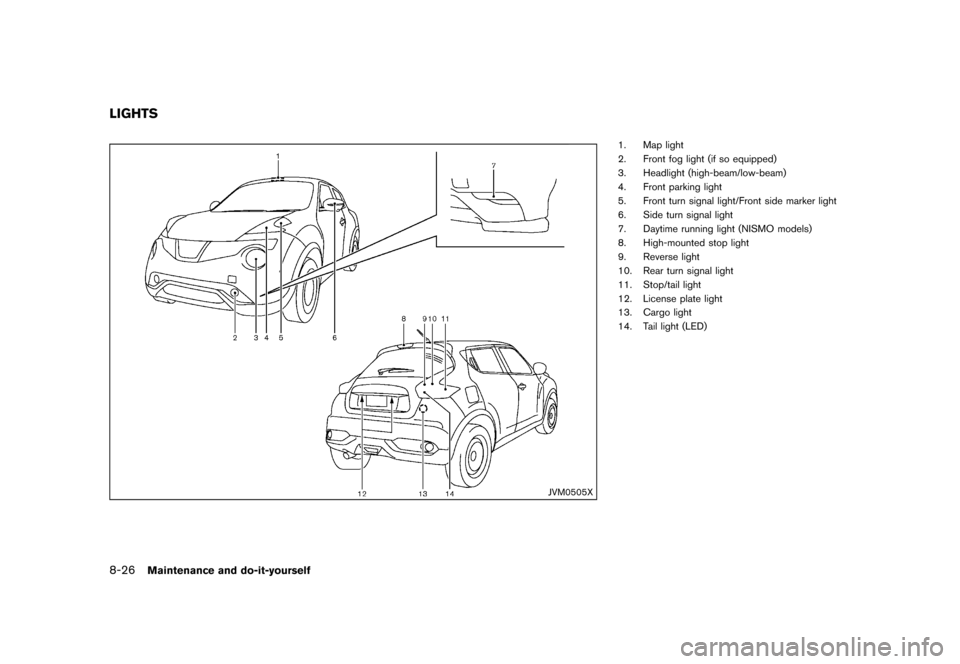

1. Maplight
2. Front foglight (ifso equipped)
3. Headlight (high-beam/low-beam)
4. Front parking light
5. Front turnsignal light/Front sidemarker light
6. Sideturnsignal light
7. Daytime runninglight(NISMO models)
8. High-mounted stoplight
9. Reverse light
10. Rearturnsignal light
11. Stop/tail light
12. License platelight
13. Cargo light
14. Tail light (LED)
LIGHTS
& R Q G L W L R Q
Page 335 of 383
> ( G L W 0 R G H O ) ' @
HEADLIGH TS
GUID-231 5F15B-21C2-4 8E3-B4D6-114A3540E8 D5
Fog may temporarily forminside thelens ofthe
exterior lightsinthe rain orinacar wash. A
temperature differencebetweentheinside and
the outside ofthe lens causes thefog. This is
not amalfunction. Iflarge drops ofwater collect
inside thelens, contact aNISSAN dealer.
Replacing
GUID-E80 2D82D-AE31 -4C67-BD7D-36FB0F025F80
X enon headlight model:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
If replacement isrequired, seeaNISSAN dealer.
WARNING
HIGH VOLTAGE
When xenon headlights areon,they
produce ahigh voltage. To prevent an
electric shock,neverattempt tomodify
or disassemble. Itis recommended to
have yourxenon headlights replacedat
a NISSAN dealer.Foradditional infor-
mation, seeªHeadlight andturn signal
switchº (P.2-35) .
Halogen headlight model:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
The headlight isasemi-sealed beamtypewhich
uses areplaceable headlight(halogen) bulb.
CAUTION
. Do not leave thebulb outofthe
headlight reflectorforalong period
of time. Dust, moisture, smoke,etc.
entering theheadlight bodymay
affect bulbperformance.
. High pressure halogengasissealed
inside thehalogen bulb.Thebulb
may break ifthe glass envelope is
scratched orthe bulb isdropped.
. Only touch thebase when handling
the bulb. Never touchtheglass
envelope. Touching theglass envel-
ope could significantly affectbulb
life and/or headlight performance.
. Aiming isnot necessary afterrepla-
cing thebulb. When aiming adjust-
ment isnecessary, contacta
NISSAN dealer.
Use thesame number andwattage asoriginally
installed asshown inthe
chart.
JVM0488X
Maintenance anddo-it-yo urself
8-27
& R Q G L W L R Q
Page 336 of 383
> ( G L W 0 R G H O ) ' @
8-28
Maintenance anddo-it-yours elf

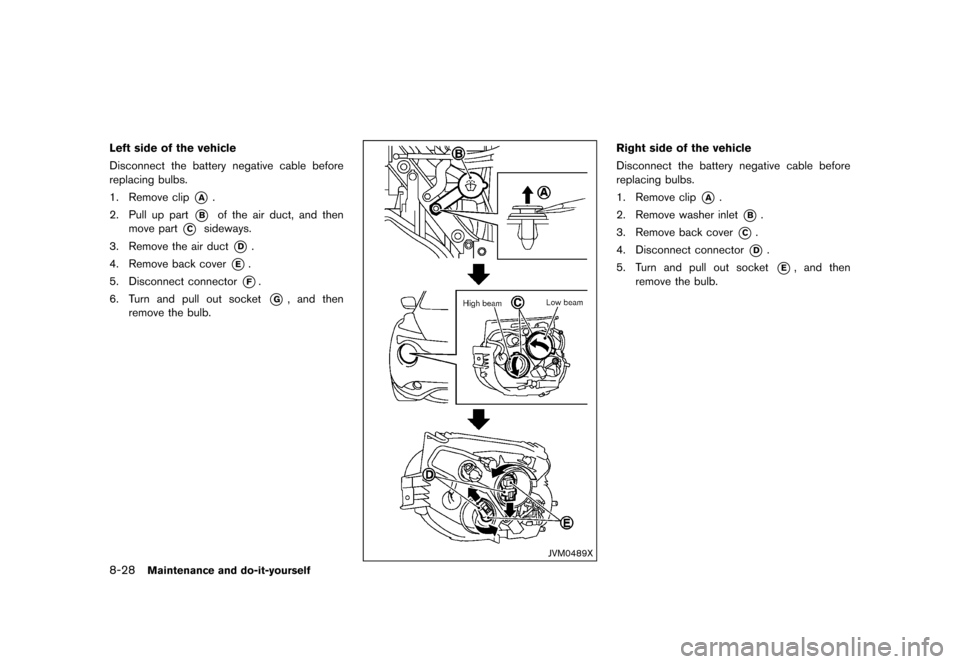

Left side ofthe vehicle
Disconnect thebattery negative cablebefore
replacing bulbs.
1. Remove clip
*
A
.
2. Pull uppart
*
B
of the airduct, andthen
move part
*
C
sideways.
3. Remove theairduct
*
D
.
4. Remove backcover
*
E
.
5. Disconnect connector
*
F
.
6. Turn and pulloutsocket
*
G
, and then
remove the
bulb.
JVM0489X
Right sideofthe vehicle
Disconnect thebattery negative cablebefore
replacing bulbs.
1. Remove clip
*
A
.
2. Remove washerinlet
*
B
.
3. Remove backcover
*
C
.
4. Disconnect connector
*
D
.
5. Turn and pulloutsocket
*
E
, and then
remove thebulb.
& R Q G L W L R Q
Page 337 of 383
> ( G L W 0 R G H O ) ' @
EXTERIOR ANDINTERIOR LIGHTS
GUID-61BB D601-FAE2-461C- 81CD-A4009E 8538F6
Item Wattage (W) BulbNo.
Headlight high/lowbeams(Xenon)*
60/35HB3/D2S
Headlight high/lowbeams(Halogen)
60/55HB3/H11
Front turnsignal light* 21WY21W
Front parking light* LED-
Front sidemarker light* 5W5W
Front foglight (ifso equipped)* 55H11
Side turnsignal light* LED-
Daytime runninglight(forNISMO models)* LED-
Rear combination light*
turn signal light 21WY21W
stop/tail light 21/5W21/5W
tail light (LED) LEDÐ
back -up 16W16W
License platelight* 5W5W
Map light 5Ð
High-mounted stoplight* LEDÐ
Cargo light 5Ð
Glove boxlight* 1.4Ð
*: SeeaNISSAN dealerforreplacement.
NO TE: Always checkwiththeParts Department ataNISSAN dealerforthe latest information about
parts.
SDI2306
: REMOVE
: INST ALL
Replacement procedures
GUID-FD 1940F8-D0C C-49B0-9D9B-69150AD59693
All other lights areeither typeA,B, C, Dor E.
When replacing abulb, firstremove thelens
and/or cover.
Maintenance anddo-it-yo urself
8-29
& R Q G L W L R Q
Page 338 of 383
> ( G L W 0 R G H O ) ' @
8-30
Maintenance anddo-it-yours elf
SDI2391

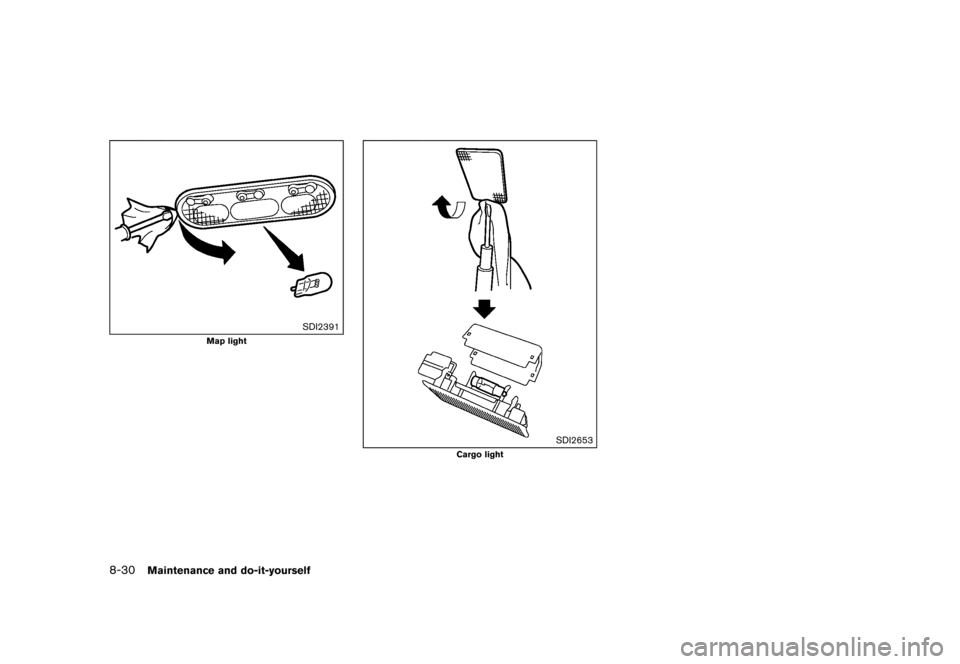

Map light
SDI2653
Cargo light
& R Q G L W L R Q
Page 339 of 383
> ( G L W 0 R G H O ) ' @
GUID-F6BA51 01-9D22-47BE-BE64-1 C192428380D

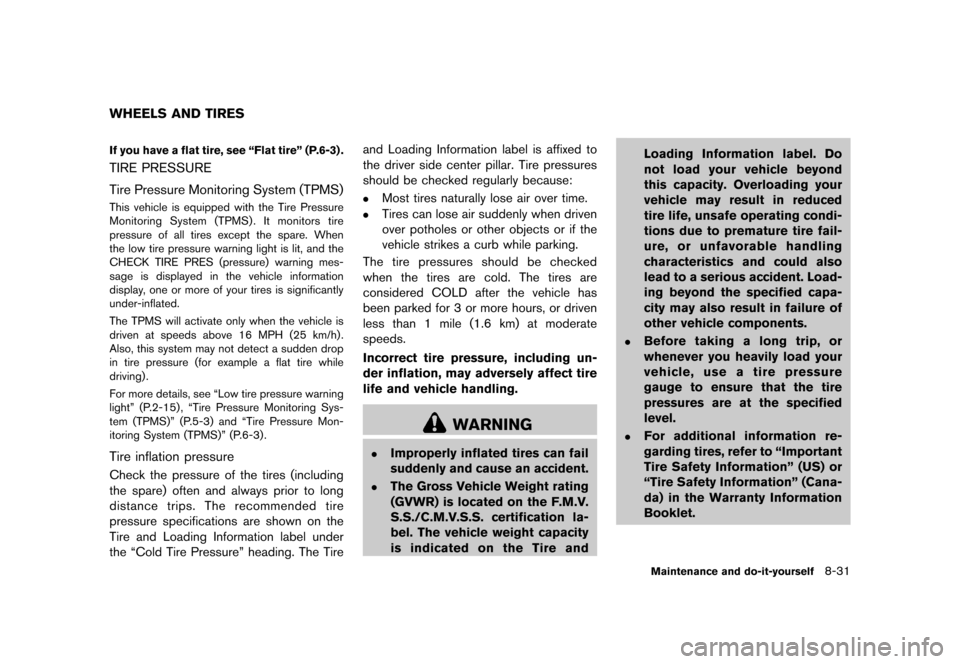

If you have aflat tire, seeªFlat tireº(P.6-3) .
TIRE PRESSURE
GUID-98529D 2F-C4E4-455A-AAA8-E A803AC65B2 4
Tire Pressure Monitoring System(TPMS)
GUID-D6 EF18B1-2442 -473D-A573-60D459 B74FC7
This vehicle isequipped withtheTire Pressure
Monitoring System(TPMS).It monitors tire
pressure ofall tires except thespare. When
the low tirepressure warninglightislit, and the
CHECK TIREPRES (pressure) warningmes-
sage isdisplayed inthe vehicle information
display ,one ormore ofyour tires issignificantly
under-inflated.
The TPMS willactivate onlywhen thevehicle is
driven atspeeds above16MPH (25km/h) .
Also, thissystem maynotdetect asudden drop
in tire pressure (forexample aflat tire while
driving) .
For more details, seeªLow tirepressure warning
lightº (P.2-15) ,ªTire Pressure Monitoring Sys-
tem (TPMS)º (P.5-3) andªTire Pressure Mon-
itoring System (TPMS)º (P.6-3) .
Tire inflation pressure
GUID-C576 45B5-E413-4FCA-B110 -F118428A3D6F
Check thepressure ofthe tires (including
the spare) oftenandalways priortolong
distance trips.Therecommended tire
pressure specifications areshown onthe
Tire and Loading Information labelunder
the ªCold TirePressureº heading.TheTire and
Loading Information labelisaffixed to
the driver sidecenter pillar.Tirepressures
should bechecked regularlybecause:
.
Most tiresnaturally loseairover time.
.
Tires canlose airsuddenly whendriven
over potholes orother objects orifthe
vehicle strikesacurb while parking.
The tirepressures shouldbechecked
when thetires arecold. Thetires are
considered COLDafterthevehicle has
been parked for3or more hours, ordriven
less than 1mile (1.6km)atmoderate
speeds.
Incorrect tirepressure, includingun-
der inflation, mayadversely affecttire
life and vehicle handling.
WARNING
.
Improperly inflatedtirescanfail
suddenly andcause anaccident.
.
The Gross Vehicle Weight rating
(GVWR) islocated onthe F.M .V.
S.S./C .M.V.S.S. certification la-
bel. The vehicle weightcapacity
is indicated onthe Tire and Loading
Information label.Do
not load yourvehicle beyond
this capacity. Overloading your
vehicle mayresult inreduced
tire life, unsafe operating condi-
tions duetopremature tirefail-
ure, orunfavorable handling
characteristic sand could also
lead toaserious accident. Load-
ing beyond thespecified capa-
city may also result infailure of
other vehicle components.
.
Before takingalong trip,or
whenever youheavily loadyour
vehicle, useatire pressure
gauge toensure thatthetire
pressures areatthe specified
level.
.
For additional information re-
garding tires,refertoªImportant
Tire Safety Informationº (US)or
ªTire Safety Informationº (Cana-
da) inthe Warranty Information
Booklet.
Maintenance anddo-it-yo urself
8-31
WHEELS ANDTIRES
& R Q G L W L R Q
Page 340 of 383
> ( G L W 0 R G H O ) ' @
8-32
Maintenance anddo-it-yours elf
SDI2503

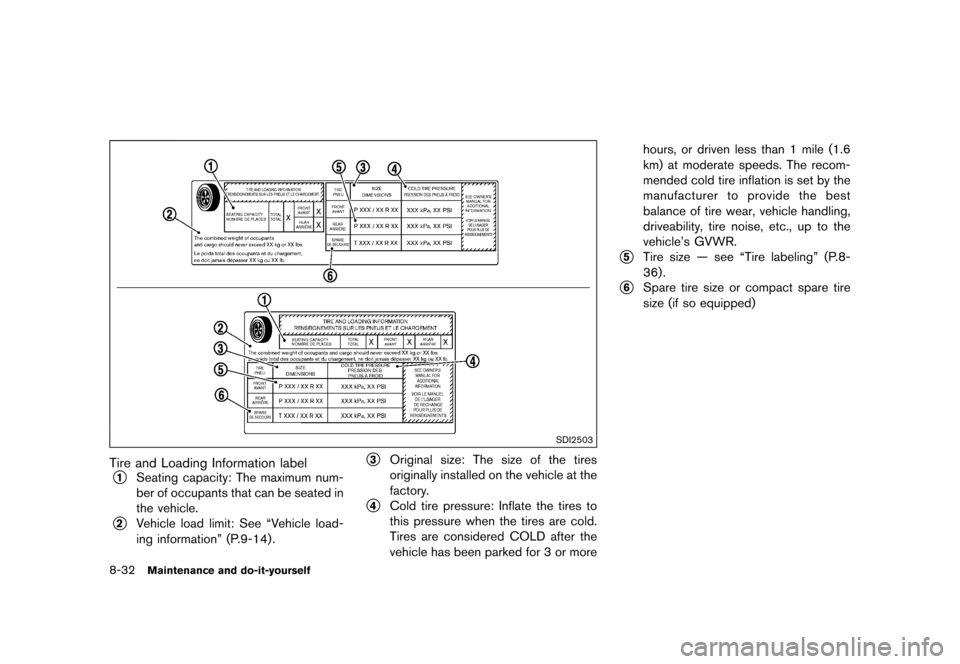

Tire and Loading Information label
GUID-FEE 83069-6E19-4 32C-A83E-475D9C859728
*
1
Seating capacity: Themaximum num-
ber ofoccupants thatcanbeseated in
the vehicle.
*
2
V ehicle loadlimit: SeeªVehicle load-
ing informationº (P.9-14) .
*
3
Original size:Thesize ofthe tires
originally installedonthe vehicle atthe
factory .
*
4
Cold tirepressure: Inflatethetires to
this pressure whenthetires arecold.
Tires areconsidered COLDafterthe
vehicle hasbeen parked for3or more hours,
ordriven lessthan 1mile (1.6
km) atmoderate speeds.Therecom-
mended coldtireinflation isset bythe
manufacturer toprovide thebest
balance oftire wear, vehicle handling,
driveability ,tire noise, etc.,uptothe
vehicle's GVWR.
*
5
Tire size Ðsee ªTire labelingº (P.8-
36) .
*
6
Spare tiresize orcompact sparetire
size (ifso equipped)
& R Q G L W L R Q
