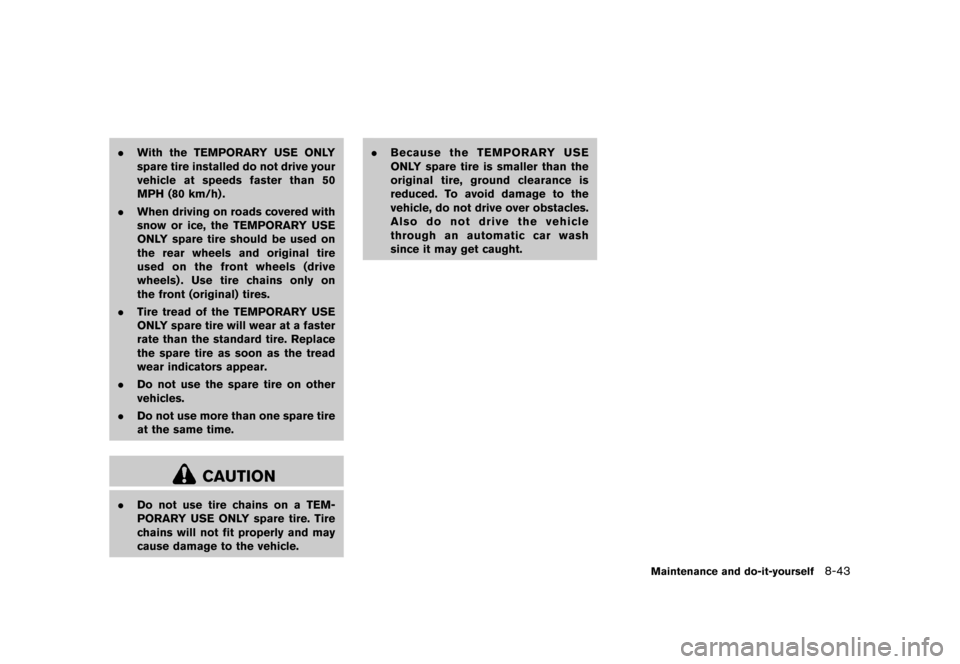

> ( G L W 0 R G H O ) ' @
. With theTEMPORAR YUSE ONLY
spare tireinstalled donot drive your
vehicle atspeeds fasterthan50
MPH (80km/h) .
. When driving onroads covered with
snow orice, theTEMPORAR YUSE
ONL Yspare tireshould beused on
the rear wheels andoriginal tire
used onthe front wheels (drive
wheels) .Use tirechains onlyon
the front (original) tires.
. Tire tread ofthe TEMPORAR YUSE
ONL Yspare tirewill wear atafaster
rate than thestandard tire.Replace
the spare tireassoon asthe tread
wear indicators appear.
. Do not use thespare tireonother
vehicles.
. Donot use more thanonespare tire
at the same time.
CAUTION
. Do not use tirechains onaTEM-
PORAR YUSE ONLYspare tire.Tire
chains willnotfitproperly andmay
cause damage tothe vehicle. .
Because theTEMPORAR YUSE
ONL Yspare tireissmaller thanthe
original tire,ground clearance is
reduced. To avoid damage tothe
vehicle, donot drive overobstacles.
Also donot drive thevehicle
through anautomatic carwash
since itmay getcaught.
Maintenance anddo-it-yo urself
8-43
& R Q G L W L R Q
Page 352 of 383
> ( G L W 0 R G H O ) ' @
8-44
Maintenance anddo-it-yours elf
MEMO
& R Q G L W L R Q
Page 353 of 383
> ( G L W 0 R G H O ) ' @
9 Technical andconsumer information
Capacities andrecommended fluids/lubricants ...
................ 9-2
Fuel information ...
................................................................... 9-4
Engine oiland oilfilter recommendation ...
....................... 9-7
Air conditioning systemrefrigerant and
lubricant recommendations ...
............................................... 9-7
Specifications ...
............................................................................. 9-8
Engine ...
.................................................................................... 9-8
Wheels andtires ...
................................................................. 9-9
Dimensions andweights ...
................................................... 9-9
When traveling orregistering yourvehicle in
another country ...
....................................................................... 9-10
V ehicle identification ...
.............................................................. 9-10
V ehicle Identification Number(VIN)plate ...
.................. 9-10
V ehicle identification number(chassis number) ...
....... 9-10
Engine serialnumber ...
....................................................... 9-11
F .M.V .S.S./C.M.V .S.S.certification label...
.................... 9-11
Emission controlinformation label...
............................... 9-11
Tire and Loading Information label...
.............................. 9-12
Air conditioner specification label...
................................ 9-12Installing
frontlicense plate...
................................................ 9-13
V ehicle loading information ...
................................................. 9-14
T erms ...
................................................................................. 9-14
V ehicle loadcapacity ...
.................................................... 9-15
Loading tips...
..................................................................... 9-16
Measurement ofweights ...
.............................................. 9-16
T owing atrailer ...
....................................................................... 9-17
Flat towing ...
............................................................................... 9-17
Continuously Variable Transmission (CVT)...
............. 9-17
Manual Transmission ...
..................................................... 9-17
Uniform tirequality grading ...
................................................. 9-18
T readwear ...
........................................................................ 9-18
T raction AA,A ,B and C...
.............................................. 9-18
T emperature A,B and C...
.............................................. 9-18
Emission controlsystem warranty ...
..................................... 9-19
Reporting safetydefects ...
..................................................... 9-19
Readiness forInspection/Maintenance (I/M)test ...
......... 9-20
Event DataRecorders (EDR)...
............................................. 9-21
Owner's manual/service manualorderinformation ...
...... 9-21
& R Q G L W L R Q
Page 354 of 383
> ( G L W 0 R G H O ) ' @
9-2
T echnical andconsumer information
GUID-55E DCBAF-B57 4-46D1-AA57-587026 C9991C

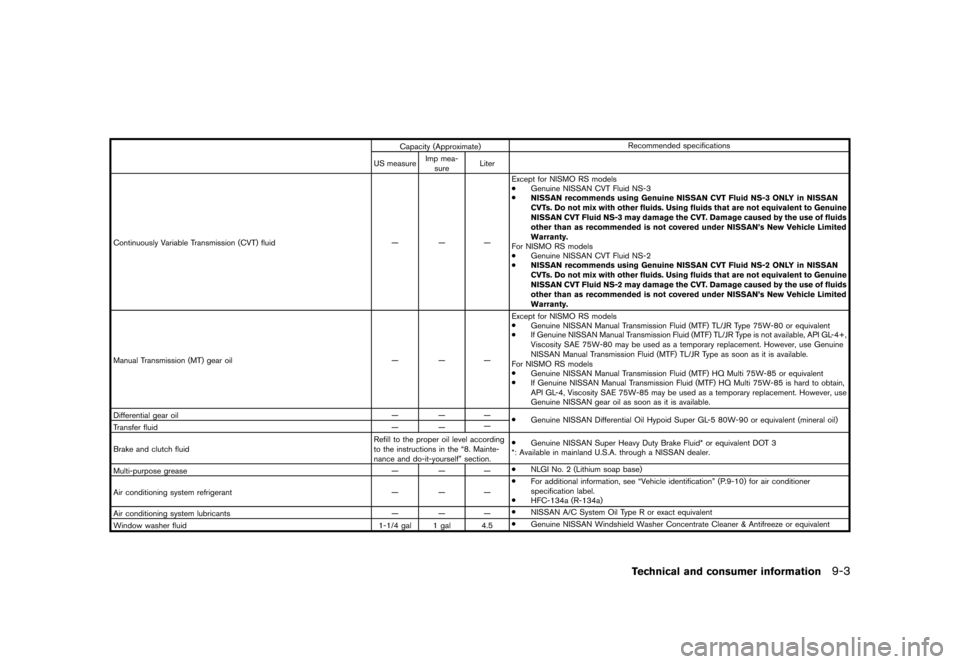

The following areapproximate capacities.Theactual refillcapacities maybealittle different. Whenrefilling, followtheprocedure
instructed inthe ª8.Maintenance anddo-it-yourselfº sectiontodetermine theproper refillcapacity.
Capacity (Approximate) Recommended
specifications
US measure Imp
mea-
sure Liter
Fuel 2WD
model 13-1/4gal11gal 50
SeeªFuel informationº (P.9-4) .
A WD model 11-7/8gal9-7/8 gal 45
Engine oil*
Drain andrefill
*: For additional in-
formation, see
ªChanging engineoil
and filterº (P.8-9) . With
oilfilter change Except
forNISMO RSmodel
4-3/4qt 4qt 4.5Except
forNISMO RSmodels
. Genuine NISSANengineoilorequivalent
. Engine oilwith APICertification Mark*,Viscosity SAE0W-20
. Asanalternative tothis recommended oil,SAE 5W-30 conventional petroleumoilsmay be
used andmeet allspecifications andrequirements necessarytomaintain theNew Vehicle
Limited Warranty .
For NISMO RSmodels
. Genuine NISSANengineoilorequivalent
. Engine oilwith APICertification Mark*,Viscosity SAE5W-30
. Asanalternative tothis recommended oil,SAE 5W-30 orSAE 10W-30 conventional
petroleum oilsmay beused andmeet allspecifications andrequirements necessaryto
maintain theNew Vehicle Limited Warranty .
*: For additional information, seeªEngine oiland oilfilter recommendat ionº(P.9-7) .
NISMO
RSmodel
4-1/2qt 3-3/4qt 4.3
Without oilfilter
change Except
forNISMO RSmodel
4-1/2qt 3-3/4qt 4.3
NISMO RSmodel 4-3/8qt 3-5/8qt 4.1
Cooling system With
reservoir Except
for
NISMO RS
model CVT
model 9-1/4qt 7-5/8qt 8.7
.Pre-diluted GenuineNISSAN LongLifeAntifreeze/Coolant (blue)orequivalent
MT
model 8-3/8qt 7qt 8.5
NISMO RS
model CVT
model 8-5/8qt 7-1/8qt 8.1
MT model 8-3/8qt 7qt 7.9
Reservoir 5/8qt 1/2qt 0.6
CAP ACITIES ANDRECOM MENDED
FLUIDS/LUBR ICANTS
& R Q G L W L R Q
Page 355 of 383
> ( G L W 0 R G H O ) ' @
Capacity (Approximate) Recommended
specifications
US measure Imp
mea-
sure Liter
Continuously Variable Transmission (CVT)fluid ÐÐÐExcept
forNISMO RSmodels
. Genuine NISSANCVTFluid NS-3
. NISSAN recommends usingGenuine NISSANCVTFluid NS-3ONLYin NISSAN
CVT s.Do not mix with other fluids. Usingfluidsthatarenot equivalent toGenuine
NISSAN CVTFluid NS-3maydamage theCVT .Damage causedbythe use offluids
other thanasrecommended isnot covered underNISSAN's NewVehicle Limited
Warranty.
For NISMO RSmodels
. Genuine NISSANCVTFluid NS-2
. NISSAN recommends usingGenuine NISSANCVTFluid NS-2ONLYin NISSAN
CVT s.Do not mix with other fluids. Usingfluidsthatarenot equivalent toGenuine
NISSAN CVTFluid NS-2maydamage theCVT .Damage causedbythe use offluids
other thanasrecommended isnot covered underNISSAN's NewVehicle Limited
Warranty.
Manual Transmission (MT)gearoil ÐÐÐExcept
forNISMO RSmodels
. Genuine NISSANManualTransmission Fluid(MTF) TL/JRType 75W-80 orequivalent
. IfGenuine NISSAN ManualTransmission Fluid(MTF) TL/JRType isnot available, APIGL-4+,
Viscosity SAE75W-80 maybeused asatemporary replacement. However,useGenuine
NISSAN ManualTransmission Fluid(MTF) TL/JRType assoon asitis available.
For NISMO RSmodels
. Genuine NISSANManualTransmission Fluid(MTF) HQMulti 75W-85 orequivalent
. IfGenuine NISSAN ManualTransmission Fluid(MTF) HQMulti 75W-85 ishard toobtain,
API GL-4, Viscosity SAE75W-85 maybeused asatemporary replacement. However,use
Genuine NISSANgearoilas soon asitis available.
Differential gearoil ÐÐÐ
.Genuine NISSANDifferential OilHypoid SuperGL-5 80W-90 orequivalent (mineraloil)
T ransfer fluid ÐÐÐ
Brake andclutch fluid Refill
tothe proper oillevel according
to the instructions inthe ª8.Mainte-
nance anddo-it-yourselfº section..
Genuine NISSANSuperHeavy DutyBrake Fluid*orequivalent DOT3
*: Available inmainland U.S.A.through aNISSAN dealer.
Multi-purpose grease ÐÐÐ.
NLGI No. 2(Lithium soapbase)
Air conditioning systemrefrigerant ÐÐÐ.
Foradditional information, seeªVehicle identificationº (P.9-10) forairconditioner
specification label.
. HFC-134a (R-134a)
Air conditioning systemlubricants ÐÐÐ.
NISSAN A/CSystem OilType Ror exact equivalent
Window washerfluid 1-1/4gal 1gal 4.5.
Genuine NISSANWindshield Washer Concentrate Cleaner&Antifreeze orequivalent
T echnical andconsum erinformation
9-3
& R Q G L W L R Q
Page 356 of 383
> ( G L W 0 R G H O ) ' @
9-4
T echnical andconsumer information
FUEL INFORMA TION
GUID-A4656 F9F-1A61-45EA-999A -7F3128C3E1A1
Except forNISMO RSmodels:
NISSAN recommends theuse ofunleaded
premium gasolinewithanoctane ratingofat
least 91AKI (Anti-Knock Index)number (Re-
search octane number 96).
If unleaded premiumgasolineisnot available,
you may useunleaded regulargasoline withan
octane ratingofatleast 87AKI number
(Research octanenumber 91),but you may
notice adecrease inperformance.
For NISMO RSmodels:
Use unleaded premiumgasolinewithanoctane
rating ofatleast 91AKI (Anti-Knock Index)
number (Research octanenumber 96).
If unleaded premiumgasolineisnot available,
unleaded regulargasoline withanoctane rating
of atleast 87AKI number (Research octane
number 91)may betemporarily used,butonly
under thefollowing precautions:
. Have thefuel tank filled onlypartially with
unleaded regulargasoline, andfillup with
unleaded premiumgasolineassoon as
possible.
. Avoid fullthrottle drivingandabrupt accel-
eration.
Use unleaded premiumgasolineformax -
imum vehicle performance.
CAUTION
. Using afuel other thanthatspeci-
fied could adversely affecttheemis-
sion control system, andmay also
affect warranty coverage.
. Under nocircumstances shoulda
leaded gasoline beused, because
this willdamage thethree-way cat-
alyst.
. Donot use E-15 orE-85 fuelinyour
vehicle. Your vehicle isnot designed
to run onE-15 orE-85 fuel.Using E-
15 orE-85 fuelinavehicle not
specifically designedforE-15 orE-
85 fuel canadversely affectthe
emission controldevices andsys-
tems ofthe vehicle. Damage caused
by such fuelisnot covered bythe
NISSAN newvehicle limitedwar-
ranty.
. U.S. government regulationsrequire
ethanol dispensing pumpstobe
identified byasmall, square, orange
and black labelwiththecommon
abbreviation orthe appropriate per-
centage forthat region.
Gasoline specification s
GUID-DA9 853D3-95E 6-4724-964 1-4F19458CF 18F
NISSAN recommends usinggasoline thatmeets
the World-Wide FuelCharter (WWFC) speci-
fications whereitis available. Manyofthe
automobile manufacturers developedthisspe-
cification toimprove emission controlsystem
and vehicle performance. Askyour service
station manager ifthe gasoline meetsthe
WWFC specifications.
Reformulated gasoline
GUID-CB6CE 400-DB81-4EC1-9AE4 -3ABDBA74A9 6F
Some fuelsuppliers arenow producing refor-
mulated gasolines. Thesegasolines arespecially
designed toreduce vehicleemissions. NISSAN
supports effortstowards cleanerairand sug-
gests thatyouuse reformulated gasolinewhen
available.
Gasoline containing oxygenates
GUID-98C 74914-B98B- 480E-BB89-A 746D1B7D76F
Some fuelsuppliers sellgasoline containing
oxygenates suchasethanol, MTBEandmetha-
nol with orwithout advertising theirpresence.
NISSAN doesnotrecommend theuse offuels
of which theoxygenate contentandthefuel
compatibility foryour NISSAN cannotbereadily
determined. Ifin doubt, askyour service station
manager.
If you use oxygenate-blend gasoline,pleasetake
the following precautions asthe usage ofsuch
fuels maycause vehicle performance problems
& R Q G L W L R Q
Page 357 of 383
> ( G L W 0 R G H O ) ' @
and/or fuelsystem damage.
. The fuel should beunleaded andhave
an octane ratingnolower thanthat
recommended forunleaded gasoline.
. Ifan oxygenate-blend, otherthan
methanol blendisused, itshould
contain nomore than10%oxygenate.
(MTBE may,however, beadded upto
15%.)
. E-15 fuelcontains morethan10%
oxygenate. E-15fuelwilladversely
affect theemission controldevices
and systems ofthe vehicle andshould
not beused. Damage causedbysuch
fuel isnot covered bythe NISSAN new
vehicle limitedwarranty.
. Ifamethanol blendisused, itshould
contain nomore than5%methanol
(methyl alcohol, woodalcohol) .It
should alsocontain asuitable amount
of appropriate cosolventsandcorro-
sion inhibitors. Ifnot properly formu-
lated withappropriate cosolventsand
corrosion inhibitors, suchmethanol
blends maycause fuelsystem damage
and/or vehicle performance problems.
At this time, sufficient dataisnot
available toensure thatallmethanol
blends aresuitable foruse inNISSAN vehicles.
If any driveability problemssuchasengine
stalling anddifficult hot-starting areexperienced
after using oxygenate-blend fuels,immediately
change toanon-oxygenate fuelorafuel with a
low blend ofMTBE.
T ake care nottospill gasoline during
refueling. Gasolinecontaining oxygenates
can cause paintdamage.
E-15 fuel
GUID-51 AA3737-C1D 0-4E23-9447-1A7E3B00 FC97
E-15 fuelisamixture ofapproximately 15%fuel
ethanol and85% unleaded gasoline.E-15can
only beused invehicles designed torun onE-
15 fuel. Donot use E-15 inyour vehicle. U.S.
government regulationsrequirefuelethanol
dispensing pumpstobe identified withsmall,
square, orangeandblack labelwiththecommon
abbreviation orthe appropriate percentagefor
that region.
E-85 fuel
GUID-C7D 6C695-B68 4-4E0B-AECB-4F4C4D D36211
E-85 fuelisamixture ofapproximately 85%fuel
ethanol and15% unleaded gasoline.E-85can
only beused inaFlexible FuelVehicle (FFV).Do
not use E-85 fuelinyour vehicle. U.S.govern-
ment regulations requirefuelethanol dispensing
pumps tobe identified byasmall, square,
orange andblack labelwiththecommon
abbreviation orthe appropriate percentageforthat
region.
Aftermarket fueladditives
GUID-04 BFD2FB-84 A2-41F8-AF 3C-C2937794 08D6
NISSAN doesnotrecommend theuse ofany
aftermarket fueladditives (forexample, fuel
injector cleaner, octanebooster, intakevalve
deposit removers, etc.)which aresold commer-
cially .Many ofthese additives intendedforgum,
varnish ordeposit removal maycontain active
solvent orsimilar ingredients thatcanbeharmful
to the fuel system andengine.
Octane ratingtips
GUID-F6EBB EDD-0810-4EB3-B998-76639DC8 605A
Using unleaded gasolinewithanoctane
rating lowerthanrecommended cancause
persistent, heavyªspark knockº.(Spark
knock isametallic rappingnoise.)If
severe, thiscanlead toengine damage. If
you detect apersistent heavysparkknock
even when using gasoline ofthe stated
octane rating,orifyou hear steady spark
knock whileholding asteady speedon
level roads, haveaNISSAN dealercorrect
the condition. Failuretocorrect thecondi-
tion ismisuse ofthe vehicle, forwhich
NISSAN isnot responsible.
Incorrect ignitiontimingwillresult inspark
knock, after-run and/oroverheating, whichmay
cause excessive fuelconsumption orengine
damage. Ifany ofthe above symptoms are
T echnical andconsum erinformation
9-5
& R Q G L W L R Q
Page 358 of 383
> ( G L W 0 R G H O ) ' @
9-6
T echnical andconsumer information
encountered, haveyourvehicle checked ata
NISSAN dealer.
However, nowandthen youmay notice
light spark knock forashort timewhile
accelerating ordriving uphills. Thisisnot a
cause forconcern, becauseyougetthe
greatest fuelbenefit whenthereislight
spark knock forashort timeunder heavy
engine
load.

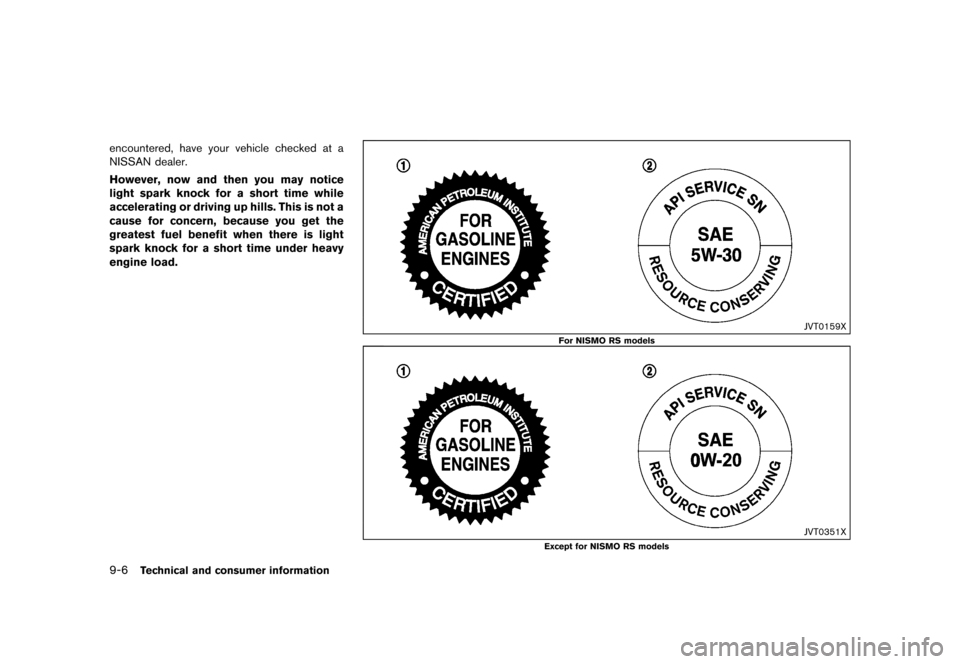

JVT0159X
For NISMO RS models
JVT0351X
Except forNISMO RSmodels
& R Q G L W L R Q
Page 359 of 383
> ( G L W 0 R G H O ) ' @

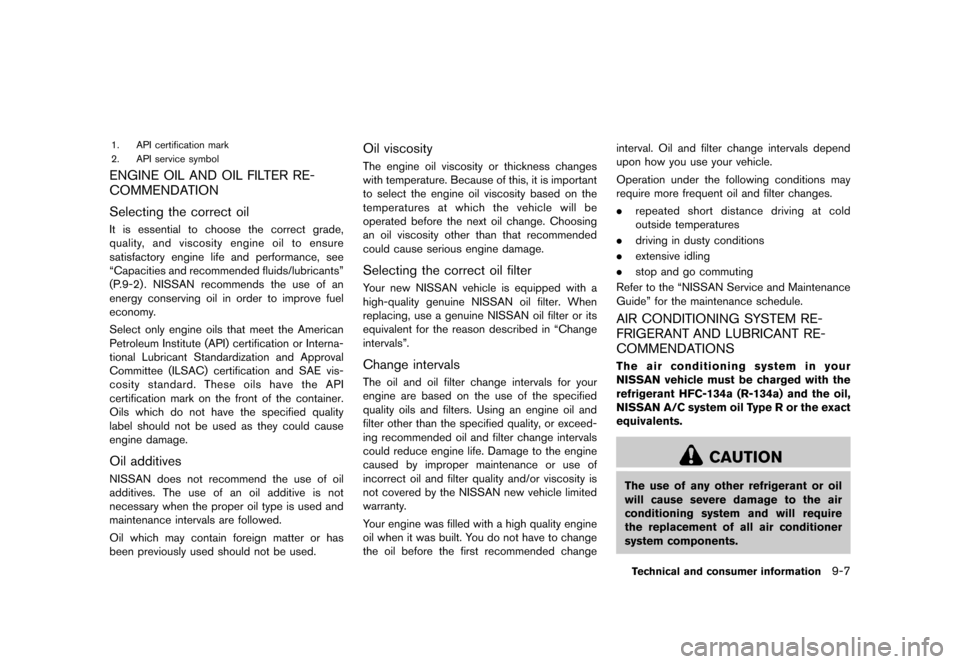

1. APIcertification mark
2. APIservice symbol
ENGINE OILAND OILFILTER RE-
COMMENDA TION
GUID-A342 ED71-C8E2-473C-A5 D7-EAB0C035485E
Selecting thecorrect oil
GUID-9E9 0D203-83D 7-49ED-A3A8-D5BEBEC 09FAC
It is essential tochoose thecorrect grade,
quality ,and viscosity engineoiltoensure
satisfactory enginelifeand performance, see
ªCapacities andrecommended fluids/lubricantsº
(P .9-2) .NISSAN recommends theuse ofan
energy conserving oilinorder toimprove fuel
economy .
Select onlyengine oilsthat meet theAmerican
Petroleum Institute(API)certification orInterna-
tional Lubricant Standardization andApproval
Committee (ILSAC)certification andSAE vis-
cosity standard. Theseoilshave theAPI
certification markonthe front ofthe container.
Oils which donot have thespecified quality
label should notbeused asthey could cause
engine damage.
Oil additives
GUID-BF1 C00B1-1B2 B-428D-B663-357F219 4BB2F
NISSAN doesnotrecommend theuse ofoil
additives. Theuseofan oiladditive isnot
necessary whentheproper oiltype isused and
maintenance intervalsarefollowed.
Oil which maycontain foreignmatterorhas
been previously usedshould notbeused.
Oil viscosity
GUID-BCEE5 26D-D9C0-45DD-A66C-608BC52B B421
The engine oilviscosity orthickness changes
with temperature. Becauseofthis, itis important
to select theengine oilviscosity basedonthe
temperatures atwhich thevehicle willbe
operated beforethenext oilchange. Choosing
an oilviscosity otherthanthatrecommended
could cause serious enginedamage.
Selecting thecorrect oilfilter
GUID-E092 F020-AE07- 4CC4-8E8D-23 2A83E5C488
Y our new NISSAN vehicleisequipped witha
high-quality genuineNISSAN oilfilter. When
replacing, useagenuine NISSAN oilfilter orits
equivalent forthe reason described inªChange
intervalsº .
Change intervals
GUID-C89B 7EC6-8CEC -4212-BF64-4 0DDE64DEE9D
The oiland oilfilter change intervals foryour
engine arebased onthe use ofthe specified
quality oilsand filters. Usinganengine oiland
filter other thanthespecified quality,or exceed-
ing recommended oiland filter change intervals
could reduce enginelife.Damage tothe engine
caused byimproper maintenance oruse of
incorrect oiland filter quality and/or viscosity is
not covered bythe NISSAN newvehicle limited
warranty .
Y our engine wasfilled withahigh quality engine
oil when itwas built. You do not have tochange
the oilbefore thefirst recommended changeinterval.
Oiland filter change intervals depend
upon howyouuse your vehicle.
Operation underthefollowing conditions may
require morefrequent oiland filter changes.
. repeated shortdistance drivingatcold
outside temperatures
. driving industy conditions
. extensive idling
. stop andgocommuting
Refer tothe ªNISSAN ServiceandMaintenance
Guideº forthe maintenance schedule.
AIR CONDITIONI NGSYSTEM RE-
FRIGERANT ANDLUBRICANT RE-
COMMENDA TIONS
GUID-C04 6CADC-EEC7 -4559-80A5-8C3E565BC 764
The airconditioning systeminyour
NISSAN vehiclemustbecharged withthe
refrigerant HFC-134a(R-134a)andtheoil,
NISSAN A/Csystem oilType Ror the exact
equivalents.
CAUTION
The useofany other refrigerant oroil
will cause severe damage tothe air
conditioning systemandwillrequire
the replacement ofall air conditioner
system components.
T echnical andconsum erinformation
9-7
& R Q G L W L R Q
Page 360 of 383
> ( G L W 0 R G H O ) ' @
9-8
T echnical andconsumer information
The refrigerant HFC-134a (R-134a)inyour
NISSAN vehiclewillnotharm theearth's ozone
layer. Although thisrefrigerant doesnotaffect
the earth's atmosphere, certaingovernmental
regulations requiretherecovery andrecycling of
any refrigerant duringautomotive aircondition-
ing system service. ANISSAN dealerhasthe
trained technicians andequipment neededto
recover andrecycle yourairconditioning system
refrigerant.
Contact aNISSAN dealerwhenservicing your
air conditioning system.

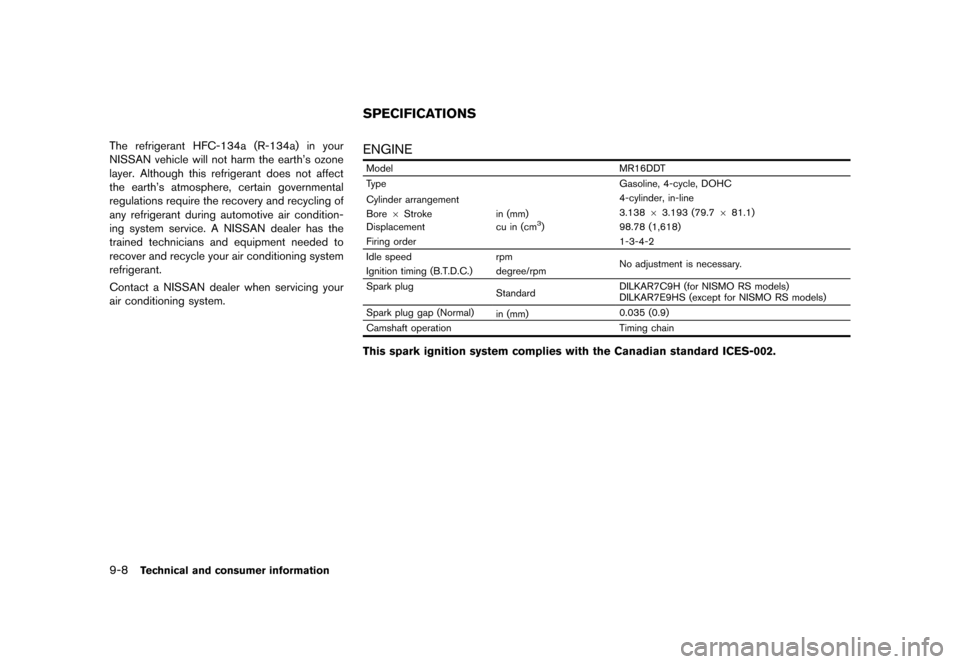

GUID-97AFAA0D-AD60-4E30-8FA5-71FDAC240A2 3
ENGINE
GUID-A E21A076-32 B5-4B2D-A9 0C-9E8E2CAEAF23
Model MR16DDT
T ype Gasoline,4-cycle,DOHC
Cylinder arrangement 4-cylinder,
in-line
Bore 6Stroke in(mm) 3.138
63.193 (79.7681.1)
Displacement cuin(cm
3
) 98.78(1,618)
Firing order 1-3-4-2
Idle speed rpm
Noadjustment isnecessary .
Ignition timing(B.T.D.C.) degree/rpm
Spark plug
Standard DILKAR7C9H
(forNISMO RSmodels)
DILKAR7E9HS (exceptforNISMO RSmodels)
Spark pluggap(Normal)
in(mm) 0.035
(0.9)
Camshaft operation Timingchain
This spark ignition systemcomplies withtheCanadian standardICES-002.
SPECIFICA TIONS
& R Q G L W L R Q
