NISSAN JUKE 2016 F15 / 1.G Owners Manual
Manufacturer: NISSAN, Model Year: 2016, Model line: , Model:Pages: 399, PDF Size: 3.36 MB

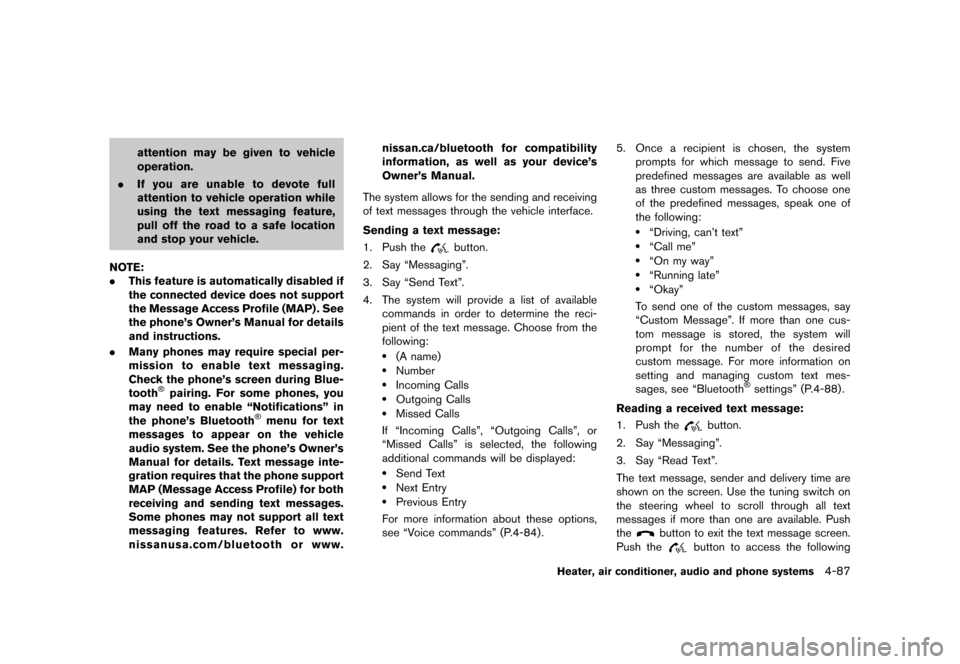

Page 241 of 399
> ( G L W 0 R G H O ) ' @
attention may be given to vehicle
operation.
. If you are unable to devote full
attention to vehicle operation while
using the text messaging feature,
pull off the road to a safe location
and stop your vehicle.
NOTE:
. This feature is automatically disabled if
the connected device does not support
the Message Access Profile (MAP) . See
the phone's Owner's Manual for details
and instructions.
. Many phones may require special per-
mission to enable text messaging.
Check the phone's screen during Blue-
tooth

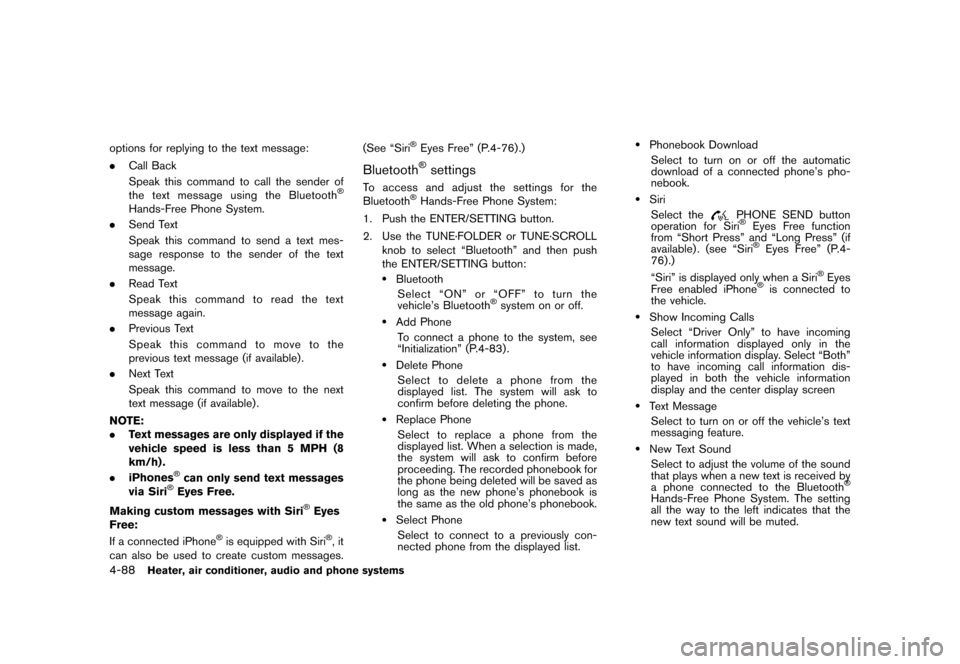

Page 242 of 399
> ( G L W 0 R G H O ) ' @
4-88Heater, air conditioner, audio and phone systems
options for replying to the text message:
.Call Back
Speak this command to call the sender of
the text message using the Bluetooth
Page 243 of 399
> ( G L W 0 R G H O ) ' @

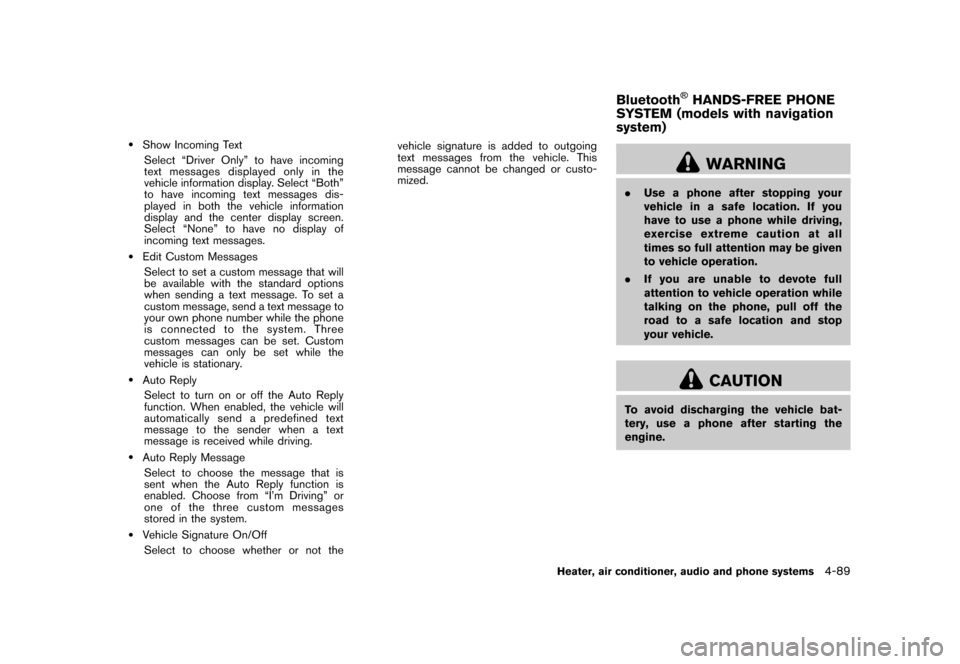

.Show Incoming TextSelect ªDriver Onlyº to have incoming
text messages displayed only in the
vehicle information display. Select ªBothº
to have incoming text messages dis-
played in both the vehicle information
display and the center display screen.
Select ªNoneº to have no display of
incoming text messages.
.Edit Custom MessagesSelect to set a custom message that will
be available with the standard options
when sending a text message. To set a
custom message, send a text message to
your own phone number while the phone
is connected to the system. Three
custom messages can be set. Custom
messages can only be set while the
vehicle is stationary.
.Auto ReplySelect to turn on or off the Auto Reply
function. When enabled, the vehicle will
automatically send a predefined text
message to the sender when a text
message is received while driving.
.Auto Reply Message
Select to choose the message that is
sent when the Auto Reply function is
enabled. Choose from ªI'm Drivingº or
one of the three custom messages
stored in the system.
.Vehicle Signature On/OffSelect to choose whether or not the vehicle signature is added to outgoing
text messages from the vehicle. This
message cannot be changed or custo-
mized.
GUID-0ACDF711-D3E0-41BE-99CF-7D06C18A8E09
WARNING
.
Use a phone after stopping your
vehicle in a safe location. If you
have to use a phone while driving,
exercise extreme caution at all
times so full attention may be given
to vehicle operation.
. If you are unable to devote full
attention to vehicle operation while
talking on the phone, pull off the
road to a safe location and stop
your vehicle.
CAUTION
To avoid discharging the vehicle bat-
tery, use a phone after starting the
engine.
Heater, air conditioner, audio and phone systems4-89
Bluetooth
Page 244 of 399
> ( G L W 0 R G H O ) ' @

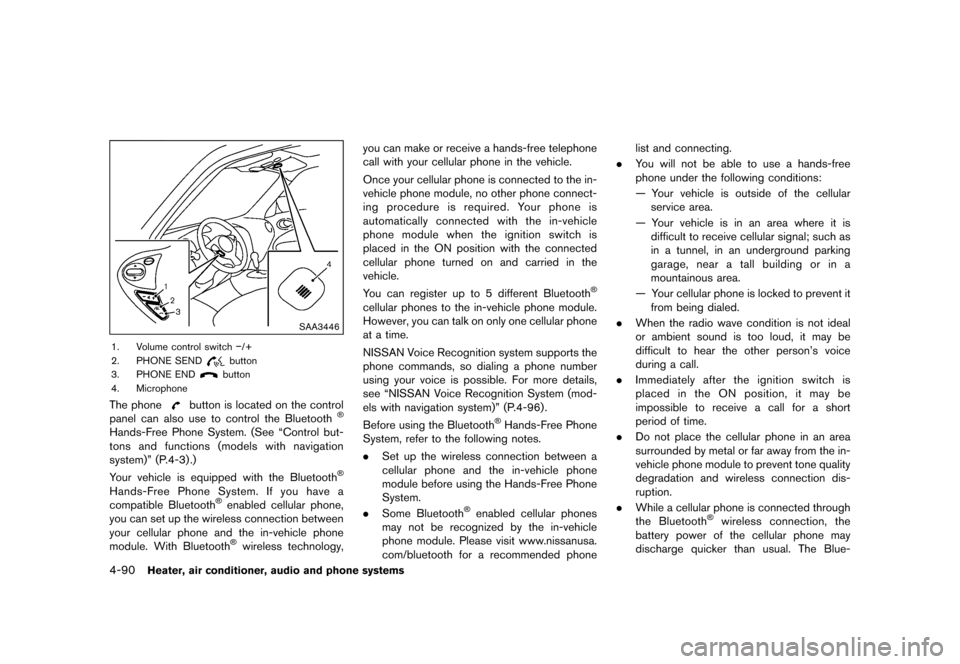

4-90Heater, air conditioner, audio and phone systems
SAA3446
1. Volume control switch

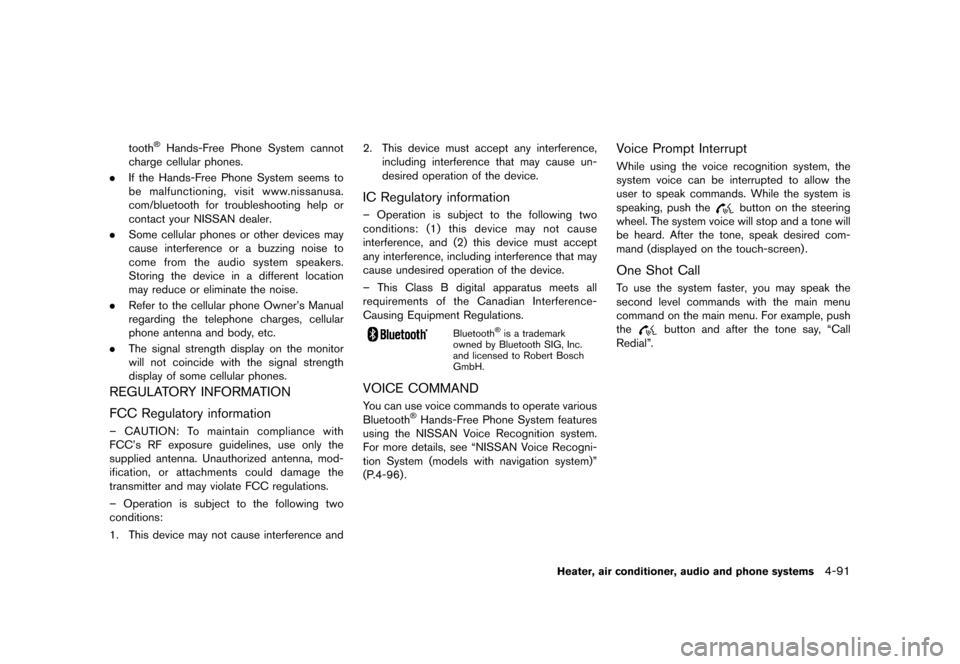

Page 245 of 399
> ( G L W 0 R G H O ) ' @
tooth

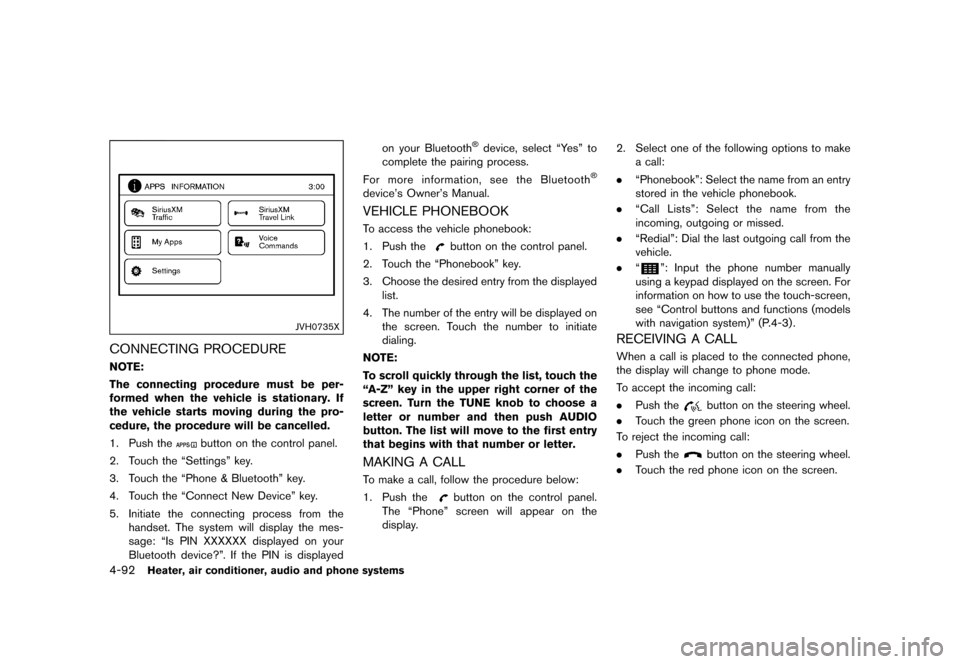

Page 246 of 399
> ( G L W 0 R G H O ) ' @
4-92Heater, air conditioner, audio and phone systems
JVH0735X
CONNECTING PROCEDUREGUID-3CBEE362-984A-458D-B2F1-3A1853EC8CAENOTE:
The connecting procedure must be per-
formed when the vehicle is stationary. If
the vehicle starts moving during the pro-
cedure, the procedure will be cancelled.
1. Push the
button on the control panel.
2. Touch the ªSettingsº key.
3. Touch the ªPhone & Bluetoothº key.
4. Touch the ªConnect New Deviceº key.
5. Initiate the connecting process from the handset. The system will display the mes-
sage: ªIs PIN XXXXXX displayed on your
Bluetooth device?º. If the PIN is displayed on your Bluetooth

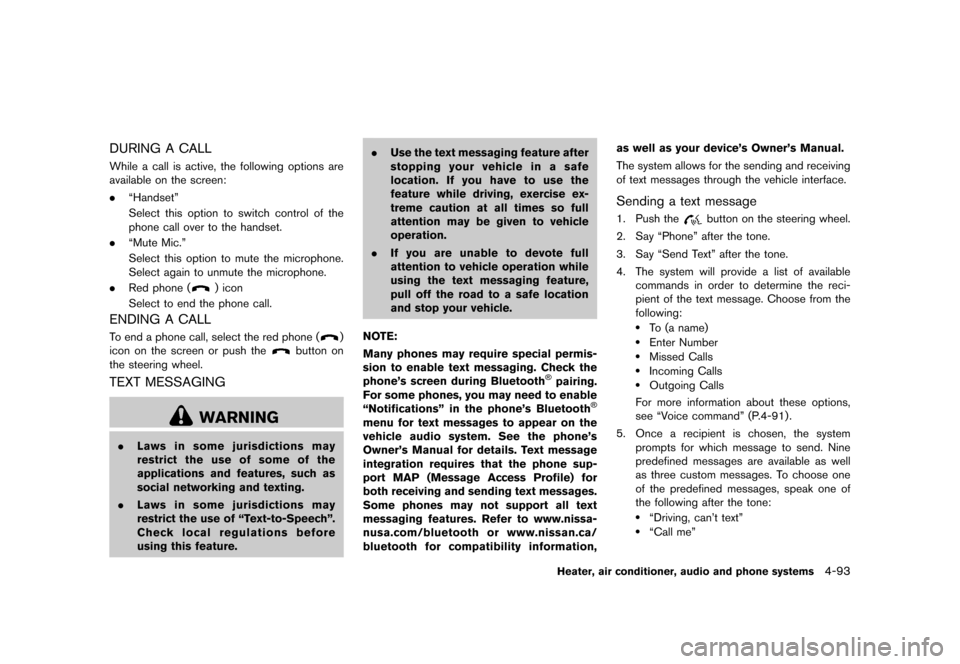

Page 247 of 399
> ( G L W 0 R G H O ) ' @
DURING A CALLGUID-AC05C9D1-677F-4D22-9B84-49D6CED59897While a call is active, the following options are
available on the screen:
.ªHandsetº
Select this option to switch control of the
phone call over to the handset.
. ªMute Mic.º
Select this option to mute the microphone.
Select again to unmute the microphone.
. Red phone (
) icon
Select to end the phone call.
ENDING A CALLGUID-2454323B-F971-404D-A6C1-21C3813A1EBATo end a phone call, select the red phone ()
icon on the screen or push the
button on
the steering wheel.
TEXT MESSAGINGGUID-A63DB37D-CB9B-4AA3-8C8F-8DE04CE0A80D
WARNING
. Laws in some jurisdictions may
restrict the use of some of the
applications and features, such as
social networking and texting.
. Laws in some jurisdictions may
restrict the use of ªText-to-Speechº.
Check local regulations before
using this feature. .
Use the text messaging feature after
stopping your vehicle in a safe
location. If you have to use the
feature while driving, exercise ex-
treme caution at all times so full
attention may be given to vehicle
operation.
. If you are unable to devote full
attention to vehicle operation while
using the text messaging feature,
pull off the road to a safe location
and stop your vehicle.
NOTE:
Many phones may require special permis-
sion to enable text messaging. Check the
phone's screen during Bluetooth

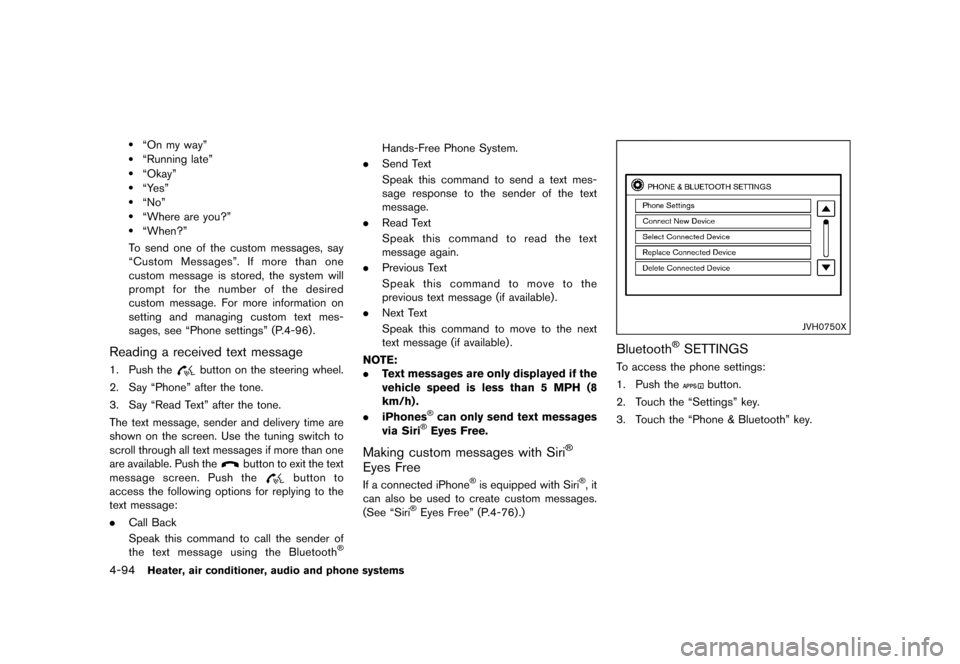

Page 248 of 399
> ( G L W 0 R G H O ) ' @
4-94Heater, air conditioner, audio and phone systems
.ªOn my wayº.ªRunning lateº.ªOkayº.ªYesº.ªNoº.ªWhere are you?º.ªWhen?º
To send one of the custom messages, say
ªCustom Messagesº. If more than one
custom message is stored, the system will
prompt for the number of the desired
custom message. For more information on
setting and managing custom text mes-
sages, see ªPhone settingsº (P.4-96) .
Reading a received text messageGUID-702E25E9-795C-4060-853D-59D282D731A51. Push thebutton on the steering wheel.
2. Say ªPhoneº after the tone.
3. Say ªRead Textº after the tone.
The text message, sender and delivery time are
shown on the screen. Use the tuning switch to
scroll through all text messages if more than one
are available. Push the
button to exit the text
message screen. Push the
button to
access the following options for replying to the
text message:
. Call Back
Speak this command to call the sender of
the text message using the Bluetooth
Page 249 of 399

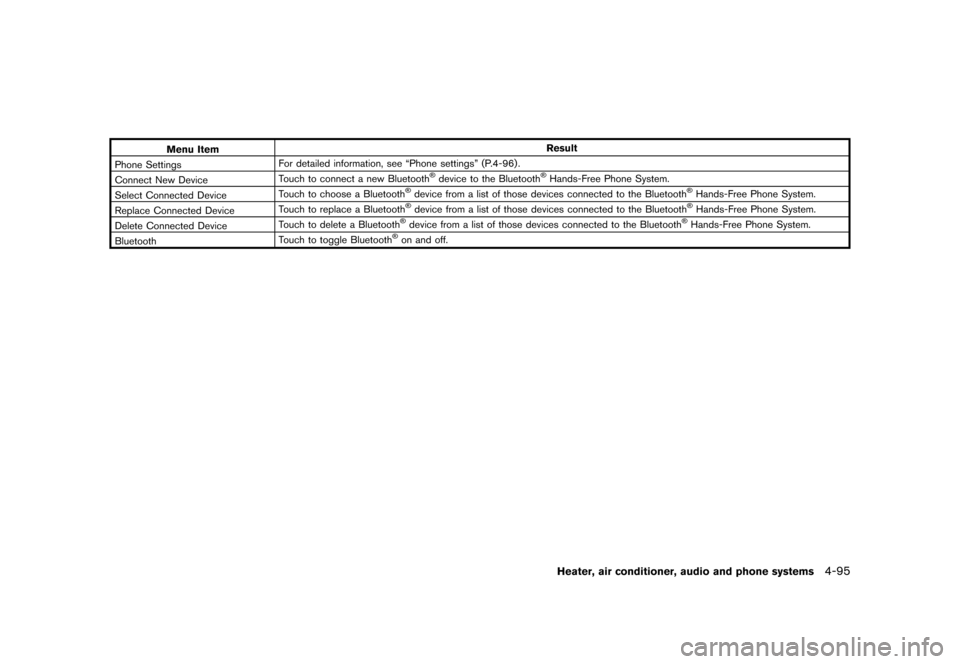

> ( G L W 0 R G H O ) ' @
Menu ItemResult
Phone Settings For detailed information, see ªPhone settingsº (P.4-96) .
Connect New Device Touch to connect a new Bluetooth
Page 250 of 399

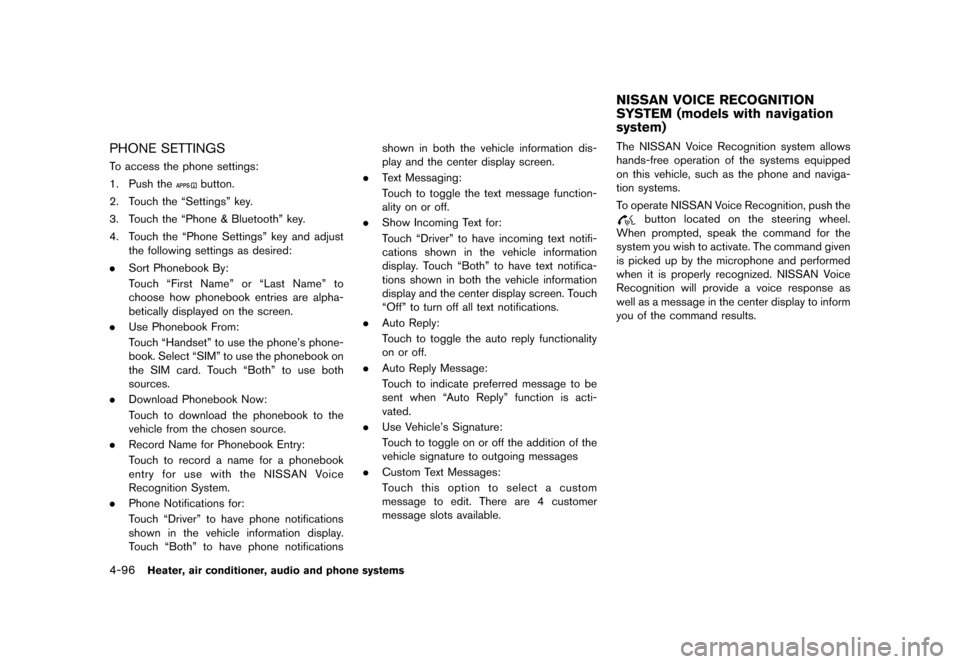

> ( G L W 0 R G H O ) ' @
4-96Heater, air conditioner, audio and phone systems
PHONE SETTINGSGUID-3D84110D-D0A3-4F6E-B8AF-BB9ED0B0757ATo access the phone settings:
1. Push the
button.
2. Touch the ªSettingsº key.
3. Touch the ªPhone & Bluetoothº key.
4. Touch the ªPhone Settingsº key and adjust the following settings as desired:
. Sort Phonebook By:
Touch ªFirst Nameº or ªLast Nameº to
choose how phonebook entries are alpha-
betically displayed on the screen.
. Use Phonebook From:
Touch ªHandsetº to use the phone's phone-
book. Select ªSIMº to use the phonebook on
the SIM card. Touch ªBothº to use both
sources.
. Download Phonebook Now:
Touch to download the phonebook to the
vehicle from the chosen source.
. Record Name for Phonebook Entry:
Touch to record a name for a phonebook
entry for use with the NISSAN Voice
Recognition System.
. Phone Notifications for:
Touch ªDriverº to have phone notifications
shown in the vehicle information display.
Touch ªBothº to have phone notifications shown in both the vehicle information dis-
play and the center display screen.
. Text Messaging:
Touch to toggle the text message function-
ality on or off.
. Show Incoming Text for:
Touch ªDriverº to have incoming text notifi-
cations shown in the vehicle information
display. Touch ªBothº to have text notifica-
tions shown in both the vehicle information
display and the center display screen. Touch
ªOffº to turn off all text notifications.
. Auto Reply:
Touch to toggle the auto reply functionality
on or off.
. Auto Reply Message:
Touch to indicate preferred message to be
sent when ªAuto Replyº function is acti-
vated.
. Use Vehicle's Signature:
Touch to toggle on or off the addition of the
vehicle signature to outgoing messages
. Custom Text Messages:
Touch this option to select a custom
message to edit. There are 4 customer
message slots available.
GUID-51334051-21B0-416B-9031-9372BED64572The NISSAN Voice Recognition system allows
hands-free operation of the systems equipped
on this vehicle, such as the phone and naviga-
tion systems.
To operate NISSAN Voice Recognition, push the
button located on the steering wheel.
When prompted, speak the command for the
system you wish to activate. The command given
is picked up by the microphone and performed
when it is properly recognized. NISSAN Voice
Recognition will provide a voice response as
well as a message in the center display to inform
you of the command results.
NISSAN VOICE RECOGNITION
SYSTEM (models with navigation
system)
& R Q G L W L R Q
