NISSAN JUKE 2016 F15 / 1.G Owners Manual
Manufacturer: NISSAN, Model Year: 2016, Model line: JUKE, Model: NISSAN JUKE 2016 F15 / 1.GPages: 399, PDF Size: 3.36 MB
Page 211 of 399
> ( G L W 0 R G H O ) ' @

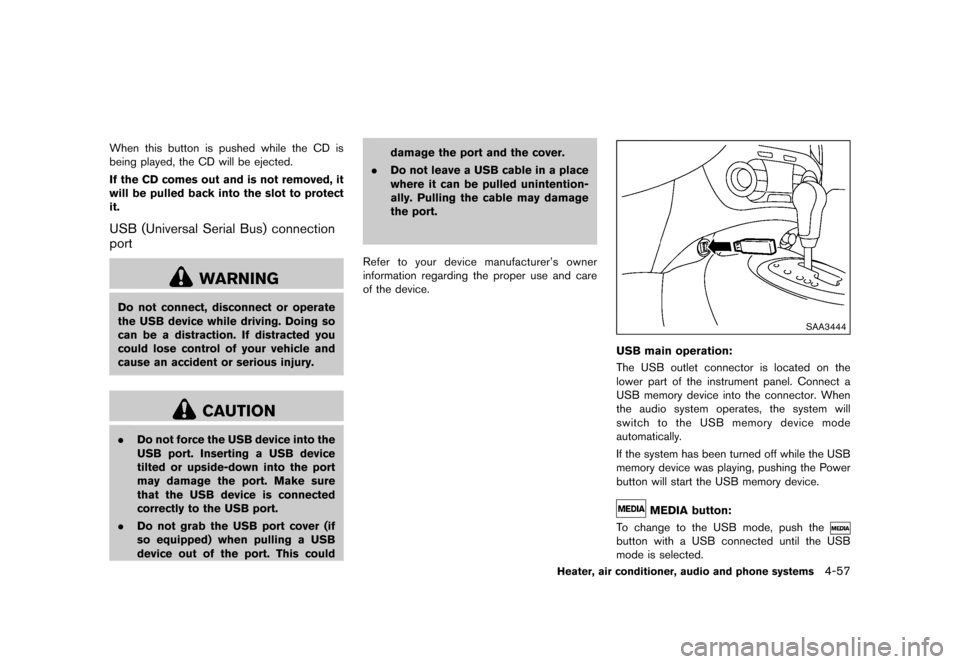

When this button is pushed while the CD is
being played, the CD will be ejected.
If the CD comes out and is not removed, it
will be pulled back into the slot to protect
it.
USB (Universal Serial Bus) connection
port
GUID-F9909BDA-B75C-4538-A054-5FBF50966CD4
WARNING
Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.
CAUTION
.Do not force the USB device into the
USB port. Inserting a USB device
tilted or upside-down into the port
may damage the port. Make sure
that the USB device is connected
correctly to the USB port.
. Do not grab the USB port cover (if
so equipped) when pulling a USB
device out of the port. This could damage the port and the cover.
. Do not leave a USB cable in a place
where it can be pulled unintention-
ally. Pulling the cable may damage
the port.
Refer to your device manufacturer's owner
information regarding the proper use and care
of the device.
SAA3444
USB main operation:GUID-F83C168B-173D-4313-B631-F712588C0463The USB outlet connector is located on the
lower part of the instrument panel. Connect a
USB memory device into the connector. When
the audio system operates, the system will
switch to the USB memory device mode
automatically.
If the system has been turned off while the USB
memory device was playing, pushing the Power
button will start the USB memory device.
MEDIA button:GUID-F83C168B-173D-4313-B631-F712588C0463To change to the USB mode, push the
button with a USB connected until the USB
mode is selected.
Heater, air conditioner, audio and phone systems4-57
& R Q G L W L R Q
Page 212 of 399
> ( G L W 0 R G H O ) ' @

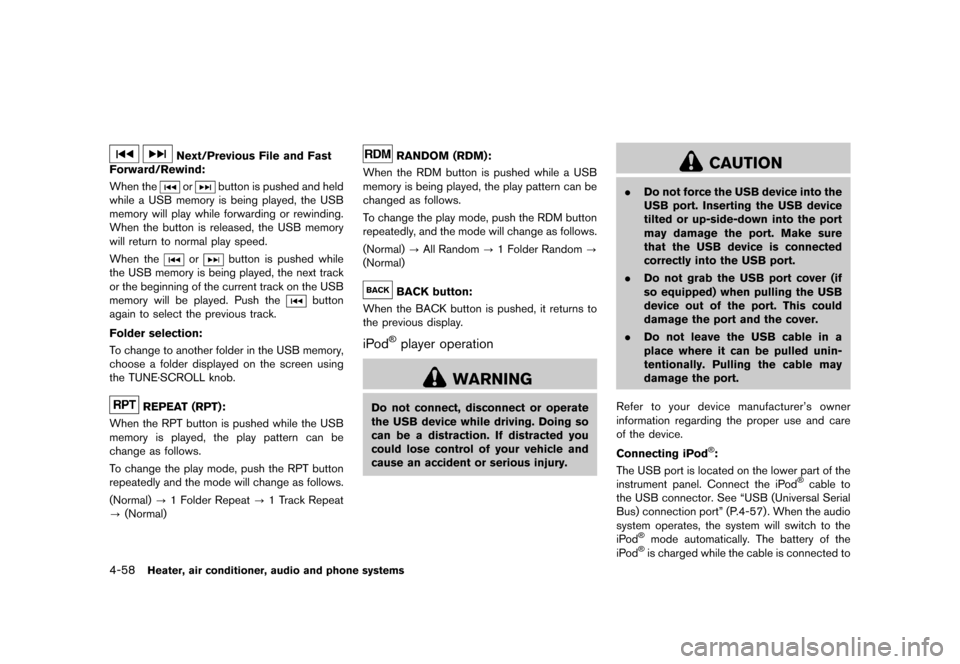

4-58Heater, air conditioner, audio and phone systems
Next/Previous File and Fast
Forward/Rewind:
GUID-F83C168B-173D-4313-B631-F712588C0463When theorbutton is pushed and held
while a USB memory is being played, the USB
memory will play while forwarding or rewinding.
When the button is released, the USB memory
will return to normal play speed.
When the
orbutton is pushed while
the USB memory is being played, the next track
or the beginning of the current track on the USB
memory will be played. Push the
button
again to select the previous track.
Folder selection:
GUID-F83C168B-173D-4313-B631-F712588C0463To change to another folder in the USB memory,
choose a folder displayed on the screen using
the TUNE´SCROLL knob.
REPEAT (RPT):GUID-F83C168B-173D-4313-B631-F712588C0463When the RPT button is pushed while the USB
memory is played, the play pattern can be
change as follows.
To change the play mode, push the RPT button
repeatedly and the mode will change as follows.
(Normal) ?1 Folder Repeat ?1 Track Repeat
? (Normal)
RANDOM (RDM):GUID-F83C168B-173D-4313-B631-F712588C0463When the RDM button is pushed while a USB
memory is being played, the play pattern can be
changed as follows.
To change the play mode, push the RDM button
repeatedly, and the mode will change as follows.
(Normal) ?All Random ?1 Folder Random ?
(Normal)
BACK button:GUID-F83C168B-173D-4313-B631-F712588C0463When the BACK button is pushed, it returns to
the previous display.
iPod
Page 213 of 399
> ( G L W 0 R G H O ) ' @

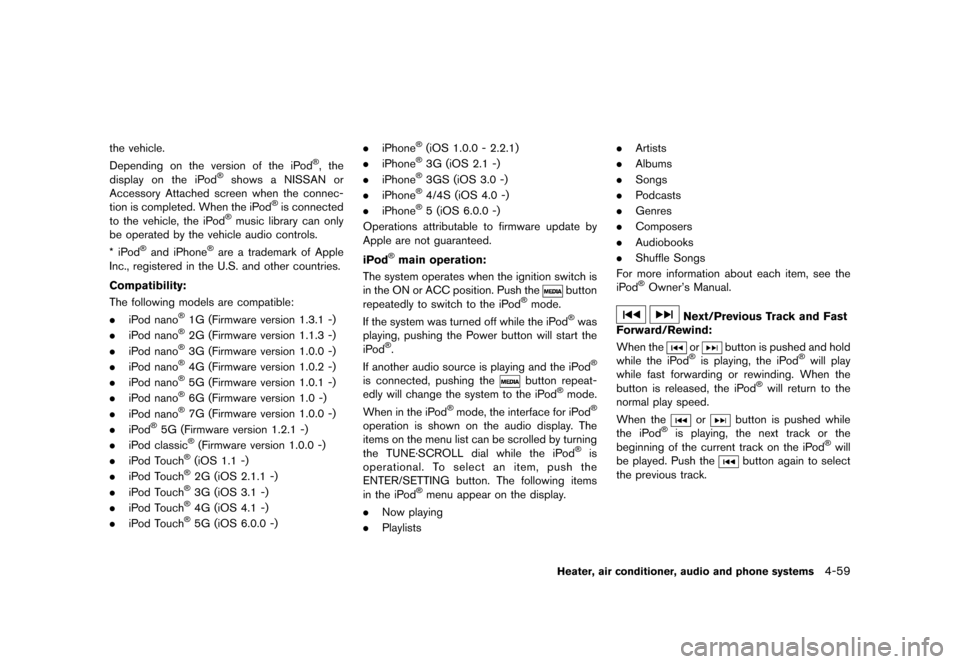

the vehicle.
Depending on the version of the iPod
Page 214 of 399
> ( G L W 0 R G H O ) ' @

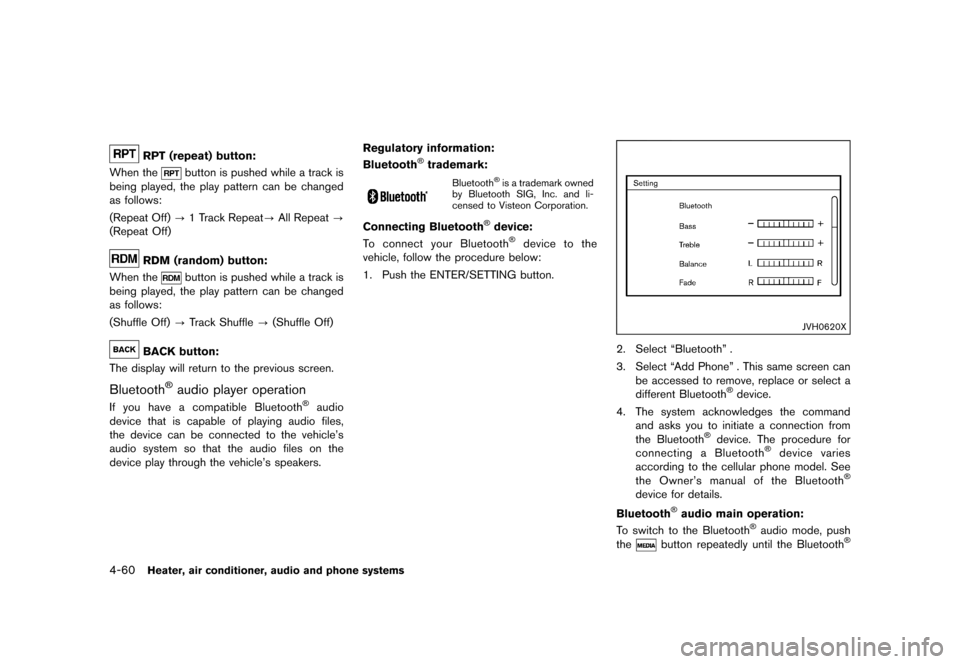

4-60Heater, air conditioner, audio and phone systems
RPT (repeat) button:GUID-F83C168B-173D-4313-B631-F712588C0463When thebutton is pushed while a track is
being played, the play pattern can be changed
as follows:
(Repeat Off) ?1 Track Repeat? All Repeat?
(Repeat Off)
RDM (random) button:GUID-F83C168B-173D-4313-B631-F712588C0463When thebutton is pushed while a track is
being played, the play pattern can be changed
as follows:
(Shuffle Off) ?Track Shuffle ?(Shuffle Off)
BACK button:GUID-F83C168B-173D-4313-B631-F712588C0463The display will return to the previous screen.
Bluetooth
Page 215 of 399
> ( G L W 0 R G H O ) ' @

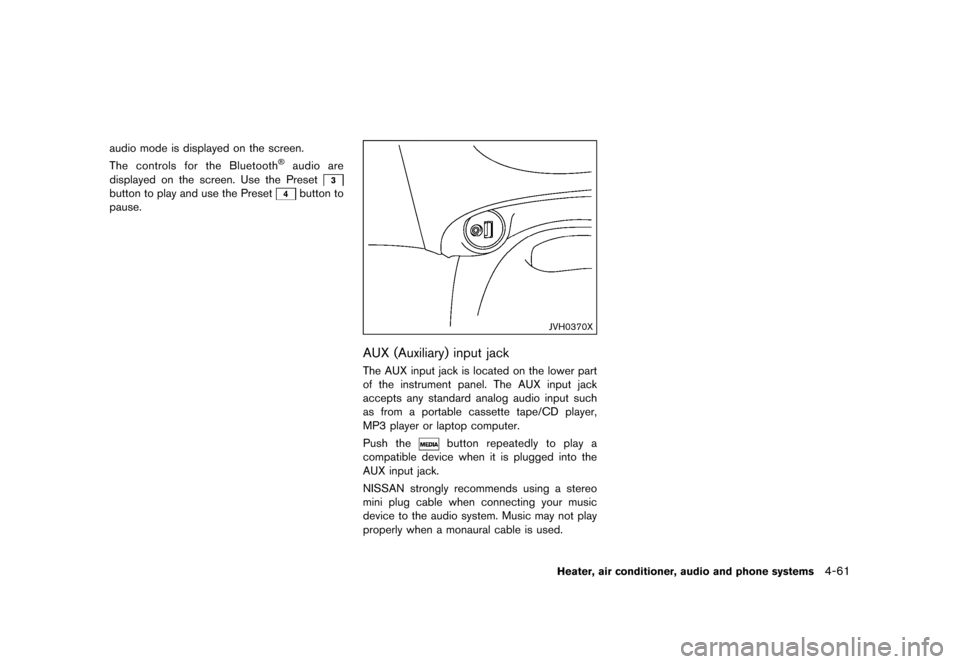

audio mode is displayed on the screen.
The controls for the Bluetooth
Page 216 of 399
> ( G L W 0 R G H O ) ' @
4-62Heater, air conditioner, audio and phone systems

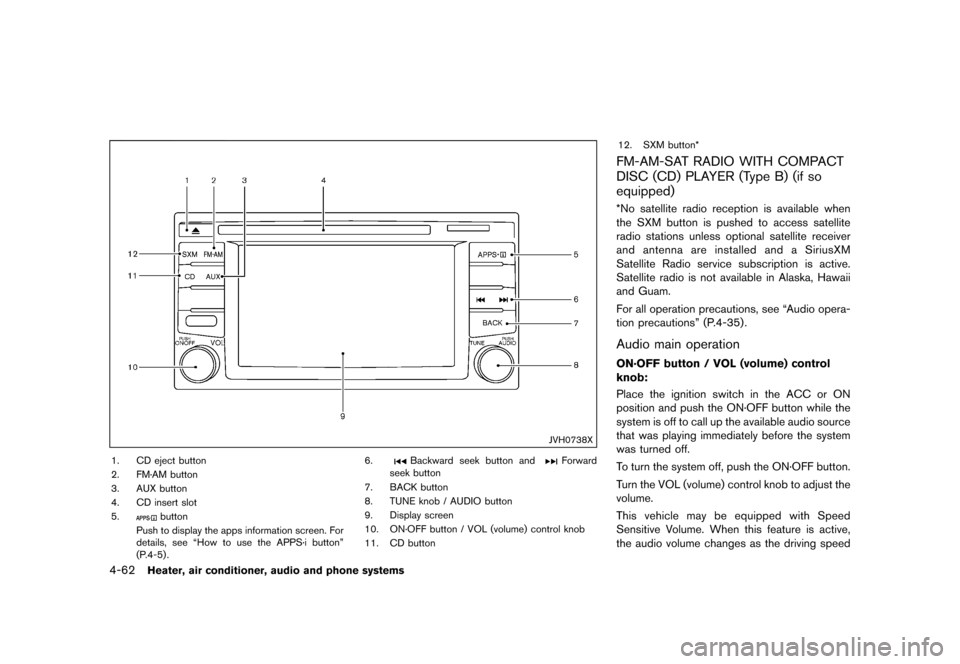

JVH0738X
1. CD eject button
2. FM´AM button
3. AUX button
4. CD insert slot
5.
button
Push to display the apps information screen. For
details, see ªHow to use the APPS´i buttonº
(P.4-5) . 6.
Backward seek button andForward
seek button
7. BACK button
8. TUNE knob / AUDIO button
9. Display screen
10. ON´OFF button / VOL (volume) control knob
11. CD button 12. SXM button*
FM-AM-SAT RADIO WITH COMPACT
DISC (CD) PLAYER (Type B) (if so
equipped)
GUID-727D0517-0342-42E4-A806-B1F3DBF29FDC*No satellite radio reception is available when
the SXM button is pushed to access satellite
radio stations unless optional satellite receiver
and antenna are installed and a SiriusXM
Satellite Radio service subscription is active.
Satellite radio is not available in Alaska, Hawaii
and Guam.
For all operation precautions, see ªAudio opera-
tion precautionsº (P.4-35) .
Audio main operationGUID-52945E76-4F7B-4D3D-9238-E8D2041B313C
ON´OFF button / VOL (volume) control
knob:
GUID-F83C168B-173D-4313-B631-F712588C0463Place the ignition switch in the ACC or ON
position and push the ON´OFF button while the
system is off to call up the available audio source
that was playing immediately before the system
was turned off.
To turn the system off, push the ON´OFF button.
Turn the VOL (volume) control knob to adjust the
volume.
This vehicle may be equipped with Speed
Sensitive Volume. When this feature is active,
the audio volume changes as the driving speed
& R Q G L W L R Q
Page 217 of 399
> ( G L W 0 R G H O ) ' @
changes.
Audio settings:
GUID-F83C168B-173D-4313-B631-F712588C04631. push thebutton.
2. Touch the ªSettingsº key.
3. Touch the ªAudioº key. Use the touch-screen to adjust the following
items to the desired setting:
.Bass:Adjusts the bass to the desired level.
.Treble:Adjusts the treble to the desired level.
.Balance:Adjusts the balance to the desired level.
Balance adjusts the sound level between
the left and right speakers.
.Fade:
Adjusts the fade to the desired level.
Fade adjusts the sound level between
the front and rear speakers.
.Speed Sensitive Vol.:Adjusts the speed sensitive volume
function, which increases the volume of
the audio system as the speed of the
vehicle increases. Set to ªOFFº to dis-
able the feature. The higher the setting,
the more the volume increases in relation
to vehicle speed.
.AUX Volume Level:Controls the volume level of incoming
sound when an auxiliary device is con-
nected to the system. Available options
are Low (Quiet) , Medium, and High
(Loud) .
Bass, treble, balance and fade can also be
adjusted by pushing the AUDIO control knob
and turning it to select the item to adjust. When
the desired item is shown on the display, turn the
tuning to adjust and then push the AUDIO
button until the display returns to the main audio
screen. If the button is not pushed for approxi-
mately 10 seconds, the radio or CD display will
automatically reappear.
SXM settings:
GUID-F83C168B-173D-4313-B631-F712588C0463To view the SXM settings:
1. Push the
button.
2. Touch the ªSettingsº key.
3. Touch the ªSXMº key.
The signal strength, activation status and other
information are displayed on the screen.
FM/AM/SAT radio operationGUID-F471B34D-BB40-4254-905D-BAD3C1C3D3BD
FM´AM button:GUID-F83C168B-173D-4313-B631-F712588C0463Push the FM´AM button to change the band as
follows:
AM ?FM1 ?FM2 ?AM
If another audio source is playing when the
FM´AM button is pushed, the audio source
playing will automatically be turned off and the
last radio station played will begin playing.
The FM stereo indicator (ST) is shown on the
screen during FM stereo reception. When the
stereo broadcast signal is weak, the radio
automatically changes from stereo to monaural
reception.
SXM band select:
GUID-F83C168B-173D-4313-B631-F712588C0463Pushing the SXM button will change the band
as follows:
SXM1* ?SXM2* ?SXM3* ?SXM1*
(satellite, if so equipped)
When the SXM button is pushed while the
ignition switch is in the ACC or ON position, the
radio will come on at the last station played.
The last station played will also come on when
the ON´OFF button is pushed.
*When the SXM button is pushed, the satellite
radio mode will be skipped unless an optional
satellite receiver and antenna are installed and a
Heater, air conditioner, audio and phone systems4-63
& R Q G L W L R Q
Page 218 of 399
> ( G L W 0 R G H O ) ' @

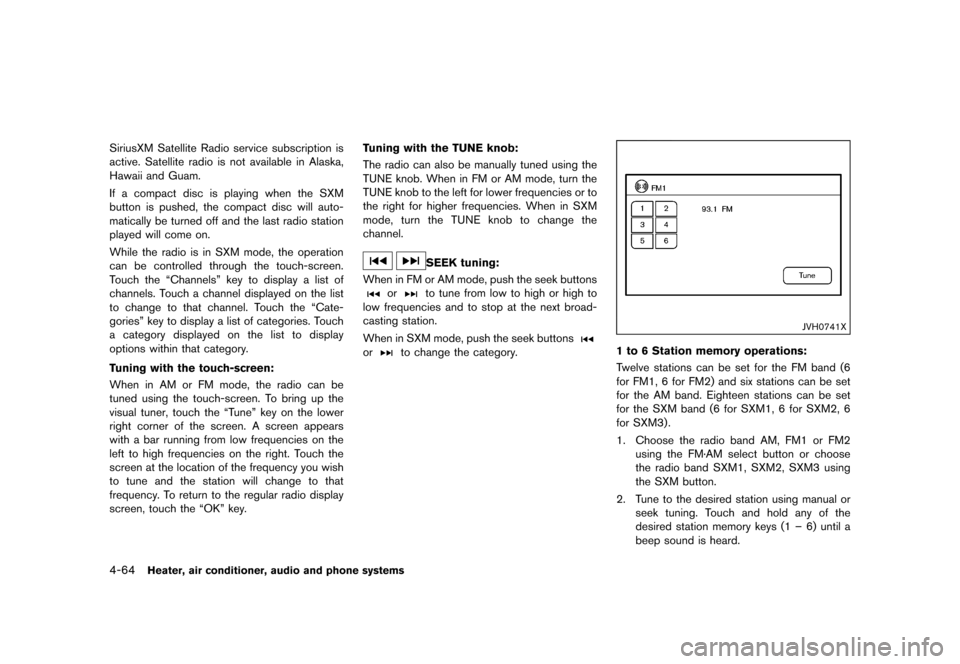

4-64Heater, air conditioner, audio and phone systems
SiriusXM Satellite Radio service subscription is
active. Satellite radio is not available in Alaska,
Hawaii and Guam.
If a compact disc is playing when the SXM
button is pushed, the compact disc will auto-
matically be turned off and the last radio station
played will come on.
While the radio is in SXM mode, the operation
can be controlled through the touch-screen.
Touch the ªChannelsº key to display a list of
channels. Touch a channel displayed on the list
to change to that channel. Touch the ªCate-
goriesº key to display a list of categories. Touch
a category displayed on the list to display
options within that category.
Tuning with the touch-screen:
GUID-F83C168B-173D-4313-B631-F712588C0463When in AM or FM mode, the radio can be
tuned using the touch-screen. To bring up the
visual tuner, touch the ªTuneº key on the lower
right corner of the screen. A screen appears
with a bar running from low frequencies on the
left to high frequencies on the right. Touch the
screen at the location of the frequency you wish
to tune and the station will change to that
frequency. To return to the regular radio display
screen, touch the ªOKº key.Tuning with the TUNE knob:
GUID-F83C168B-173D-4313-B631-F712588C0463The radio can also be manually tuned using the
TUNE knob. When in FM or AM mode, turn the
TUNE knob to the left for lower frequencies or to
the right for higher frequencies. When in SXM
mode, turn the TUNE knob to change the
channel.
SEEK tuning:GUID-F83C168B-173D-4313-B631-F712588C0463When in FM or AM mode, push the seek buttons
orto tune from low to high or high to
low frequencies and to stop at the next broad-
casting station.
When in SXM mode, push the seek buttons
orto change the category.
JVH0741X
1 to 6 Station memory operations:GUID-F83C168B-173D-4313-B631-F712588C0463Twelve stations can be set for the FM band (6
for FM1, 6 for FM2) and six stations can be set
for the AM band. Eighteen stations can be set
for the SXM band (6 for SXM1, 6 for SXM2, 6
for SXM3) .
1. Choose the radio band AM, FM1 or FM2 using the FM´AM select button or choose
the radio band SXM1, SXM2, SXM3 using
the SXM button.
2. Tune to the desired station using manual or seek tuning. Touch and hold any of the
desired station memory keys (1 ± 6) until a
beep sound is heard.
& R Q G L W L R Q
Page 219 of 399
> ( G L W 0 R G H O ) ' @

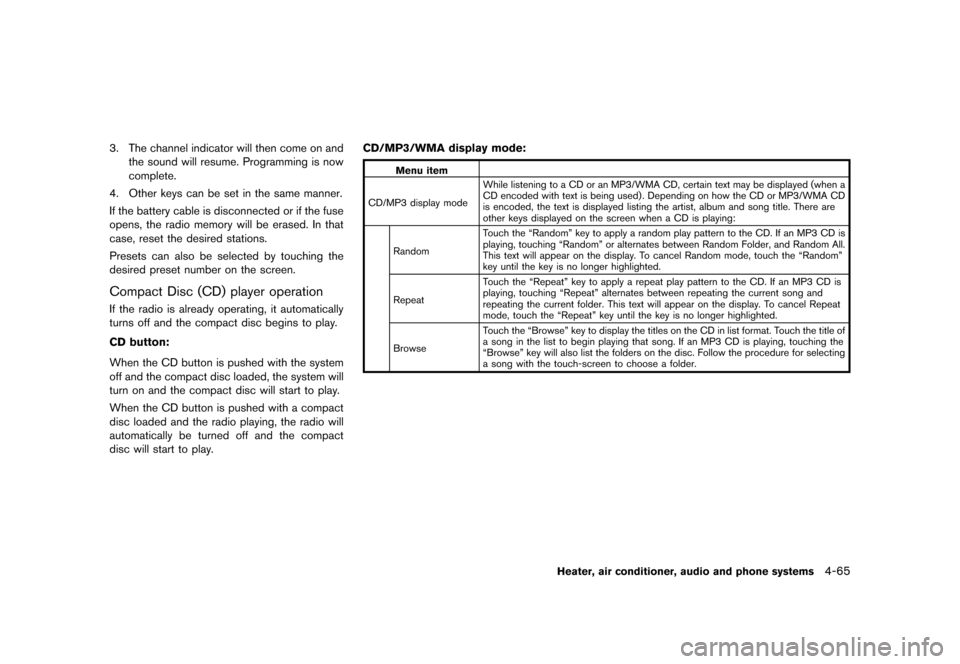

3. The channel indicator will then come on andthe sound will resume. Programming is now
complete.
4. Other keys can be set in the same manner.
If the battery cable is disconnected or if the fuse
opens, the radio memory will be erased. In that
case, reset the desired stations.
Presets can also be selected by touching the
desired preset number on the screen.
Compact Disc (CD) player operationGUID-22B6B76F-6FCF-458E-A1BC-11D6DA23716DIf the radio is already operating, it automatically
turns off and the compact disc begins to play.
CD button:
GUID-F83C168B-173D-4313-B631-F712588C0463When the CD button is pushed with the system
off and the compact disc loaded, the system will
turn on and the compact disc will start to play.
When the CD button is pushed with a compact
disc loaded and the radio playing, the radio will
automatically be turned off and the compact
disc will start to play. CD/MP3/WMA display mode:
Menu item
CD/MP3 display mode While listening to a CD or an MP3/WMA CD, certain text may be displayed (when a
CD encoded with text is being used) . Depending on how the CD or MP3/WMA CD
is encoded, the text is displayed listing the artist, album and song title. There are
other keys displayed on the screen when a CD is playing:
Random Touch the ªRandomº key to apply a random play pattern to the CD. If an MP3 CD is
playing, touching ªRandomº or alternates between Random Folder, and Random All.
This text will appear on the display. To cancel Random mode, touch the ªRandomº
key until the key is no longer highlighted.
Repeat Touch the ªRepeatº key to apply a repeat play pattern to the CD. If an MP3 CD is
playing, touching ªRepeatº alternates between repeating the current song and
repeating the current folder. This text will appear on the display. To cancel Repeat
mode, touch the ªRepeatº key until the key is no longer highlighted.
Browse Touch the ªBrowseº key to display the titles on the CD in list format. Touch the title of
a song in the list to begin playing that song. If an MP3 CD is playing, touching the
ªBrowseº key will also list the folders on the disc. Follow the procedure for selecting
a song with the touch-screen to choose a folder.
Heater, air conditioner, audio and phone systems4-65
& R Q G L W L R Q
Page 220 of 399
> ( G L W 0 R G H O ) ' @
4-66Heater, air conditioner, audio and phone systems
SEEK (Fast Forward/Rewind)
buttons:
GUID-F83C168B-173D-4313-B631-F712588C0463Push and hold the seek buttonsorfor
1.5 seconds while the compact disc is playing to
reverse or fast forward the track being played.
The compact disc plays at an increased speed
while reversing or fast forwarding. When the
button is released, the compact disc returns to
normal play speed.
SEEK (Previous/Next Track)
buttons:
GUID-F83C168B-173D-4313-B631-F712588C0463Push the seek buttonwhile a CD or MP3/
WMA CD is playing to return to the beginning of
the current track. Push the seek button
several times to skip backward several tracks.
Push the seek button
while a CD or MP3/
WMA CD is playing to advance one track. Push
the seek button
several times to skip
forward several tracks. If the last track on a
CD is skipped, the first track on the disc is
played. If the last track in a folder of an MP3/
WMA CD is skipped, the first track of the next
folder is played. CD eject button:
GUID-F83C168B-173D-4313-B631-F712588C0463When the button is pushed with a compact disc
loaded, the compact disc will eject and the last
source will be played.
If the disc is not removed within 10 seconds, the
disc will reload.
JVH0370X
AUX (Auxiliary) inputGUID-A871C1F0-42F3-402B-849C-74B6117EE37FThe AUX IN jack is located on the lower center
of the instrument panel. The AUX IN jack
accepts any standard analog audio input such
as from a portable cassette tape/CD player,
MP3 player or a laptop computer. Push the AUX
button to play a compatible device plugged into
the AUX IN jack.
NISSAN strongly recommends using a stereo
mini plug cable when connecting your music
device to the audio system. Music may not play
properly when a monaural cable is used.
& R Q G L W L R Q
