NISSAN JUKE 2016 F15 / 1.G Owners Manual


> (GLW    0RGHO )' @

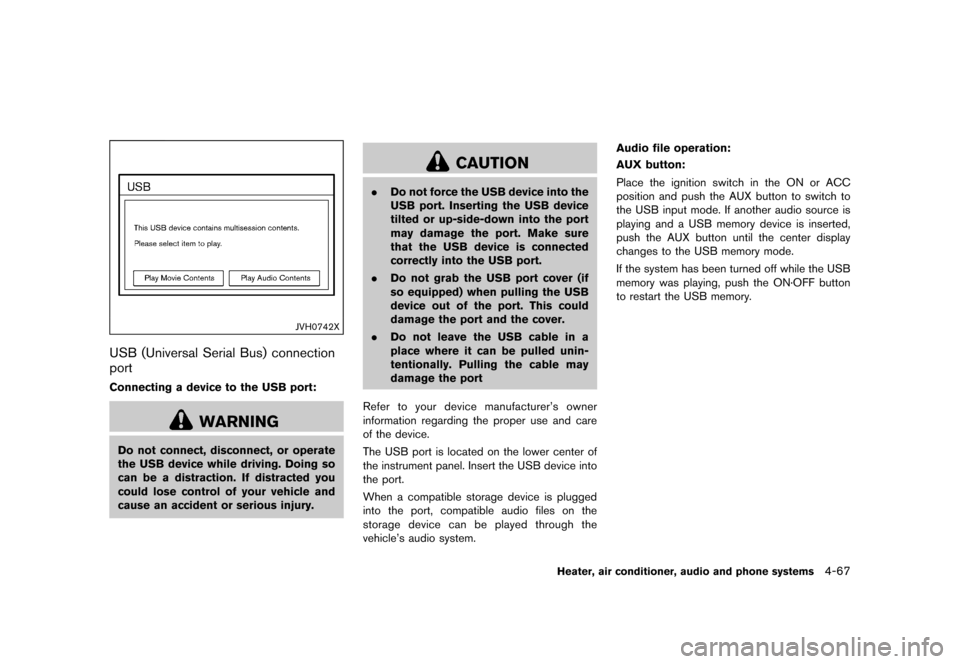

JVH0742X
USB (Universal Serial Bus) connection
port
GUID-55592140-0251-4082-9B9B-66E35E1E6B02
Connecting a device to the USB port:GUID-F83C168B-173D-4313-B631-F712588C0463
WARNING
Do not connect, disconnect, or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.
CAUTION
.Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.
. Do not grab the USB port cover (if
so equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.
. Do not leave the USB cable in a
place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port
Refer to your device manufacturer's owner
information regarding the proper use and care
of the device.
The USB port is located on the lower center of
the instrument panel. Insert the USB device into
the port.
When a compatible storage device is plugged
into the port, compatible audio files on the
storage device can be played through the
vehicle's audio system. Audio file operation:
GUID-F83C168B-173D-4313-B631-F712588C0463AUX button:
Place the ignition switch in the ON or ACC
position and push the AUX button to switch to
the USB input mode. If another audio source is
playing and a USB memory device is inserted,
push the AUX button until the center display
changes to the USB memory mode.
If the system has been turned off while the USB
memory was playing, push the ON´OFF button
to restart the USB memory.
Heater, air conditioner, audio and phone systems4-67
&RQGLWLRQ


> (GLW    0RGHO )' @

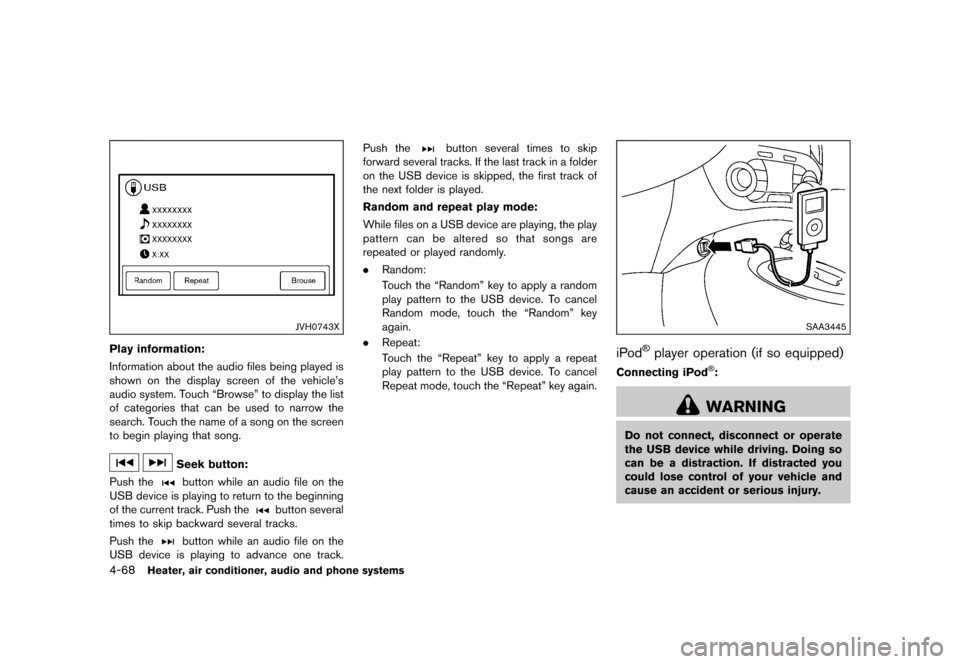

4-68Heater, air conditioner, audio and phone systems
JVH0743X
Play information:
Information about the audio files being played is
shown on the display screen of the vehicle's
audio system. Touch ªBrowseº to display the list
of categories that can be used to narrow the
search. Touch the name of a song on the screen
to begin playing that song.
Seek button:
Push the
button while an audio file on the
USB device is playing to return to the beginning
of the current track. Push the
button several
times to skip backward several tracks.
Push the
button while an audio file on the
USB device is playing to advance one track. Push the
button several times to skip
forward several tracks. If the last track in a folder
on the USB device is skipped, the first track of
the next folder is played.
Random and repeat play mode:
While files on a USB device are playing, the play
pattern can be altered so that songs are
repeated or played randomly.
. Random:
Touch the ªRandomº key to apply a random
play pattern to the USB device. To cancel
Random mode, touch the ªRandomº key
again.
. Repeat:
Touch the ªRepeatº key to apply a repeat
play pattern to the USB device. To cancel
Repeat mode, touch the ªRepeatº key again.
SAA3445
iPod


> (GLW    0RGHO )' @

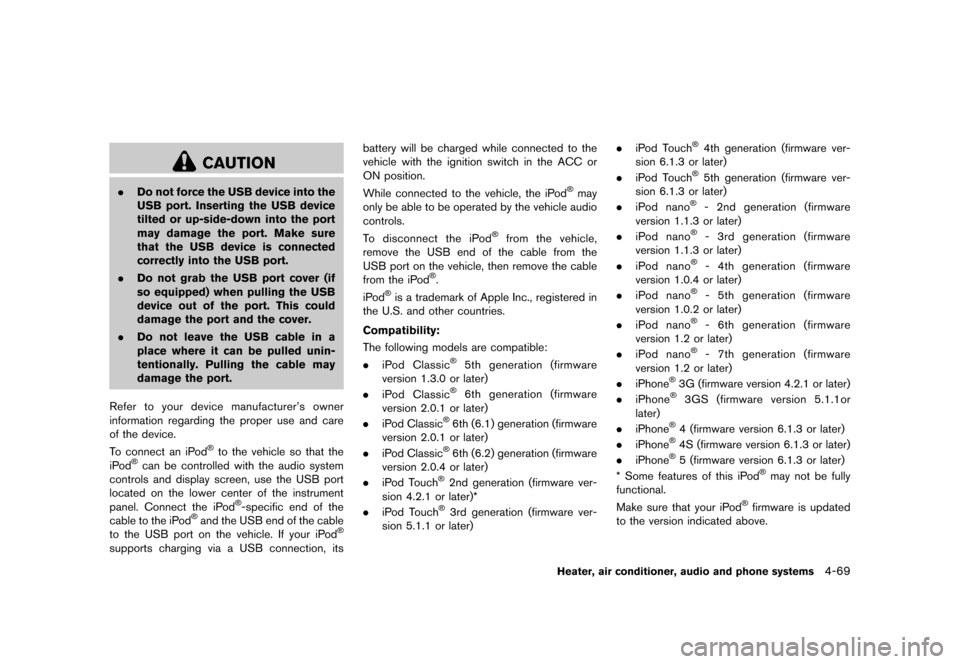

CAUTION
.Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.
. Do not grab the USB port cover (if
so equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.
. Do not leave the USB cable in a
place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port.
Refer to your device manufacturer's owner
information regarding the proper use and care
of the device.
To connect an iPod


> (GLW    0RGHO )' @

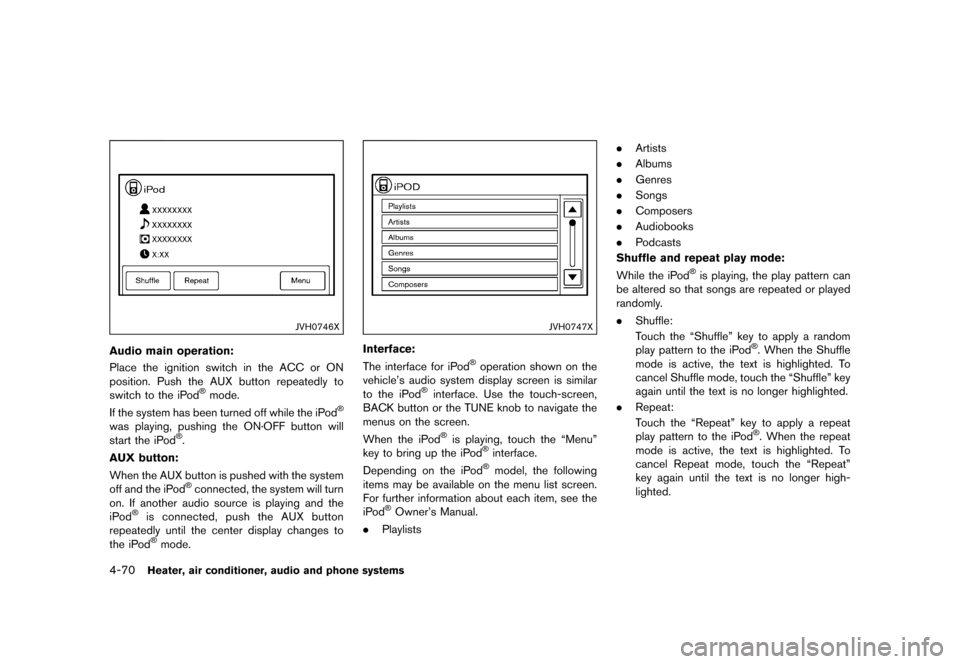

4-70Heater, air conditioner, audio and phone systems
JVH0746X
Audio main operation:GUID-F83C168B-173D-4313-B631-F712588C0463Place the ignition switch in the ACC or ON
position. Push the AUX button repeatedly to
switch to the iPod


> (GLW    0RGHO )' @

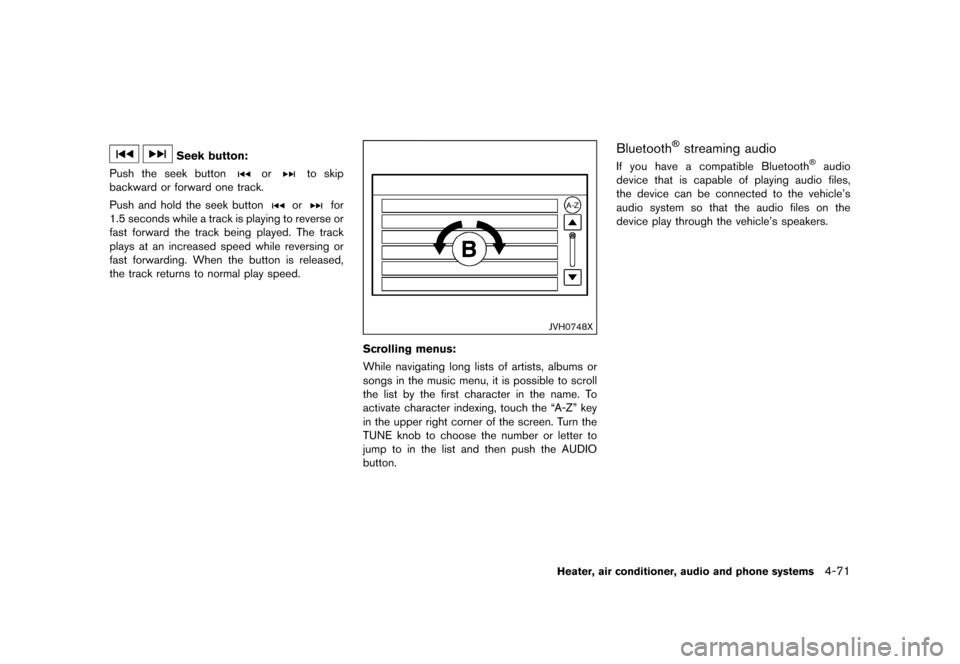

Seek button:
Push the seek button
orto skip
backward or forward one track.
Push and hold the seek button
orfor
1.5 seconds while a track is playing to reverse or
fast forward the track being played. The track
plays at an increased speed while reversing or
fast forwarding. When the button is released,
the track returns to normal play speed.
JVH0748X
Scrolling menus:
While navigating long lists of artists, albums or
songs in the music menu, it is possible to scroll
the list by the first character in the name. To
activate character indexing, touch the ªA-Zº key
in the upper right corner of the screen. Turn the
TUNE knob to choose the number or letter to
jump to in the list and then push the AUDIO
button.
Bluetooth


> (GLW    0RGHO )' @

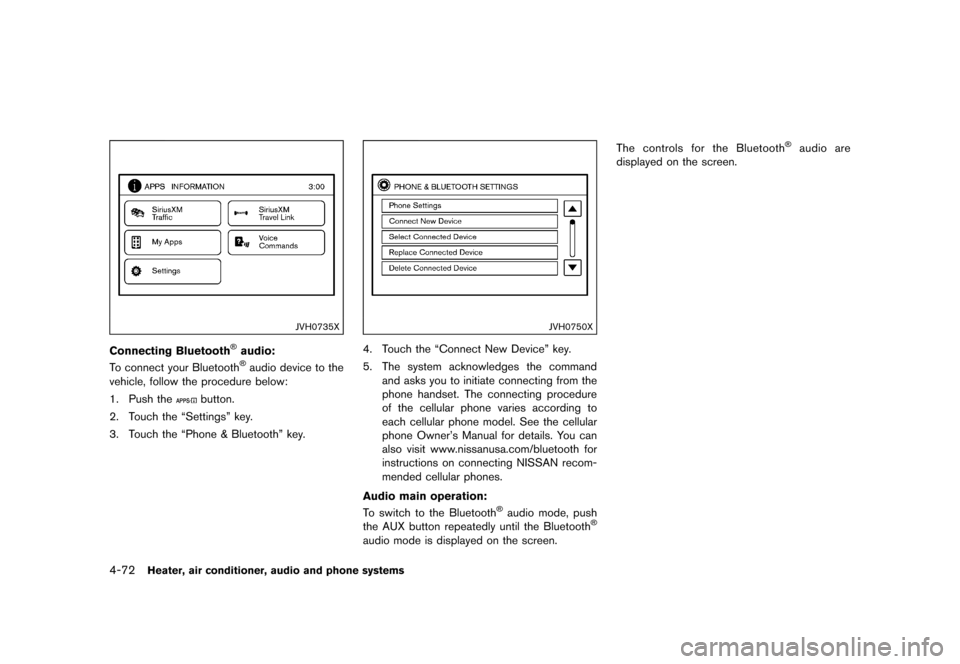

4-72Heater, air conditioner, audio and phone systems
JVH0735X
Connecting Bluetooth


> (GLW    0RGHO )' @

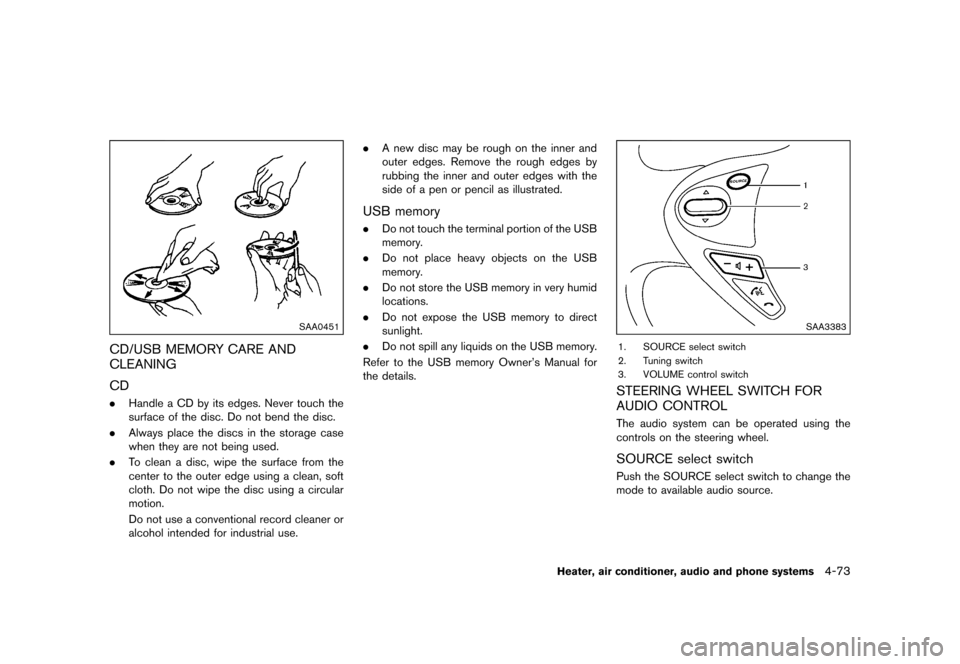

SAA0451
CD/USB MEMORY CARE AND
CLEANING
GUID-64EAAC34-D3E6-47F3-841B-A7464B111E8A
CDGUID-72A0FA4E-7343-4A22-B467-F4E3857EF7C8.Handle a CD by its edges. Never touch the
surface of the disc. Do not bend the disc.
. Always place the discs in the storage case
when they are not being used.
. To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use. .
A new disc may be rough on the inner and
outer edges. Remove the rough edges by
rubbing the inner and outer edges with the
side of a pen or pencil as illustrated.
USB memoryGUID-709BE949-E9B3-4FAB-B7E0-5AF11C267158.Do not touch the terminal portion of the USB
memory.
. Do not place heavy objects on the USB
memory.
. Do not store the USB memory in very humid
locations.
. Do not expose the USB memory to direct
sunlight.
. Do not spill any liquids on the USB memory.
Refer to the USB memory Owner's Manual for
the details.
SAA3383
1. SOURCE select switch
2. Tuning switch
3. VOLUME control switch
STEERING WHEEL SWITCH FOR
AUDIO CONTROL
GUID-397ACA65-CDE2-45A0-908C-5A518FD11FB7The audio system can be operated using the
controls on the steering wheel.
SOURCE select switchGUID-75DA39CD-BA48-480A-9F30-CF5FAEEBA12BPush the SOURCE select switch to change the
mode to available audio source.
Heater, air conditioner, audio and phone systems4-73
&RQGLWLRQ


> (GLW    0RGHO )' @

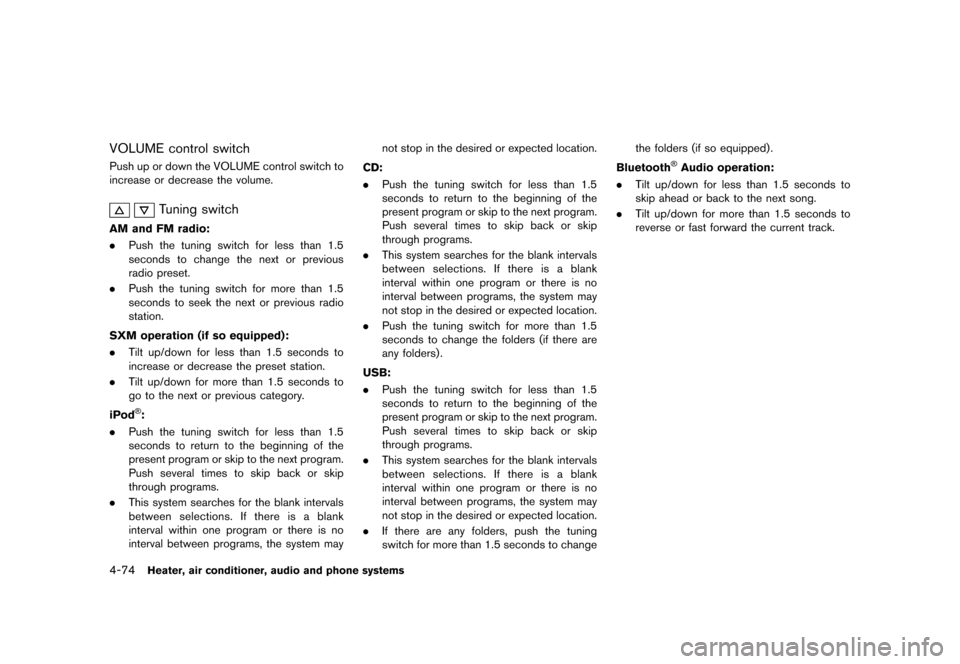

4-74Heater, air conditioner, audio and phone systems
VOLUME control switchGUID-2B953C64-A296-4323-9900-C814A2B80F0EPush up or down the VOLUME control switch to
increase or decrease the volume.
Tuning switchGUID-1A426B03-BA49-4A51-88E3-3E3275A1C5F0
AM and FM radio:GUID-F83C168B-173D-4313-B631-F712588C0463.Push the tuning switch for less than 1.5
seconds to change the next or previous
radio preset.
. Push the tuning switch for more than 1.5
seconds to seek the next or previous radio
station.
SXM operation (if so equipped):
GUID-F83C168B-173D-4313-B631-F712588C0463. Tilt up/down for less than 1.5 seconds to
increase or decrease the preset station.
. Tilt up/down for more than 1.5 seconds to
go to the next or previous category.
iPod


> (GLW    0RGHO )' @

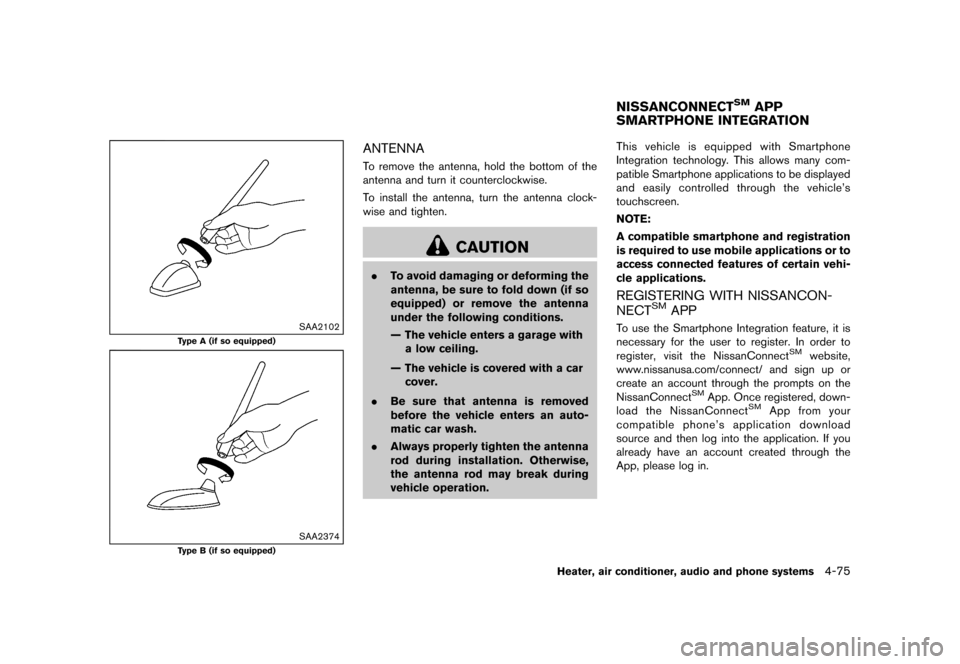

SAA2102
Type A (if so equipped)
SAA2374
Type B (if so equipped)
ANTENNAGUID-2E6EC723-5024-4ED7-8C53-2005D67806B8To remove the antenna, hold the bottom of the
antenna and turn it counterclockwise.
To install the antenna, turn the antenna clock-
wise and tighten.
CAUTION
.To avoid damaging or deforming the
antenna, be sure to fold down (if so
equipped) or remove the antenna
under the following conditions.
Ð The vehicle enters a garage with
a low ceiling.
Ð The vehicle is covered with a car cover.
. Be sure that antenna is removed
before the vehicle enters an auto-
matic car wash.
. Always properly tighten the antenna
rod during installation. Otherwise,
the antenna rod may break during
vehicle operation.
GUID-EB2565B8-2F32-44D1-884B-3D9157E86821This vehicle is equipped with Smartphone
Integration technology. This allows many com-
patible Smartphone applications to be displayed
and easily controlled through the vehicle's
touchscreen.
NOTE:
A compatible smartphone and registration
is required to use mobile applications or to
access connected features of certain vehi-
cle applications.
REGISTERING WITH NISSANCON-
NECTSMAPPGUID-09282224-C822-4A6E-B841-C70746449602To use the Smartphone Integration feature, it is
necessary for the user to register. In order to
register, visit the NissanConnect
SMwebsite,
www.nissanusa.com/connect/ and sign up or
create an account through the prompts on the
NissanConnect
SMApp. Once registered, down-
load the NissanConnectSMApp from your
compatible phone's application download
source and then log into the application. If you
already have an account created through the
App, please log in.
Heater, air conditioner, audio and phone systems4-75
NISSANCONNECTSMAPP
SMARTPHONE INTEGRATION
&RQGLWLRQ


> (GLW    0RGHO )' @
4-76Heater, air conditioner, audio and phone systems

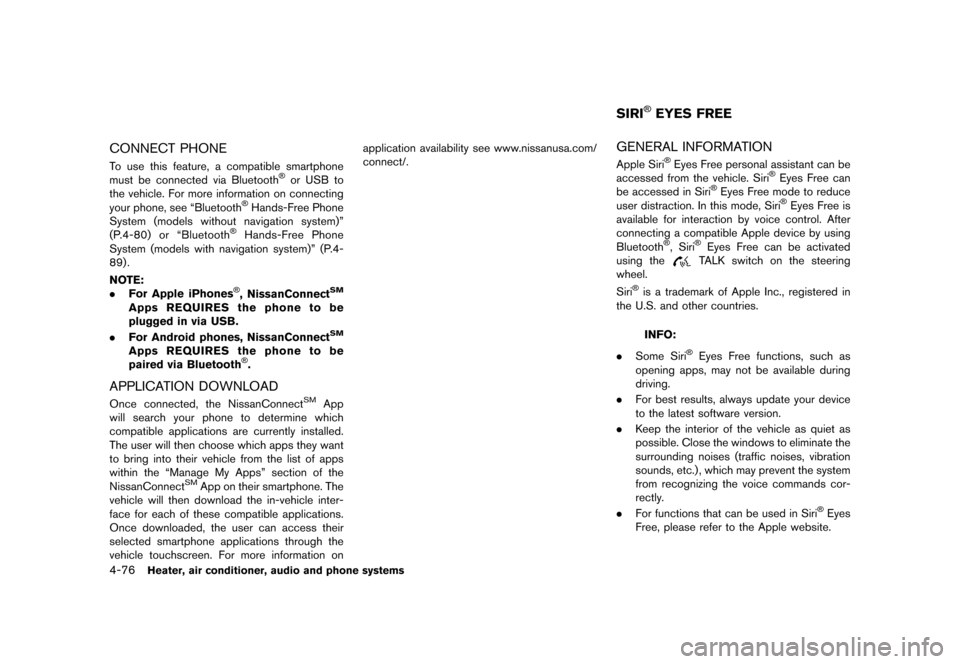

CONNECT PHONEGUID-F9527F2D-48B7-41BE-B654-8CF52A911A5ATo use this feature, a compatible smartphone
must be connected via Bluetooth
