NISSAN LATIO 2009 Service Repair Manual

EC
NP
O
Operation takes less than 1 second.
Is the inspection result normal? YES >> GO TO 3.
NO >> Replace EVAP canister vent control valve. YES >> INSPECTION END
NO >> Replace EVAP canister vent control valve. Condition Air passage continuity between (A) and (B)
12 V direct current supply between
terminals (1) and (2) Not existed
OFF Existed VENT CONT/V condition Air passage continuity between (A) and (B)
ON Not existed
OFF Existed
Condition Air passage continuity between (A) and (B)
12 V direct current supply between
terminals (1) and (2) Not existed
OFF Existed

EC-306< COMPONENT DIAGNOSIS >
[HR16DE]
P0448 EVAP CANISTER VENT CONTROL VALVE
P0448 EVAP CANISTER VENT CONTROL VALVE
Description INFOID:0000000004780187
The EVAP canister vent control valve is located on the EVAP canis-
ter and is used to seal the canister vent.
This solenoid valve responds to signals from the ECM. When the
ECM sends an ON signal, the coil in the solenoid valve is energized.
A plunger will then move to seal the canister vent. The ability to seal
the vent is necessary for the on board diagnosis of other evaporative
emission control system components.
This solenoid valve is used only for diagnosis, and usually remains
opened.
When the vent is closed, under normal purge conditions, the evapo-
rative emission control system is depressurized and allows “EVAP
Control System” diagnosis.
DTC Logic INFOID:0000000004780188
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE 1.
PRECONDITIONING
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
>> GO TO 2. 2.
PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT-III
1. Turn ignition switch ON and wait at least 5 seconds.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-III.
4. Start engine and let it idle for at least 1 minute.
5. Repeat next procedures three times.
- Increase the engine speed up to 3,000 to 3,500 rpm and keep it for 2 minutes and 50 seconds to 3 min-
utes.
Never exceed 3 minutes.
- Fully released accelerator pedal and keep engine idle for about 5 seconds.
6. Repeat next procedure 20 times.
- Quickly increase the engine speed up to 4,000 to 4, 500 rpm or more and keep it for 25 to 30 seconds. PBIB1263E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0448 EVAP canister vent control
valve close EVAP canister vent control valve remains
closed under specified driving conditions. • EVAP canister vent control valve
• EVAP control system pressure sensor and the circuit
• Blocked rubber tube to EVAP canister
vent control valve
• EVAP canister is saturated with water

EC
NP
O
- Fully released accelerator pedal and keep engine idle for at least 35 seconds.
7. Check 1st trip DTC. With GST
Follow the procedure “With CONSULT-III” above.
Is 1st trip DTC detected? YES >> Go to
EC-308, " Diagnosis Procedure " .
NO >> INSPECTION END

EC-308< COMPONENT DIAGNOSIS >
[HR16DE]
P0448 EVAP CANISTER VENT CONTROL VALVE

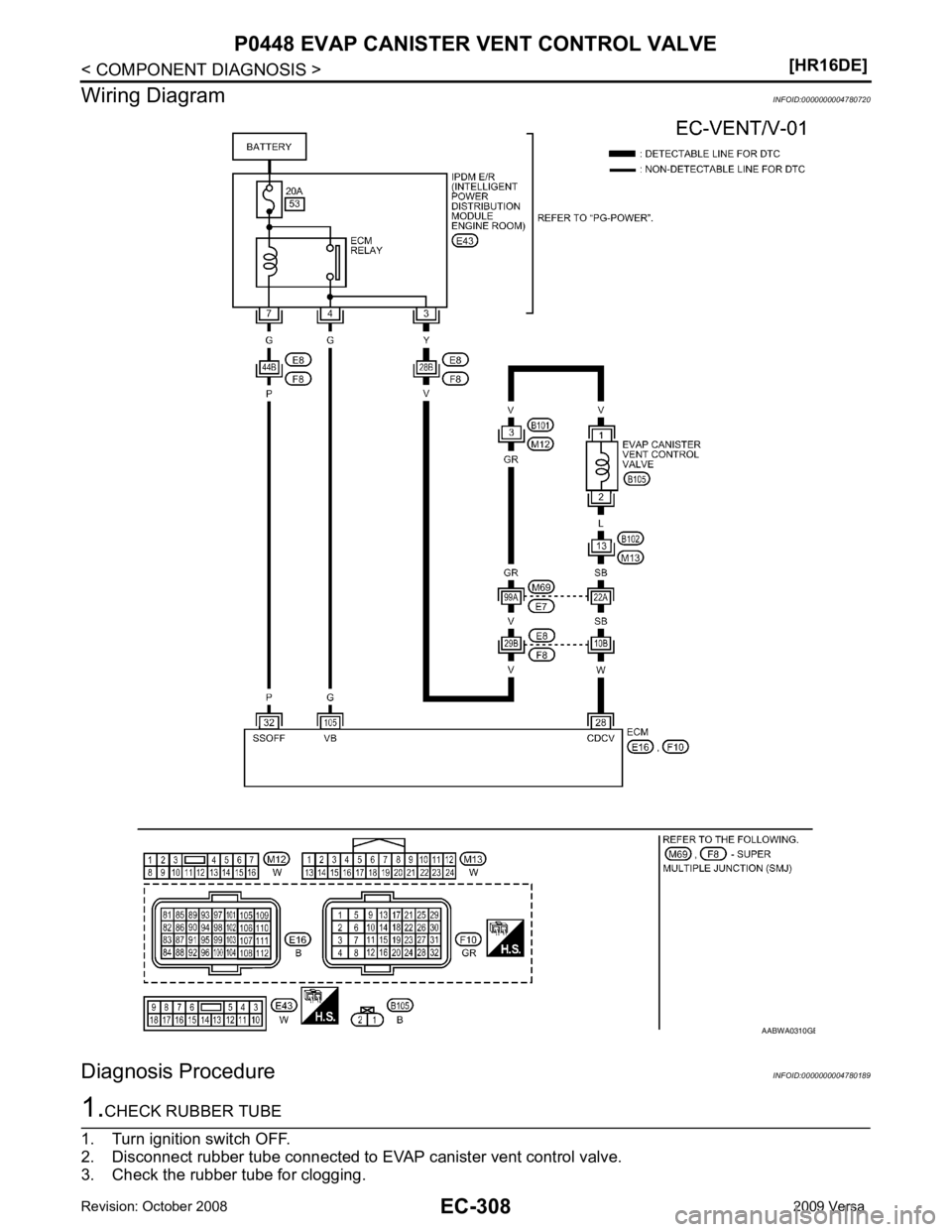

Wiring Diagram INFOID:0000000004780720
Diagnosis Procedure INFOID:00000000047801891.
CHECK RUBBER TUBE
1. Turn ignition switch OFF.
2. Disconnect rubber tube connected to EV AP canister vent control valve.
3. Check the rubber tube for clogging. AABWA0310G B

P0448 EVAP CANISTER VENT CONTROL VALVE
EC-309
< COMPONENT DIAGNOSIS >
[HR16DE] C
D E
F
G H
I
J
K L
M A EC
NP
O
Is the inspection result normal? YES >> GO TO 2.
NO >> Clean rubber tube using an air blower. 2.
CHECK EVAP CANISTER VENT CONTROL VALVE
Refer to EC-310, " Component Inspection " .
Is the inspection result normal? YES >> GO TO 3.
NO >> Replace EVAP canister vent control valve. 3.

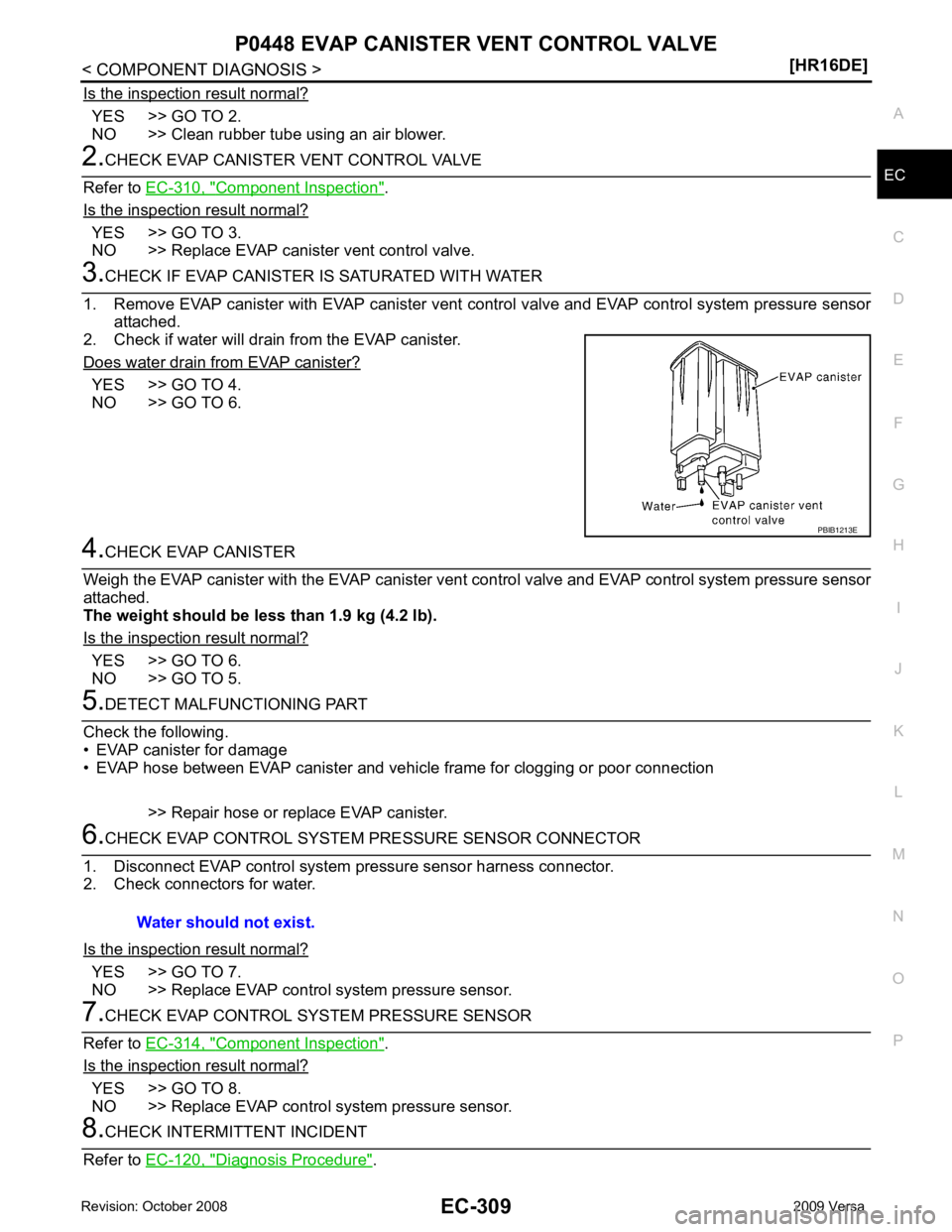

CHECK IF EVAP CANISTER IS SATURATED WITH WATER
1. Remove EVAP canister with EVAP canister vent c ontrol valve and EVAP control system pressure sensor
attached.
2. Check if water will drain from the EVAP canister.
Does water drain from EVAP canister? YES >> GO TO 4.
NO >> GO TO 6. 4.
CHECK EVAP CANISTER
Weigh the EVAP canister with the EV AP canister vent control valve and EVAP control system pressure sensor
attached.
The weight should be less than 1.9 kg (4.2 lb).
Is the inspection result normal? YES >> GO TO 6.
NO >> GO TO 5. 5.
DETECT MALFUNCTIONING PART
Check the following.
• EVAP canister for damage
• EVAP hose between EVAP canister and vehi cle frame for clogging or poor connection
>> Repair hose or replace EVAP canister. 6.
CHECK EVAP CONTRO L SYSTEM PRESSURE SENSOR CONNECTOR
1. Disconnect EVAP control system pressure sensor harness connector.
2. Check connectors for water.
Is the inspection result normal? YES >> GO TO 7.
NO >> Replace EVAP control system pressure sensor. 7.
CHECK EVAP CONTROL SYS TEM PRESSURE SENSOR
Refer to EC-314, " Component Inspection " .
Is the inspection result normal? YES >> GO TO 8.
NO >> Replace EVAP control system pressure sensor. 8.
CHECK INTERMITTENT INCIDENT
Refer to EC-120, " Diagnosis Procedure " . PBIB1213E
Water should not exist.

EC-310< COMPONENT DIAGNOSIS >
[HR16DE]
P0448 EVAP CANISTER VENT CONTROL VALVE
>> INSPECTION END
Component Inspection INFOID:00000000047801901.

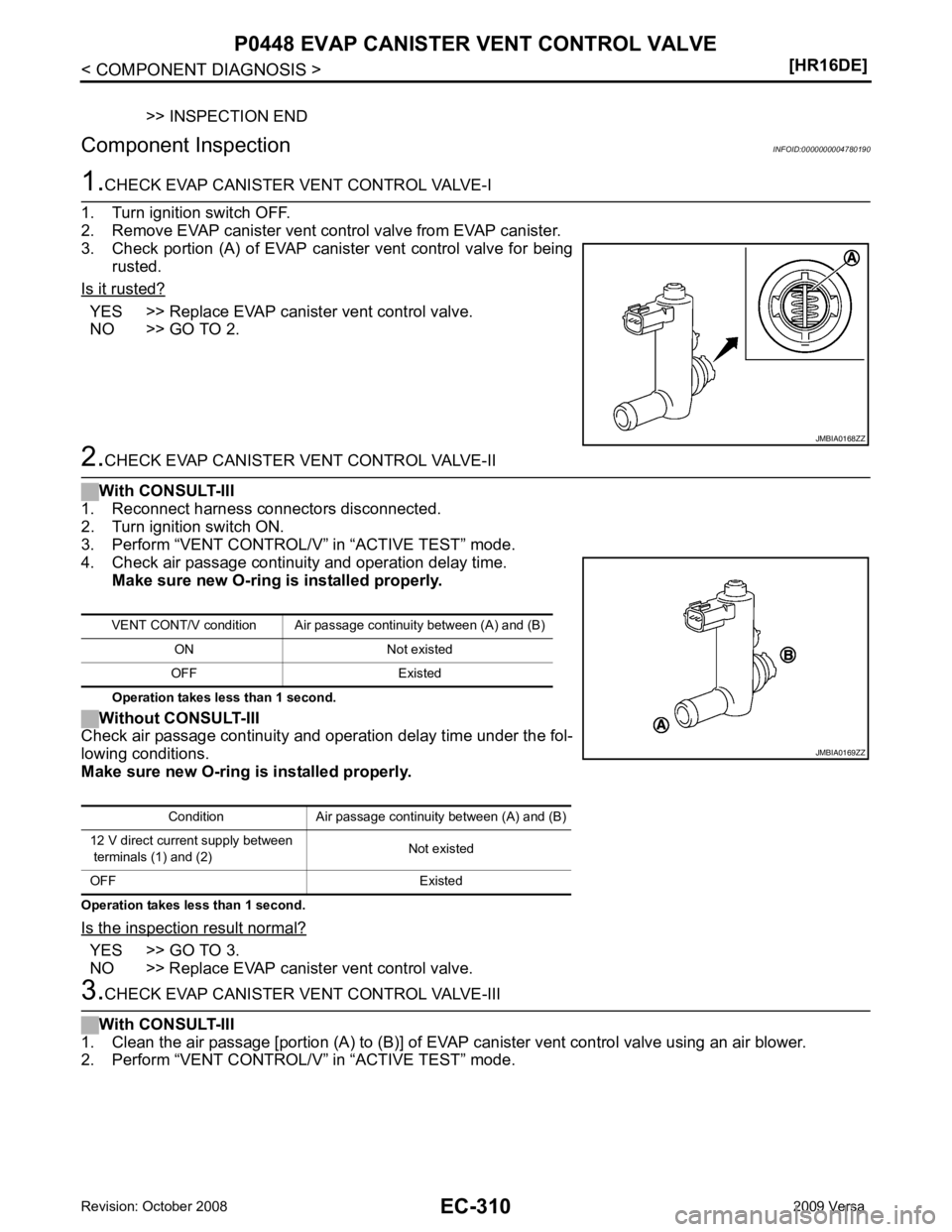

CHECK EVAP CANISTER VENT CONTROL VALVE-I
1. Turn ignition switch OFF.
2. Remove EVAP canister vent control valve from EVAP canister.
3. Check portion (A) of EVAP canister vent control valve for being
rusted.
Is it rusted? YES >> Replace EVAP canister vent control valve.
NO >> GO TO 2. 2.
CHECK EVAP CANISTER VENT CONTROL VALVE-II
With CONSULT-III
1. Reconnect harness connectors disconnected.
2. Turn ignition switch ON.
3. Perform “VENT CONTROL/V” in “ACTIVE TEST” mode.
4. Check air passage continuity and operation delay time. Make sure new O-ring is installed properly.
Operation takes less than 1 second.
Without CONSULT-III
Check air passage continuity and operation delay time under the fol-
lowing conditions.
Make sure new O-ring is installed properly.
Operation takes less than 1 second.
Is the inspection result normal? YES >> GO TO 3.
NO >> Replace EVAP canister vent control valve. 3.
CHECK EVAP CANISTER VE NT CONTROL VALVE-III
With CONSULT-III
1. Clean the air passage [portion (A) to (B)] of EVAP canister vent control valve using an air blower.
2. Perform “VENT CONTROL/V” in “ACTIVE TEST” mode. JMBIA0168ZZ
VENT CONT/V condition Air passage continuity between (A) and (B)
ON Not existed
OFF Existed
Condition Air passage continuity between (A) and (B)
12 V direct current supply between
terminals (1) and (2) Not existed
OFF Existed JMBIA0169ZZ

P0448 EVAP CANISTER VENT CONTROL VALVE
EC-311
< COMPONENT DIAGNOSIS >
[HR16DE] C
D E
F
G H
I
J
K L
M A EC
NP
O
3. Check air passage continuity and operation delay time.
Make sure new O-ring is installed properly.
Operation takes less than 1 second.
Without CONSULT-III

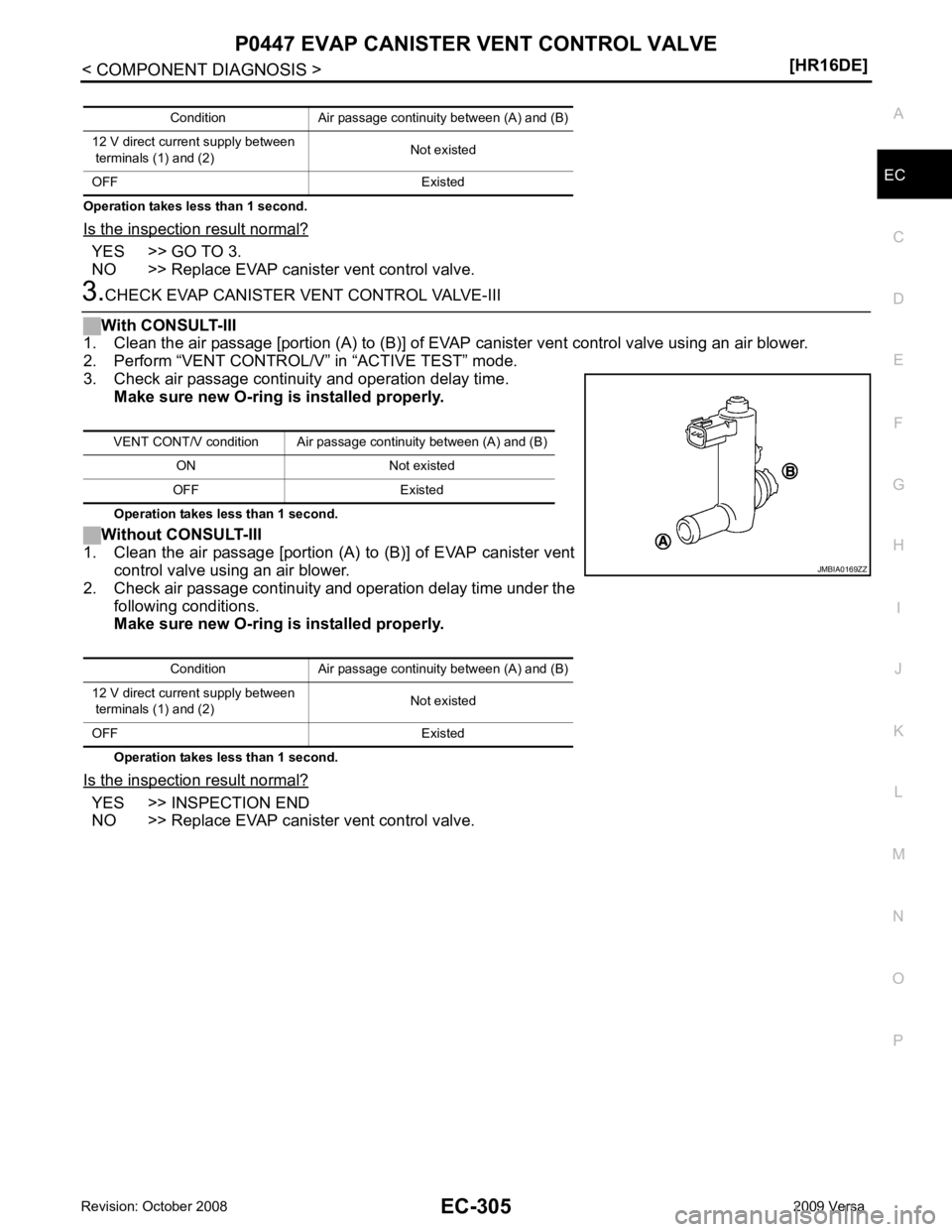

1. Clean the air passage [portion (A) to (B)] of EVAP canister vent
control valve using an air blower.
2. Check air passage continuity and operation delay time under the
following conditions.
Make sure new O-ring is installed properly.
Operation takes less than 1 second.
Is the inspection result normal? YES >> INSPECTION END
NO >> Replace EVAP canister vent control valve. VENT CONT/V condition Air passage continuity between (A) and (B)
ON Not existed
OFF Existed
Condition Air passage continuity between (A) and (B)
12 V direct current supply between
terminals (1) and (2) Not existed
OFF Existed JMBIA0169ZZ

YES >> Go to
EC-312, " Diagnosis Procedure " .
NO >> INSPECTION END
Diagnosis Procedure INFOID:0000000004780193Ground Inspection " .
Is the inspection result normal?

EC
NP
O
YES >> GO TO 2.
NO >> Repair or replace ground connection. YES >> GO TO 3.
NO >> Repair or replace harness connector. YES >> GO TO 8.
NO >> GO TO 4. YES >> GO TO 5.
NO >> Repair short to ground or short to power in harness or connectors. Component Inspection " .)
• Refrigerant pressure sensor (Refer to EC-458, " Diagnosis Procedure " .)
Is the inspection result normal? YES >> GO TO 6.
NO >> Replace malfunctioning component. Component Inspection " .
Is the inspection result normal? YES >> GO TO 9.
NO >> GO TO 7. Special Repair Requirement " .
Water should not exist.
EVAP control system pressure sensor Ground Voltage
Connector Terminal
B104 3 Ground Approx. 5 V

Component Inspection " .
Is the inspection result normal? YES >> GO TO 9.
NO >> Replace EVAP control system pressure sensor. Diagnosis Procedure " .
>> INSPECTION END
Component Inspection INFOID:0000000004780194YES >> INSPECTION END

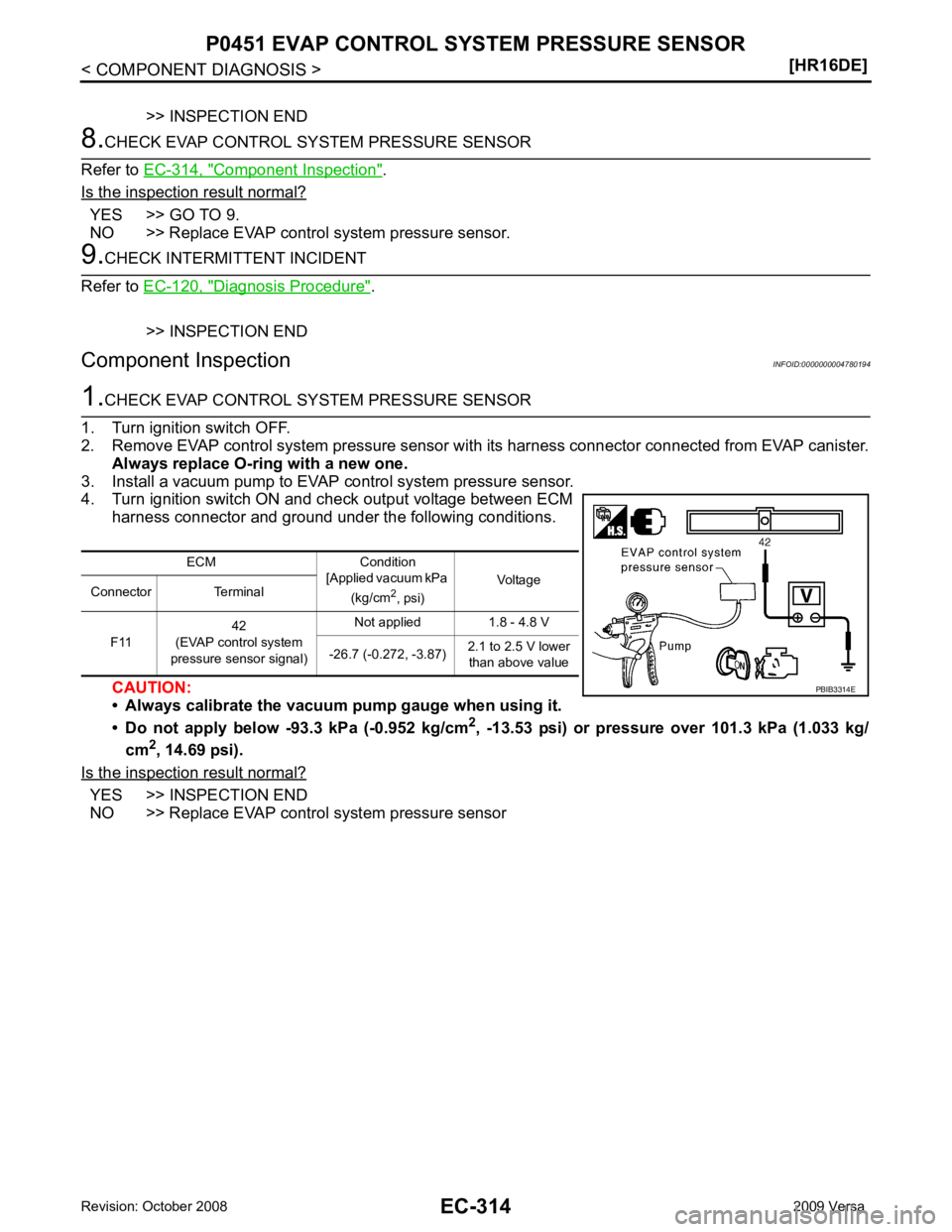

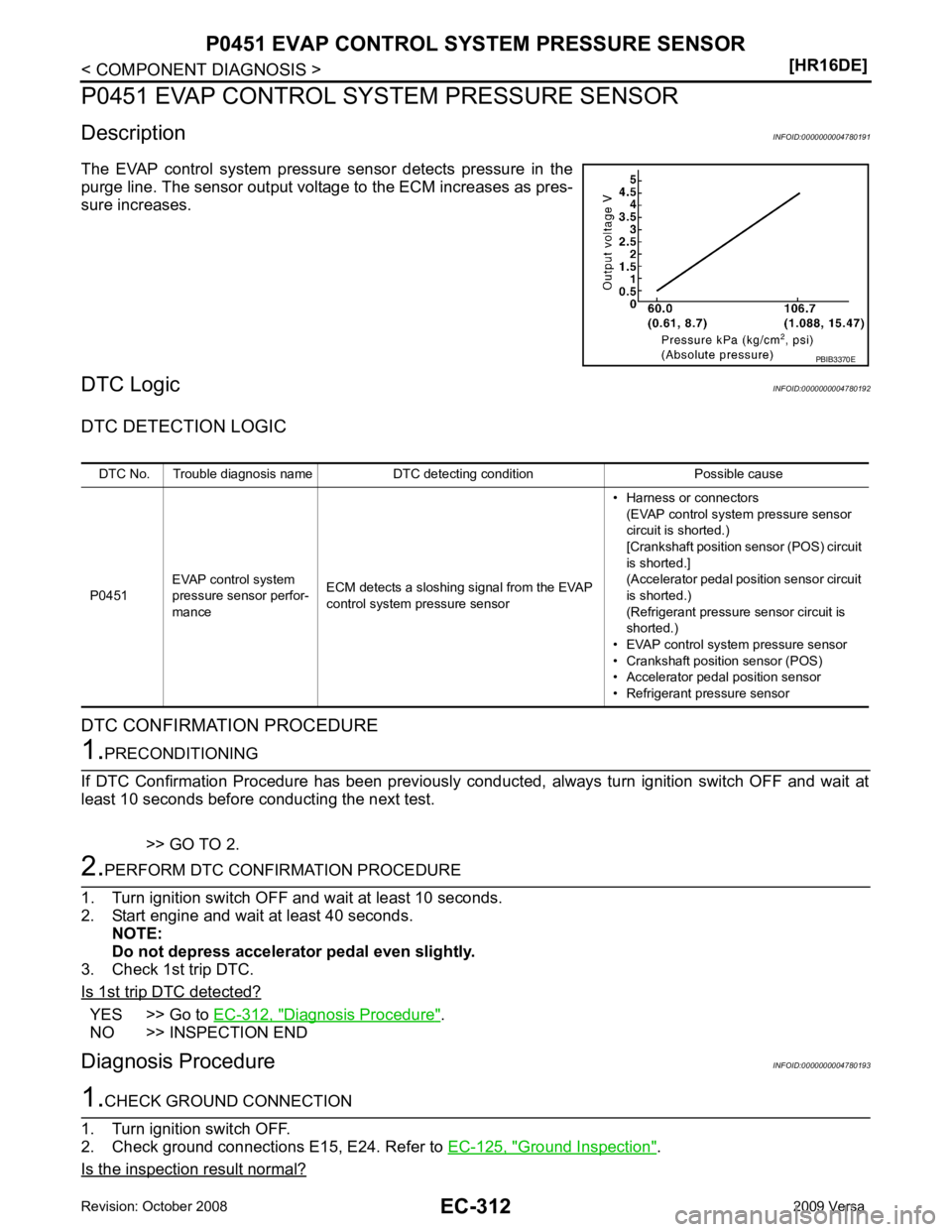

NO >> Replace EVAP control system pressure sensor ECM Condition
[Applied vacuum kPa
(kg/cm 2
, psi) Voltage
Connector Terminal
F11 42
(EVAP control system
pressure sensor signal) Not applied 1.8 - 4.8 V
-26.7 (-0.272, -3.87) 2.1 to 2.5 V lower
than above value
