NISSAN LATIO 2009 Service Repair Manual

EI-10< SYMPTOM DIAGNOSIS >
SQUEAK AND RATTLE TROUBLE DIAGNOSIS
Diagnostic Worksheet INFOID:0000000004307212 LAIA0072E

SQUEAK AND RATTLE TROUBLE DIAGNOSIS
EI-11
< SYMPTOM DIAGNOSIS >
C
D E
F
G H
J
K L
M A
B EI
N
O P LAIA0071E

SBT095
SBF258G
MBF519B
SBF104B

EI
N
O P
CE107
CE117
CF110
CF118
CG101 CS101

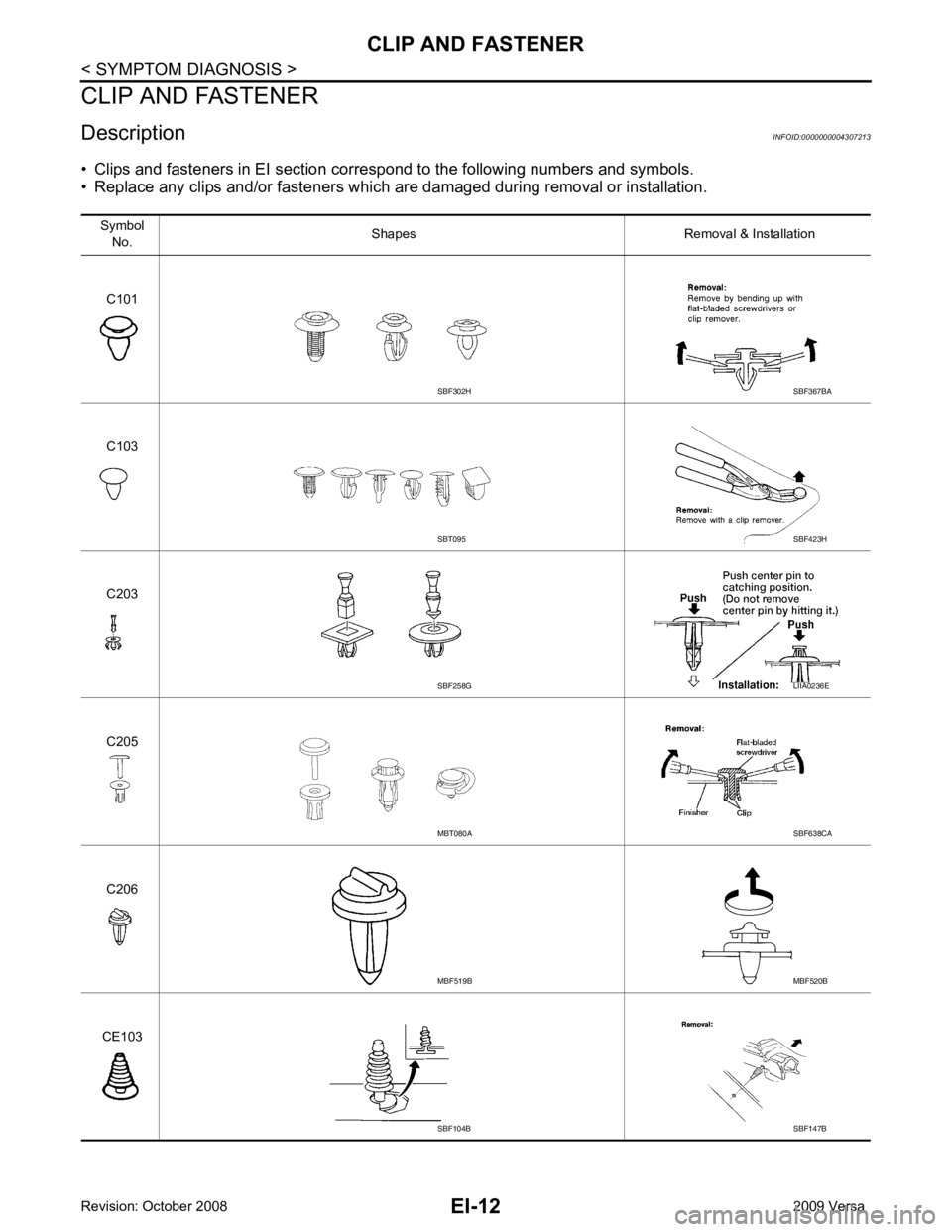

Symbol

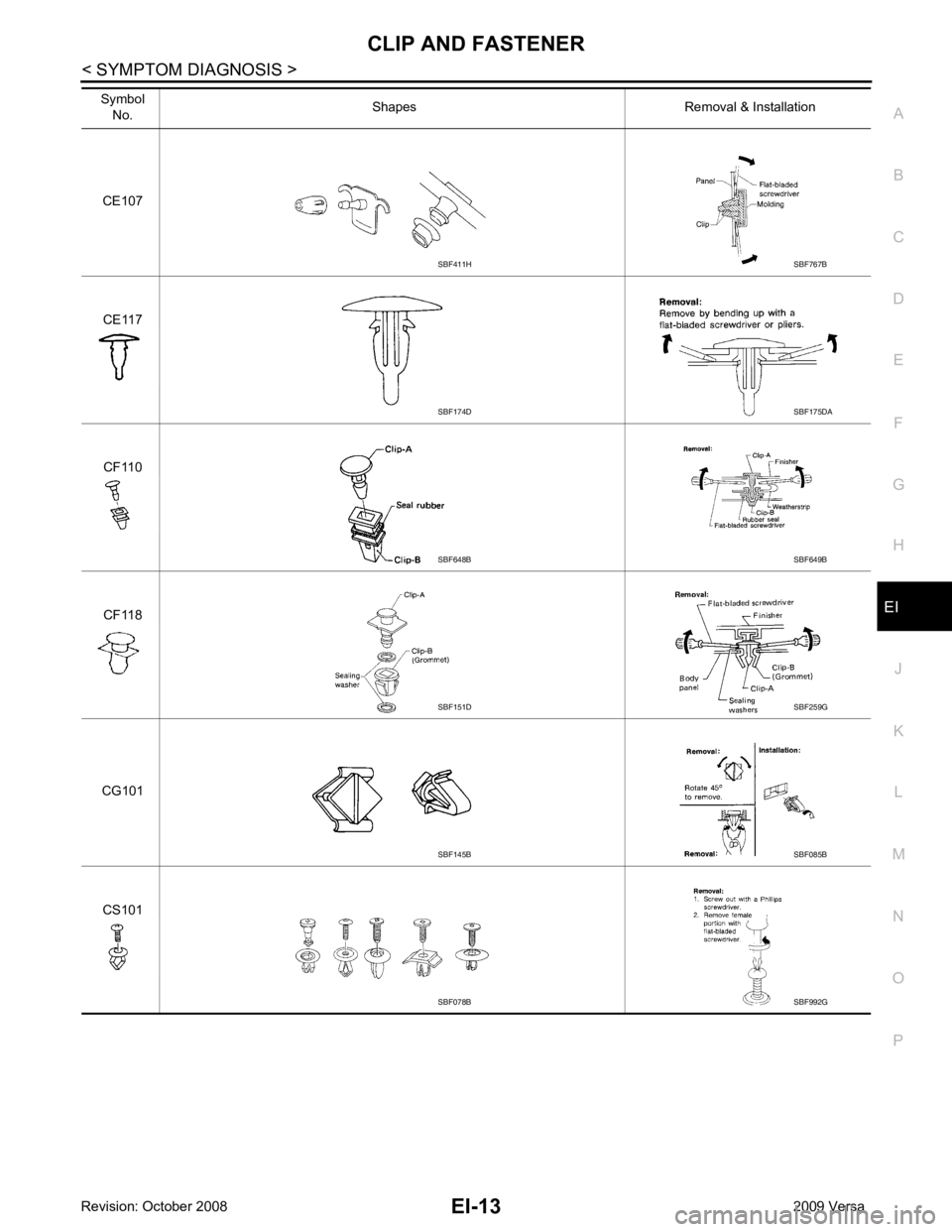

No. Shapes Removal & Installation SBF174D
SBF648B
SBF151D
SBF078B

WBT072

EI
N
O P
ON-VEHICLE REPAIR

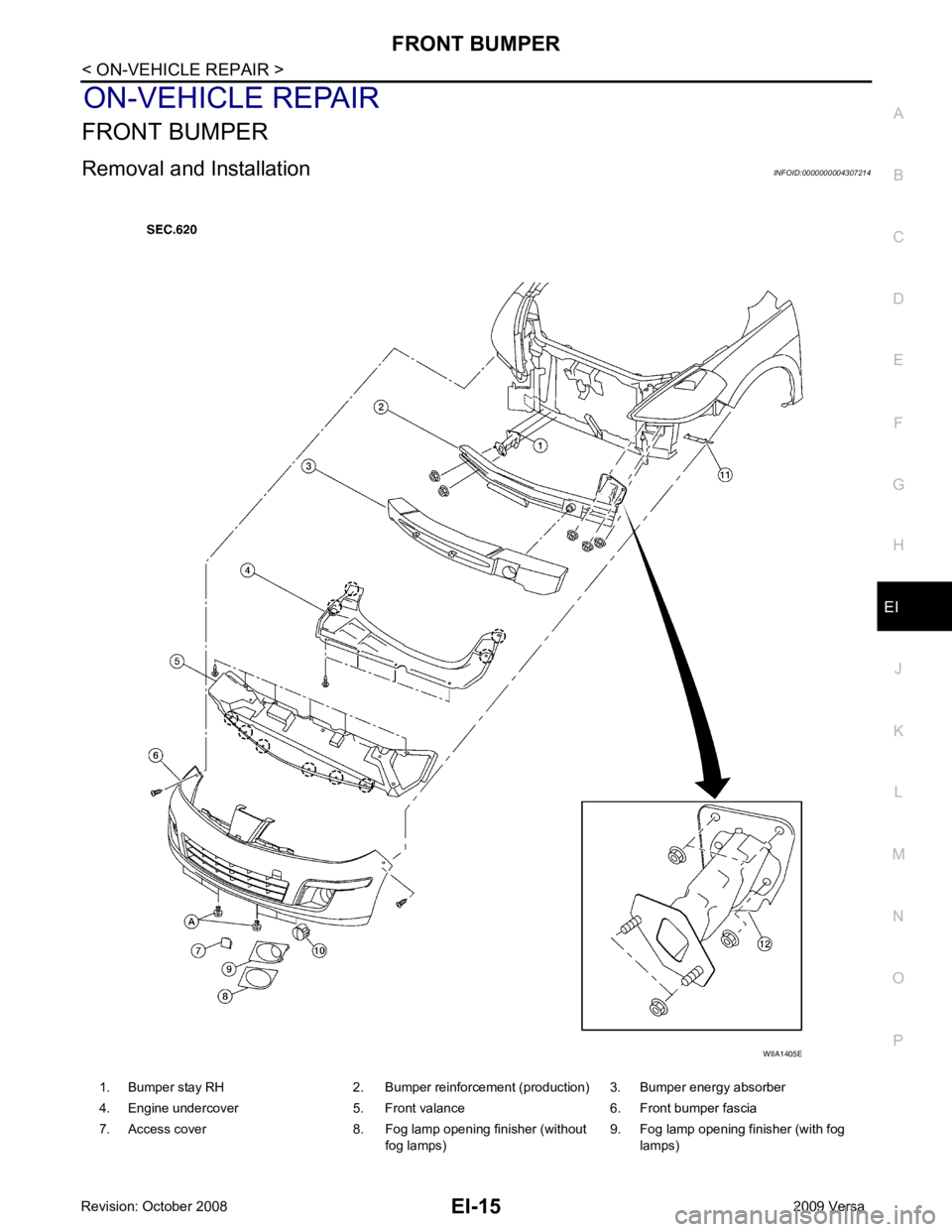

FRONT BUMPER
Removal and Installation INFOID:0000000004307214
1. Bumper stay RH 2. Bumper reinforcement (production) 3. Bumper energy absorber
4. Engine undercover 5. Front valance 6. Front bumper fascia
7. Access cover 8. Fog lamp opening finisher (without fog lamps)9. Fog lamp opening finisher (with fog
lamps)

.

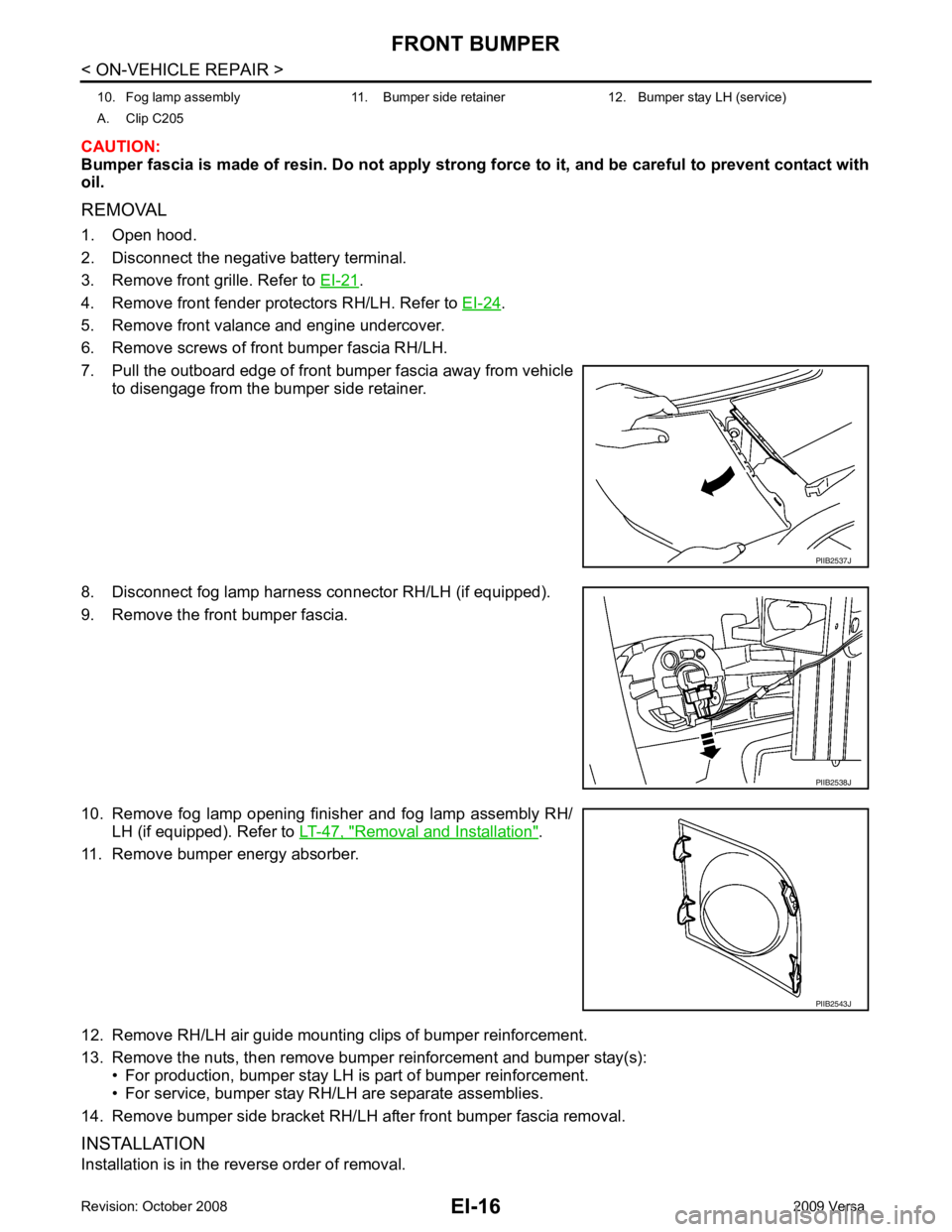

4. Remove front fender protectors RH/LH. Refer to EI-24 .
5. Remove front valance and engine undercover.
6. Remove screws of front bumper fascia RH/LH.
7. Pull the outboard edge of front bumper fascia away from vehicle to disengage from the bumper side retainer.
8. Disconnect fog lamp harness connector RH/LH (if equipped).
9. Remove the front bumper fascia.
10. Remove fog lamp opening finisher and fog lamp assembly RH/ LH (if equipped). Refer to LT-47, " Removal and Installation " .
11. Remove bumper energy absorber.
12. Remove RH/LH air guide mounting clips of bumper reinforcement.
13. Remove the nuts, then remove bumper reinforcement and bumper stay(s): • For production, bumper stay LH is part of bumper reinforcement.
• For service, bumper stay RH/LH are separate assemblies.
14. Remove bumper side bracket RH/LH after front bumper fascia removal.
INSTALLATION
Installation is in the reverse order of removal. 10. Fog lamp assembly 11. Bumper side retainer 12. Bumper stay LH (service)
A. Clip C205 PIIB2543J

EI
N
O P

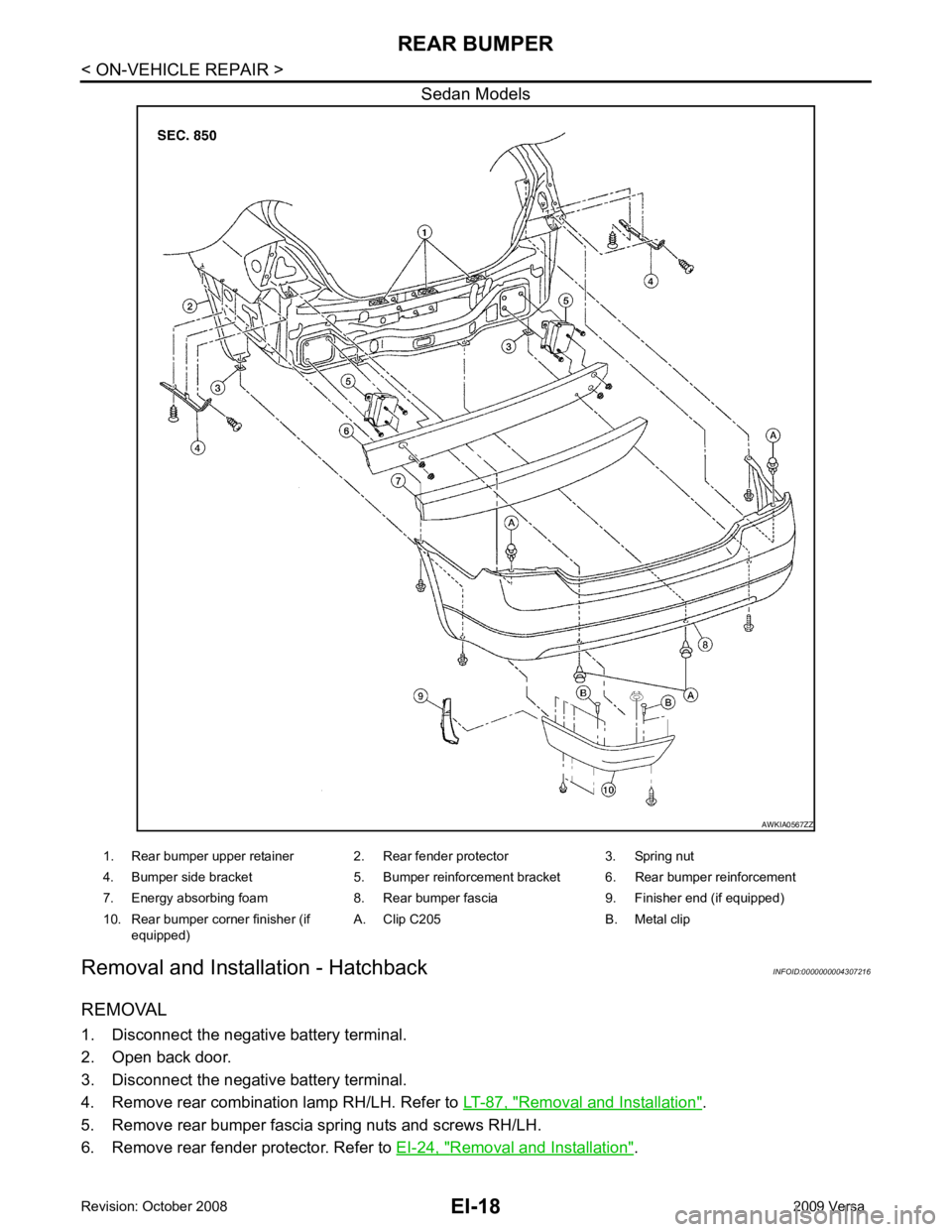

REAR BUMPER

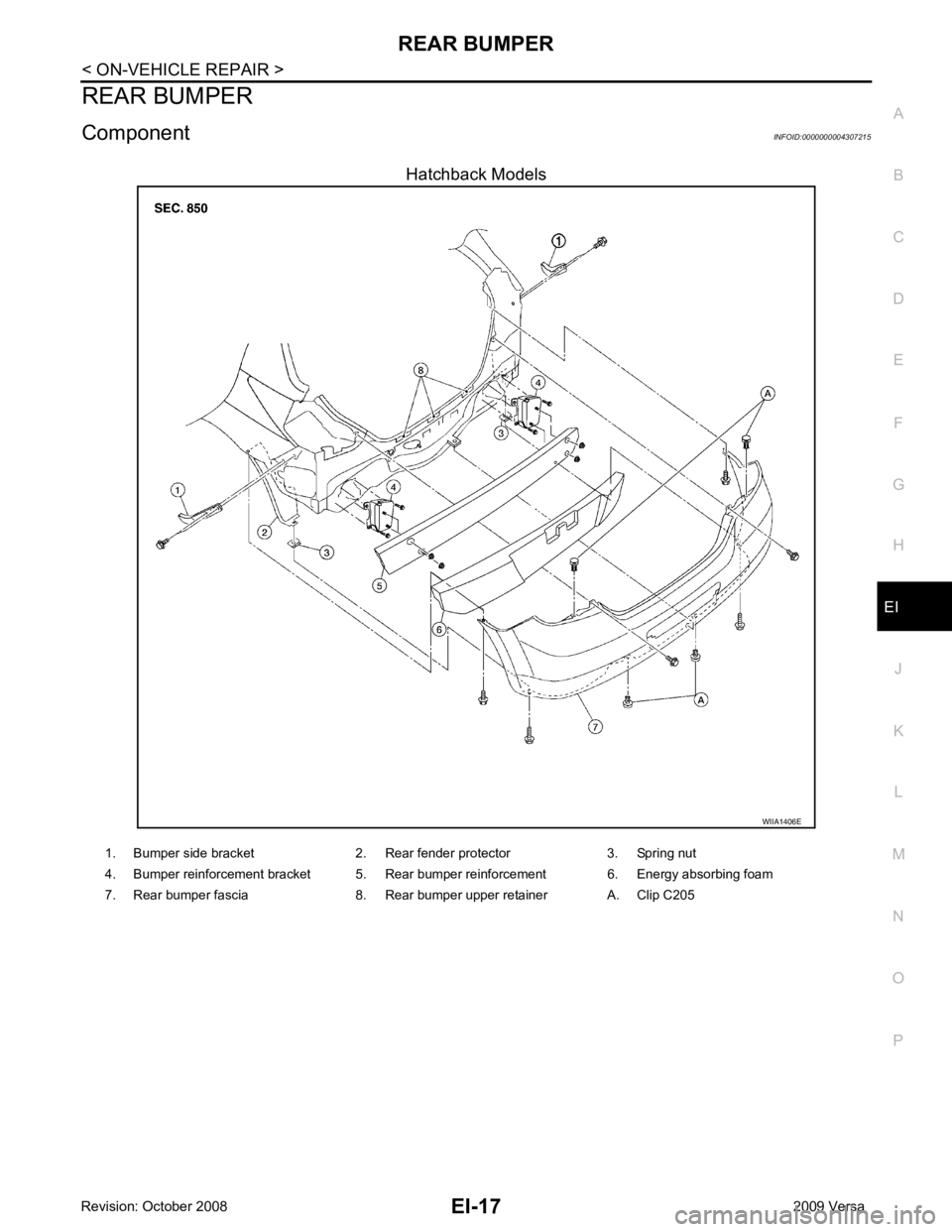

Component INFOID:0000000004307215
Hatchback Models

Removal and Installation " .
5. Remove rear bumper fascia spring nuts and screws RH/LH.
6. Remove rear fender protector. Refer to EI-24, " Removal and Installation " .

EI
N
O P

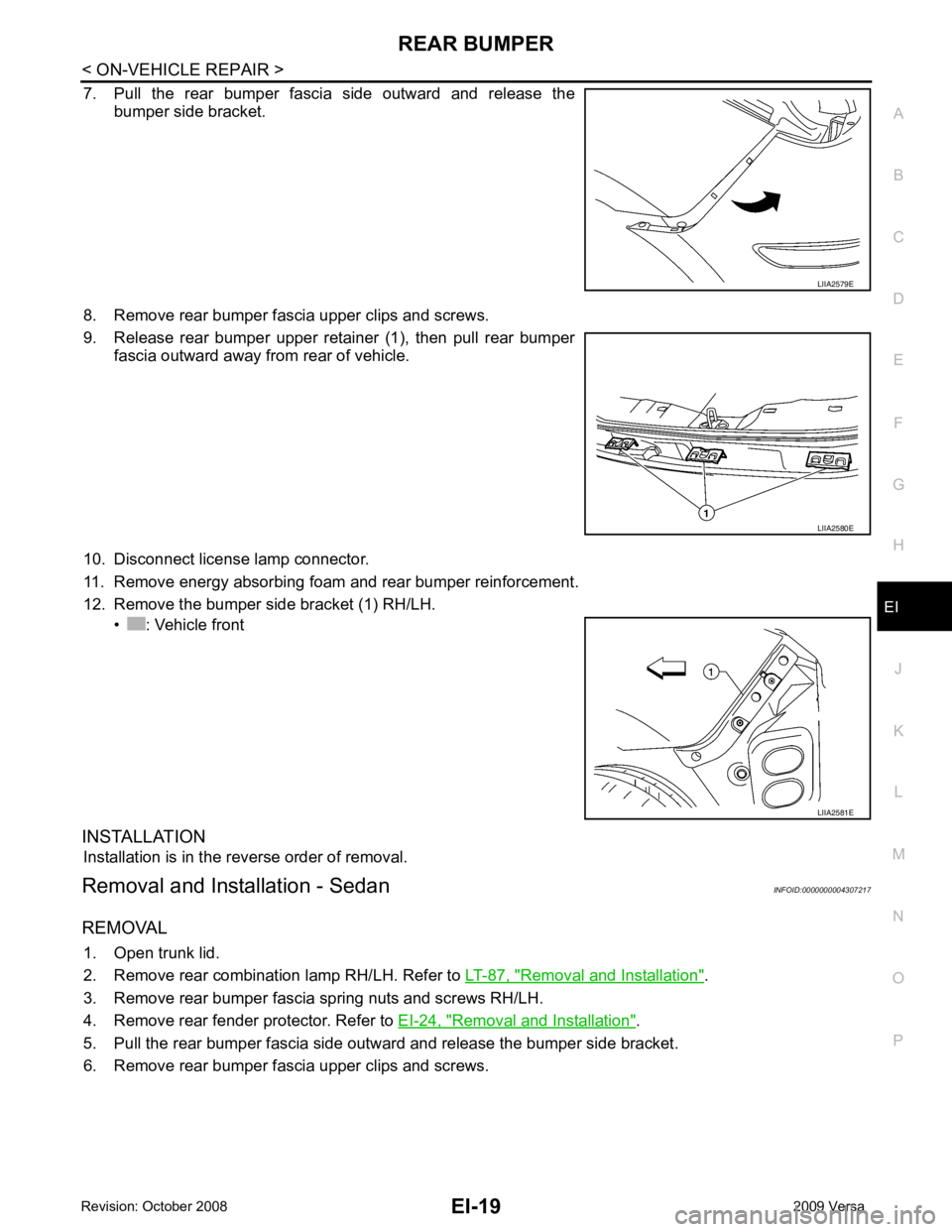

7. Pull the rear bumper fascia side outward and release the
bumper side bracket.
8. Remove rear bumper fascia upper clips and screws.
9. Release rear bumper upper retainer (1), then pull rear bumper fascia outward away from rear of vehicle.
10. Disconnect license lamp connector.
11. Remove energy absorbing foam and rear bumper reinforcement.
12. Remove the bumper side bracket (1) RH/LH. • : Vehicle front
INSTALLATION Installation is in the reverse order of removal.
Removal and Installation - Sedan INFOID:0000000004307217
REMOVAL 1. Open trunk lid.
2. Remove rear combination lamp RH/LH. Refer to LT-87, " Removal and Installation " .
3. Remove rear bumper fascia spring nuts and screws RH/LH.
4. Remove rear fender protector. Refer to EI-24, " Removal and Installation " .
5. Pull the rear bumper fascia side outward and release the bumper side bracket.
6. Remove rear bumper fascia upper clips and screws. LIIA2580E
