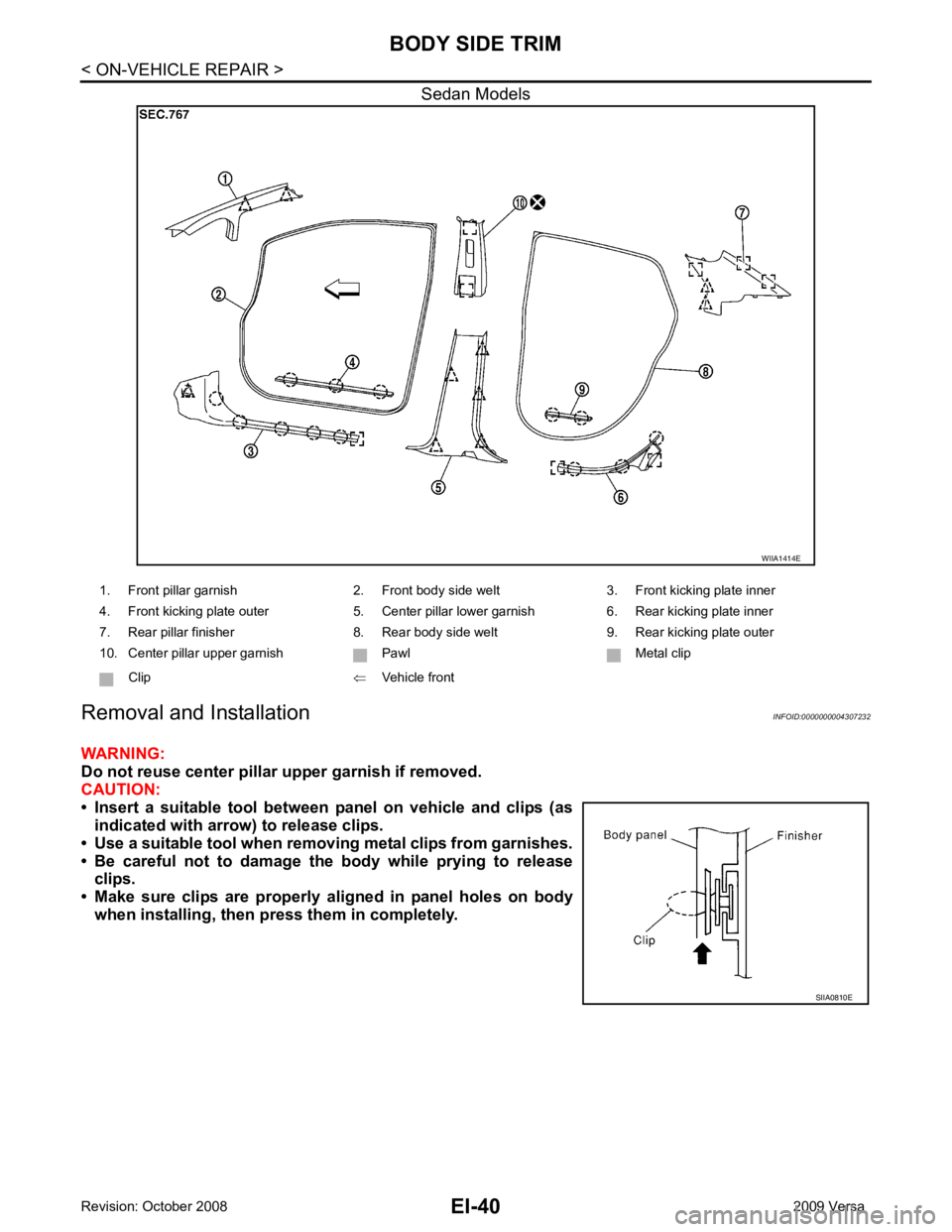

• When releasing molded-in pawls or
resin clips, follow the steps below to prevent garnish or clip
damage.

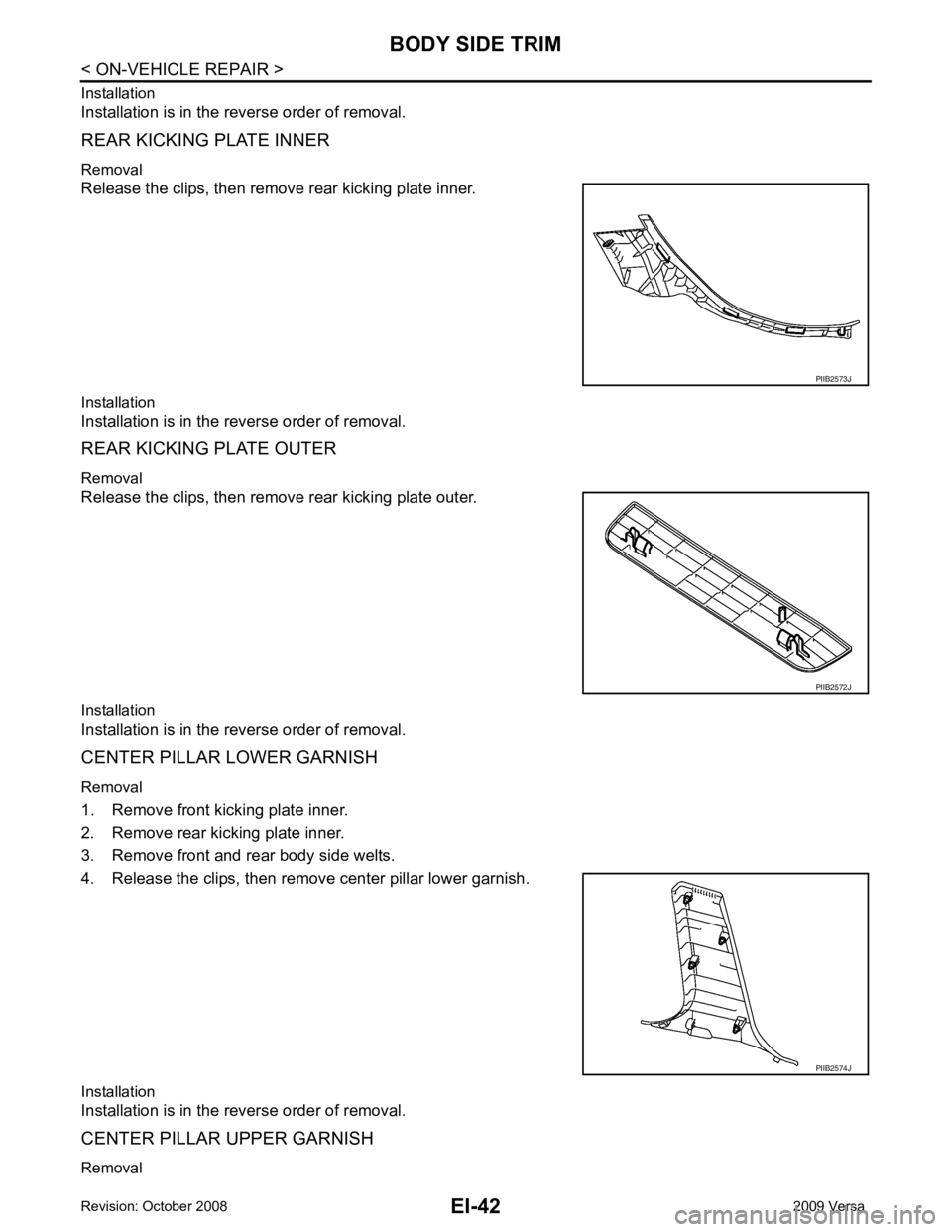

FRONT PILLAR GARNISH
Removal Release the clips, then remove front pillar garnish.
Installation Installation is in the reverse order of removal.
FRONT KICKING PLATE INNER
Removal Release the clips, then remove front kicking plate inner.
Installation Installation is in the reverse order of removal.
FRONT KICKING PLATE OUTER
Removal Release the clips, then remove front kicking plate outer. PIIB2569J
PIIB2571J

PIIB2572J
PIIB2574J

EI
N
O P
WARNING:

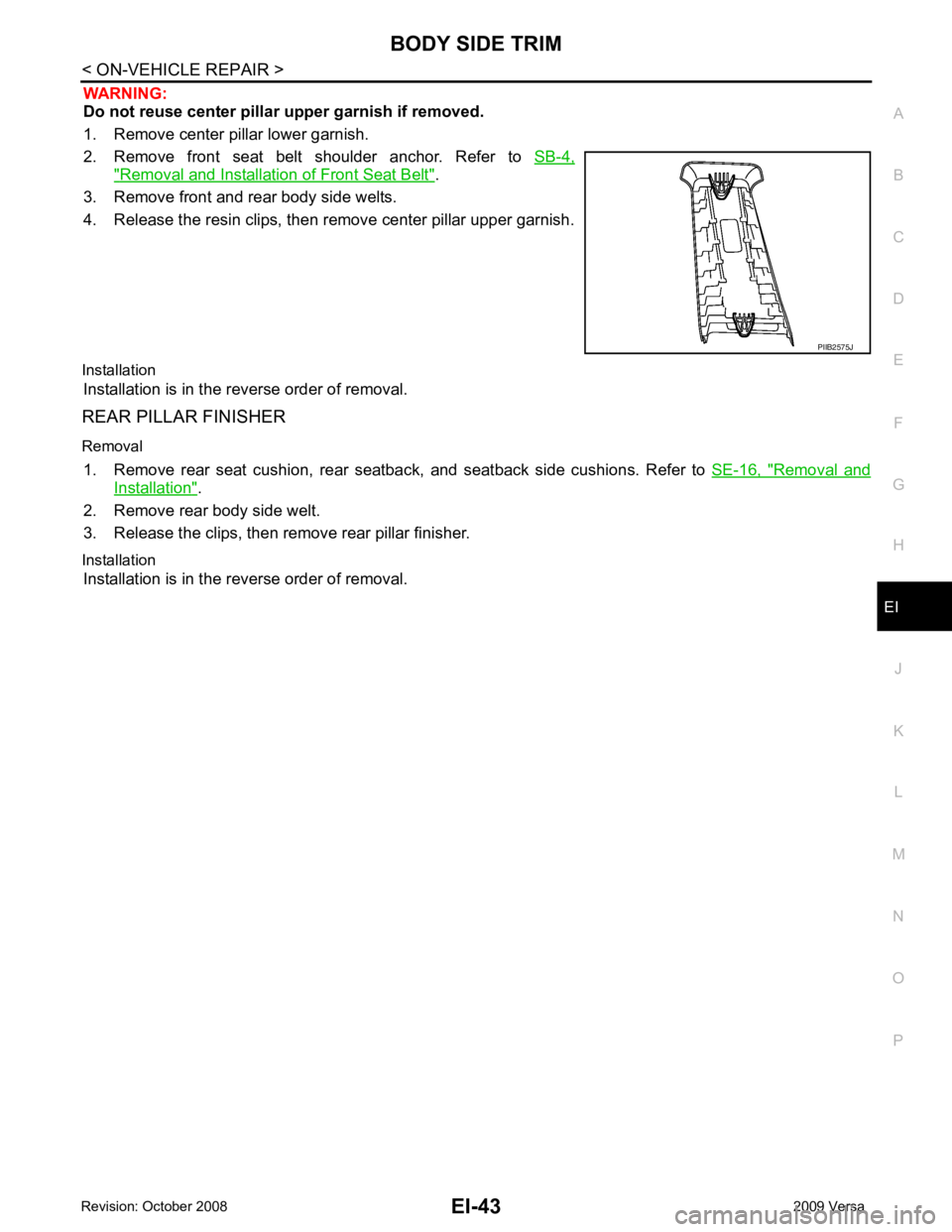

Do not reuse center pillar upper garnish if removed.
1. Remove center pillar lower garnish.
2. Remove front seat belt shoulder anchor. Refer to SB-4," Removal and Installation of Front Seat Belt " .
3. Remove front and rear body side welts.
4. Release the resin clips, then remove center pillar upper garnish.
Installation Installation is in the reverse order of removal.
REAR PILLAR FINISHER
Removal 1. Remove rear seat cushion, rear seat back, and seatback side cushions. Refer to SE-16, " Removal and
Installation " .
2. Remove rear body side welt.
3. Release the clips, then remove rear pillar finisher.
Installation Installation is in the reverse order of removal.

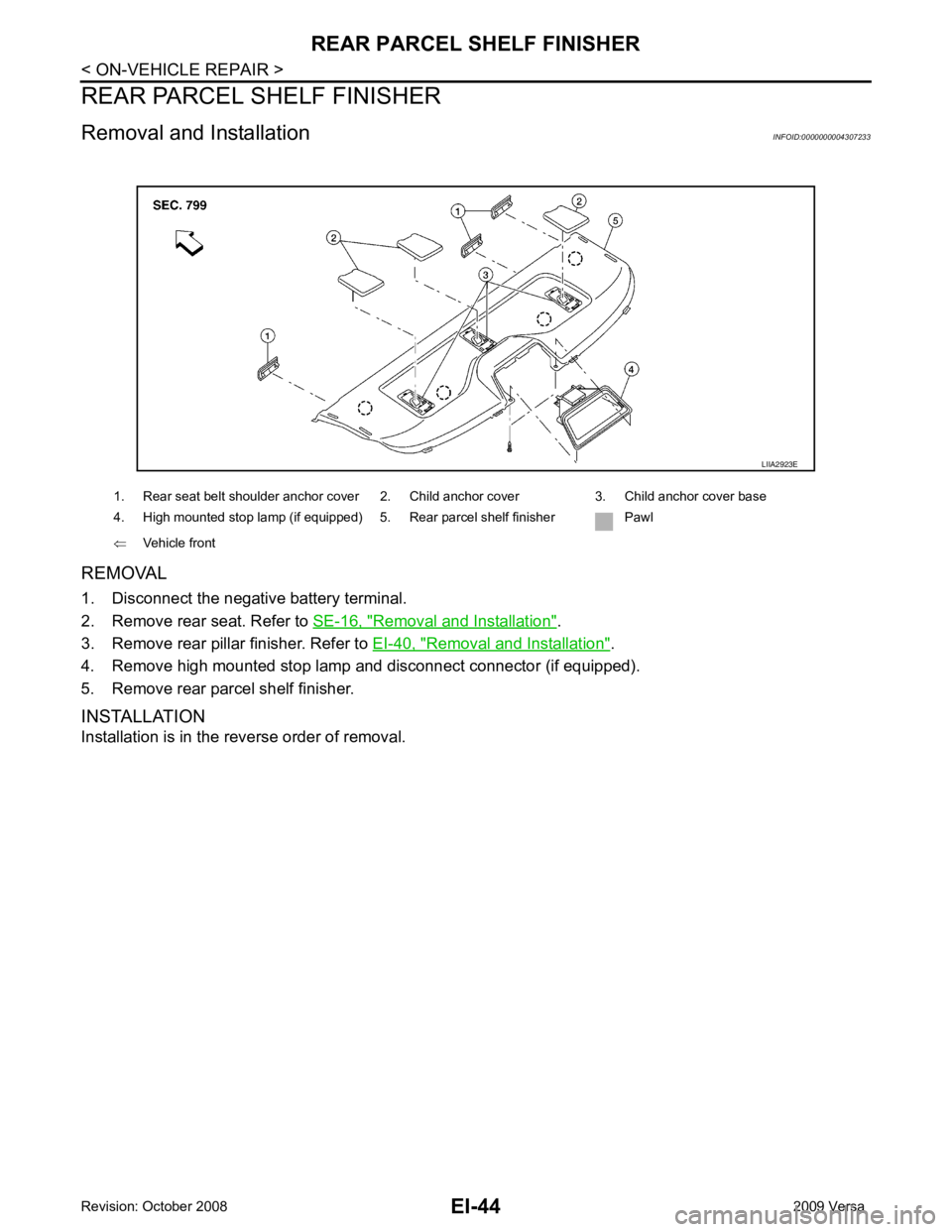

Removal and Installation " .
3. Remove rear pillar finisher. Refer to EI-40, " Removal and Installation " .
4. Remove high mounted stop lamp and disconnect connector (if equipped).
5. Remove rear parcel shelf finisher.
INSTALLATION
Installation is in the reverse order of removal.

EI
N
O P

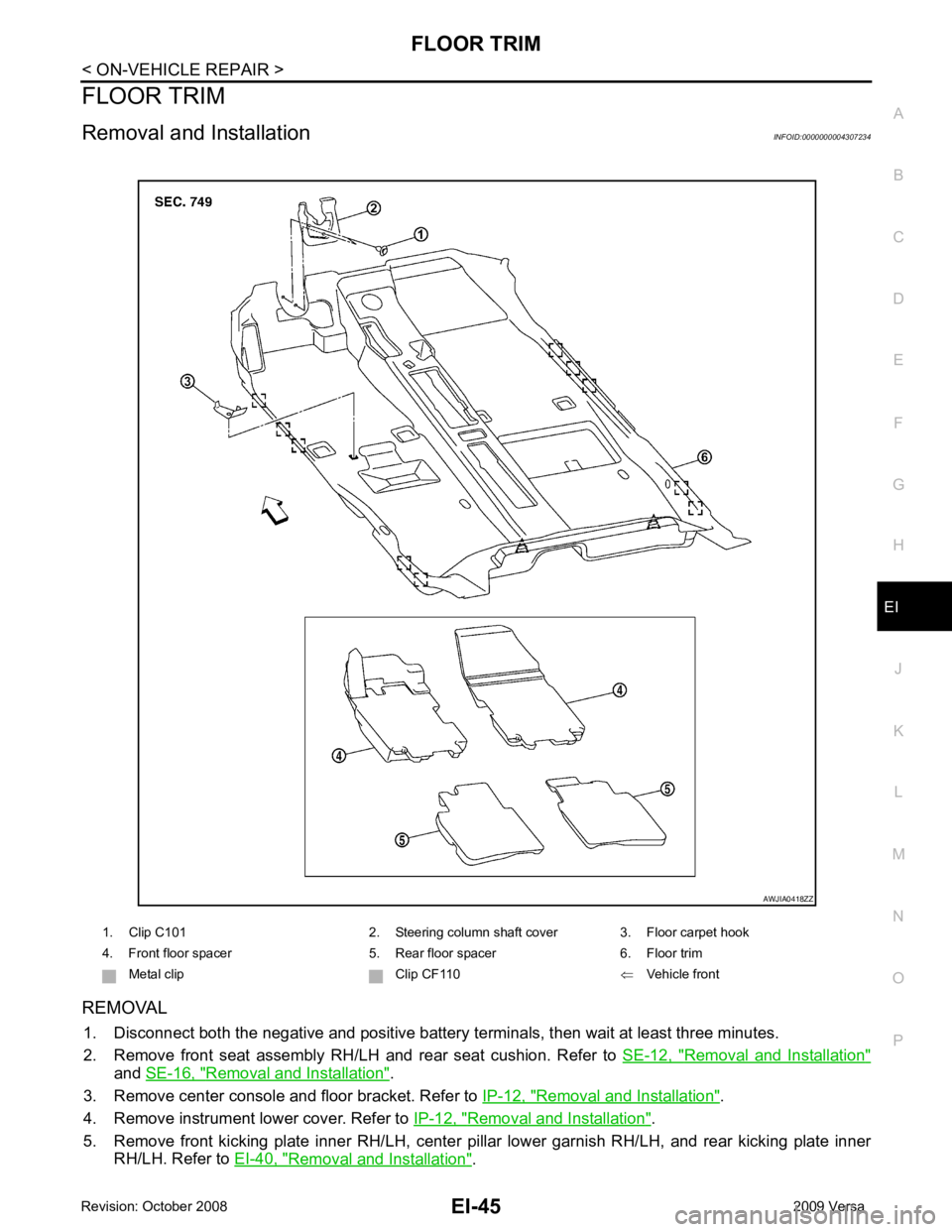

FLOOR TRIM
Removal and Installation INFOID:0000000004307234
REMOVAL 1. Disconnect both the negative and positive battery te rminals, then wait at least three minutes.
2. Remove front seat assembly RH/LH and rear seat cushion. Refer to SE-12, " Removal and Installation "
and
SE-16, " Removal and Installation " .
3. Remove center console and floor bracket. Refer to IP-12, " Removal and Installation " .
4. Remove instrument lower cover. Refer to IP-12, " Removal and Installation " .
5. Remove front kicking plate inner RH/LH, center pillar lower garnish RH/LH, and rear kicking plate inner
RH/LH. Refer to EI-40, " Removal and Installation " .
1. Clip C101 2. Steering column shaft cover 3. Floor carpet hook
4. Front floor spacer 5. Rear floor spacer 6. Floor trim Metal clip Clip CF110 ⇐Vehicle front

.
8. Remove key interlock cable. Refer to AT-218 .
9. Remove floor carpet hook.

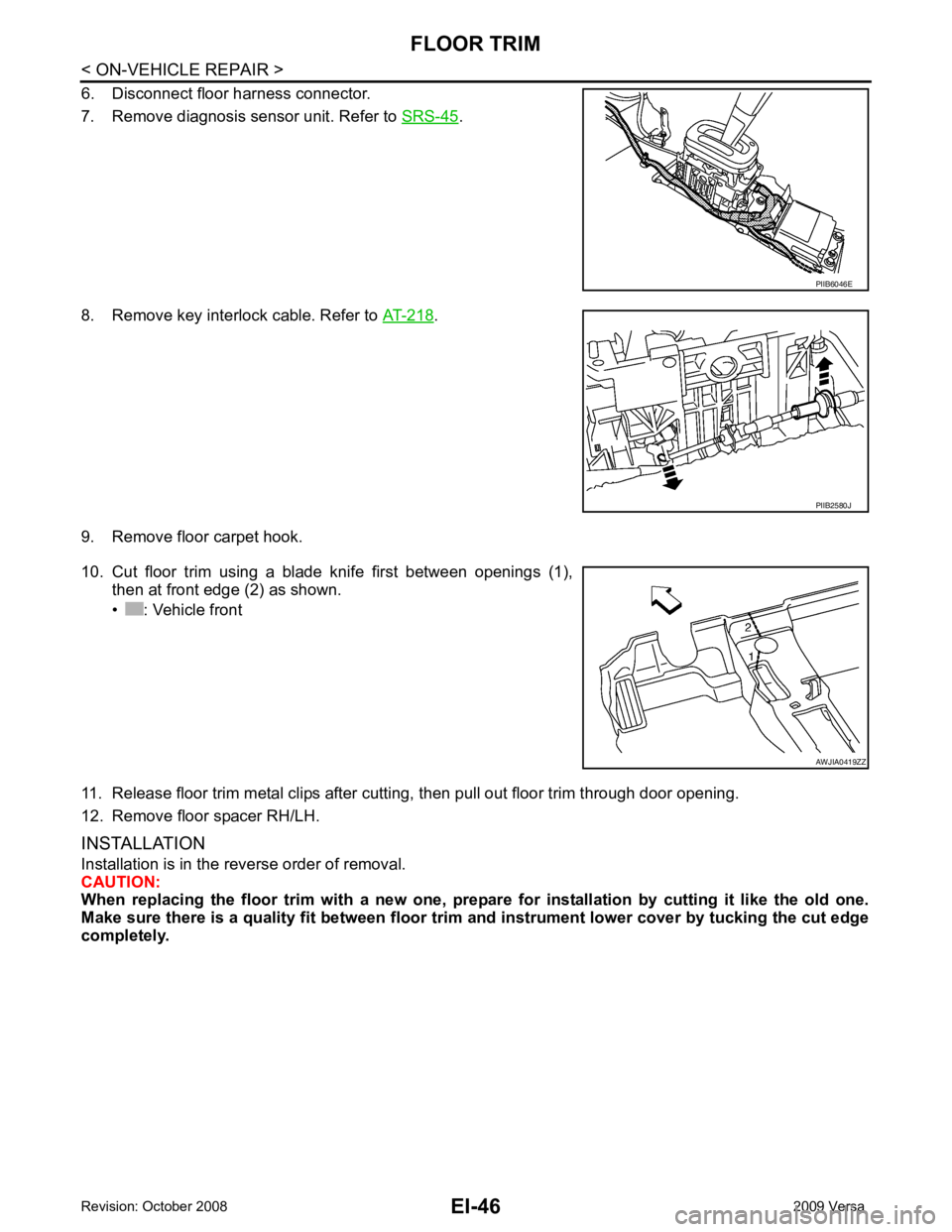

10. Cut floor trim using a blade knife first between openings (1), then at front edge (2) as shown.
• : Vehicle front
11. Release floor trim metal clips after cutting, then pull out floor trim through door opening.
12. Remove floor spacer RH/LH.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
When replacing the floor trim with a new one, prepar e for installation by cutting it like the old one.
Make sure there is a quality fit between floor trim and instrument lower cover by tucking the cut edge
completely. PIIB2580J

EI
N
O P
HEADLINING

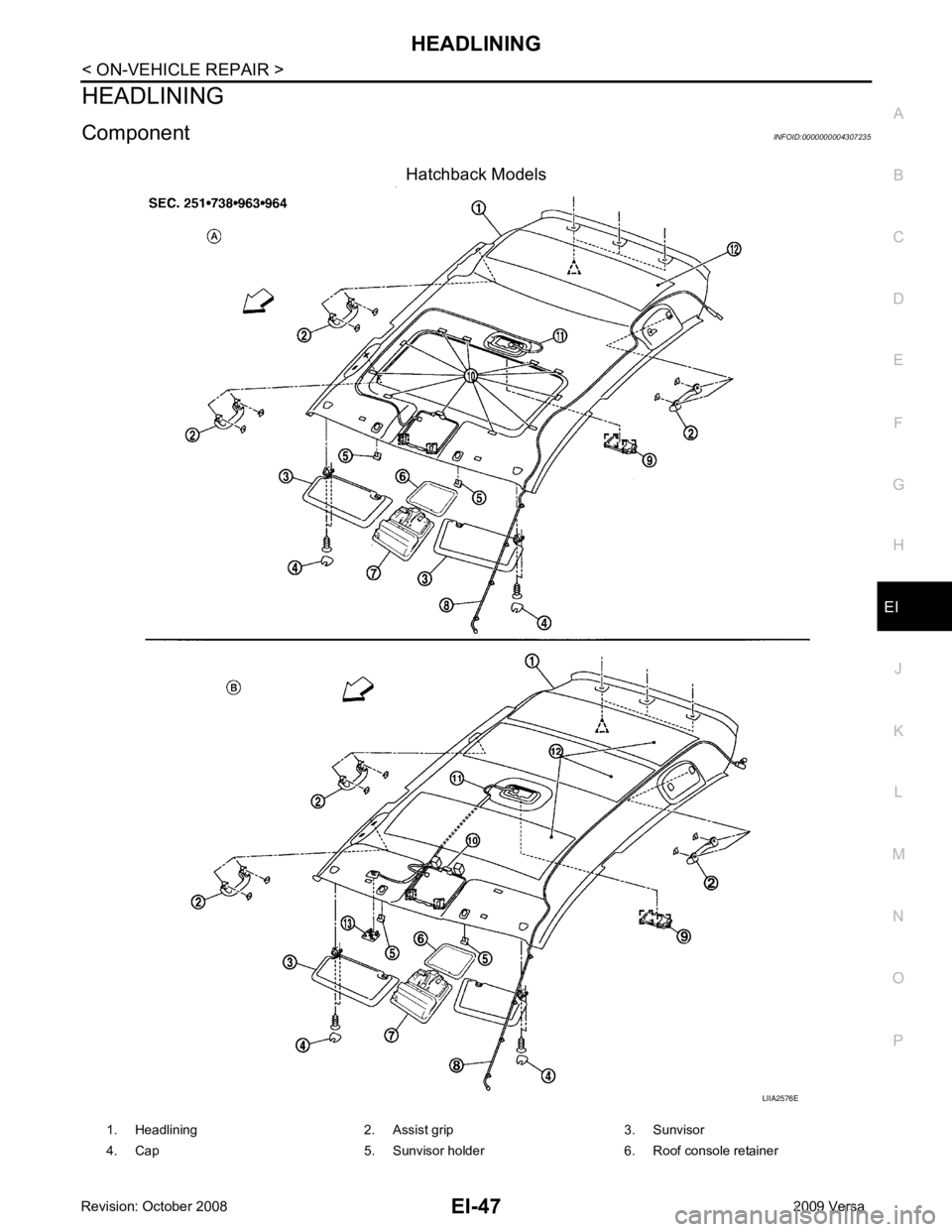

Component INFOID:0000000004307235
Hatchback Models

EI
N
O P
Removal and Installation - Hatchback
INFOID:0000000004307236
REMOVAL 1. Disconnect the negative and positive battery term inals, then wait at least three minutes.
2. Remove front seat assembly RH/LH. Refer to SE-12, " Removal and Installation " .
3. Remove rear seat cushion and rear seatback. Refer to SE-16, " Removal and Installation " .
4. Remove front seat belt shoulder anchor RH/LH. Refer to SB-4, " Removal and Installation of Front Seat
Belt " .
5. Remove center console body assembly. Refer to IP-11 .
6. Remove front pillar garnish RH/LH. Refer to EI-40, " Removal and Installation " .
7. Remove antenna feeder cable clip, then disconnect antenna feeder cable connector.
8. Remove front and rear kicking plate inner RH/LH, cent er pillar lower garnish, center pillar upper garnish,
front and rear body side welt RH/LH. Refer to EI-40, " Removal and Installation " .
WARNING:
Do not reuse center pillar upper garnish if removed.
9. Remove back door weatherstrip. Refer to EI-38 .
10. Release the clips using a suitable tool, then remove the front and rear assist grips.

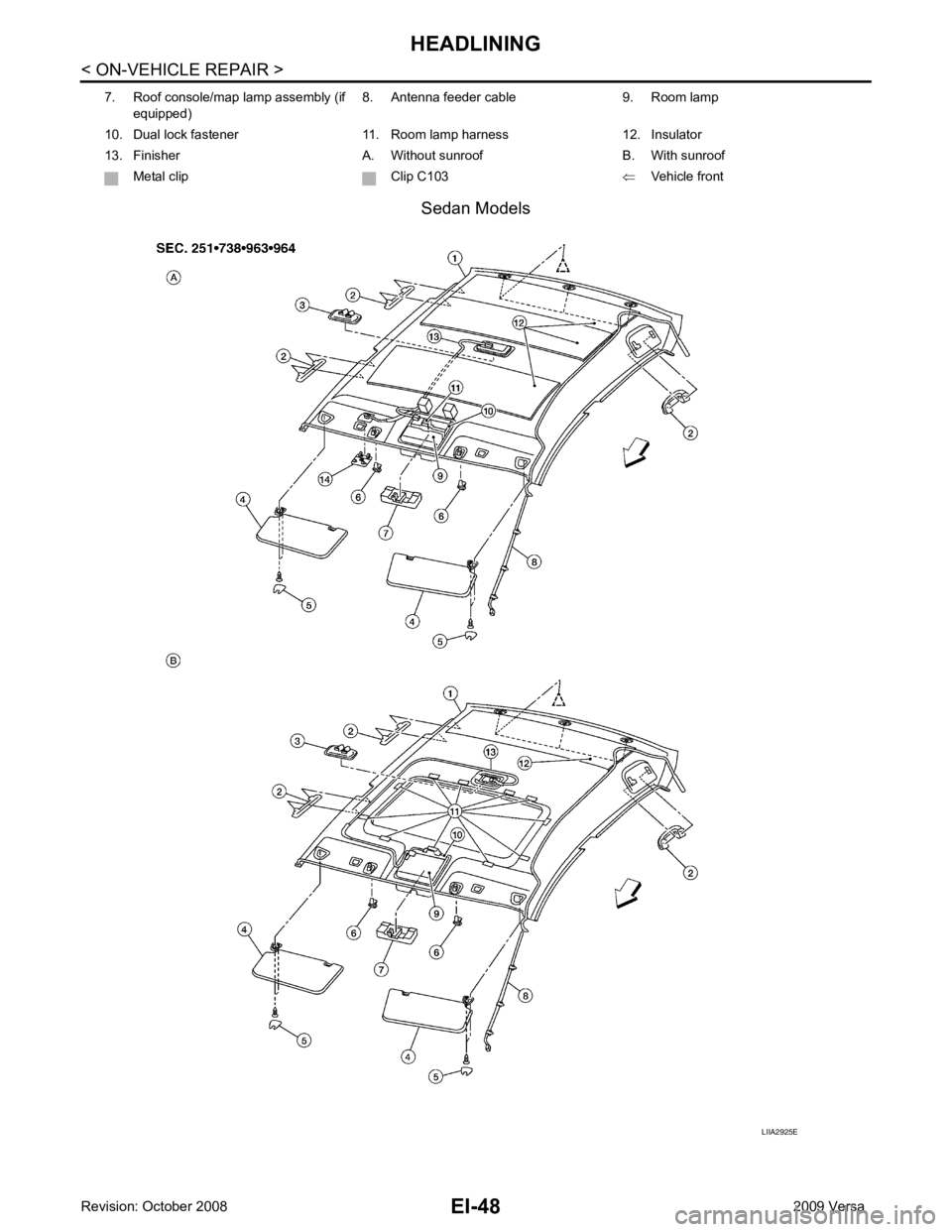

11. Remove the sunvisor caps and screws, then remove sunvisor RH/LH. 1. Headlining 2. Assist grip 3. Room lamp
4. Sunvisor 5. Cap 6. Sunvisor holder
7. Map lamp assembly (if equipped) 8. Antenna feeder cable 9. Roof console assembly (if equipped)
10. Roof plate (if equipped) 11. Dual lock fastener 12. Insulator
13. Room lamp harness 14. Cover A. With sunroof
B. Without sunroof Clip C103 ⇐Vehicle front PIIB2584J
