NISSAN LATIO 2010 Service Repair Manual

AV-34
< SERVICE INFORMATION >[AUDIO WITHOUT NAVIGATION]
AUDIO ANTENNA
• : Vehicle front
7. Remove the roof antenna.
INSTALLATION
Installation is in the reverse order of removal.
SKIB4772E
Revision: January 20102010 Versa

TELEPHONEAV-35
< SERVICE INFORMATION > [AUDIO WITHOUT NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
TELEPHONE
Component Parts and Har ness Connector LocationINFOID:0000000005395333
System DescriptionINFOID:0000000005395334
BLUETOOTH® HANDS-FREE PHONE SYSTEM
Refer to the Owner's Manual for Bluetooth telephone system operating instructions.
NOTE:
Cellular telephones must have their wireless connection set up (paired) before using the Bluetooth telephone
system.
Bluetooth telephone system allows users who have a Bl uetooth cellular telephone to make a wireless connec-
tion between their cellular telephone and the Bluetooth control unit. Hands-free cellular telephone calls can be
sent and received. Personal memos can be created using the NISSAN Voice Recognition system. Some Blue-
AWNIA2073ZZ
1. Audio unit M43, M44 2. Steering wheel audio control
switches 3. Combination meter M24
4. Bluetooth microphone R15 5. Bluetooth antenna (hatchback) 6. Bluetooth control unit B121, B122 (hatch-
back) [view with luggage side lower finish-
er (RH) removed]
7. Bluetooth antenna (sedan) 8. Bluetooth control unit B121, B122
(sedan) (view with trunk side fin-
isher RH removed)
Revision: January 20102010 Versa

AV-36
< SERVICE INFORMATION >[AUDIO WITHOUT NAVIGATION]
TELEPHONE
tooth cellular telephones may not be recognized by t
he Bluetooth control unit. When a cellular telephone or
the Bluetooth control unit is replaced, the telephone mu st be paired with the Bluetooth control unit. Different
cellular telephones may have different pairing procedures. Refer to the cellular telephone operating manual.
Bluetooth Telephone System Diagram
Bluetooth Control Unit
When the ignition switch is turned to ACC or ON, the Bluetooth control unit will power up. During power up, the
Bluetooth control unit is initialized and performs various self checks. Initialization may take up to 10 seconds. If
a phone is present in the vehicle and paired with the Bluetooth control unit, NISSAN Voice Recognition will
then become active. Bluetooth telephone functions can be turned off using the NISSAN Voice Recognition
system. For Bluetooth contro l unit location, refer to AV-35, "
Component Parts and Harness Connector Loca-
tion".
Steering Wheel Audio Control Switches
When buttons on the steering wheel audio control switch are pushed, the resistance in steering wheel audio
control switch circuit changes depending on which button is pushed. The Bluetooth control module uses this
signal to perform various functions while navigating through the voice recognition system.
The following functions can be performed using the steering wheel audio control switch:
• Initiate Self Diagnosis of the Bluetooth telephone system
• Start a voice recognition session
• Answer and end telephone calls
• Adjust the volume of calls
• Record memos
Volume Switch
Call volume can be adjusted using the audio unit volume switch.
Bluetooth Microphone
The Bluetooth microphone is located in the roof console assembly. The Bluetooth microphone sends a signal
to the Bluetooth control unit. The Bluetooth microphone c an be actively tested during self-diagnosis. For Blue-
tooth microphone location, refer to AV-35, "
Component Parts and Harness Connector Location".
Audio Unit
The audio unit receives signals from the Bluetooth control unit and sends audio signals to the speakers.
AWNIA2074GB
Revision: January 20102010 Versa

TELEPHONEAV-37
< SERVICE INFORMATION > [AUDIO WITHOUT NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P

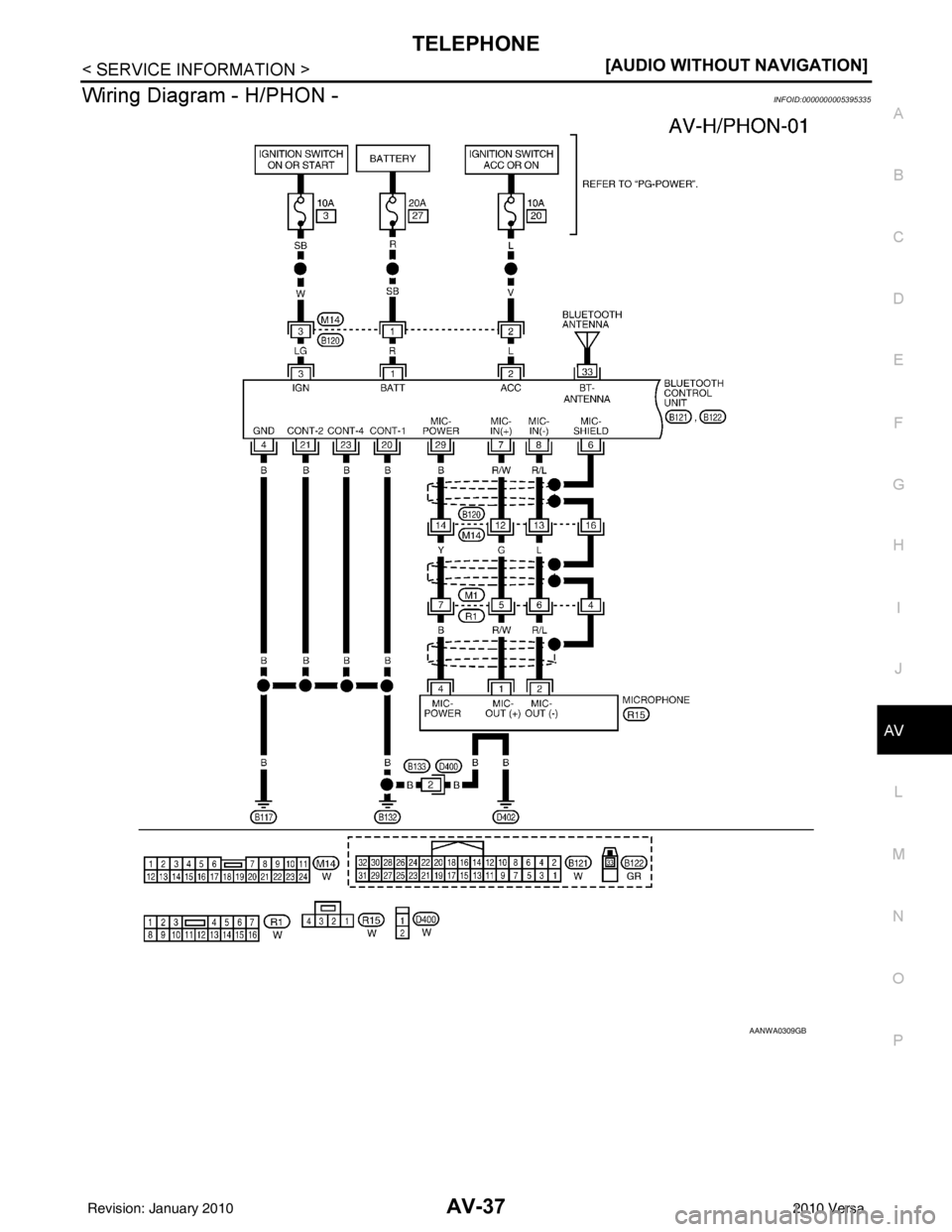

Wiring Diagram - H/PHON -INFOID:0000000005395335
AANWA0309GB
Revision: January 20102010 Versa

AV-38
< SERVICE INFORMATION >[AUDIO WITHOUT NAVIGATION]
TELEPHONE
AANWA0310GB
Revision: January 20102010 Versa

TELEPHONEAV-39
< SERVICE INFORMATION > [AUDIO WITHOUT NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
Bluetooth Control Unit Harnes s Connector Terminal LayoutINFOID:0000000005395336
Terminal and Reference Value for Bluetooth Control UnitINFOID:0000000005395337
AWNIA1988GB
Te r m i n a l
(Wire color) ItemSignal
input/
output Condition
Reference value
(Approx.) Example of symptom
+– Ignition
switch Operation
1 (R) Ground Battery pow-
erInput –
–Battery voltage System does not
work properly.
2 (L) Ground ACC power Input ACC/
ON –
Battery voltage System does not
work properly.
3 (LG) Ground IGN power Input ON/
START –
Battery voltage System does not
work properly.
4 (B) – Ground – – –– –
6 – Shield – –– – –
7 (R/W) 8 (R/L) Mic-in signal Input – ––Bluetooth Micro-
phone inoperative.
9 (LG) 10 (V) Audio out Output ACC/
ON Bluetooth control
unit sends audio
signal Audio can not be
heard.
11(O) – Mute Output – –5VMute inoperative.
12 (W) Ground Remote
control
switch 1
Input
ACC/
ON Press MODE
switch
0V
Steering wheel audio
control switches do
not function.
Press SEEK UP
switch
0.75V
Press VOL UP
switch 2V
Except for above 5V
13 (L) Ground Remote
control
switch 2Input
ACC/
ON Press POWER
switch
0V
Steering wheel audio
control switches do
not function.
Press SEEK
DOWN switch
0.75V
Press VOL
DOWN switch 2V
Except for above 5V
14 (B) – Remote
control
ground
Input –
– –Steering wheel audio
control switches do
not function.
SKIB3609E
Revision: January 20102010 Versa

AV-40
< SERVICE INFORMATION >[AUDIO WITHOUT NAVIGATION]
TELEPHONE
Bluetooth Control Unit Self-Diagnosis Function
INFOID:0000000005395338
The Bluetooth control unit has two diagnostic checks. The first diagnostic check is performed automatically
every ignition cycle during control unit initialization. The second diagnostic check is performed by the techni-
cian using the steering wheel audio control switches prior to trouble diagnosis.
17 (GR) Ground Audio unit
switch 1OutputACC/
ON Press Phone/End
switch
0V
Steering wheel audio
controls do not func-
tion.
Press SEEK UP
switch
0.75V
Press VOL UP
switch 2V
Except for above 5V
18 (P) Ground Audio unit
switch 2OutputACC/
ON Press Phone/
Send switch
0V
Steering wheel audio
controls do not func-
tion.
Press SEEK
DOWN switch
0.75V
Press VOL
DOWN switch 2V
Except for above 5V
19 (B) Ground Audio unit
switch
ground
Output –
––Steering wheel audio
controls do not func-
tion.
20 (B) – Cont-1 – – –– –
21 (B) – Cont-2 – – –– –
23 (B) – Cont-4 – – –– –
28 (O) Ground Vehicle
speed signal
(8–pulse)
Input ON When vehicle
speed is approx.
40 km/h (25
MPH) Speed sensitive vol-
ume is inoperative.
29 (B) Ground Bluetooth
Microphone
power
Output –
–5VBluetooth Micro-
phone inoperative.
33 – Bluetooth
antenna sig-
nalInput –
– – –
35 (L) — M CAN + — — —— —
36 (P) — M CAN - — — —— —
37 — M CAN
shield—— —
——
39 (Y/R) — M CAN
jumper 1
—— —
——
40 (Y/R) — M CAN 1 — — —— —
41 (SB) — M CAN
jumper 2—— —
——
42 (SB) — M CAN 2 — — —— —
Te r m i n a l
(Wire color) ItemSignal
input/
output Condition
Reference value
(Approx.) Example of symptom
+– Ignition
switch Operation
PKIC0643E
Revision: January 20102010 Versa

TELEPHONEAV-41
< SERVICE INFORMATION > [AUDIO WITHOUT NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
BLUETOOTH CONTROL UNIT INITIALIZATION CHECKS
• Internal control unit failure
• Bluetooth antenna connection open or shorted
• Steering wheel audio control swit ches (SEND/END) stuck closed
• Vehicle speed pulse count
• Bluetooth Microphone connection test (with playback to operator)
• Bluetooth inquiry check
SELF-DIAGNOSIS MODE
1. Turn ignition switch to ACC or ON.
2. Wait for the Bluetooth system to complete initialization and the Bluetooth ON indicator to stop flashing. This may take up to 10 seconds.
3. Press and hold the steering wheel audio control switch SEND button for at least 5 seconds. The Bluetooth system will begin to
play a verbal prompt.
4. While the prompt is playing, momentarily press both the steering wheel audio control switches SEND and END buttons simulta-
neously. The Bluetooth system will sound a 5 second beep.
5. While the beep is sounding, momentarily press both the steering wheel audio control switches SEND and END buttons simulta-
neously again.
6. The Bluetooth system has now entered into the diagnostic mode. Results of the diagnostic checks will be verbalized to the
technician. Refer to AV-41, "
Workflow".
7. If there are no failure records to report, the speed pulse count will be reported next.
8. After the speed pulse count is reported, an interactive Bluetooth microphone test will be performed. Follow the voice pr ompt. If the Bluetooth microphone test fails refer to
AV-41, "
Workflow".
9. Self-diagnosis mode is complete when the voice prompt says "All diagnostic functions completed". A short beep is heard.
WorkflowINFOID:0000000005395339
WKIA6003E
WKIA6004E
Flashing Pattern
(Bluetooth ON indicator) Failure Message
Action
1 "Internal failure" Replace Bluetooth control unit. Refer to AV-
45, "Removal and Installation".
2 "Bluetooth antenna open" 1. Inspect harness connection.
2. Replace Bluetooth antenna. Refer to
AV- 4 5 , "
Removal and Installation".
3
"Bluetooth antenna shorted"
4 "Phone/Send for the Hands Free Phone
System is stuck"
Check steering wheel audio control switch-
es. Refer to
AV- 2 2 , "
Steering Switch Check
(With Bluetooth)".
5 "Phone/End for the Hands Free Phone
System is stuck"
– "Bluetooth Microphone test" (failed interac-
tive test) 1. Inspect harness between Bluetooth
control unit and Bluetooth micro-
phone.
2. Replace Bluetooth microphone. Refer
to AV- 4 5 , "
Removal and Installation".
Revision: January 20102010 Versa

AV-42
< SERVICE INFORMATION >[AUDIO WITHOUT NAVIGATION]
TELEPHONE
Power Supply and Ground Circuit Inspection for Bluetooth Control Unit
INFOID:0000000005395340
1.CHECK FUSES
Make sure the following fuses for the Bluetooth control unit are not blown.
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
4.
2.CHECK POWER SUPPLY CIRCUIT
1. Disconnect Bluetooth control unit connector B121.
2. Check voltage between connector terminals and ground as fol- lows.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open between Bluetooth control unit and fuse.
3.CHECK GROUND CIRCUITS
1. Turn ignition switch OFF.
2. Check continuity between the following Bluetooth control unit terminals and ground.
OK or NG
OK >> Inspection End.
NG >> Repair or replace harness.
Steering Wheel Audio Control Switch Does Not OperateINFOID:0000000005395342
1.CHECK STEERING WHEEL AUDIO CONTROL SWITCH RESISTANCE
1. Turn ignition switch OFF.
2. Disconnect steering wheel audio control switch connector.
Te r m i n a l s Ignition Switch Fuse No.
Connector Terminal
B121 1
All positions27
2 ACC/ON20
3 ON/START3
Terminals Ignition switch position
(+) (–) OFF ACC ON
Connector Terminal
B121 1
Ground Battery
voltage Battery
voltage Battery
voltage
20 VBattery
voltage Battery
voltage
30 V0V Battery
voltage
WKIA4389E
Te r m i n a l s Continuity
Connector Terminal—
B121 4
Ground Yes
20
21
23
LKIA0794E
Revision: January 20102010 Versa

TELEPHONEAV-43
< SERVICE INFORMATION > [AUDIO WITHOUT NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
3. Check steering wheel audio control switch. Refer to AV-22, "Steering Switch Check (With Bluetooth)".
OK or NG
OK >> GO TO 2.
NG >> Replace steering wheel audio control switch. AV-29, "
Removal and Installation".
2.CHECK AUDIO UNIT
1. Turn ignition switch ON.
2. Check voltage between audio unit harness connector M43 ter- minals 6, 16 and ground.
OK or NG
OK >> Replace audio unit. Refer to AV-29, "Removal and
Installation".
NG >> GO TO 5.
3.CHECK BLUETOOTH CONTROL UNIT
1. Turn ignition switch ON.
2. Check voltage between Bluetooth control unit harness connec- tor B121 terminals 17, 18 and ground.
OK or NG
OK >> Repair or replace harness.
NG >> Replace Bluetooth control unit. AV-45, "
Removal and
Installation".
Voice Activated Control Function Does Not OperateINFOID:0000000005395343
NOTE:
Even under the normal condition, Bluetooth voice guidance may not occur when pressing steering wheel
audio control switch.
BLUETOOTH VOICE GUIDANCE IS HEARD WHEN PRESSING STEERING WHEEL AUDIO CON-
TROL SWITCH
1.CHECK HARNESS BETWEEN BL UETOOTH CONTROL UNIT AND BLUETOOTH MICROPHONE
1. Turn ignition switch OFF.
2. Disconnect Bluetooth control unit c onnector and Bluetooth microphone connector.
3. Check continuity between Bluetooth control unit connector B121 (A) and Bluetooth microphone connector R15 (B).
4. Check continuity between Bluetooth control unit harness con- nector B121 and ground.6 - Ground
: Approx. 5 V
16 - Ground : Approx. 5 V
LKIA0776E
17 - Ground: Approx. 5 V
18 - Ground : Approx. 5 V
LKIA0777E
Te r m i n a l s
Continuity
Connector Terminal Connector Terminal
A: B121 7
B: R15 1
Ye s
82
29 4
WKIA5795E
Revision: January 20102010 Versa
