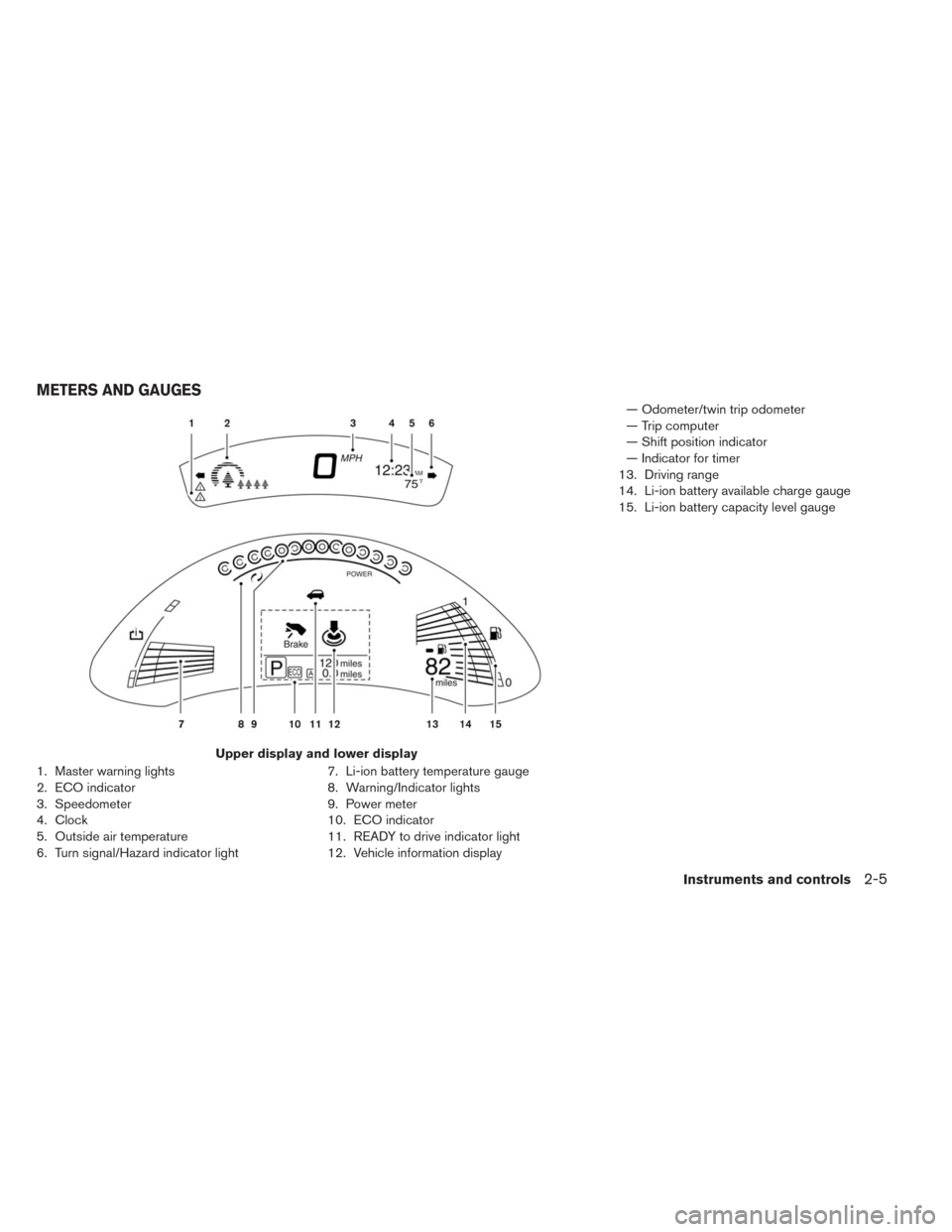

1. Master warning lights
2. ECO indicator
3. Speedometer
4. Clock
5. Outside air temperature
6. Turn signal/Hazard indicator light7. Li-ion battery temperature gauge
8. Warning/Indicator lights
9. Power meter
10. ECO indicator
11. READY to drive indicator light
12. Vehicle information display— Odometer/twin trip odometer
— Trip computer
— Shift position indicator
— Indicator for timer
13. Driving range
14. Li-ion battery available charge gauge
15. Li-ion battery capacity level gauge
Upper display and lower display
METERS AND GAUGES
Instruments and controls2-5
Page 142 of 397

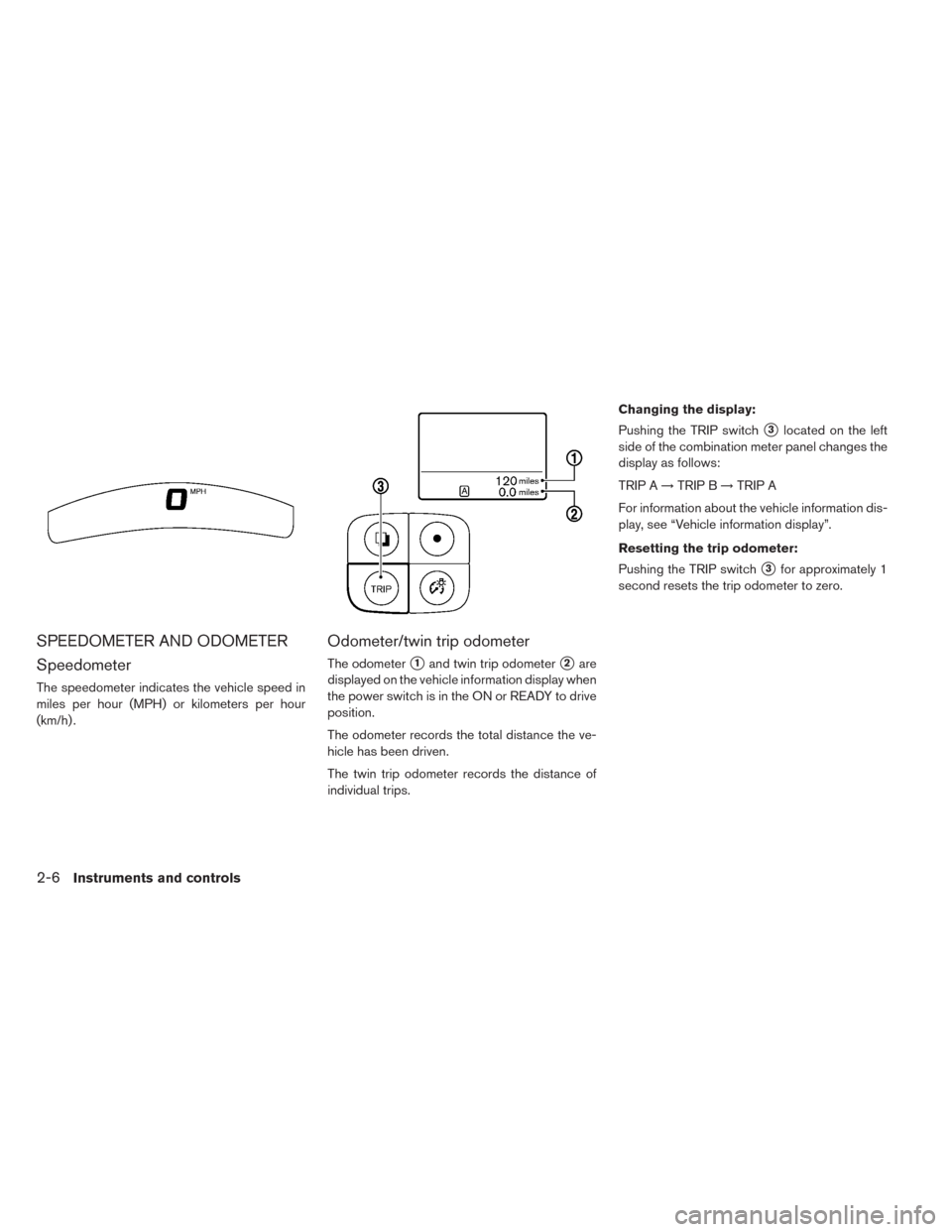

SPEEDOMETER AND ODOMETER
Speedometer
The speedometer indicates the vehicle speed in
miles per hour (MPH) or kilometers per hour
(km/h) .
Odometer/twin trip odometer
The odometer1and twin trip odometer2are
displayed on the vehicle information display when
the power switch is in the ON or READY to drive
position.
The odometer records the total distance the ve-
hicle has been driven.
The twin trip odometer records the distance of
individual trips.Changing the display:
Pushing the TRIP switch
3located on the left
side of the combination meter panel changes the
display as follows:
TRIP A→TRIP B→TRIP A
For information about the vehicle information dis-
play, see “Vehicle information display”.
Resetting the trip odometer:
Pushing the TRIP switch
3for approximately 1
second resets the trip odometer to zero.
2-6Instruments and controls
Page 143 of 397

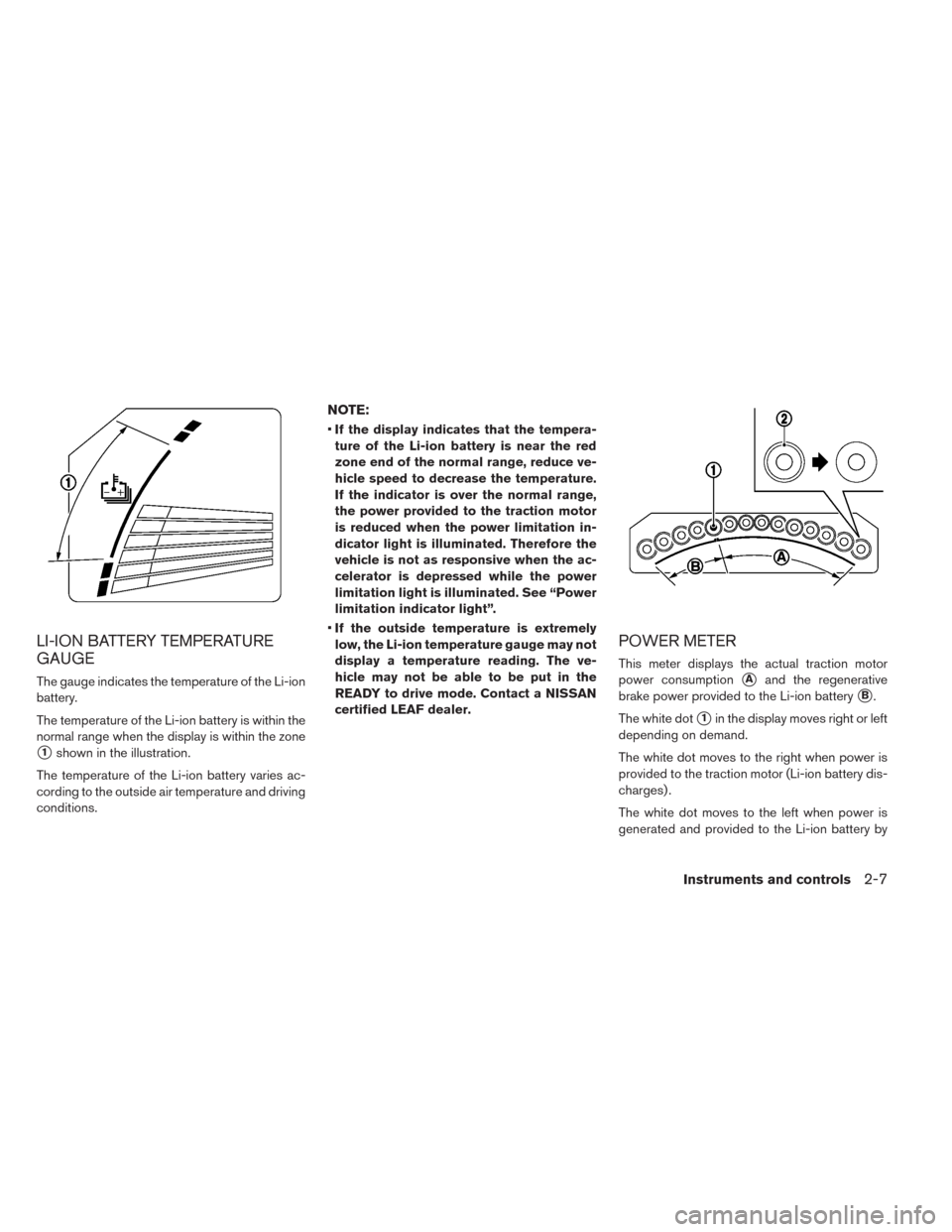

LI-ION BATTERY TEMPERATURE
GAUGE
The gauge indicates the temperature of the Li-ion
battery.
The temperature of the Li-ion battery is within the
normal range when the display is within the zone
1shown in the illustration.
The temperature of the Li-ion battery varies ac-
cording to the outside air temperature and driving
conditions.
NOTE:
•If the display indicates that the tempera-
ture of the Li-ion battery is near the red
zone end of the normal range, reduce ve-
hicle speed to decrease the temperature.
If the indicator is over the normal range,
the power provided to the traction motor
is reduced when the power limitation in-
dicator light is illuminated. Therefore the
vehicle is not as responsive when the ac-
celerator is depressed while the power
limitation light is illuminated. See “Power
limitation indicator light”.
•If the outside temperature is extremely
low, the Li-ion temperature gauge may not
display a temperature reading. The ve-
hicle may not be able to be put in the
READY to drive mode. Contact a NISSAN
certified LEAF dealer.
POWER METER
This meter displays the actual traction motor
power consumption
Aand the regenerative
brake power provided to the Li-ion battery
B.
The white dot
1in the display moves right or left
depending on demand.
The white dot moves to the right when power is
provided to the traction motor (Li-ion battery dis-
charges) .
The white dot moves to the left when power is
generated and provided to the Li-ion battery by
Instruments and controls2-7
Page 144 of 397
the regenerative brake system (Li-ion battery
charging) .
The power meter also indicates if the power
provided to the motor is limited or if regenerative
braking is limited. When power or regenerative
braking is limited, the circles on the display
change from a double circle to a single circle
2.
Regenerative braking is automatically reduced
when the Li-ion battery is fully charged to prevent
the Li-ion battery from becoming overcharged.
Regenerative braking is also automatically re-
duced when the Li-ion battery temperature is
high/low (indicated by the red/blue zones on the
Li-ion battery temperature gauge) to prevent Li-
ion battery damage.
The more regenerative braking is reduced the
more double circles change to single circles
If the Li-ion battery charge is low, power provided
to the traction motor is reduced. Motor output is
also limited if the Li-ion battery temperature is
high/low (indicated by the red/blue zones on the
Li-ion battery temperature gauge) or the Li-ion
battery charge level is low.
The more power provided to the traction motor is
reduced the more double circles change to
single circles.

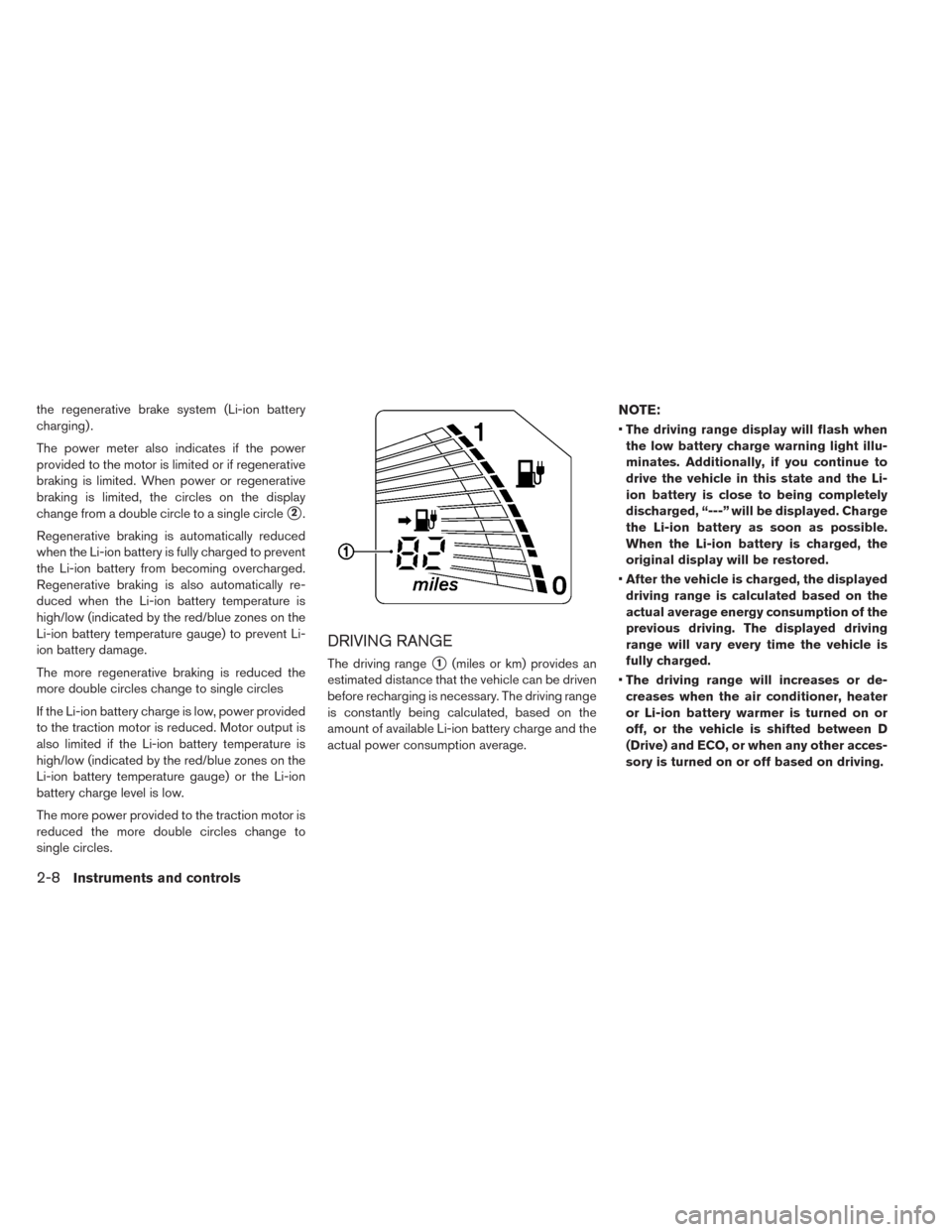

DRIVING RANGE
The driving range1(miles or km) provides an
estimated distance that the vehicle can be driven
before recharging is necessary. The driving range
is constantly being calculated, based on the
amount of available Li-ion battery charge and the
actual power consumption average.
NOTE:
•The driving range display will flash when
the low battery charge warning light illu-
minates. Additionally, if you continue to
drive the vehicle in this state and the Li-
ion battery is close to being completely
discharged, “---” will be displayed. Charge
the Li-ion battery as soon as possible.
When the Li-ion battery is charged, the
original display will be restored.
•After the vehicle is charged, the displayed
driving range is calculated based on the
actual average energy consumption of the
previous driving. The displayed driving
range will vary every time the vehicle is
fully charged.
•The driving range will increases or de-
creases when the air conditioner, heater
or Li-ion battery warmer is turned on or
off, or the vehicle is shifted between D
(Drive) and ECO, or when any other acces-
sory is turned on or off based on driving.
2-8Instruments and controls
Page 145 of 397

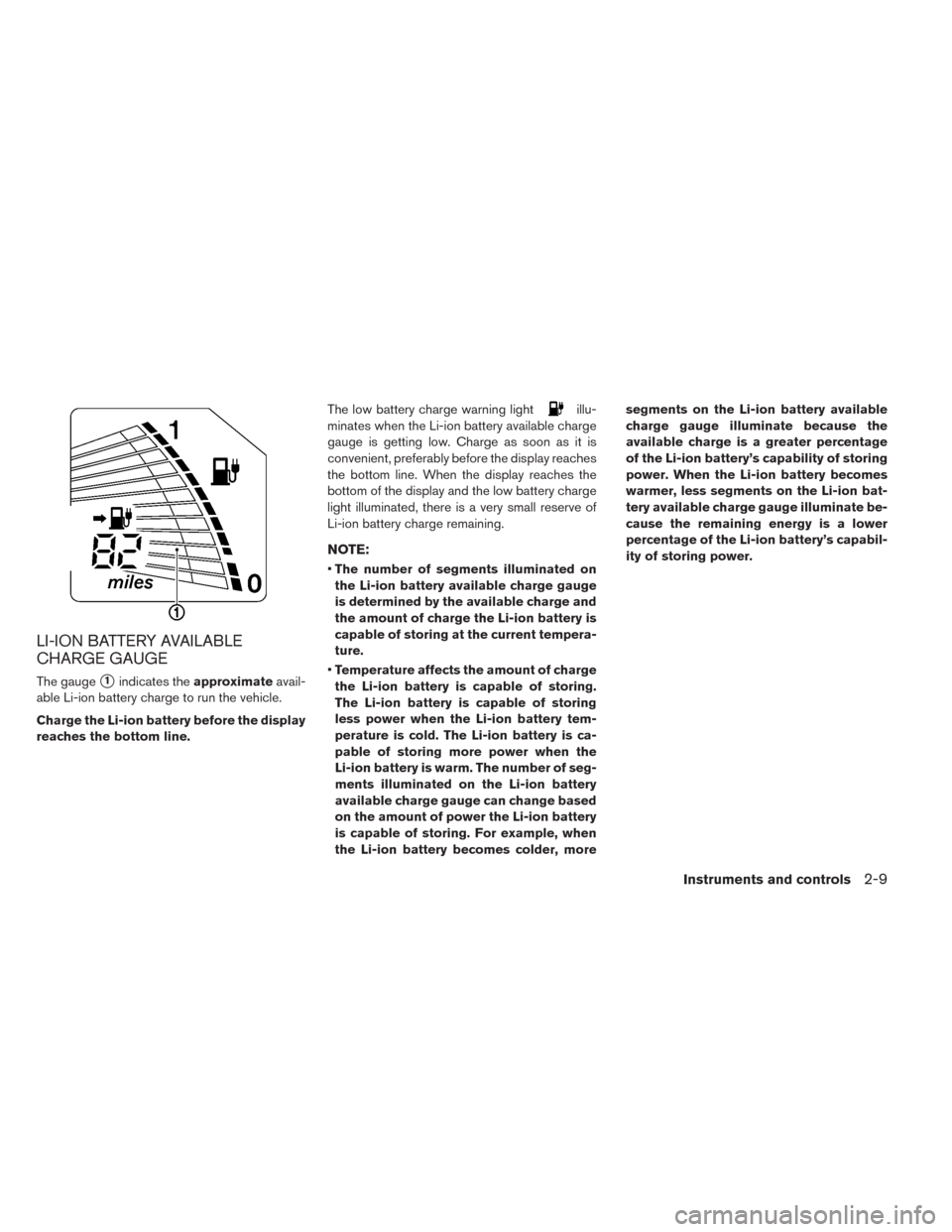

LI-ION BATTERY AVAILABLE
CHARGE GAUGE
The gauge1indicates theapproximateavail-
able Li-ion battery charge to run the vehicle.
Charge the Li-ion battery before the display
reaches the bottom line.The low battery charge warning light
illu-
minates when the Li-ion battery available charge
gauge is getting low. Charge as soon as it is
convenient, preferably before the display reaches
the bottom line. When the display reaches the
bottom of the display and the low battery charge
light illuminated, there is a very small reserve of
Li-ion battery charge remaining.
NOTE:
•The number of segments illuminated on
the Li-ion battery available charge gauge
is determined by the available charge and
the amount of charge the Li-ion battery is
capable of storing at the current tempera-
ture.
•Temperature affects the amount of charge
the Li-ion battery is capable of storing.
The Li-ion battery is capable of storing
less power when the Li-ion battery tem-
perature is cold. The Li-ion battery is ca-
pable of storing more power when the
Li-ion battery is warm. The number of seg-
ments illuminated on the Li-ion battery
available charge gauge can change based
on the amount of power the Li-ion battery
is capable of storing. For example, when
the Li-ion battery becomes colder, moresegments on the Li-ion battery available
charge gauge illuminate because the
available charge is a greater percentage
of the Li-ion battery’s capability of storing
power. When the Li-ion battery becomes
warmer, less segments on the Li-ion bat-
tery available charge gauge illuminate be-
cause the remaining energy is a lower
percentage of the Li-ion battery’s capabil-
ity of storing power.
Instruments and controls2-9
Page 146 of 397

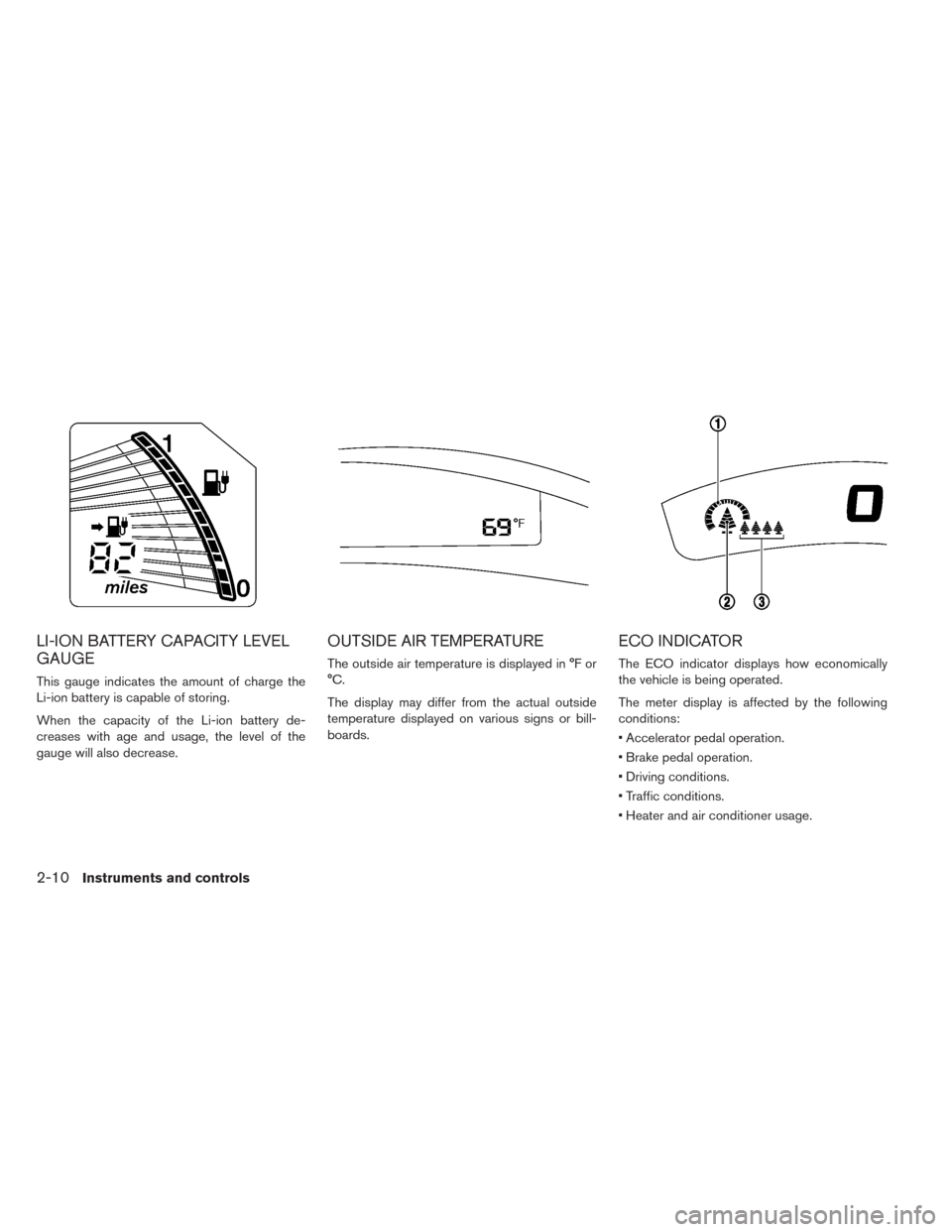

LI-ION BATTERY CAPACITY LEVEL
GAUGE
This gauge indicates the amount of charge the
Li-ion battery is capable of storing.
When the capacity of the Li-ion battery de-
creases with age and usage, the level of the
gauge will also decrease.
OUTSIDE AIR TEMPERATURE
The outside air temperature is displayed in °F or
°C.
The display may differ from the actual outside
temperature displayed on various signs or bill-
boards.
ECO INDICATOR
The ECO indicator displays how economically
the vehicle is being operated.
The meter display is affected by the following
conditions:
• Accelerator pedal operation.
• Brake pedal operation.
• Driving conditions.
• Traffic conditions.
• Heater and air conditioner usage.
2-10Instruments and controls
Page 147 of 397

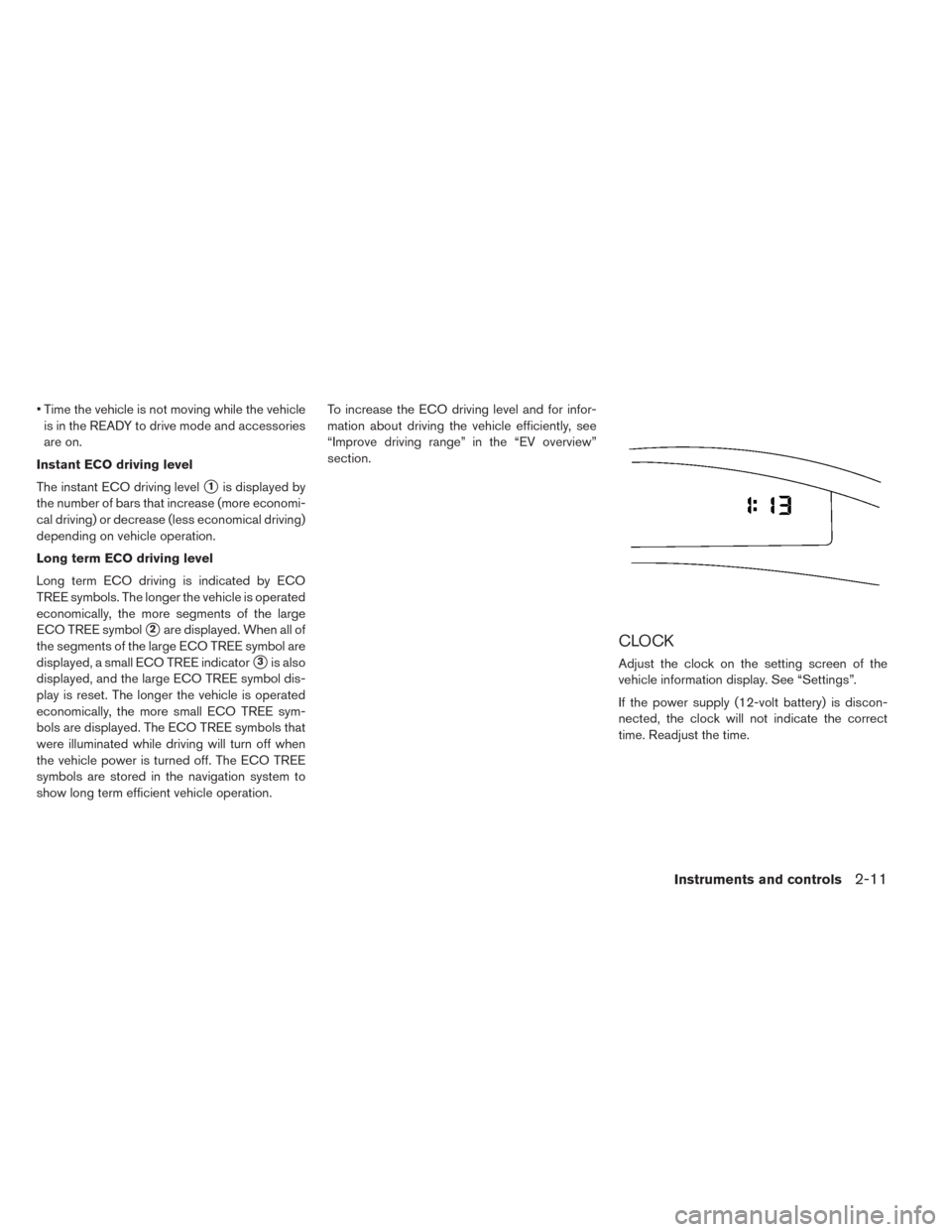

• Time the vehicle is not moving while the vehicle
is in the READY to drive mode and accessories
are on.
Instant ECO driving level
The instant ECO driving level
1is displayed by
the number of bars that increase (more economi-
cal driving) or decrease (less economical driving)
depending on vehicle operation.
Long term ECO driving level
Long term ECO driving is indicated by ECO
TREE symbols. The longer the vehicle is operated
economically, the more segments of the large
ECO TREE symbol
2are displayed. When all of
the segments of the large ECO TREE symbol are
displayed, a small ECO TREE indicator
3is also
displayed, and the large ECO TREE symbol dis-
play is reset. The longer the vehicle is operated
economically, the more small ECO TREE sym-
bols are displayed. The ECO TREE symbols that
were illuminated while driving will turn off when
the vehicle power is turned off. The ECO TREE
symbols are stored in the navigation system to
show long term efficient vehicle operation.To increase the ECO driving level and for infor-
mation about driving the vehicle efficiently, see
“Improve driving range” in the “EV overview”
section.
CLOCK
Adjust the clock on the setting screen of the
vehicle information display. See “Settings”.
If the power supply (12-volt battery) is discon-
nected, the clock will not indicate the correct
time. Readjust the time.
Instruments and controls2-11
Page 148 of 397

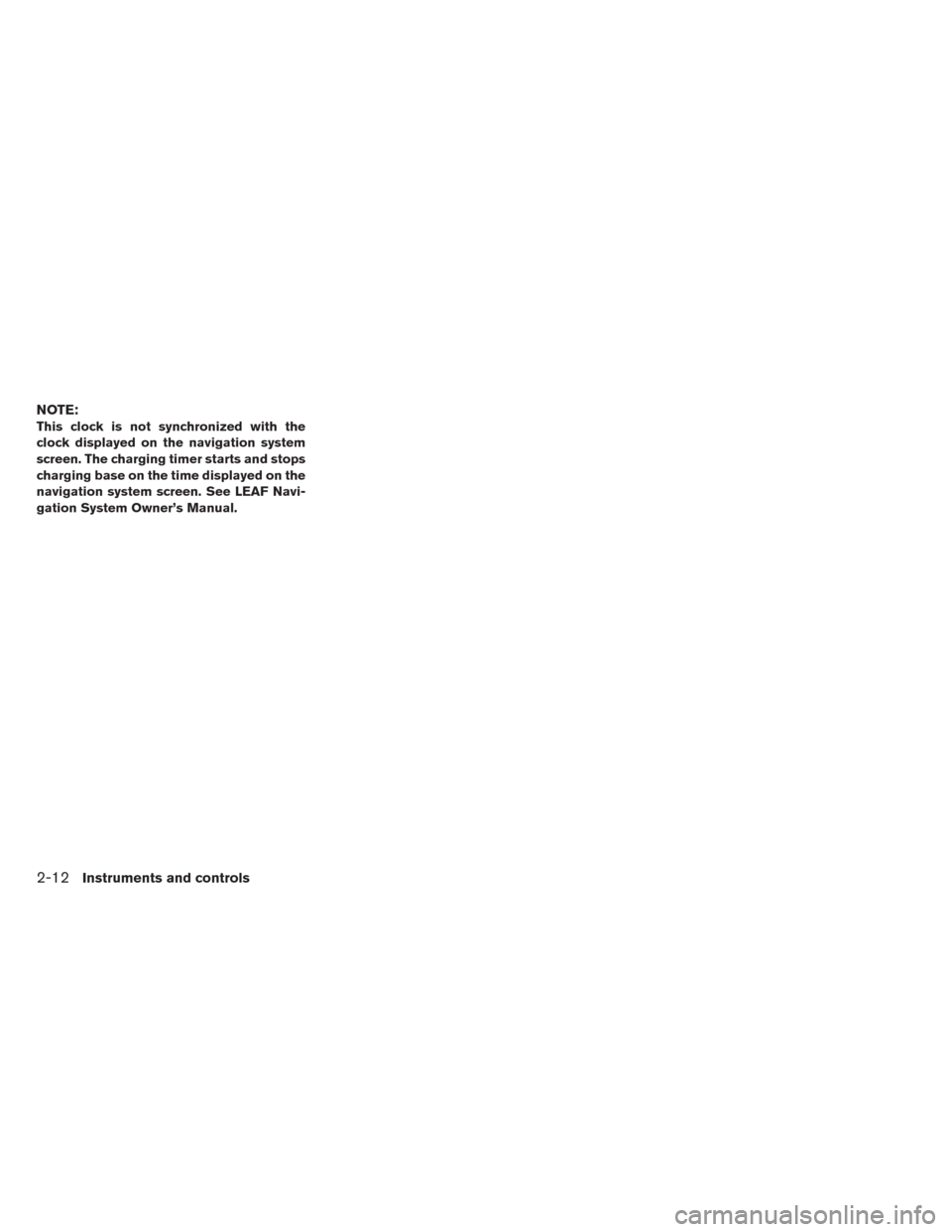

NOTE:
This clock is not synchronized with the
clock displayed on the navigation system
screen. The charging timer starts and stops
charging base on the time displayed on the
navigation system screen. See LEAF Navi-
gation System Owner’s Manual.
2-12Instruments and controls
Page 149 of 397
12-volt battery charge warning lightLow tire pressure warning lightHigh beam indicator light
Anti-lock Braking System (ABS) warning lightMaster warning light (red/yellow)Plug in indicator light
Approaching Vehicle Sound for Pedestrians
(VSP) system warning lightPower steering warning lightPower limitation indicator light
BRAKE system warning light (yellow)Seat belt warning lightREADY to drive indicator light
BRAKE warning light (red)Supplemental air bag warning lightSecurity indicator light
Electric shift control system warning lightVehicle Dynamic Control (VDC) warning lightTurn signal/hazard indicator lights
EV system warning lightExterior light indicatorVehicle Dynamic Control (VDC) off indicator
light

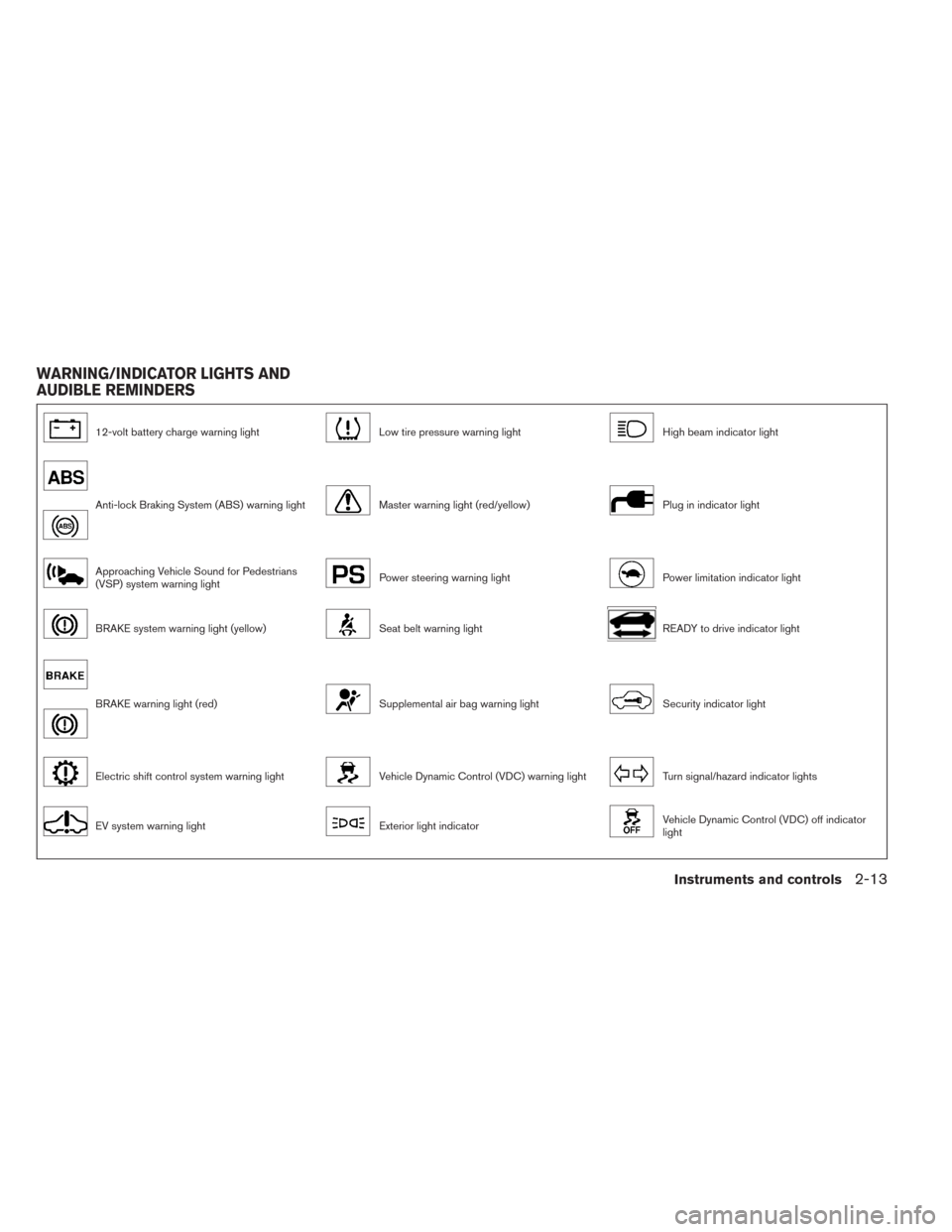

WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
Instruments and controls2-13
Page 150 of 397
Headlight warning lightFront fog light indicator light (if so equipped)
Low battery charge warning lightFront passenger air bag status light

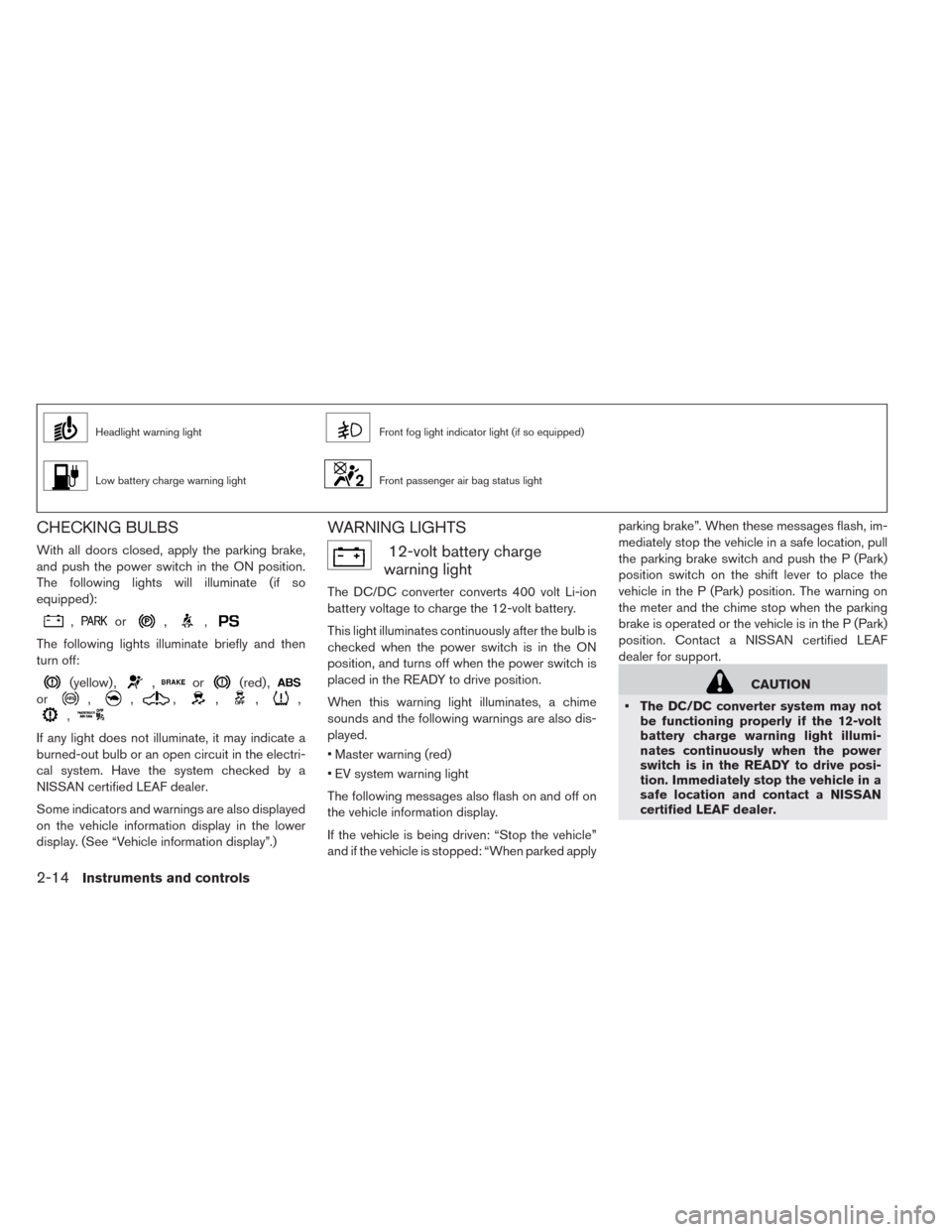

CHECKING BULBS
With all doors closed, apply the parking brake,
and push the power switch in the ON position.
The following lights will illuminate (if so
equipped):
,or,,
The following lights illuminate briefly and then
turn off:
(yellow) ,,or(red) ,
or,,,,,,
,
If any light does not illuminate, it may indicate a
burned-out bulb or an open circuit in the electri-
cal system. Have the system checked by a
NISSAN certified LEAF dealer.
Some indicators and warnings are also displayed
on the vehicle information display in the lower
display. (See “Vehicle information display”.)
WARNING LIGHTS
12-volt battery charge
warning light
The DC/DC converter converts 400 volt Li-ion
battery voltage to charge the 12-volt battery.
This light illuminates continuously after the bulb is
checked when the power switch is in the ON
position, and turns off when the power switch is
placed in the READY to drive position.
When this warning light illuminates, a chime
sounds and the following warnings are also dis-
played.
• Master warning (red)
• EV system warning light
The following messages also flash on and off on
the vehicle information display.
If the vehicle is being driven: “Stop the vehicle”
and if the vehicle is stopped: “When parked applyparking brake”. When these messages flash, im-
mediately stop the vehicle in a safe location, pull
the parking brake switch and push the P (Park)
position switch on the shift lever to place the
vehicle in the P (Park) position. The warning on
the meter and the chime stop when the parking
brake is operated or the vehicle is in the P (Park)
position. Contact a NISSAN certified LEAF
dealer for support.
CAUTION
• The DC/DC converter system may not
be functioning properly if the 12-volt
battery charge warning light illumi-
nates continuously when the power
switch is in the READY to drive posi-
tion. Immediately stop the vehicle in a
safe location and contact a NISSAN
certified LEAF dealer.
2-14Instruments and controls
