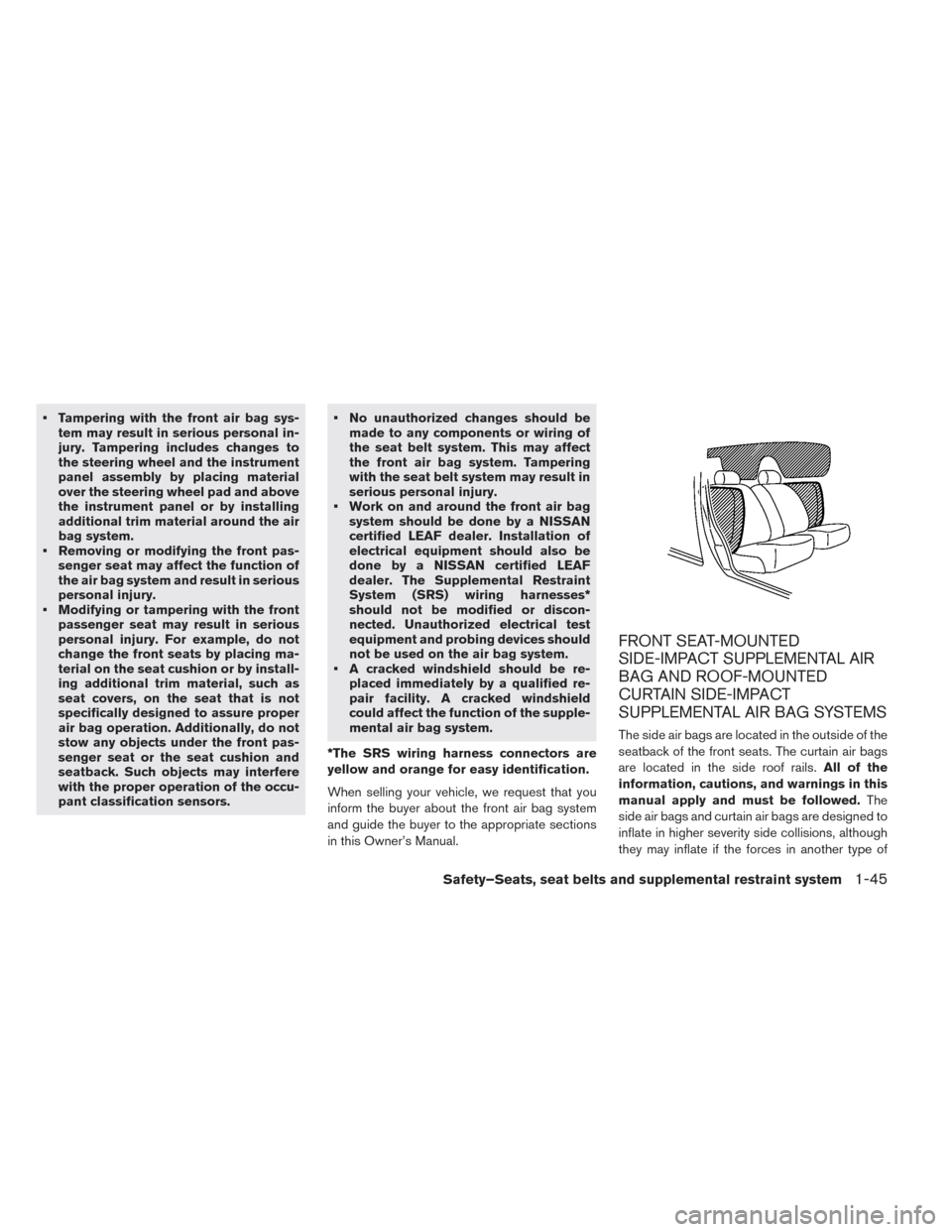

Page 131 of 397
• Tampering with the front air bag sys-
tem may result in serious personal in-
jury. Tampering includes changes to
the steering wheel and the instrument
panel assembly by placing material
over the steering wheel pad and above
the instrument panel or by installing
additional trim material around the air
bag system.
• Removing or modifying the front pas-
senger seat may affect the function of
the air bag system and result in serious
personal injury.
• Modifying or tampering with the front
passenger seat may result in serious
personal injury. For example, do not
change the front seats by placing ma-
terial on the seat cushion or by install-
ing additional trim material, such as
seat covers, on the seat that is not
specifically designed to assure proper
air bag operation. Additionally, do not
stow any objects under the front pas-
senger seat or the seat cushion and
seatback. Such objects may interfere
with the proper operation of the occu-
pant classification sensors.• No unauthorized changes should be
made to any components or wiring of
the seat belt system. This may affect
the front air bag system. Tampering
with the seat belt system may result in
serious personal injury.
• Work on and around the front air bag
system should be done by a NISSAN
certified LEAF dealer. Installation of
electrical equipment should also be
done by a NISSAN certified LEAF
dealer. The Supplemental Restraint
System (SRS) wiring harnesses*
should not be modified or discon-
nected. Unauthorized electrical test
equipment and probing devices should
not be used on the air bag system.
• A cracked windshield should be re-
placed immediately by a qualified re-
pair facility. A cracked windshield
could affect the function of the supple-
mental air bag system.
*The SRS wiring harness connectors are
yellow and orange for easy identification.
When selling your vehicle, we request that you
inform the buyer about the front air bag system
and guide the buyer to the appropriate sections
in this Owner’s Manual.
FRONT SEAT-MOUNTED
SIDE-IMPACT SUPPLEMENTAL AIR
BAG AND ROOF-MOUNTED
CURTAIN SIDE-IMPACT
SUPPLEMENTAL AIR BAG SYSTEMS
The side air bags are located in the outside of the
seatback of the front seats. The curtain air bags
are located in the side roof rails.All of the
information, cautions, and warnings in this
manual apply and must be followed.The
side air bags and curtain air bags are designed to
inflate in higher severity side collisions, although
they may inflate if the forces in another type of
Safety–Seats, seat belts and supplemental restraint system1-45

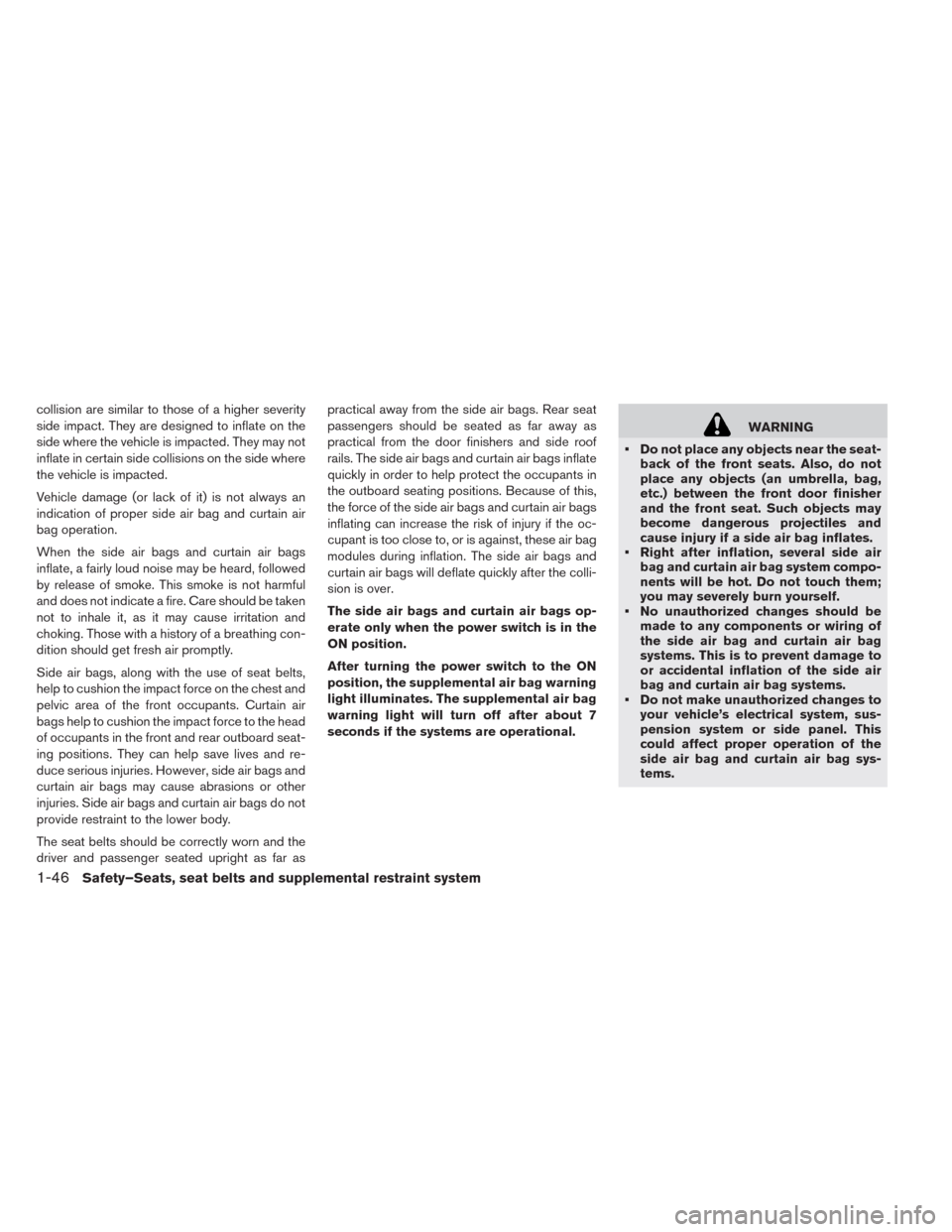

Page 132 of 397
collision are similar to those of a higher severity
side impact. They are designed to inflate on the
side where the vehicle is impacted. They may not
inflate in certain side collisions on the side where
the vehicle is impacted.
Vehicle damage (or lack of it) is not always an
indication of proper side air bag and curtain air
bag operation.
When the side air bags and curtain air bags
inflate, a fairly loud noise may be heard, followed
by release of smoke. This smoke is not harmful
and does not indicate a fire. Care should be taken
not to inhale it, as it may cause irritation and
choking. Those with a history of a breathing con-
dition should get fresh air promptly.
Side air bags, along with the use of seat belts,
help to cushion the impact force on the chest and
pelvic area of the front occupants. Curtain air
bags help to cushion the impact force to the head
of occupants in the front and rear outboard seat-
ing positions. They can help save lives and re-
duce serious injuries. However, side air bags and
curtain air bags may cause abrasions or other
injuries. Side air bags and curtain air bags do not
provide restraint to the lower body.
The seat belts should be correctly worn and the
driver and passenger seated upright as far aspractical away from the side air bags. Rear seat
passengers should be seated as far away as
practical from the door finishers and side roof
rails. The side air bags and curtain air bags inflate
quickly in order to help protect the occupants in
the outboard seating positions. Because of this,
the force of the side air bags and curtain air bags
inflating can increase the risk of injury if the oc-
cupant is too close to, or is against, these air bag
modules during inflation. The side air bags and
curtain air bags will deflate quickly after the colli-
sion is over.
The side air bags and curtain air bags op-
erate only when the power switch is in the
ON position.
After turning the power switch to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the systems are operational.
WARNING
• Do not place any objects near the seat-
back of the front seats. Also, do not
place any objects (an umbrella, bag,
etc.) between the front door finisher
and the front seat. Such objects may
become dangerous projectiles and
cause injury if a side air bag inflates.
• Right after inflation, several side air
bag and curtain air bag system compo-
nents will be hot. Do not touch them;
you may severely burn yourself.
• No unauthorized changes should be
made to any components or wiring of
the side air bag and curtain air bag
systems. This is to prevent damage to
or accidental inflation of the side air
bag and curtain air bag systems.
• Do not make unauthorized changes to
your vehicle’s electrical system, sus-
pension system or side panel. This
could affect proper operation of the
side air bag and curtain air bag sys-
tems.
1-46Safety–Seats, seat belts and supplemental restraint system

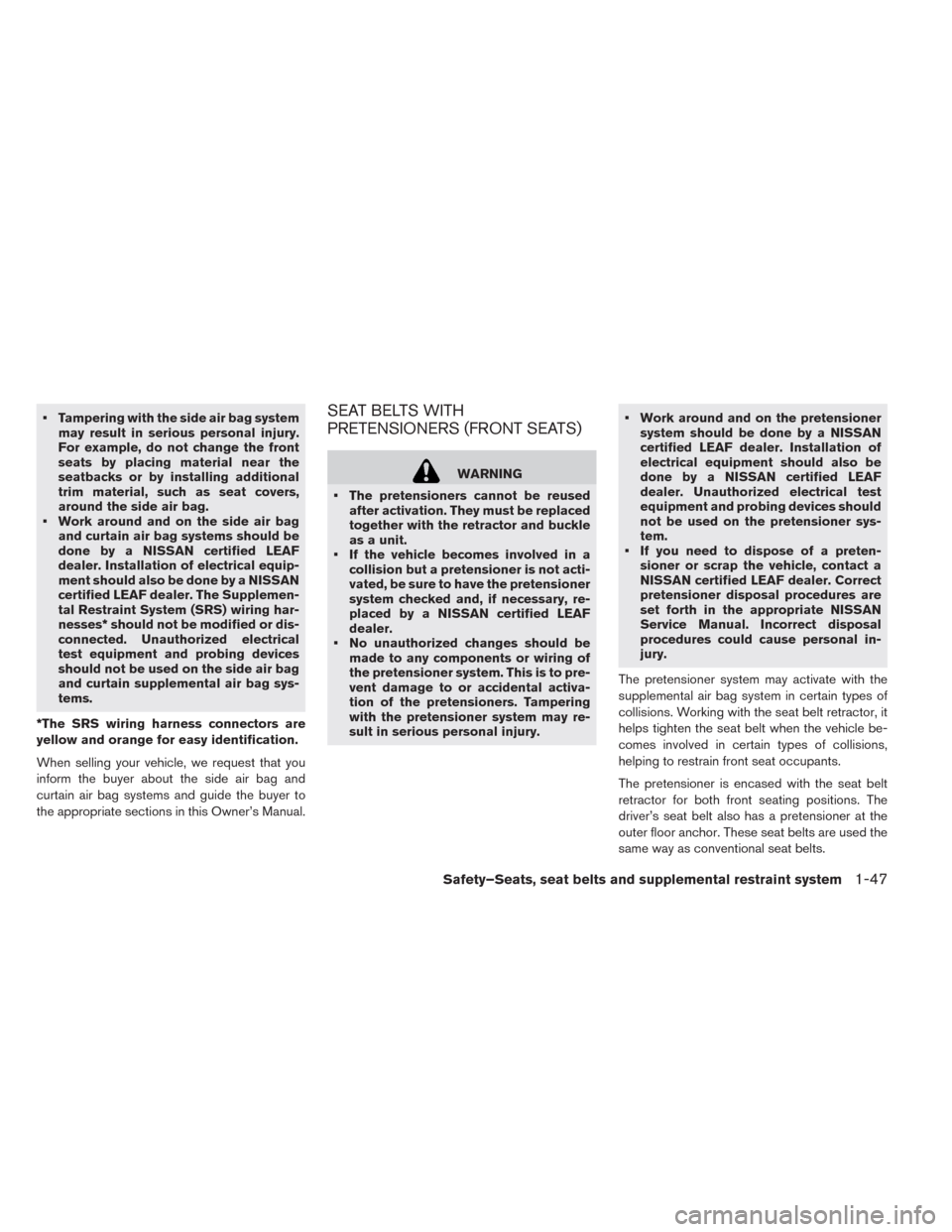

Page 133 of 397
• Tampering with the side air bag system
may result in serious personal injury.
For example, do not change the front
seats by placing material near the
seatbacks or by installing additional
trim material, such as seat covers,
around the side air bag.
• Work around and on the side air bag
and curtain air bag systems should be
done by a NISSAN certified LEAF
dealer. Installation of electrical equip-
ment should also be done by a NISSAN
certified LEAF dealer. The Supplemen-
tal Restraint System (SRS) wiring har-
nesses* should not be modified or dis-
connected. Unauthorized electrical
test equipment and probing devices
should not be used on the side air bag
and curtain supplemental air bag sys-
tems.
*The SRS wiring harness connectors are
yellow and orange for easy identification.
When selling your vehicle, we request that you
inform the buyer about the side air bag and
curtain air bag systems and guide the buyer to
the appropriate sections in this Owner’s Manual.SEAT BELTS WITH
PRETENSIONERS (FRONT SEATS)
WARNING
• The pretensioners cannot be reused
after activation. They must be replaced
together with the retractor and buckle
as a unit.
• If the vehicle becomes involved in a
collision but a pretensioner is not acti-
vated, be sure to have the pretensioner
system checked and, if necessary, re-
placed by a NISSAN certified LEAF
dealer.
• No unauthorized changes should be
made to any components or wiring of
the pretensioner system. This is to pre-
vent damage to or accidental activa-
tion of the pretensioners. Tampering
with the pretensioner system may re-
sult in serious personal injury.• Work around and on the pretensioner
system should be done by a NISSAN
certified LEAF dealer. Installation of
electrical equipment should also be
done by a NISSAN certified LEAF
dealer. Unauthorized electrical test
equipment and probing devices should
not be used on the pretensioner sys-
tem.
• If you need to dispose of a preten-
sioner or scrap the vehicle, contact a
NISSAN certified LEAF dealer. Correct
pretensioner disposal procedures are
set forth in the appropriate NISSAN
Service Manual. Incorrect disposal
procedures could cause personal in-
jury.
The pretensioner system may activate with the
supplemental air bag system in certain types of
collisions. Working with the seat belt retractor, it
helps tighten the seat belt when the vehicle be-
comes involved in certain types of collisions,
helping to restrain front seat occupants.
The pretensioner is encased with the seat belt
retractor for both front seating positions. The
driver’s seat belt also has a pretensioner at the
outer floor anchor. These seat belts are used the
same way as conventional seat belts.
Safety–Seats, seat belts and supplemental restraint system1-47

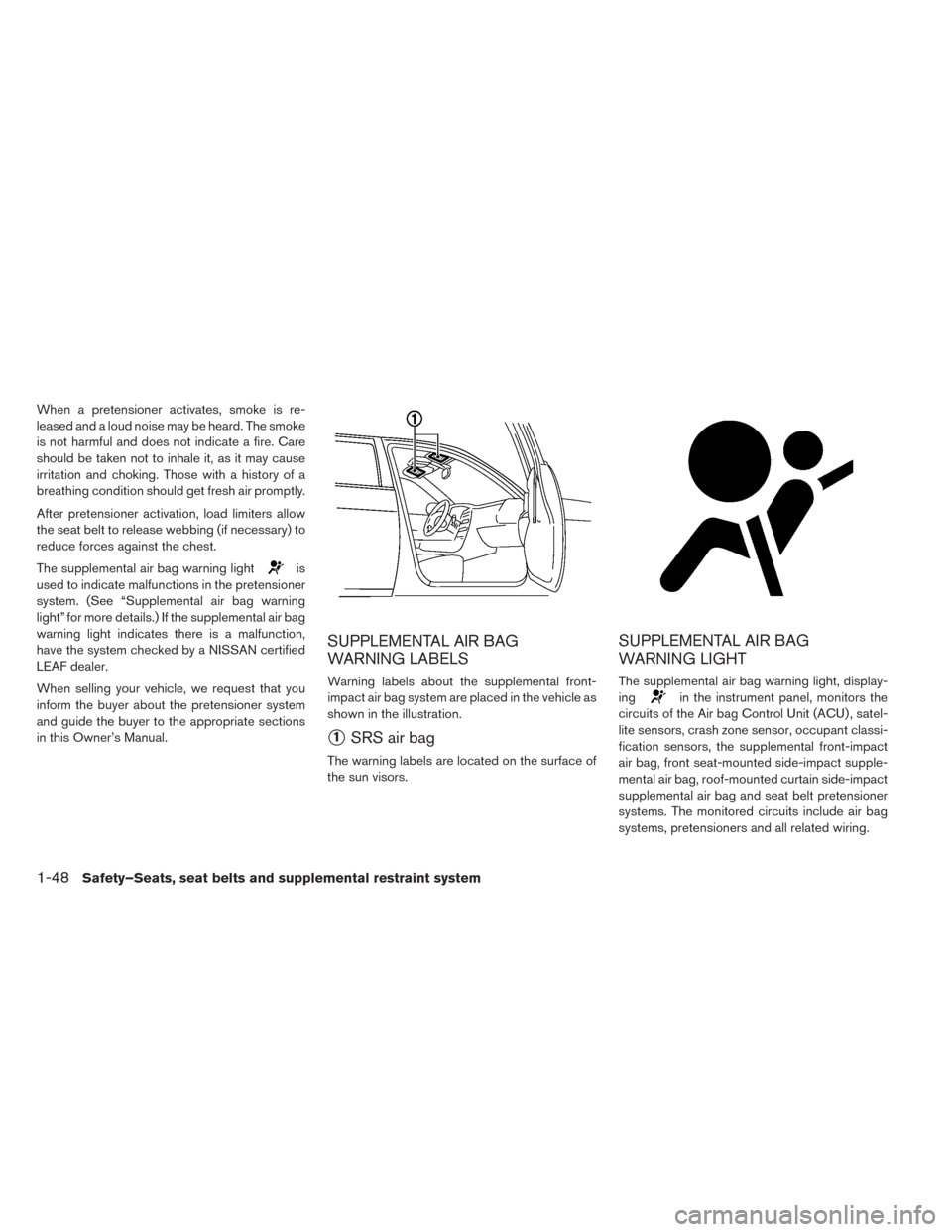

Page 134 of 397
When a pretensioner activates, smoke is re-
leased and a loud noise may be heard. The smoke
is not harmful and does not indicate a fire. Care
should be taken not to inhale it, as it may cause
irritation and choking. Those with a history of a
breathing condition should get fresh air promptly.
After pretensioner activation, load limiters allow
the seat belt to release webbing (if necessary) to
reduce forces against the chest.
The supplemental air bag warning light
is
used to indicate malfunctions in the pretensioner
system. (See “Supplemental air bag warning
light” for more details.) If the supplemental air bag
warning light indicates there is a malfunction,
have the system checked by a NISSAN certified
LEAF dealer.
When selling your vehicle, we request that you
inform the buyer about the pretensioner system
and guide the buyer to the appropriate sections
in this Owner’s Manual.
SUPPLEMENTAL AIR BAG
WARNING LABELS
Warning labels about the supplemental front-
impact air bag system are placed in the vehicle as
shown in the illustration.
1SRS air bag
The warning labels are located on the surface of
the sun visors.
SUPPLEMENTAL AIR BAG
WARNING LIGHT
The supplemental air bag warning light, display-
ing
in the instrument panel, monitors the
circuits of the Air bag Control Unit (ACU) , satel-
lite sensors, crash zone sensor, occupant classi-
fication sensors, the supplemental front-impact
air bag, front seat-mounted side-impact supple-
mental air bag, roof-mounted curtain side-impact
supplemental air bag and seat belt pretensioner
systems. The monitored circuits include air bag
systems, pretensioners and all related wiring.
1-48Safety–Seats, seat belts and supplemental restraint system

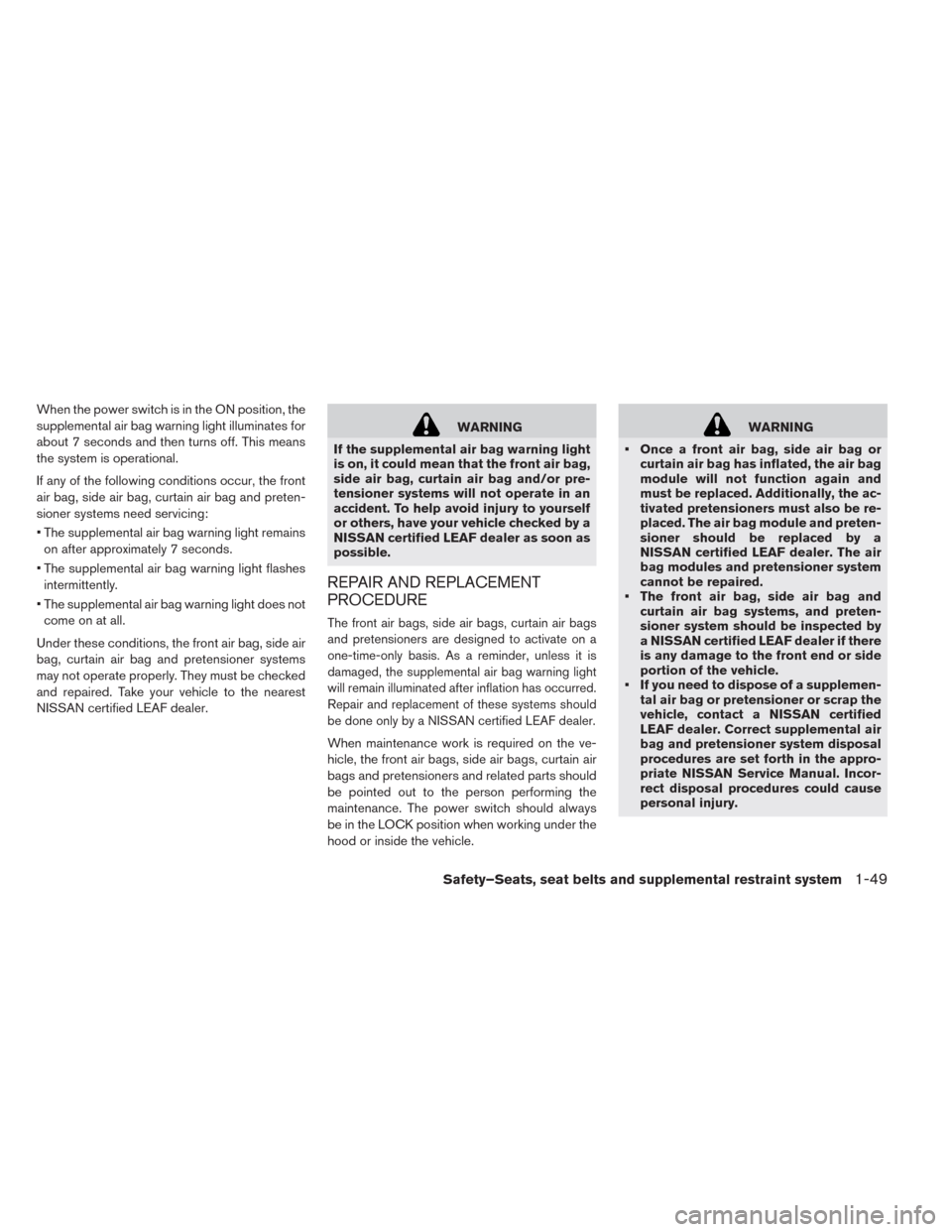

Page 135 of 397
When the power switch is in the ON position, the
supplemental air bag warning light illuminates for
about 7 seconds and then turns off. This means
the system is operational.
If any of the following conditions occur, the front
air bag, side air bag, curtain air bag and preten-
sioner systems need servicing:
• The supplemental air bag warning light remains
on after approximately 7 seconds.
• The supplemental air bag warning light flashes
intermittently.
• The supplemental air bag warning light does not
come on at all.
Under these conditions, the front air bag, side air
bag, curtain air bag and pretensioner systems
may not operate properly. They must be checked
and repaired. Take your vehicle to the nearest
NISSAN certified LEAF dealer.
WARNING
If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain air bag and/or pre-
tensioner systems will not operate in an
accident. To help avoid injury to yourself
or others, have your vehicle checked by a
NISSAN certified LEAF dealer as soon as
possible.
REPAIR AND REPLACEMENT
PROCEDURE
The front air bags, side air bags, curtain air bags
and pretensioners are designed to activate on a
one-time-only basis. As a reminder, unless it is
damaged, the supplemental air bag warning light
will remain illuminated after inflation has occurred.
Repair and replacement of these systems should
be done only by a NISSAN certified LEAF dealer.
When maintenance work is required on the ve-
hicle, the front air bags, side air bags, curtain air
bags and pretensioners and related parts should
be pointed out to the person performing the
maintenance. The power switch should always
be in the LOCK position when working under the
hood or inside the vehicle.
WARNING
• Once a front air bag, side air bag or
curtain air bag has inflated, the air bag
module will not function again and
must be replaced. Additionally, the ac-
tivated pretensioners must also be re-
placed. The air bag module and preten-
sioner should be replaced by a
NISSAN certified LEAF dealer. The air
bag modules and pretensioner system
cannot be repaired.
• The front air bag, side air bag and
curtain air bag systems, and preten-
sioner system should be inspected by
a NISSAN certified LEAF dealer if there
is any damage to the front end or side
portion of the vehicle.
• If you need to dispose of a supplemen-
tal air bag or pretensioner or scrap the
vehicle, contact a NISSAN certified
LEAF dealer. Correct supplemental air
bag and pretensioner system disposal
procedures are set forth in the appro-
priate NISSAN Service Manual. Incor-
rect disposal procedures could cause
personal injury.
Safety–Seats, seat belts and supplemental restraint system1-49
Page 136 of 397

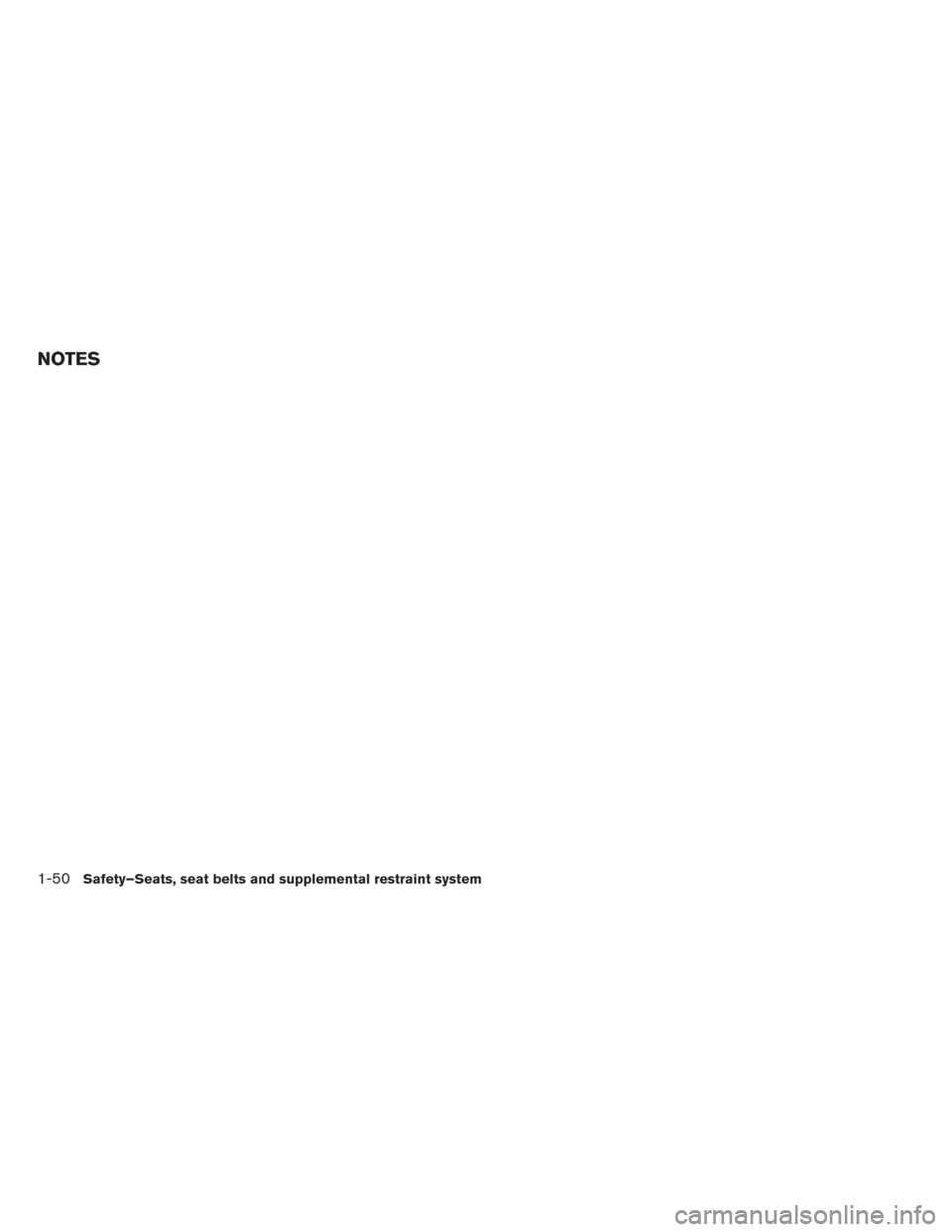

NOTES
1-50Safety–Seats, seat belts and supplemental restraint system
Page 137 of 397

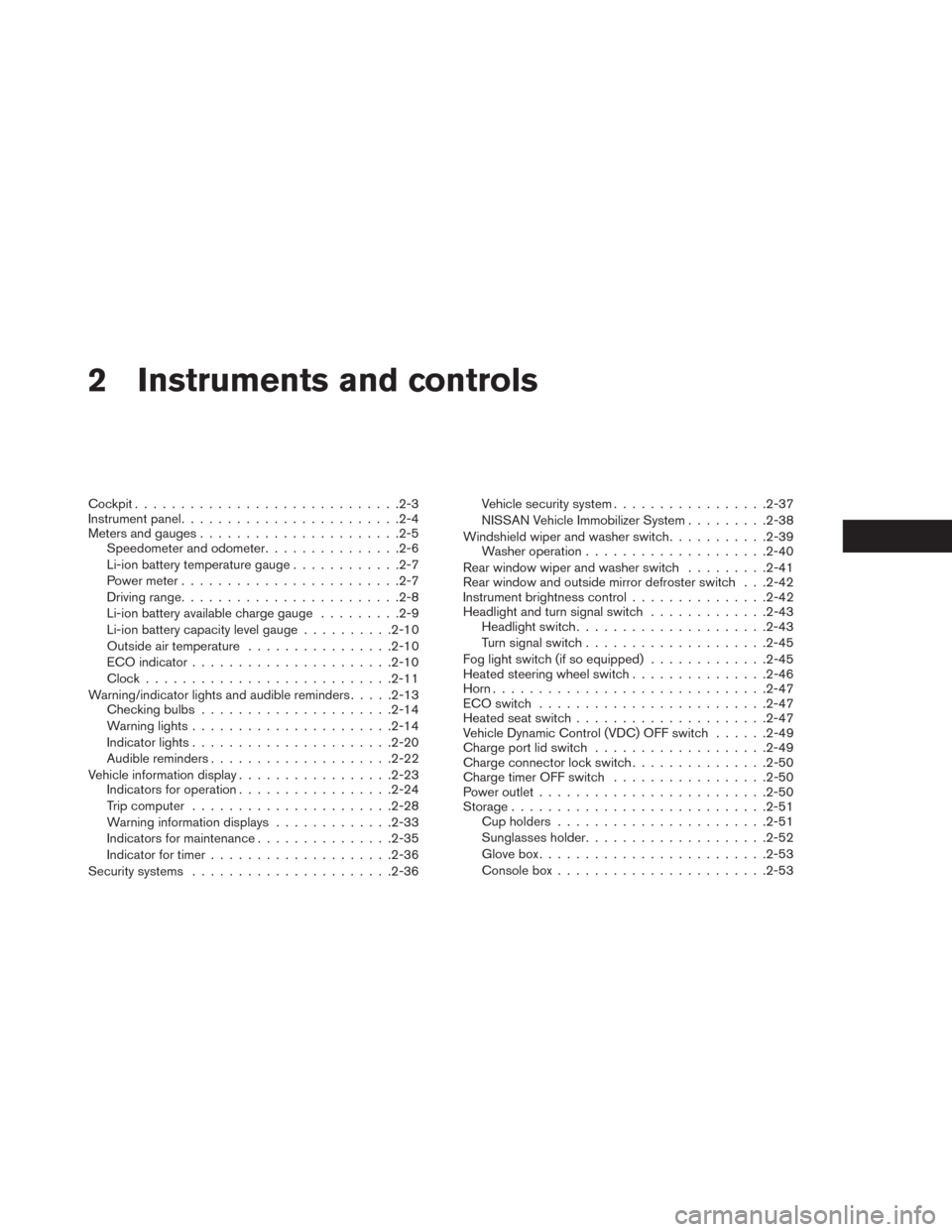

2 Instruments and controls
Cockpit.............................2-3
Instrument panel........................2-4
Meters and gauges......................2-5
Speedometer and odometer...............2-6
Li-ion battery temperature gauge............2-7
Power meter........................2-7
Driving range........................2-8
Li-ion battery available charge gauge.........2-9
Li-ion battery capacity level gauge..........2-10
Outside air temperature................2-10
ECO indicator......................2-10
Clock...........................2-11
Warning/indicator lights and audible reminders.....2-13
Checking bulbs.....................2-14
Warning lights......................2-14
Indicator lights......................2-20
Audible reminders....................2-22
Vehicle information display.................2-23
Indicators for operation.................2-24
Trip computer......................2-28
Warning information displays.............2-33
Indicators for maintenance...............2-35
Indicator for timer....................2-36
Security systems......................2-36Vehicle security system.................2-37
NISSAN Vehicle Immobilizer System.........2-38
Windshield wiper and washer switch...........2-39
Washer operation....................2-40
Rear window wiper and washer switch.........2-41
Rear window and outside mirror defroster switch . . .2-42
Instrument brightness control...............2-42
Headlight and turn signal switch.............2-43
Headlight switch.....................2-43
Turn signal switch....................2-45
Fog light switch (if so equipped)............
.2-45
Heated steering wheel switch...............2-46
Horn..............................2-47
ECO switch.........................2-47
Heated seat switch.....................2-47
Vehicle Dynamic Control (VDC) OFF switch......2-49
Charge port lid switch...................2-49
Charge connector lock switch...............2-50
Charge timer OFF switch.................2-50
Power outlet.........................2-50
Storage............................2-51
Cup holders.......................2-51
Sunglasses holder....................2-52
Glove box.........................2-53
Console box.......................2-53
Page 138 of 397

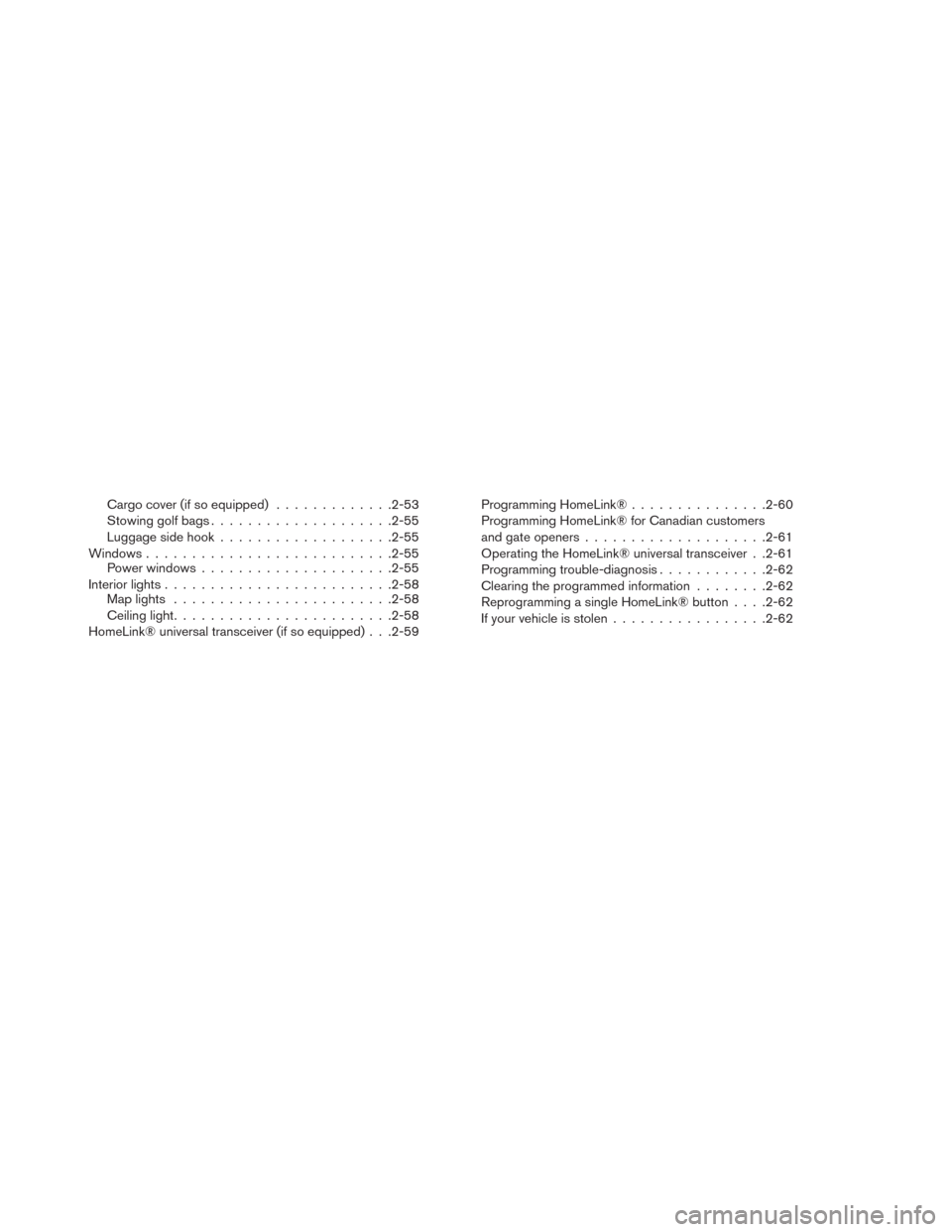

Cargo cover (if so equipped).............2-53
Stowing golf bags....................2-55
Luggage side hook...................2-55
Windows...........................2-55
Power windows.....................2-55
Interior lights.........................2-58
Map lights........................2-58
Ceiling light........................2-58
HomeLink® universal transceiver (if so equipped) . . .2-59Programming HomeLink®...............2-60
Programming HomeLink® for Canadian customers
and gate openers....................2-61
Operating the HomeLink® universal transceiver . .2-61
Programming trouble-diagnosis............2-62
Clearing the programmed information........2-62
Reprogramming a single HomeLink® button. . . .2-62
If your vehicle is stolen.................2-62
Page 139 of 397

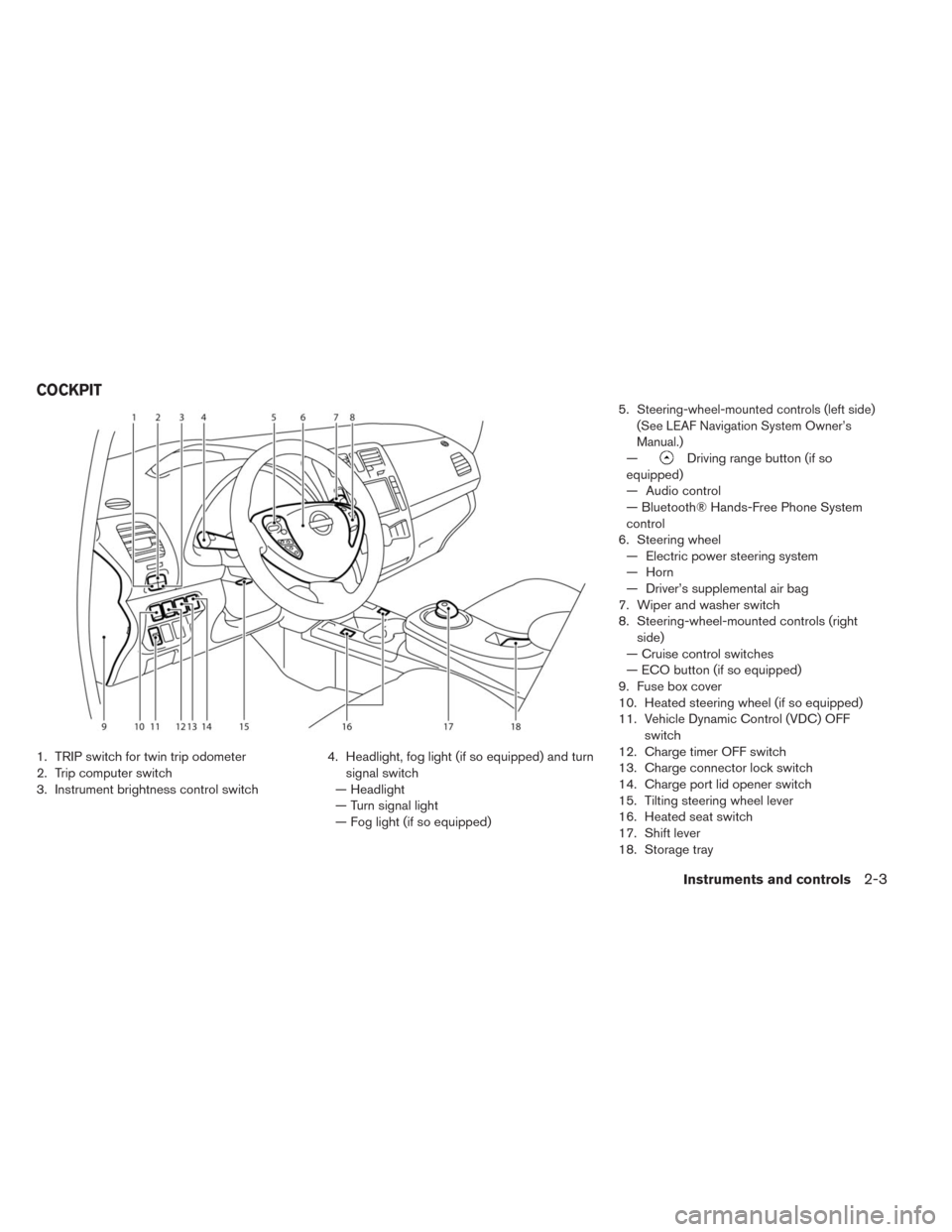

1. TRIP switch for twin trip odometer
2. Trip computer switch
3. Instrument brightness control switch4. Headlight, fog light (if so equipped) and turn
signal switch
— Headlight
— Turn signal light
— Fog light (if so equipped)5.
Steering-wheel-mounted controls (left side)
(See LEAF Navigation System Owner’s
Manual.)
—Driving range button (if so
equipped)
— Audio control
— Bluetooth® Hands-Free Phone System
control
6. Steering wheel
— Electric power steering system
— Horn
— Driver’s supplemental air bag
7. Wiper and washer switch
8. Steering-wheel-mounted controls (right
side)
— Cruise control switches
— ECO button (if so equipped)
9. Fuse box cover
10. Heated steering wheel (if so equipped)
11. Vehicle Dynamic Control (VDC) OFF
switch
12. Charge timer OFF switch
13. Charge connector lock switch
14. Charge port lid opener switch
15. Tilting steering wheel lever
16. Heated seat switch
17. Shift lever
18. Storage tray
COCKPIT
Instruments and controls2-3
Page 140 of 397

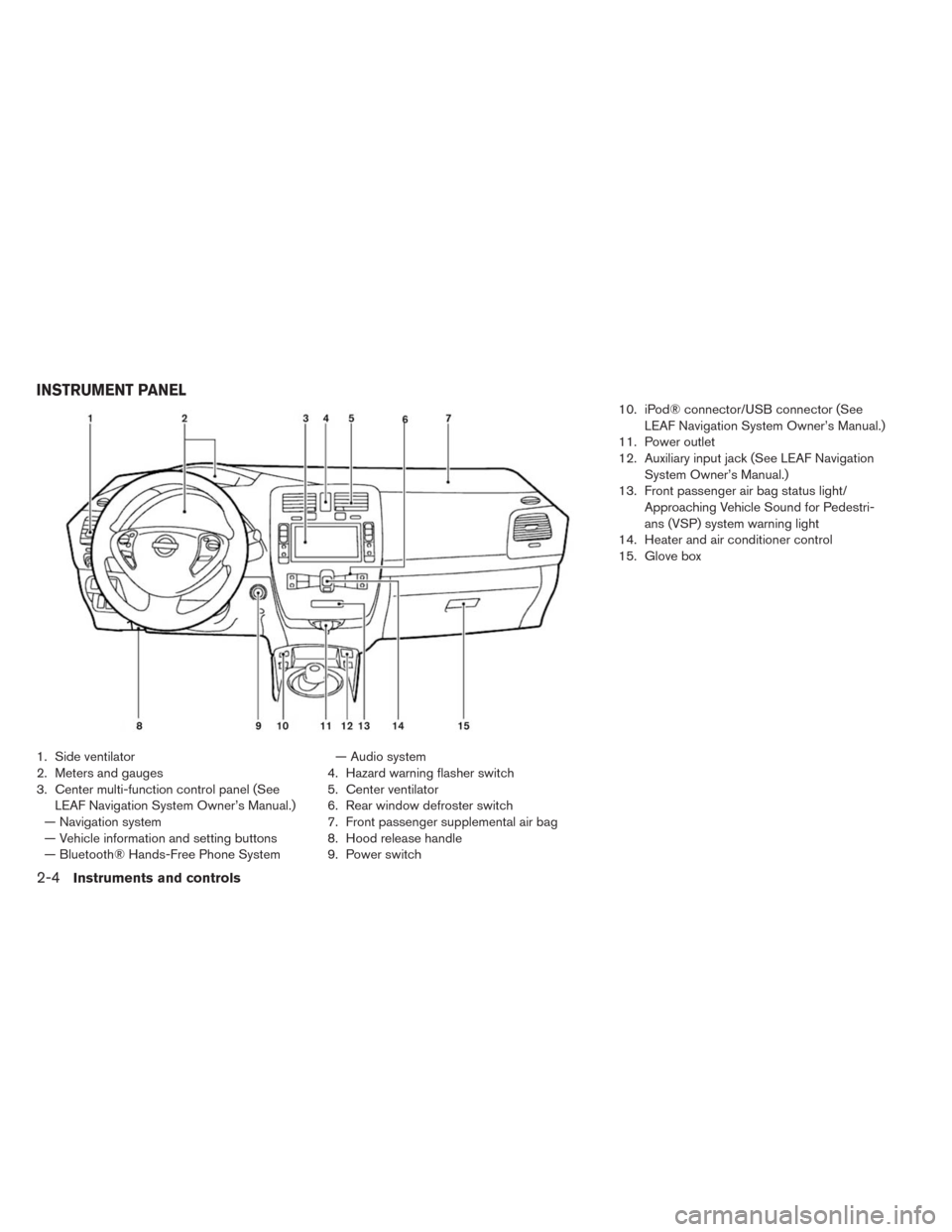

1. Side ventilator
2. Meters and gauges
3. Center multi-function control panel (See
LEAF Navigation System Owner’s Manual.)
— Navigation system
— Vehicle information and setting buttons
— Bluetooth® Hands-Free Phone System— Audio system
4. Hazard warning flasher switch
5. Center ventilator
6. Rear window defroster switch
7. Front passenger supplemental air bag
8. Hood release handle
9. Power switch10. iPod® connector/USB connector (See
LEAF Navigation System Owner’s Manual.)
11. Power outlet
12. Auxiliary input jack (See LEAF Navigation
System Owner’s Manual.)
13. Front passenger air bag status light/
Approaching Vehicle Sound for Pedestri-
ans (VSP) system warning light
14. Heater and air conditioner control
15. Glove box
INSTRUMENT PANEL
2-4Instruments and controls
