Page 121 of 397

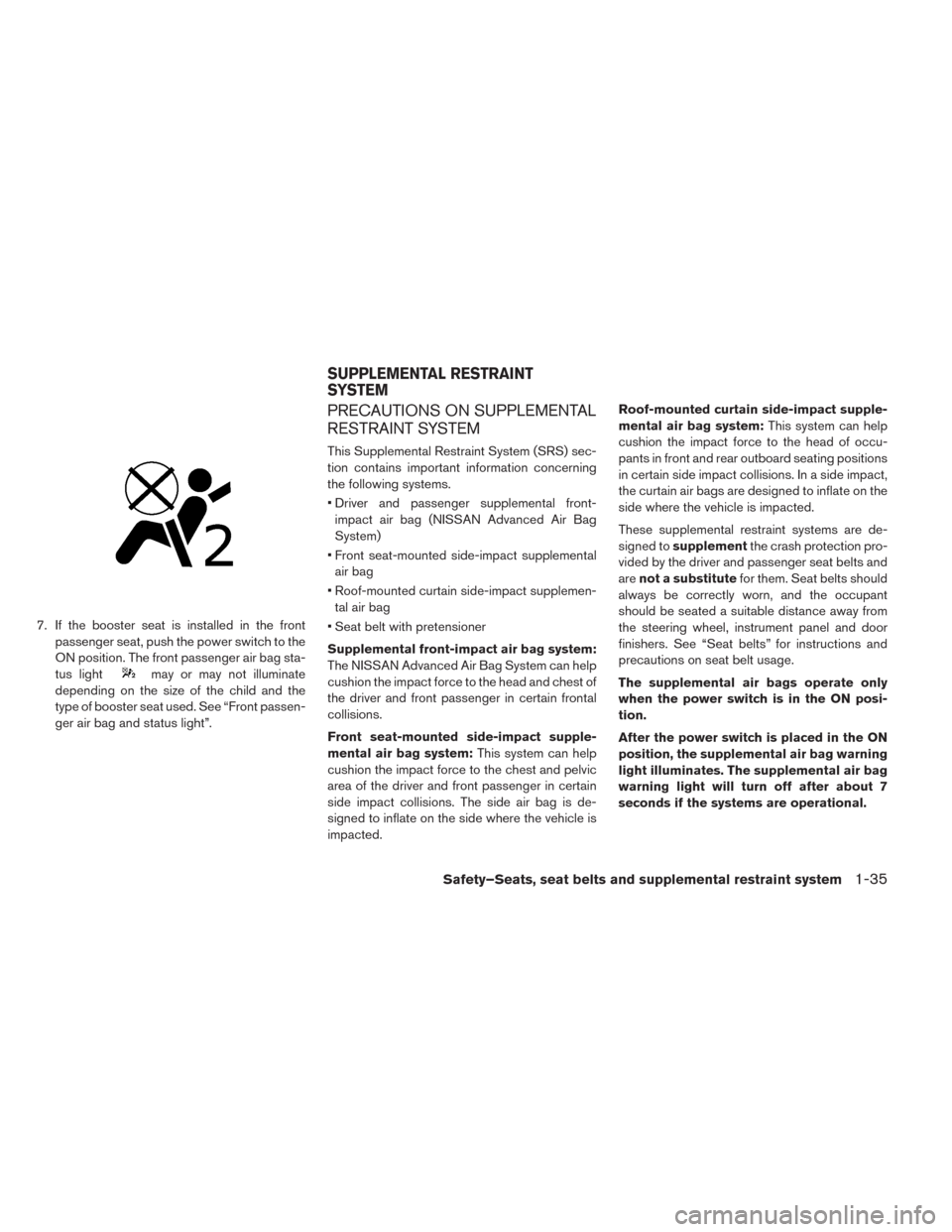

NISSAN LEAF 2014 1.G Owners Manual 7. If the booster seat is installed in the front
passenger seat, push the power switch to the
ON position. The front passenger air bag sta-
tus light
may or may not illuminate
depending on the size of

Page 122 of 397

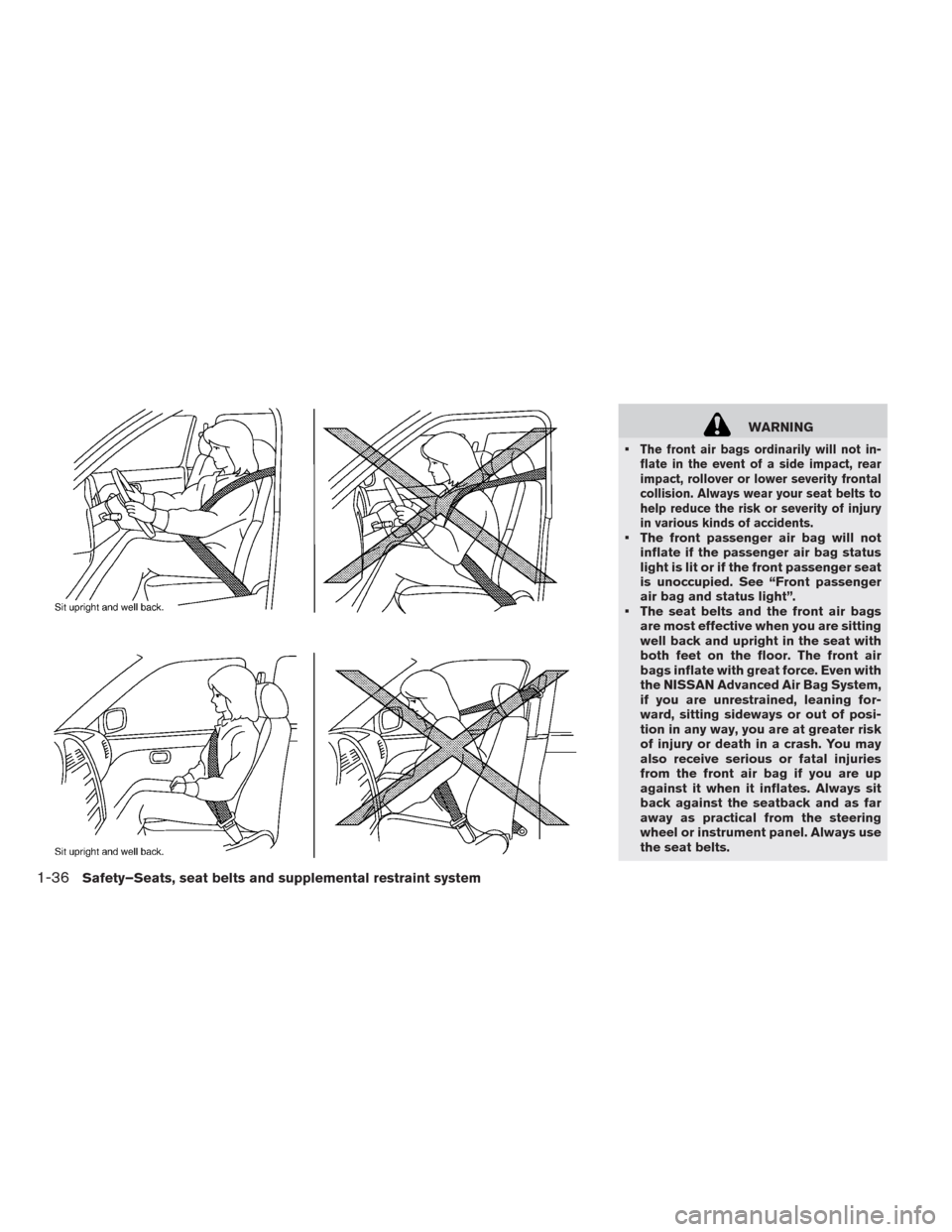

NISSAN LEAF 2014 1.G Owners Manual WARNING
•
The front air bags ordinarily will not in-
flate in the event of a side impact, rear
impact, rollover or lower severity frontal
collision. Always wear your seat belts to
help reduce the ri

Page 123 of 397

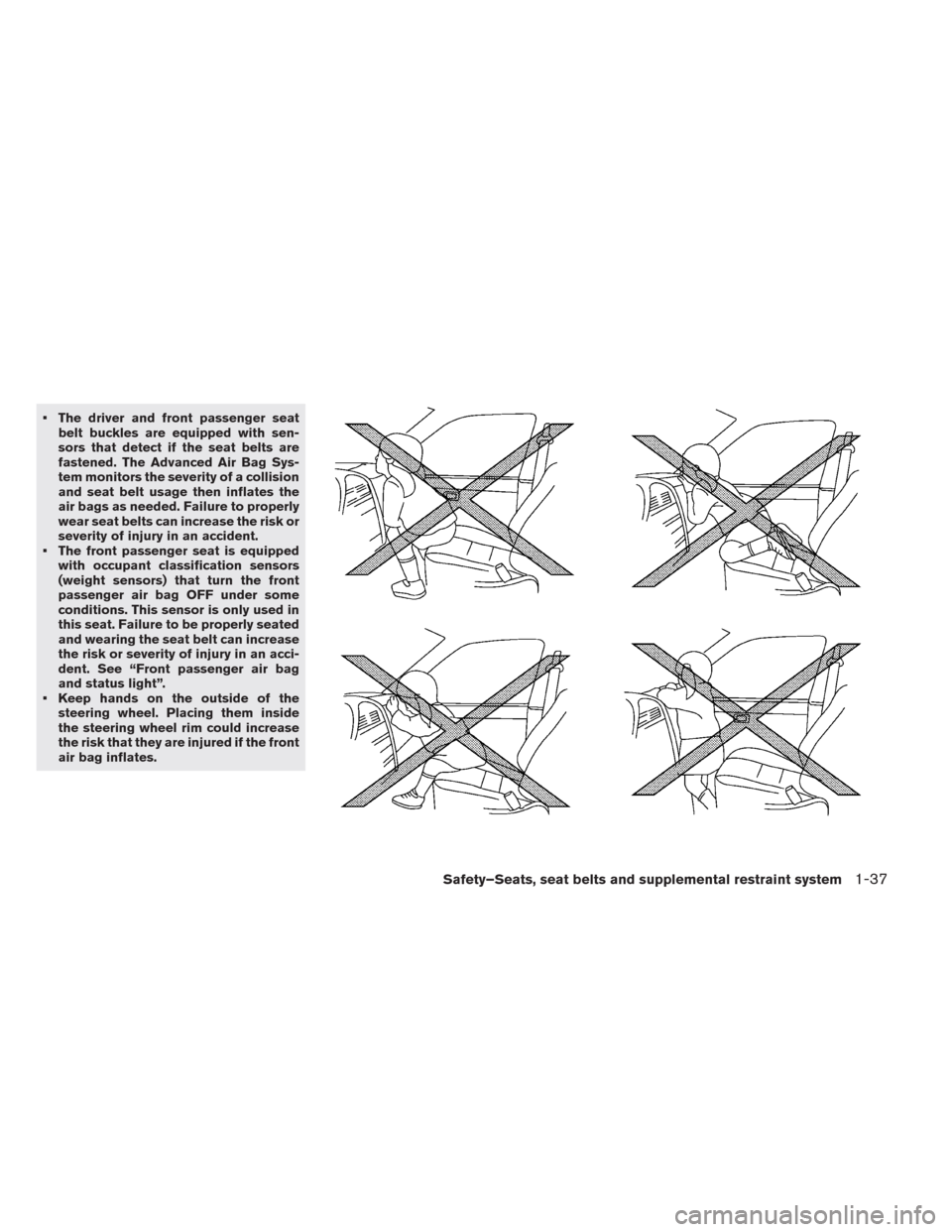

NISSAN LEAF 2014 1.G Owners Manual • The driver and front passenger seat
belt buckles are equipped with sen-
sors that detect if the seat belts are
fastened. The Advanced Air Bag Sys-
tem monitors the severity of a collision
and seat

Page 124 of 397

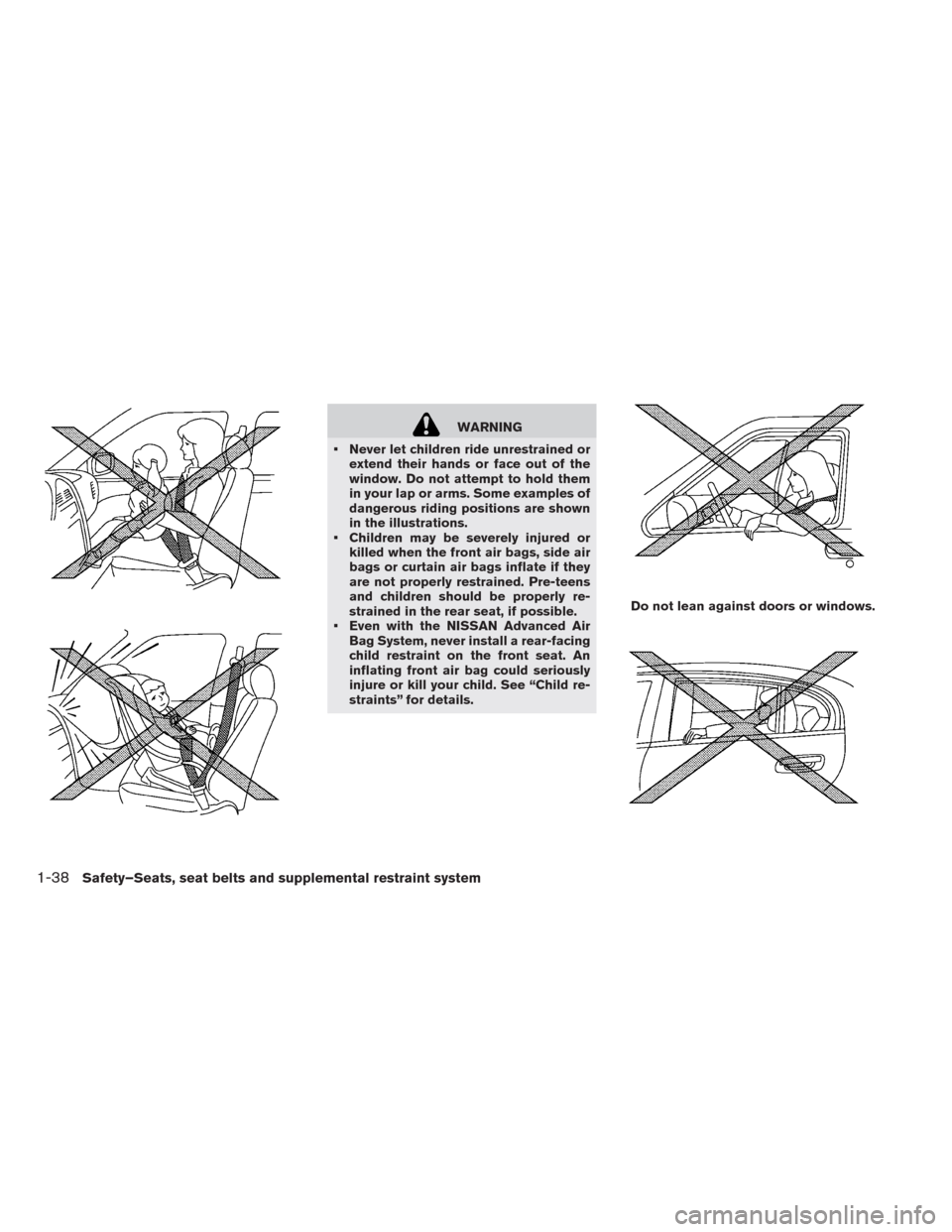

NISSAN LEAF 2014 1.G Owners Manual WARNING
• Never let children ride unrestrained or
extend their hands or face out of the
window. Do not attempt to hold them
in your lap or arms. Some examples of
dangerous riding positions are shown

Page 125 of 397

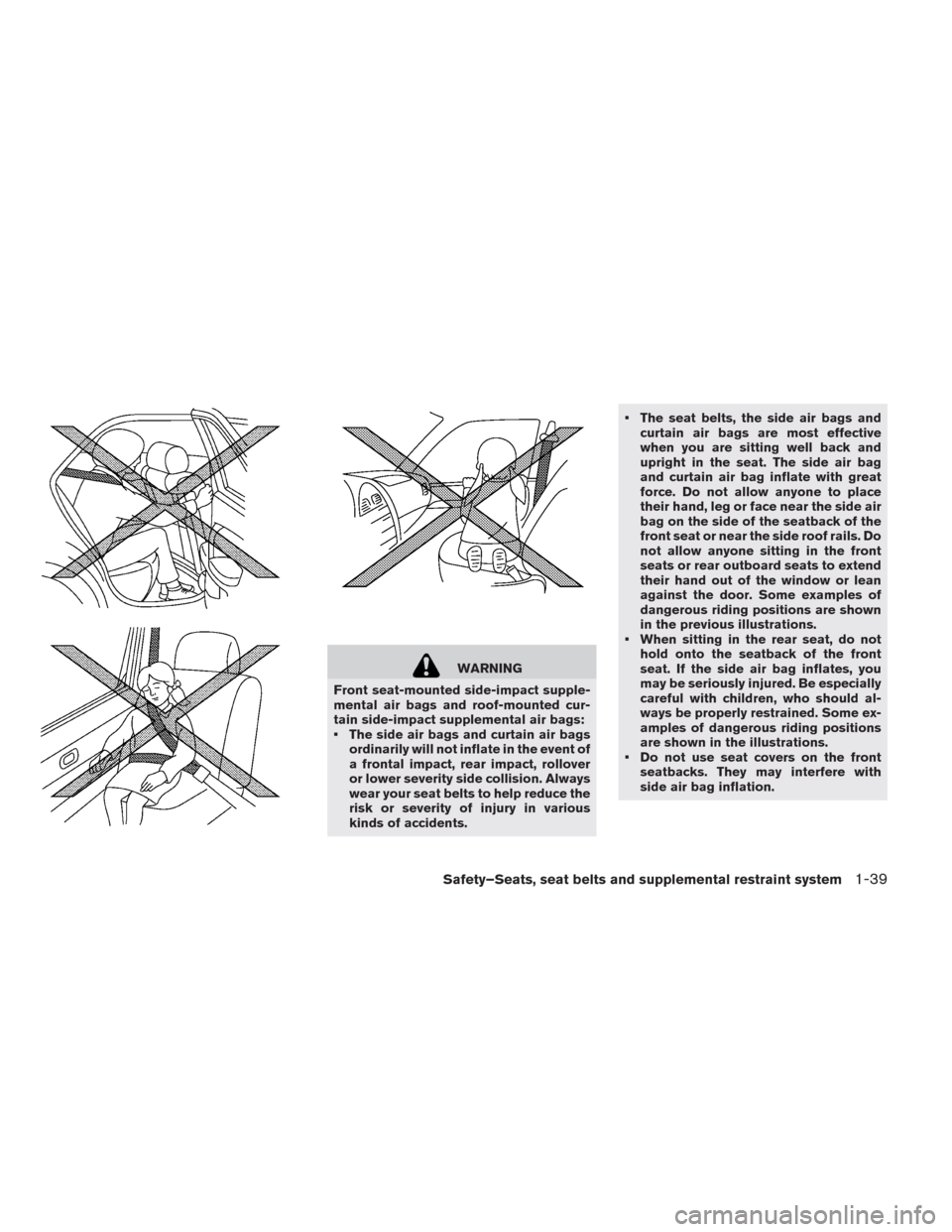

NISSAN LEAF 2014 1.G Owners Manual WARNING
Front seat-mounted side-impact supple-
mental air bags and roof-mounted cur-
tain side-impact supplemental air bags:
• The side air bags and curtain air bags
ordinarily will not inflate in t

Page 126 of 397

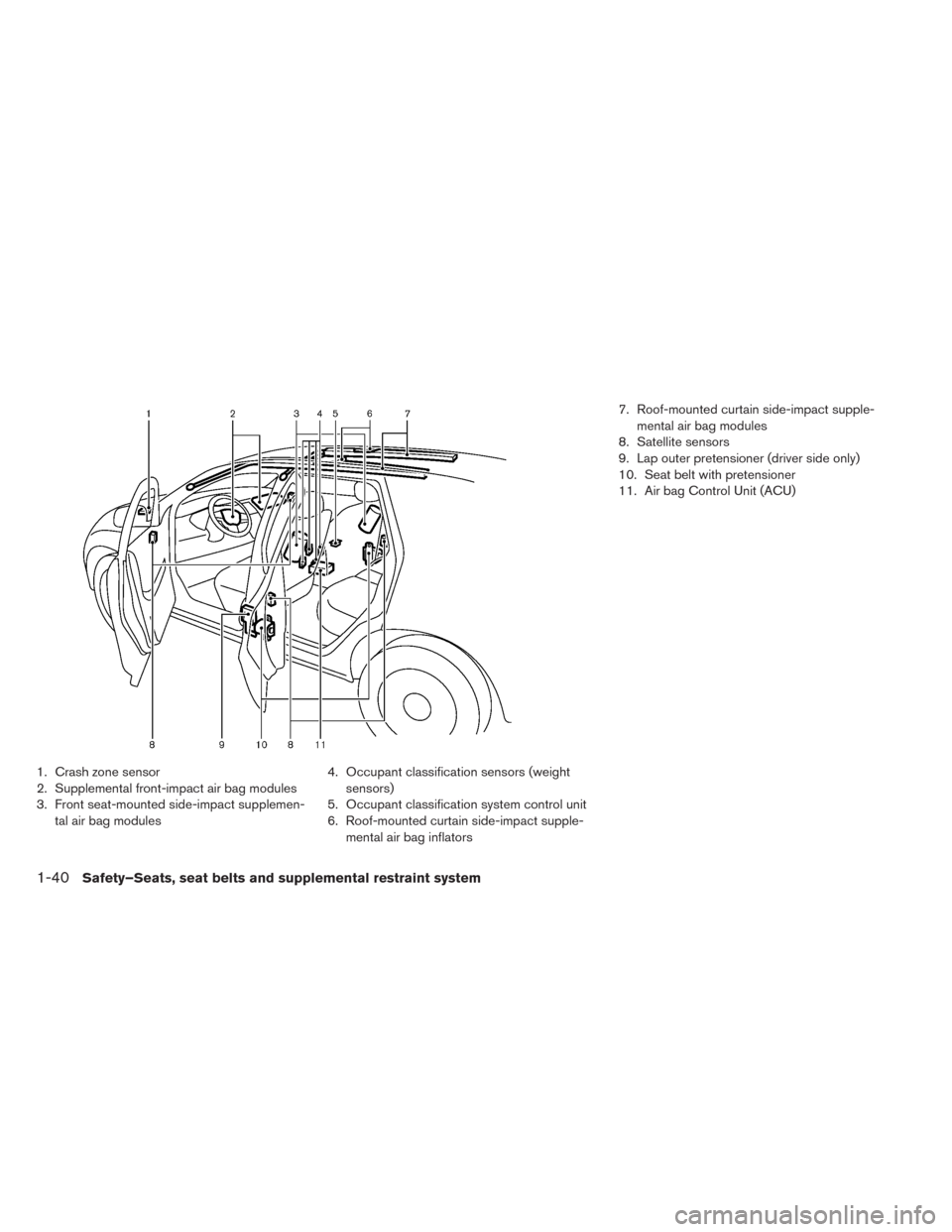

NISSAN LEAF 2014 1.G Owners Manual 1. Crash zone sensor
2. Supplemental front-impact air bag modules
3. Front seat-mounted side-impact supplemen-
tal air bag modules4. Occupant classification sensors (weight
sensors)
5. Occupant classi

Page 127 of 397

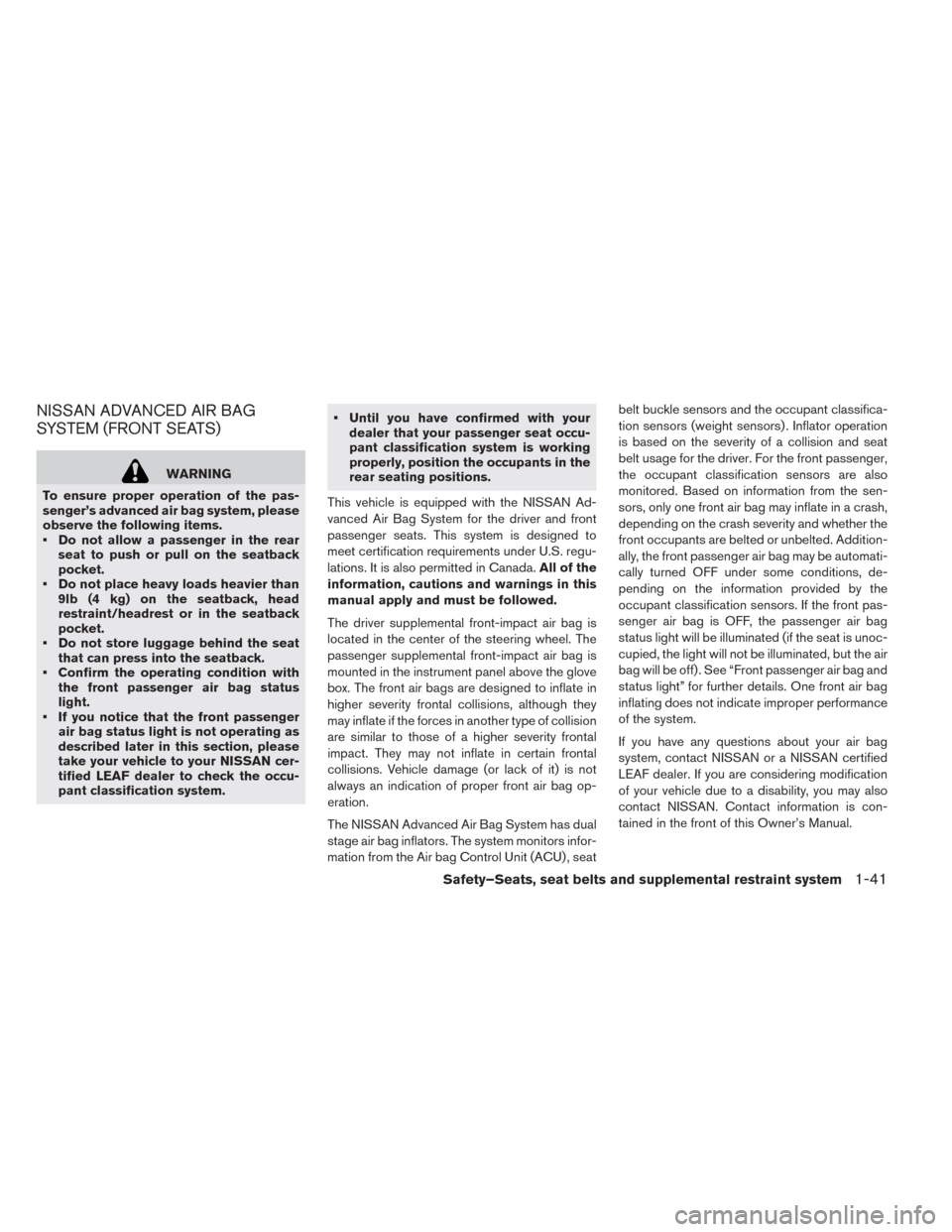

NISSAN LEAF 2014 1.G Owners Manual NISSAN ADVANCED AIR BAG
SYSTEM (FRONT SEATS)
WARNING
To ensure proper operation of the pas-
senger’s advanced air bag system, please
observe the following items.
• Do not allow a passenger in the

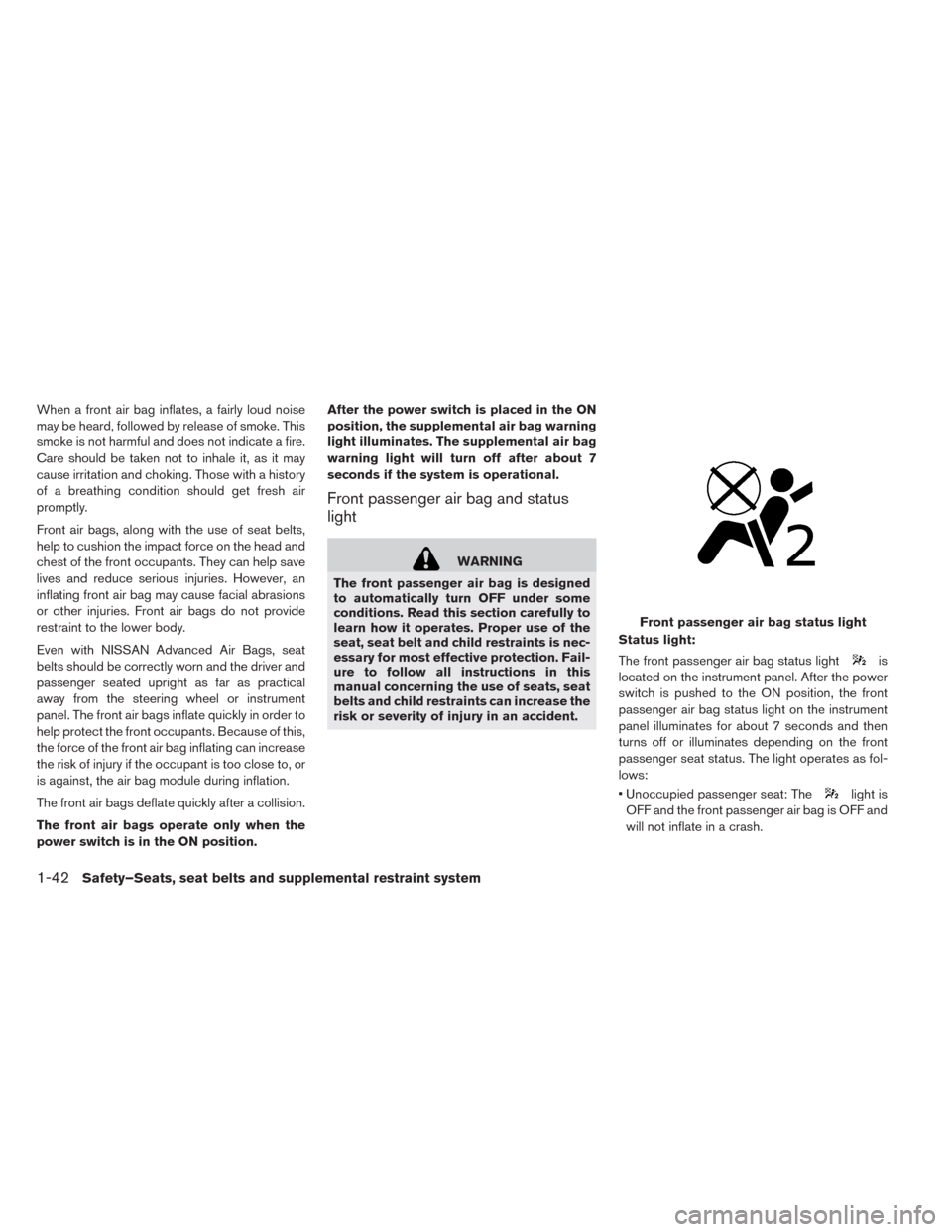

Page 128 of 397

NISSAN LEAF 2014 1.G Owners Manual When a front air bag inflates, a fairly loud noise
may be heard, followed by release of smoke. This
smoke is not harmful and does not indicate a fire.
Care should be taken not to inhale it, as it may

Page 129 of 397

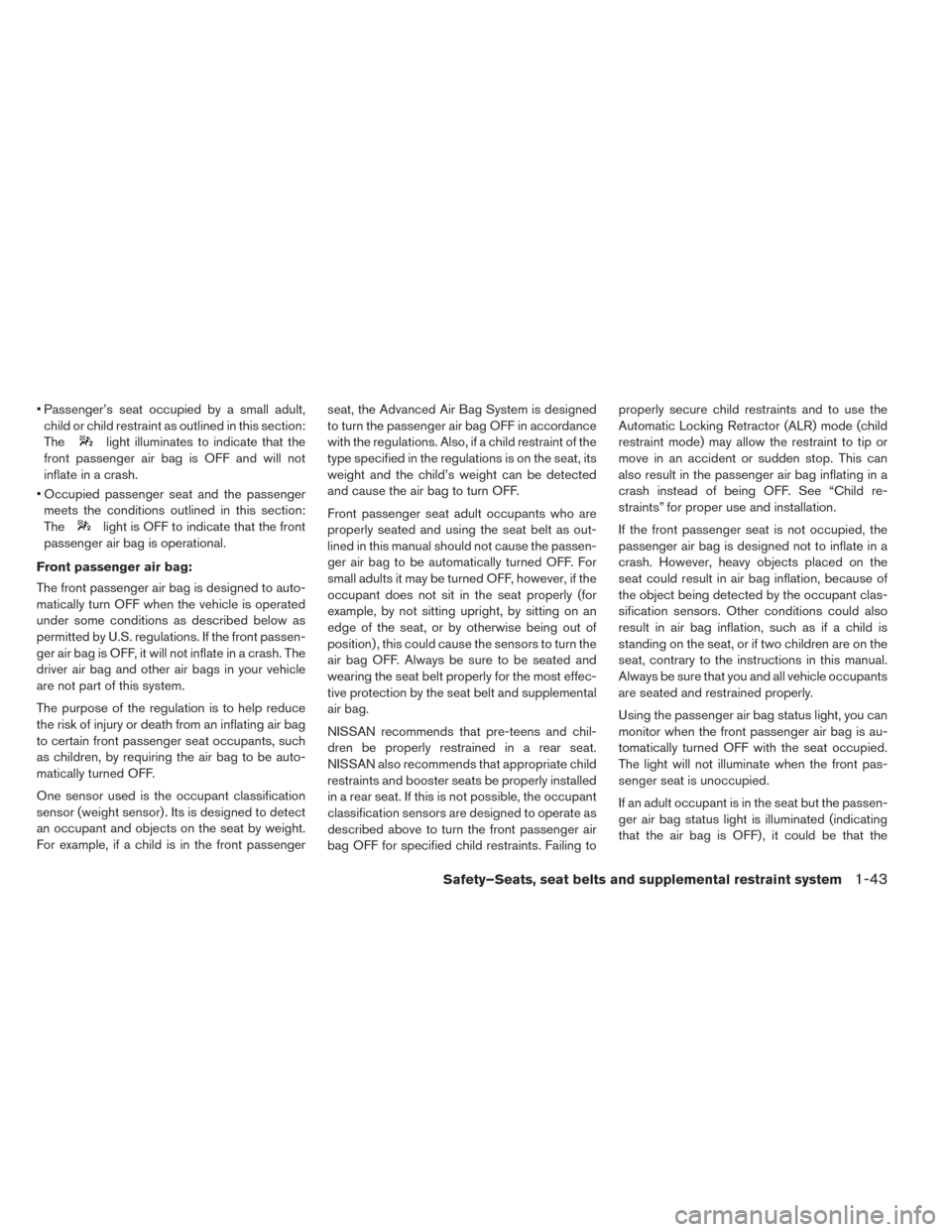

NISSAN LEAF 2014 1.G Owners Manual • Passenger’s seat occupied by a small adult,
child or child restraint as outlined in this section:
The
light illuminates to indicate that the
front passenger air bag is OFF and will not
inflate i

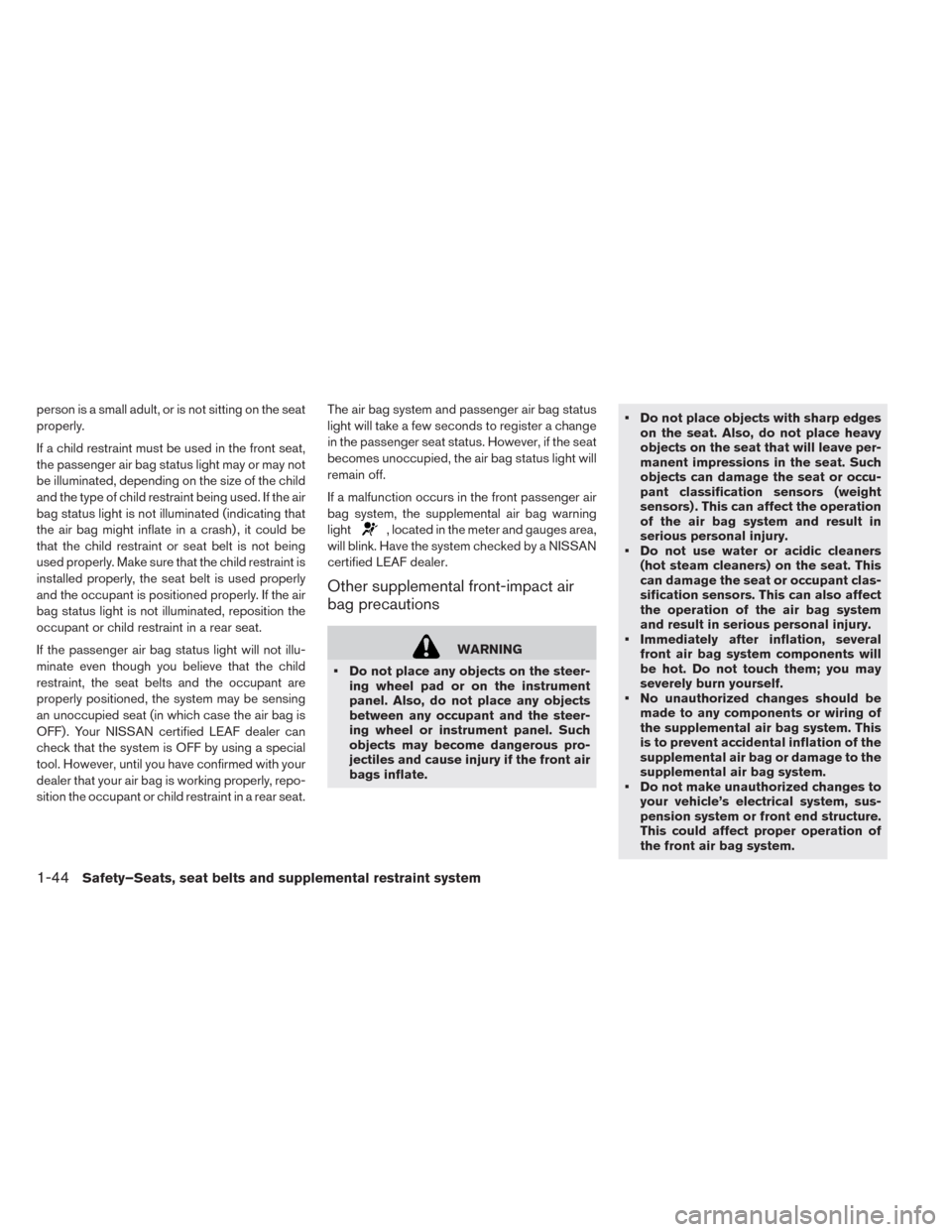

Page 130 of 397

NISSAN LEAF 2014 1.G Owners Manual person is a small adult, or is not sitting on the seat
properly.
If a child restraint must be used in the front seat,
the passenger air bag status light may or may not
be illuminated, depending on the
