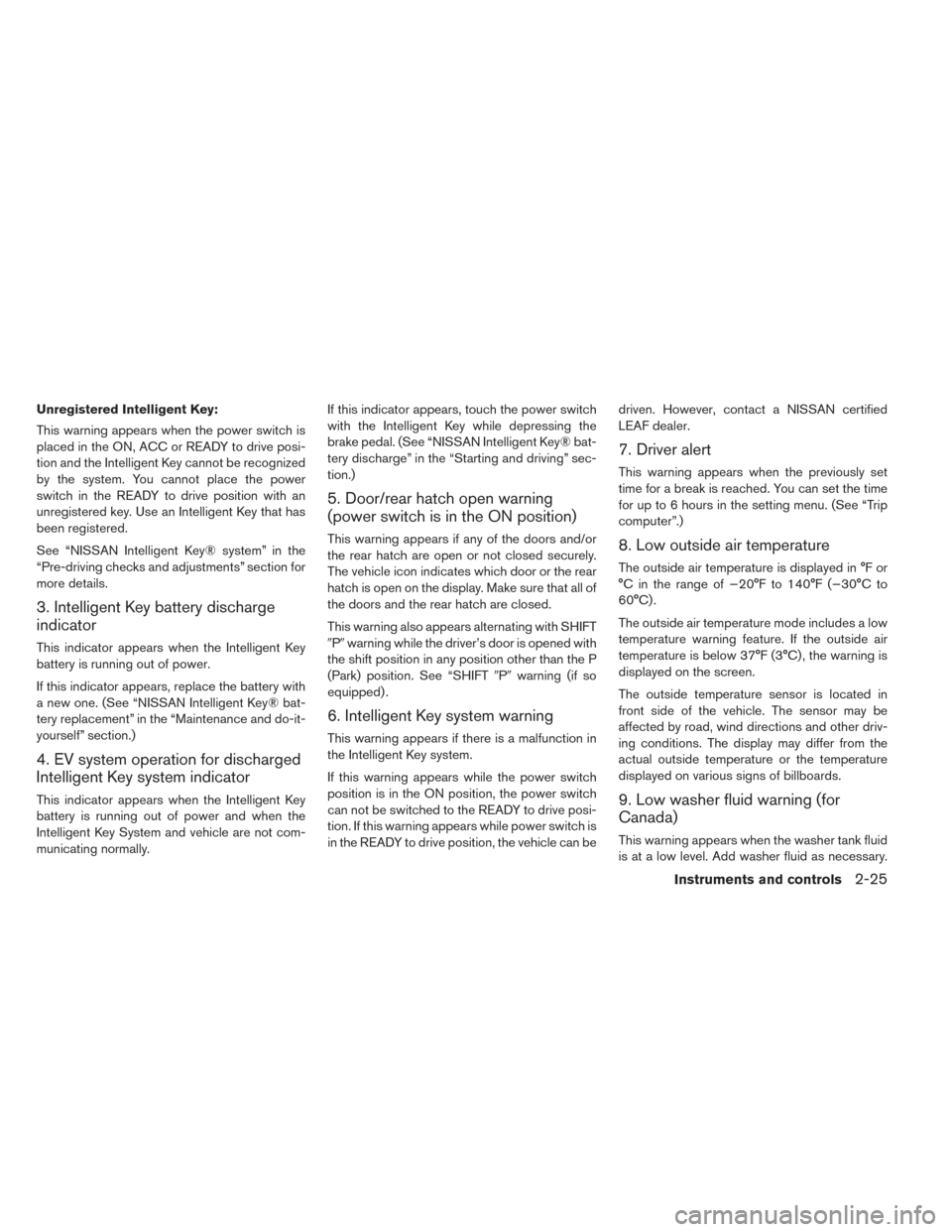

Unregistered Intelligent Key:
This warning appears when the power switch is
placed in the ON, ACC or READY to drive posi-
tion and the Intelligent Key cannot be recognized
by the system. You cannot place the power
switch in the READY to drive position with an
unregistered key. Use an Intelligent Key that has
been registered.
See “NISSAN Intelligent Key® system” in the
“Pre-driving checks and adjustments” section for
more details.
3. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery with
a new one. (See “NISSAN Intelligent Key® bat-
tery replacement” in the “Maintenance and do-it-
yourself” section.)
4. EV system operation for discharged
Intelligent Key system indicator
This indicator appears when the Intelligent Key
battery is running out of power and when the
Intelligent Key System and vehicle are not com-
municating normally.If this indicator appears, touch the power switch
with the Intelligent Key while depressing the
brake pedal. (See “NISSAN Intelligent Key® bat-
tery discharge” in the “Starting and driving” sec-
tion.)
5. Door/rear hatch open warning
(power switch is in the ON position)
This warning appears if any of the doors and/or
the rear hatch are open or not closed securely.
The vehicle icon indicates which door or the rear
hatch is open on the display. Make sure that all of
the doors and the rear hatch are closed.
This warning also appears alternating with SHIFT
Pwarning while the driver’s door is opened with
the shift position in any position other than the P
(Park) position. See “SHIFTPwarning (if so
equipped) .
6. Intelligent Key system warning
This warning appears if there is a malfunction in
the Intelligent Key system.
If this warning appears while the power switch
position is in the ON position, the power switch
can not be switched to the READY to drive posi-
tion. If this warning appears while power switch is
in the READY to drive position, the vehicle can bedriven. However, contact a NISSAN certified
LEAF dealer.
7. Driver alert
This warning appears when the previously set
time for a break is reached. You can set the time
for up to 6 hours in the setting menu. (See “Trip
computer”.)
8. Low outside air temperature
The outside air temperature is displayed in °F or
°C in the range of −20°F to 140°F (−30°C to
60°C) .
The outside air temperature mode includes a low
temperature warning feature. If the outside air
temperature is below 37°F (3°C) , the warning is
displayed on the screen.
The outside temperature sensor is located in
front side of the vehicle. The sensor may be
affected by road, wind directions and other driv-
ing conditions. The display may differ from the
actual outside temperature or the temperature
displayed on various signs of billboards.
9. Low washer fluid warning (for
Canada)
This warning appears when the washer tank fluid
is at a low level. Add washer fluid as necessary.
Instruments and controls2-25
Page 162 of 397

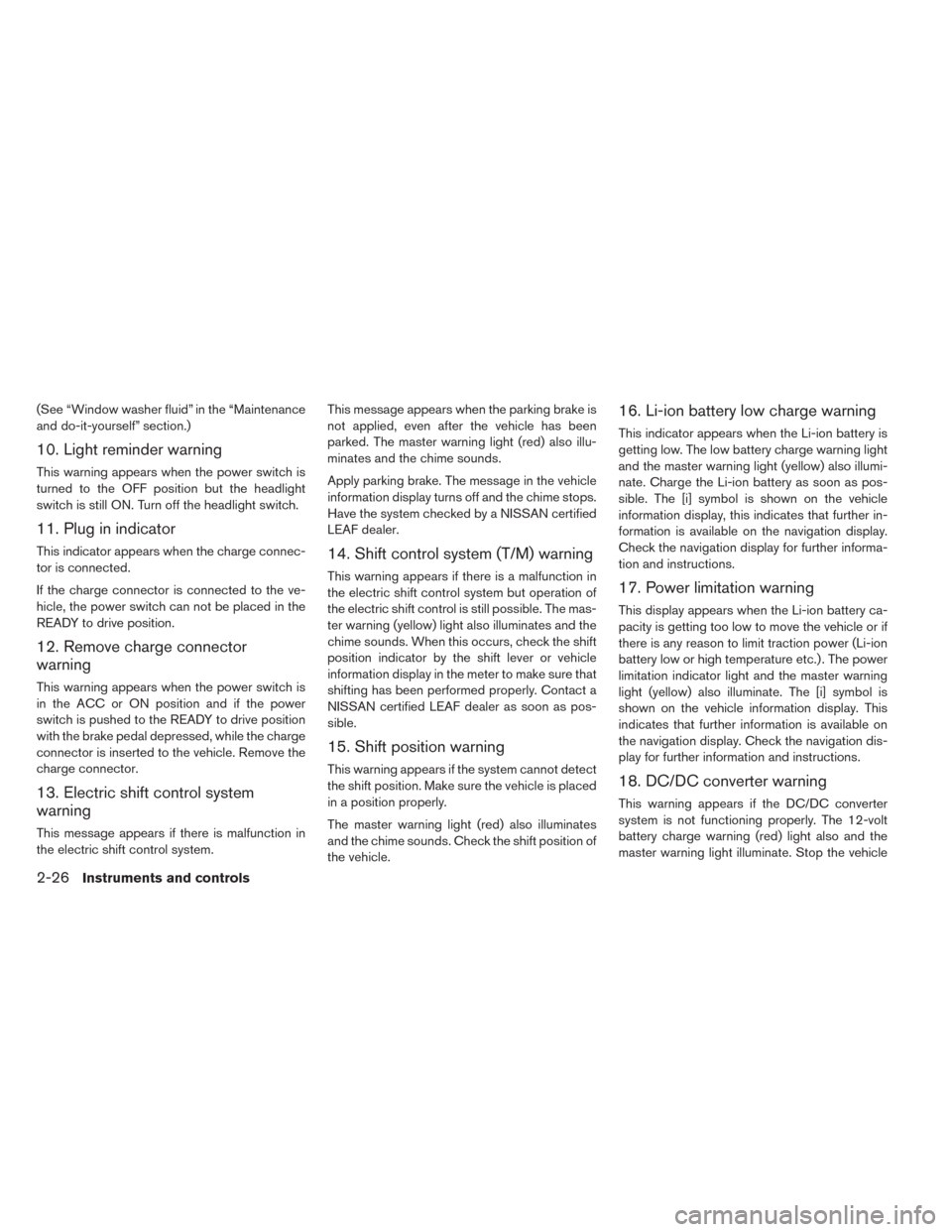

(See “Window washer fluid” in the “Maintenance
and do-it-yourself” section.)
10. Light reminder warning
This warning appears when the power switch is
turned to the OFF position but the headlight
switch is still ON. Turn off the headlight switch.
11. Plug in indicator
This indicator appears when the charge connec-
tor is connected.
If the charge connector is connected to the ve-
hicle, the power switch can not be placed in the
READY to drive position.
12. Remove charge connector
warning
This warning appears when the power switch is
in the ACC or ON position and if the power
switch is pushed to the READY to drive position
with the brake pedal depressed, while the charge
connector is inserted to the vehicle. Remove the
charge connector.
13. Electric shift control system
warning
This message appears if there is malfunction in
the electric shift control system.This message appears when the parking brake is
not applied, even after the vehicle has been
parked. The master warning light (red) also illu-
minates and the chime sounds.
Apply parking brake. The message in the vehicle
information display turns off and the chime stops.
Have the system checked by a NISSAN certified
LEAF dealer.
14. Shift control system (T/M) warning
This warning appears if there is a malfunction in
the electric shift control system but operation of
the electric shift control is still possible. The mas-
ter warning (yellow) light also illuminates and the
chime sounds. When this occurs, check the shift
position indicator by the shift lever or vehicle
information display in the meter to make sure that
shifting has been performed properly. Contact a
NISSAN certified LEAF dealer as soon as pos-
sible.
15. Shift position warning
This warning appears if the system cannot detect
the shift position. Make sure the vehicle is placed
in a position properly.
The master warning light (red) also illuminates
and the chime sounds. Check the shift position of
the vehicle.
16. Li-ion battery low charge warning
This indicator appears when the Li-ion battery is
getting low. The low battery charge warning light
and the master warning light (yellow) also illumi-
nate. Charge the Li-ion battery as soon as pos-
sible. The [i] symbol is shown on the vehicle
information display, this indicates that further in-
formation is available on the navigation display.
Check the navigation display for further informa-
tion and instructions.
17. Power limitation warning
This display appears when the Li-ion battery ca-
pacity is getting too low to move the vehicle or if
there is any reason to limit traction power (Li-ion
battery low or high temperature etc.) . The power
limitation indicator light and the master warning
light (yellow) also illuminate. The [i] symbol is
shown on the vehicle information display. This
indicates that further information is available on
the navigation display. Check the navigation dis-
play for further information and instructions.
18. DC/DC converter warning
This warning appears if the DC/DC converter
system is not functioning properly. The 12-volt
battery charge warning (red) light also and the
master warning light illuminate. Stop the vehicle
2-26Instruments and controls
Page 163 of 397

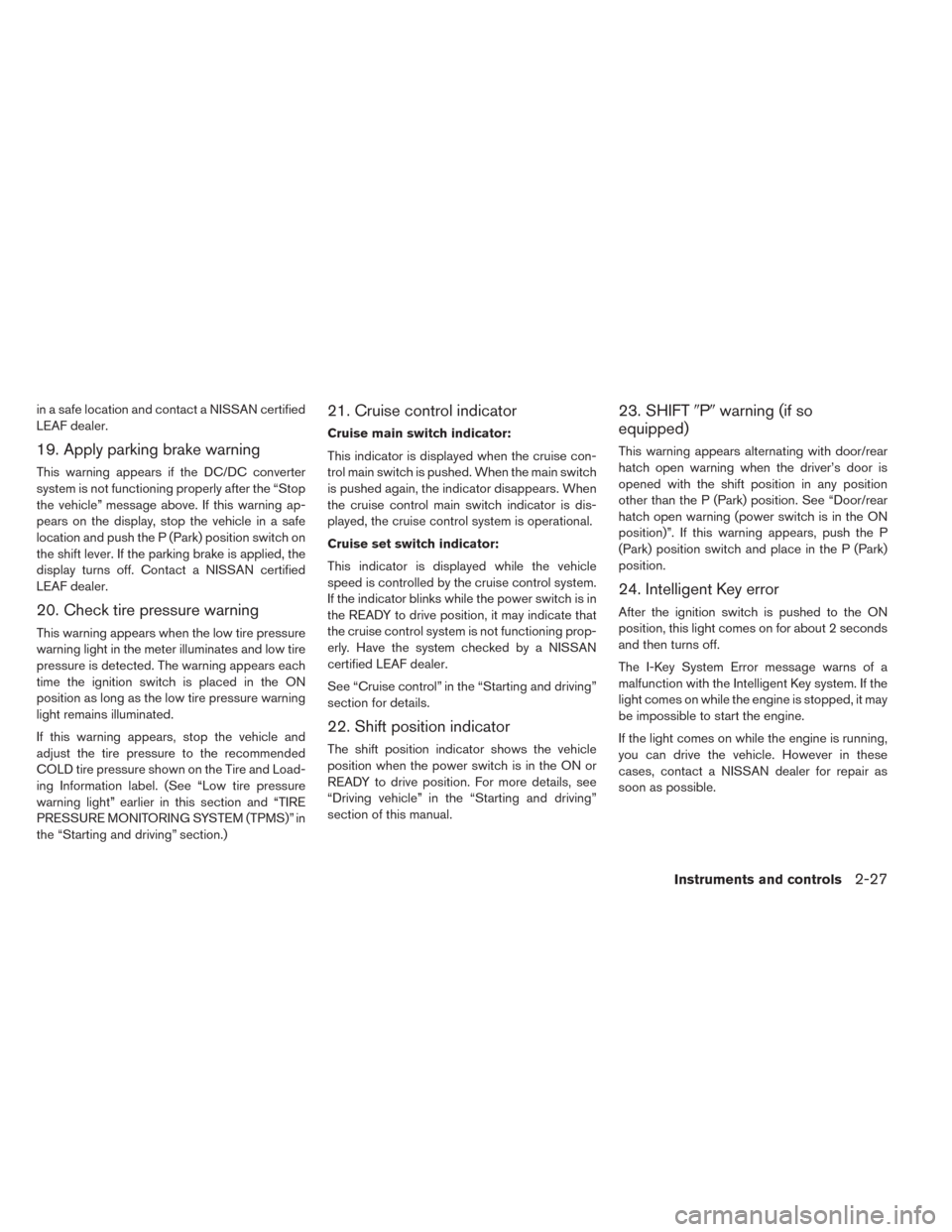

in a safe location and contact a NISSAN certified
LEAF dealer.
19. Apply parking brake warning
This warning appears if the DC/DC converter
system is not functioning properly after the “Stop
the vehicle” message above. If this warning ap-
pears on the display, stop the vehicle in a safe
location and push the P (Park) position switch on
the shift lever. If the parking brake is applied, the
display turns off. Contact a NISSAN certified
LEAF dealer.
20. Check tire pressure warning
This warning appears when the low tire pressure
warning light in the meter illuminates and low tire
pressure is detected. The warning appears each
time the ignition switch is placed in the ON
position as long as the low tire pressure warning
light remains illuminated.
If this warning appears, stop the vehicle and
adjust the tire pressure to the recommended
COLD tire pressure shown on the Tire and Load-
ing Information label. (See “Low tire pressure
warning light” earlier in this section and “TIRE
PRESSURE MONITORING SYSTEM (TPMS)” in
the “Starting and driving” section.)
21. Cruise control indicator
Cruise main switch indicator:
This indicator is displayed when the cruise con-
trol main switch is pushed. When the main switch
is pushed again, the indicator disappears. When
the cruise control main switch indicator is dis-
played, the cruise control system is operational.
Cruise set switch indicator:
This indicator is displayed while the vehicle
speed is controlled by the cruise control system.
If the indicator blinks while the power switch is in
the READY to drive position, it may indicate that
the cruise control system is not functioning prop-
erly. Have the system checked by a NISSAN
certified LEAF dealer.
See “Cruise control” in the “Starting and driving”
section for details.
22. Shift position indicator
The shift position indicator shows the vehicle
position when the power switch is in the ON or
READY to drive position. For more details, see
“Driving vehicle” in the “Starting and driving”
section of this manual.
23. SHIFTPwarning (if so
equipped)
This warning appears alternating with door/rear
hatch open warning when the driver’s door is
opened with the shift position in any position
other than the P (Park) position. See “Door/rear
hatch open warning (power switch is in the ON
position)”. If this warning appears, push the P
(Park) position switch and place in the P (Park)
position.
24. Intelligent Key error
After the ignition switch is pushed to the ON
position, this light comes on for about 2 seconds
and then turns off.
The I-Key System Error message warns of a
malfunction with the Intelligent Key system. If the
light comes on while the engine is stopped, it may
be impossible to start the engine.
If the light comes on while the engine is running,
you can drive the vehicle. However in these
cases, contact a NISSAN dealer for repair as
soon as possible.
Instruments and controls2-27
Page 164 of 397

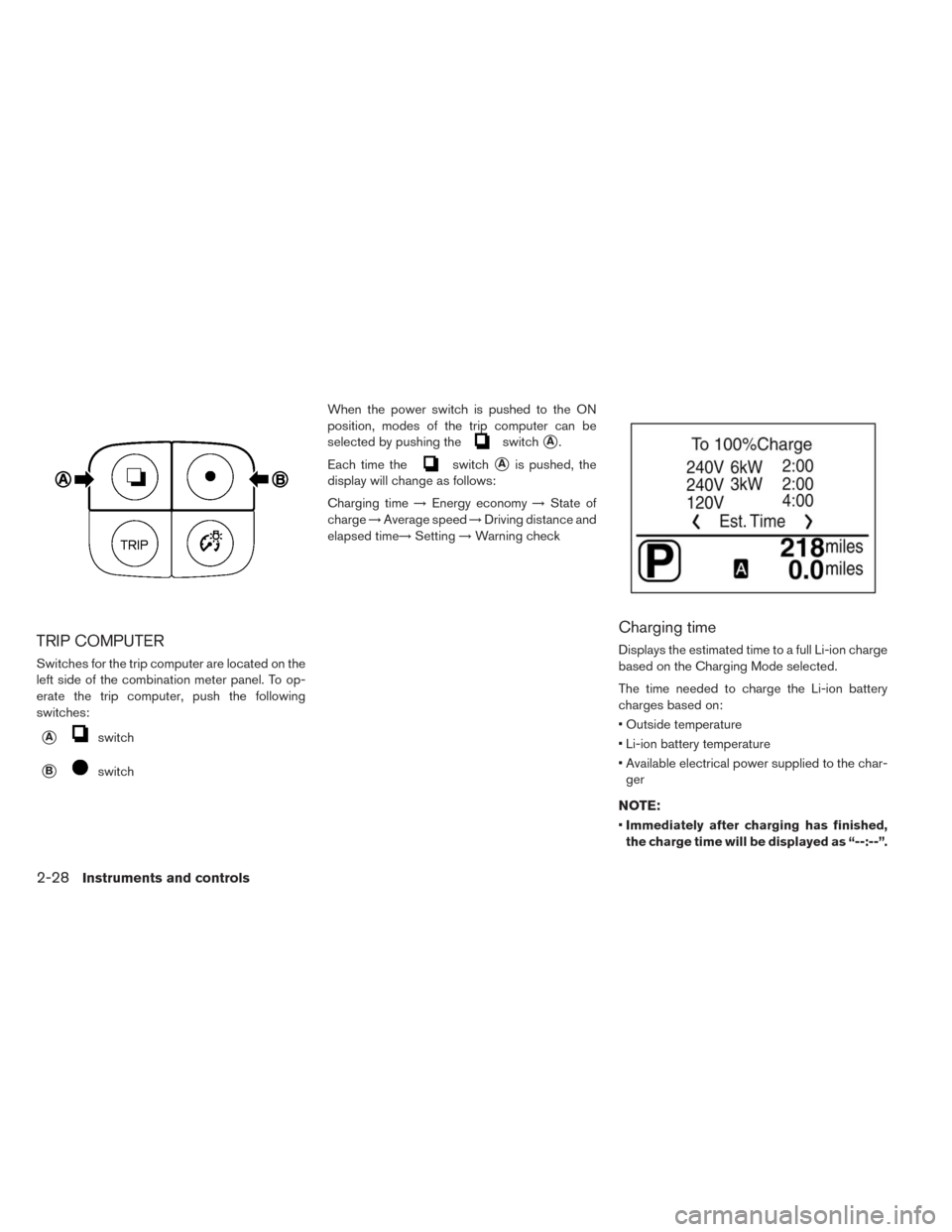

TRIP COMPUTER
Switches for the trip computer are located on the
left side of the combination meter panel. To op-
erate the trip computer, push the following
switches:
Aswitch
BswitchWhen the power switch is pushed to the ON
position, modes of the trip computer can be
selected by pushing the
switchA.
Each time the
switchAis pushed, the
display will change as follows:
Charging time→Energy economy→State of
charge→Average speed→Driving distance and
elapsed time→Setting→Warning check
Charging time
Displays the estimated time to a full Li-ion charge
based on the Charging Mode selected.
The time needed to charge the Li-ion battery
charges based on:
• Outside temperature
• Li-ion battery temperature
• Available electrical power supplied to the char-
ger
NOTE:
•Immediately after charging has finished,
the charge time will be displayed as “--:--”.
2-28Instruments and controls
Page 165 of 397

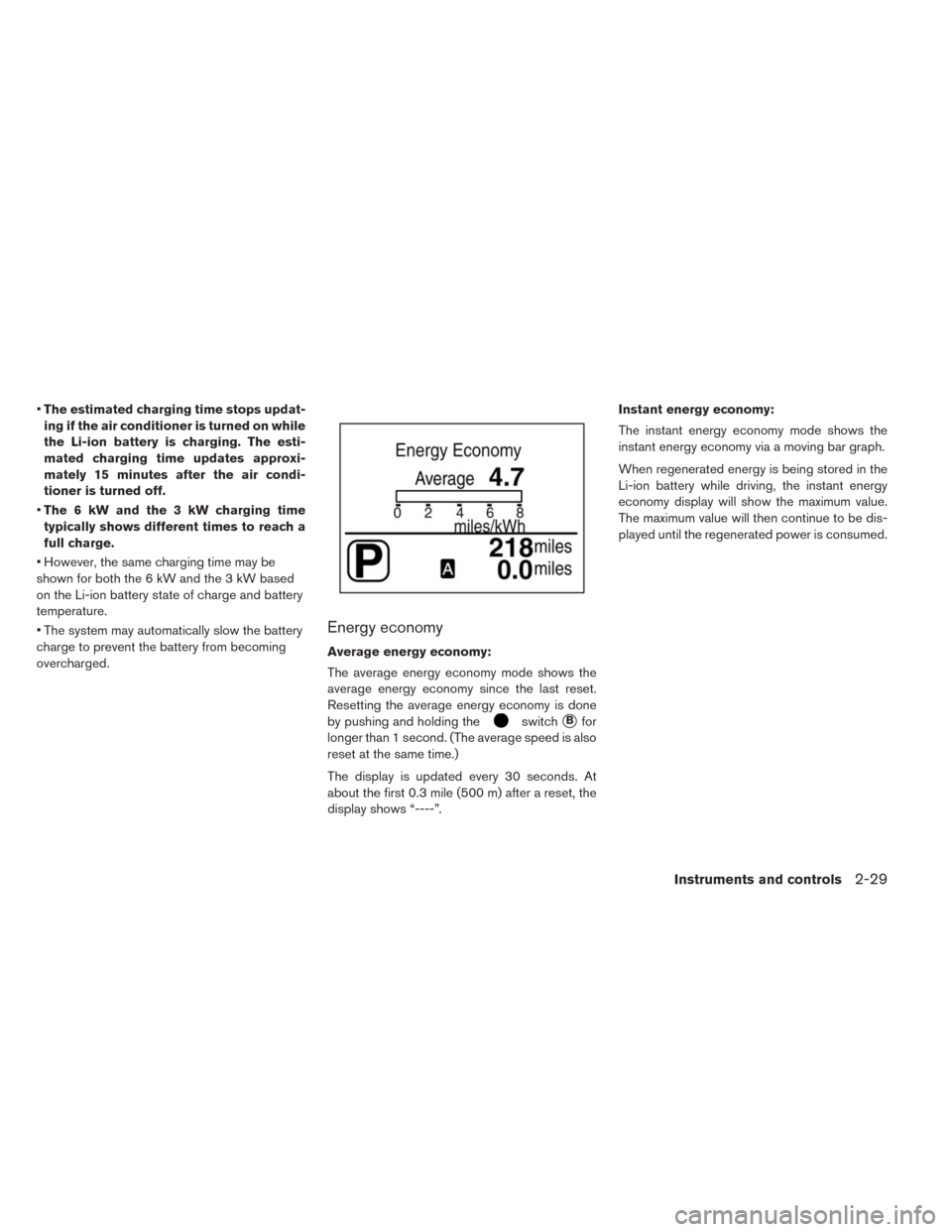

•The estimated charging time stops updat-
ing if the air conditioner is turned on while
the Li-ion battery is charging. The esti-
mated charging time updates approxi-
mately 15 minutes after the air condi-
tioner is turned off.
•The 6 kW and the 3 kW charging time
typically shows different times to reach a
full charge.
• However, the same charging time may be
shown for both the 6 kW and the 3 kW based
on the Li-ion battery state of charge and battery
temperature.
• The system may automatically slow the battery
charge to prevent the battery from becoming
overcharged.
Energy economy
Average energy economy:
The average energy economy mode shows the
average energy economy since the last reset.
Resetting the average energy economy is done
by pushing and holding the
switchBfor
longer than 1 second. (The average speed is also
reset at the same time.)
The display is updated every 30 seconds. At
about the first 0.3 mile (500 m) after a reset, the
display shows “----”.Instant energy economy:
The instant energy economy mode shows the
instant energy economy via a moving bar graph.
When regenerated energy is being stored in the
Li-ion battery while driving, the instant energy
economy display will show the maximum value.
The maximum value will then continue to be dis-
played until the regenerated power is consumed.
Instruments and controls2-29
Page 166 of 397

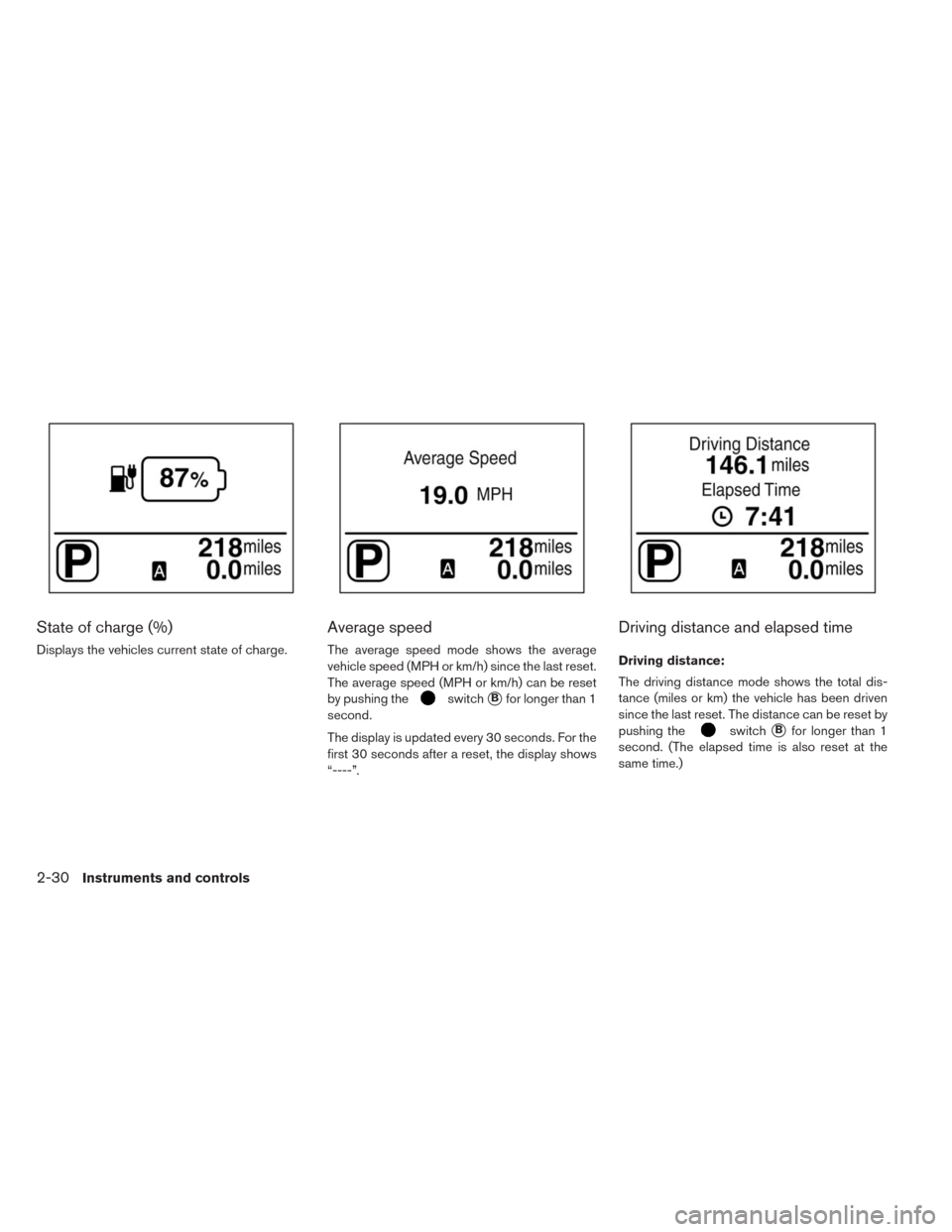

State of charge (%)
Displays the vehicles current state of charge.
Average speed
The average speed mode shows the average
vehicle speed (MPH or km/h) since the last reset.
The average speed (MPH or km/h) can be reset
by pushing the
switchBfor longer than 1
second.
The display is updated every 30 seconds. For the
first 30 seconds after a reset, the display shows
“----”.
Driving distance and elapsed time
Driving distance:
The driving distance mode shows the total dis-
tance (miles or km) the vehicle has been driven
since the last reset. The distance can be reset by
pushing the
switchBfor longer than 1
second. (The elapsed time is also reset at the
same time.)
2-30Instruments and controls
Page 167 of 397

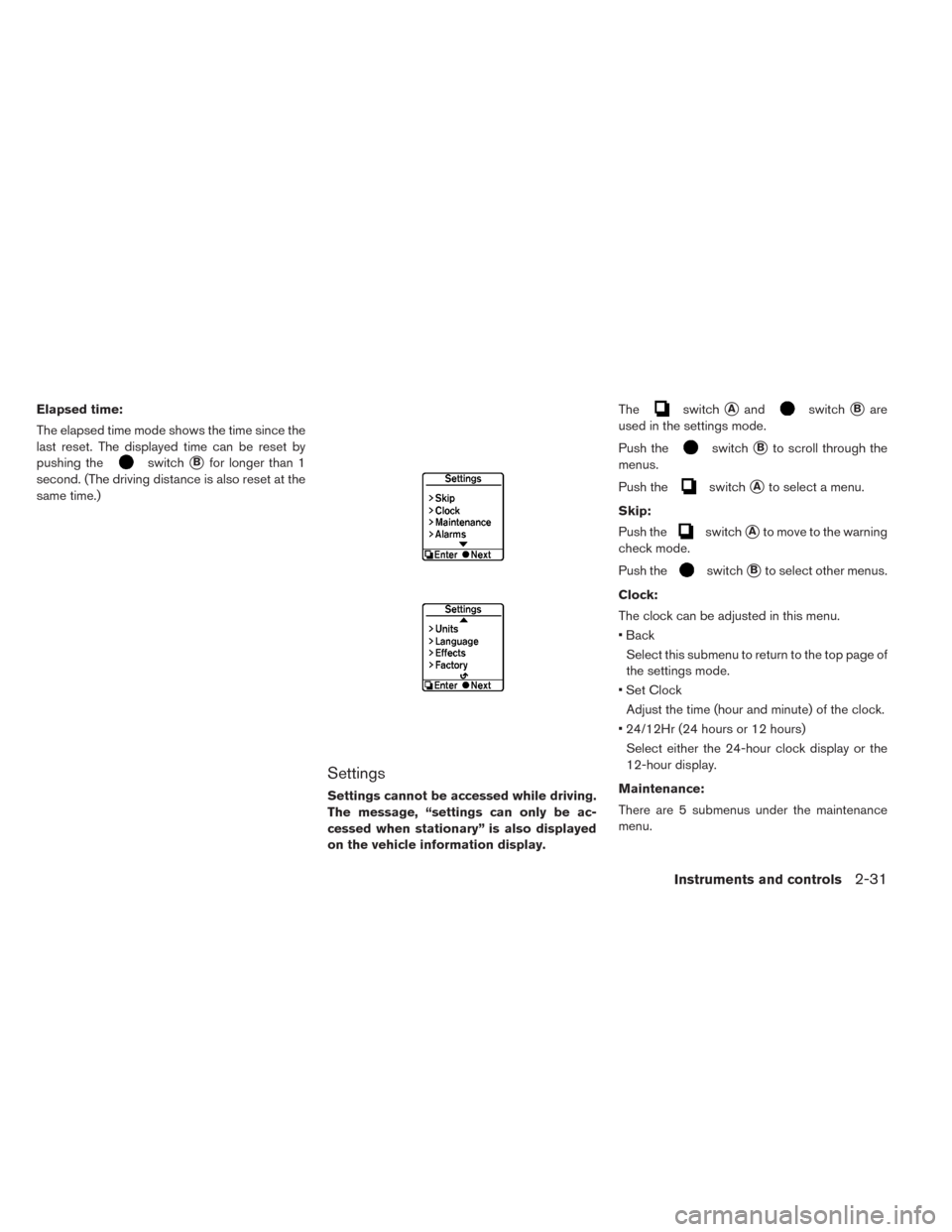

Elapsed time:
The elapsed time mode shows the time since the
last reset. The displayed time can be reset by
pushing the
switchBfor longer than 1
second. (The driving distance is also reset at the
same time.)
Settings
Settings cannot be accessed while driving.
The message, “settings can only be ac-
cessed when stationary” is also displayed
on the vehicle information display.The
switchAandswitchBare
used in the settings mode.
Push the
switchBto scroll through the
menus.
Push the
switchAto select a menu.
Skip:
Push the
switchAto move to the warning
check mode.
Push the
switchBto select other menus.
Clock:
The clock can be adjusted in this menu.
• Back
Select this submenu to return to the top page of
the settings mode.
• Set Clock
Adjust the time (hour and minute) of the clock.
• 24/12Hr (24 hours or 12 hours)
Select either the 24-hour clock display or the
12-hour display.
Maintenance:
There are 5 submenus under the maintenance
menu.
Instruments and controls2-31
Page 168 of 397
• Back
Select this submenu to return to the top page of
the settings mode.
• Tire
Select this submenu to set or reset the distance
for replacement of the tires.
• Other -1, -2 and -3
Select this submenu to set or reset the distance
for replaceable/maintenance items. Up to three
other items can be monitored. Set other items if
required.
Alarms:
The alarms menu can be set to notify the follow-
ing items. There are 3 submenus under the
alarms menu.
• Back
Select this submenu to return to the top page of
the settings mode.
• Driver Alert
Select this submenu to set the driver alert pe-
riod.
• Outside temp
Select this submenu to display the low outside
temperature (On or Off) .Units:
Units displayed can be set for the following items
on this menu.
• Back
Select this submenu to return to the top page of
the settings mode.
• Temperature
• Speed
Language:
Select this submenu to choose the language
displayed.
To return to the top page of the settings mode,
select “BACK”.
Effects:
The start up sound can be selected or turned off
from this menu.
5 submenus under the effects menu.
When a menu item is selected, the selected
sound plays.
• Back
Select this submenu to return to the top page of
the settings mode.
• Sound 1
• Sound 2• Sound 3
• Off
Factory settings:
Select this menu to reset all values to the factory
default settings except for the odometer settings.
NOTE:
When resetting to the factory settings, all
previous settings made are restored to the
default settings.
To return to the top page of the settings mode,
select “BACK”.
2-32Instruments and controls
Page 169 of 397

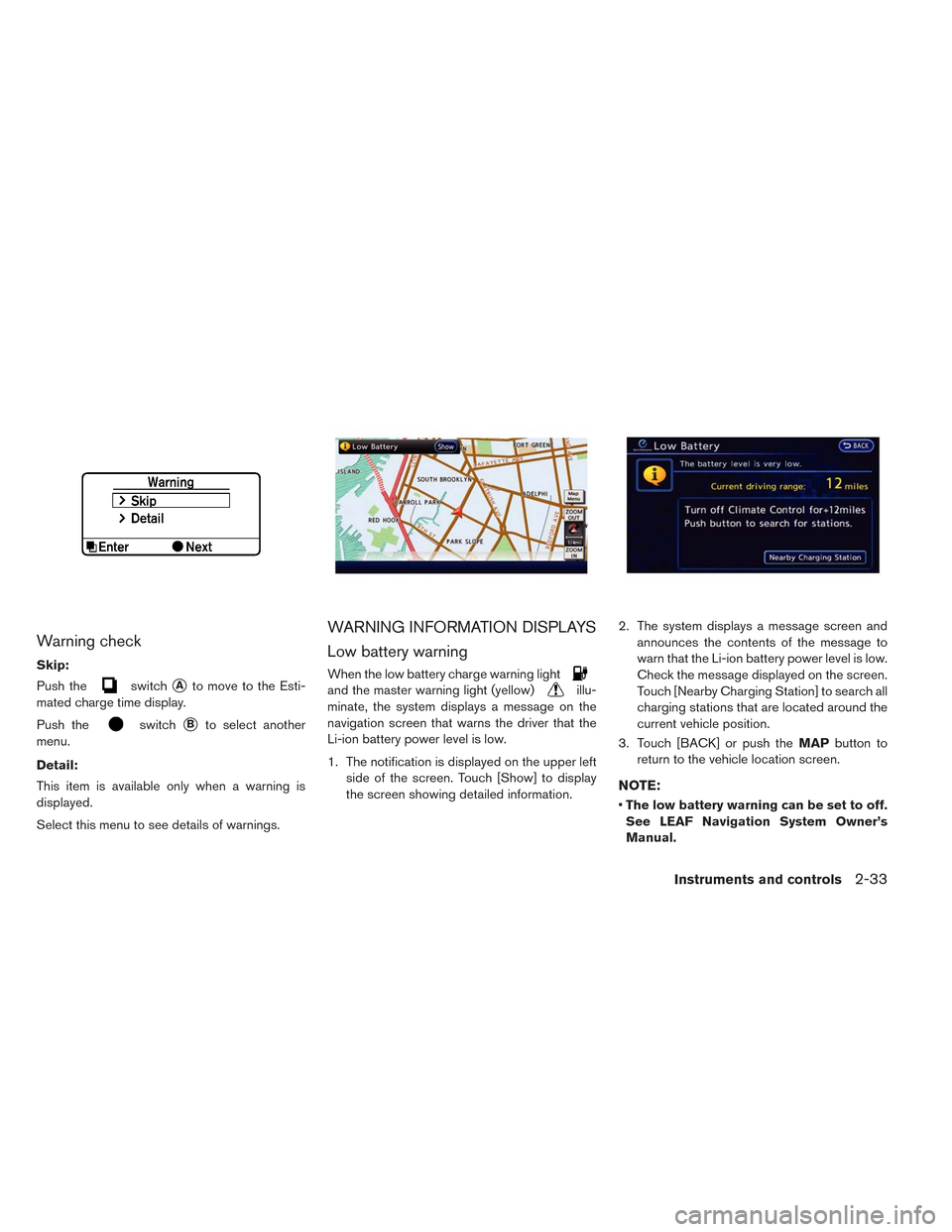

Warning check
Skip:
Push the
switchAto move to the Esti-
mated charge time display.
Push the
switchBto select another
menu.
Detail:
This item is available only when a warning is
displayed.
Select this menu to see details of warnings.
WARNING INFORMATION DISPLAYS
Low battery warning
When the low battery charge warning light
and the master warning light (yellow)illu-
minate, the system displays a message on the
navigation screen that warns the driver that the
Li-ion battery power level is low.
1. The notification is displayed on the upper left
side of the screen. Touch [Show] to display
the screen showing detailed information.2. The system displays a message screen and
announces the contents of the message to
warn that the Li-ion battery power level is low.
Check the message displayed on the screen.
Touch [Nearby Charging Station] to search all
charging stations that are located around the
current vehicle position.
3. Touch [BACK] or push theMAPbutton to
return to the vehicle location screen.
NOTE:
•The low battery warning can be set to off.
See LEAF Navigation System Owner’s
Manual.
Instruments and controls2-33
Page 170 of 397
•When the battery power level is low, the
system automatically obtains charging
station information.

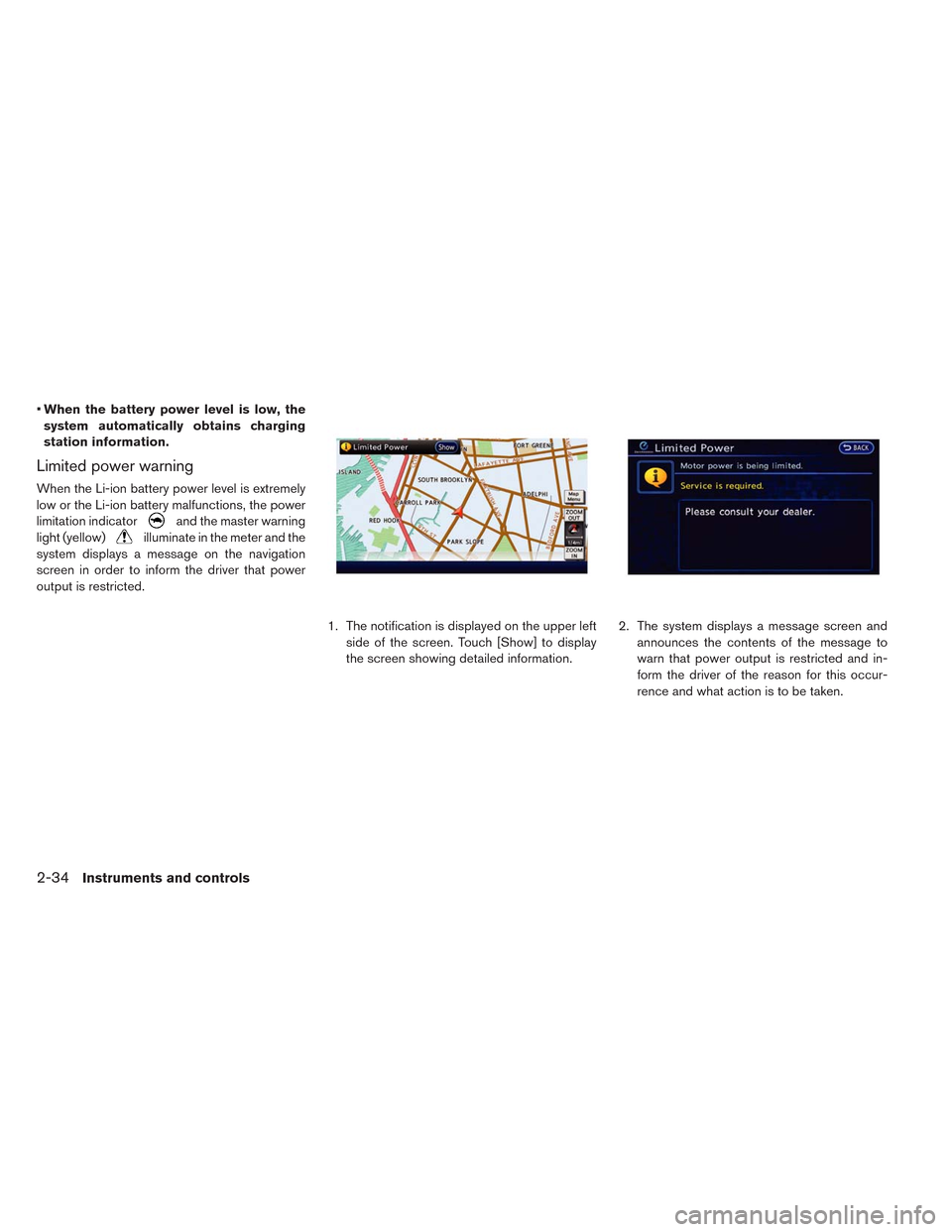

Limited power warning
When the Li-ion battery power level is extremely
low or the Li-ion battery malfunctions, the power
limitation indicator
and the master warning
light (yellow)
illuminate in the meter and the
system displays a message on the navigation
screen in order to inform the driver that power
output is restricted.
1. The notification is displayed on the upper left
side of the screen. Touch [Show] to display
the screen showing detailed information.2. The system displays a message screen and
announces the contents of the message to
warn that power output is restricted and in-
form the driver of the reason for this occur-
rence and what action is to be taken.
2-34Instruments and controls
