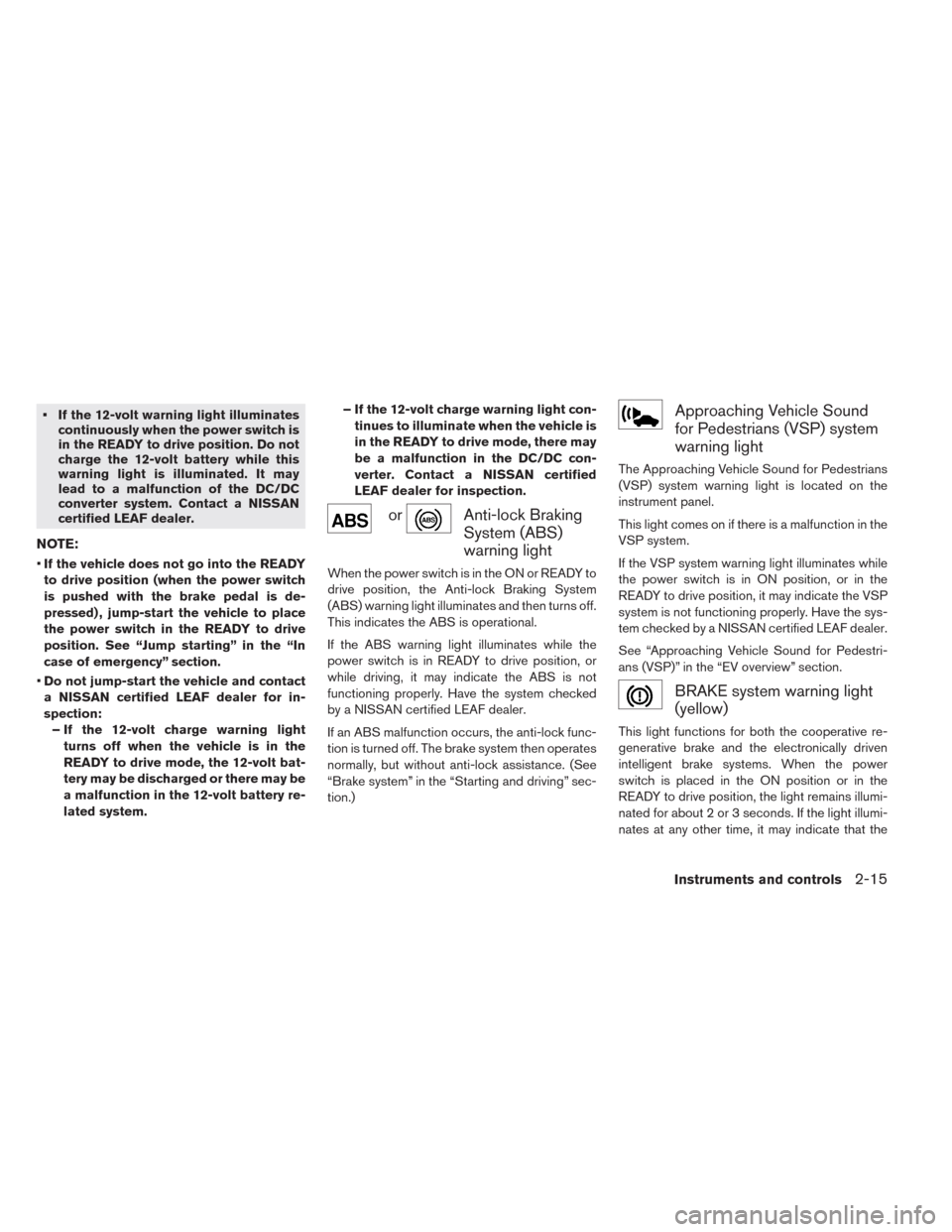

Page 151 of 397
• If the 12-volt warning light illuminates
continuously when the power switch is
in the READY to drive position. Do not
charge the 12-volt battery while this
warning light is illuminated. It may
lead to a malfunction of the DC/DC
converter system. Contact a NISSAN
certified LEAF dealer.
NOTE:
•If the vehicle does not go into the READY
to drive position (when the power switch
is pushed with the brake pedal is de-
pressed) , jump-start the vehicle to place
the power switch in the READY to drive
position. See “Jump starting” in the “In
case of emergency” section.
•Do not jump-start the vehicle and contact
a NISSAN certified LEAF dealer for in-
spection:
– If the 12-volt charge warning light
turns off when the vehicle is in the
READY to drive mode, the 12-volt bat-
tery may be discharged or there may be
a malfunction in the 12-volt battery re-
lated system.– If the 12-volt charge warning light con-
tinues to illuminate when the vehicle is
in the READY to drive mode, there may
be a malfunction in the DC/DC con-
verter. Contact a NISSAN certified
LEAF dealer for inspection.
orAnti-lock Braking
System (ABS)
warning light
When the power switch is in the ON or READY to
drive position, the Anti-lock Braking System
(ABS) warning light illuminates and then turns off.
This indicates the ABS is operational.
If the ABS warning light illuminates while the
power switch is in READY to drive position, or
while driving, it may indicate the ABS is not
functioning properly. Have the system checked
by a NISSAN certified LEAF dealer.
If an ABS malfunction occurs, the anti-lock func-
tion is turned off. The brake system then operates
normally, but without anti-lock assistance. (See
“Brake system” in the “Starting and driving” sec-
tion.)
Approaching Vehicle Sound
for Pedestrians (VSP) system
warning light
The Approaching Vehicle Sound for Pedestrians
(VSP) system warning light is located on the
instrument panel.
This light comes on if there is a malfunction in the
VSP system.
If the VSP system warning light illuminates while
the power switch is in ON position, or in the
READY to drive position, it may indicate the VSP
system is not functioning properly. Have the sys-
tem checked by a NISSAN certified LEAF dealer.
See “Approaching Vehicle Sound for Pedestri-
ans (VSP)” in the “EV overview” section.
BRAKE system warning light
(yellow)
This light functions for both the cooperative re-
generative brake and the electronically driven
intelligent brake systems. When the power
switch is placed in the ON position or in the
READY to drive position, the light remains illumi-
nated for about 2 or 3 seconds. If the light illumi-
nates at any other time, it may indicate that the
Instruments and controls2-15

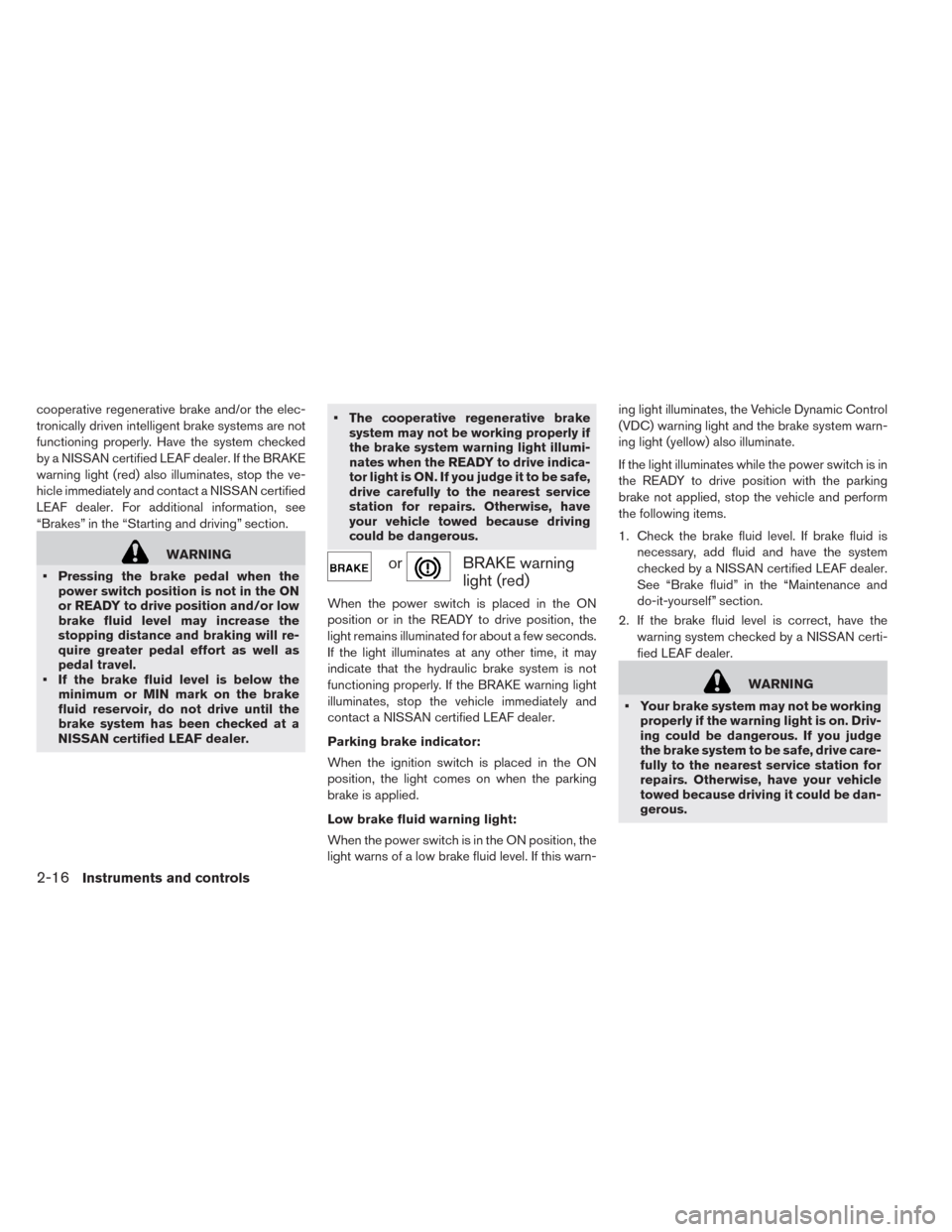

Page 152 of 397
cooperative regenerative brake and/or the elec-
tronically driven intelligent brake systems are not
functioning properly. Have the system checked
by a NISSAN certified LEAF dealer. If the BRAKE
warning light (red) also illuminates, stop the ve-
hicle immediately and contact a NISSAN certified
LEAF dealer. For additional information, see
“Brakes” in the “Starting and driving” section.
WARNING
• Pressing the brake pedal when the
power switch position is not in the ON
or READY to drive position and/or low
brake fluid level may increase the
stopping distance and braking will re-
quire greater pedal effort as well as
pedal travel.
• If the brake fluid level is below the
minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
NISSAN certified LEAF dealer.• The cooperative regenerative brake
system may not be working properly if
the brake system warning light illumi-
nates when the READY to drive indica-
tor light is ON. If you judge it to be safe,
drive carefully to the nearest service
station for repairs. Otherwise, have
your vehicle towed because driving
could be dangerous.orBRAKE warning
light (red)
When the power switch is placed in the ON
position or in the READY to drive position, the
light remains illuminated for about a few seconds.
If the light illuminates at any other time, it may
indicate that the hydraulic brake system is not
functioning properly. If the BRAKE warning light
illuminates, stop the vehicle immediately and
contact a NISSAN certified LEAF dealer.
Parking brake indicator:
When the ignition switch is placed in the ON
position, the light comes on when the parking
brake is applied.
Low brake fluid warning light:
When the power switch is in the ON position, the
light warns of a low brake fluid level. If this warn-ing light illuminates, the Vehicle Dynamic Control
(VDC) warning light and the brake system warn-
ing light (yellow) also illuminate.
If the light illuminates while the power switch is in
the READY to drive position with the parking
brake not applied, stop the vehicle and perform
the following items.
1. Check the brake fluid level. If brake fluid is
necessary, add fluid and have the system
checked by a NISSAN certified LEAF dealer.
See “Brake fluid” in the “Maintenance and
do-it-yourself” section.
2. If the brake fluid level is correct, have the
warning system checked by a NISSAN certi-
fied LEAF dealer.
WARNING
• Your brake system may not be working
properly if the warning light is on. Driv-
ing could be dangerous. If you judge
the brake system to be safe, drive care-
fully to the nearest service station for
repairs. Otherwise, have your vehicle
towed because driving it could be dan-
gerous.
2-16Instruments and controls

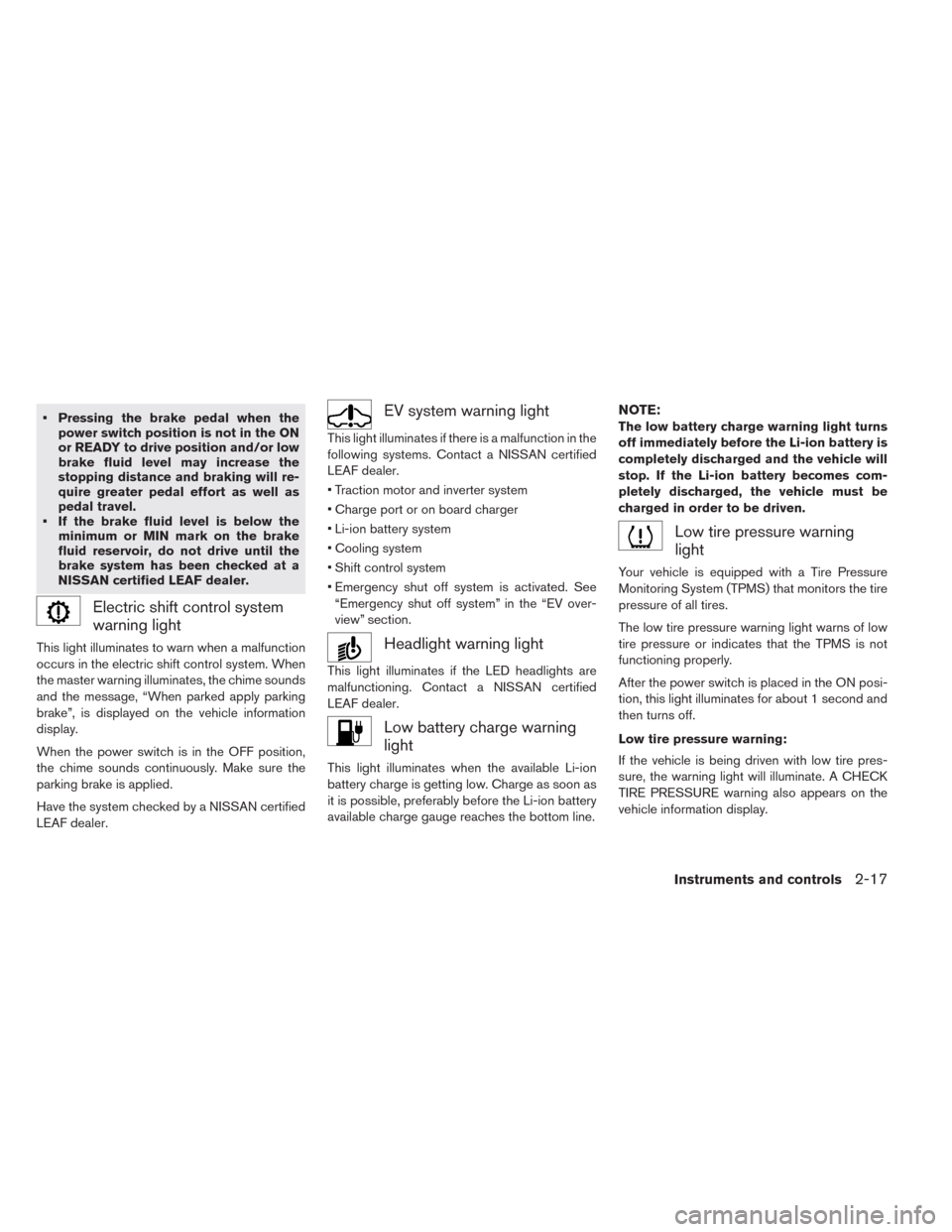

Page 153 of 397
• Pressing the brake pedal when the
power switch position is not in the ON
or READY to drive position and/or low
brake fluid level may increase the
stopping distance and braking will re-
quire greater pedal effort as well as
pedal travel.
• If the brake fluid level is below the
minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
NISSAN certified LEAF dealer.
Electric shift control system
warning light
This light illuminates to warn when a malfunction
occurs in the electric shift control system. When
the master warning illuminates, the chime sounds
and the message, “When parked apply parking
brake”, is displayed on the vehicle information
display.
When the power switch is in the OFF position,
the chime sounds continuously. Make sure the
parking brake is applied.
Have the system checked by a NISSAN certified
LEAF dealer.
EV system warning light
This light illuminates if there is a malfunction in the
following systems. Contact a NISSAN certified
LEAF dealer.
• Traction motor and inverter system
• Charge port or on board charger
• Li-ion battery system
• Cooling system
• Shift control system
• Emergency shut off system is activated. See
“Emergency shut off system” in the “EV over-
view” section.
Headlight warning light
This light illuminates if the LED headlights are
malfunctioning. Contact a NISSAN certified
LEAF dealer.
Low battery charge warning
light
This light illuminates when the available Li-ion
battery charge is getting low. Charge as soon as
it is possible, preferably before the Li-ion battery
available charge gauge reaches the bottom line.
NOTE:
The low battery charge warning light turns
off immediately before the Li-ion battery is
completely discharged and the vehicle will
stop. If the Li-ion battery becomes com-
pletely discharged, the vehicle must be
charged in order to be driven.
Low tire pressure warning
light
Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
After the power switch is placed in the ON posi-
tion, this light illuminates for about 1 second and
then turns off.
Low tire pressure warning:
If the vehicle is being driven with low tire pres-
sure, the warning light will illuminate. A CHECK
TIRE PRESSURE warning also appears on the
vehicle information display.
Instruments and controls2-17
Page 154 of 397

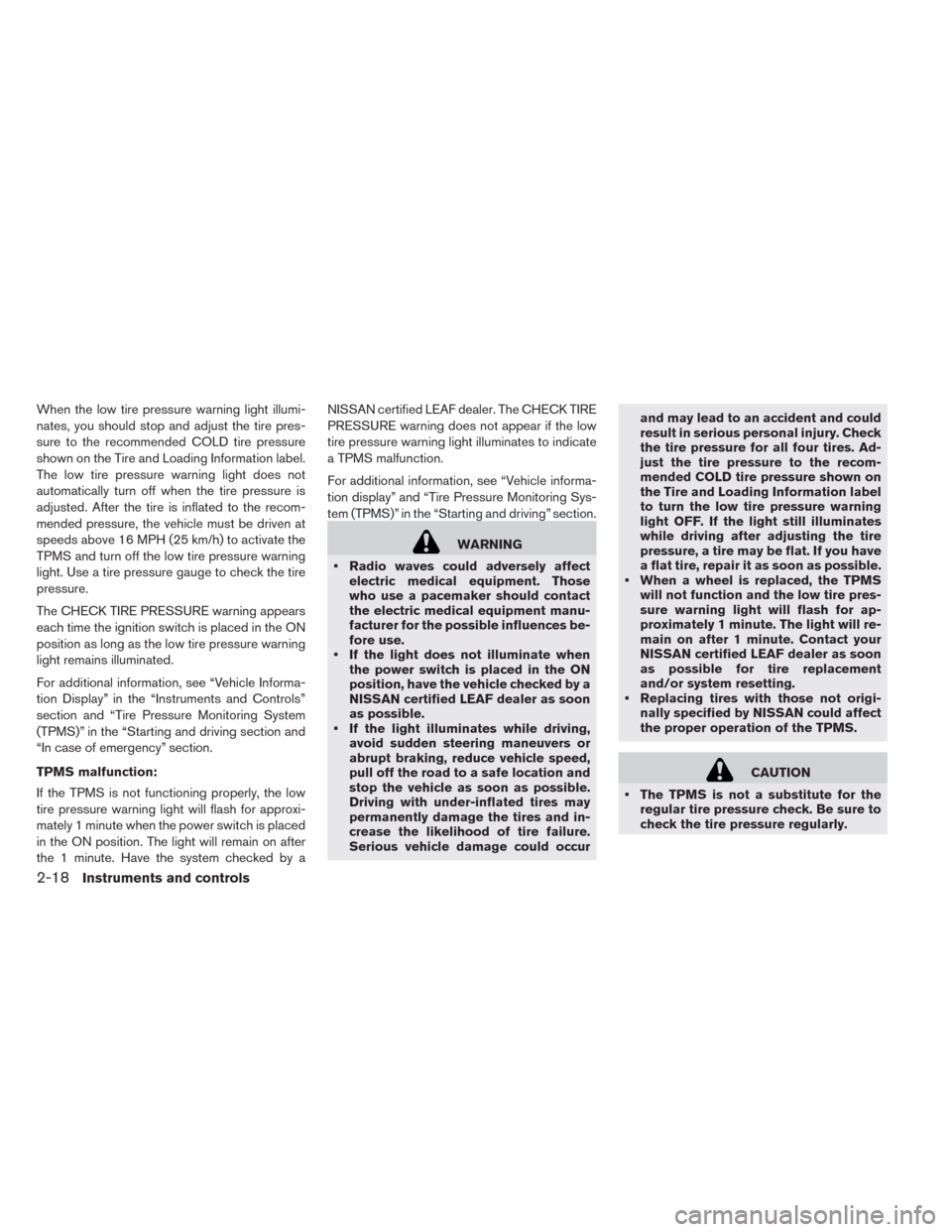

When the low tire pressure warning light illumi-
nates, you should stop and adjust the tire pres-
sure to the recommended COLD tire pressure
shown on the Tire and Loading Information label.
The low tire pressure warning light does not
automatically turn off when the tire pressure is
adjusted. After the tire is inflated to the recom-
mended pressure, the vehicle must be driven at
speeds above 16 MPH (25 km/h) to activate the
TPMS and turn off the low tire pressure warning
light. Use a tire pressure gauge to check the tire
pressure.
The CHECK TIRE PRESSURE warning appears
each time the ignition switch is placed in the ON
position as long as the low tire pressure warning
light remains illuminated.
For additional information, see “Vehicle Informa-
tion Display” in the “Instruments and Controls”
section and “Tire Pressure Monitoring System
(TPMS)” in the “Starting and driving section and
“In case of emergency” section.
TPMS malfunction:
If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the power switch is placed
in the ON position. The light will remain on after
the 1 minute. Have the system checked by aNISSAN certified LEAF dealer. The CHECK TIRE
PRESSURE warning does not appear if the low
tire pressure warning light illuminates to indicate
a TPMS malfunction.
For additional information, see “Vehicle informa-
tion display” and “Tire Pressure Monitoring Sys-
tem (TPMS)” in the “Starting and driving” section.
WARNING
• Radio waves could adversely affect
electric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment manu-
facturer for the possible influences be-
fore use.
• If the light does not illuminate when
the power switch is placed in the ON
position, have the vehicle checked by a
NISSAN certified LEAF dealer as soon
as possible.
• If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location and
stop the vehicle as soon as possible.
Driving with under-inflated tires may
permanently damage the tires and in-
crease the likelihood of tire failure.
Serious vehicle damage could occurand may lead to an accident and could
result in serious personal injury. Check
the tire pressure for all four tires. Ad-
just the tire pressure to the recom-
mended COLD tire pressure shown on
the Tire and Loading Information label
to turn the low tire pressure warning
light OFF. If the light still illuminates
while driving after adjusting the tire
pressure, a tire may be flat. If you have
a flat tire, repair it as soon as possible.
• When a wheel is replaced, the TPMS
will not function and the low tire pres-
sure warning light will flash for ap-
proximately 1 minute. The light will re-
main on after 1 minute. Contact your
NISSAN certified LEAF dealer as soon
as possible for tire replacement
and/or system resetting.
• Replacing tires with those not origi-
nally specified by NISSAN could affect
the proper operation of the TPMS.
CAUTION
• The TPMS is not a substitute for the
regular tire pressure check. Be sure to
check the tire pressure regularly.
2-18Instruments and controls
Page 155 of 397

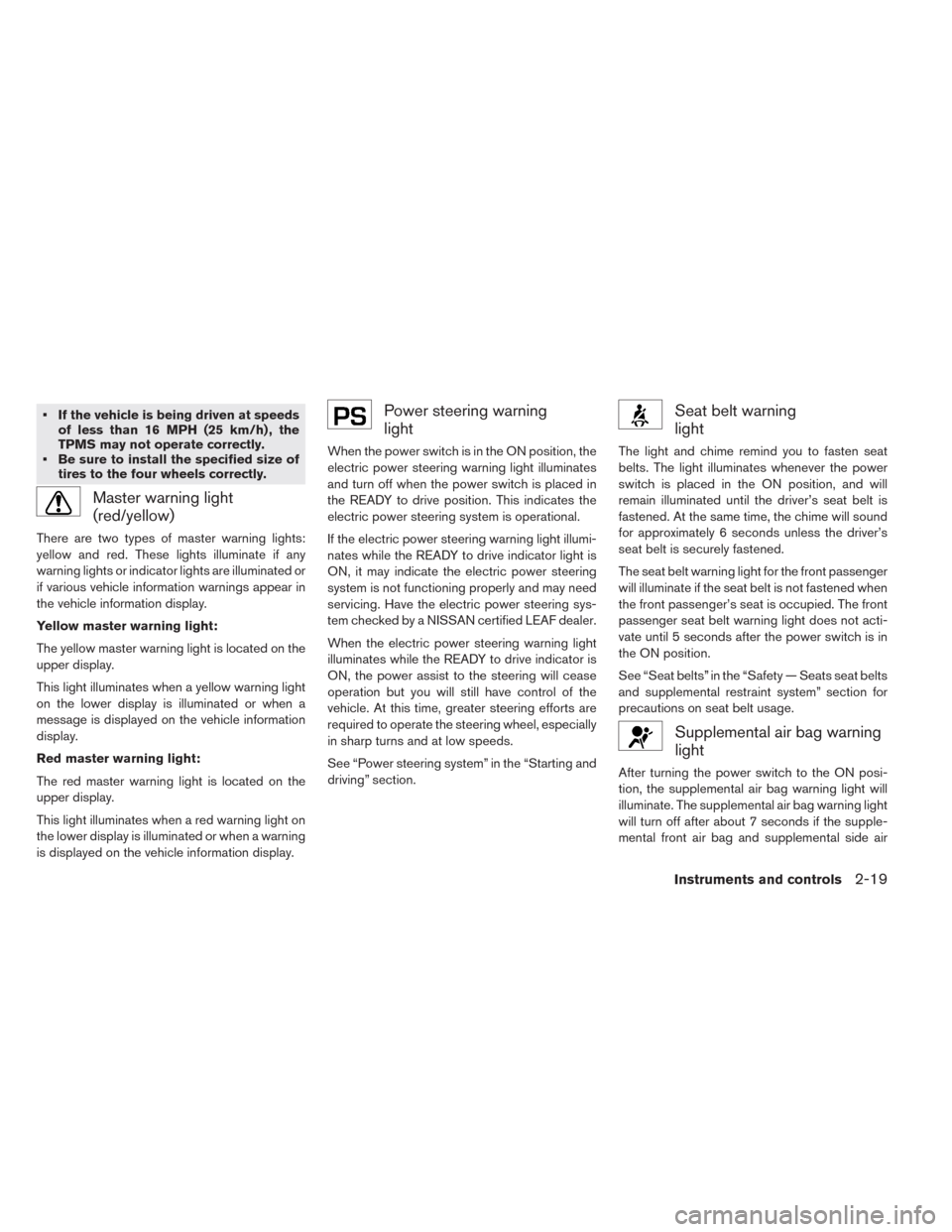

• If the vehicle is being driven at speeds
of less than 16 MPH (25 km/h) , the
TPMS may not operate correctly.
• Be sure to install the specified size of
tires to the four wheels correctly.
Master warning light
(red/yellow)
There are two types of master warning lights:
yellow and red. These lights illuminate if any
warning lights or indicator lights are illuminated or
if various vehicle information warnings appear in
the vehicle information display.
Yellow master warning light:
The yellow master warning light is located on the
upper display.
This light illuminates when a yellow warning light
on the lower display is illuminated or when a
message is displayed on the vehicle information
display.
Red master warning light:
The red master warning light is located on the
upper display.
This light illuminates when a red warning light on
the lower display is illuminated or when a warning
is displayed on the vehicle information display.
Power steering warning
light
When the power switch is in the ON position, the
electric power steering warning light illuminates
and turn off when the power switch is placed in
the READY to drive position. This indicates the
electric power steering system is operational.
If the electric power steering warning light illumi-
nates while the READY to drive indicator light is
ON, it may indicate the electric power steering
system is not functioning properly and may need
servicing. Have the electric power steering sys-
tem checked by a NISSAN certified LEAF dealer.
When the electric power steering warning light
illuminates while the READY to drive indicator is
ON, the power assist to the steering will cease
operation but you will still have control of the
vehicle. At this time, greater steering efforts are
required to operate the steering wheel, especially
in sharp turns and at low speeds.
See “Power steering system” in the “Starting and
driving” section.
Seat belt warning
light
The light and chime remind you to fasten seat
belts. The light illuminates whenever the power
switch is placed in the ON position, and will
remain illuminated until the driver’s seat belt is
fastened. At the same time, the chime will sound
for approximately 6 seconds unless the driver’s
seat belt is securely fastened.
The seat belt warning light for the front passenger
will illuminate if the seat belt is not fastened when
the front passenger’s seat is occupied. The front
passenger seat belt warning light does not acti-
vate until 5 seconds after the power switch is in
the ON position.
See “Seat belts” in the “Safety — Seats seat belts
and supplemental restraint system” section for
precautions on seat belt usage.
Supplemental air bag warning
light
After turning the power switch to the ON posi-
tion, the supplemental air bag warning light will
illuminate. The supplemental air bag warning light
will turn off after about 7 seconds if the supple-
mental front air bag and supplemental side air

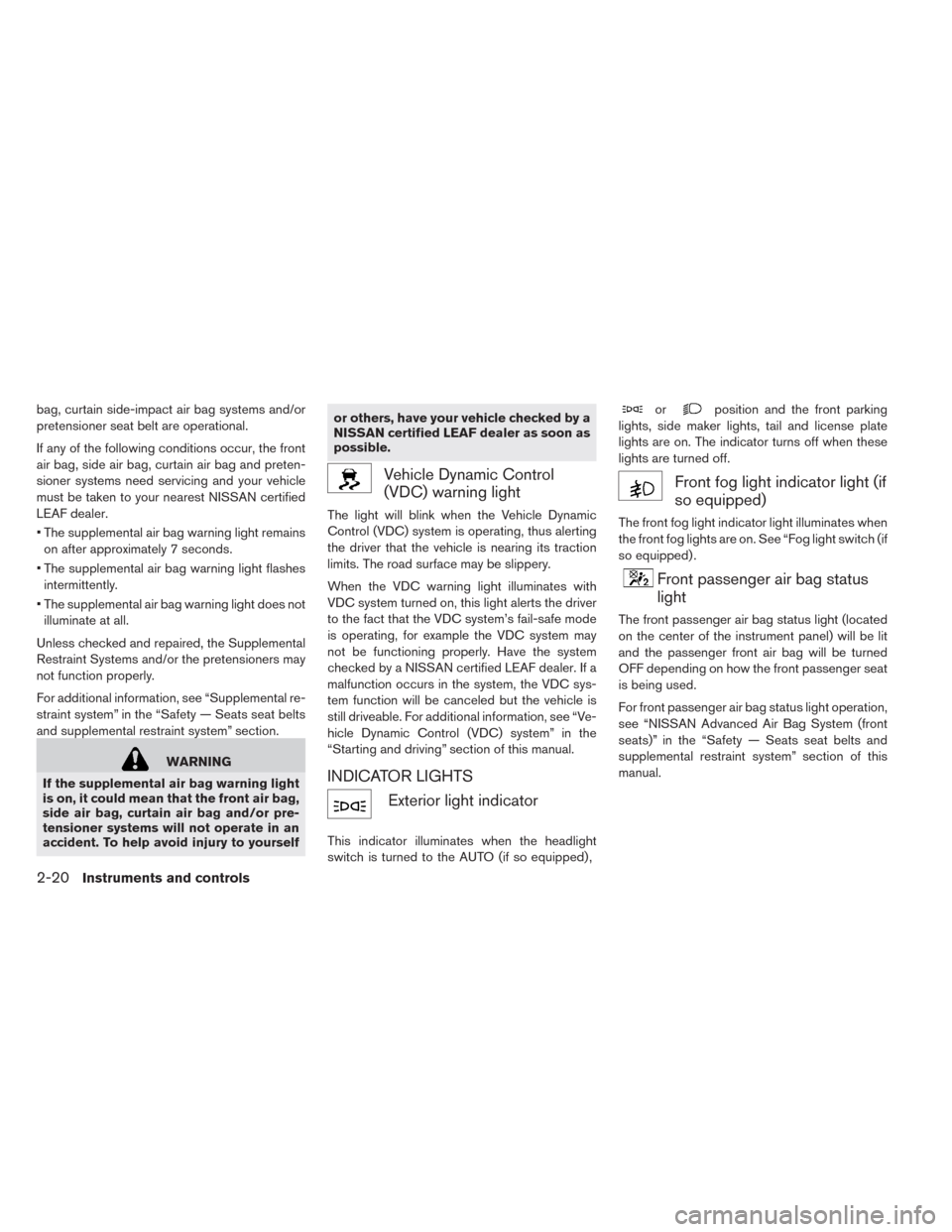

Instruments and controls2-19
Page 156 of 397
bag, curtain side-impact air bag systems and/or
pretensioner seat belt are operational.
If any of the following conditions occur, the front
air bag, side air bag, curtain air bag and preten-
sioner systems need servicing and your vehicle
must be taken to your nearest NISSAN certified
LEAF dealer.
• The supplemental air bag warning light remains
on after approximately 7 seconds.
• The supplemental air bag warning light flashes
intermittently.
• The supplemental air bag warning light does not
illuminate at all.
Unless checked and repaired, the Supplemental
Restraint Systems and/or the pretensioners may
not function properly.
For additional information, see “Supplemental re-
straint system” in the “Safety — Seats seat belts
and supplemental restraint system” section.
WARNING
If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain air bag and/or pre-
tensioner systems will not operate in an
accident. To help avoid injury to yourselfor others, have your vehicle checked by a
NISSAN certified LEAF dealer as soon as
possible.
Vehicle Dynamic Control
(VDC) warning light
The light will blink when the Vehicle Dynamic
Control (VDC) system is operating, thus alerting
the driver that the vehicle is nearing its traction
limits. The road surface may be slippery.
When the VDC warning light illuminates with
VDC system turned on, this light alerts the driver
to the fact that the VDC system’s fail-safe mode
is operating, for example the VDC system may
not be functioning properly. Have the system
checked by a NISSAN certified LEAF dealer. If a
malfunction occurs in the system, the VDC sys-
tem function will be canceled but the vehicle is
still driveable. For additional information, see “Ve-
hicle Dynamic Control (VDC) system” in the
“Starting and driving” section of this manual.
INDICATOR LIGHTS
Exterior light indicator
This indicator illuminates when the headlight
switch is turned to the AUTO (if so equipped) ,
orposition and the front parking
lights, side maker lights, tail and license plate
lights are on. The indicator turns off when these
lights are turned off.
Front fog light indicator light (if
so equipped)
The front fog light indicator light illuminates when
the front fog lights are on. See “Fog light switch (if
so equipped) .
Front passenger air bag status
light
The front passenger air bag status light (located
on the center of the instrument panel) will be lit
and the passenger front air bag will be turned
OFF depending on how the front passenger seat
is being used.
For front passenger air bag status light operation,
see “NISSAN Advanced Air Bag System (front
seats)” in the “Safety — Seats seat belts and
supplemental restraint system” section of this
manual.
2-20Instruments and controls
Page 157 of 397

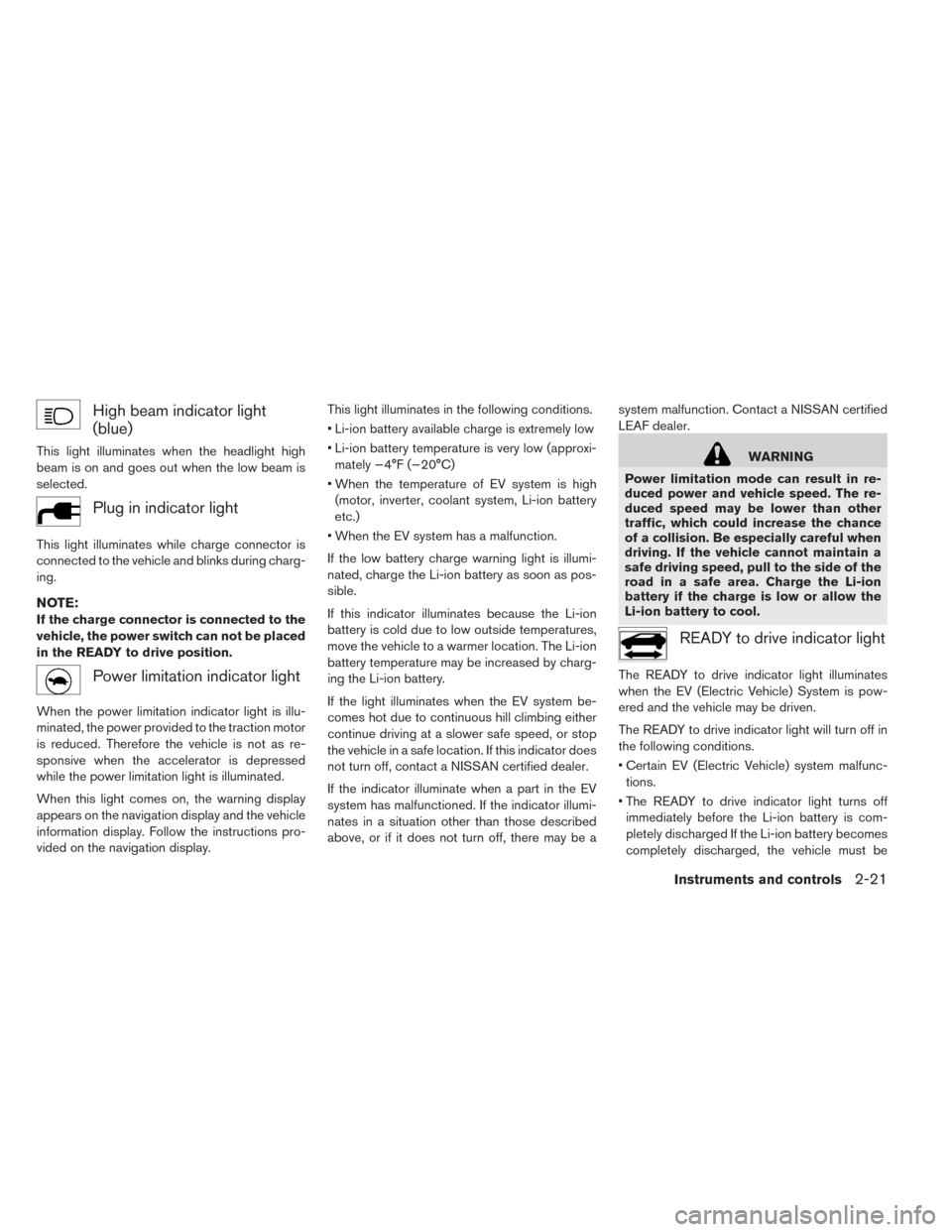

High beam indicator light
(blue)
This light illuminates when the headlight high
beam is on and goes out when the low beam is
selected.
Plug in indicator light
This light illuminates while charge connector is
connected to the vehicle and blinks during charg-
ing.
NOTE:
If the charge connector is connected to the
vehicle, the power switch can not be placed
in the READY to drive position.
Power limitation indicator light
When the power limitation indicator light is illu-
minated, the power provided to the traction motor
is reduced. Therefore the vehicle is not as re-
sponsive when the accelerator is depressed
while the power limitation light is illuminated.
When this light comes on, the warning display
appears on the navigation display and the vehicle
information display. Follow the instructions pro-
vided on the navigation display.This light illuminates in the following conditions.
• Li-ion battery available charge is extremely low
• Li-ion battery temperature is very low (approxi-
mately −4°F (−20°C)
• When the temperature of EV system is high
(motor, inverter, coolant system, Li-ion battery
etc.)
• When the EV system has a malfunction.
If the low battery charge warning light is illumi-
nated, charge the Li-ion battery as soon as pos-
sible.
If this indicator illuminates because the Li-ion
battery is cold due to low outside temperatures,
move the vehicle to a warmer location. The Li-ion
battery temperature may be increased by charg-
ing the Li-ion battery.
If the light illuminates when the EV system be-
comes hot due to continuous hill climbing either
continue driving at a slower safe speed, or stop
the vehicle in a safe location. If this indicator does
not turn off, contact a NISSAN certified dealer.
If the indicator illuminate when a part in the EV
system has malfunctioned. If the indicator illumi-
nates in a situation other than those described
above, or if it does not turn off, there may be asystem malfunction. Contact a NISSAN certified
LEAF dealer.
WARNING
Power limitation mode can result in re-
duced power and vehicle speed. The re-
duced speed may be lower than other
traffic, which could increase the chance
of a collision. Be especially careful when
driving. If the vehicle cannot maintain a
safe driving speed, pull to the side of the
road in a safe area. Charge the Li-ion
battery if the charge is low or allow the
Li-ion battery to cool.
READY to drive indicator light
The READY to drive indicator light illuminates
when the EV (Electric Vehicle) System is pow-
ered and the vehicle may be driven.
The READY to drive indicator light will turn off in
the following conditions.
• Certain EV (Electric Vehicle) system malfunc-
tions.
• The READY to drive indicator light turns off
immediately before the Li-ion battery is com-
pletely discharged If the Li-ion battery becomes
completely discharged, the vehicle must be
Instruments and controls2-21
Page 158 of 397

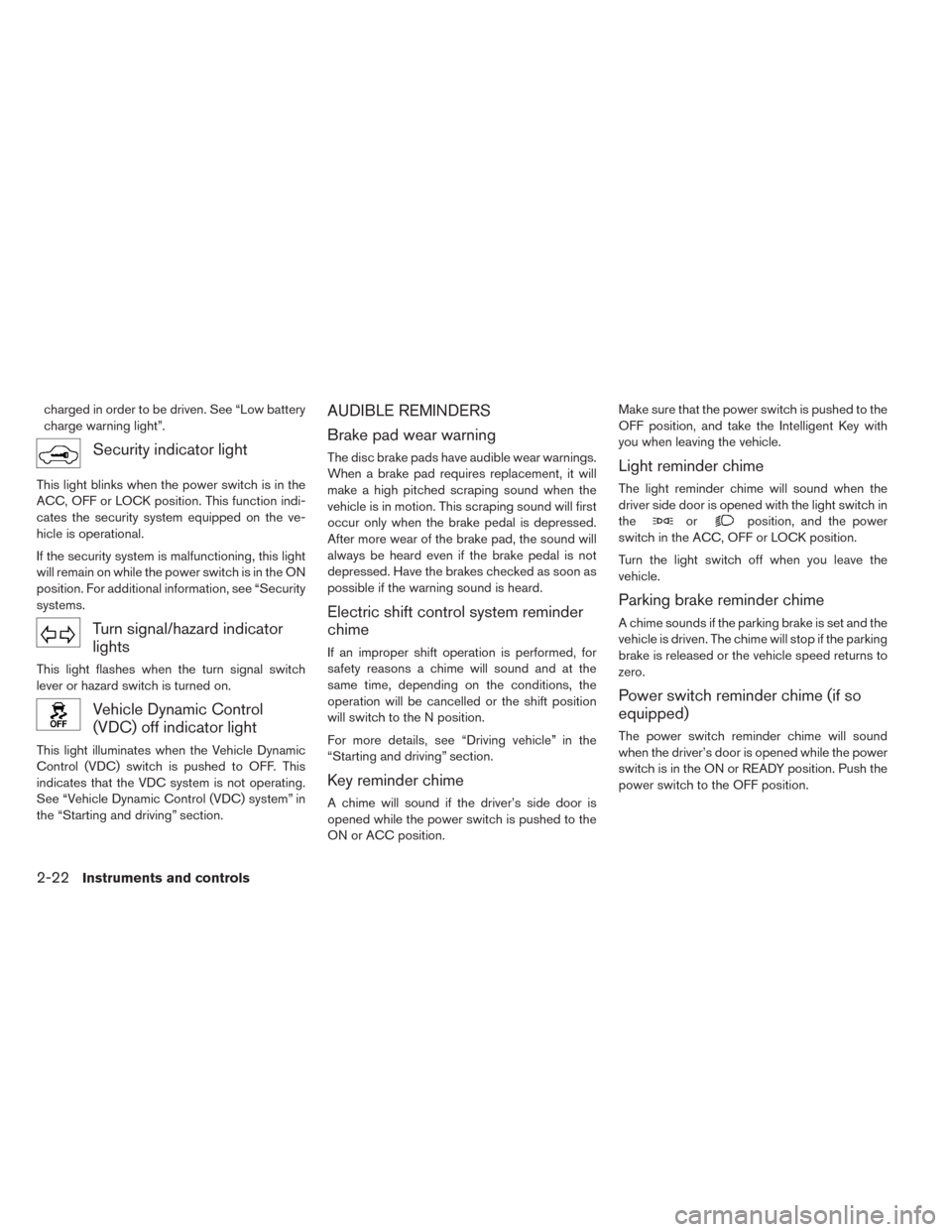

charged in order to be driven. See “Low battery
charge warning light”.
Security indicator light
This light blinks when the power switch is in the
ACC, OFF or LOCK position. This function indi-
cates the security system equipped on the ve-
hicle is operational.
If the security system is malfunctioning, this light
will remain on while the power switch is in the ON
position. For additional information, see “Security
systems.
Turn signal/hazard indicator
lights
This light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle Dynamic Control
(VDC) off indicator light
This light illuminates when the Vehicle Dynamic
Control (VDC) switch is pushed to OFF. This
indicates that the VDC system is not operating.
See “Vehicle Dynamic Control (VDC) system” in
the “Starting and driving” section.
AUDIBLE REMINDERS
Brake pad wear warning
The disc brake pads have audible wear warnings.
When a brake pad requires replacement, it will
make a high pitched scraping sound when the
vehicle is in motion. This scraping sound will first
occur only when the brake pedal is depressed.
After more wear of the brake pad, the sound will
always be heard even if the brake pedal is not
depressed. Have the brakes checked as soon as
possible if the warning sound is heard.
Electric shift control system reminder
chime
If an improper shift operation is performed, for
safety reasons a chime will sound and at the
same time, depending on the conditions, the
operation will be cancelled or the shift position
will switch to the N position.
For more details, see “Driving vehicle” in the
“Starting and driving” section.
Key reminder chime
A chime will sound if the driver’s side door is
opened while the power switch is pushed to the
ON or ACC position.Make sure that the power switch is pushed to the
OFF position, and take the Intelligent Key with
you when leaving the vehicle.
Light reminder chime
The light reminder chime will sound when the
driver side door is opened with the light switch in
the
orposition, and the power
switch in the ACC, OFF or LOCK position.
Turn the light switch off when you leave the
vehicle.
Parking brake reminder chime
A chime sounds if the parking brake is set and the
vehicle is driven. The chime will stop if the parking
brake is released or the vehicle speed returns to
zero.
Power switch reminder chime (if so
equipped)
The power switch reminder chime will sound
when the driver’s door is opened while the power
switch is in the ON or READY position. Push the
power switch to the OFF position.
2-22Instruments and controls
Page 159 of 397

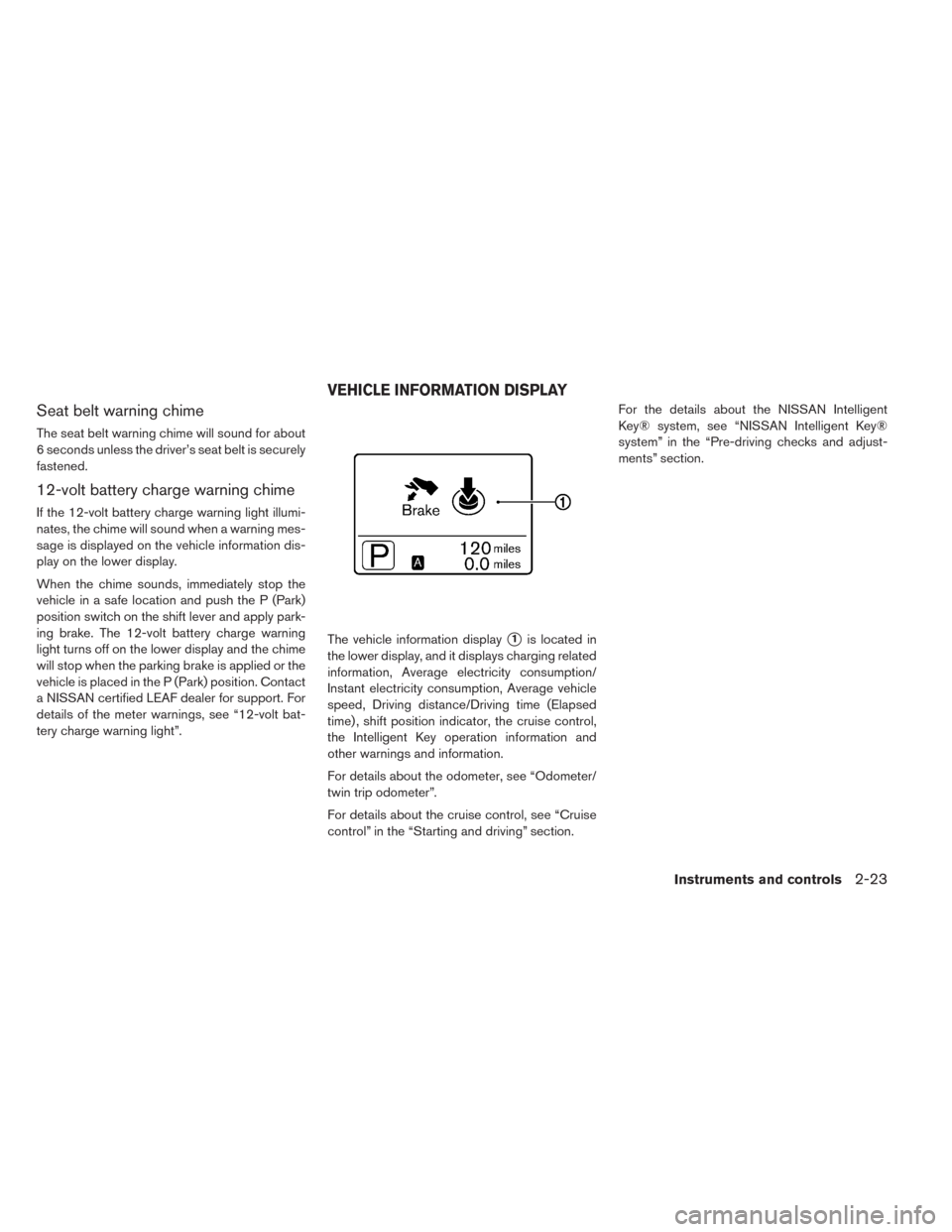

Seat belt warning chime
The seat belt warning chime will sound for about
6 seconds unless the driver’s seat belt is securely
fastened.
12-volt battery charge warning chime
If the 12-volt battery charge warning light illumi-
nates, the chime will sound when a warning mes-
sage is displayed on the vehicle information dis-
play on the lower display.
When the chime sounds, immediately stop the
vehicle in a safe location and push the P (Park)
position switch on the shift lever and apply park-
ing brake. The 12-volt battery charge warning
light turns off on the lower display and the chime
will stop when the parking brake is applied or the
vehicle is placed in the P (Park) position. Contact
a NISSAN certified LEAF dealer for support. For
details of the meter warnings, see “12-volt bat-
tery charge warning light”.The vehicle information display
1is located in
the lower display, and it displays charging related
information, Average electricity consumption/
Instant electricity consumption, Average vehicle
speed, Driving distance/Driving time (Elapsed
time) , shift position indicator, the cruise control,
the Intelligent Key operation information and
other warnings and information.
For details about the odometer, see “Odometer/
twin trip odometer”.
For details about the cruise control, see “Cruise
control” in the “Starting and driving” section.For the details about the NISSAN Intelligent
Key® system, see “NISSAN Intelligent Key®
system” in the “Pre-driving checks and adjust-
ments” section.
VEHICLE INFORMATION DISPLAY
Instruments and controls2-23
Page 160 of 397

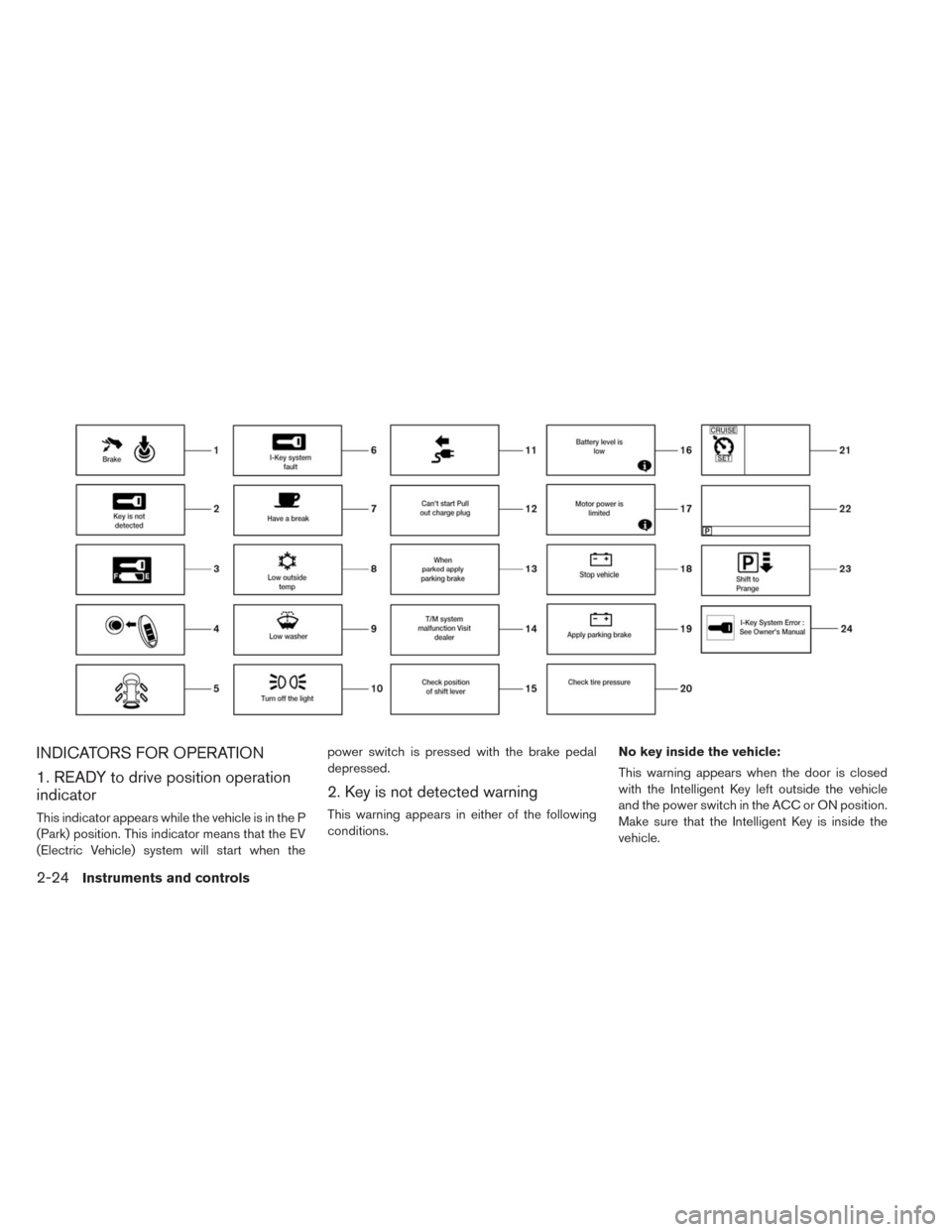

INDICATORS FOR OPERATION
1. READY to drive position operation
indicator
This indicator appears while the vehicle is in the P
(Park) position. This indicator means that the EV
(Electric Vehicle) system will start when thepower switch is pressed with the brake pedal
depressed.
2. Key is not detected warning
This warning appears in either of the following
conditions.No key inside the vehicle:
This warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the power switch in the ACC or ON position.
Make sure that the Intelligent Key is inside the
vehicle.
2-24Instruments and controls
