NISSAN LEAF 2014 1.G Owner's Guide
Manufacturer: NISSAN, Model Year: 2014, Model line: LEAF, Model: NISSAN LEAF 2014 1.GPages: 397, PDF Size: 9.45 MB
Page 31 of 397

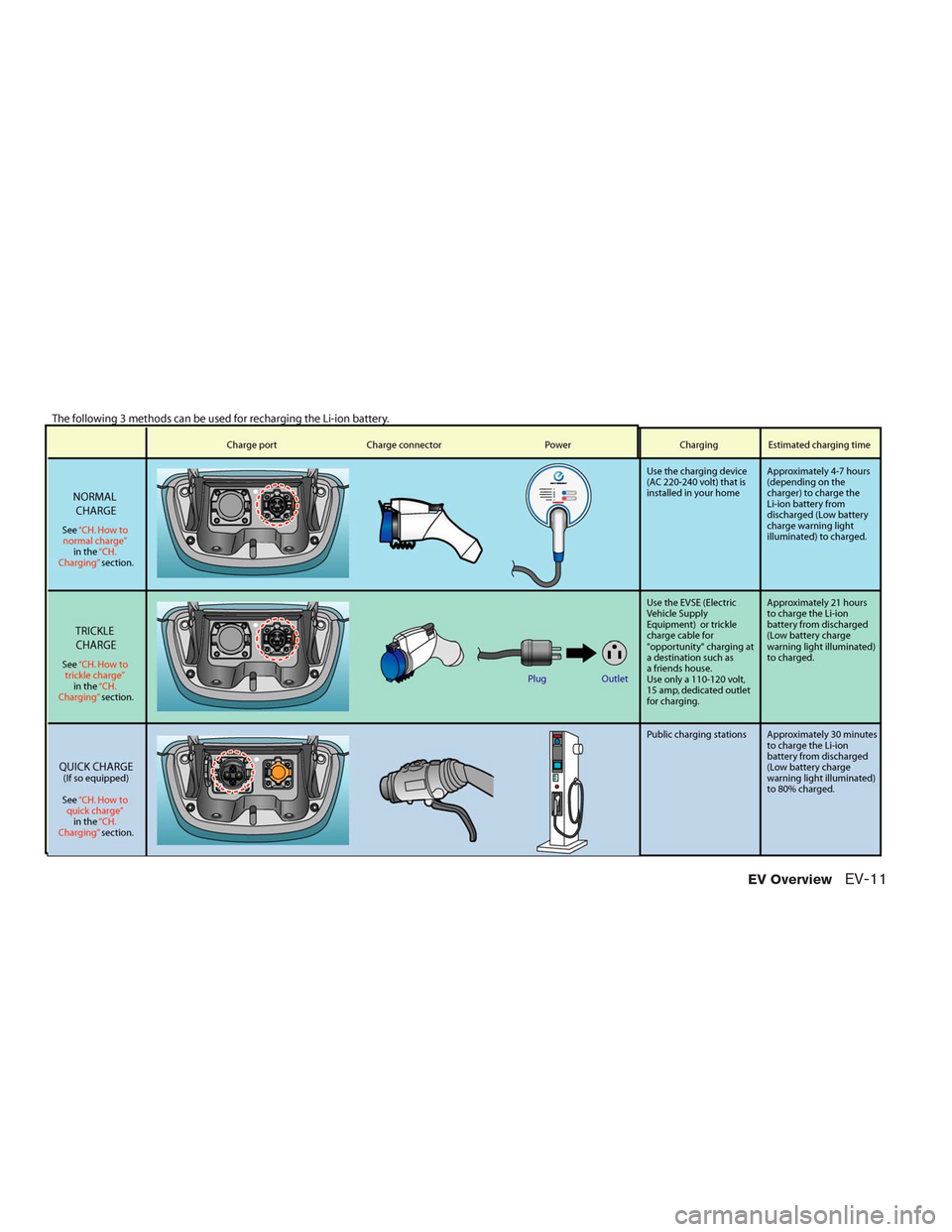

EV OverviewEV-11
Page 32 of 397

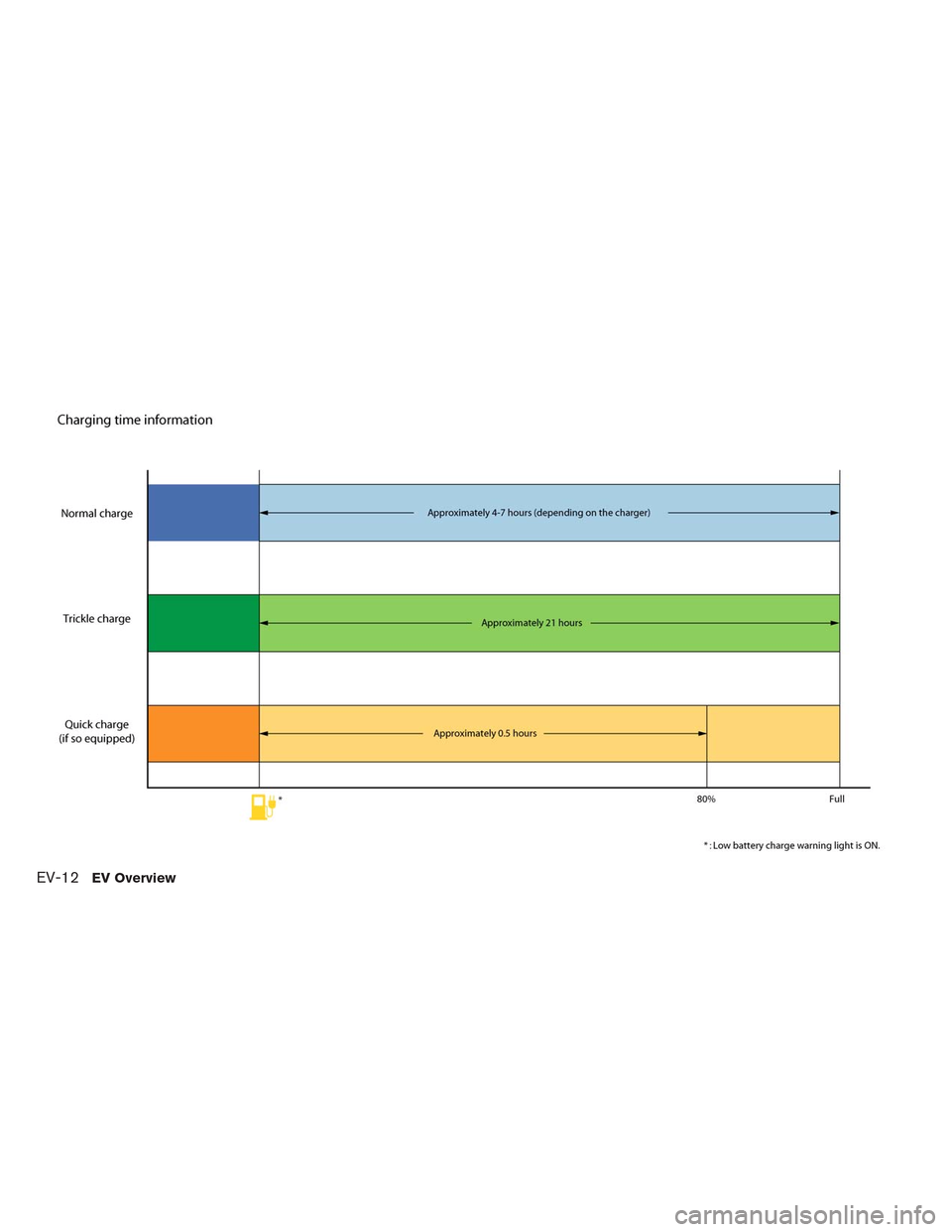

EV-12EV Overview
Page 33 of 397

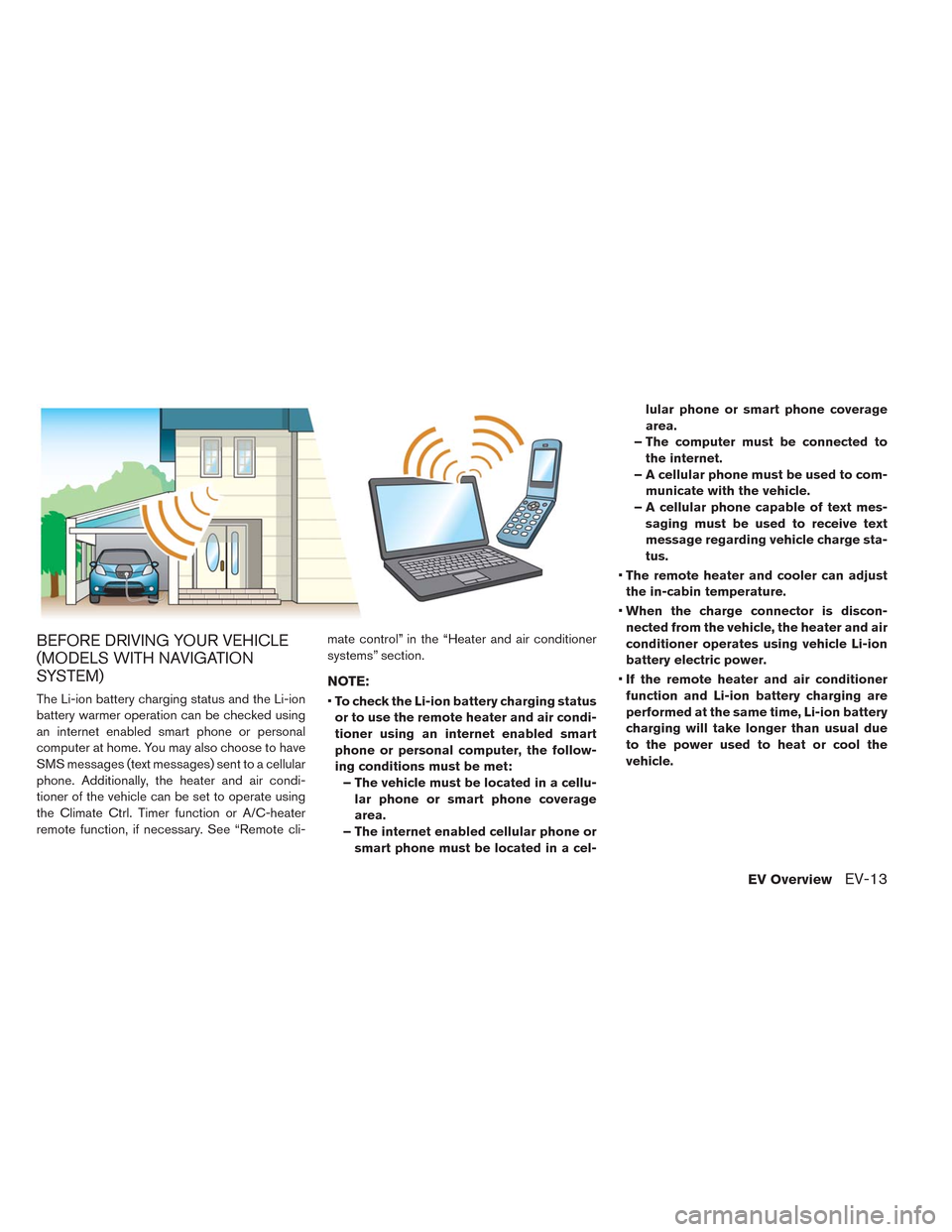

BEFORE DRIVING YOUR VEHICLE
(MODELS WITH NAVIGATION
SYSTEM)
The Li-ion battery charging status and the Li-ion
battery warmer operation can be checked using
an internet enabled smart phone or personal
computer at home. You may also choose to have
SMS messages (text messages) sent to a cellular
phone. Additionally, the heater and air condi-
tioner of the vehicle can be set to operate using
the Climate Ctrl. Timer function or A/C-heater
remote function, if necessary. See “Remote cli-mate control” in the “Heater and air conditioner
systems” section.
NOTE:
•To check the Li-ion battery charging status
or to use the remote heater and air condi-
tioner using an internet enabled smart
phone or personal computer, the follow-
ing conditions must be met:
– The vehicle must be located in a cellu-
lar phone or smart phone coverage
area.
– The internet enabled cellular phone or
smart phone must be located in a cel-lular phone or smart phone coverage
area.
– The computer must be connected to
the internet.
– A cellular phone must be used to com-
municate with the vehicle.
– A cellular phone capable of text mes-
saging must be used to receive text
message regarding vehicle charge sta-
tus.
•The remote heater and cooler can adjust
the in-cabin temperature.
•When the charge connector is discon-
nected from the vehicle, the heater and air
conditioner operates using vehicle Li-ion
battery electric power.
•If the remote heater and air conditioner
function and Li-ion battery charging are
performed at the same time, Li-ion battery
charging will take longer than usual due
to the power used to heat or cool the
vehicle.
EV OverviewEV-13
Page 34 of 397
Checking Li-ion battery charging
status
The Li-ion battery charge status can be checked
on the NISSAN CARWINGS Data Center web-
site via an internet enabled smart phone or per-
sonal computer.If the Li-ion battery is not sufficiently charged, you
can start charging the Li-ion battery via the re-
mote charge function. See “Charging related re-
mote function” in the “Charging” section.
EV-14EV Overview
Page 35 of 397

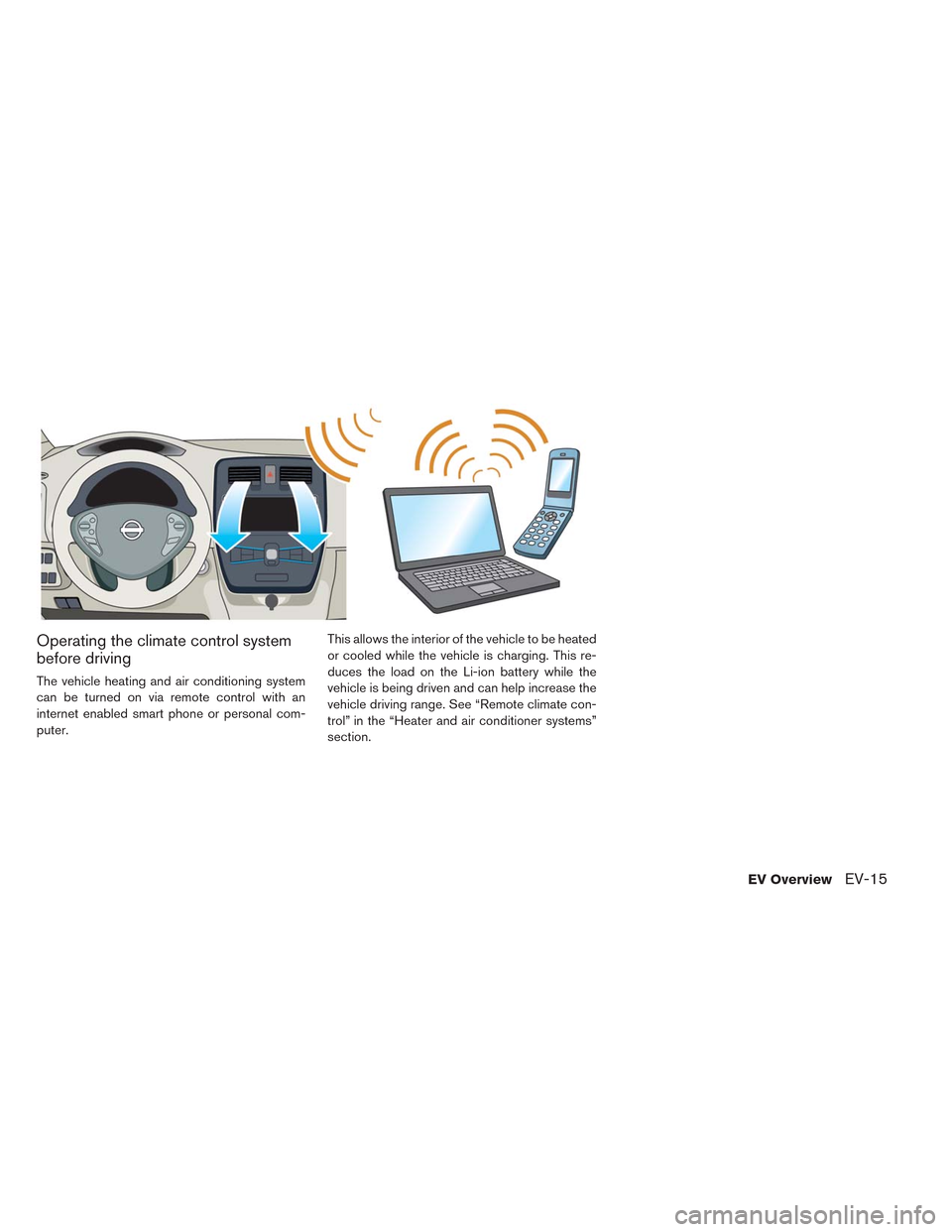

Operating the climate control system
before driving
The vehicle heating and air conditioning system
can be turned on via remote control with an
internet enabled smart phone or personal com-
puter.This allows the interior of the vehicle to be heated
or cooled while the vehicle is charging. This re-
duces the load on the Li-ion battery while the
vehicle is being driven and can help increase the
vehicle driving range. See “Remote climate con-
trol” in the “Heater and air conditioner systems”
section.
EV OverviewEV-15
Page 36 of 397

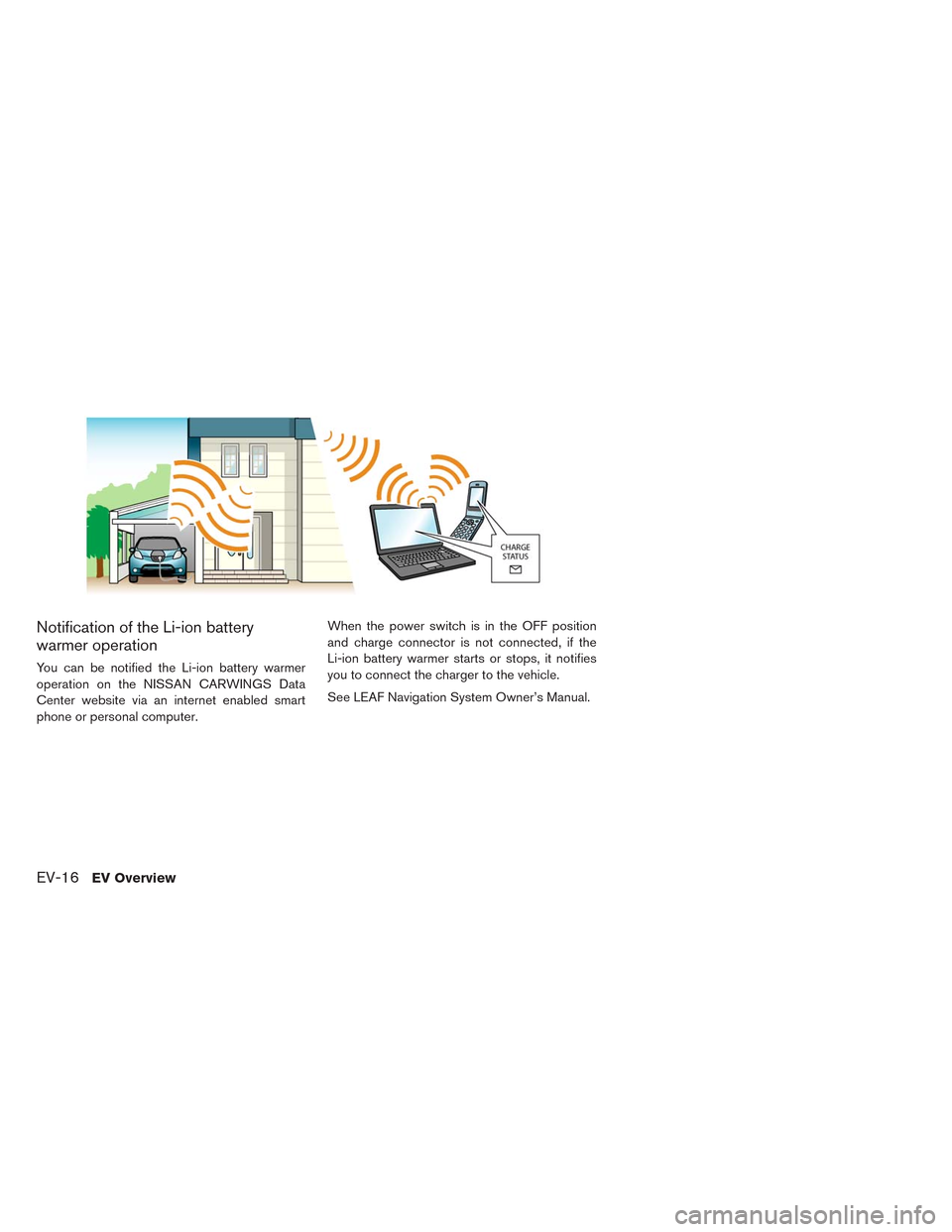

Notification of the Li-ion battery
warmer operation
You can be notified the Li-ion battery warmer
operation on the NISSAN CARWINGS Data
Center website via an internet enabled smart
phone or personal computer.When the power switch is in the OFF position
and charge connector is not connected, if the
Li-ion battery warmer starts or stops, it notifies
you to connect the charger to the vehicle.
See LEAF Navigation System Owner’s Manual.
EV-16EV Overview
Page 37 of 397

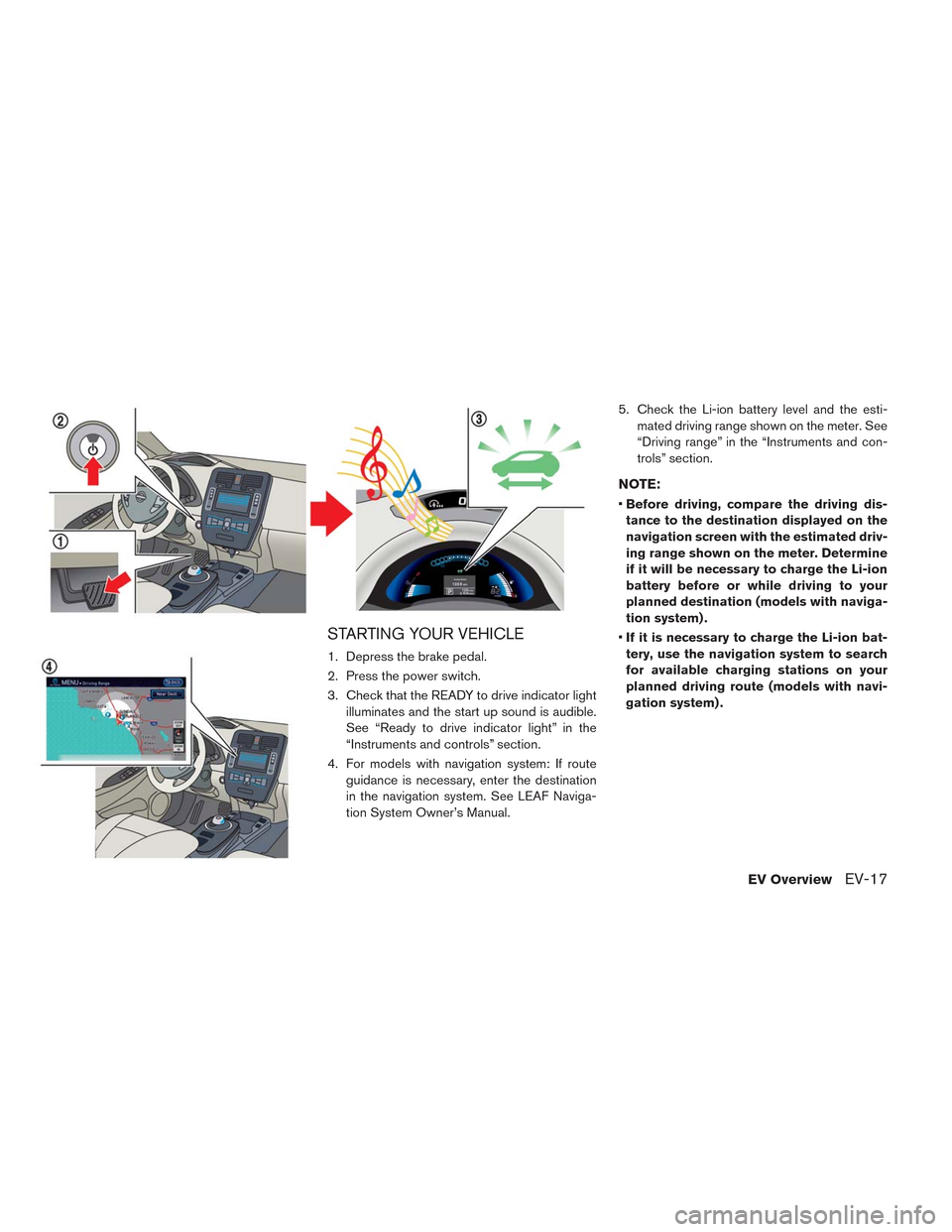

STARTING YOUR VEHICLE
1. Depress the brake pedal.
2. Press the power switch.
3. Check that the READY to drive indicator light
illuminates and the start up sound is audible.
See “Ready to drive indicator light” in the
“Instruments and controls” section.
4. For models with navigation system: If route
guidance is necessary, enter the destination
in the navigation system. See LEAF Naviga-
tion System Owner’s Manual.5. Check the Li-ion battery level and the esti-
mated driving range shown on the meter. See
“Driving range” in the “Instruments and con-
trols” section.
NOTE:
•Before driving, compare the driving dis-
tance to the destination displayed on the
navigation screen with the estimated driv-
ing range shown on the meter. Determine
if it will be necessary to charge the Li-ion
battery before or while driving to your
planned destination (models with naviga-
tion system) .
•If it is necessary to charge the Li-ion bat-
tery, use the navigation system to search
for available charging stations on your
planned driving route (models with navi-
gation system) .
EV OverviewEV-17
Page 38 of 397

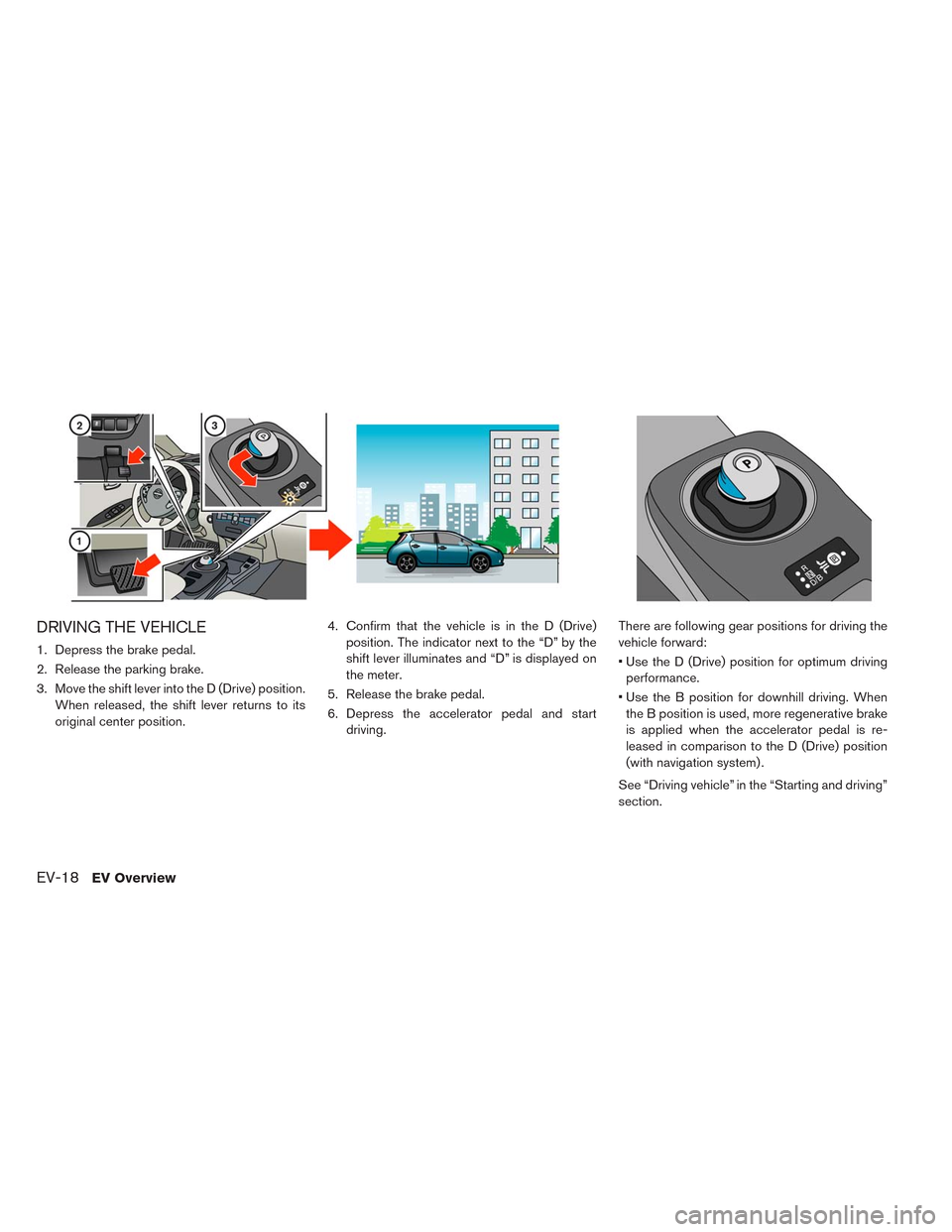

DRIVING THE VEHICLE
1. Depress the brake pedal.
2. Release the parking brake.
3. Move the shift lever into the D (Drive) position.
When released, the shift lever returns to its
original center position.4. Confirm that the vehicle is in the D (Drive)
position. The indicator next to the “D” by the
shift lever illuminates and “D” is displayed on
the meter.
5. Release the brake pedal.
6. Depress the accelerator pedal and start
driving.There are following gear positions for driving the
vehicle forward:
• Use the D (Drive) position for optimum driving
performance.
• Use the B position for downhill driving. When
the B position is used, more regenerative brake
is applied when the accelerator pedal is re-
leased in comparison to the D (Drive) position
(with navigation system) .
See “Driving vehicle” in the “Starting and driving”
section.
EV-18EV Overview
Page 39 of 397

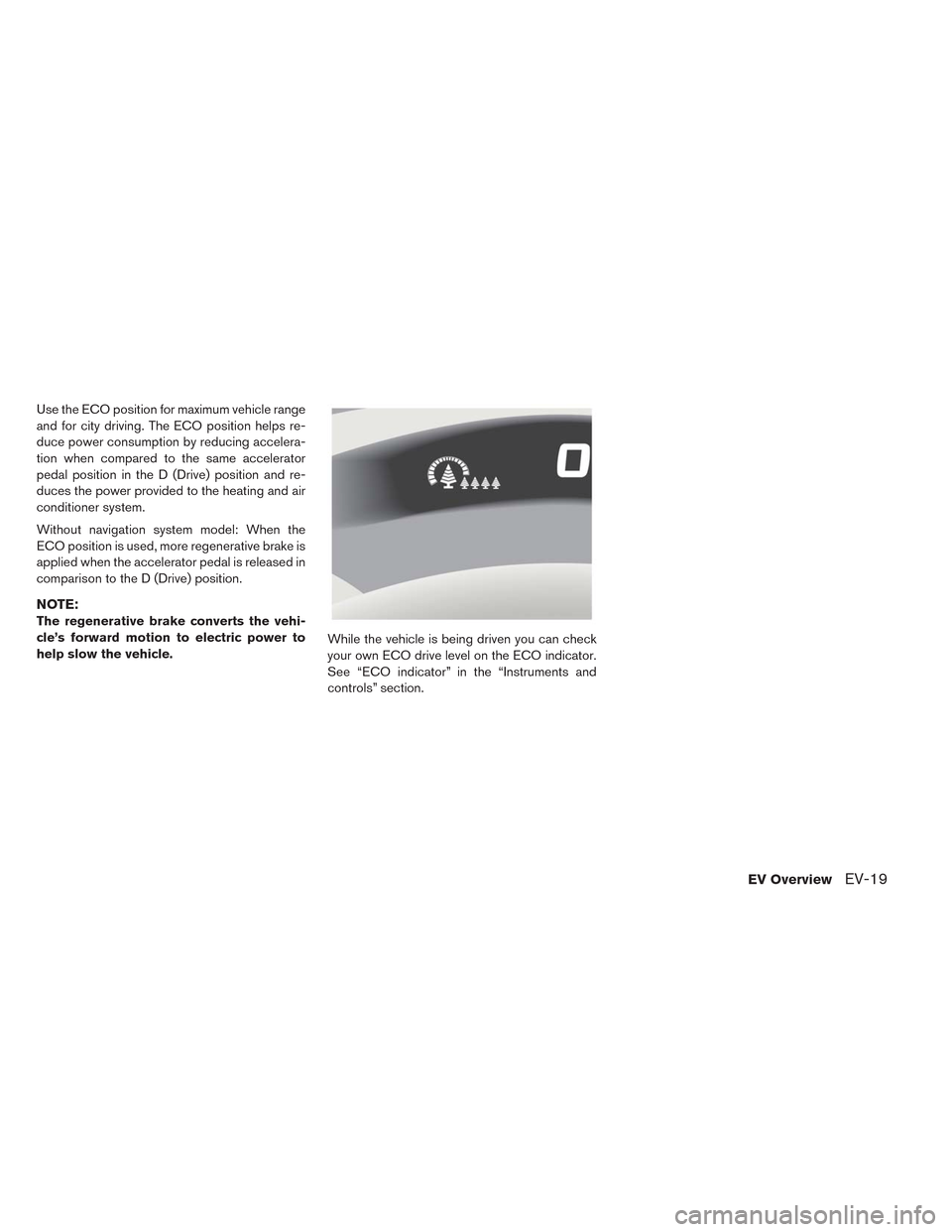

Use the ECO position for maximum vehicle range
and for city driving. The ECO position helps re-
duce power consumption by reducing accelera-
tion when compared to the same accelerator
pedal position in the D (Drive) position and re-
duces the power provided to the heating and air
conditioner system.
Without navigation system model: When the
ECO position is used, more regenerative brake is
applied when the accelerator pedal is released in
comparison to the D (Drive) position.
NOTE:
The regenerative brake converts the vehi-
cle’s forward motion to electric power to
help slow the vehicle.While the vehicle is being driven you can check
your own ECO drive level on the ECO indicator.
See “ECO indicator” in the “Instruments and
controls” section.
EV OverviewEV-19
Page 40 of 397
If the low battery charge warning light
illuminates, the Li-ion battery charge is too low for
travel. See “Empty light” in the “Instruments and
controls” section. Charge the Li-ion battery as
soon as possible.
EV-20EV Overview
