Page 61 of 397

NISSAN LEAF 2014 1.G Repair Manual NOTE:

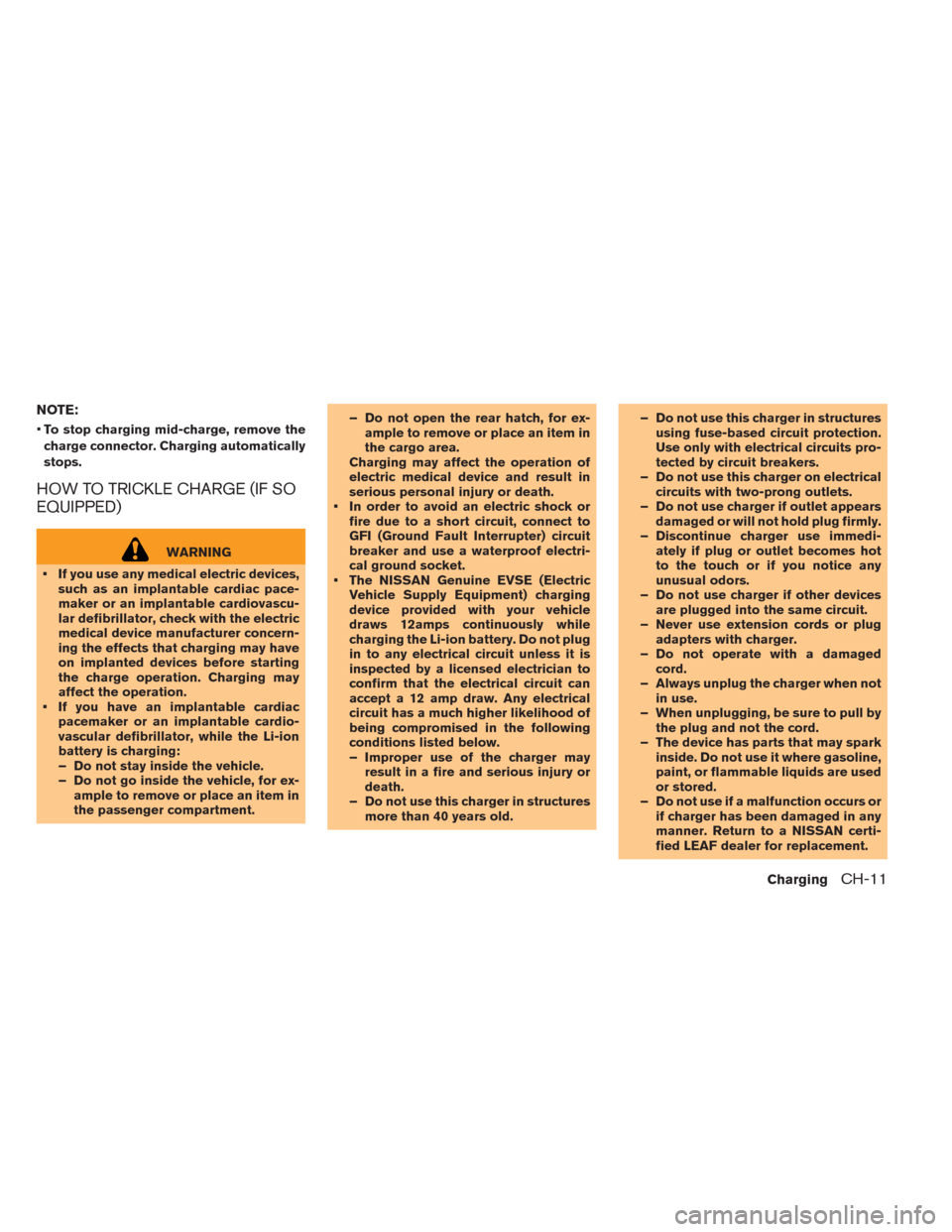

•To stop charging mid-charge, remove the
charge connector. Charging automatically
stops.
HOW TO TRICKLE CHARGE (IF SO
EQUIPPED)
WARNING
• If you use any medical electric devices,
such as an

Page 62 of 397

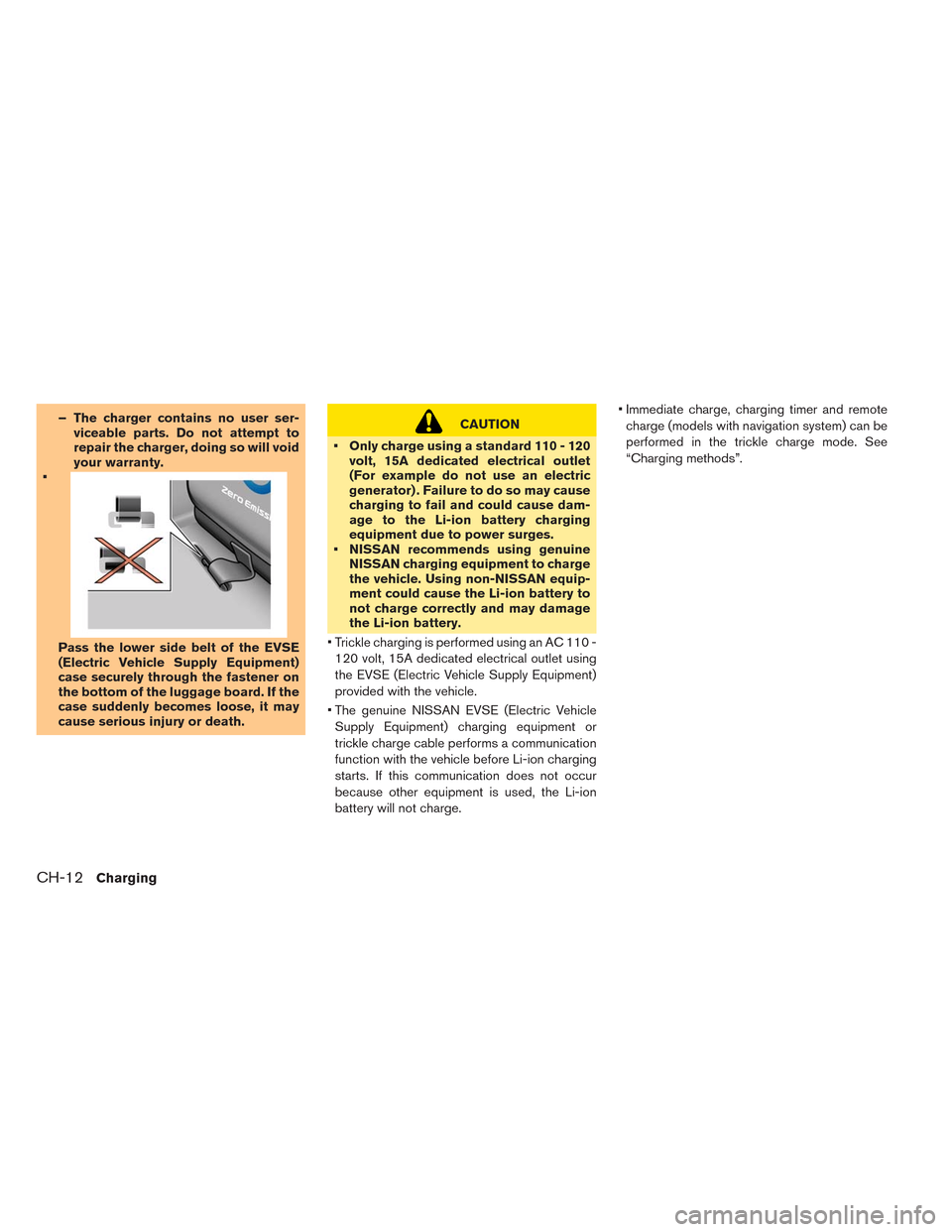

NISSAN LEAF 2014 1.G Repair Manual – The charger contains no user ser-
viceable parts. Do not attempt to
repair the charger, doing so will void
your warranty.
•
Pass the lower side belt of the EVSE
(Electric Vehicle Supply Equipmen

Page 63 of 397

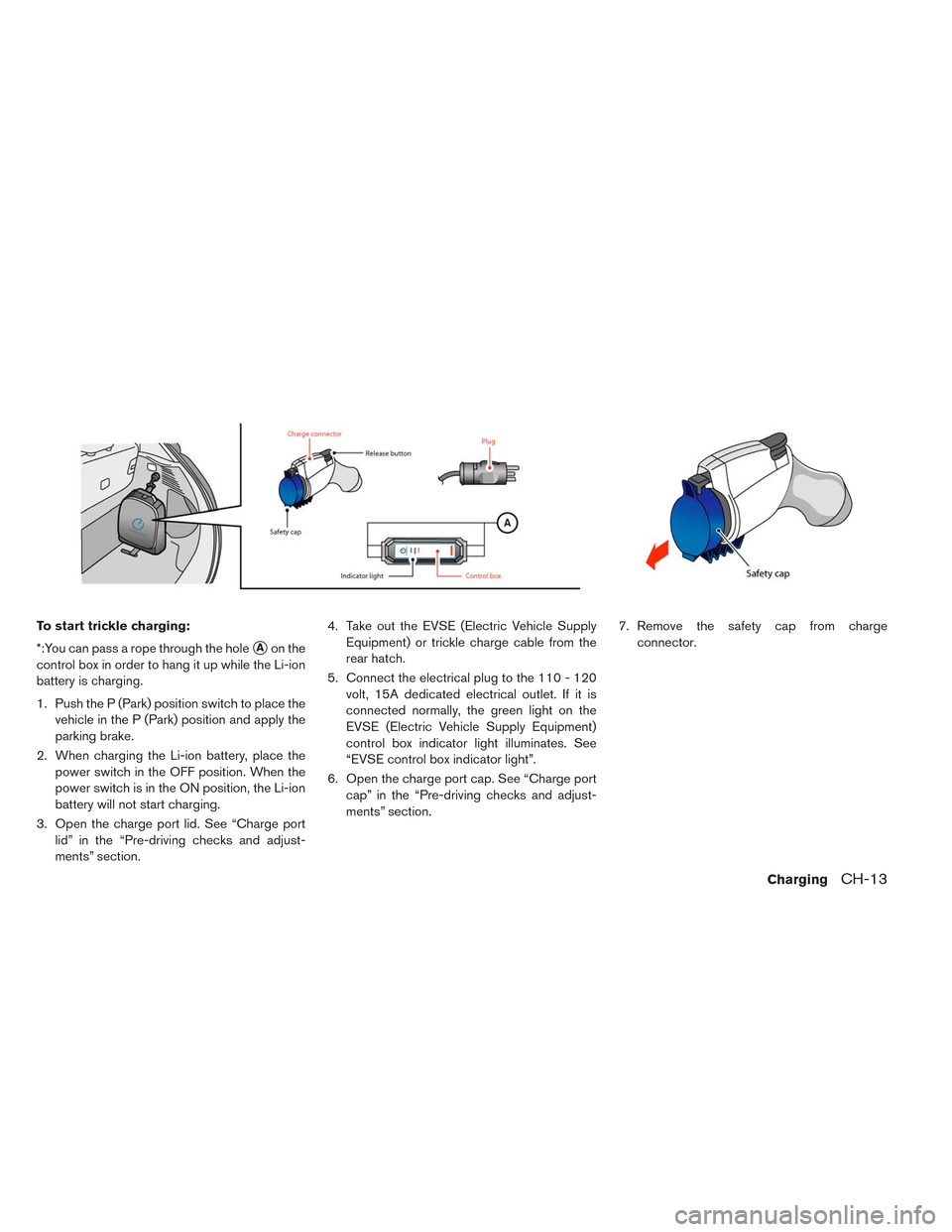

NISSAN LEAF 2014 1.G Repair Manual To start trickle charging:
*:You can pass a rope through the hole
Aon the
control box in order to hang it up while the Li-ion
battery is charging.
1. Push the P (Park) position switch to place the
ve

Page 64 of 397

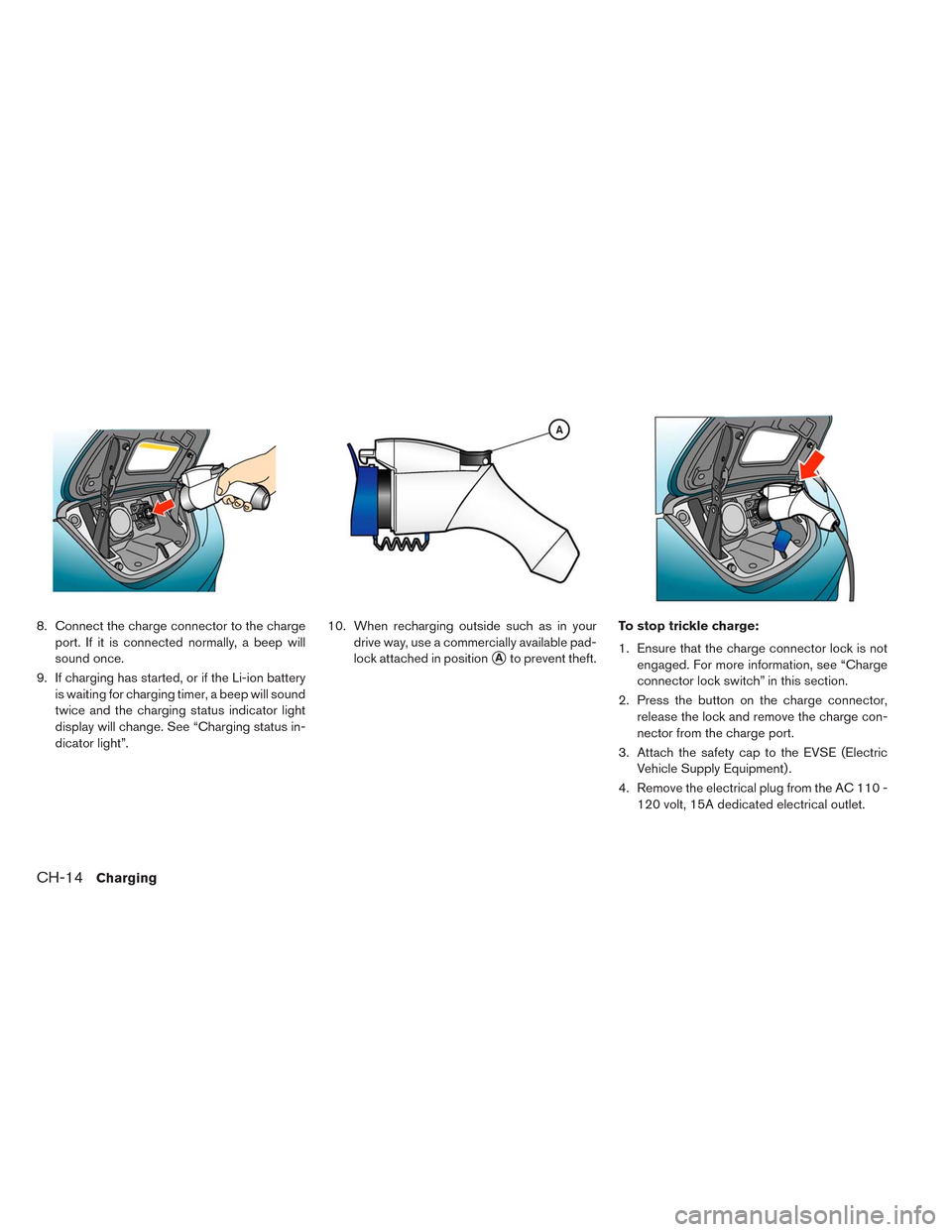

NISSAN LEAF 2014 1.G Repair Manual 8. Connect the charge connector to the charge
port. If it is connected normally, a beep will
sound once.
9. If charging has started, or if the Li-ion battery
is waiting for charging timer, a beep will

Page 65 of 397

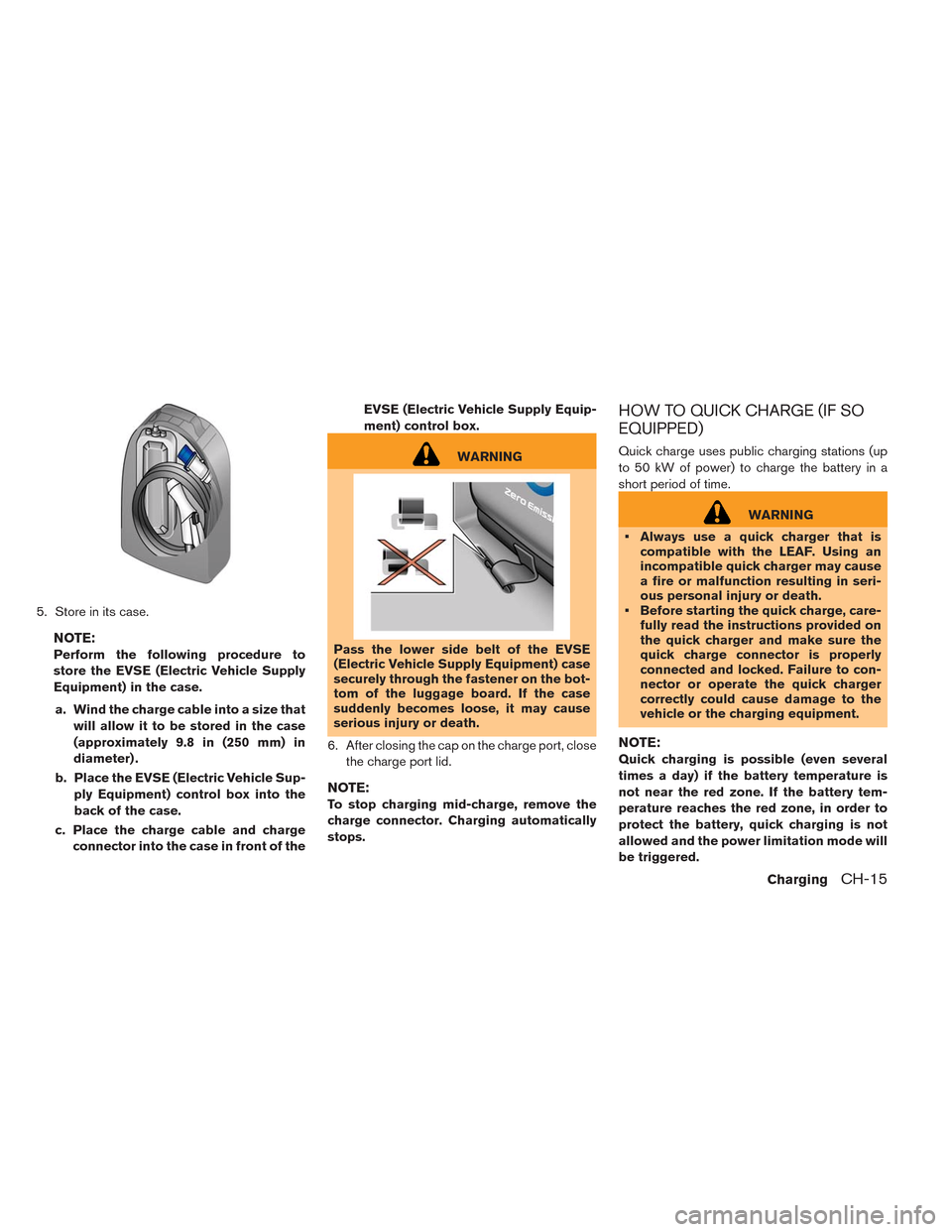

NISSAN LEAF 2014 1.G Repair Manual 5. Store in its case.
NOTE:
Perform the following procedure to
store the EVSE (Electric Vehicle Supply
Equipment) in the case.
a. Wind the charge cable into a size that
will allow it to be stored in t

Page 66 of 397

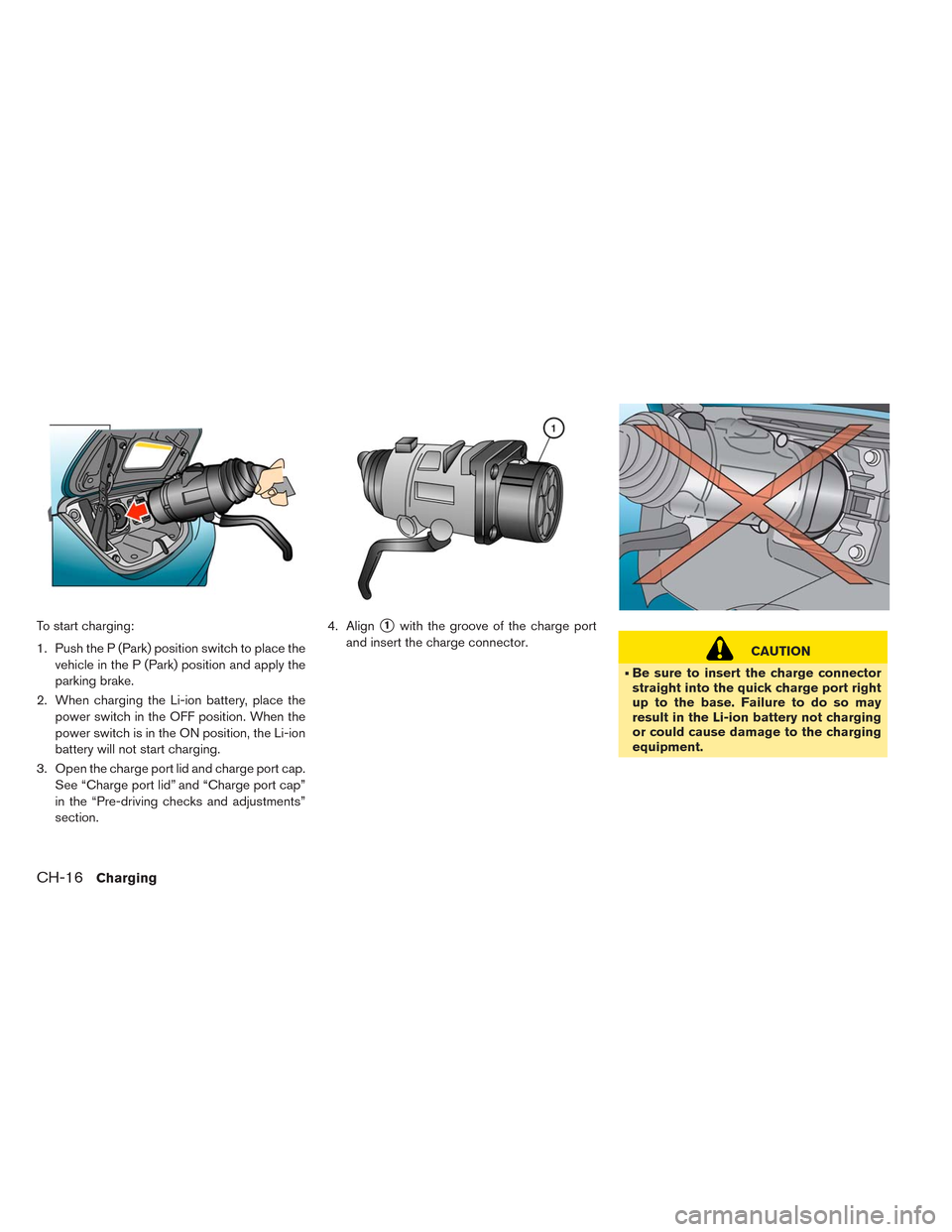

NISSAN LEAF 2014 1.G Repair Manual To start charging:
1. Push the P (Park) position switch to place the
vehicle in the P (Park) position and apply the
parking brake.
2. When charging the Li-ion battery, place the
power switch in the OF

Page 67 of 397

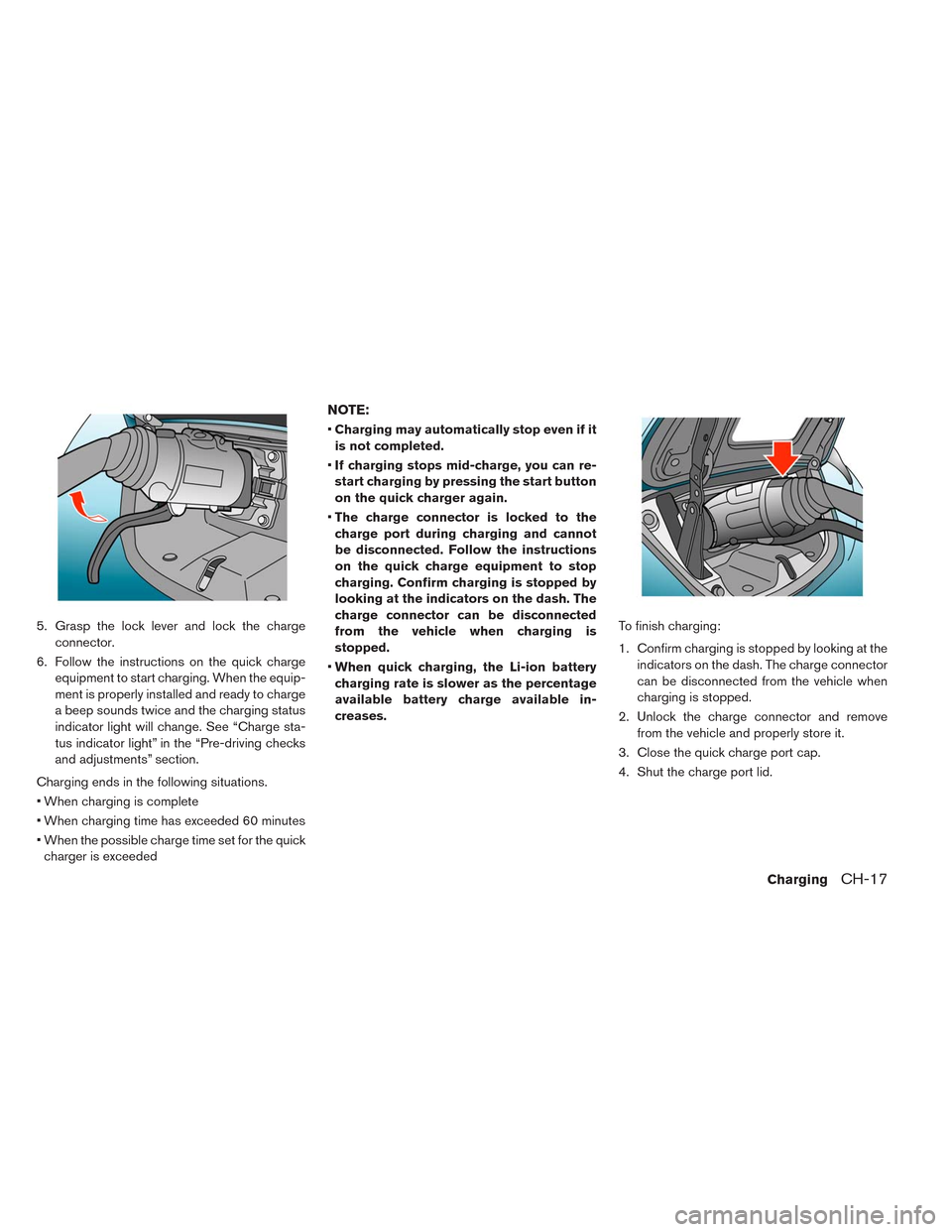

NISSAN LEAF 2014 1.G Repair Manual 5. Grasp the lock lever and lock the charge
connector.
6. Follow the instructions on the quick charge
equipment to start charging. When the equip-
ment is properly installed and ready to charge
a beep

Page 68 of 397

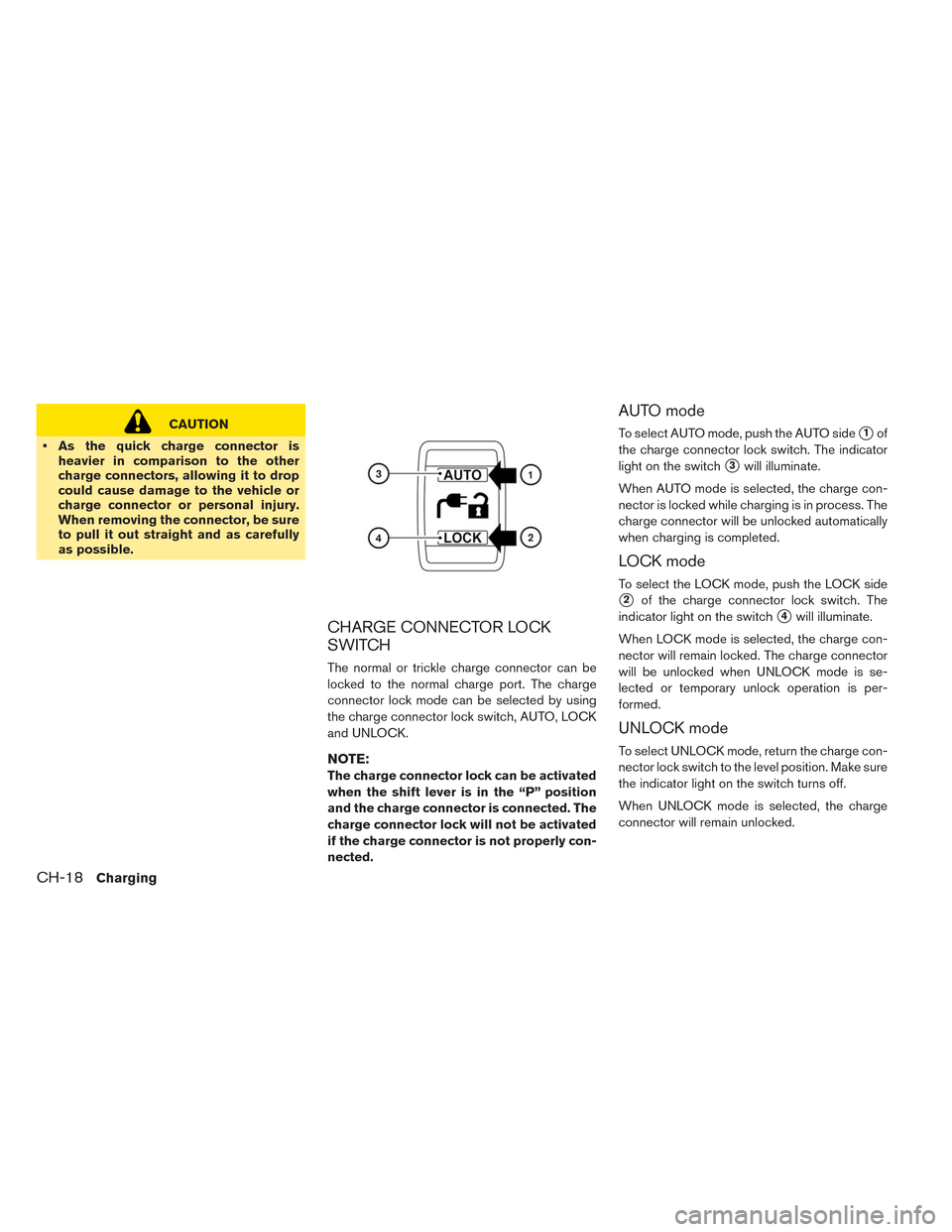

NISSAN LEAF 2014 1.G Repair Manual CAUTION
• As the quick charge connector is
heavier in comparison to the other
charge connectors, allowing it to drop
could cause damage to the vehicle or
charge connector or personal injury.
When re

Page 69 of 397

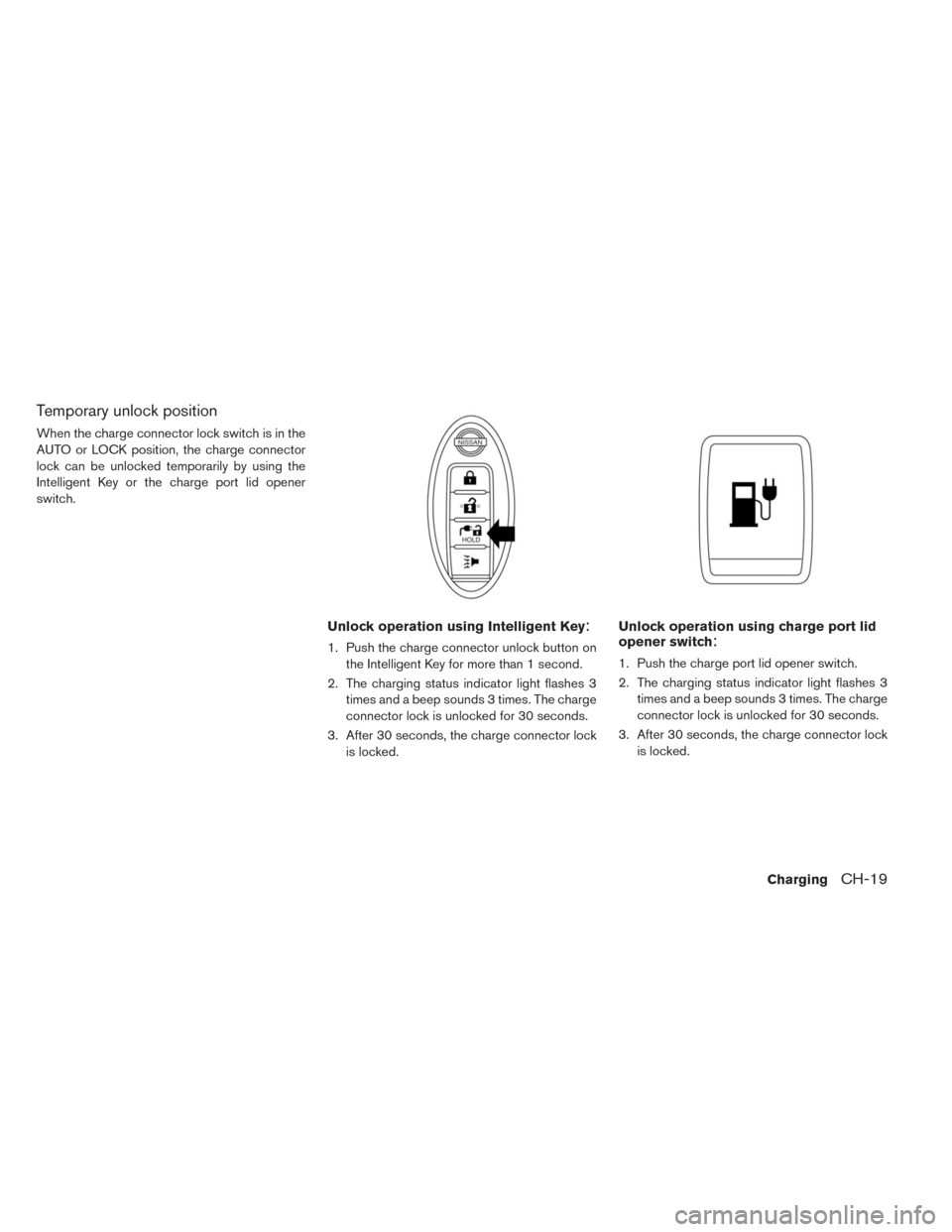

NISSAN LEAF 2014 1.G Repair Manual Temporary unlock position
When the charge connector lock switch is in the
AUTO or LOCK position, the charge connector
lock can be unlocked temporarily by using the
Intelligent Key or the charge port l

Page 70 of 397

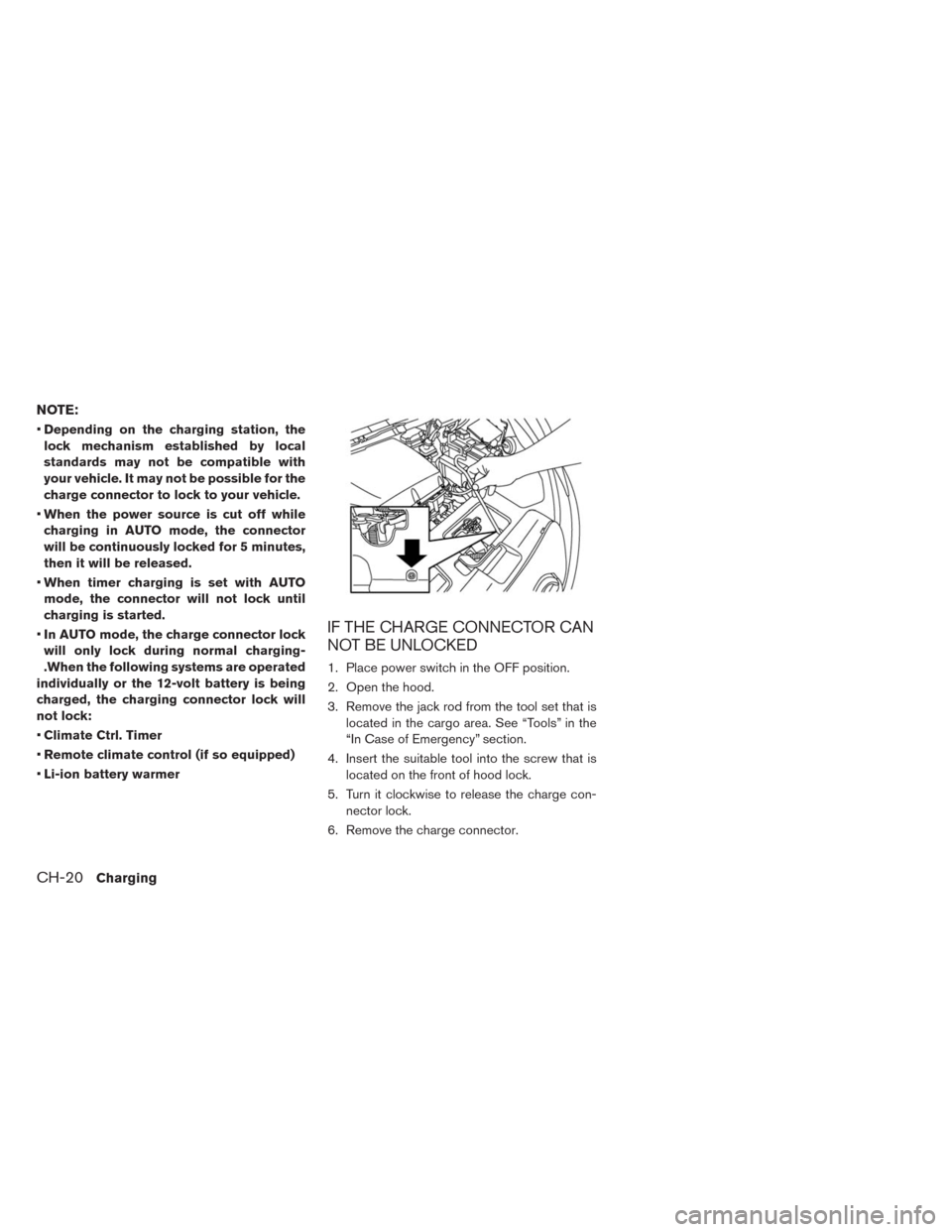

NISSAN LEAF 2014 1.G Repair Manual NOTE:
•Depending on the charging station, the
lock mechanism established by local
standards may not be compatible with
your vehicle. It may not be possible for the
charge connector to lock to your v
