CHARGING TIMER
Use charging timer to schedule when the Li-ion
battery charges. The vehicle automatically begins
charging at the scheduled times when the charge
connector is connected to the vehicle. The timers
do not need to be reset each time the Li-ion
battery needs charging.
With navigation system
The charging timer can save two timer settings
that include the charging start time and end time.
The charging timer can be applied to one of the
timer settings for each day of the week.

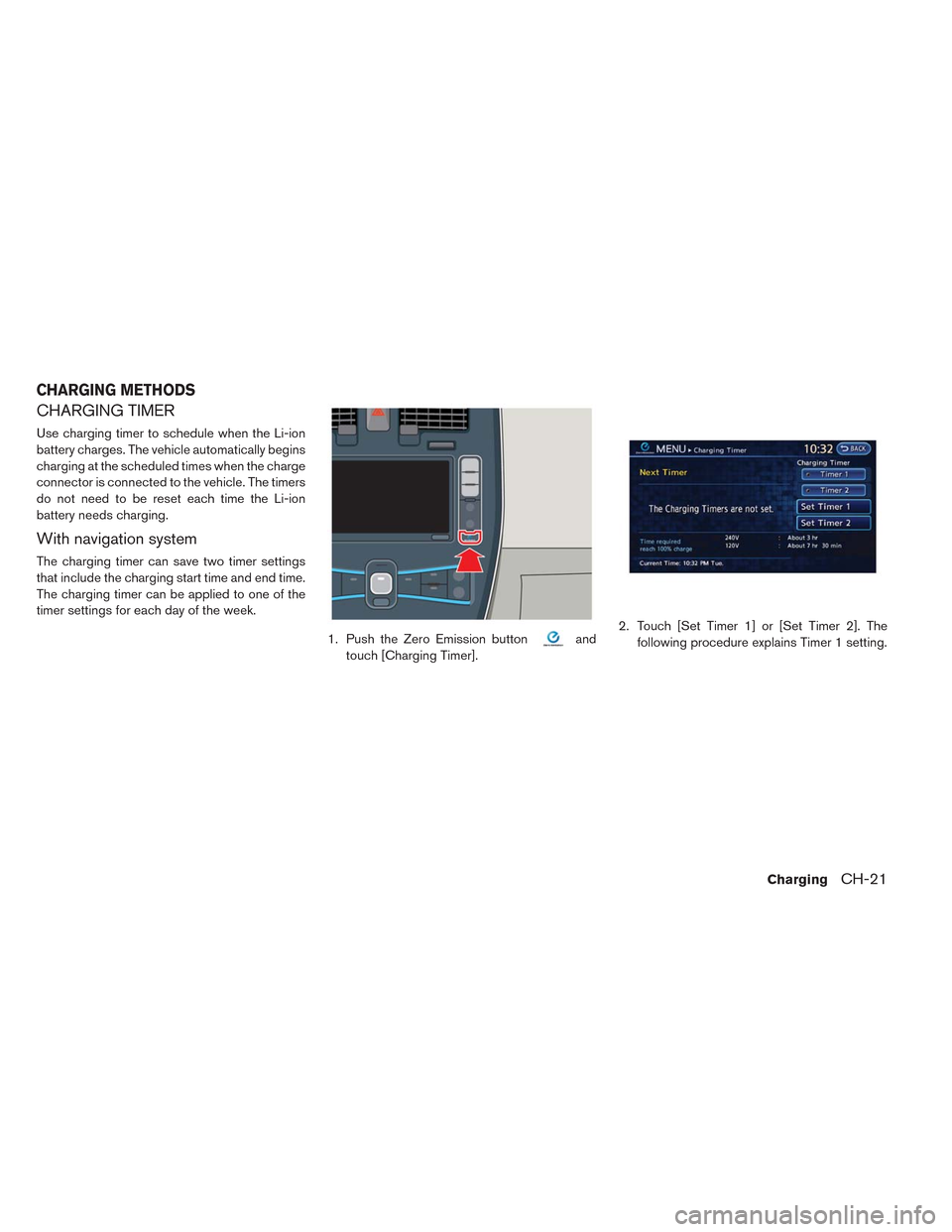

1. Push the Zero Emission button
and
touch [Charging Timer].2. Touch [Set Timer 1] or [Set Timer 2]. The
following procedure explains Timer 1 setting.
CHARGING METHODS
ChargingCH-21
Page 72 of 397

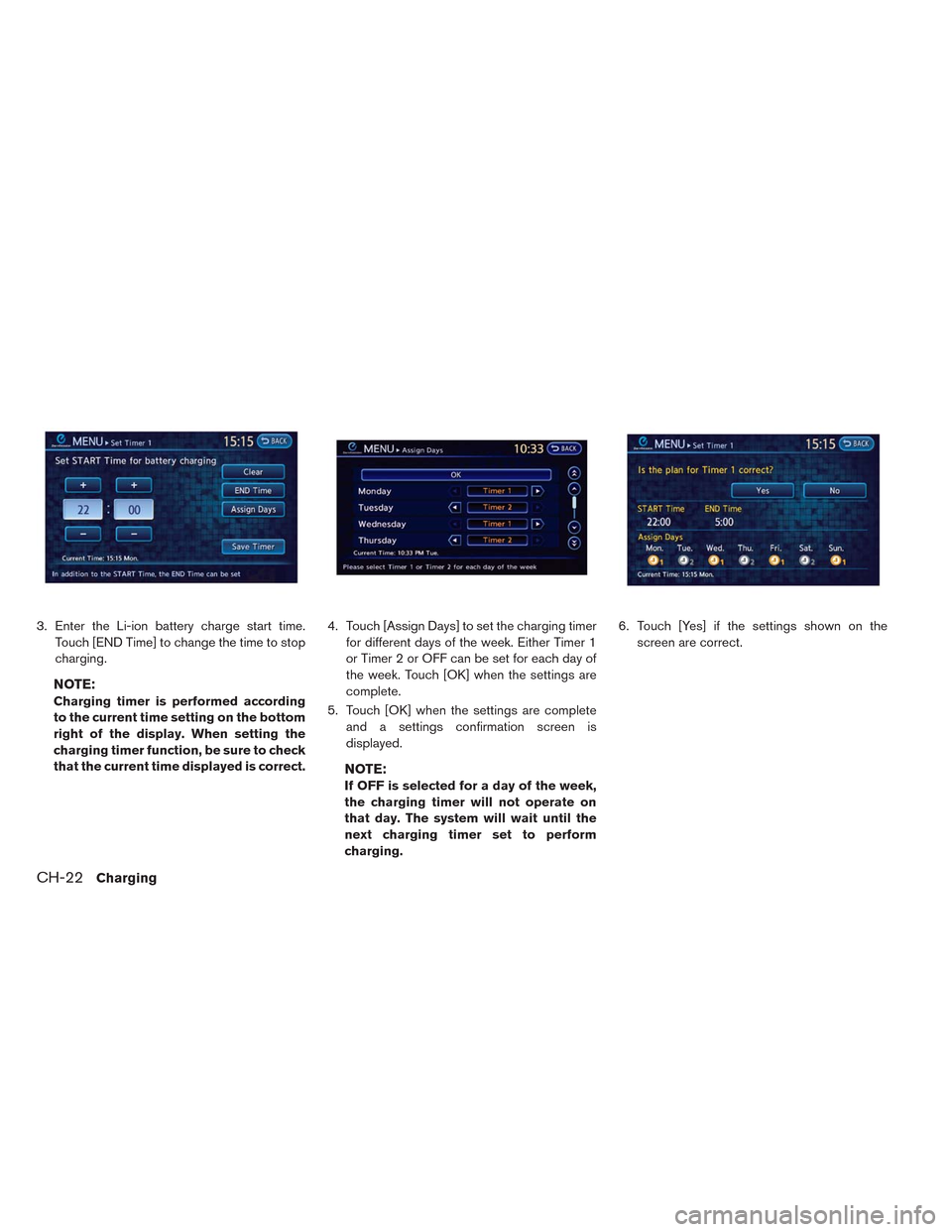

3. Enter the Li-ion battery charge start time.
Touch [END Time] to change the time to stop
charging.
NOTE:
Charging timer is performed according
to the current time setting on the bottom
right of the display. When setting the
charging timer function, be sure to check
that the current time displayed is correct.4. Touch [Assign Days] to set the charging timer
for different days of the week. Either Timer 1
or Timer 2 or OFF can be set for each day of
the week. Touch [OK] when the settings are
complete.
5. Touch [OK] when the settings are complete
and a settings confirmation screen is
displayed.
NOTE:
If OFF is selected for a day of the week,
the charging timer will not operate on
that day. The system will wait until the
next charging timer set to perform
charging.6. Touch [Yes] if the settings shown on the
screen are correct.
CH-22Charging
Page 73 of 397

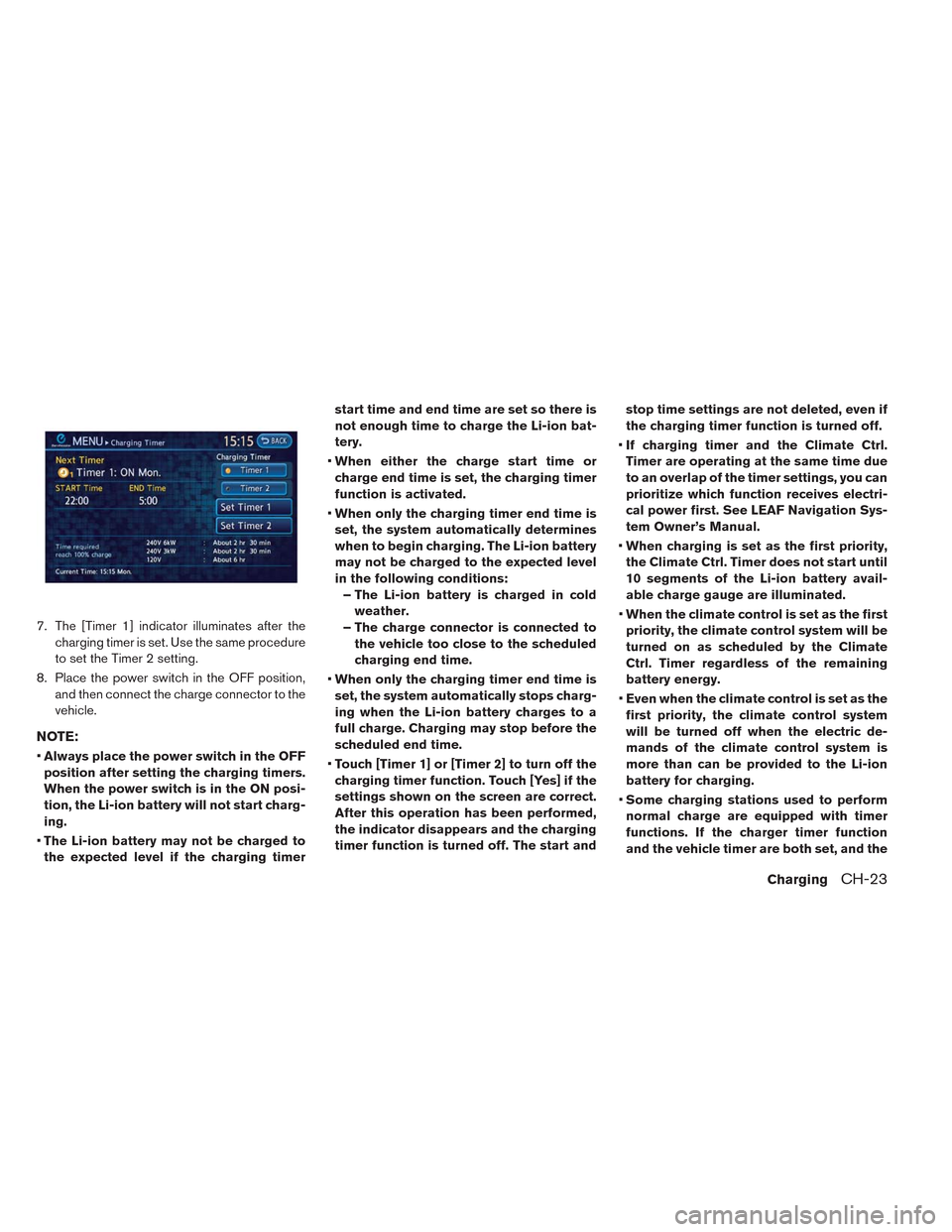

7. The [Timer 1] indicator illuminates after the
charging timer is set. Use the same procedure
to set the Timer 2 setting.
8. Place the power switch in the OFF position,
and then connect the charge connector to the
vehicle.
NOTE:
•Always place the power switch in the OFF
position after setting the charging timers.
When the power switch is in the ON posi-
tion, the Li-ion battery will not start charg-
ing.
•The Li-ion battery may not be charged to
the expected level if the charging timerstart time and end time are set so there is
not enough time to charge the Li-ion bat-
tery.
•When either the charge start time or
charge end time is set, the charging timer
function is activated.
•When only the charging timer end time is
set, the system automatically determines
when to begin charging. The Li-ion battery
may not be charged to the expected level
in the following conditions:
– The Li-ion battery is charged in cold
weather.
– The charge connector is connected to
the vehicle too close to the scheduled
charging end time.
•When only the charging timer end time is
set, the system automatically stops charg-
ing when the Li-ion battery charges to a
full charge. Charging may stop before the
scheduled end time.
•Touch [Timer 1] or [Timer 2] to turn off the
charging timer function. Touch [Yes] if the
settings shown on the screen are correct.
After this operation has been performed,
the indicator disappears and the charging
timer function is turned off. The start andstop time settings are not deleted, even if
the charging timer function is turned off.
•If charging timer and the Climate Ctrl.
Timer are operating at the same time due
to an overlap of the timer settings, you can
prioritize which function receives electri-
cal power first. See LEAF Navigation Sys-
tem Owner’s Manual.
•When charging is set as the first priority,
the Climate Ctrl. Timer does not start until
10 segments of the Li-ion battery avail-
able charge gauge are illuminated.
•When the climate control is set as the first
priority, the climate control system will be
turned on as scheduled by the Climate
Ctrl. Timer regardless of the remaining
battery energy.
•Even when the climate control is set as the
first priority, the climate control system
will be turned off when the electric de-
mands of the climate control system is
more than can be provided to the Li-ion
battery for charging.
•Some charging stations used to perform
normal charge are equipped with timer
functions. If the charger timer function
and the vehicle timer are both set, and the
ChargingCH-23
Page 74 of 397
two timers are not set to operate at the
same time, it is possible that the charger
will not start or the battery will not be
charged to the level expected.
•If the Li-ion battery warmer is operating
while the Climate Ctrl. Timer or Remote
Climate Control is being used, perfor-
mance of the Climate Control will be re-
duced.
•The Li-ion battery may not charge to the
expected level using the Charging Timer
when a Start time and End time are set
while the Li-ion battery warmer operates.
•Set only the Charging Timer End time
when charging in cold weather. The ve-
hicle automatically determines when to
start charging to fully charge the Li-ion
battery, even if the Li-ion battery warmer
operates. Charging ends before the set
End time if the Li-ion battery is fully
charged.
•The 12-volt battery can become dis-
charged if the charging timer is operated
repeatedly between the Li-ion battery
charges while the vehicle is not used for
an extended period of time.

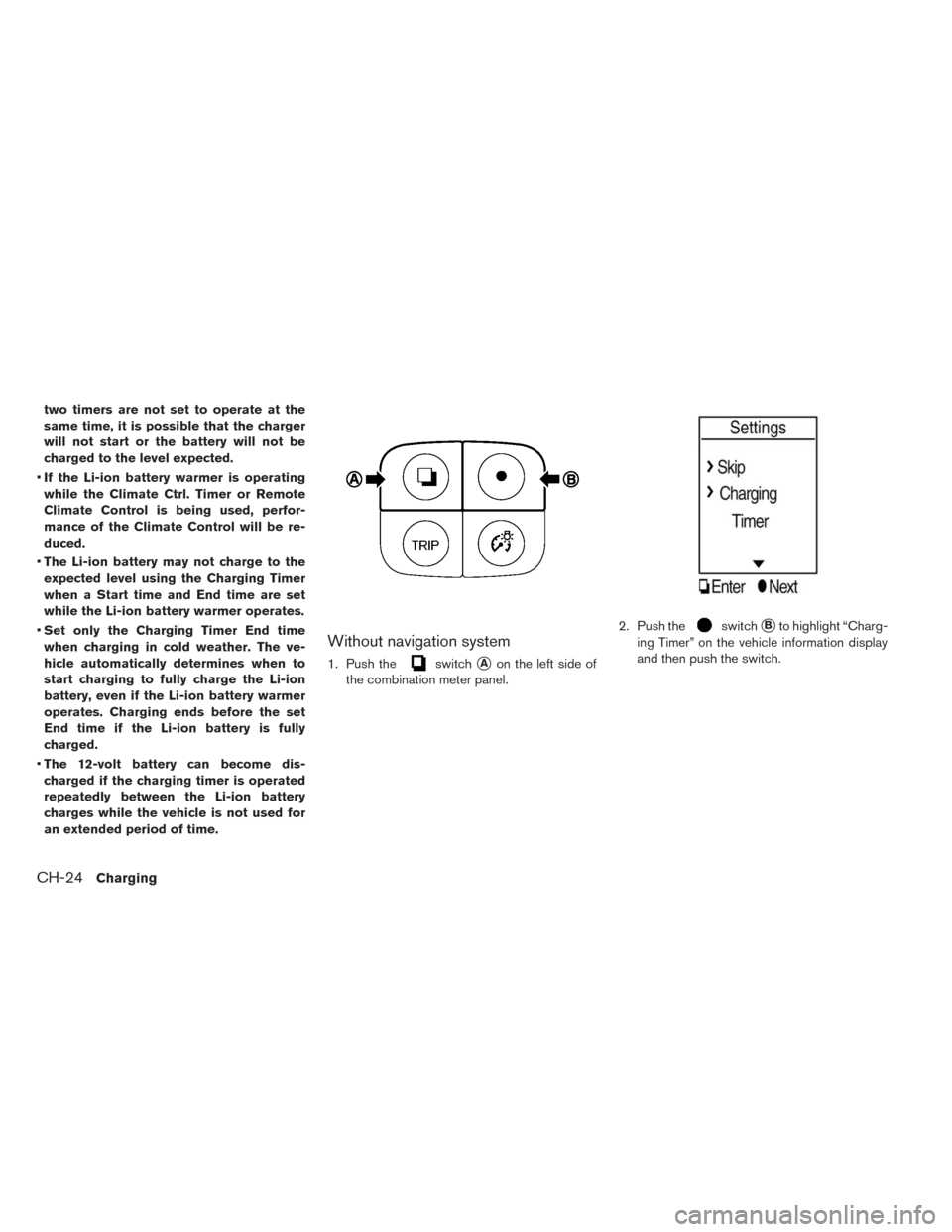

Without navigation system
1. Push theswitchAon the left side of
the combination meter panel.2. Push the
switchBto highlight “Charg-
ing Timer” on the vehicle information display
and then push the switch.
CH-24Charging
Page 75 of 397

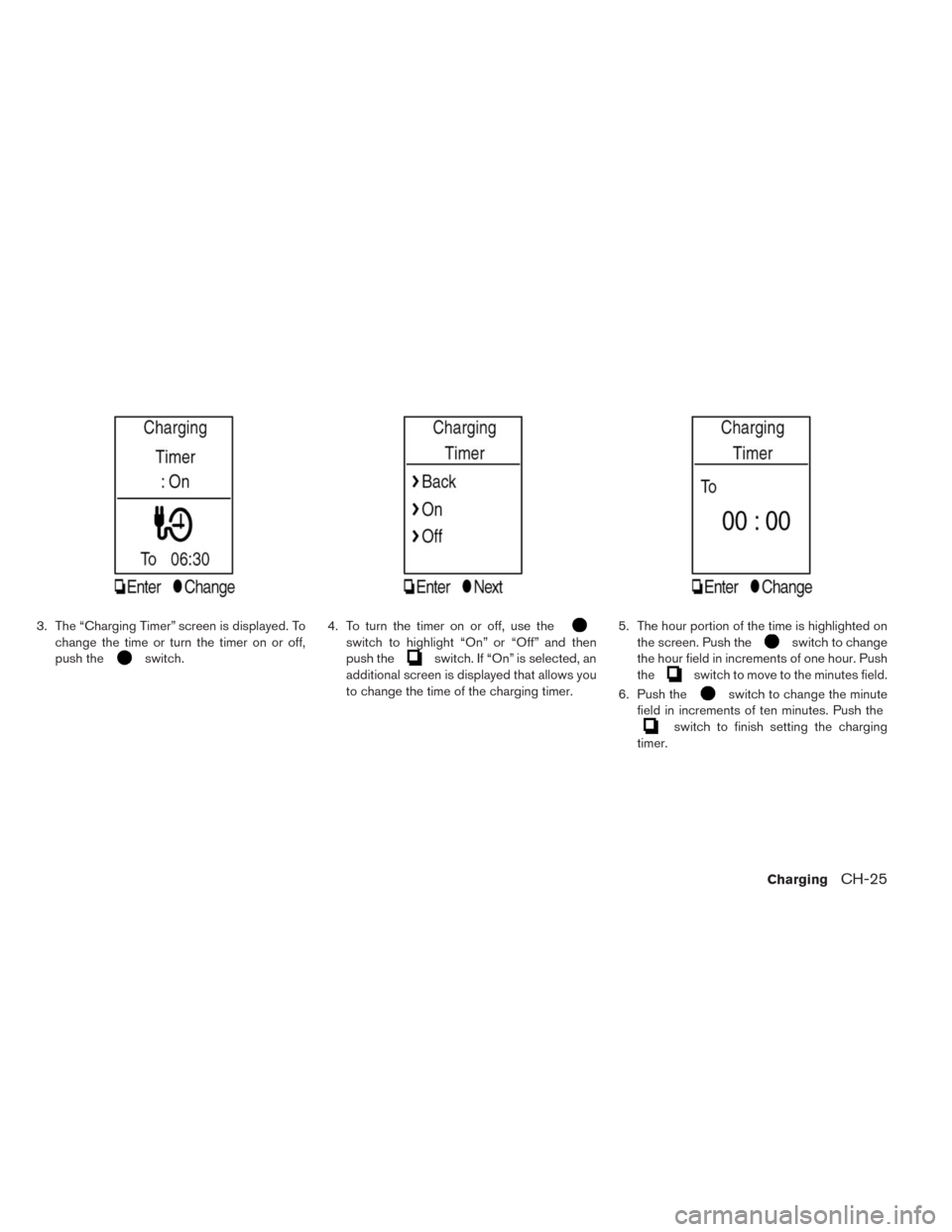

3. The “Charging Timer” screen is displayed. To
change the time or turn the timer on or off,
push the
switch.4. To turn the timer on or off, use the
switch to highlight “On” or “Off” and then
push the
switch. If “On” is selected, an
additional screen is displayed that allows you
to change the time of the charging timer.5. The hour portion of the time is highlighted on
the screen. Push the
switch to change
the hour field in increments of one hour. Push
the
switch to move to the minutes field.
6. Push the
switch to change the minute
field in increments of ten minutes. Push the
switch to finish setting the charging
timer.
ChargingCH-25
Page 76 of 397

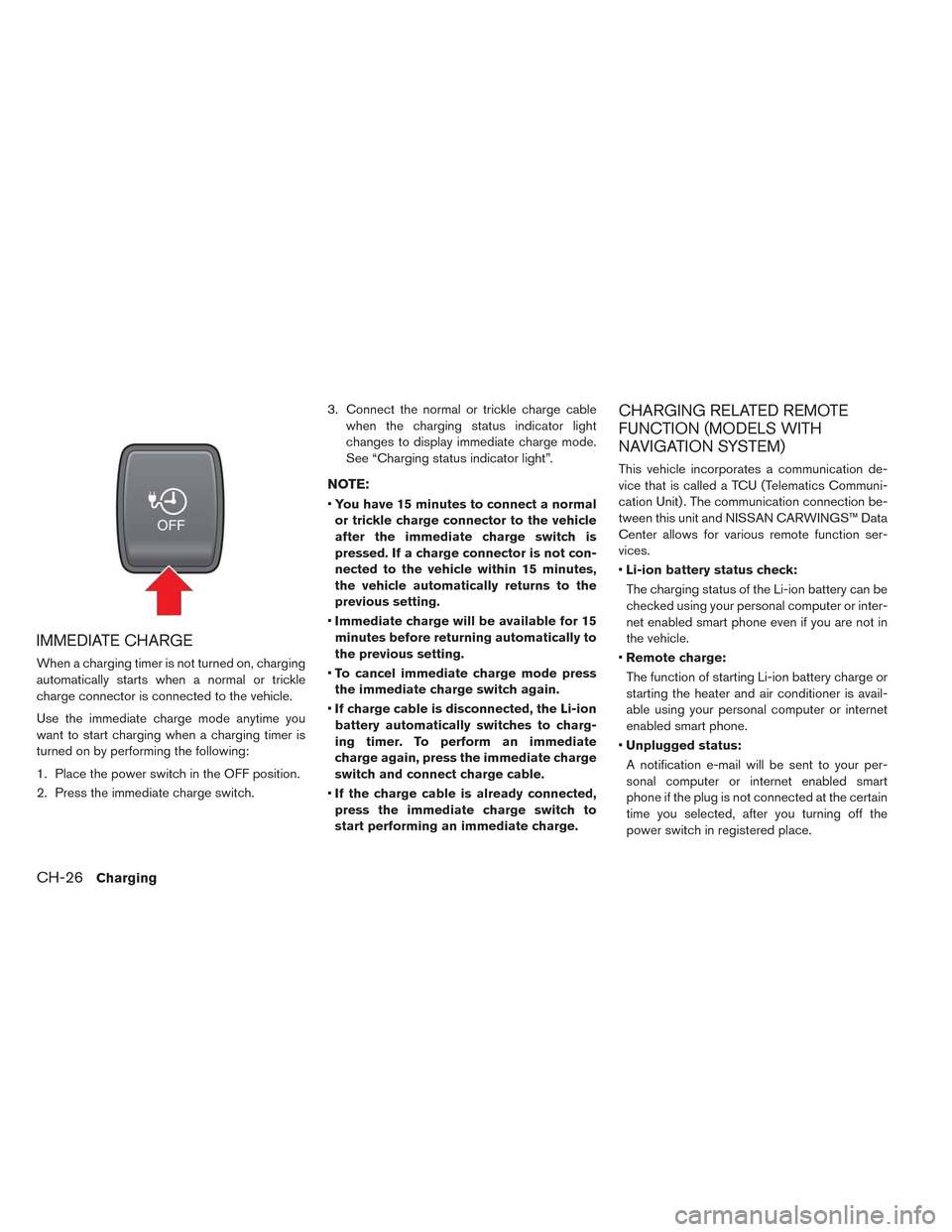

IMMEDIATE CHARGE
When a charging timer is not turned on, charging
automatically starts when a normal or trickle
charge connector is connected to the vehicle.
Use the immediate charge mode anytime you
want to start charging when a charging timer is
turned on by performing the following:
1. Place the power switch in the OFF position.
2. Press the immediate charge switch.3. Connect the normal or trickle charge cable
when the charging status indicator light
changes to display immediate charge mode.
See “Charging status indicator light”.
NOTE:
•You have 15 minutes to connect a normal
or trickle charge connector to the vehicle
after the immediate charge switch is
pressed. If a charge connector is not con-
nected to the vehicle within 15 minutes,
the vehicle automatically returns to the
previous setting.
•Immediate charge will be available for 15
minutes before returning automatically to
the previous setting.
•To cancel immediate charge mode press
the immediate charge switch again.
•If charge cable is disconnected, the Li-ion
battery automatically switches to charg-
ing timer. To perform an immediate
charge again, press the immediate charge
switch and connect charge cable.
•If the charge cable is already connected,
press the immediate charge switch to
start performing an immediate charge.
CHARGING RELATED REMOTE
FUNCTION (MODELS WITH
NAVIGATION SYSTEM)
This vehicle incorporates a communication de-
vice that is called a TCU (Telematics Communi-
cation Unit) . The communication connection be-
tween this unit and NISSAN CARWINGS™ Data
Center allows for various remote function ser-
vices.
•Li-ion battery status check:
The charging status of the Li-ion battery can be
checked using your personal computer or inter-
net enabled smart phone even if you are not in
the vehicle.
•Remote charge:
The function of starting Li-ion battery charge or
starting the heater and air conditioner is avail-
able using your personal computer or internet
enabled smart phone.
•Unplugged status:
A notification e-mail will be sent to your per-
sonal computer or internet enabled smart
phone if the plug is not connected at the certain
time you selected, after you turning off the
power switch in registered place.
CH-26Charging
Page 77 of 397
NOTE:
•Establishing the CARWINGS™ service is
necessary before using this service. See
LEAF Navigation System Owner’s Manual.
•To check the Li-ion battery charging status
using an internet enabled smart phone or
personal computer, the following condi-
tions must be met:
– The vehicle must be located in a cellu-
lar phone coverage area.
– The cellular phone must be located in
an area with cellular phone coverage.
– If using a computer, the computer must
be connected to the internet.
– Some cellular phones are not compat-
ible and cannot be used to check the
Li-ion battery charging status. Please
confirm beforehand.
•Certain remote functions required a com-
patible smart phone, which is not included
with vehicle.
•CARWINGS™ information system features
are included through a subscription ser-
vice which requires owner consent to ac-
tivate. The subscription must be active to
use these features.•CARWINGS™ communications may be re-
ceived at a verified e-mail address or by
SMS/text messaging-enabled mobile
phone.
•Standard text rates and/or data usage
may apply depending on your carrier.
ChargingCH-27
Page 78 of 397
CHARGING STATUS INDICATOR
LIGHTS

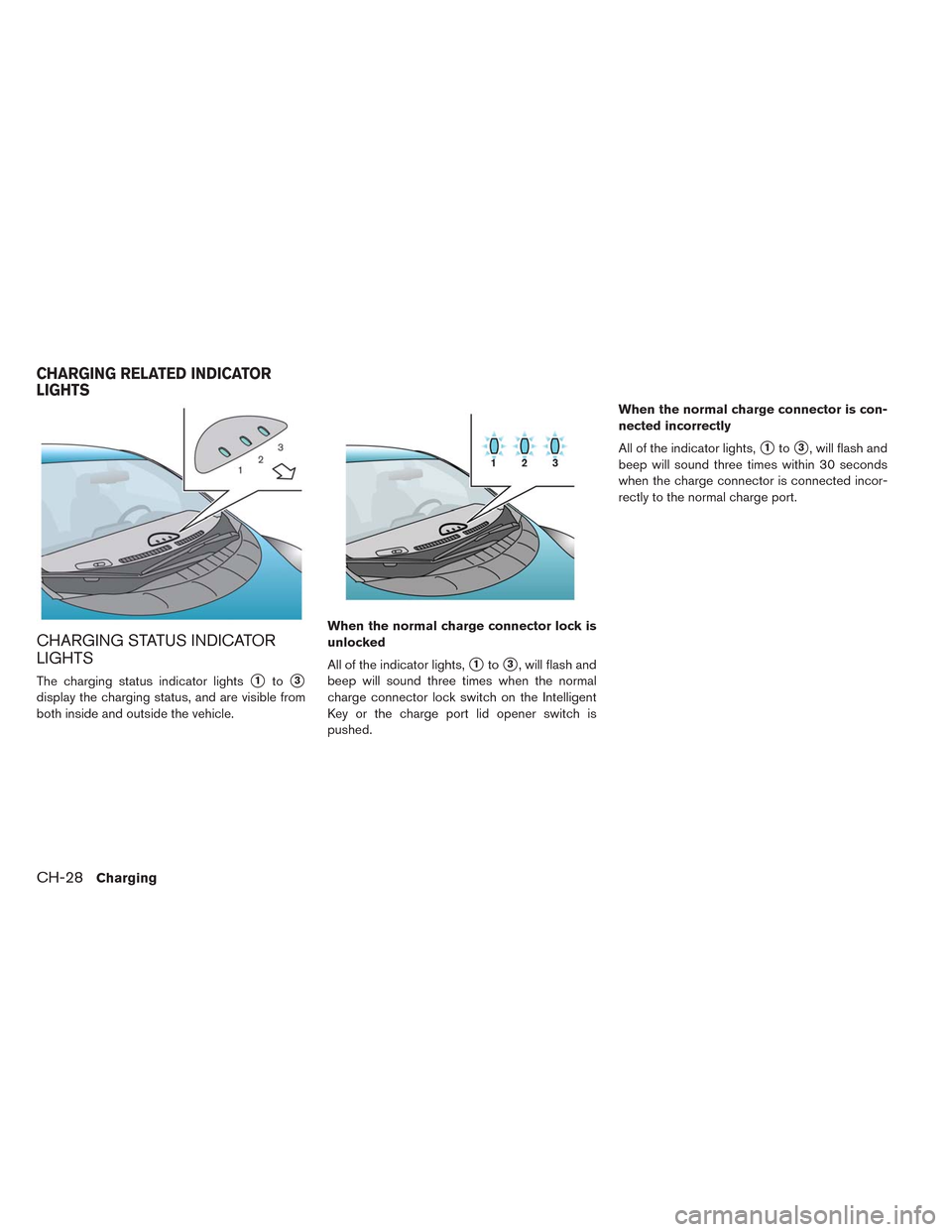

The charging status indicator lights1to3
display the charging status, and are visible from
both inside and outside the vehicle.When the normal charge connector lock is
unlocked
All of the indicator lights,
1to3, will flash and
beep will sound three times when the normal
charge connector lock switch on the Intelligent
Key or the charge port lid opener switch is
pushed.When the normal charge connector is con-
nected incorrectly
All of the indicator lights,
1to3, will flash and
beep will sound three times within 30 seconds
when the charge connector is connected incor-
rectly to the normal charge port.
CHARGING RELATED INDICATOR
LIGHTS
CH-28Charging
Page 79 of 397

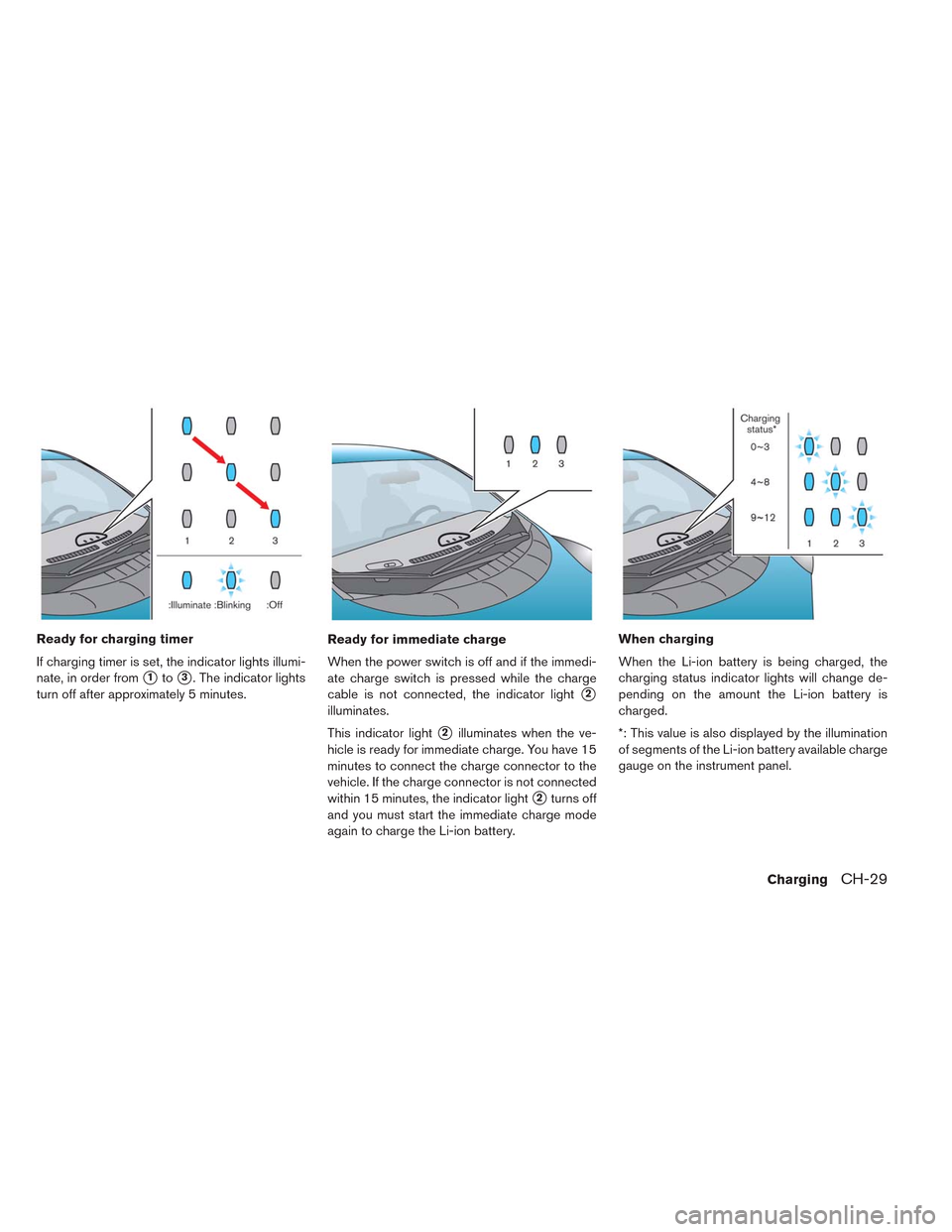

Ready for charging timer
If charging timer is set, the indicator lights illumi-
nate, in order from
1to3. The indicator lights
turn off after approximately 5 minutes.Ready for immediate charge
When the power switch is off and if the immedi-
ate charge switch is pressed while the charge
cable is not connected, the indicator light
2
illuminates.
This indicator light
2illuminates when the ve-
hicle is ready for immediate charge. You have 15
minutes to connect the charge connector to the
vehicle. If the charge connector is not connected
within 15 minutes, the indicator light
2turns off
and you must start the immediate charge mode
again to charge the Li-ion battery.When charging
When the Li-ion battery is being charged, the
charging status indicator lights will change de-
pending on the amount the Li-ion battery is
charged.
*: This value is also displayed by the illumination
of segments of the Li-ion battery available charge
gauge on the instrument panel.
ChargingCH-29
Page 80 of 397

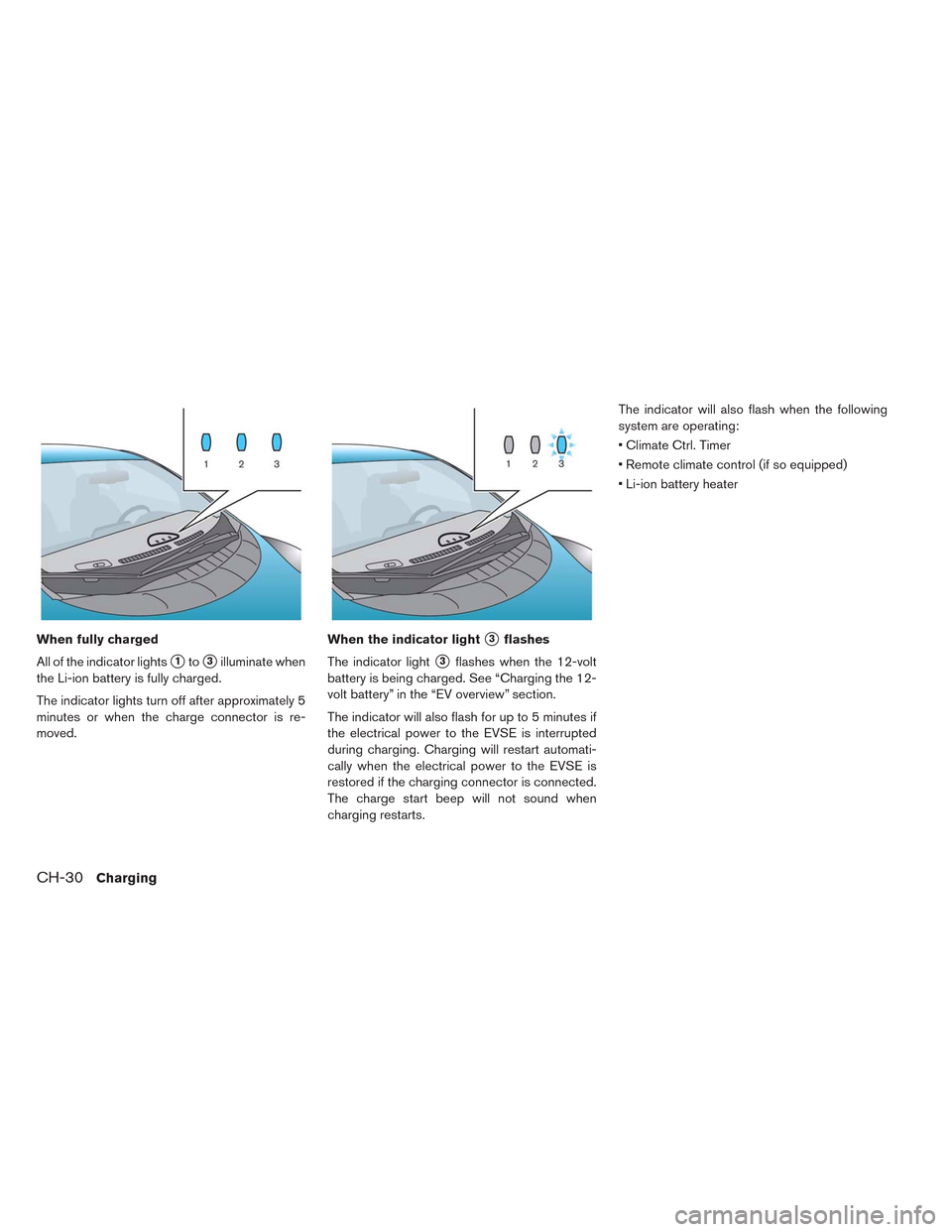

When fully charged
All of the indicator lights
1to3illuminate when
the Li-ion battery is fully charged.
The indicator lights turn off after approximately 5
minutes or when the charge connector is re-
moved.When the indicator light
3flashes
The indicator light
3flashes when the 12-volt
battery is being charged. See “Charging the 12-
volt battery” in the “EV overview” section.
The indicator will also flash for up to 5 minutes if
the electrical power to the EVSE is interrupted
during charging. Charging will restart automati-
cally when the electrical power to the EVSE is
restored if the charging connector is connected.
The charge start beep will not sound when
charging restarts.The indicator will also flash when the following
system are operating:
• Climate Ctrl. Timer
• Remote climate control (if so equipped)
• Li-ion battery heater
CH-30Charging
