Page 141 of 437

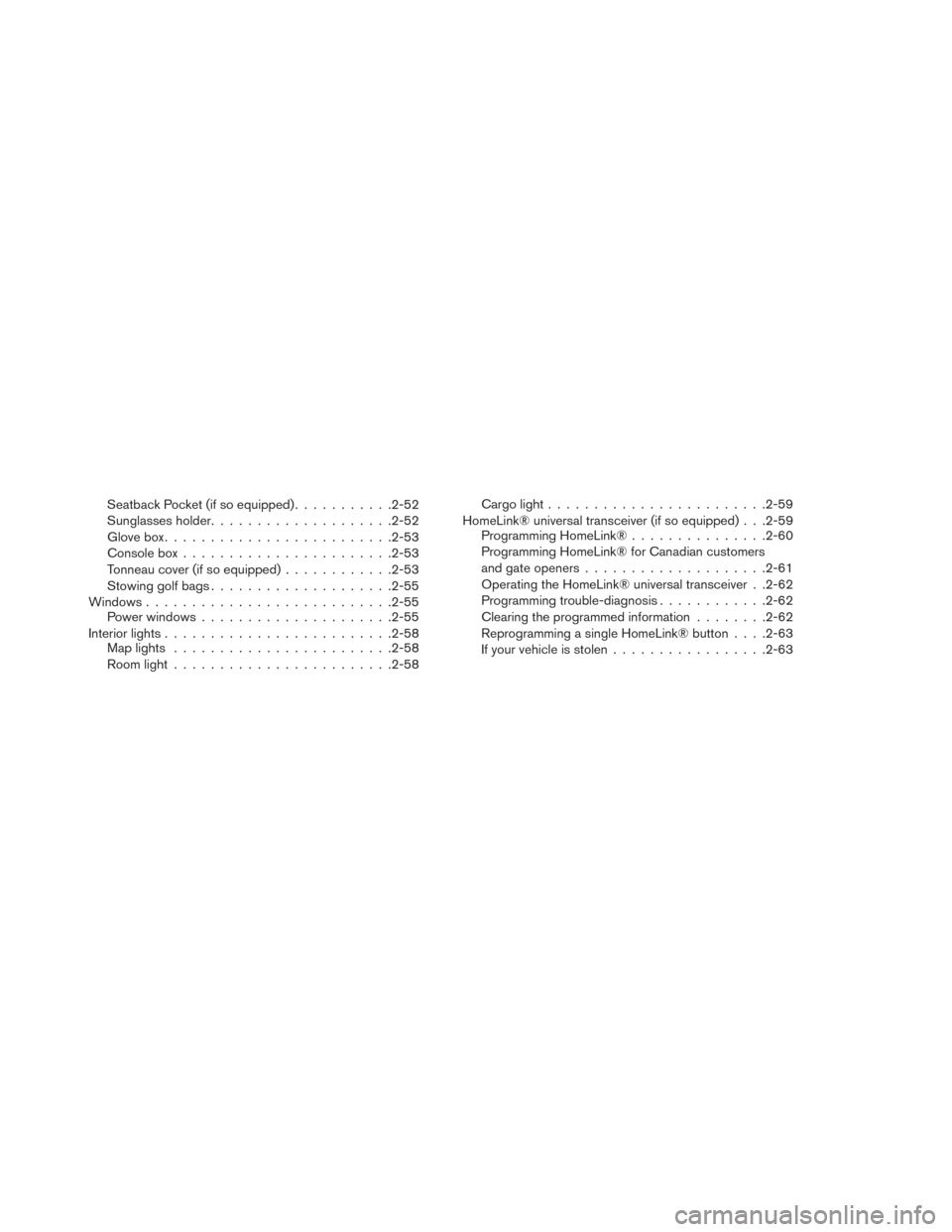

NISSAN LEAF 2016 1.G Owners Manual Seatback Pocket (if so equipped)...........2-52
Sunglasses holder ................... .2-52
Glove box ........................ .2-53
Console box ...................... .2-53
Tonneau cover (if so equip

Page 142 of 437

NISSAN LEAF 2016 1.G Owners Manual 1. TRIP switch for twin trip odometer (P. 2-5)
2. Trip computer switch (P. 2-22)
3. Instrument brightness control switch(P. 2-41)
4. Headlight, fog light and turn signal switch — Headlight (P. 2-42)

Page 143 of 437

NISSAN LEAF 2016 1.G Owners Manual 1. Side vents (P. 4-22)
2. Meters and gauges (P. 2-5)
3. Center multi-function control panel— Navigation system (Refer to LEAF Naviga-
tion System Owner’s Manual)
— Without navigation system (P.

Page 144 of 437

NISSAN LEAF 2016 1.G Owners Manual This vehicle is equipped with an upper display
and a lower display.
1. Master warning lights (P. 2-18)
2. ECO indicator (P. 2-10)
3. Speedometer (P. 2-6)
4. Clock (P. 2-11)5. Outside air temperature (

Page 145 of 437

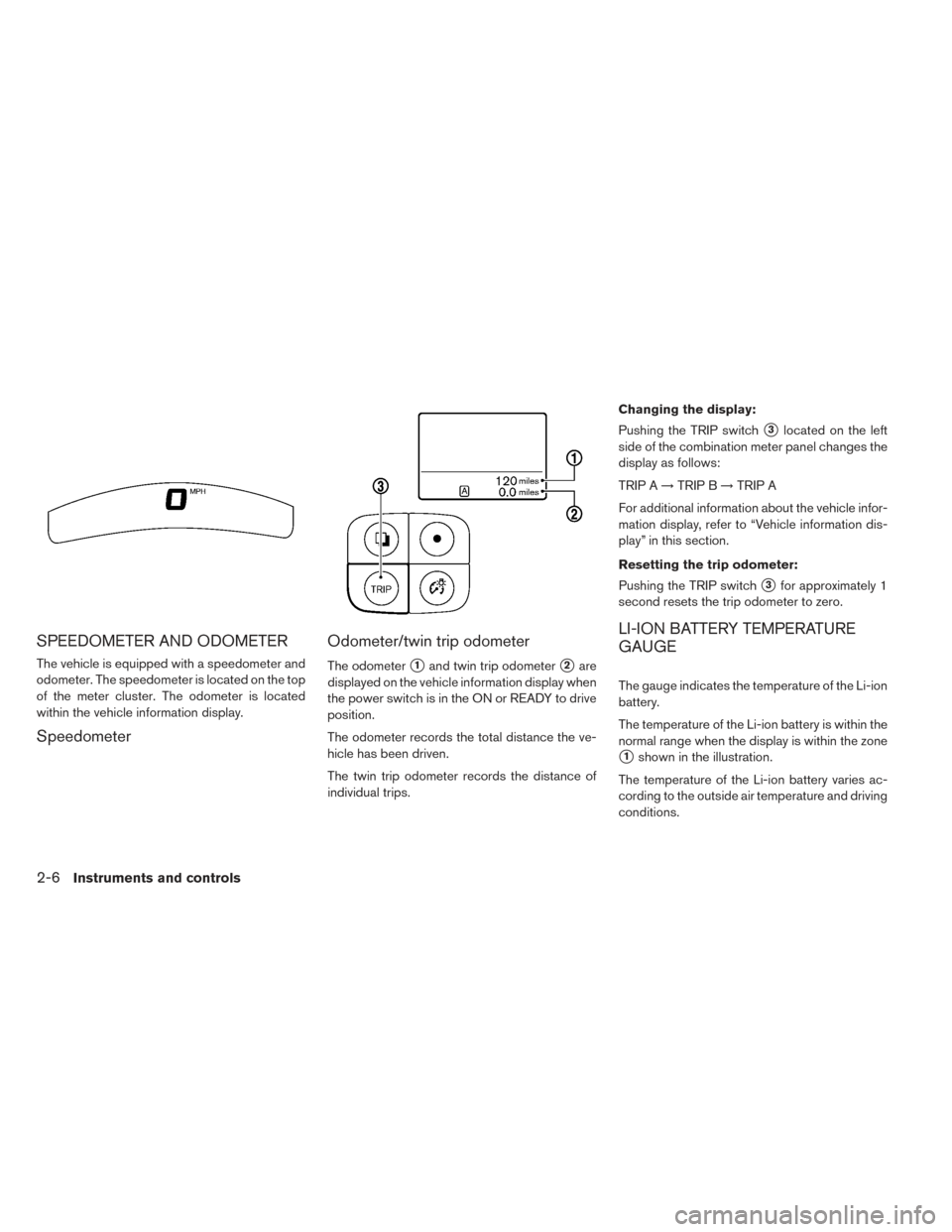

NISSAN LEAF 2016 1.G Owners Manual SPEEDOMETER AND ODOMETER
The vehicle is equipped with a speedometer and
odometer. The speedometer is located on the top
of the meter cluster. The odometer is located
within the vehicle information dis

Page 146 of 437

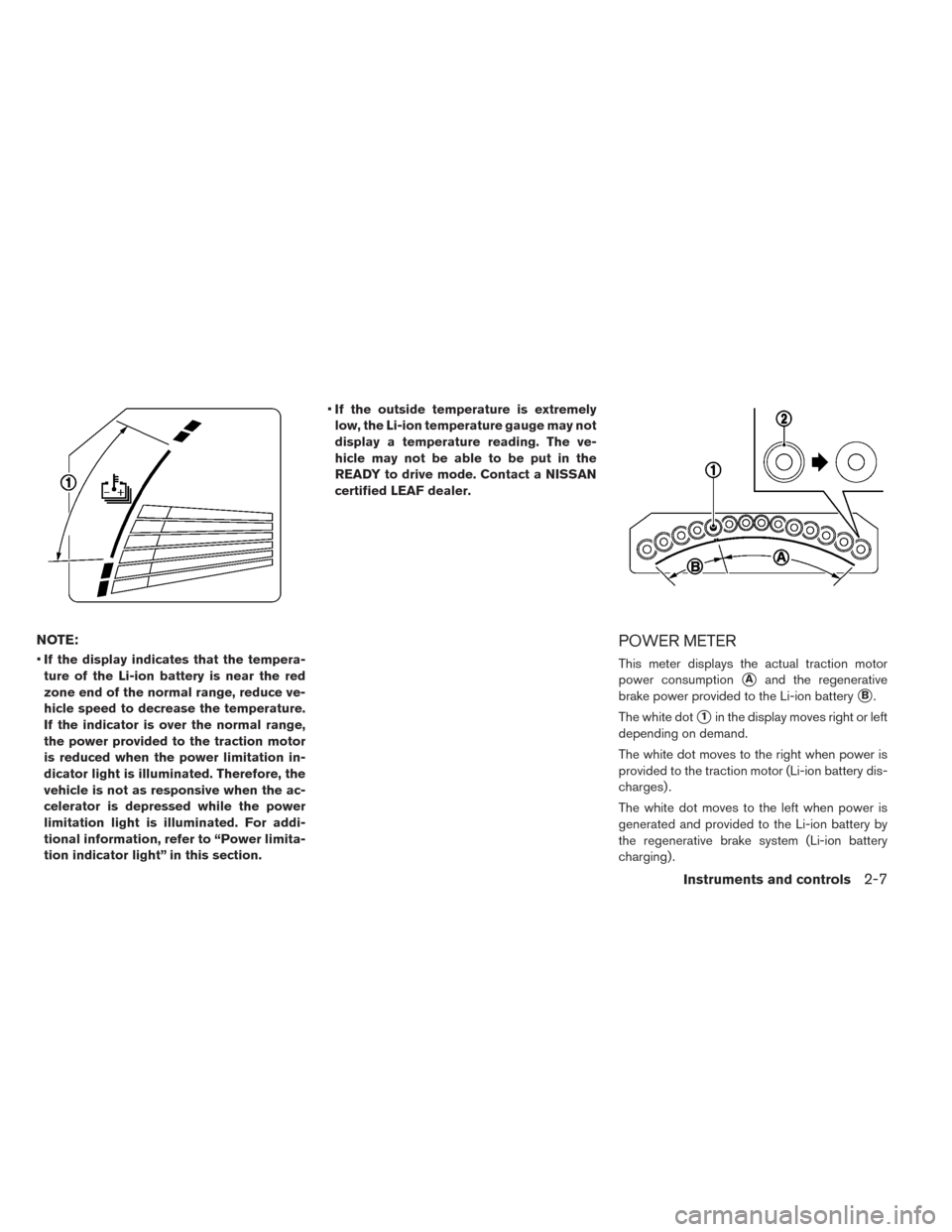

NISSAN LEAF 2016 1.G Owners Manual NOTE:
•If the display indicates that the tempera-
ture of the Li-ion battery is near the red
zone end of the normal range, reduce ve-
hicle speed to decrease the temperature.
If the indicator is ove

Page 147 of 437

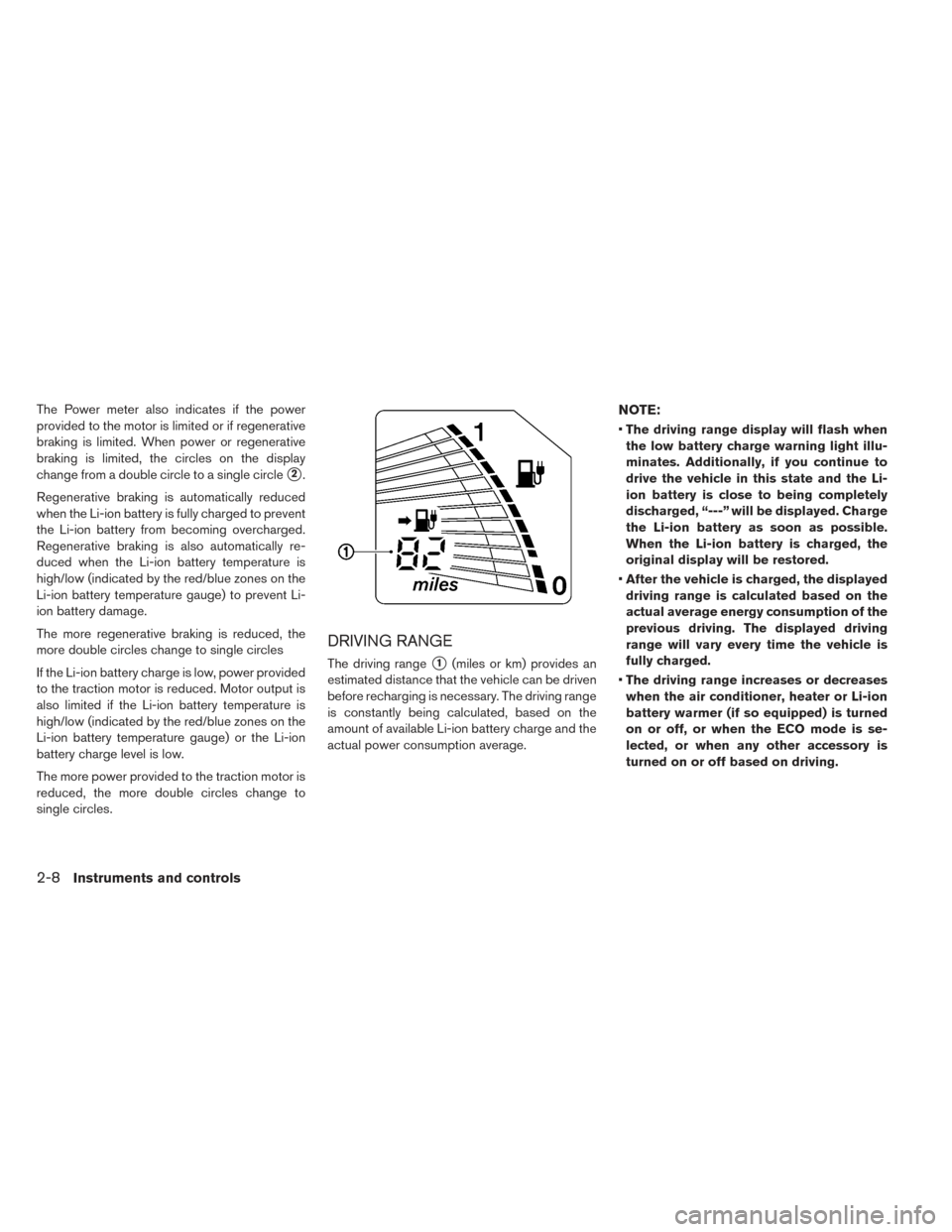

NISSAN LEAF 2016 1.G Owners Manual The Power meter also indicates if the power
provided to the motor is limited or if regenerative
braking is limited. When power or regenerative
braking is limited, the circles on the display
change fro

Page 148 of 437

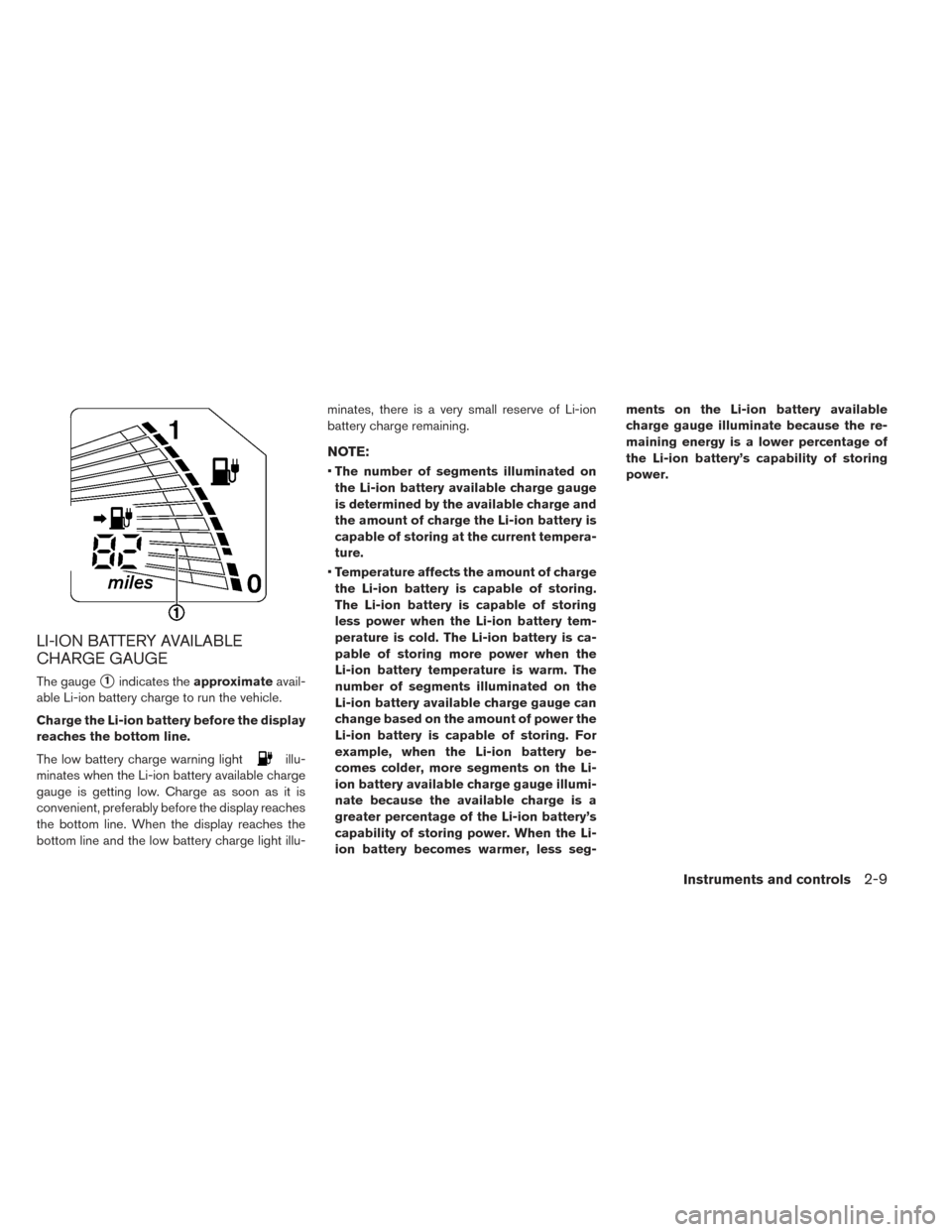

NISSAN LEAF 2016 1.G Owners Manual LI-ION BATTERY AVAILABLE
CHARGE GAUGE
The gauge1indicates theapproximate avail-
able Li-ion battery charge to run the vehicle.
Charge the Li-ion battery before the display
reaches the bottom line.
Th

Page 149 of 437

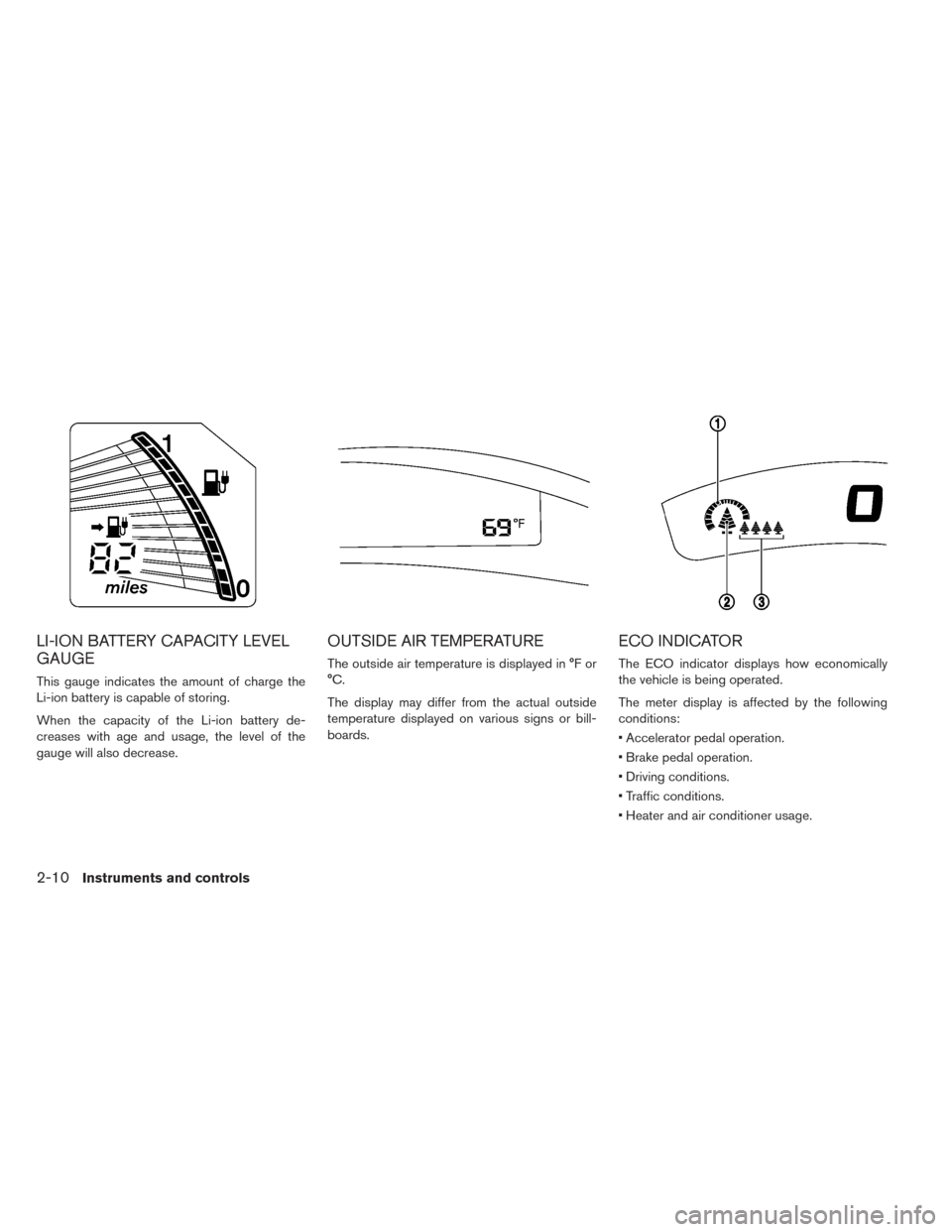

NISSAN LEAF 2016 1.G Owners Manual LI-ION BATTERY CAPACITY LEVEL
GAUGE
This gauge indicates the amount of charge the
Li-ion battery is capable of storing.
When the capacity of the Li-ion battery de-
creases with age and usage, the leve

Page 150 of 437

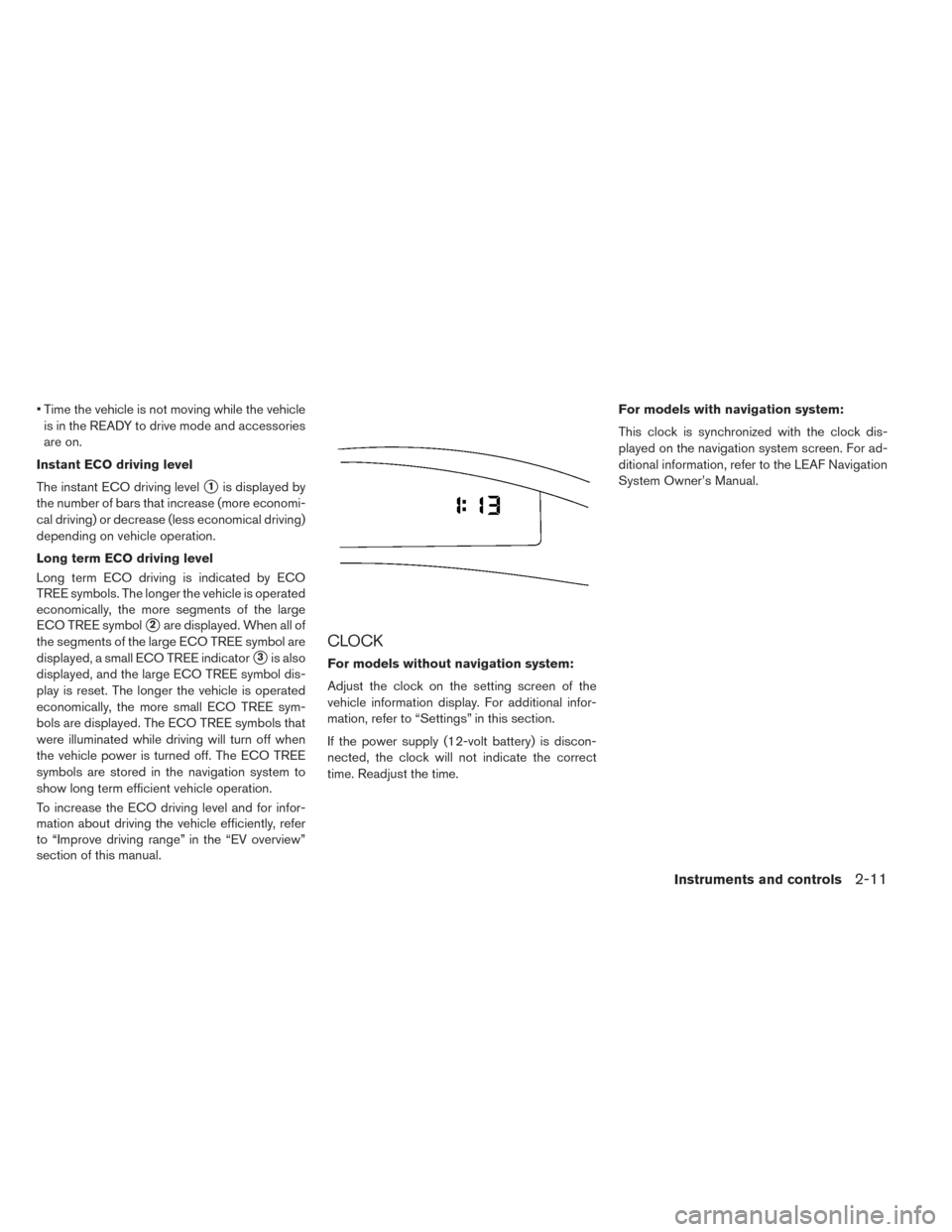

NISSAN LEAF 2016 1.G Owners Manual • Time the vehicle is not moving while the vehicleis in the READY to drive mode and accessories
are on.
Instant ECO driving level
The instant ECO driving level
1is displayed by
the number of bars t
