Page 401 of 610

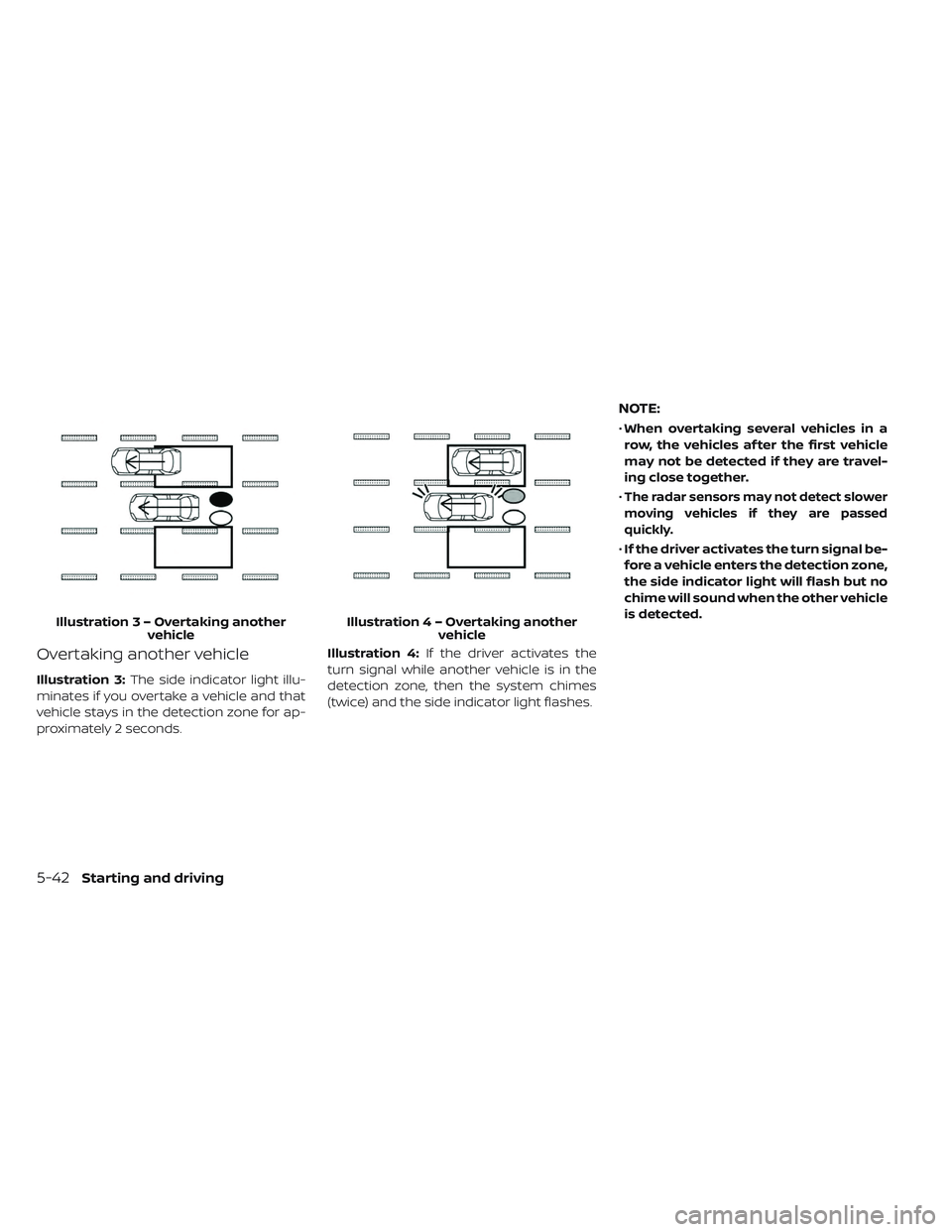

NISSAN LEAF 2019  Owner´s Manual Overtaking another vehicle
Illustration 3:The side indicator light illu-
minates if you overtake a vehicle and that
vehicle stays in the detection zone for ap-
proximately 2 seconds. Illustration 4:
I

Page 402 of 610

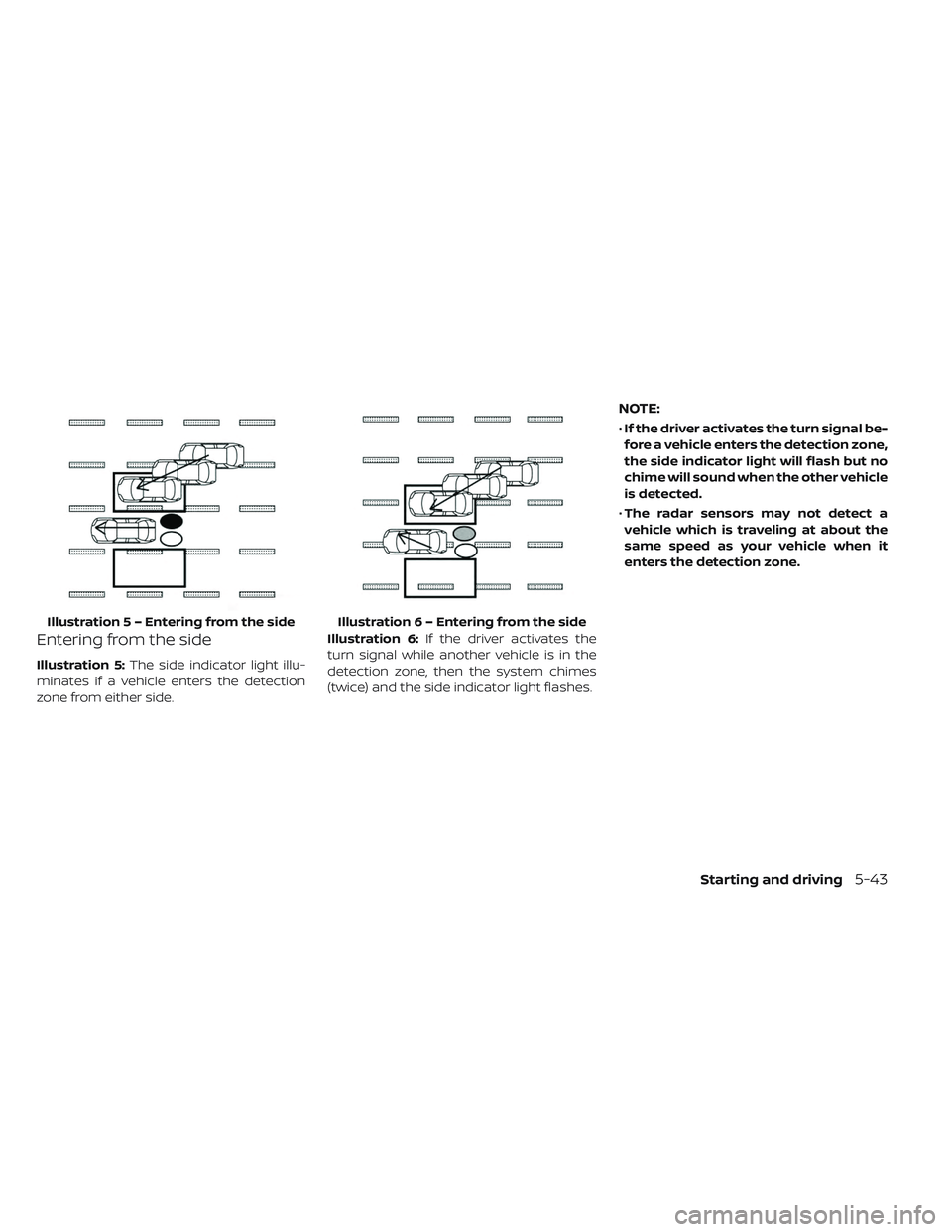

NISSAN LEAF 2019  Owner´s Manual Entering from the side
Illustration 5:The side indicator light illu-
minates if a vehicle enters the detection
zone from either side. Illustration 6:
If the driver activates the
turn signal while anot

Page 403 of 610

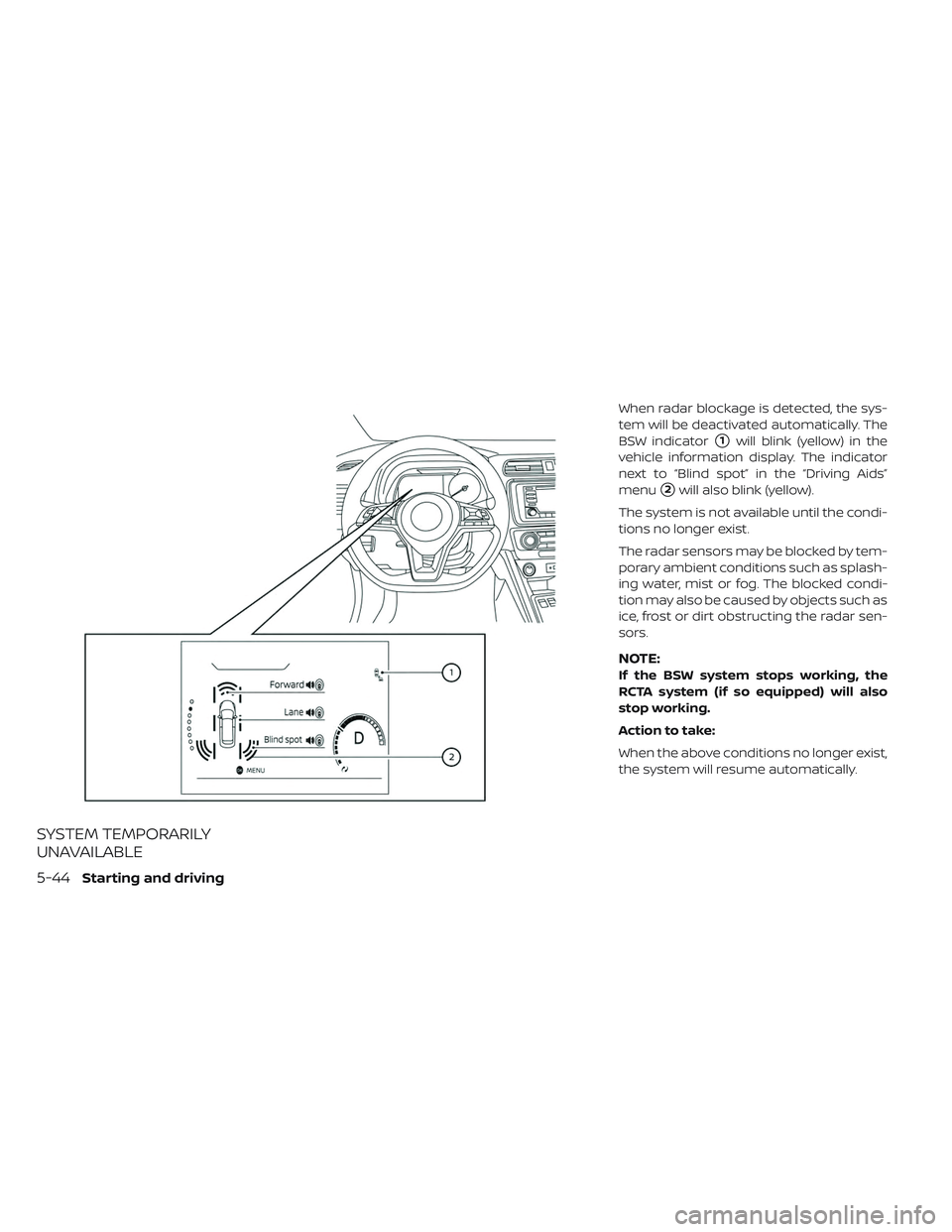

NISSAN LEAF 2019  Owner´s Manual SYSTEM TEMPORARILY
UNAVAILABLE
When radar blockage is detected, the sys-
tem will be deactivated automatically. The
BSW indicator
1will blink (yellow) in the
vehicle information display. The indicato

Page 404 of 610

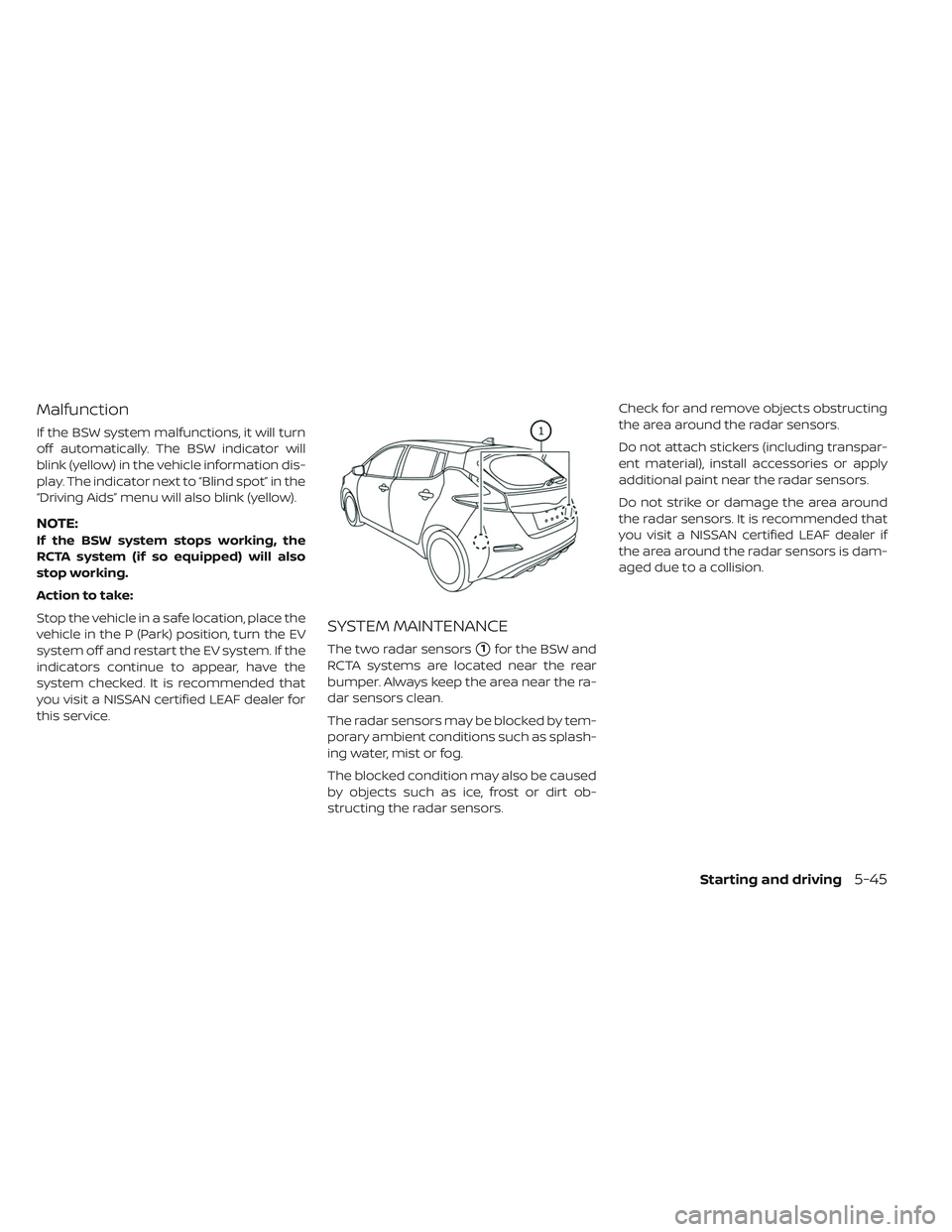

NISSAN LEAF 2019  Owner´s Manual Malfunction
If the BSW system malfunctions, it will turn
off automatically. The BSW indicator will
blink (yellow) in the vehicle information dis-
play. The indicator next to “Blind spot” in the

Page 405 of 610

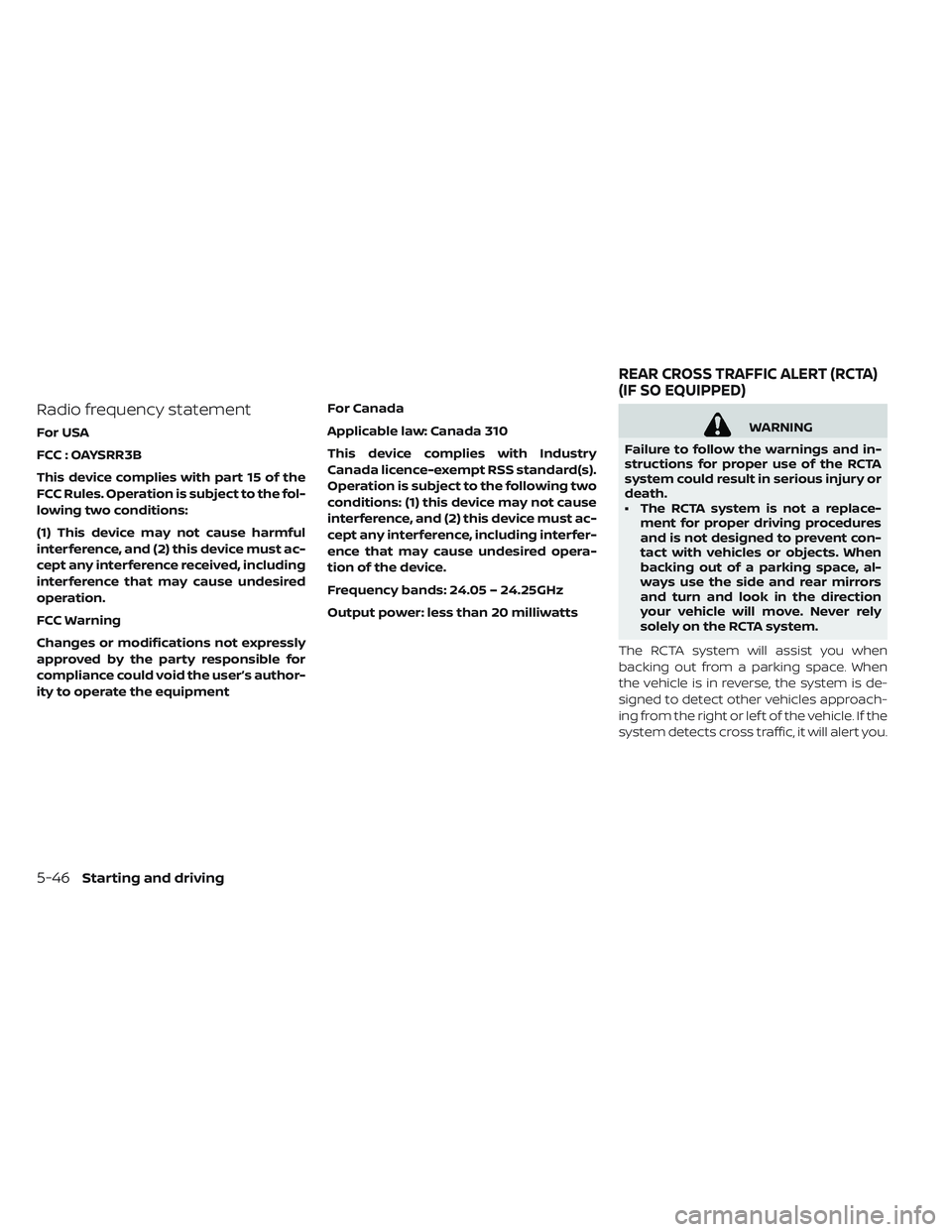

NISSAN LEAF 2019  Owner´s Manual Radio frequency statement
For USA
FCC : OAYSRR3B
This device complies with part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions:
(1) This device may not cause harmful
inter

Page 406 of 610

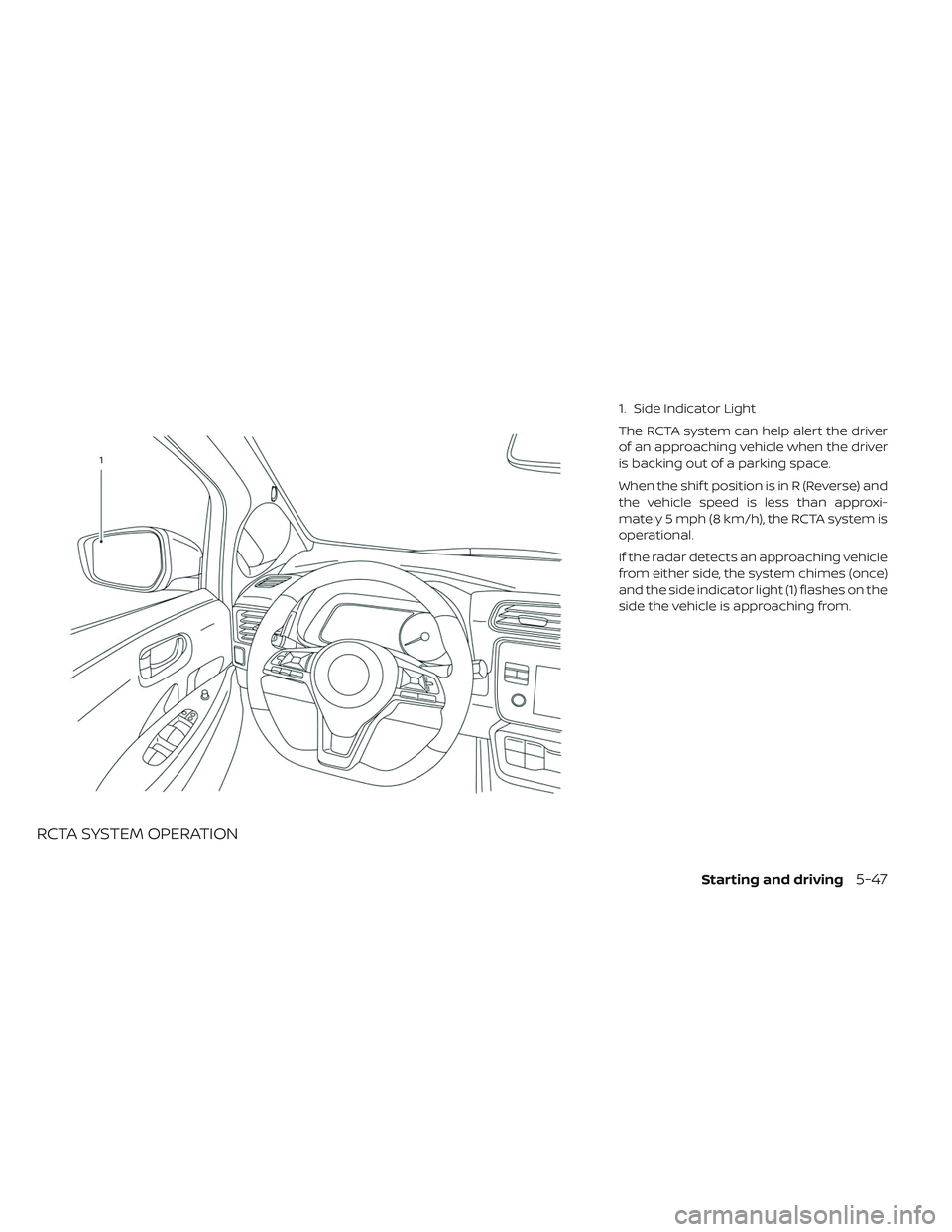

NISSAN LEAF 2019  Owner´s Manual RCTA SYSTEM OPERATION
1. Side Indicator Light
The RCTA system can help alert the driver
of an approaching vehicle when the driver
is backing out of a parking space.
When the shif t position is in R (R

Page 407 of 610

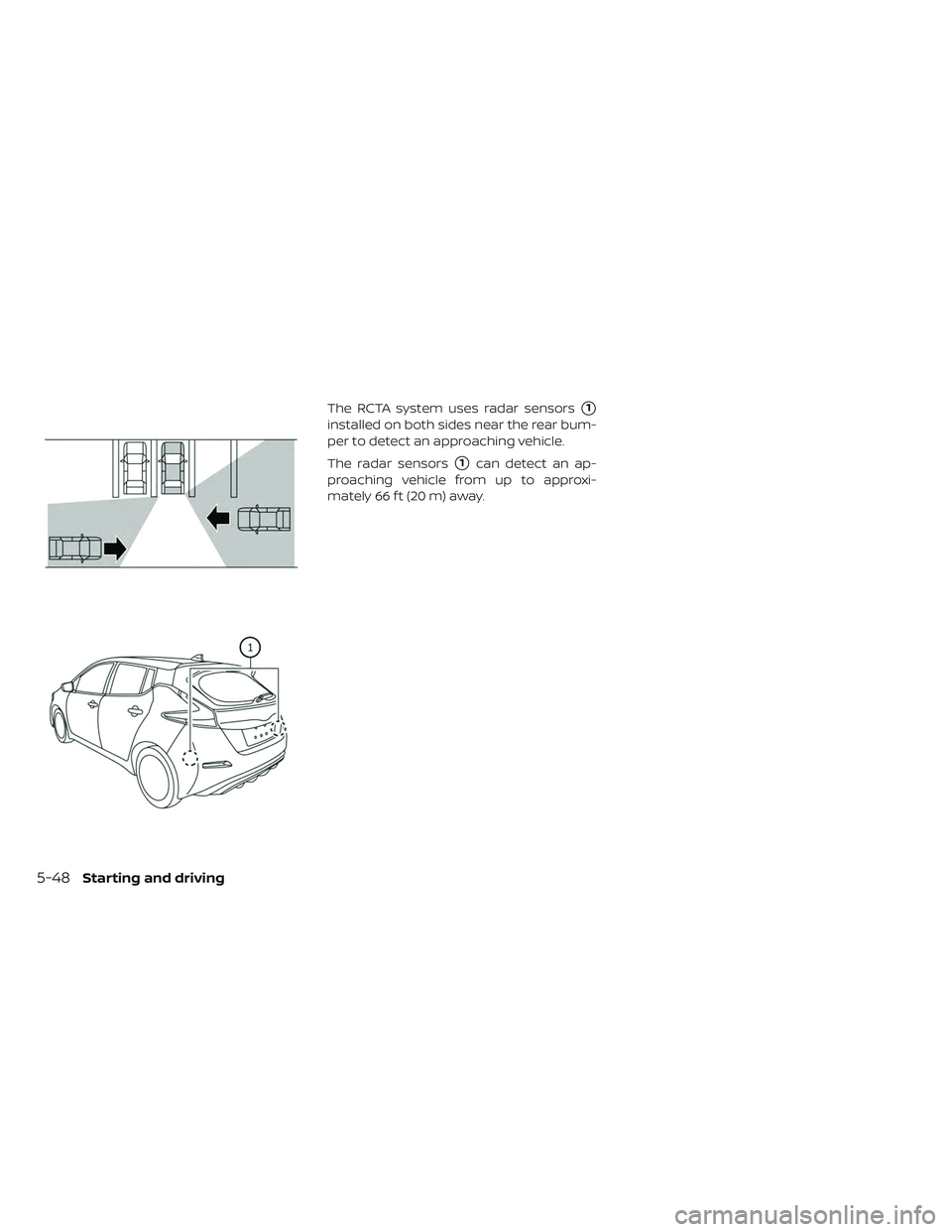

NISSAN LEAF 2019  Owner´s Manual The RCTA system uses radar sensors1
installed on both sides near the rear bum-
per to detect an approaching vehicle.
The radar sensors
1can detect an ap-
proaching vehicle from up to approxi-
mately

Page 408 of 610

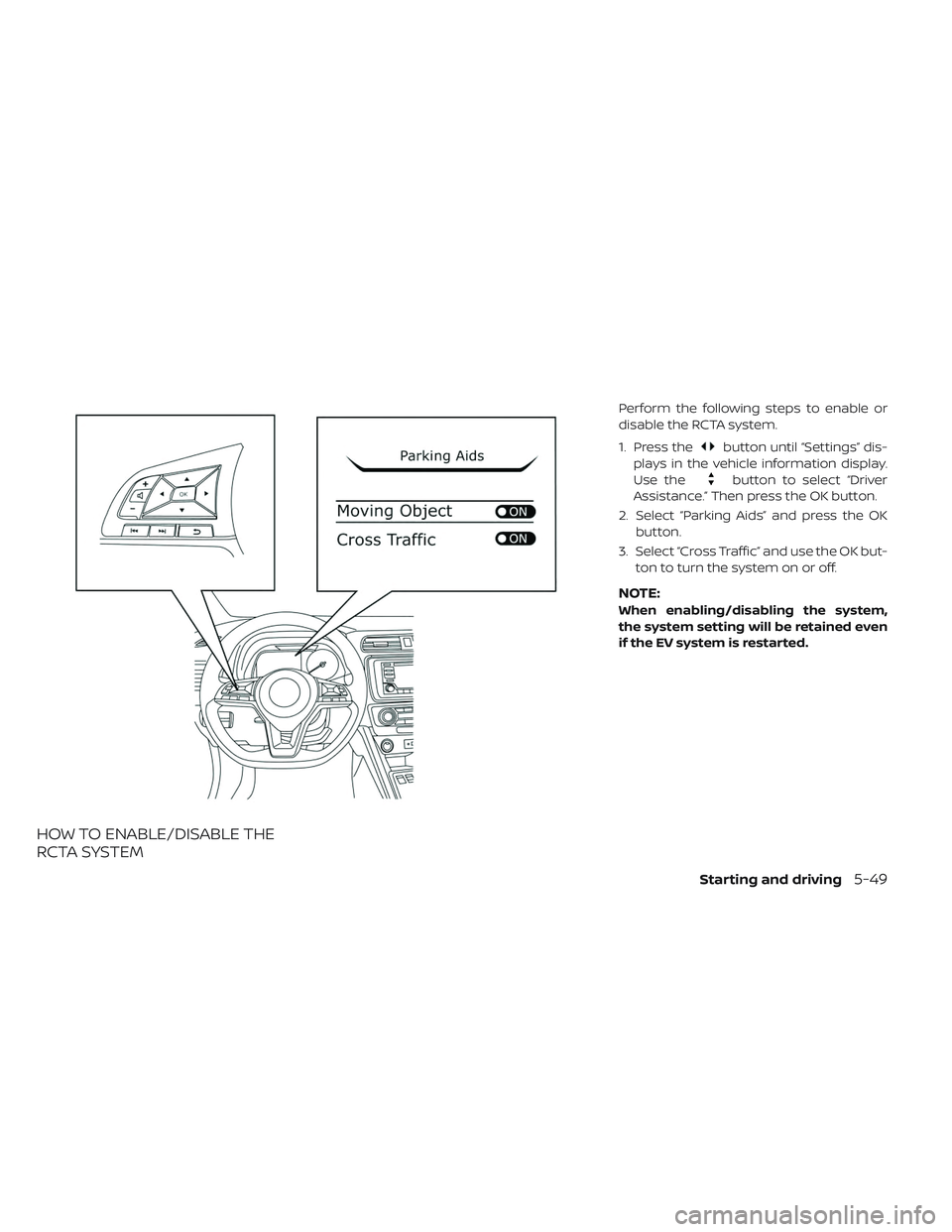

NISSAN LEAF 2019  Owner´s Manual HOW TO ENABLE/DISABLE THE
RCTA SYSTEM
Perform the following steps to enable or
disable the RCTA system.
1. Press the
button until “Settings” dis-
plays in the vehicle information display.
Use the

Page 409 of 610

NISSAN LEAF 2019  Owner´s Manual RCTA SYSTEM LIMITATIONS
WARNING
Listed below are the system limita-
tions for the RCTA system. Failure to
operate the vehicle in accordance with
these system limitations could result
in serious injury

Page 410 of 610

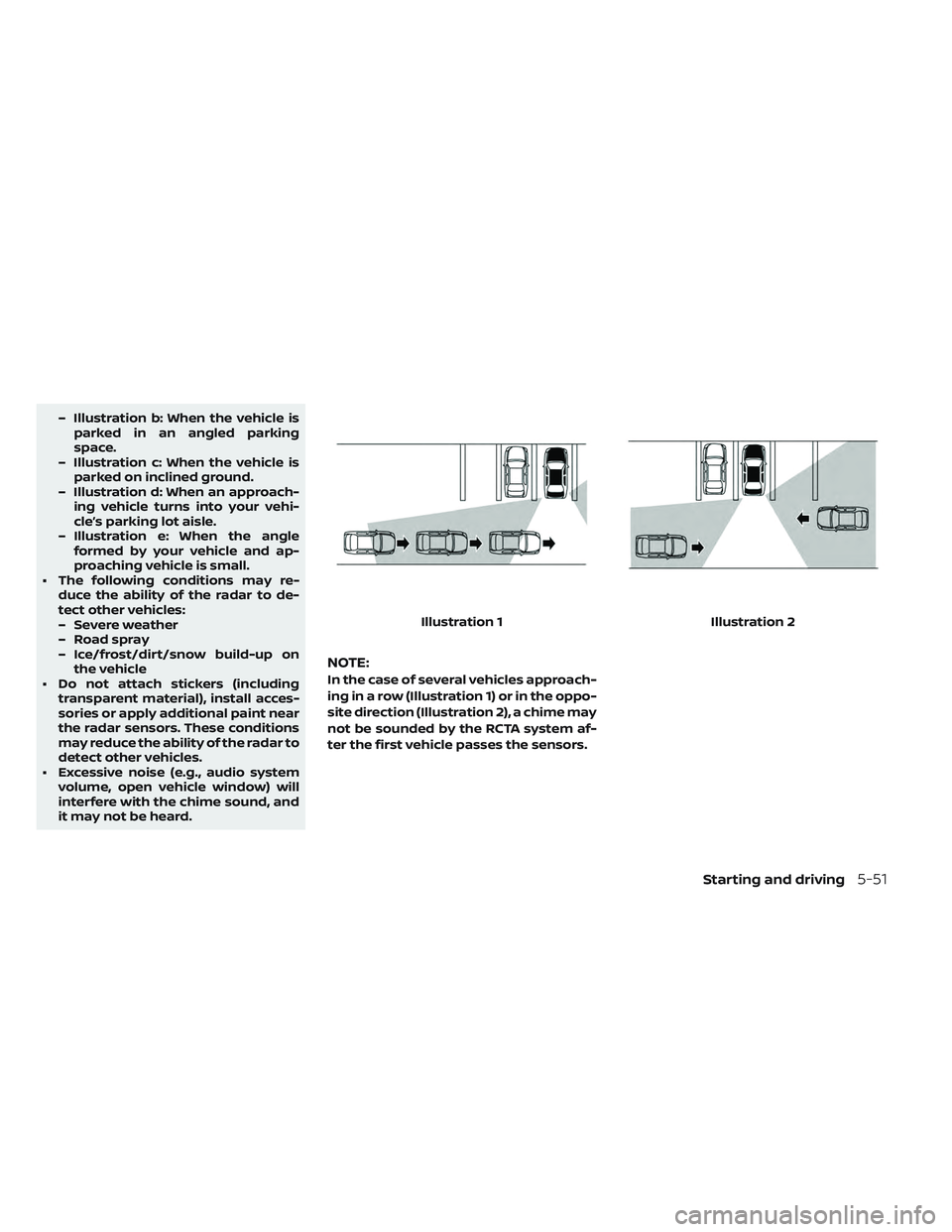

NISSAN LEAF 2019  Owner´s Manual – Illustration b: When the vehicle isparked in an angled parking
space.
– Illustration c: When the vehicle is parked on inclined ground.
– Illustration d: When an approach- ing vehicle turns int
