1. Tachometer (P.2-4)
2. Turn signal indicator (P.2-26)/Hazard indica-
tor (P.2-27)
3. Speedometer (P.2-4)
4. Engine coolant temperature gauge (P.2-5)
5. Fuel gauge (P.2-5)
6. Reset button for trip odometer (P.2-4)
7. Warning/Indicator lights (P.2-9)
8. Odometer (Total/Twin trip) (P.2-4)
9. CVT shift position indicator (P.5-12)
SIC2039
METERS AND GAUGES0-6
Illustrated table of contents
04.8.3/Z50-D/V5.0
Page 12 of 321
1. Power steering fluid reservoir (P.8-12)
2. Engine oil filler cap (P.8-9)
3. Brake fluid reservoir (P.8-13)
4. Air cleaner (P.8-17)
5. Windshield washer fluid reservoir (P.8-14)
6. Engine coolant reservoir (P.8-8)
7. Drive belts (P.8-16)
8. Radiator filler cap (P.8-8)
9. Engine oil dipstick (P.8-9)
10. Fuse/fusible link holder (P.8-21)
11. Battery (P.8-14)
SDI1760
ENGINE COMPARTMENT CHECK
LOCATIONS
Illustrated table of contents
0-7
04.8.3/Z50-D/V5.0
Page 13 of 321
MEMO0-8
Illustrated table of contents
04.8.3/Z50-D/V5.0
Page 14 of 321
1 Safety — seats, seat belts and supplemen-
tal restraint systemSeats ......................................................................................... 1-2
Front manual seat adjustment — passenger side ... 1-3
Front power seat adjustment ........................................ 1-4
Rear seat adjustment ...................................................... 1-5
Head restraint adjustment.............................................. 1-7
Active head restraint (front seats) ............................... 1-8
Armrest ............................................................................... 1-9
Seat belts ................................................................................. 1-9
Precautions on seat belt usage.................................... 1-9
Child safety ..................................................................... 1-12
Pregnant women ............................................................ 1-13
Injured persons............................................................... 1-13
Three-point type seat belt with retractor ................. 1-13
Rear center seat belt .................................................... 1-17
Seat belt extenders ....................................................... 1-20
Seat belt maintenance ................................................. 1-20
Child restraints ..................................................................... 1-21Precautions on child restraints................................... 1-21
Child restraint installation on rear seat outboard or
center positions.............................................................. 1-22
LATCH (Lower Anchors and Tethers for CHildren)
system .............................................................................. 1-27
Top tether strap child restraint................................... 1-29
Installation on front passenger seat.......................... 1-31
Booster seats ....................................................................... 1-34
Precautions on booster seats .................................... 1-34
Booster seat installation on rear seat outboard or
center positions.............................................................. 1-37
Booster seat installation on front passenger
seat.................................................................................... 1-38
Supplemental restraint system ......................................... 1-39
Precautions on supplemental restraint system ...... 1-39
Supplemental air bag warning labels ....................... 1-49
Supplemental air bag warning light .......................... 1-50
04.8.3/Z50-D/V5.0
Page 15 of 321
WARNING
Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap
belt and receive serious internal
injuries.For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back in the seat and adjust the
seat belt properly. See “Precautions
on seat belt usage” later in this sec-
tion.
SSS0133B
SEATS1-2
Safety — seats, seat belts and supplemental restraint system
04.8.3/Z50-D/V5.0
Page 16 of 321
FRONT MANUAL SEAT
ADJUSTMENT — Passenger side
WARNING
After adjustment, gently rock in the seat
to make sure it is securely locked.
Forward and backwardPull the lever up
1
while you slide the seat
forward or backward to the desired position.
Release the lever to lock the seat in position.
RecliningTo recline the seatback, pull the lever up
2and
lean back. To bring the seatback forward again,
pull the lever and move your body forward. The
seatback moves forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
later in this section.) The seatback may also be
reclined to allow occupants to rest when the
vehicle is parked.
SSS0179A
Safety — seats, seat belts and supplemental restraint system
1-3
04.8.3/Z50-D/V5.0
Page 17 of 321
FRONT POWER SEAT
ADJUSTMENT
WARNING
Do not adjust the driver’s seat while
driving so full attention may be given
to vehicle operation.
Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls.
Unattended children could become
involved in serious accidents.Operating tipsThe seat motor has an auto-reset overload
protection circuit. If the motor stops during
operation, wait 30 seconds, then reactivate
the switch.
Do not operate the power support seat
for a long period of time when the engine is
off. This will discharge the battery.
See “Automatic drive positioner” in the “3. Pre-
driving checks and adjustments” for automatic
drive positioner operation.
Forward and backwardMoving the switch
1
forward or backward will
slide the seat forward or backward to the de-
sired position.
RecliningMove the recline switch
2
backward until the
desired angle is obtained. To bring the seatback
forward again, move the switch forward. The
seatback will move forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
later in this section.) The seatback may also be
reclined to allow occupants to rest when the
vehicle is parked.
SPA1273C
1-4
Safety — seats, seat belts and supplemental restraint system
04.8.3/Z50-D/V5.0
Page 18 of 321
Seat lifter (if so equipped for driver’s
seat)1. Pull up or push down the switch
1to adjust
the seat height.
2. Tilt up or down the switch
1
to adjust the
seat angle.
Lumbar support (if so equipped for
driver’s seat)The lumbar support feature provides lower back
support to the driver. Push each side of the
switch to adjust the seat lumbar area.
REAR SEAT ADJUSTMENT
Folding1. Secure the seat belt at the belt hooks on the
side wall. See “Seat belt hook” later in this
section.
2. Secure the center seat belt and tongues into
the retractor base. See “Stowing rear center
seat belt” later in this section.
3. Put the seat belt buckles into the seat cush-
ion.
See “Storing rear seat belt buckles” later in
this section.
SPA1275B
SSS0280
SSS0420
Safety — seats, seat belts and supplemental restraint system
1-5
04.8.3/Z50-D/V5.0
Page 19 of 321
4. Remove the head restraints. See “Head re-
straint adjustment” later in this section.
5. After closing the tonneau subcover (if so
equipped) from each rear seatback, pull the
strap on the rear seat
Aor pull the lever
B
beside the cargo area and fold the seatback.
6. When returning the seatbacks, be sure to
install the head restraints and attach the rear
center seat belt connector.

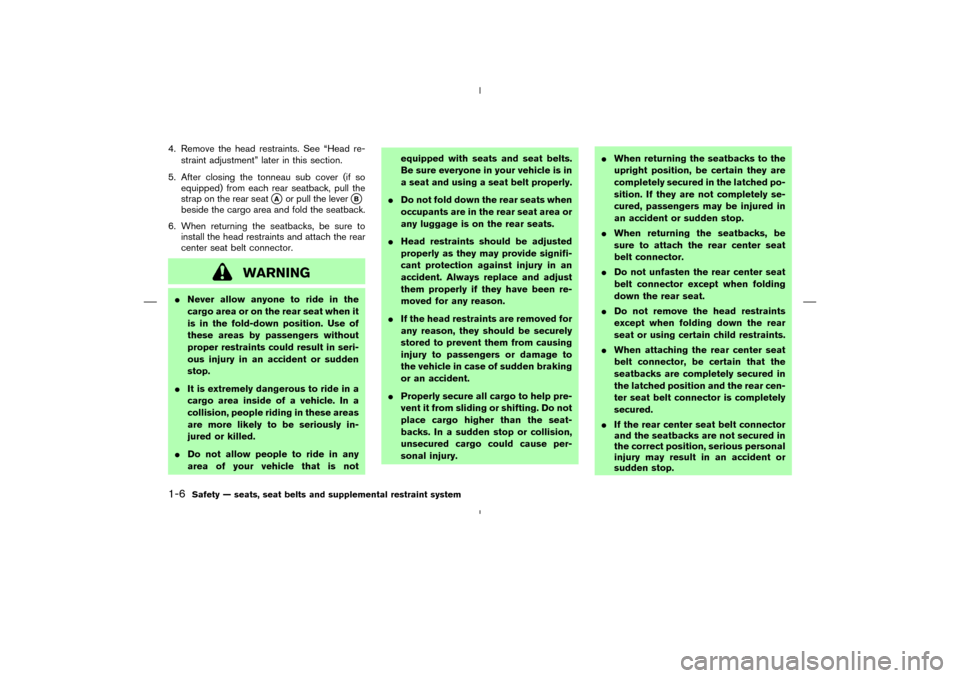

WARNING
Never allow anyone to ride in the
cargo area or on the rear seat when it
is in the fold-down position. Use of
these areas by passengers without
proper restraints could result in seri-
ous injury in an accident or sudden
stop.
It is extremely dangerous to ride in a
cargo area inside of a vehicle. In a
collision, people riding in these areas
are more likely to be seriously in-
jured or killed.
Do not allow people to ride in any
area of your vehicle that is notequipped with seats and seat belts.
Be sure everyone in your vehicle is in
a seat and using a seat belt properly.
Do not fold down the rear seats when
occupants are in the rear seat area or
any luggage is on the rear seats.
Head restraints should be adjusted
properly as they may provide signifi-
cant protection against injury in an
accident. Always replace and adjust
them properly if they have been re-
moved for any reason.
If the head restraints are removed for
any reason, they should be securely
stored to prevent them from causing
injury to passengers or damage to
the vehicle in case of sudden braking
or an accident.
Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury.When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched po-
sition. If they are not completely se-
cured, passengers may be injured in
an accident or sudden stop.
When returning the seatbacks, be
sure to attach the rear center seat
belt connector.
Do not unfasten the rear center seat
belt connector except when folding
down the rear seat.
Do not remove the head restraints
except when folding down the rear
seat or using certain child restraints.
When attaching the rear center seat
belt connector, be certain that the
seatbacks are completely secured in
the latched position and the rear cen-
ter seat belt connector is completely
secured.
If the rear center seat belt connector
and the seatbacks are not secured in
the correct position, serious personal
injury may result in an accident or
sudden stop.1-6
Safety — seats, seat belts and supplemental restraint system
04.8.3/Z50-D/V5.0
Page 20 of 321
RecliningPull the reclining strap
1
and position the seat
back at the desired angle
2. Release the
reclining strap
1
after positioning the seat at
the desired angle.
The reclining feature allows adjustment of the
seatback for occupants of different sizes to help
obtain proper seat belt fit. (See “Precautions on
seat belt usage” later in this section.) The seat-
back may also be reclined to allow occupants to
rest when the vehicle is parked.

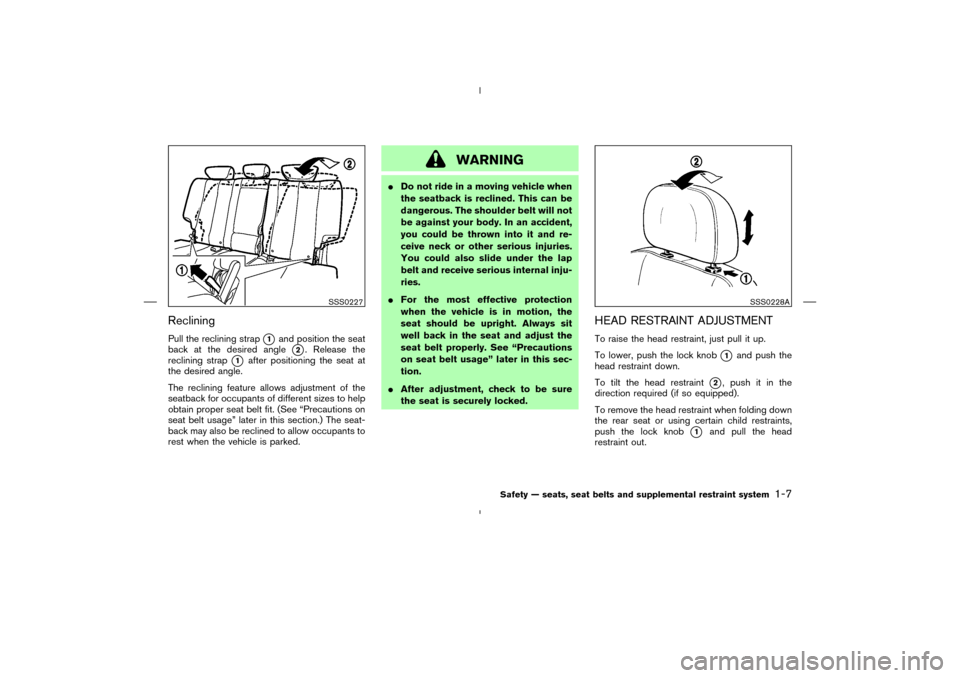

WARNING
Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap
belt and receive serious internal inju-
ries.
For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back in the seat and adjust the
seat belt properly. See “Precautions
on seat belt usage” later in this sec-
tion.
After adjustment, check to be sure
the seat is securely locked.
HEAD RESTRAINT ADJUSTMENTTo raise the head restraint, just pull it up.
To lower, push the lock knob
1
and push the
head restraint down.
To tilt the head restraint
2, push it in the
direction required (if so equipped).
To remove the head restraint when folding down
the rear seat or using certain child restraints,
push the lock knob
1
and pull the head
restraint out.
SSS0227
SSS0228A
Safety — seats, seat belts and supplemental restraint system
1-7
04.8.3/Z50-D/V5.0
