child restraints only at the locations
shown. If a child restraint is not se-
cured properly, your child could be
seriously injured or killed in an acci-
dent.
Do not secure a child restraint in the
center rear seating position using the
LATCH system anchors. The child re-
straint will not be secured properly.
The LATCH system anchors are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstance are
they to be used for adult seat belts or
harnesses.
Some child restraints include two rigid or
webbing-mounted attachments that can be con-
nected to two anchors located at certain seating
positions in your vehicle. This system is known
as the LATCH (Lower Anchors and Tethers for
CHildren) system. This system may also be
referred to as the ISOFIX or ISOFIX compatible
system. With this system, you do not have to use
a vehicle seat belt to secure the child restraint.
Your vehicle is equipped with special anchor
points that are used with LATCH system com-patible child restraints. Check your child restraint
for a label stating that it is compatible with the
LATCH system. This information may also be in
the child restraint owner’s manual. If you have
such a child restraint, refer to the illustration for
the seating positions equipped with LATCH
system anchors which can be used to secure the
child restraint.
The LATCH system anchors are located at the
rear of the seat cushion near the seatback. A
label is attached to the seatback to help you
locate the LATCH system anchors.
Some child restraints may also require the use of
a top tether strap. See “Top tether strap child
restraint” later in this section for installation
instructions.
When installing a child restraint, carefully read
and follow the instructions in this manual and
those supplied with the child restraint.
When you install a LATCH system compatible
child restraint to the lower anchor attachments,
follow these steps.
WARNING
Inspect the lower anchors by inserting
your fingers into the lower anchor area
and feeling to make sure there are no
obstructions over the LATCH system an-
chors, such as seat belt webbing or seat
cushion material. The child restraint will
not be secured properly if the LATCH
system anchors are obstructed.
1. To install the LATCH system compatible child
restraint, adjust the height of the child re-
straint LATCH system anchor attachments to
the anchor points on the rear seat.
2. Insert the anchor attachments into the anchor
points. If the child restraint is equipped with a
top tether, see “Top tether strap child re-
straint” later in this section for installation
instructions.
3. After attaching the child restraint and before
placing the child in it, use force to push the
child restraint from side to side and tug it
forward to make sure that the child restraint is
securely held in place. It should not move
more than 1 inch (25 mm).
4. Check to make sure that the child restraint is
properly secured prior to each use.
1-28
Safety — seats, seat belts and supplemental restraint system
04.8.3/Z50-D/V5.0
Page 42 of 321
TOP TETHER STRAP CHILD
RESTRAINT
WARNING
Child restraint anchor points are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used for adult seat belts or
harnesses.
After removing a rear seat head re-
straint for top tether installation,
store it securely to prevent it from
causing injury to passengers or dam-
age to the vehicle in case of sudden
braking or an accident. Always re-
place it and adjust properly when top
tether is no longer in use.
The child restraint top tether strap
may be damaged by contact with the
tonneau cover or items in the cargo
area. Remove the tonneau cover from
the vehicle or secure it and any cargo.
Your child could be seriously injured
or killed ina collision if the top tetherstrap is damaged.
If your child restraint has a top tether strap, it
must be secured to the anchor point provided
behind its position.
First, adjust the seatback so that it is upright.
Then secure the child restraint with the rear seat
belt or the LATCH system (outboard positions),
as applicable. For the center position
C, re-
move the anchor cover from the anchor point as
illustrated. Keep the removed cover in a secure
place to prevent loss or damage.
Remove the head restraint from the seatback.
Store it in a secure place. Position the top tether
strap over the top of the seatback and secure it
to the tether anchor bracket that provides the
SSS0234
Safety — seats, seat belts and supplemental restraint system
1-29
04.8.3/Z50-D/V5.0
Page 43 of 321
straightest installation. Tighten the tether strap
according to the manufacturer’s instruction to
remove any slack.
For best child restraint fit, see the child restraint
installation instructions in this section and the
child restraint manufacturer’s instructions.Anchor point locations
WARNING
The anchor bolt should be installed at
all times to prevent the possibility ofexhaust fumes entering the passenger
compartment through the holes. See
“Precautions when starting and driving”
in the “5. Starting and driving” section
for exhaust gas.
Anchor points are located as illustrated.
A
: for rear left side seat position
B
: for rear right side seat position
C
: for rear center seat position
If you have any questions when installing a
top strap child restraint on the rear seat,
consult a NISSAN dealer for details.
SSS0393
1-30
Safety — seats, seat belts and supplemental restraint system
04.8.3/Z50-D/V5.0
Page 44 of 321
INSTALLATION ON FRONT
PASSENGER SEAT
WARNING
Never install a rear-facing child re-
straint in the front passenger seat.
Supplemental front air bags inflate
with great force. A rear-facing child
restraint could be struck by the
supplemental front air bag in a crash
and could seriously injure or kill yourchild.
NISSAN recommends that child re-
straints be installed in the rear seat.
However, if you must install a front
facing child restraint in the front pas-
senger seat, move the passenger
seat to the rearmost position.
A child restraint with a top tether
strap should not be used in the front
passenger seat.
The three-point seat belt in your ve-
hicle is equipped with an automaticlocking mode retractor which must
be used when installing a child re-
straint.
Failure to use the retractor’s locking
mode will result in the child restraint
not being properly secured. The re-
straint could tip over or otherwise be
unsecured and cause injury to the
child in a sudden stop or collision.
SSS0300A
Safety — seats, seat belts and supplemental restraint system
1-31
04.8.3/Z50-D/V5.0
Page 45 of 321
Front facingIf you must install a child restraint in the front
seat, follow these steps:
1. Position the child restraint on the front pas-
senger seat.It should be placed in a front
facing direction only.Move the seat to the
rearmost position. Adjust the head restraint to
its highest position. Always follow the child
restraint manufacturer’s instructions.Child
restraints for infants must be used in
the rear facing direction and therefore
must not be used in the front seat.
The back of the child restraint should besecured against the vehicle seatback. If nec-
essary, adjust or remove the head restraint to
obtain the correct child restraint fit. See
“Head restraint adjustment” earlier in this
section. If the head restraint is removed, store
it in a secure place. Be sure to install the
head restraint when the child restraint is
removed. If the seating position does not
have an adjustable head restraint and it is
interfering with the proper child restraint fit,
try another seating position or a different
child restraint.
2. Route the seat belt tongue through the child
restraint and insert it into the buckle until you
hear and feel the latch engage. Be sure to
follow the child restraint manufacturer’s in-
structions for belt routing.
SSS0301B
SSS0360
1-32
Safety — seats, seat belts and supplemental restraint system
04.8.3/Z50-D/V5.0
Page 46 of 321
3. Pull on the shoulder belt until all of the belt is
fully extended. At this time, the belt retractor
is in the automatic locking mode (child re-
straint mode). It reverts back to emergency
locking mode when the belt is fully retracted.4. Allow the belt to retract. Pull up on the belt to
remove any slack in the belt.5. Before placing the child in the child restraint,
use force to push the child restraint from side
to side, and tug it forward to make sure that it
is securely held in place. It should not move
more than 1 inch (25 mm). If it does move
more than 1 inch (25 mm), pull again on the
shoulder belt to further tighten the child
restraint. If unable to properly secure the
restraint, move the restraint to another rear
seating position and try again, or try a differ-
ent child restraint. Not all child restraints fit in
all types of vehicles.
6. Check that the retractor is in the automatic
locking mode by trying to pull more belt out of
the retractor. If you cannot pull any more belt
SSS0361
SSS0424
SSS0302E
Safety — seats, seat belts and supplemental restraint system
1-33
04.8.3/Z50-D/V5.0
Page 47 of 321
webbing out of the retractor, the belt is in the
automatic locking mode.
7. Check to make sure that the child restraint is
properly secured prior to each use. If the lap
belt is not locked, repeat steps 3 through 6.
After the child restraint is removed and the seat
belt is allowed to wind back into the retractor,
the automatic locking mode (child restraint
mode) will be canceled.

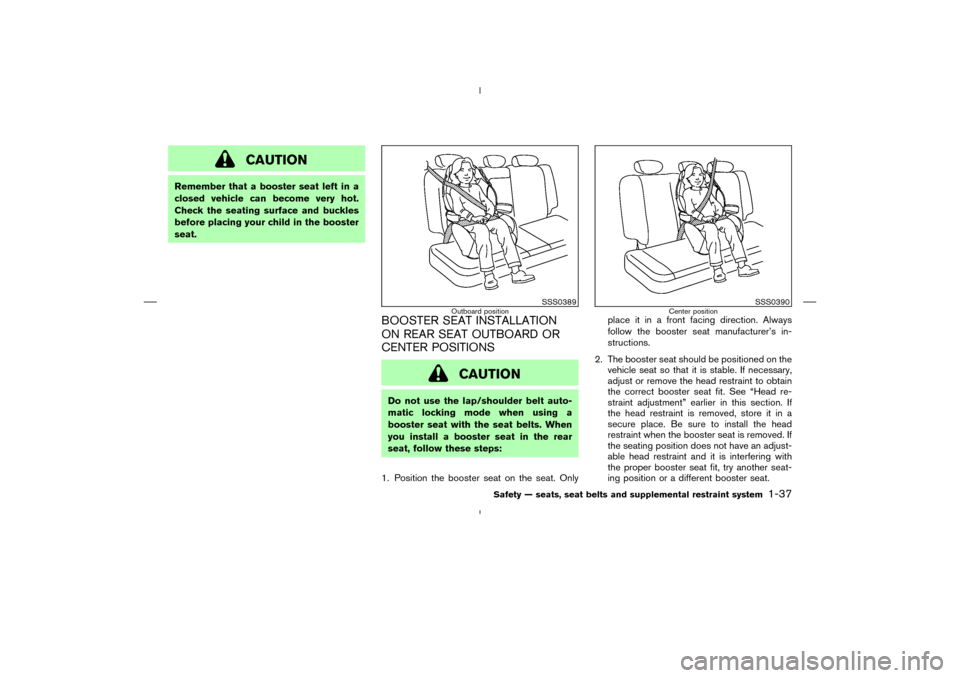

PRECAUTIONS ON BOOSTER
SEATS
WARNING
Infants and small children should al-
ways be placed in an appropriate
child restraint while riding in the ve-
hicle. Failure to use a child restraint
or booster seat can result in serious
injury or death.
Infants and small children should
never be carried on your lap. It is not
possible for even the strongest adult
to resist the forces of a severe acci-
dent. The child could be crushed be-
tween the adult and parts of the ve-
hicle. Also, do not put the same seat
belt around both your child and your-
self.
NISSAN recommends that the
booster seat be installed in the rear
seat. According to accident statistics,
children are safer when properly re-
strained in the rear seat than in the
front seat.A booster seat must only be installed
in a seating position that has a
lap/shoulder belt. Failure to use a
three-point type seat belt with a
booster seat can result in a serious
injury in sudden stop or collision.
An improperly installed booster seat
could lead to serious injury or death
in an accident.BOOSTER SEATS
1-34
Safety — seats, seat belts and supplemental restraint system
04.8.3/Z50-D/V5.0
Page 48 of 321

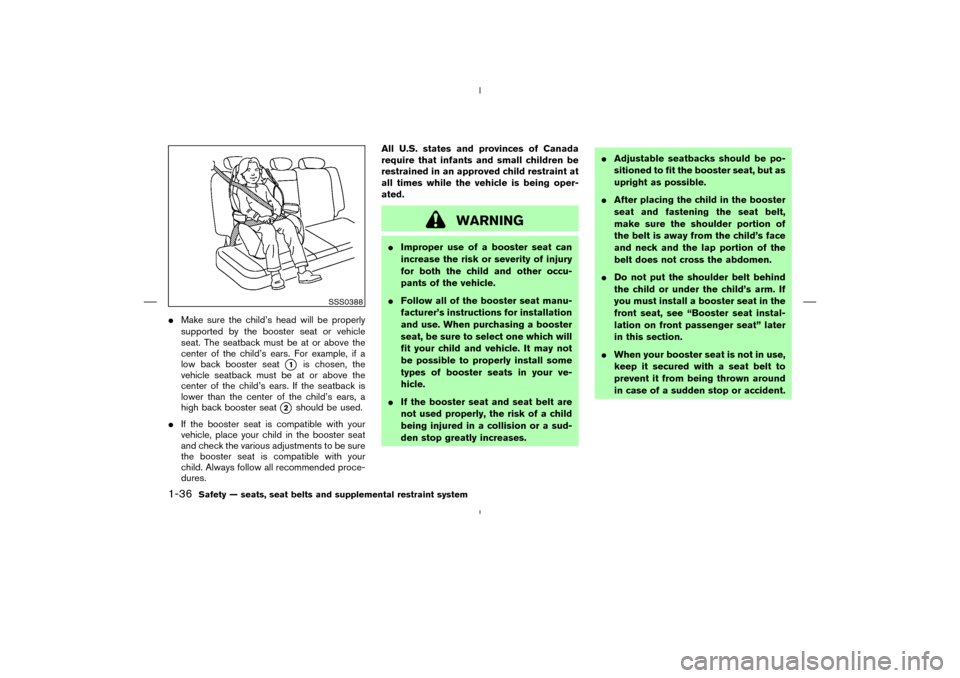

WARNING
Do not use towels, books, pillows or
other items in place of a booster seat.
Items such as these may move during
normal driving or a collision and result
in serious injury or death. Booster seats
are designed to be used with a
lap/shoulder belt. Booster seats are de-
signed to properly route the lap and
shoulder portions of the seat belt over
the strongest portions of a child’s bodyto provide the maximum protection dur-
ing a collision.
Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in mind:
Choose only a booster seat with a label
certifying that it complies with Federal Motor
Vehicle Safety Standard 213 or Canadian
Motor Vehicle Safety Standard 213.
Check the booster seat in your vehicle to be
sure it is compatible with the vehicle’s seat
and seat belt system.
LRS0455
SSS0387
Safety — seats, seat belts and supplemental restraint system
1-35
04.8.3/Z50-D/V5.0
Page 49 of 321
Make sure the child’s head will be properly
supported by the booster seat or vehicle
seat. The seatback must be at or above the
center of the child’s ears. For example, if a
low back booster seat
1
is chosen, the
vehicle seatback must be at or above the
center of the child’s ears. If the seatback is
lower than the center of the child’s ears, a
high back booster seat
2
should be used.
If the booster seat is compatible with your
vehicle, place your child in the booster seat
and check the various adjustments to be sure
the booster seat is compatible with your
child. Always follow all recommended proce-
dures.All U.S. states and provinces of Canada
require that infants and small children be
restrained in an approved child restraint at
all times while the vehicle is being oper-
ated.
WARNING
Improper use of a booster seat can
increase the risk or severity of injury
for both the child and other occu-
pants of the vehicle.
Follow all of the booster seat manu-
facturer’s instructions for installation
and use. When purchasing a booster
seat, be sure to select one which will
fit your child and vehicle. It may not
be possible to properly install some
types of booster seats in your ve-
hicle.
If the booster seat and seat belt are
not used properly, the risk of a child
being injured in a collision or a sud-
den stop greatly increases.Adjustable seatbacks should be po-
sitioned to fit the booster seat, but as
upright as possible.
After placing the child in the booster
seat and fastening the seat belt,
make sure the shoulder portion of
the belt is away from the child’s face
and neck and the lap portion of the
belt does not cross the abdomen.
Do not put the shoulder belt behind
the child or under the child’s arm. If
you must install a booster seat in the
front seat, see “Booster seat instal-
lation on front passenger seat” later
in this section.
When your booster seat is not in use,
keep it secured with a seat belt to
prevent it from being thrown around
in case of a sudden stop or accident.
SSS0388
1-36
Safety — seats, seat belts and supplemental restraint system
04.8.3/Z50-D/V5.0
Page 50 of 321
CAUTION
Remember that a booster seat left in a
closed vehicle can become very hot.
Check the seating surface and buckles
before placing your child in the booster
seat.
BOOSTER SEAT INSTALLATION
ON REAR SEAT OUTBOARD OR
CENTER POSITIONS
CAUTION
Do not use the lap/shoulder belt auto-
matic locking mode when using a
booster seat with the seat belts. When
you install a booster seat in the rear
seat, follow these steps:
1. Position the booster seat on the seat. Onlyplace it in a front facing direction. Always
follow the booster seat manufacturer’s in-
structions.
2. The booster seat should be positioned on the
vehicle seat so that it is stable. If necessary,
adjust or remove the head restraint to obtain
the correct booster seat fit. See “Head re-
straint adjustment” earlier in this section. If
the head restraint is removed, store it in a
secure place. Be sure to install the head
restraint when the booster seat is removed. If
the seating position does not have an adjust-
able head restraint and it is interfering with
the proper booster seat fit, try another seat-
ing position or a different booster seat.
SSS0389
Outboard position
SSS0390
Center position
Safety — seats, seat belts and supplemental restraint system
1-37
04.8.3/Z50-D/V5.0
