NISSAN MURANO 2005 1.G Owner's Guide
Manufacturer: NISSAN, Model Year: 2005, Model line: MURANO, Model: NISSAN MURANO 2005 1.GPages: 321, PDF Size: 3.49 MB
Page 31 of 321
Stowing rear center seat beltWhen folding down the rear seat, the rear center
seat belt can be retracted into a stowed position
as follows:
1. Hold the connector tongue
1
so that the
seat belt does not retract suddenly when the
tongue is released from the connector
buckle.
2. Inserting a suitable tool such as key
A
into
the connector buckle and release the con-
nector tongue
1.
3. Secure the seat belt tongue into the retractor
base first
2.
4. Then secure the connector tongue into the
retractor base3.
WARNING
Do not unfasten the rear center seat
belt connector except when folding
down the rear seat.
When attaching the rear center seat
belt connector, be certain that the
seatbacks are completely secured in
the latched position and the rearcenter seat belt connector is com-
pletely secured.
If the rear center seat belt connector
and the seatbacks are not secured in
the correct position, serious personal
injury may result in an accident or
sudden stop.
SSS0225
1-18
Safety — seats, seat belts and supplemental restraint system
04.8.3/Z50-D/V5.0
Page 32 of 321
Attaching rear center seat beltAlways be sure the rear center seat belt connec-
tor tongue and connector buckle are attached.
Disconnect only when folding down the rear
seat.
To connect the buckle:
1. Pull out the connector tongue from the re-
tractor base
1.
2. Pull out the seat belt tongue from the retrac-
tor base
2.
3. Pull the seat belt and secure the connector
buckle until it clicks
3.
The center seat belt connector tongue and
buckle are indicated by the “” and “” mark.
The center seat belt connector tongue can be
attached only into the rear center seat belt
connector buckle.
To fasten the seat belt, see “Fastening the seat
belt” earlier in this section.
WARNING
Do not unfasten the rear center seat
belt connector except when folding
down the rear seat.When attaching the rear center seat
belt connector, be certain that the
seatbacks are completely secured in
the latched position and the rear cen-
ter seat belt connector is completely
secured.
If the rear center seat belt connector
and the seatbacks are not secured in
the correct position, serious personal
injury may result in an accident or
sudden stop.
SSS0232
Safety — seats, seat belts and supplemental restraint system
1-19
04.8.3/Z50-D/V5.0
Page 33 of 321
Storing rear seat belt bucklesBefore folding down the seat, put the buckles in
the storage of the seat cushion to avoid drop-
ping it under the seat cushion.SEAT BELT EXTENDERSIf, because of body size or driving position, it is
not possible to properly fit the lap-shoulder belt
and fasten it, an extender is available. The ex-
tender adds approximately 8 inches (200 mm) of
length and may be used for either the driver or
front passenger seating position. See a NISSAN
dealer for assistance if the extender is required.
WARNING
Only NISSAN seat belt extenders,
made by the same company which
made the original equipment seat
belts, should be used with NISSAN
seat belts.
Adults and children who can use the
standard seat belt should not use an
extender. Such unnecessary use
could result in serious personal in-
jury in the event of an accident.
Never use seat belt extenders to in-
stall child restraints. If the child re-
straint is not secured properly, the
child could be seriously injured in a
collision or a sudden stop.SEAT BELT MAINTENANCETo clean the seat belt webbings,apply a
mild soap solution or any solution recom-
mended for cleaning upholstery or carpets.
Then brush the webbing, wipe it with a cloth
and allow it to dry in the shade. Do not allow
the seat belts to retract until they are com-
pletely dry.If dirt builds up in the shoulder belt guide of
the seat belt anchors, the seat belts may
retract slowly. Wipe the shoulder belt guide
with a clean, dry cloth.
Periodically check to see that the seat
belt and the metal componentssuch as
buckles, tongues, retractors, flexible wires
and anchors work properly. If loose parts,
deterioration, cuts or other damage on the
webbing is found, the entire belt assembly
should be replaced.
SSS0235
1-20
Safety — seats, seat belts and supplemental restraint system
04.8.3/Z50-D/V5.0
Page 34 of 321
PRECAUTIONS ON CHILD
RESTRAINTS

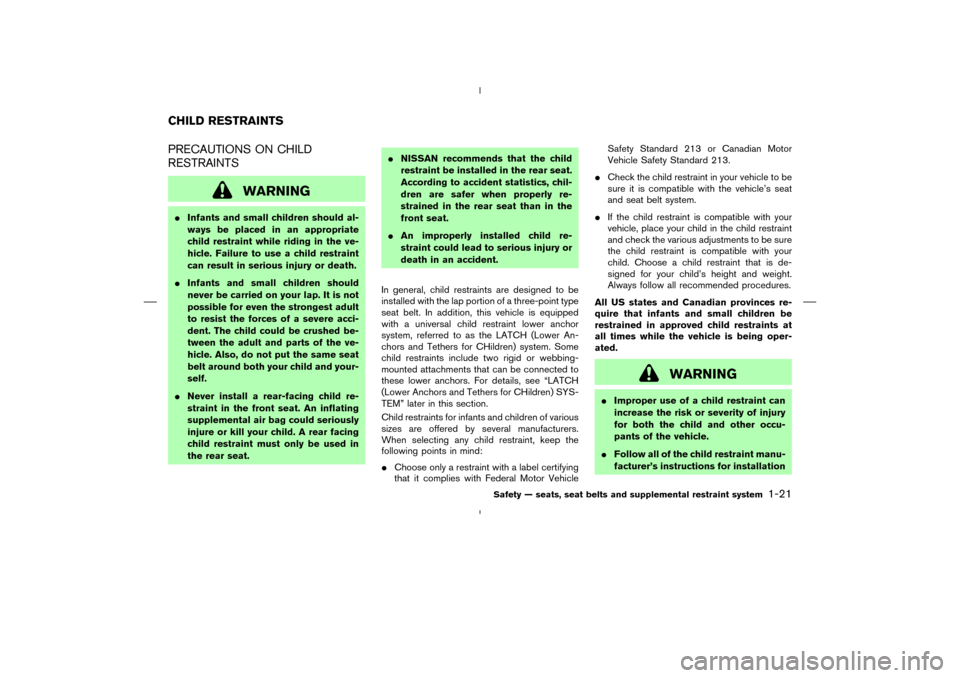

WARNING
Infants and small children should al-
ways be placed in an appropriate
child restraint while riding in the ve-
hicle. Failure to use a child restraint
can result in serious injury or death.
Infants and small children should
never be carried on your lap. It is not
possible for even the strongest adult
to resist the forces of a severe acci-
dent. The child could be crushed be-
tween the adult and parts of the ve-
hicle. Also, do not put the same seat
belt around both your child and your-
self.
Never install a rear-facing child re-
straint in the front seat. An inflating
supplemental air bag could seriously
injure or kill your child. A rear facing
child restraint must only be used in
the rear seat.NISSAN recommends that the child
restraint be installed in the rear seat.
According to accident statistics, chil-
dren are safer when properly re-
strained in the rear seat than in the
front seat.
An improperly installed child re-
straint could lead to serious injury or
death in an accident.
In general, child restraints are designed to be
installed with the lap portion of a three-point type
seat belt. In addition, this vehicle is equipped
with a universal child restraint lower anchor
system, referred to as the LATCH (Lower An-
chors and Tethers for CHildren) system. Some
child restraints include two rigid or webbing-
mounted attachments that can be connected to
these lower anchors. For details, see “LATCH
(Lower Anchors and Tethers for CHildren) SYS-
TEM” later in this section.
Child restraints for infants and children of various
sizes are offered by several manufacturers.
When selecting any child restraint, keep the
following points in mind:
Choose only a restraint with a label certifying
that it complies with Federal Motor VehicleSafety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.
Check the child restraint in your vehicle to be
sure it is compatible with the vehicle’s seat
and seat belt system.
If the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be sure
the child restraint is compatible with your
child. Choose a child restraint that is de-
signed for your child’s height and weight.
Always follow all recommended procedures.
All US states and Canadian provinces re-
quire that infants and small children be
restrained in approved child restraints at
all times while the vehicle is being oper-
ated.
WARNING
Improper use of a child restraint can
increase the risk or severity of injury
for both the child and other occu-
pants of the vehicle.
Follow all of the child restraint manu-
facturer’s instructions for installation
CHILD RESTRAINTS
Safety — seats, seat belts and supplemental restraint system
1-21
04.8.3/Z50-D/V5.0
Page 35 of 321

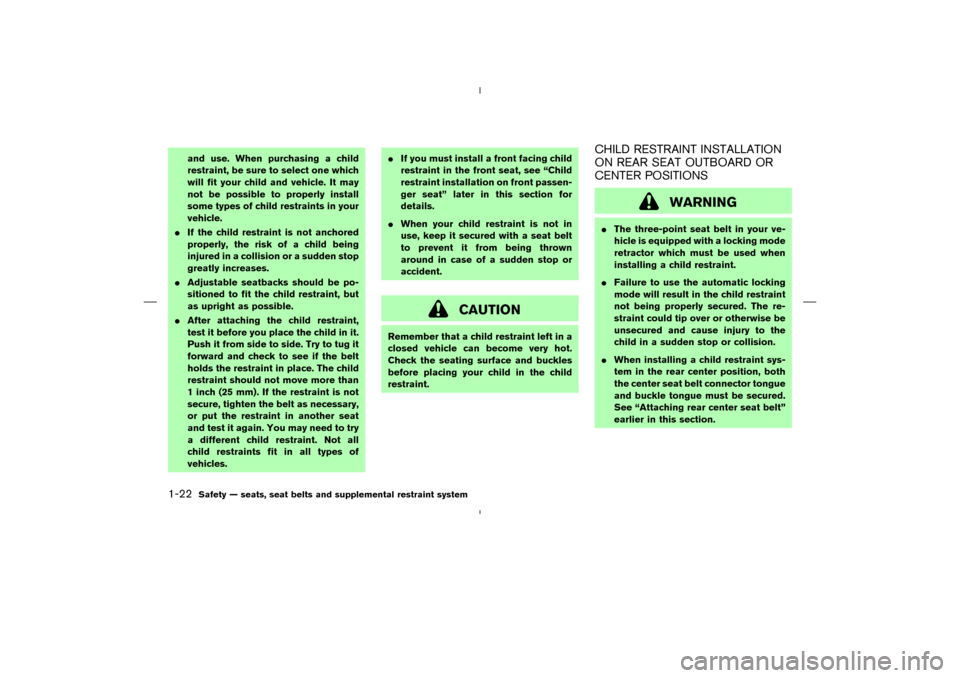

and use. When purchasing a child
restraint, be sure to select one which
will fit your child and vehicle. It may
not be possible to properly install
some types of child restraints in your
vehicle.
If the child restraint is not anchored
properly, the risk of a child being
injured in a collision or a sudden stop
greatly increases.
Adjustable seatbacks should be po-
sitioned to fit the child restraint, but
as upright as possible.
After attaching the child restraint,
test it before you place the child in it.
Push it from side to side. Try to tug it
forward and check to see if the belt
holds the restraint in place. The child
restraint should not move more than
1 inch (25 mm). If the restraint is not
secure, tighten the belt as necessary,
or put the restraint in another seat
and test it again. You may need to try
a different child restraint. Not all
child restraints fit in all types of
vehicles.If you must install a front facing child
restraint in the front seat, see “Child
restraint installation on front passen-
ger seat” later in this section for
details.
When your child restraint is not in
use, keep it secured with a seat belt
to prevent it from being thrown
around in case of a sudden stop or
accident.
CAUTION
Remember that a child restraint left in a
closed vehicle can become very hot.
Check the seating surface and buckles
before placing your child in the child
restraint.
CHILD RESTRAINT INSTALLATION
ON REAR SEAT OUTBOARD OR
CENTER POSITIONS
WARNING
The three-point seat belt in your ve-
hicle is equipped with a locking mode
retractor which must be used when
installing a child restraint.
Failure to use the automatic locking
mode will result in the child restraint
not being properly secured. The re-
straint could tip over or otherwise be
unsecured and cause injury to the
child in a sudden stop or collision.
When installing a child restraint sys-
tem in the rear center position, both
the center seat belt connector tongue
and buckle tongue must be secured.
See “Attaching rear center seat belt”
earlier in this section.
1-22
Safety — seats, seat belts and supplemental restraint system
04.8.3/Z50-D/V5.0
Page 36 of 321
Front facingWhen you install a child restraint in a rear
outboard or center seat, follow these steps:
1. Position the child restraint on the seat. Al-
ways follow the restraint manufacturer’s in-
structions.
The back of the child restraint should be
secured against the vehicle seatback. If nec-
essary, adjust or remove the head restraint to
obtain the correct child restraint fit. See
“Head restraint adjustment” earlier in this
section. If the head restraint is removed, store
it in a secure place. Be sure to install thehead restraint when the child restraint is
removed. If the seating position does not
have an adjustable head restraint and it is
interfering with the proper child restraint fit,
try another seating position or a different
child restraint.2. Route the seat belt tongue through the child
restraint and insert it into the buckle until you
hear and feel the latch engage.
Be sure to follow the child restraint manufac-
turer’s instructions for belt routing.
SSS0252A
Rear outboard seat
SSS0342
Rear center seat
SSS0253E
Safety — seats, seat belts and supplemental restraint system
1-23
04.8.3/Z50-D/V5.0
Page 37 of 321
3. Pull on the shoulder belt until all of the belt is
fully extended. At this time, the belt retractor
is in the automatic locking mode (child re-
straint mode). It reverts back to emergency
locking mode when the belt is fully retracted.4. Allow the belt to retract. Pull up on the
shoulder belt to remove any slack in the belt.5. Before placing the child in the child restraint,
use force to push the child restraint from side
to side, and tug it forward to make sure that it
is securely held in place. It should not move
more than 1 inch (25 mm). If it does move
more than 1 inch (25 mm), pull again on the
shoulder belt to further tighten the child
restraint. If unable to properly secure the
restraint, move the restraint to another rear
seating position and try again, or try a differ-
ent child restraint. Not all child restraints fit in
all types of vehicles.
6. Check that the retractor is in the automatic
locking mode by trying to pull more belt out of
the retractor. If you cannot pull any more belt
SSS0422
SSS0423
SSS0333
1-24
Safety — seats, seat belts and supplemental restraint system
04.8.3/Z50-D/V5.0
Page 38 of 321
webbing out of the retractor, the belt is in the
automatic locking mode.
7. Check to make sure that the child restraint is
properly secured prior to each use. If the belt
is not locked, repeat steps 3 through 6.
After the child restraint is removed and the seat
belt is allowed to wind back into the retractor,
the automatic locking mode (child restraint
mode) will be canceled.
Rear facingWhen you install a child restraint in a rear
outboard or center seat, follow these steps:
1. Position the child restraint on the seat. Al-
ways follow the restraint manufacturer’s in-
structions.
SSS0392
Rear outboard seat
SSS0358
Rear center seat
Safety — seats, seat belts and supplemental restraint system
1-25
04.8.3/Z50-D/V5.0
Page 39 of 321
2. Route the seat belt tongue through the child
restraint and insert it into the buckle until you
hear and feel the latch engage.
Be sure to follow the child restraint manufac-
turer’s instructions for belt routing.3. Pull on the shoulder belt until all of the belt is
fully extended. At this time, the belt retractor
is in the automatic locking mode (child re-
straint mode). It reverts back to emergency
locking mode when the belt is fully retracted.4. Allow the belt to retract. Pull up on the belt to
remove any slack in the belt.
SSS0335
SSS0258A
SSS0259A
1-26
Safety — seats, seat belts and supplemental restraint system
04.8.3/Z50-D/V5.0
Page 40 of 321
5. Before placing the child in the child restraint,
use force to push the child restraint from side
to side, and tug it forward to make sure that it
is securely held in place. It should not move
more than 1 inch (25 mm). If it does move
more than 1 inch (25 mm), pull again on the
shoulder belt to further tighten the child
restraint. If unable to properly secure the
restraint, move the restraint to another rear
seating position and try again, or try a differ-
ent child restraint. Not all child restraints fit in
all types of vehicles.
6. Check that the retractor is in the automatic
locking mode by trying to pull more belt out of
the retractor. If you cannot pull any more beltwebbing out of the retractor, the belt is in the
automatic locking mode.
7. Check to make sure that the child restraint is
properly secured prior to each use. If the belt
is not locked, repeat steps 3 through 6.
After the child restraint is removed and the seat
belt is allowed to wind back into the retractor,
the automatic locking mode (child restraint
mode) is canceled.
LATCH (LOWER ANCHORS AND
TETHERS FOR CHILDREN)
SYSTEM1. LATCH lower anchor points (right)
2. LATCH lower anchor points (left)
3. LATCH label
(1 and 2 are located in the space between the
seatback and seat cushion)
WARNING
Attach LATCH system compatible
SSS0260A
SSS0419
Safety — seats, seat belts and supplemental restraint system
1-27
04.8.3/Z50-D/V5.0
